LEXUS SC400 1991 Service Repair Manual

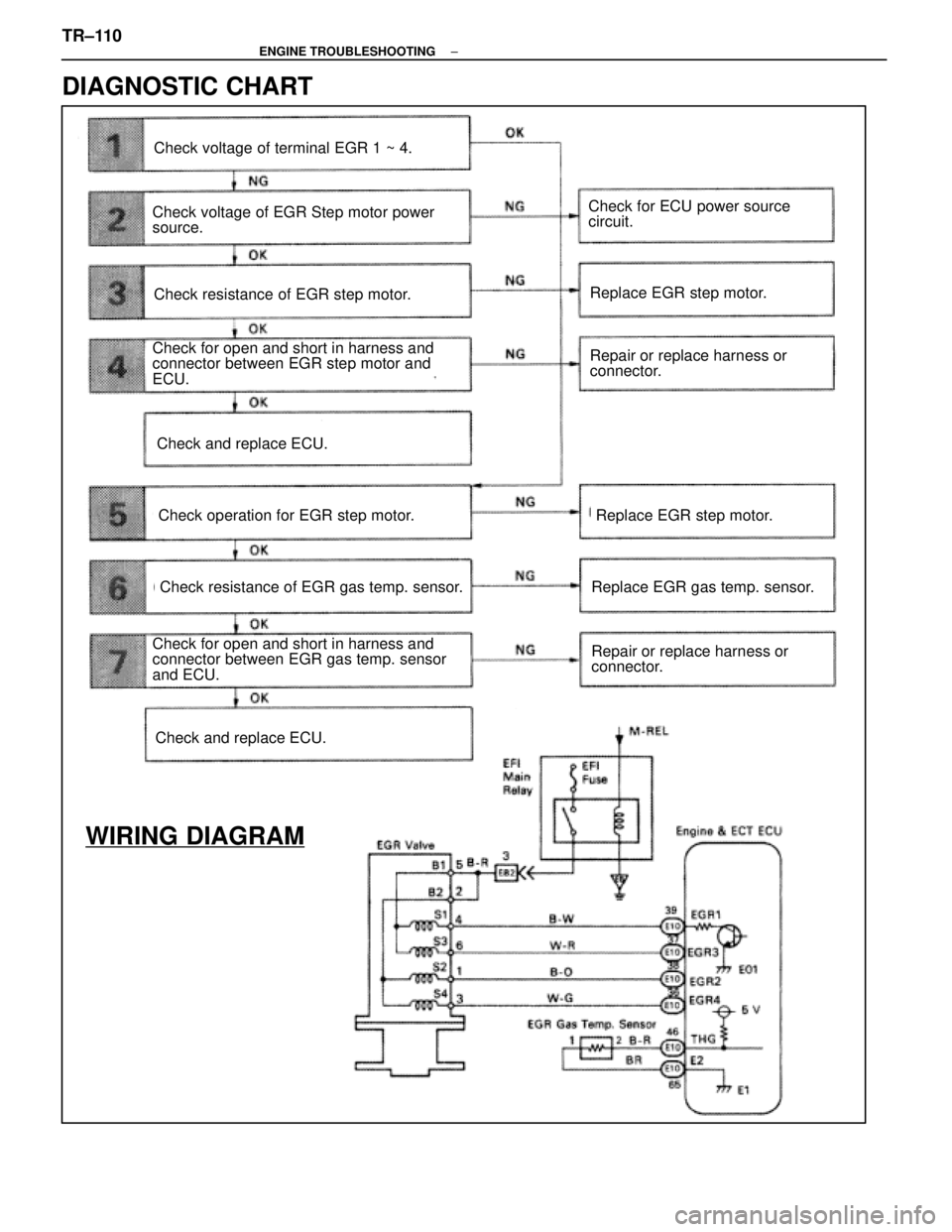

DIAGNOSTIC CHART
WIRING DIAGRAM
Check voltage of terminal EGR 1 ~ 4.
Check voltage of EGR Step motor power
source.
Check resistance of EGR step motor.
Check for open and short in harness and
connector between EGR step motor and
ECU.
Check and replace ECU.
Check operation for EGR step motor.
Check resistance of EGR gas temp. sensor.
Check for open and short in harness and
connector between EGR gas temp. sensor
and ECU.
Check and replace ECU.
Replace EGR gas temp. sensor.
Replace EGR step motor.
Replace EGR step motor.
Repair or replace harness or
connector.
Repair or replace harness or
connector.
Check for ECU power source
circuit.
TR±110±
ENGINE TROUBLESHOOTING
WhereEverybodyKnowsYourName

NGOK
OKNG
INSPECTION PROCEDURE

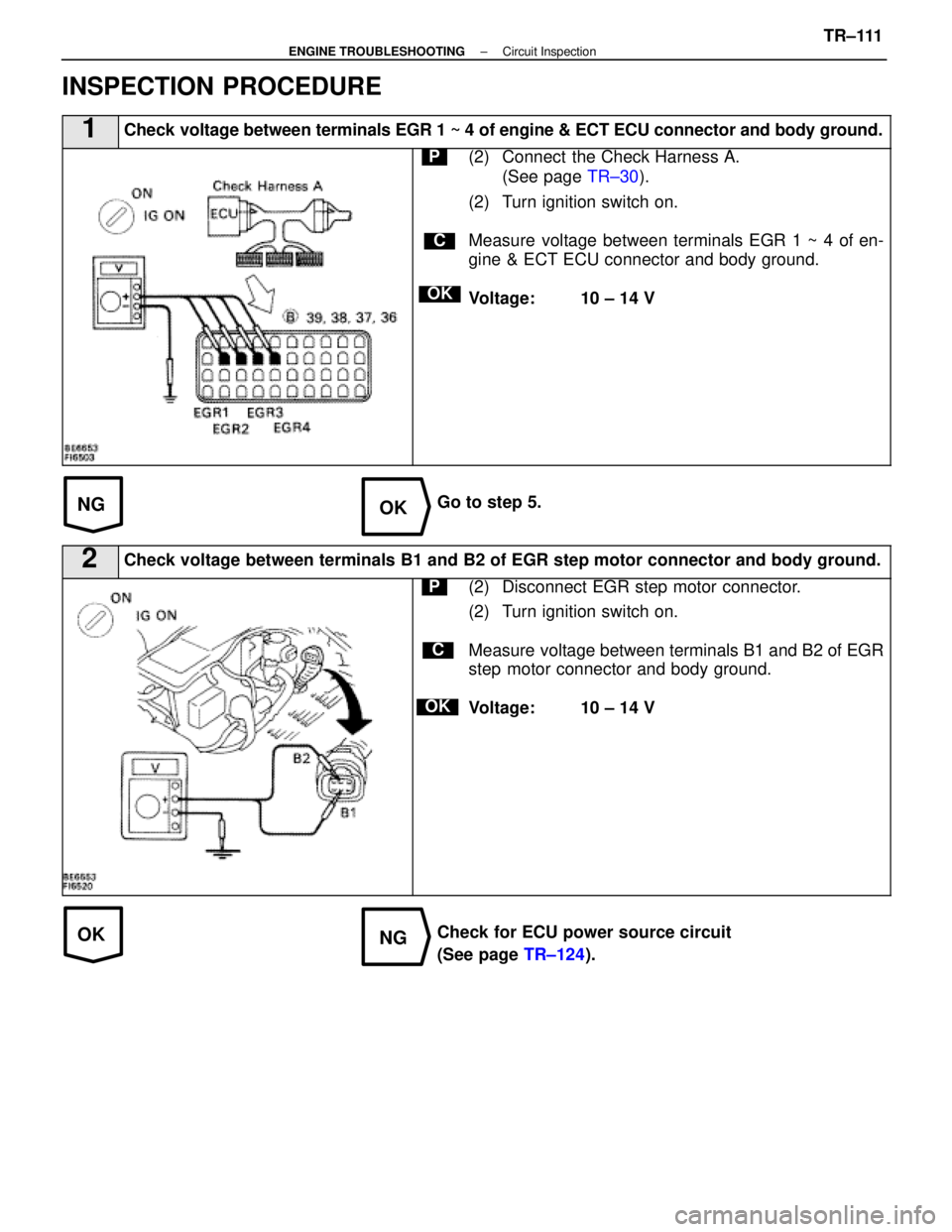

1Check voltage between terminals EGR 1 ~ 4 of engine & ECT ECU connector and b\
ody ground.
C
OK
P(2) Connect the Check Harness A.(See page TR±30).
(2) Turn ignition switch on.
Measure voltage between terminals EGR 1 ~ 4 of en-
gine & ECT ECU connector and body ground.
Voltage: 10 ± 14 V
Go to step 5.
2Check voltage between terminals B1 and B2 of EGR step motor connector an\
d body ground.
C
OK
P(2) Disconnect EGR step motor connector.
(2) Turn ignition switch on.
Measure voltage between terminals B1 and B2 of EGR
step motor connector and body ground.
Voltage: 10 ± 14 V
Check for ECU power source circuit
(See page TR±124).
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±111
WhereEverybodyKnowsYourName

OKNG
OKNG
OKNG

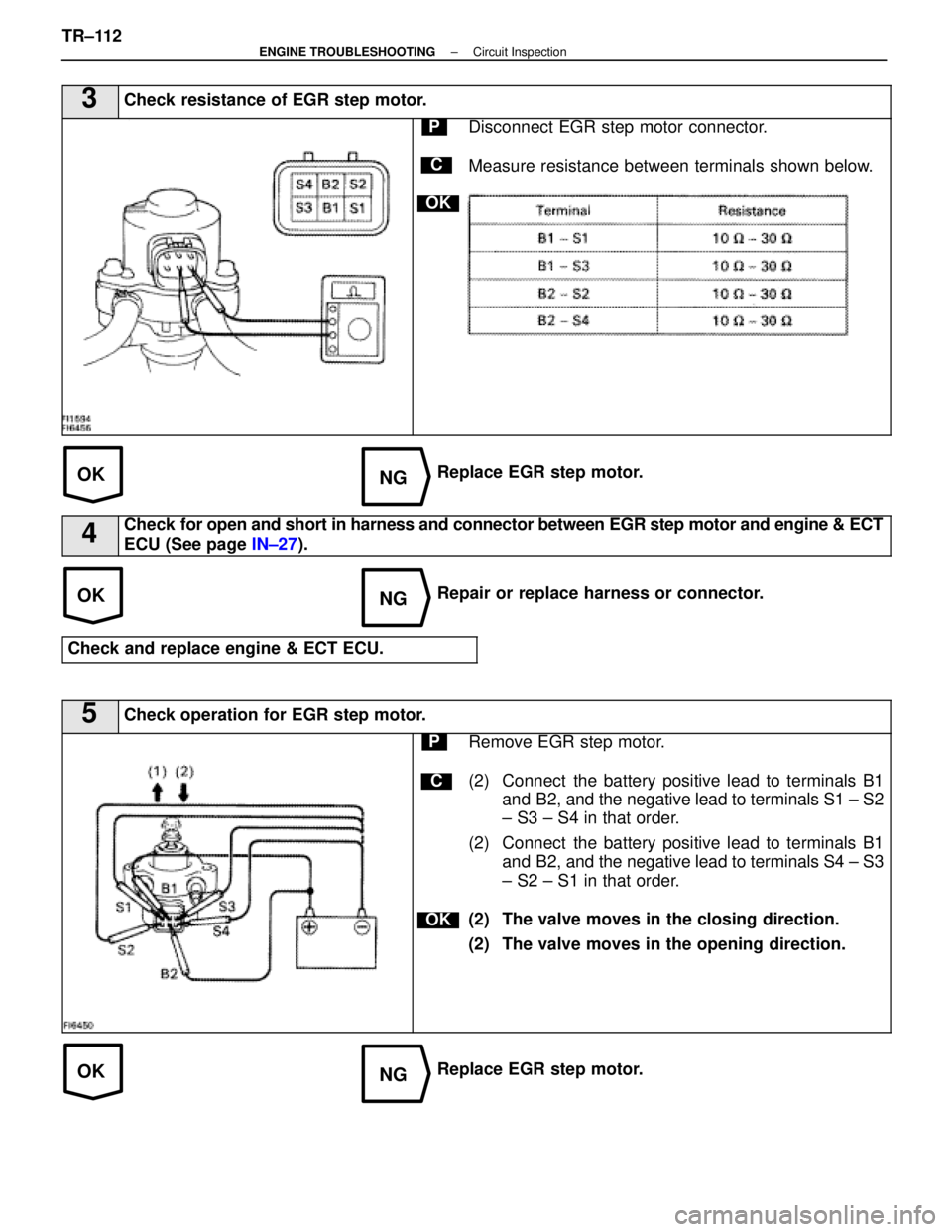

3Check resistance of EGR step motor.
C
OK
PDisconnect EGR step motor connector.
Measure resistance between terminals shown below.
Replace EGR step motor.
4Check for open and short in harness and connector between EGR step motor and e\
ngine & ECT
ECU (See page IN±27).
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
5Check operation for EGR step motor.
C
OK
PRemove EGR step motor.
(2) Connect the battery positive lead to terminals B1 and B2, and the negative lead to terminals S1 ± S2
± S3 ± S4 in that order.
(2) Connect the battery positive lead to terminals B1 and B2, and the negative lead to terminals S4 ± S3
± S2 ± S1 in that order.
(2) The valve moves in the closing direction.
(2) The valve moves in the opening direction.
Replace EGR step motor.
TR±112
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG

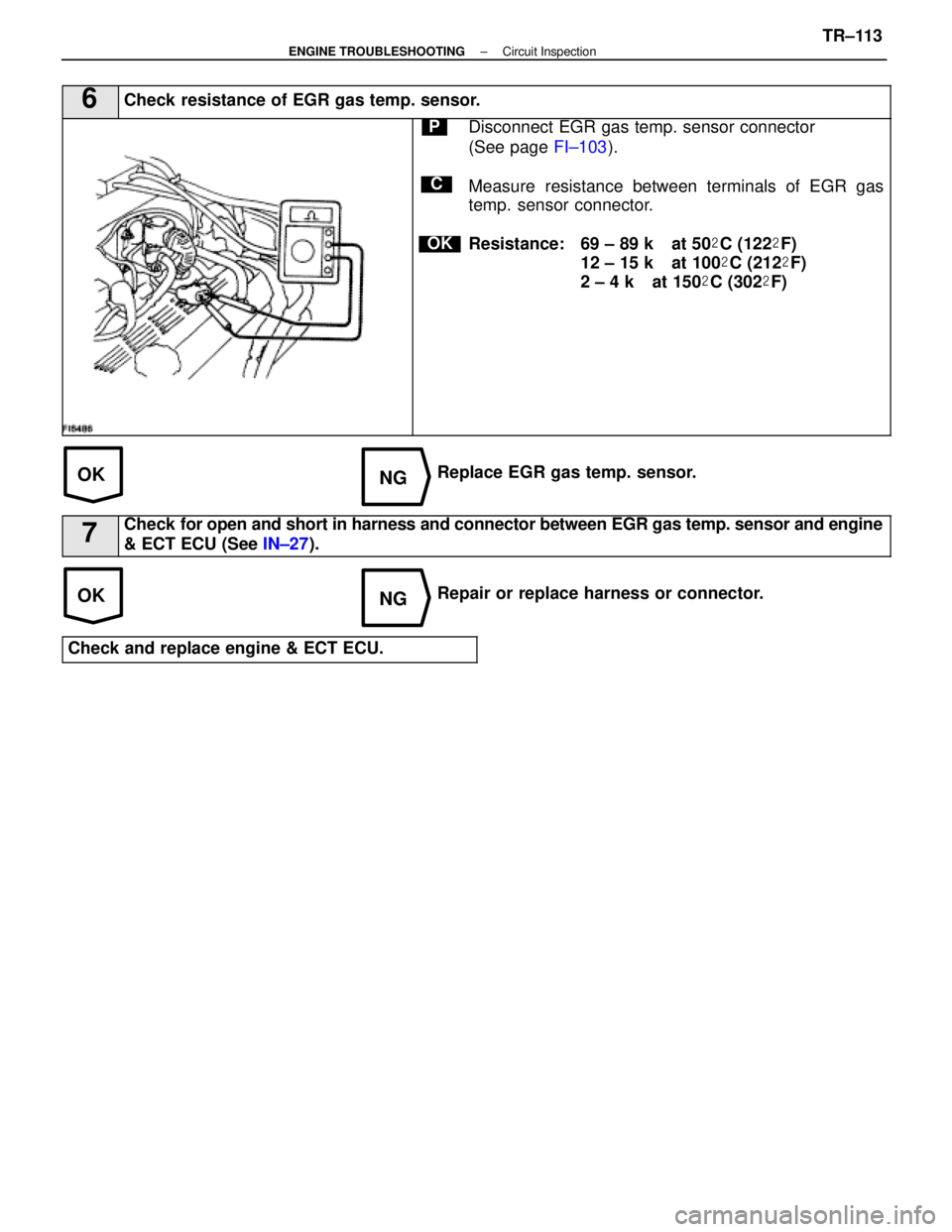

6Check resistance of EGR gas temp. sensor.
C
OK
PDisconnect EGR gas temp. sensor connector
(See page FI±103).
Measure resistance between terminals of EGR gas
temp. sensor connector.
Resistance: 69 ± 89 k
at 50 C (122 F)
12 ± 15 k
at 100 C (212 F)
2 ± 4 k
at 150 C (302 F)
Replace EGR gas temp. sensor.
7Check for open and short in harness and connector between EGR gas temp. sensor and\
engine
& ECT ECU (See IN±27).
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±113
WhereEverybodyKnowsYourName

Diag. Code 78Fuel Pump Control Circuit
CIRCUIT DESCRIPTION
The fuel pump speed is controlled at two steps (high speed, low speed) by\
the condition of the engine (starting,
light load, heavy load), when the engine starts (STA ON), the engine & ECT ECU sends a Hi signal to the fuel
pump ECU (FPC terminal).
The fuel pump ECU then outputs Hi voltage (battery voltage) to the fuel p\
ump so that the fuel pump operates
at high speed.
After the engine starts, during idling or light loads, the engine & ECT ECU o\
utputs a High Low signal to the fuel
pump ECU, the fuel pump ECU outputs Lo battery voltage (about 9V) to the f\
uel pump and causes the fuel pump
to operate at low speed.
If the intake air volume increases (high engine load), the engine & ECT \
ECU sends a Hi signal to the fuel pump
ECU and causes the fuel pump to operate at high speed.
Code No.Diagnostic Code Detecting ConditionTrouble Area
(1) Open or short in fuel pump circuit for 1 sec. or more with engine speed 1,000 rpm or less.
(2 trip detection logic)*

Open or short in fuel pump ECU circuit.
78
(2) Open in input circuit of fuel pump ECU(FPC) with
engine speed 1,000 rpm or less.
(2 trip detection logic)*
Fuel pump ECU

Engine & ECT ECU power source circuit.

Fuel pump
(3) Open or short in diagnostic signal line (DI) of fuel
pump ECU with engine speed 1,000 rpm or less.
(2 trip detection logic)*

Fuel um

Engine & ECT ECU
*: See page TR±21.

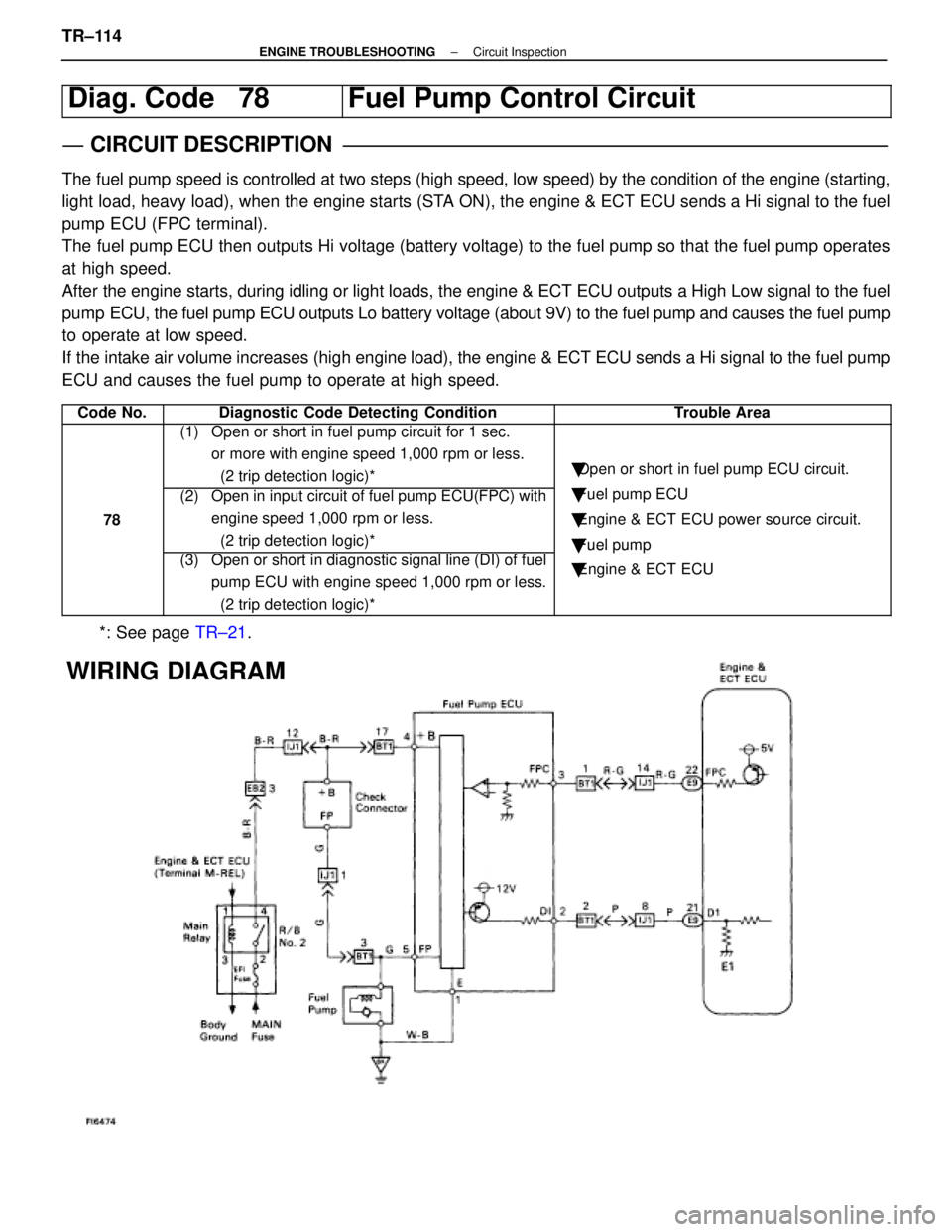

WIRING DIAGRAM
TR±114±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

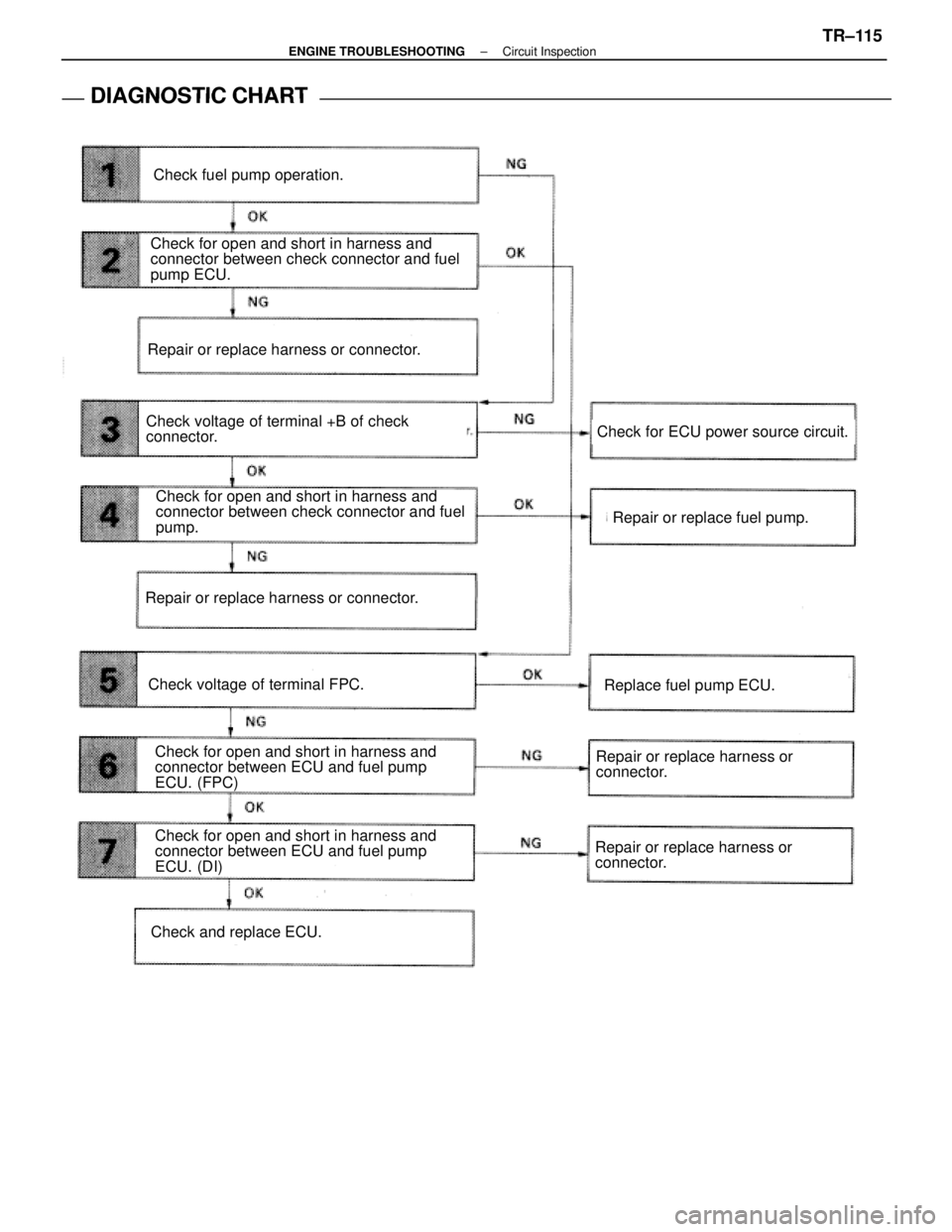

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
Check for open and short in harness and
connector between check connector and fuel
pump.
Check voltage of terminal FPC.Check for open and short in harness and
connector between ECU and fuel pump
ECU. (DI)
Check and replace ECU.
Replace fuel pump ECU.
Repair or replace harness or connector.
Repair or replace harness or
connector.
Check for open and short in harness and
connector between ECU and fuel pump
ECU. (FPC)
Repair or replace harness or
connector.
Repair or replace fuel pump.
Check voltage of terminal +B of check
connector.
Repair or replace harness or connector.
Check for open and short in harness and
connector between check connector and fuel
pump ECU.
Check fuel pump operation.
Check for ECU power source circuit.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±115
WhereEverybodyKnowsYourName

OKNG
NGOK
OKNG
INSPECTION PROCEDURE

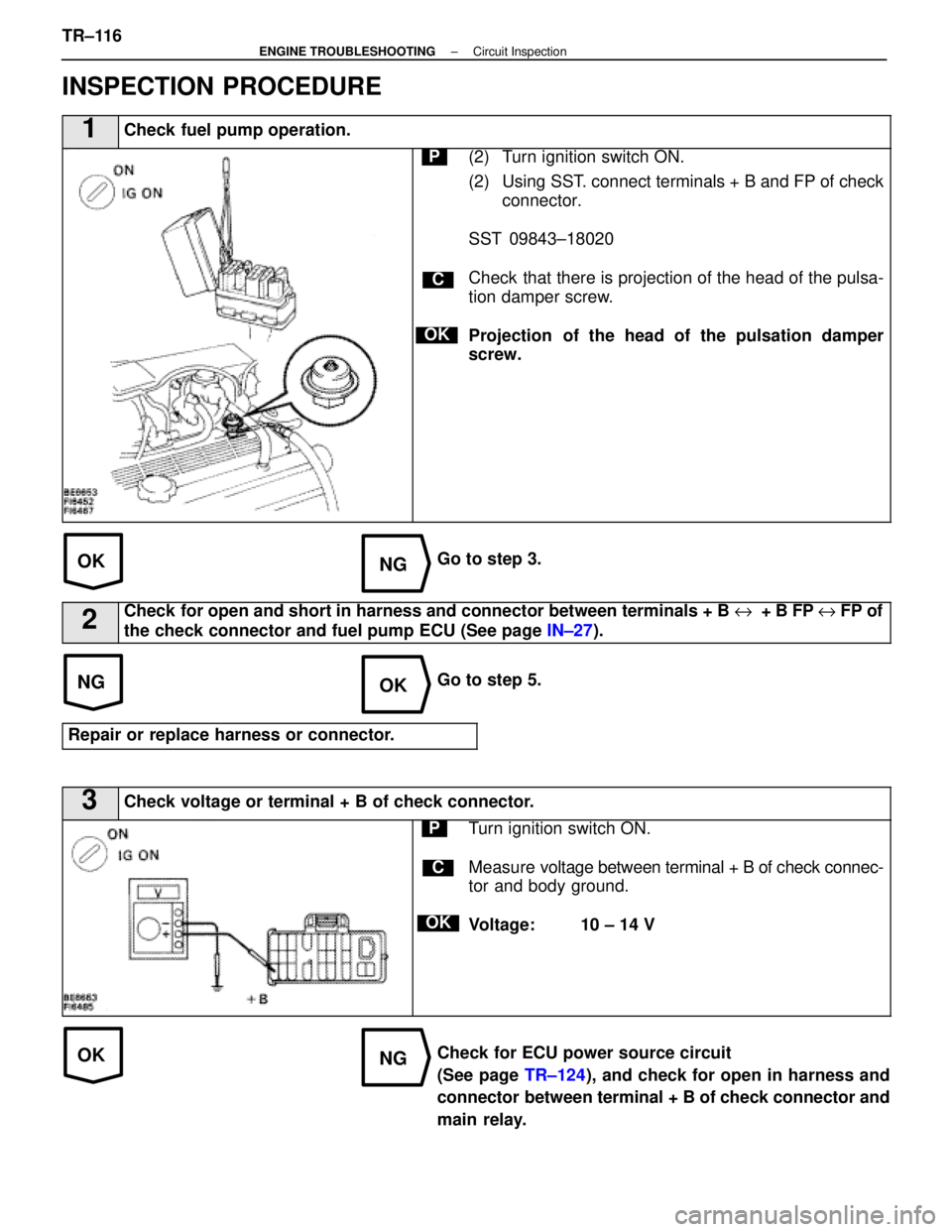

1Check fuel pump operation.
C
OK
P(2) Turn ignition switch ON.
(2) Using SST. connect terminals + B and FP of checkconnector.
SST 09843±18020
Check that there is projection of the head of the pulsa-
tion damper screw.
Projection of the head of the pulsation damper
screw.
Go to step 3.
2Check for open and short in harness and connector between terminals + B e + B FP e FP of
the check connector and fuel pump ECU (See page IN±27).
Go to step 5.
Repair or replace harness or connector.
3Check voltage or terminal + B of check connector.
C
OK
PTurn ignition switch ON.
Measure voltage between terminal + B of check connec-
tor and body ground.
Voltage: 10 ± 14 V
Check for ECU power source circuit
(See page TR±124), and check for open in harness and
connector between terminal + B of check connector and
main relay.
TR±116
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

NGOK
NGOK
OKNG
OKNG

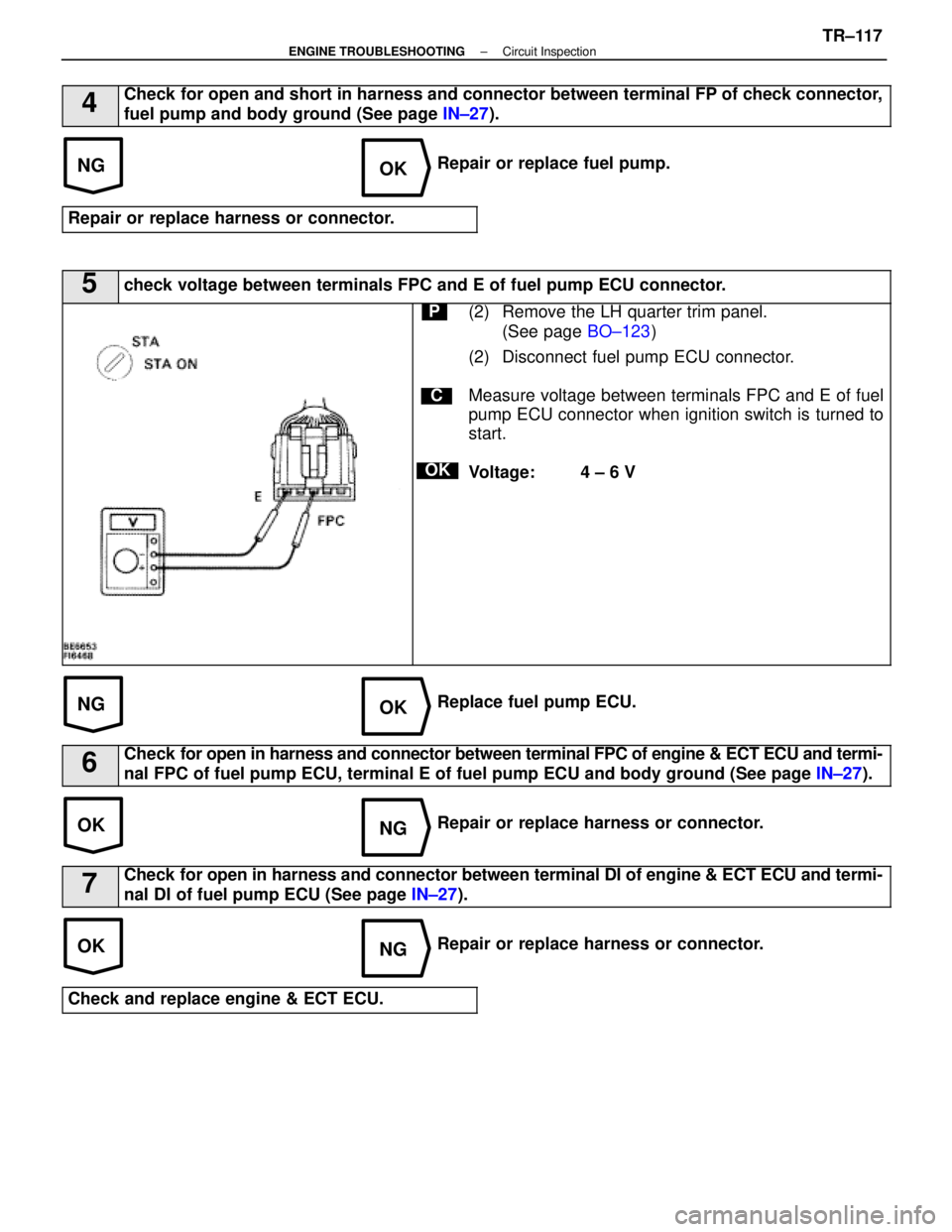

4Check for open and short in harness and connector between terminal FP of chec\
k connector,
fuel pump and body ground (See page IN±27).
Repair or replace fuel pump.
Repair or replace harness or connector.
5check voltage between terminals FPC and E of fuel pump ECU connector.
C
OK
P(2) Remove the LH quarter trim panel. (See page BO±123)
(2) Disconnect fuel pump ECU connector.
Measure voltage between terminals FPC and E of fuel
pump ECU connector when ignition switch is turned to
start.
Voltage: 4 ± 6 V
Replace fuel pump ECU.
6Check for open in harness and connector between terminal FPC of engine & ECT ECU a\
nd termi-
nal FPC of fuel pump ECU, terminal E of fuel pump ECU and body ground (See\
page IN±27).
Repair or replace harness or connector.
7Check for open in harness and connector between terminal DI of engine & ECT E\
CU and termi-
nal DI of fuel pump ECU (See page IN±27).
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±117
WhereEverybodyKnowsYourName

Diag. Code 51Switch Condition Signal Circuit
CIRCUIT DESCRIPTION
Neutral Start Switch Signal
The ECU uses the signals from the neutral start switch to determine whether\
the transmission is in park or neu-
tral, or in some other gear.
Air Conditioner Switch Signal
The ECU uses the output from the air conditioner switch to determine whethe\
r or not the air conditioner is operat-
ing so that it can increase the idling speed of the engine if necessary.
Throttle Position Sensor IDL Signal
The IDL contacts are mounted in the throttle position sensor, and detects the idle condition.
Code No.Diagnostic Code Detecting ConditionTrouble Area
51
(1) 3 sec. or more after engine startsidle switch OFF (IDL1).
(2) Neutral start switch OFF (NSW).(Shift position i n ºRº, ºDº, º2ºor º1º ranges).
(3) A/C switch ON.
Throttle position sensor IDL circuit

Accelerator pedal and cable

Neutral start switch circuit

A/C switch circuit

ECU
HINT: In this circuit, diagnosis can only be made in the test mode.
DIAGNOSTIC CHARTDIAGNOSTIC CHART
See next page for DIAGNOSTIC CHART
WIRING DIAGRAM
TR±118±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
NG (NSW)
Check for input signal.
Proceed to next circuit inspection shown
on maxtrix chart (See page TR±35).
Check resistance of throttle
position sensor.
Check input circuit of A/C.
Check and repair harness or connector
between sensor and ECU.
Check for open and short in harness
and connector beteen A/C control assy.
and ECU.
Repair or replace harness or
connector.
Check and replace A/C control
assembly.
Adjust or replace throttle position
sensor (See page FI-73).
See page TR±122.
Check and replace ECU.
±
