Page 271 of 4087

LEXUS SC400 1991  Service Repair Manual

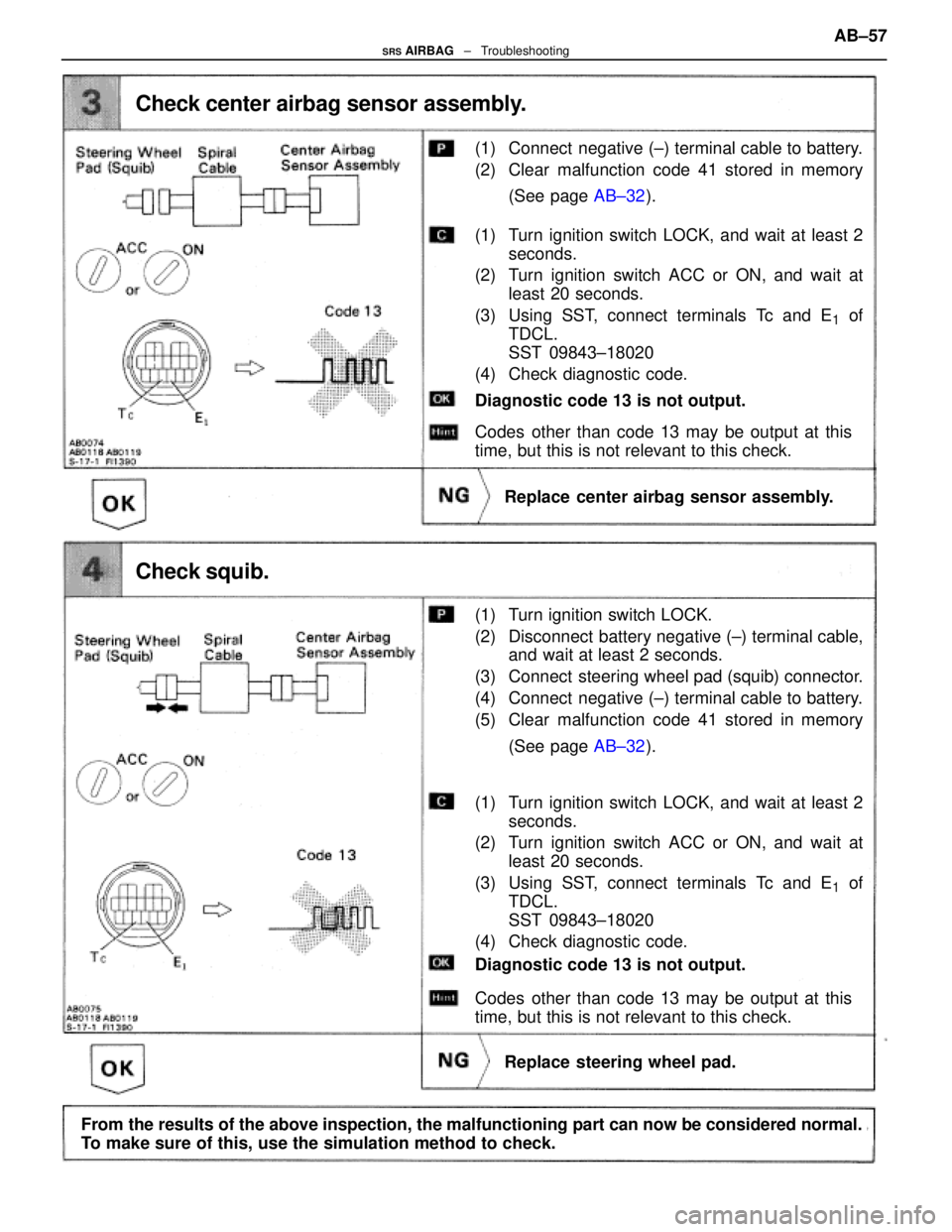

(1) Connect  negative (±) terminal cable to battery.
(2) Clear malfunction code 41 stored in memory(See page  AB±32).
Check center airbag sensor assembly.
Replace center airbag sensor assembly.
(1)

Page 272 of 4087

LEXUS SC400 1991  Service Repair Manual

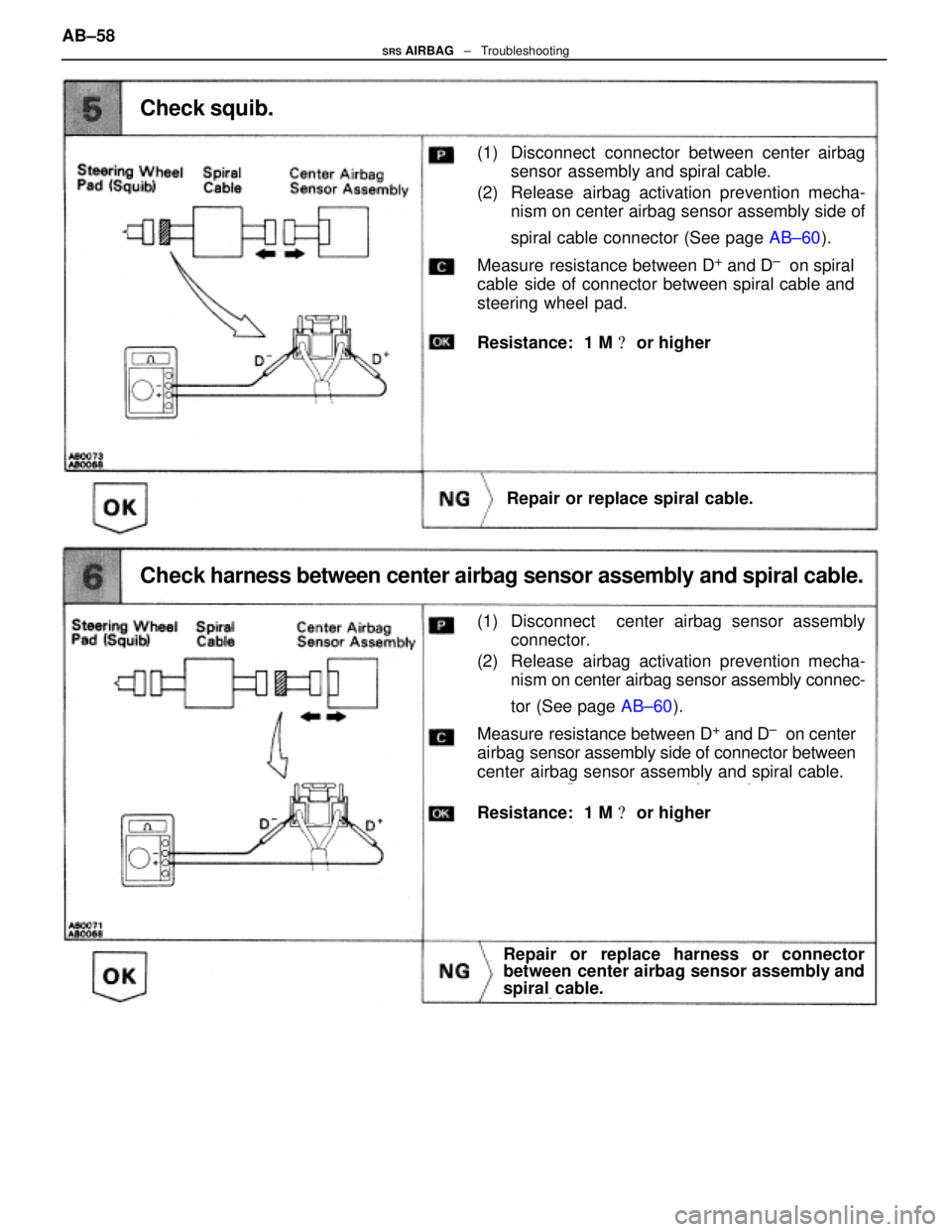

(1) Disconnect  connector between center airbagsensor assembly and spiral cable.
(2) Release airbag activation prevention mecha- nism on center airbag sensor assembly side of
spiral cable connector (

Page 273 of 4087

LEXUS SC400 1991  Service Repair Manual
Check center airbag sensor assembly.
Connect  center airbag sensor assembly connector.
Measure resistance between D
+, D± on center air-
bag sensor assembly side of connector between
center airbag s

Page 274 of 4087

LEXUS SC400 1991  Service Repair Manual

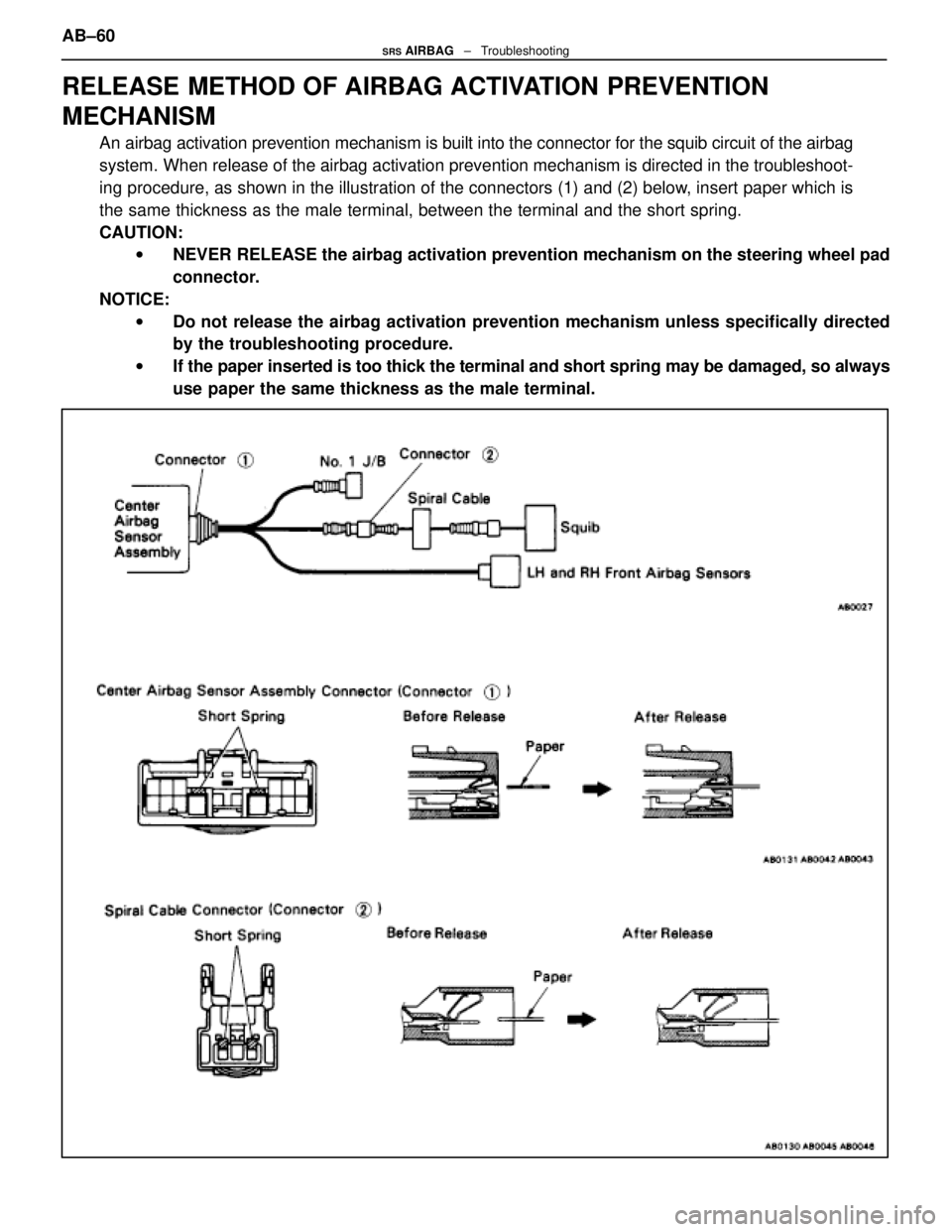

RELEASE METHOD OF AIRBAG ACTIVATION PREVENTION
MECHANISM
An airbag activation prevention mechanism is built into the connector for the squib circuit of the airbag
system. When release of the airbag a

Page 275 of 4087

LEXUS SC400 1991  Service Repair Manual
MEMOAB±61
SRS AIRBAG
   ±   Troubleshooting
WhereEverybodyKnowsYourName

Page 276 of 4087

LEXUS SC400 1991  Service Repair Manual
CUSTOMER PROBLEM ANALYSIS
AT09Q±0A
±
A304E (1UZ±FE) AUTOMATIC TRANSMISSION TROUBLESHOOTINGAT±35
WhereEverybodyKnowsYourName

Page 277 of 4087

LEXUS SC400 1991  Service Repair Manual
±Memo± AT±36
±
A304E (1UZ±FE) AUTOMATIC TRANSMISSION TROUBLESHOOTING
WhereEverybodyKnowsYourName

Page 278 of 4087

LEXUS SC400 1991  Service Repair Manual
DIAGNOSIS SYSTEM
AT09R±07
The electronically controlled transmission system has built±
in self±diagnostic functions. If the malfunction occurs in the
system, the ECM stores the malfunction code in

Page 279 of 4087

LEXUS SC400 1991  Service Repair Manual
4.  Read the diagnostic trouble code indicated by thenumber of times the O/D OFF indicator light blinks.
HINT: If the system is operating normally, the light will blink
2 times per second.
The malfun

Page 280 of 4087

LEXUS SC400 1991  Service Repair Manual
CHECK TERMINAL TT OUTPUT
VOLTAGE
AT00R±01
When a voltmeter is connected to the DLC1, the following
items can be checked.
1.  Throttle position sensor signal
2. Brake signal
3. Shift position signal
