LEXUS SC400 1991  Service Repair Manual
14.  REMOVE FRONT DOOR INNER WEATHERSTRIPPry loose the clips from the edge of the panel and remove the
belt moulding.
15.  REMOVE FRONT GLASS GUIDE Remove three screws and the guide.
16.  REMOVE REAR

Page 532 of 4087

LEXUS SC400 1991  Service Repair Manual
19.  REMOVE OUTSIDE HANDLE AND KEY CYLINDER(a)  Disconnect the connector from key cylinder.
(b)  Remove three bolts, key cylinder and outside handle.
20.  REMOVE SIDE PROTECTION MOULDING (a)  Remove

Page 533 of 4087

LEXUS SC400 1991  Service Repair Manual
ASSEMBLY OF FRONT DOOR
(See page BO±31)
1.  BEFORE INSTALLING PARTS, COAT THEN WITH MP GREASE
(a)  Apply MP grease to the sliding surface and rollers of the
window regulator.
(b)  Apply MP grease to

Page 534 of 4087

LEXUS SC400 1991  Service Repair Manual
7.  INSTALL FRONT DOOR INNER WEATHERSTRIPInsert  the claw of the clips into the upper panel hole and push
the moulding onto the panel.
8.  INSTALL FRONT DOOR BELT MOULDING HINT:
wIf the adhesive powe

Page 535 of 4087

LEXUS SC400 1991  Service Repair Manual
14.  INSTALL OUTSIDE REAR VIEW MIRROR(a)  Install the mirror with two bolts, connect the connector.
(b) I n s t a l l t h e s peaker with two bolts, connect the
connector.
15.  INSTALL FRONT DOOR WEA

Page 536 of 4087

LEXUS SC400 1991  Service Repair Manual
(f)  Install the door trim to the door panel with eight screwsand two caps.
19.  INSTALL DOOR INSIDE HANDLE BEZEL COVER With the door handle in open position, insert the cover into
the bezel.
20.  IN

Page 537 of 4087

LEXUS SC400 1991  Service Repair Manual
2.  INSPECT BRAKE WARNING LIGHT(a)  Disconnect the connector from the brake fluid warningswitch.
(b)  Release the parking brake pedal.
(c)  Connect  terminals on the wire harness side of the level wa

Page 538 of 4087

LEXUS SC400 1991  Service Repair Manual
( Coolant Level Warning Switch)
REMOVAL AND INSTALLATION OF COOLANT
LEVEL WARNING SWITCH
1.  REMOVE COOLANT LEVEL WARNING SWITCH(a)  Disconnect the connector.
(b)  Remove the boot.
(c)  Using the not

Page 539 of 4087

LEXUS SC400 1991  Service Repair Manual
POWER WINDOW CONTROL
SYSTEM
Description
The Power Window System raises and lowers the window glass in each door usi\
ng electrical power. The compo-
nent parts of this system and their functions are

Page 540 of 4087

LEXUS SC400 1991  Service Repair Manual

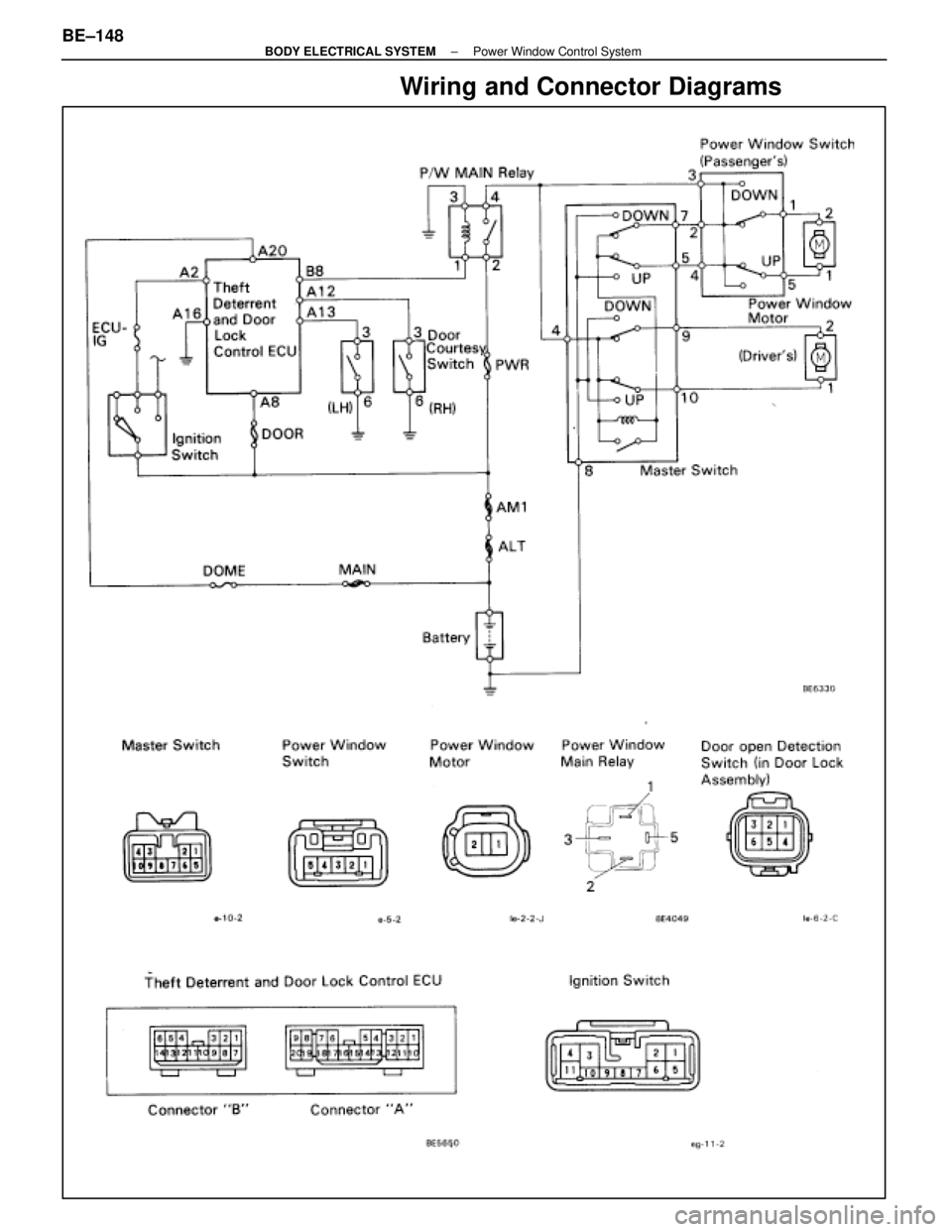

Wiring and Connector Diagrams
BE±148±
BODY ELECTRICAL SYSTEM Power Window Control System
WhereEverybodyKnowsYourName
