Suspension Crossmember Drawings (Contd)
(Three±Dimensional  Distance)(Two±Dimensional Distance)
SymbleNameHole  dia.SymbleNameHole dia.
I,iSuspension crossmember installation
hole front ± lower18

Page 492 of 4087

LEXUS SC400 1991  Service Repair Manual
Suspension Crossmember Drawings (Contd)
(Three±Dimensional  Distance)
(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
A,aStrut bar installation hole inner14 (0.55)F, fLower arm i

Page 493 of 4087

LEXUS SC400 1991  Service Repair Manual
SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightenedNVmkgf Vcmft Vlbf
HOOD
    Hood support X Hood22225 16
    Hood support X Body22225 16
TRANSPORT HOOK
Front Transport Hook
    Front transpo

Page 494 of 4087

LEXUS SC400 1991  Service Repair Manual
Specifications
(Fitting Adjustments)
±
BODY Service SpecificationsBO±139
WhereEverybodyKnowsYourName

Page 495 of 4087

LEXUS SC400 1991  Service Repair Manual
BODY
BO±1
WhereEverybodyKnowsYourName

Page 496 of 4087

LEXUS SC400 1991  Service Repair Manual
ExampleGENERAL INFORMATION
HANDLING PRECAUTIONS
Taping
When it is possible that the body or parts may be scratched
during the operation, apply protection tape before starting
work.
Example:
1.  Befor

Page 497 of 4087

LEXUS SC400 1991  Service Repair Manual
ANTI±RUST TREATMENT

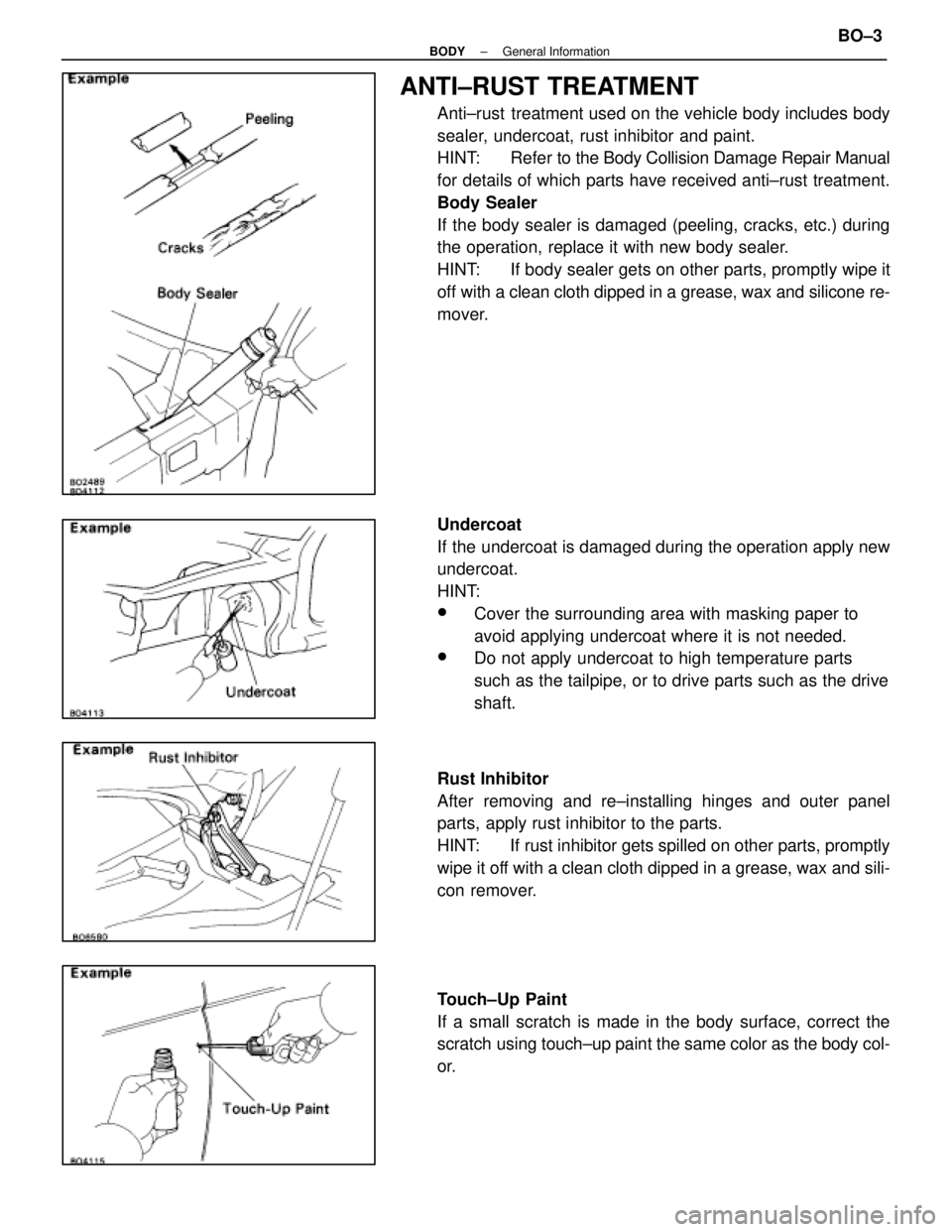

Anti±rust treatment used on the vehicle body includes body
sealer, undercoat, rust inhibitor and paint.
HINT: Refer to the Body Collision Damage Repair Manual
for details of whi

Page 498 of 4087

LEXUS SC400 1991  Service Repair Manual
CLIPS

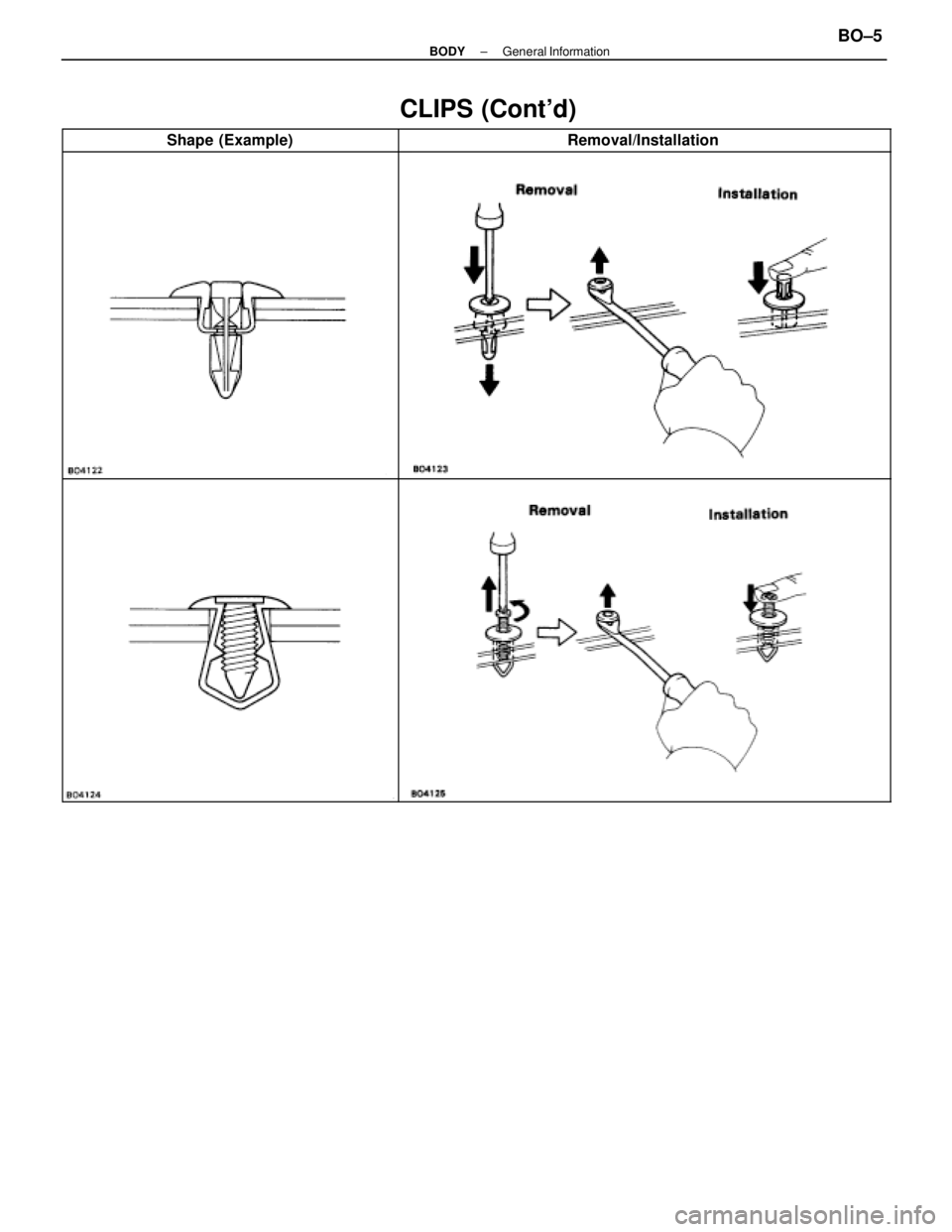

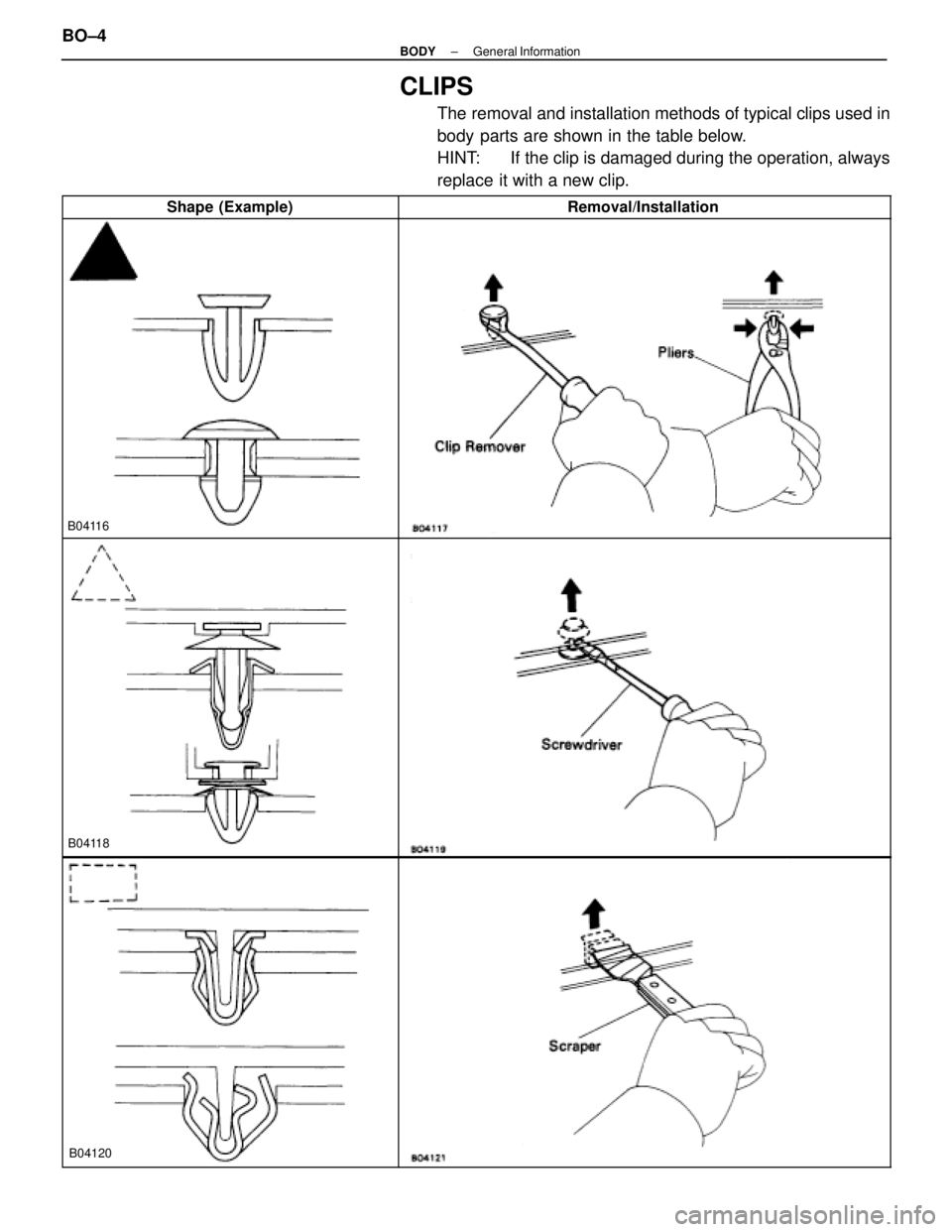

The removal and installation methods of typical clips used in
body parts are shown in the table below.
HINT: If the clip is damaged during the operation, always
replace it with a new clip.
Shap

Page 499 of 4087

LEXUS SC400 1991  Service Repair Manual
CLIPS (Contd)
Shape (Example)Removal/Installation
±
BODY General InformationBO±5
WhereEverybodyKnowsYourName

Page 500 of 4087

LEXUS SC400 1991  Service Repair Manual
HOW TO USE THIS SECTION

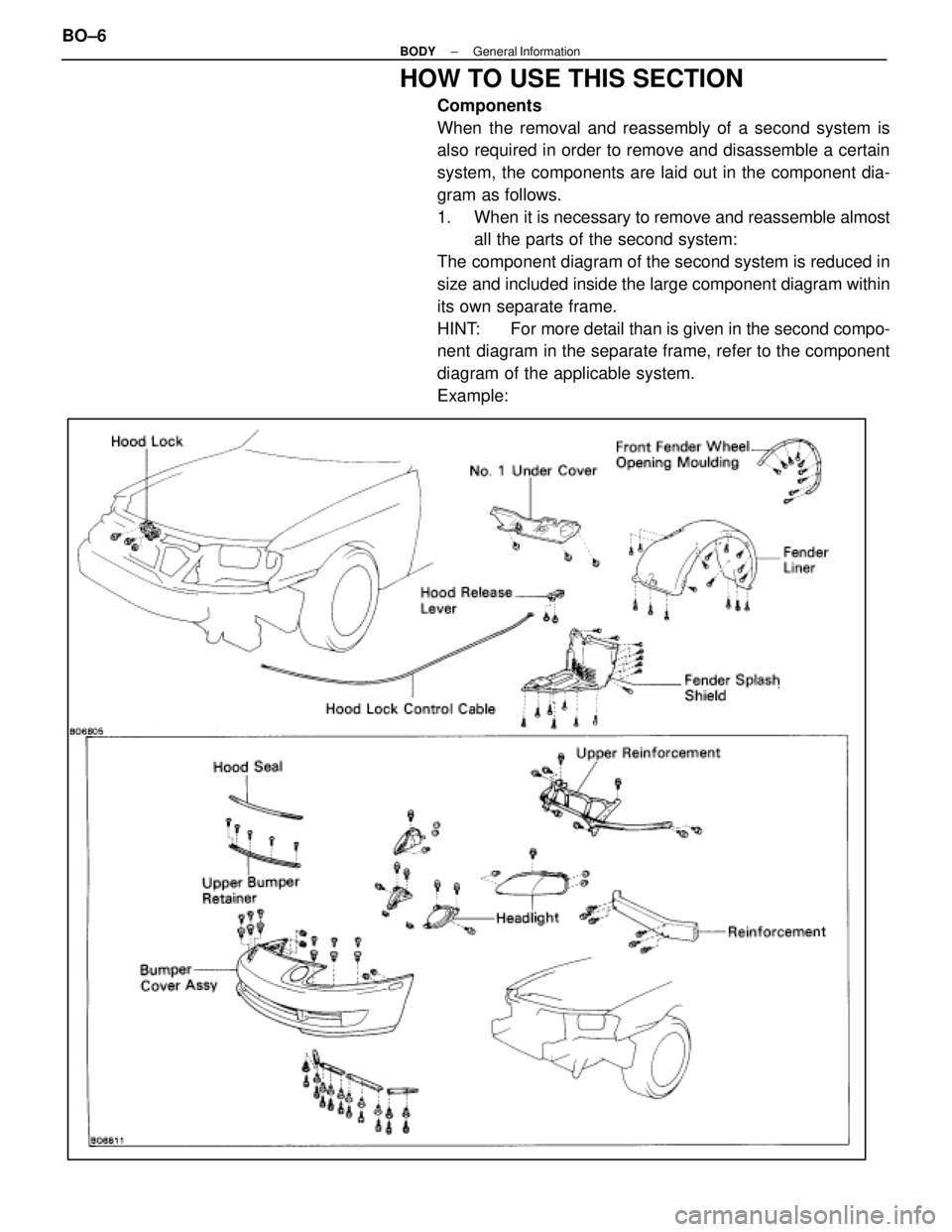

Components
When the removal and reassembly of a second system is
also required in order to remove and disassemble a certain
system, the components are laid out in the componen
