Check for Voltage
(a) Establish conditions in which voltage is present at thecheck point.
Example:
(A)±Ignition SW on
(B)±Ignition SW and SW 1 on
(C)±Ignition SW, SW 1 and Relay on (SW 2 off)
(b) Using a voltmeter, connect the negative (±) lead to a good ground point or negative (±) battery terminal and
the positive (+) lead to the connector or component
terminal. This check can be done with a test bulb instead
of a voltmeter.
Check for Continuity and Resistance
(a) Disconnect the battery terminal or wire so there is no voltage between the check points.
(b) Connect the two leads of an ohmmeter to each of the check points.
If the circuit has diodes, reverse the two leads and check
again.
When contacting the negative (±) lead to the diode positive
(+) side and the positive (+) lead to the negative (±) side,
there should be continuity. When contacting the two leads in
reverse, there should be no continuity.
HINT: Specifications may vary depending on the type of tes-
ter, so refer to the tester's instruction manual before perform-
ing the inspection.
Check LED (Light Emitting Diode) in the same manner as that
for diodes.
HINT:
w Use a tester with a power source of 3 V or greater to
overcome the circuit resistance.
w If a suitable tester is not available, apply battery voltage
and check that the LED lights up.
±
BODY ELECTRICAL SYSTEM General InformationBE±5
WhereEverybodyKnowsYourName

(c) Use a volt/ohmmeter with high impedance (10 k/Vminimum) for troubleshooting of the electrical circuit.
Check the Bulb
(a) Remove the bulb.
(b) There s hould be continuity between the respective
terminals of the bulb together with a certain amount of
resistance.
(c) Apply the two leads of the ohmmeter to each of the terminals.
(d) Apply battery voltage and check that the bulb light up.
Check for Short Circuit
(a) Remove the blown fuse and eliminate all loads from the fuse.
(b) Connect a test bulb in place of the fuse.
(c) Establish conditions in which the test bulb comes on.
Example:
(A)±Ignition SW on
(B)±Ignition SW and SW 1 on
(C)±Ignition SW, SW 1 and Relay on (Connect the Relay) and
SW 2 off (or Disconnect SW 2)
(d) D i s c onnect and reconnect the connectors while
watching the test bulb. The short lies between the
connector where the test bulb stays lit and the connector
where the bulb goes out.
(e) Find the exact location of the short by lightly shaking the problem wire along the body.
BE±6
±
BODY ELECTRICAL SYSTEM General Information
WhereEverybodyKnowsYourName

PRECAUTIONS
Take care to observe the following precautions when performing inspection\
s or removal and replacement
of body electrical related parts.
1. SRS AIR±BAG SYSTEM

Work must be started approx. 20 seconds after the ignition is set to the Loc\
k position and the negative
(±) terminal cable is disconnected from the battery. (See page AB±2)

When disconnecting any of the connectors in the SRS AIR±BAG system, be su\
re to Lock the ignition
switch and disconnect the battery negative (±) terminal first. Since the connectors are twin \
lock type
connectors, disconnect the connectors only after releasing the first stage lock.

When connecting SRS AIR±BAG system connectors, be sure to lock them secur\
ely. (If the connectors
are not locked securely, the system may not operate when needed.)

Always store the steering wheel pad with the pad surface facing upward. (Stor\
ing the pad with its
metallic surface up may lead to a serious accident if the air bag inflates for s\
ome reason.)

When installing the spiral cable, be sure the vehicle is in the straight ahe\
ad condition and confirm that
the spiral cable is in the neutral position when it is installed. (See pag\
e BE±40)

INFORMATION LABELS (NOTICE) are attached to the periphery of the air bag componen\
ts. Follow
the NOTICE.
2. MICRO COMPUTER PRESET DRIVING POSITION SYSTEM
Power Seat Control System
Power Mirror Control System
Power Tilt and Telescopic Steering System

If the battery negative (±) terminal is disconnected, the preset driv\
ing positions stored in memory are
erased, so be sure to note the positions and reset them after the battery termi\
nal is reconnected.
3. AUDIO SYSTEM

If the battery negative (±) terminal is disconnected, the preset AM, F\
M 1 and FM 2 stations stored in
memory are erased, so be sure to note the stations and reset them after the battery terminal is
reconnected.

If the battery negative (±) terminal is disconnected, the ºANTI±\
THEFT SYSTEMº will operate when
the terminal is reconnected, but the radio, tape player and CD player will \
not operate. Be sure to input
the correct ID number so that the radio, tape player and CD player can be o\
perated again.
±
BODY ELECTRICAL SYSTEM PrecautionsBE±7
WhereEverybodyKnowsYourName

PREPARATION
SST (SPECIAL SERVICE TOOLS)
IllustrationPart No.Part NameNote
09213±31021
Crankshaft Pulley
Puller
For removing steering wheel
RECOMMENDED TOOLS
IllustrationPart No.Part NameNote
09082±00015TOYOTA
Electrical Tester
09041±0030Torx Driver
T30
For removing and installing steering wheel pad and
power window motor
09042±00010Torx Socket
T30For removing and installing steering wheel pad and
power window motor
EQUIPMENT
Part NameNote
Voltmeter
Ammeter
Ohmmeter
Test lead
ThermometerWater temperature sender gauge, Engine oil level, Warning switch, Seat heater
SyphonBrake fluid level warning switch
Oil bathEngine oil level warning switch
Bulb (1.4 W)Coolant level warning ECU
Bulb (3.4 W)Fuel sender, gauge, Seat belt warning relay
Bulb (21 W)Turn signal flasher relay
Dry cell batteryFuel sender gauge
Heat lightSeat heater
Hexagon wrench (6 mm)Power seat
BE±8±
BODY ELECTRICAL SYSTEM Preparation
WhereEverybodyKnowsYourName

EQUIPMENT (Cont'd)
PartNote
Torque wrench
Clip removerFor removing cowl louver
Masking tapeRear window defogger wire
Tim foilRear window defogger wire
SSM (SPECIAL SERVICE MATERIALS)
Part NamePart No.Use etc.
Adhesive 1324,
Three bond 1324 or equivalent08833±00070Power seat housing set nut, Power seat slide and vertical
motor set screw
Adhesive 1344,
Three bond 1344,
Loctite 242 or equivalent
08833±00080Low oil pressure warning switch Water temperature
sender gauge
Dupont paste No. 4817±Rear window defogger wire
±
BODY ELECTRICAL SYSTEM PreparationBE±9
WhereEverybodyKnowsYourName

POWER SOURCE
Parts Location
BE±10±
BODY ELECTRICAL SYSTEM Power Source
WhereEverybodyKnowsYourName

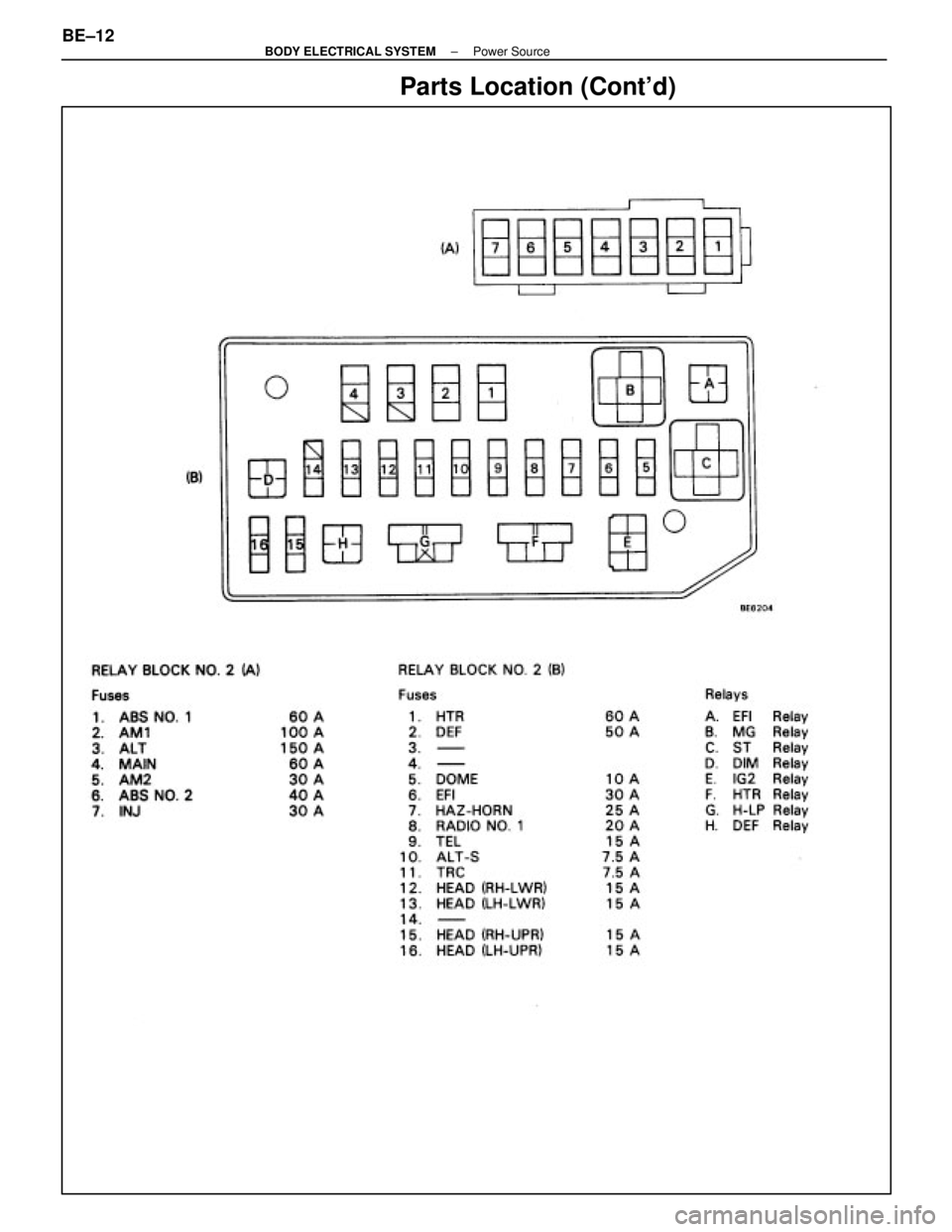

Parts Location (Cont'd)
±
BODY ELECTRICAL SYSTEM Power SourceBE±11
WhereEverybodyKnowsYourName

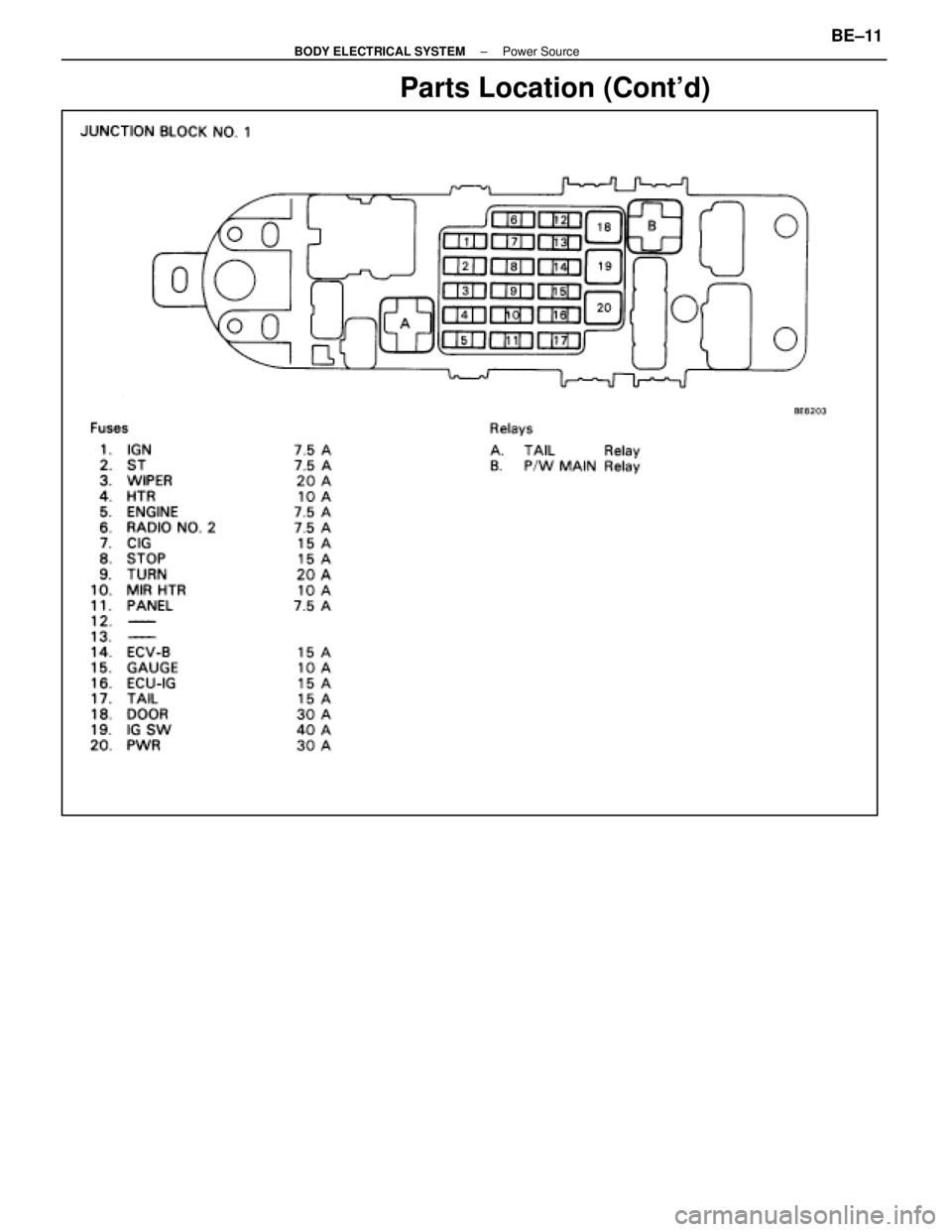

Parts Location (Cont'd)
BE±12±
BODY ELECTRICAL SYSTEM Power Source
WhereEverybodyKnowsYourName

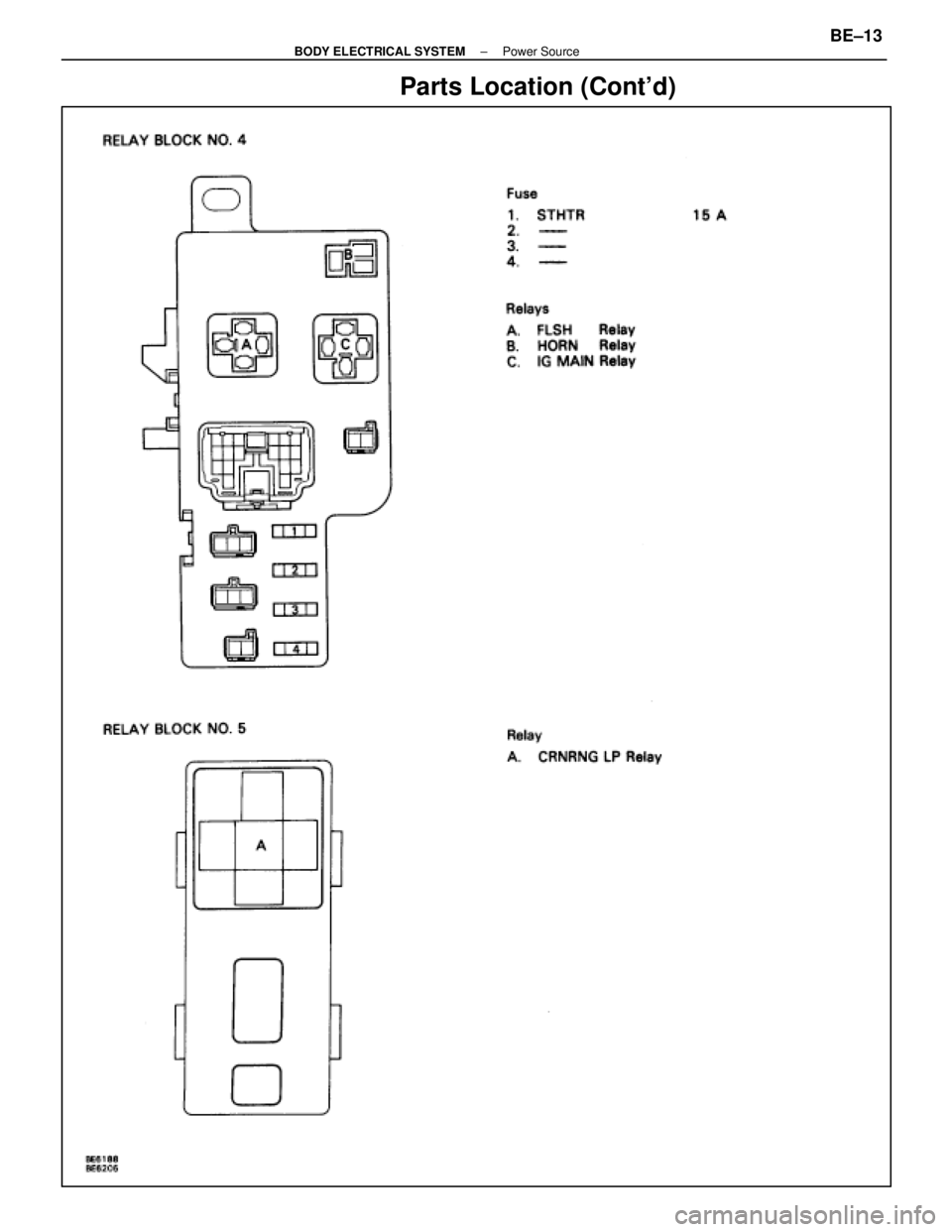

Parts Location (Cont'd)
±
BODY ELECTRICAL SYSTEM Power SourceBE±13
WhereEverybodyKnowsYourName

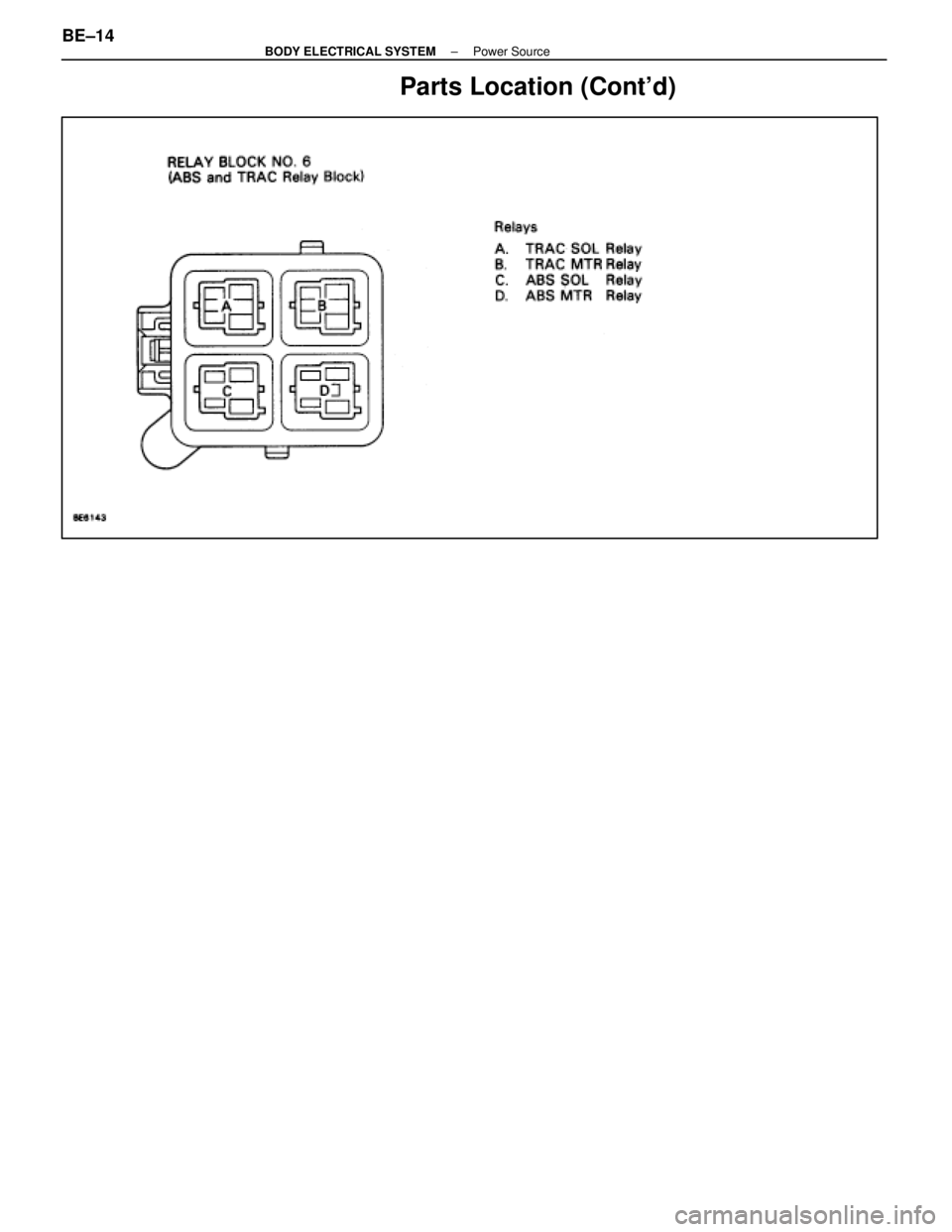

Parts Location (Cont'd)
BE±14±
BODY ELECTRICAL SYSTEM Power Source
