sensor LINCOLN AVIATOR 2023 Owner's Manual

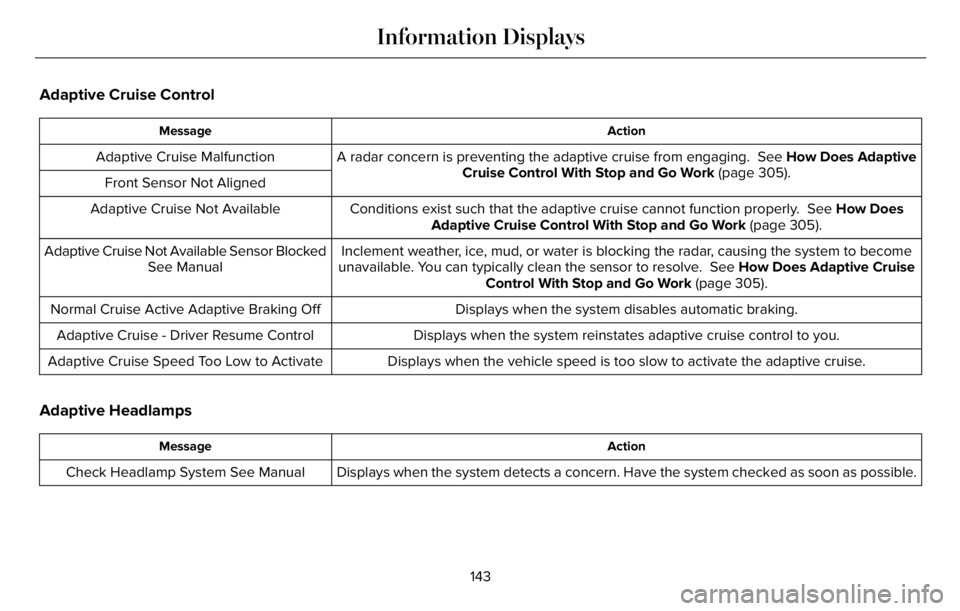

Adaptive Cruise Control
Action Message
A radar concern is preventing the adaptive cruise from engaging. See How Does Adaptive
Cruise Control With Stop and Go Work (page 305). Adaptive Cruise Malfunction
Front Sensor Not Aligned
Conditions exist such that the adaptive cruise cannot function properly. See How Does
Adaptive Cruise Control With Stop and Go Work (page 305). Adaptive Cruise Not Available
Inclement weather, ice, mud, or water is blocking the radar, causing the system to become
unavailable. You can typically clean the sensor to resolve. See How Does Adaptive Cruise
Control With Stop and Go Work (page 305). Adaptive Cruise Not Available Sensor Blocked
See Manual
Displays when the system disables automatic braking. Normal Cruise Active Adaptive Braking Off
Displays when the system reinstates adaptive cruise control to you. Adaptive Cruise - Driver Resume Control
Displays when the vehicle speed is too slow to activate the adaptive cruise. Adaptive Cruise Speed Too Low to Activate
Adaptive Headlamps
Action Message
Displays when the system detects a concern. Have the system checked as soon as possible. Check Headlamp System See Manual
143
Information Displays

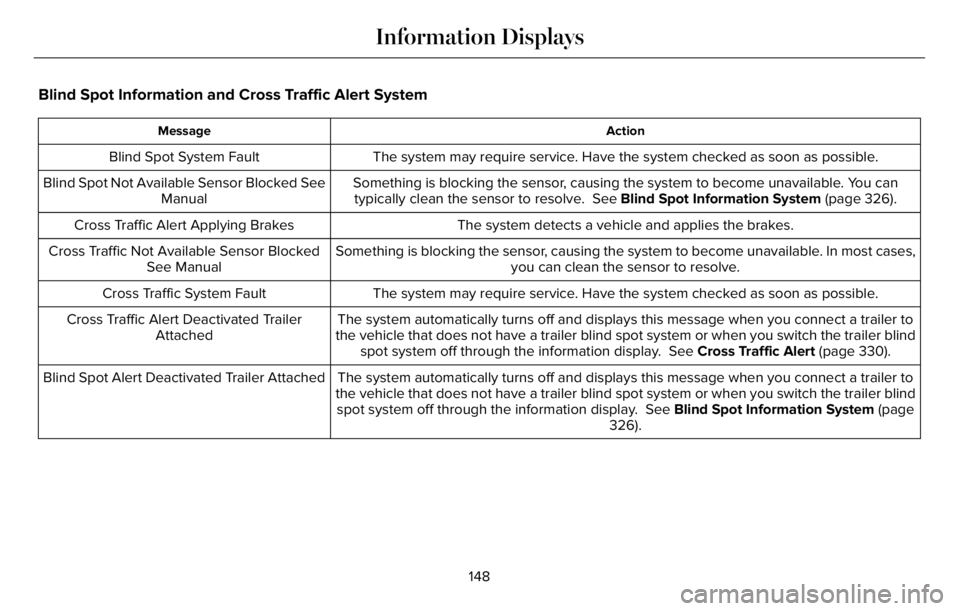

Blind Spot Information and Cross Traffic Alert System
Action Message
The system may require service. Have the system checked as soon as possible. Blind Spot System Fault
Something is blocking the sensor, causing the system to become unavailable. You can
typically clean the sensor to resolve. See Blind Spot Information System (page 326). Blind Spot Not Available Sensor Blocked See
Manual
The system detects a vehicle and applies the brakes. Cross Traffic Alert Applying Brakes
Something is blocking the sensor, causing the system to become unavailable. In most cases,
you can clean the sensor to resolve. Cross Traffic Not Available Sensor Blocked
See Manual
The system may require service. Have the system checked as soon as possible. Cross Traffic System Fault
The system automatically turns off and displays this message when you connect a trailer to
the vehicle that does not have a trailer blind spot system or when you switch the trailer blind
spot system off through the information display. See Cross Traffic Alert (page 330). Cross Traffic Alert Deactivated Trailer
Attached
The system automatically turns off and displays this message when you connect a trailer to
the vehicle that does not have a trailer blind spot system or when you switch the trailer blind
spot system off through the information display. See Blind Spot Information System (page
326). Blind Spot Alert Deactivated Trailer Attached
148
Information Displays

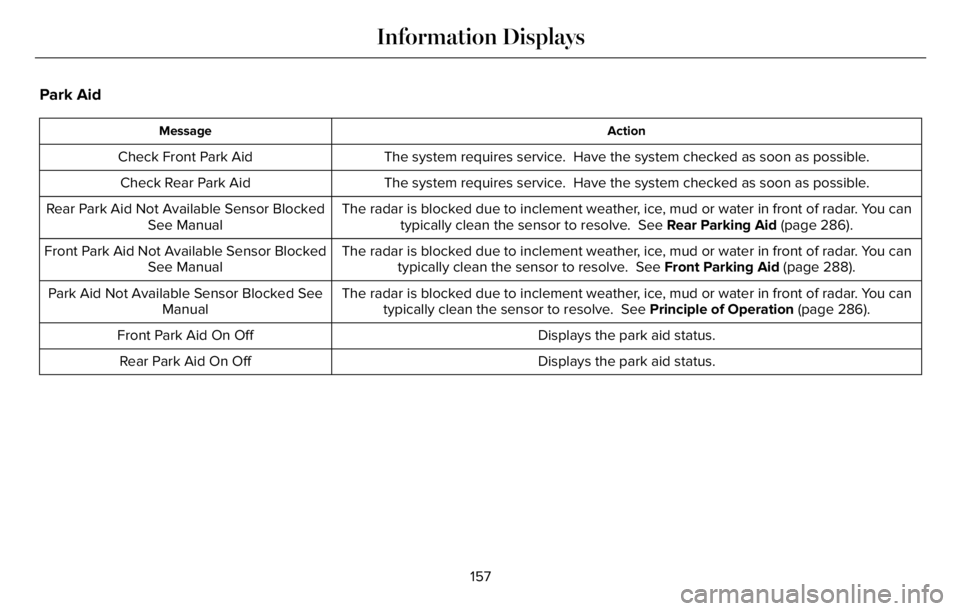

Park Aid
Action Message
The system requires service. Have the system checked as soon as possible. Check Front Park Aid
The system requires service. Have the system checked as soon as possible. Check Rear Park Aid
The radar is blocked due to inclement weather, ice, mud or water in front of radar. You can
typically clean the sensor to resolve. See Rear Parking Aid (page 286). Rear Park Aid Not Available Sensor Blocked
See Manual
The radar is blocked due to inclement weather, ice, mud or water in front of radar. You can
typically clean the sensor to resolve. See Front Parking Aid (page 288). Front Park Aid Not Available Sensor Blocked
See Manual
The radar is blocked due to inclement weather, ice, mud or water in front of radar. You can
typically clean the sensor to resolve. See Principle of Operation (page 286). Park Aid Not Available Sensor Blocked See
Manual
Displays the park aid status. Front Park Aid On Off
Displays the park aid status. Rear Park Aid On Off
157
Information Displays

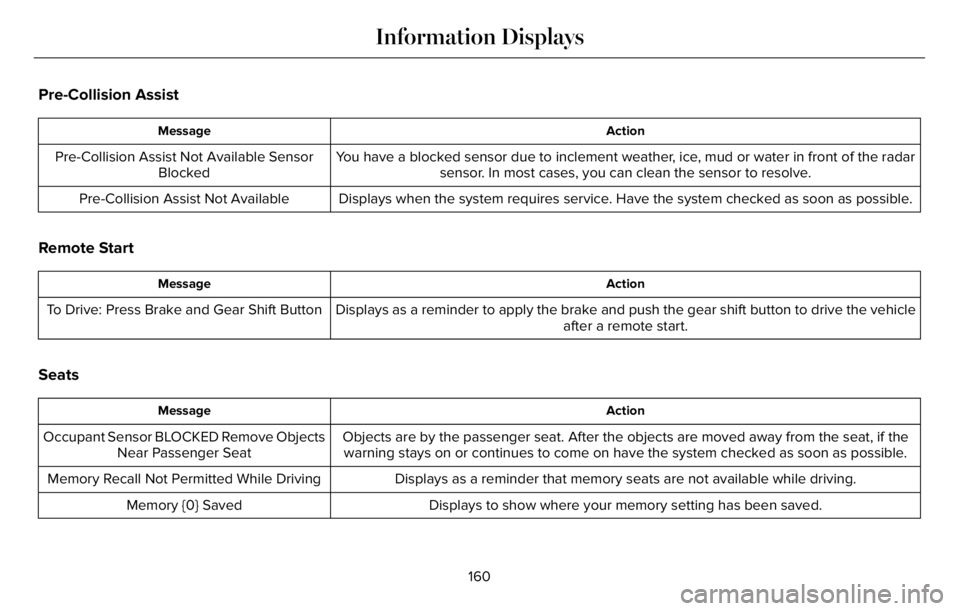

Pre-Collision Assist
Action Message
You have a blocked sensor due to inclement weather, ice, mud or water in front of the radar
sensor. In most cases, you can clean the sensor to resolve. Pre-Collision Assist Not Available Sensor
Blocked
Displays when the system requires service. Have the system checked as soon as possible. Pre-Collision Assist Not Available
Remote Start
Action Message
Displays as a reminder to apply the brake and push the gear shift button to drive the vehicle
after a remote start. To Drive: Press Brake and Gear Shift Button
Seats
Action Message
Objects are by the passenger seat. After the objects are moved away from the seat, if the
warning stays on or continues to come on have the system checked as soon as possible. Occupant Sensor BLOCKED Remove Objects
Near Passenger Seat
Displays as a reminder that memory seats are not available while driving. Memory Recall Not Permitted While Driving
Displays to show where your memory setting has been saved. Memory {0} Saved
160
Information Displays

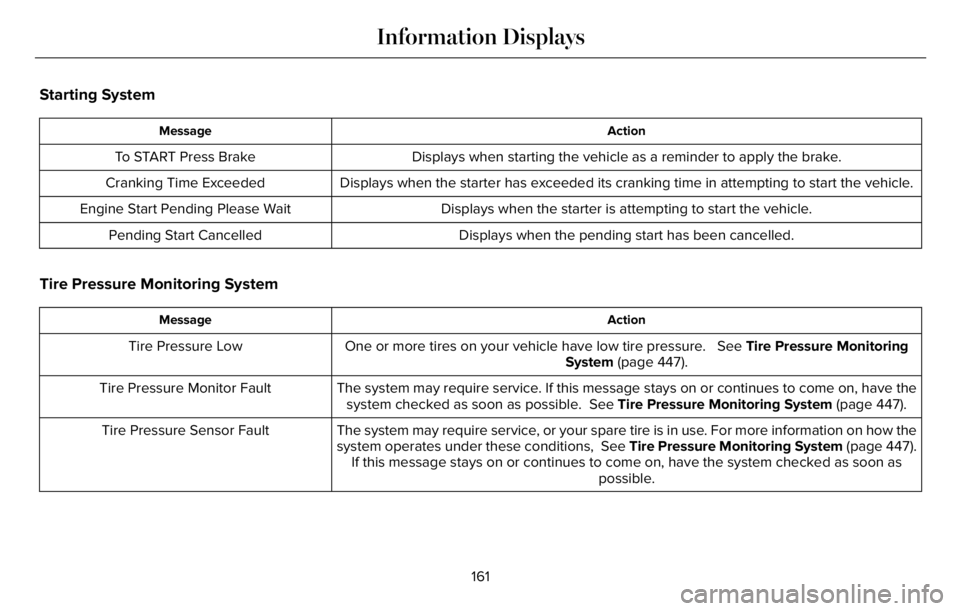

Starting System
Action Message
Displays when starting the vehicle as a reminder to apply the brake. To START Press Brake
Displays when the starter has exceeded its cranking time in attempting to start the vehicle. Cranking Time Exceeded
Displays when the starter is attempting to start the vehicle. Engine Start Pending Please Wait
Displays when the pending start has been cancelled. Pending Start Cancelled
Tire Pressure Monitoring System
Action Message
One or more tires on your vehicle have low tire pressure. See Tire Pressure Monitoring
System (page 447). Tire Pressure Low
The system may require service. If this message stays on or continues to come on, have the
system checked as soon as possible. See Tire Pressure Monitoring System (page 447). Tire Pressure Monitor Fault
The system may require service, or your spare tire is in use. For more information on how the
system operates under these conditions, See Tire Pressure Monitoring System (page 447).
If this message stays on or continues to come on, have the system checked as soon as
possible. Tire Pressure Sensor Fault
161
Information Displays

WHAT IS THE CABIN AIR FILTER
The cabin air filter improves the quality of air
in your vehicle by trapping dust, pollen and
other particles.
REPLACING THE CABIN AIR FILTER
Replace the filter at regular intervals. See
Scheduled Maintenance (page 579).
The cabin air filter is behind the glove
compartment.
To remove the lower glove compartment and
access the filter:
1. Open the glove compartment.
E31E31E31E1296129612
2. Press the tab on each side.
3. Fully lower the glove compartment.
4. Pull the glove compartment toward you.
WHAT IS AUTO AIR REFRESH (IF
EQUIPPED)
Auto Air Refresh helps improve or maintain
the quality of air within your vehicle cabin.
HOW DOES AUTO AIR REFRESH
WORK
(IF EQUIPPED)
Auto Air Refresh uses an outside gases
sensor to automatically adjust the climate
control system to change from outside air to
recirculated air to help reduce the entry of
outside odors into the cabin. It uses a
particulate matter sensor in the cabin to
estimate and provide information about
particulate matter pollution in the cabin. It
also allows you to refresh the cabin air with
outside air on-demand or automatically.
CHECKING THE INTERIOR AIR
QUALITY
(IF EQUIPPED)
E283817
Press the button on touchscreen
feature bar to see current cabin
PM2.5 information.
Note:You can also press the menu button
on the climate control unit and then press
PM2.5 on the touchscreen.
Press Cabin Air History to see a recent
history of average PM2.5 in the cabin.
173
Interior Air Quality

Particulate Matter Pollution
Information
PM2.5 is particulate patter pollution smaller
than 2.5 microns in size in the air.
PM2.5 particles can include cigarette smoke,
road level pollution, industrial pollution, and
some allergens.
The numbers provided by the cabin PM2.5
sensor are estimates of the concentrations
of particles in the cabin air. The
measurement unit is μg/m3, representing
mass (micrograms of particulates) per unit of
air volume (cubic meter of air).
The colors around the PM2.5 numbers
provide visual cues about the concentration
levels.
Note:PM2.5 is only one pollution type
contributing to an Air Quality Index and by
itself does not represent the Air Quality
Index.
AUTO AIR REFRESH INDICATORS
(IF EQUIPPED)
The indicator area is on the touchscreen
feature bar and displays one of the following:
E324585
Indicates blower motor is on for
filtering and PM2.5 is low.
E283817
Indicates the blower motor is on
for filtering.
E324586
Indicates the blower motor is off.
E324587
Indicates the status is not available.
REFRESHING THE INTERIOR AIR
MANUALLY REFRESHING THE
INTERIOR AIR
(If Equipped)
1. Press MENU on the climate control unit.
2. Press Cabin Refresh on the touchscreen.Note:Climate control settings could change
for about 90 seconds to help flow outside
air into the cabin. You can change the
blower motor speed to the settings you
prefer.
AUTOMATICALLY REFRESHING THE
INTERIOR AIR (If Equipped)
If the cabin air recirculates continuously for
longer than 35 minutes, climate control
settings could change automatically for about
90 seconds to help flow outside air into the
cabin.
Refreshing the Interior Air Upon Start
If the cabin is above a certain high
temperature while parked for over 30
minutes, when you start the engine the
climate control system settings could change
for approximately 60 seconds to help flow
outside air into the cabin.
Note:The system is not designed to cool the
interior air temperature.
174
Interior Air Quality

AUTO AIR REFRESH HINTS (IF
EQUIPPED)
To further improve the quality of air in the
cabin:
• Adjust the windows and other cabin
openings such as the moonroof.
• Switch recirculated air on or off.
• Manually refresh the interior air.• Adjust the blower motor speed.
• Replace the cabin air filter at regular
intervals.
INTERIOR AIR QUALITY –
TROUBLESHOOTING
INTERIOR AIR QUALITY –
INFORMATION MESSAGES
(If Equipped)
Note: Depending on your vehicle options,
not all messages display or are available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.
Action Message
Allow time for the cabin PM2.5 sensor to cool down, warm up, or dry
out. Environmental Limit
Allow a few seconds for the cabin PM2.5 sensor to start up. Initializing
175
Interior Air Quality

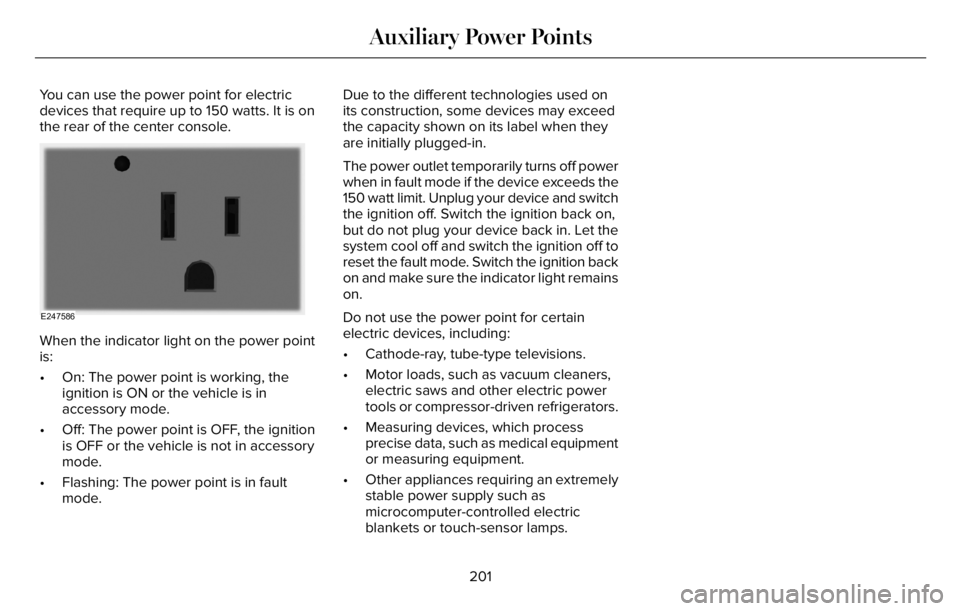

You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.
E247586
When the indicator light on the power point
is:
• On: The power point is working, the
ignition is ON or the vehicle is in
accessory mode.
• Off: The power point is OFF, the ignition
is OFF or the vehicle is not in accessory
mode.
• Flashing: The power point is in fault
mode.Due to the different technologies used on
its construction, some devices may exceed
the capacity shown on its label when they
are initially plugged-in.
The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit. Unplug your device and switch
the ignition off. Switch the ignition back on,
but do not plug your device back in. Let the
system cool off and switch the ignition off to
reset the fault mode. Switch the ignition back
on and make sure the indicator light remains
on.
Do not use the power point for certain
electric devices, including:
• Cathode-ray, tube-type televisions.
• Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.
• Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.
• Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.
201
Auxiliary Power Points

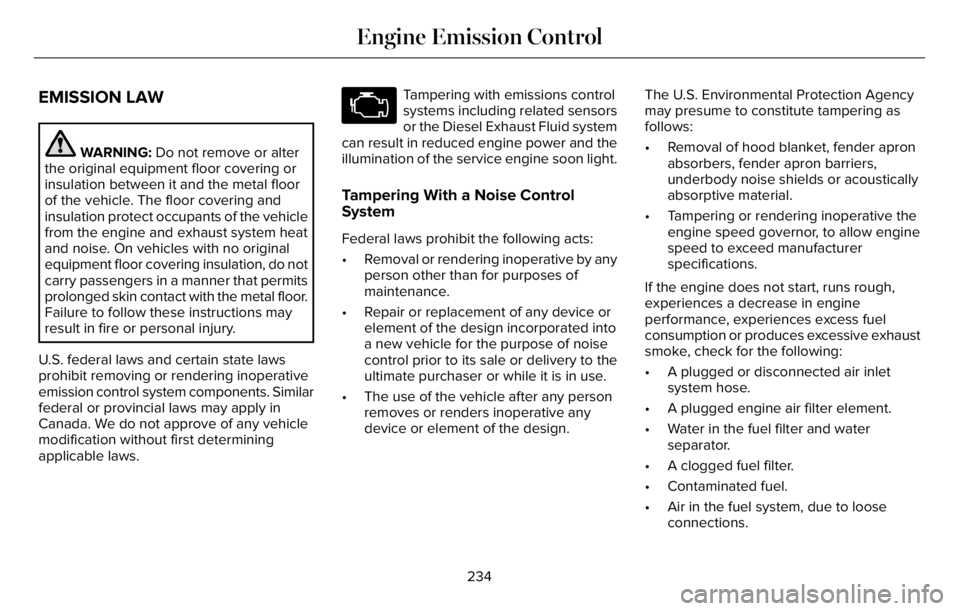

EMISSION LAW
WARNING: Do not remove or alter
the original equipment floor covering or
insulation between it and the metal floor
of the vehicle. The floor covering and
insulation protect occupants of the vehicle
from the engine and exhaust system heat
and noise. On vehicles with no original
equipment floor covering insulation, do not
carry passengers in a manner that permits
prolonged skin contact with the metal floor.
Failure to follow these instructions may
result in fire or personal injury.
U.S. federal laws and certain state laws
prohibit removing or rendering inoperative
emission control system components. Similar
federal or provincial laws may apply in
Canada. We do not approve of any vehicle
modification without first determining
applicable laws.
Tampering with emissions control
systems including related sensors
or the Diesel Exhaust Fluid system
can result in reduced engine power and the
illumination of the service engine soon light.
Tampering With a Noise Control
System
Federal laws prohibit the following acts:
• Removal or rendering inoperative by any
person other than for purposes of
maintenance.
• Repair or replacement of any device or
element of the design incorporated into
a new vehicle for the purpose of noise
control prior to its sale or delivery to the
ultimate purchaser or while it is in use.
• The use of the vehicle after any person
removes or renders inoperative any
device or element of the design.The U.S. Environmental Protection Agency
may presume to constitute tampering as
follows:
• Removal of hood blanket, fender apron
absorbers, fender apron barriers,
underbody noise shields or acoustically
absorptive material.
• Tampering or rendering inoperative the
engine speed governor, to allow engine
speed to exceed manufacturer
specifications.
If the engine does not start, runs rough,
experiences a decrease in engine
performance, experiences excess fuel
consumption or produces excessive exhaust
smoke, check for the following:
• A plugged or disconnected air inlet
system hose.
• A plugged engine air filter element.
• Water in the fuel filter and water
separator.
• A clogged fuel filter.
• Contaminated fuel.
• Air in the fuel system, due to loose
connections.
234
Engine Emission Control
