TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the
wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach
the rotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact
at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in
loss of vehicle control, personal injury or death.
lb.ft (Nm)*Bolt size
150 lb.ft (204 Nm) M14 x 1.5
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only our recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheel disturbance (such as tire rotation, changing a flat tire,
wheel removal).
458
Wheels and Tires

E1459550

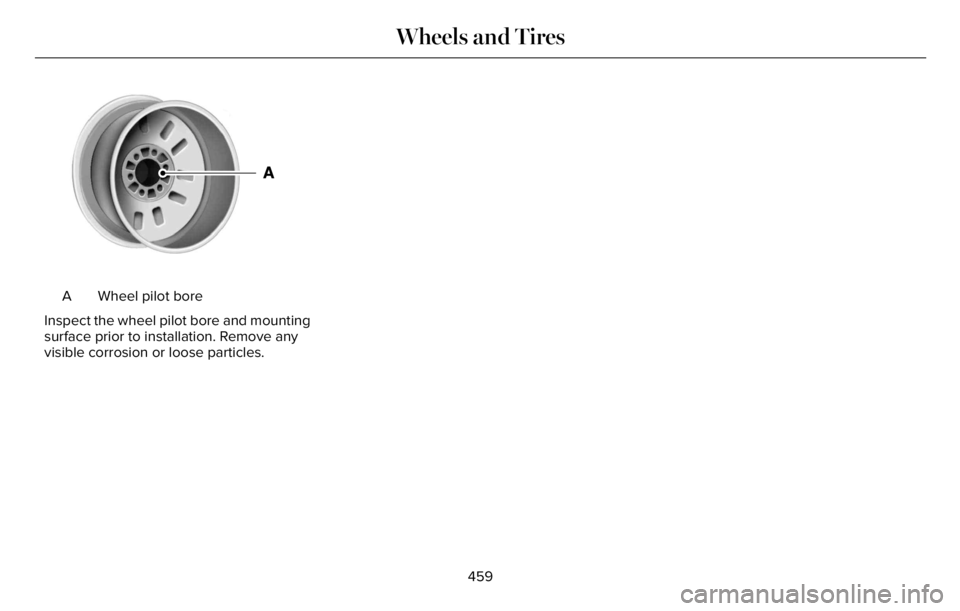

Wheel pilot bore A
Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.
459
Wheels and Tires

ENGINE SPECIFICATIONS - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
3.0L Engine
180 in³ (2,956 cm³) Displacement.
Minimum 87 octane Fuel type.
1-4-2-5-3-6 Firing order.
Coil on plug Ignition system.
0.028–0.031 in (0.7–0.8 mm) Spark plug gap.
9.5:1 Compression ratio.
460
Capacities and Specifications

Drivebelt Routing
E297178
ENGINE SPECIFICATIONS - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Specification Engine
180 in³ (2,956 cm³) Displacement.
Minimum 87 octane Required fuel.
1-4-2-5-3-6 Firing order.
Coil on plug Ignition system.
0.0276–0.0315 in (0.7–0.8 mm) Spark plug gap.
9.5:1 Compression ratio.
461
Capacities and Specifications

Drivebelt Routing
E294410
MOTORCRAFT PARTS - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Part Number Component
FA-1884 Air filter.
FL-2062-A
Oil filter.
1
BAGM-94RH7-800
Battery.2
SP-594 Spark plug.
FP-103 Cabin air filter.
WW-2617-NH (non-heated driver side) Windshield wiper blade.
462
Capacities and Specifications

Part Number Component
WW-2618-H (heated driver side)
WW-2619-R (refill driver side)
WW-2114-NH (non-heated passenger side)
WW-2115-H (heated passenger side)
WW-2116-R (refill passenger side)
WW-1111 Rear window wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.2 See your authorized dealer for correct replacement.
We recommend Motorcraft replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. These parts
engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability.
Your warranty could be void for any damage related to use of other parts.
463
Capacities and Specifications

MOTORCRAFT PARTS - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Part Number Component
FA-1884 Air filter.
FL-2062-A
Oil filter.
1
BAGM-94RH7-800 (main-engine compartment)
Battery.2
BHAGM-AUX1-A (auxiliary-rear mount)
SP-594 Spark plug.
FP-103 Cabin air filter.
WW-2617-NH (non-heated driver side) Windshield wiper blade.
WW-2618-H (heated driver side)
WW-2619-R (refill driver side)
WW-2114-NH (non-heated passenger side)
WW-2115-H (heated passenger side)
WW-2116-R (refill passenger side)
WW-1111 Rear window wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.2 See your authorized dealer for correct replacement.
We recommend Motorcraft replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. These parts
engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability.
Your warranty could be void for any damage related to use of other parts.
464
Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is located
on the left-hand side of the instrument panel.
E142476
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information:
E142477
World manufacturer identifier A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations B
Make, vehicle line, series, body
type C
Engine type D
Check digit E
Model year F
Assembly plant G
Production sequence number H
CAPACITIES AND SPECIFICATIONS
- EXCLUDING: PLUG-IN HYBRID
ELECTRIC VEHICLE (PHEV)
Use oil and fluid that meets the defined
specification and viscosity grade.
If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:
• Component damage that your vehicle
warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance.
465
Capacities and Specifications

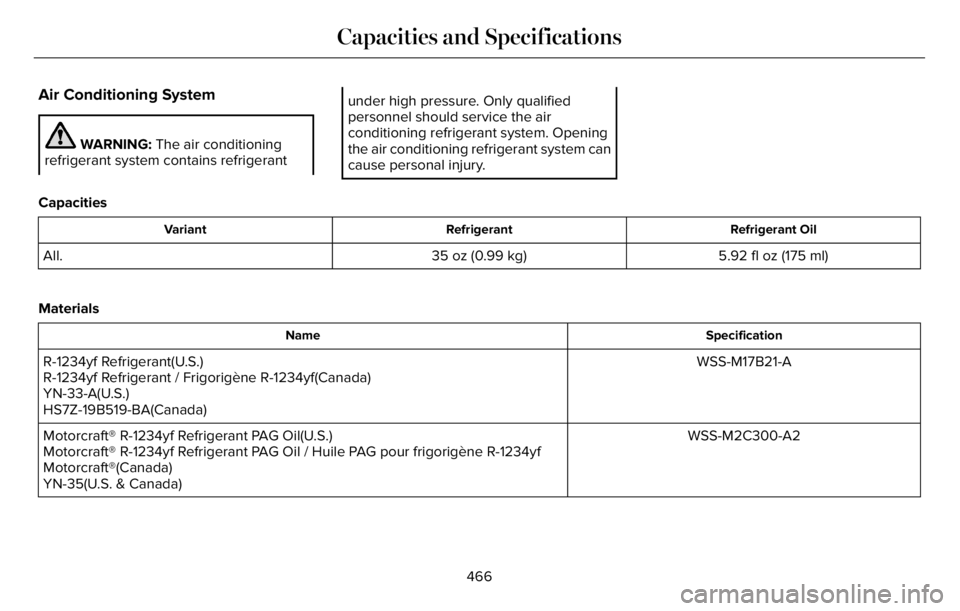

Air Conditioning System
WARNING: The air conditioning
refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.
Capacities
Refrigerant Oil Refrigerant Variant
5.92 fl oz (175 ml) 35 oz (0.99 kg) All.
Materials
Specification Name
WSS-M17B21-A R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)
WSS-M2C300-A2 Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)
466
Capacities and Specifications

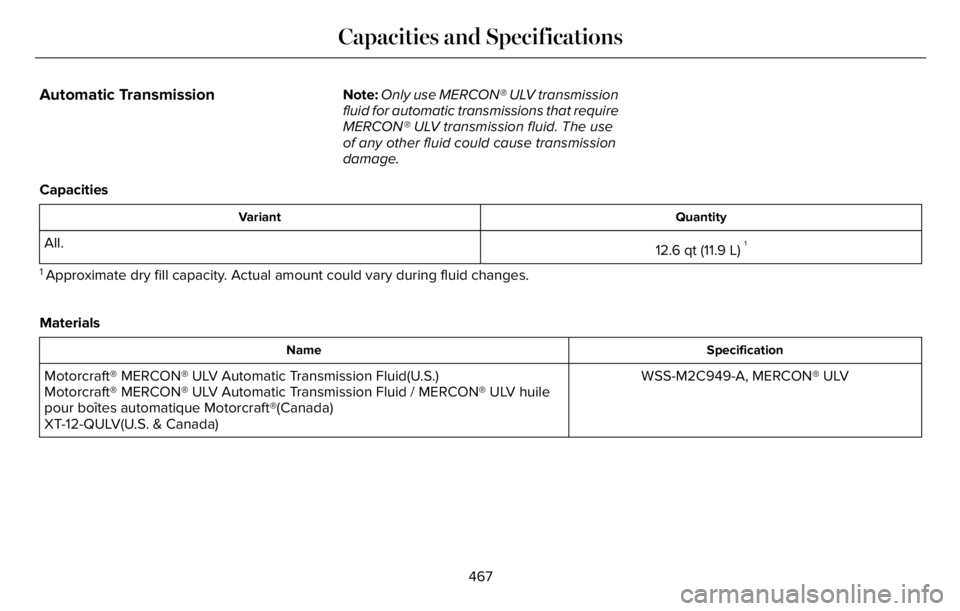

Automatic TransmissionNote:Only use MERCON® ULV transmission
fluid for automatic transmissions that require
MERCON® ULV transmission fluid. The use
of any other fluid could cause transmission
damage.
Capacities
Quantity Variant
12.6 qt (11.9 L)1All.
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
Materials
Specification Name
WSS-M2C949-A, MERCON® ULV Motorcraft® MERCON® ULV Automatic Transmission Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmission Fluid / MERCON® ULV huile
pour boîtes automatique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)
467
