LINCOLN AVIATOR 2023 Owners Manual

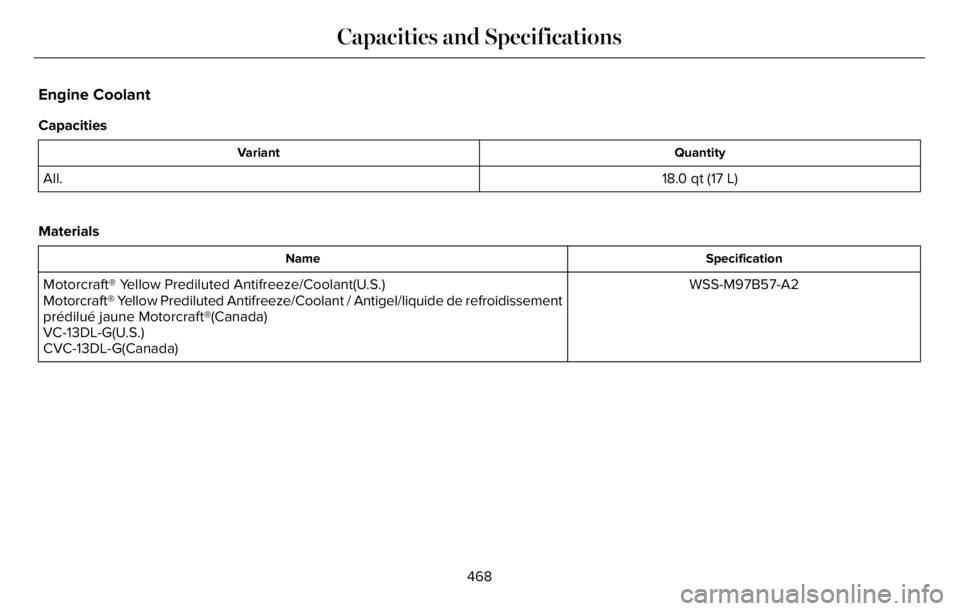

Engine Coolant
Capacities
Quantity Variant
18.0 qt (17 L) All.
Materials
Specification Name
WSS-M97B57-A2 Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)
468
Capacities and Specifications

Engine Oil
E142732
An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that display the API Certification Mark
for gasoline engines.
Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that your vehicle
warranty does not cover.
Capacities
Including the Oil Filter Variant
6.0 qt (5.7 L) All.
469
Capacities and Specifications

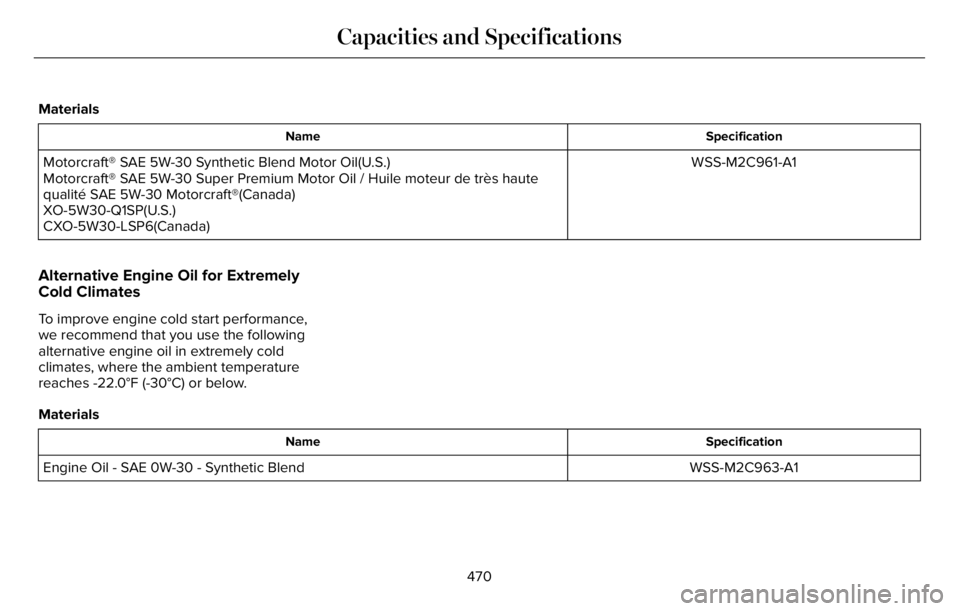

Materials
Specification Name
WSS-M2C961-A1 Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)
Alternative Engine Oil for Extremely
Cold Climates
To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.
Materials
Specification Name
WSS-M2C963-A1 Engine Oil - SAE 0W-30 - Synthetic Blend
470
Capacities and Specifications

E240523
Fuel Tank
Capacities
Quantity Variant
20.2 gal (76.5 L) All.
Grease
471
Capacities and Specifications

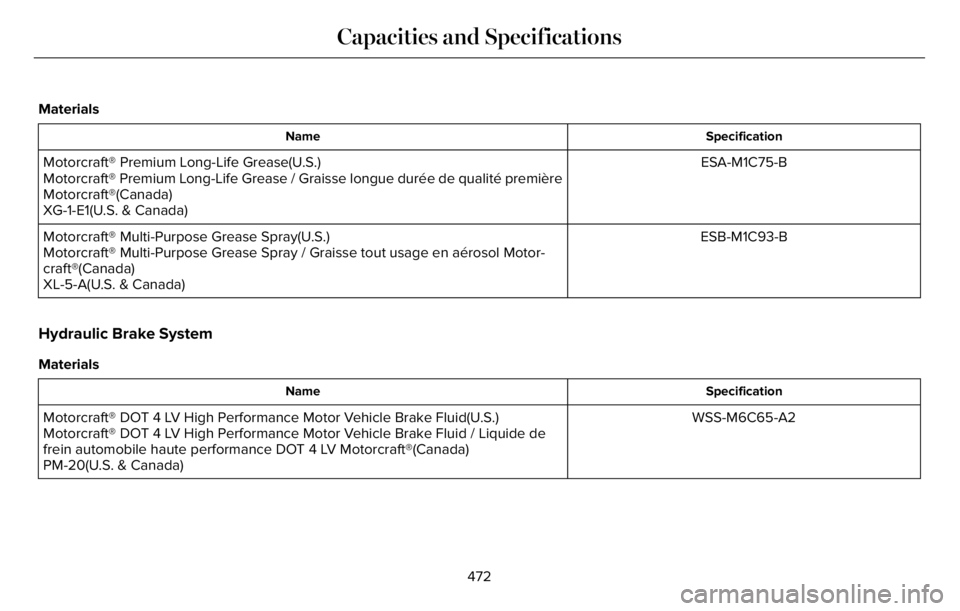

Materials
Specification Name
ESA-M1C75-B Motorcraft® Premium Long-Life Grease(U.S.)
Motorcraft® Premium Long-Life Grease / Graisse longue durée de qualité première
Motorcraft®(Canada)
XG-1-E1(U.S. & Canada)
ESB-M1C93-B Motorcraft® Multi-Purpose Grease Spray(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aérosol Motor-
craft®(Canada)
XL-5-A(U.S. & Canada)
Hydraulic Brake System
Materials
Specification Name
WSS-M6C65-A2 Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)
472
Capacities and Specifications

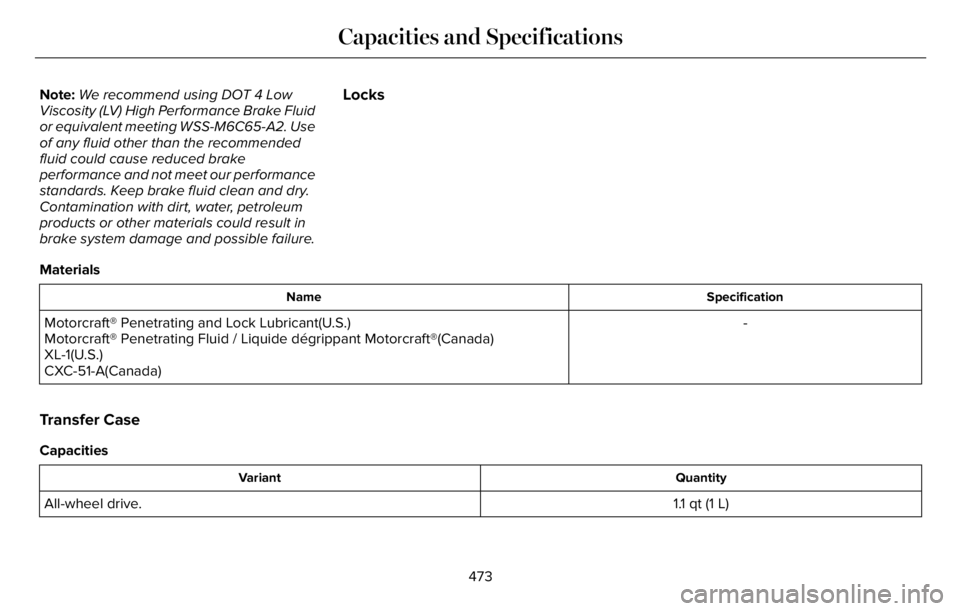

Note:We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid could cause reduced brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.Locks
Materials
Specification Name
- Motorcraft® Penetrating and Lock Lubricant(U.S.)
Motorcraft® Penetrating Fluid / Liquide dégrippant Motorcraft®(Canada)
XL-1(U.S.)
CXC-51-A(Canada)
Transfer Case
Capacities
Quantity Variant
1.1 qt (1 L) All-wheel drive.
473
Capacities and Specifications

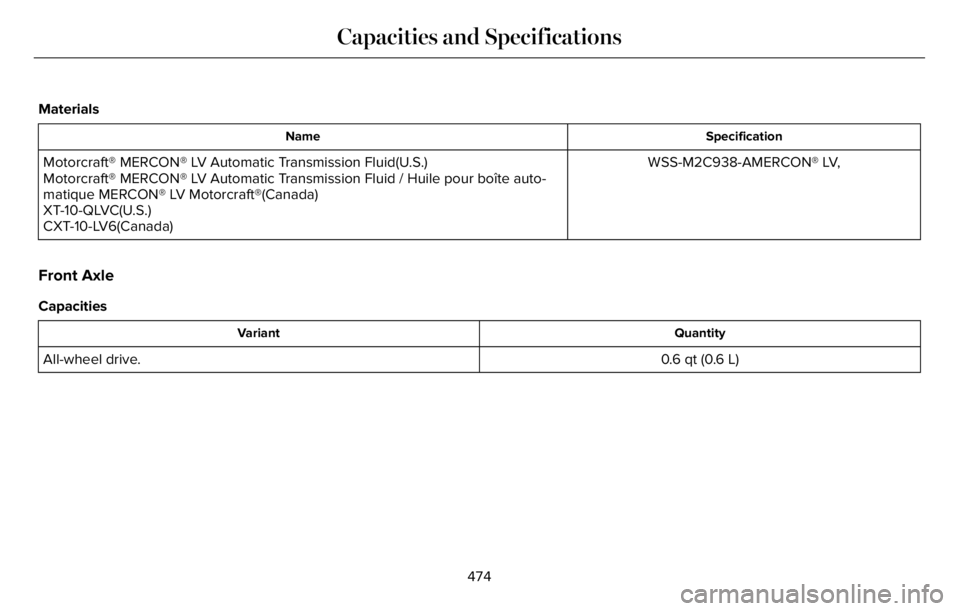

Materials
Specification Name
WSS-M2C938-AMERCON® LV, Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte auto-
matique MERCON® LV Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)
Front Axle
Capacities
Quantity Variant
0.6 qt (0.6 L) All-wheel drive.
474
Capacities and Specifications

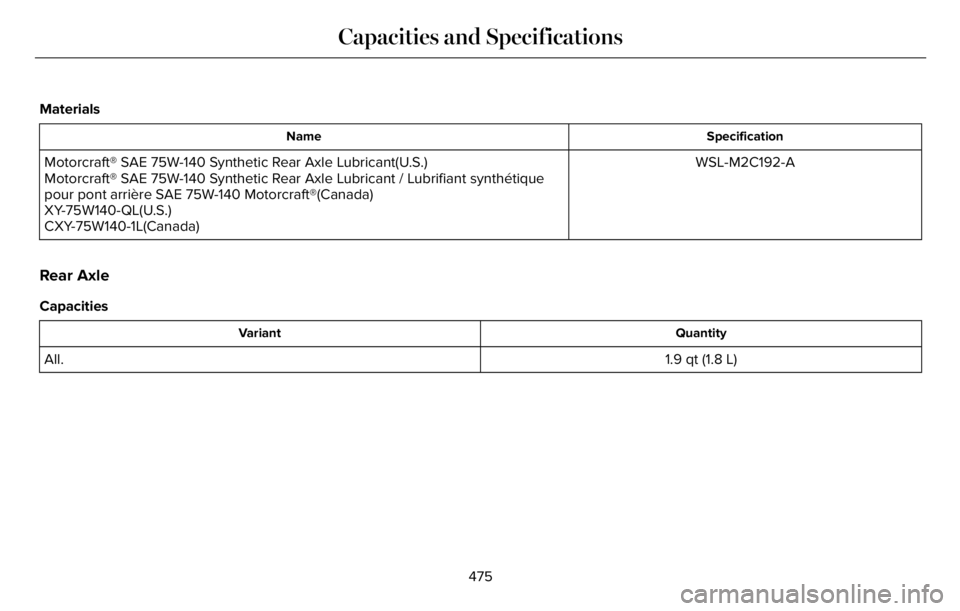

Materials
Specification Name
WSL-M2C192-A Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthétique
pour pont arrière SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)
Rear Axle
Capacities
Quantity Variant
1.9 qt (1.8 L) All.
475
Capacities and Specifications

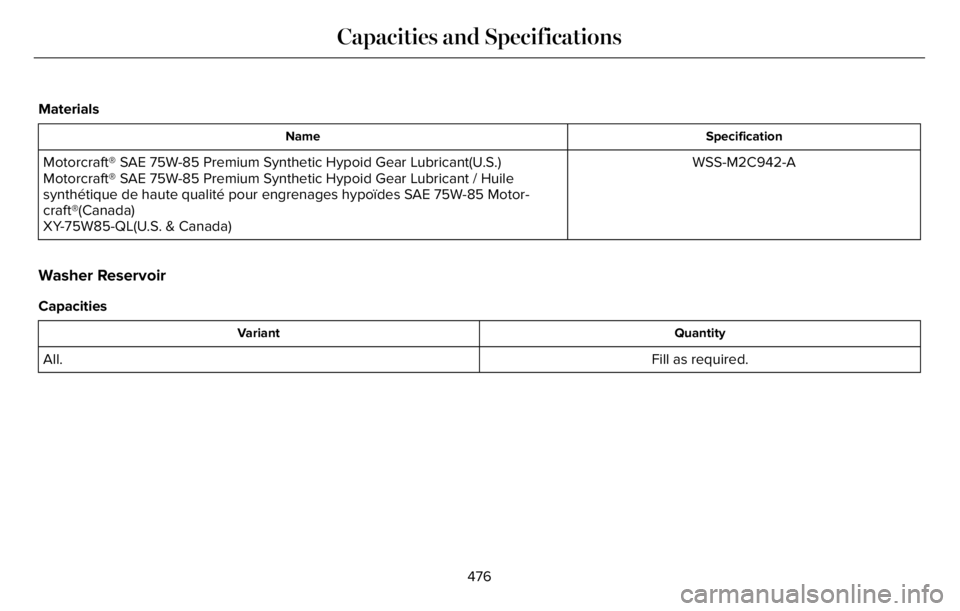

Materials
Specification Name
WSS-M2C942-A Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile
synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85 Motor-
craft®(Canada)
XY-75W85-QL(U.S. & Canada)
Washer Reservoir
Capacities
Quantity Variant
Fill as required. All.
476
Capacities and Specifications

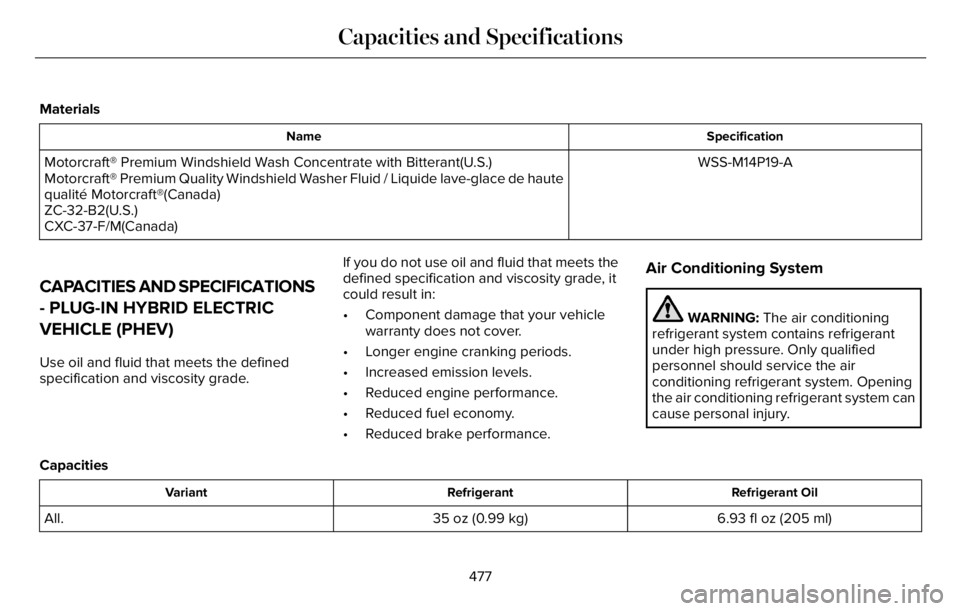

Materials
Specification Name
WSS-M14P19-A Motorcraft® Premium Windshield Wash Concentrate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute
qualité Motorcraft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)
CAPACITIES AND SPECIFICATIONS
- PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV)
Use oil and fluid that meets the defined
specification and viscosity grade.If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:
• Component damage that your vehicle
warranty does not cover.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance.
Air Conditioning System
WARNING: The air conditioning
refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.
Capacities
Refrigerant Oil Refrigerant Variant
6.93 fl oz (205 ml) 35 oz (0.99 kg) All.
477
Capacities and Specifications
