keyless LINCOLN AVIATOR 2023 Owners Manual

Keys and Remote Controls
General Information on Radio Frequencies
........................................................................6 8
Remote Control ..............................................69
Replacing a Lost Key or Remote Control
.........................................................................73
Phone as a Key
What Is Phone as a Key ................................74
Phone as a Key Limitations .........................74
Programming Your Phone ............................74
Using the Valet Mode ...................................75
Using the Backup Start Passcode .............75
Phone as a Key – Troubleshooting ...........76
MyKey™
Principle of Operation ...................................78
Creating a MyKey ..........................................79
Clearing All MyKeys ......................................80
Checking MyKey System Status ................80
Using MyKey With Remote Start Systems
..........................................................................81
MyKey – Troubleshooting ............................81
Doors and Locks
Locking and Unlocking ................................83
Opening the Doors .......................................90
Emergency Door Release ............................91
Soft Closing Door ...........................................91
Keyless Entry ...................................................91
Liftgate
Power Liftgate ................................................94
Security
Passive Anti-Theft System ..........................99
Anti-Theft Alarm ...........................................100
Steering Wheel
Adjusting the Steering Wheel - Vehicles
With: Manual Adjustable Steering
Column .......................................................102
Adjusting the Steering Wheel - Vehicles
With: Power Adjustable Steering Column
.......................................................................102
Audio Control ................................................104
Voice Control ................................................104Cruise Control - Vehicles With: Adaptive
Cruise Control With Lane Centering
.......................................................................104
Cruise Control - Vehicles With: Cruise
Control ........................................................105
Information Display Control ......................106
Heated Steering Wheel ..............................106
Horn .................................................................106
Wipers and Washers
Windshield Wipers - Vehicles Without:
Heated Wiper Blades ..............................107
Windshield Wipers - Vehicles With: Heated
Wiper Blades .............................................108
Autowipers .....................................................108
Windshield Washers ....................................109
Rear Window Wiper and Washers ...........109
Lighting
General Information .......................................111
Lighting Control ..............................................111
Autolamps .......................................................112
Instrument Lighting Dimmer .......................112
Headlamp Exit Delay ....................................113
2
Table of Contents

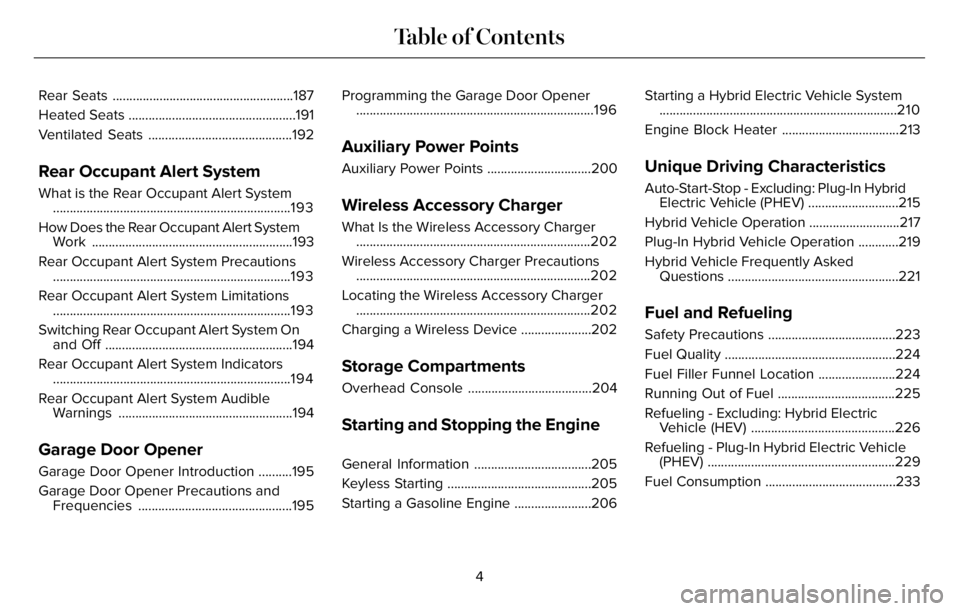

Rear Seats ......................................................187
Heated Seats ..................................................191
Ventilated Seats ...........................................192
Rear Occupant Alert System
What is the Rear Occupant Alert System
.......................................................................193
How Does the Rear Occupant Alert System
Work ............................................................193
Rear Occupant Alert System Precautions
.......................................................................193
Rear Occupant Alert System Limitations
.......................................................................193
Switching Rear Occupant Alert System On
and Off ........................................................194
Rear Occupant Alert System Indicators
.......................................................................194
Rear Occupant Alert System Audible
Warnings ....................................................194
Garage Door Opener
Garage Door Opener Introduction ..........195
Garage Door Opener Precautions and
Frequencies ..............................................195Programming the Garage Door Opener
.......................................................................196
Auxiliary Power Points
Auxiliary Power Points ...............................200
Wireless Accessory Charger
What Is the Wireless Accessory Charger
......................................................................202
Wireless Accessory Charger Precautions
......................................................................202
Locating the Wireless Accessory Charger
......................................................................202
Charging a Wireless Device .....................202
Storage Compartments
Overhead Console .....................................204
Starting and Stopping the Engine
General Information ...................................205
Keyless Starting ...........................................205
Starting a Gasoline Engine .......................206Starting a Hybrid Electric Vehicle System
.......................................................................210
Engine Block Heater ...................................213
Unique Driving Characteristics
Auto-Start-Stop - Excluding: Plug-In Hybrid
Electric Vehicle (PHEV) ...........................215
Hybrid Vehicle Operation ...........................217
Plug-In Hybrid Vehicle Operation ............219
Hybrid Vehicle Frequently Asked
Questions ...................................................221
Fuel and Refueling
Safety Precautions ......................................223
Fuel Quality ...................................................224
Fuel Filler Funnel Location .......................224
Running Out of Fuel ...................................225
Refueling - Excluding: Hybrid Electric
Vehicle (HEV) ...........................................226
Refueling - Plug-In Hybrid Electric Vehicle
(PHEV) ........................................................229
Fuel Consumption .......................................233
4
Table of Contents

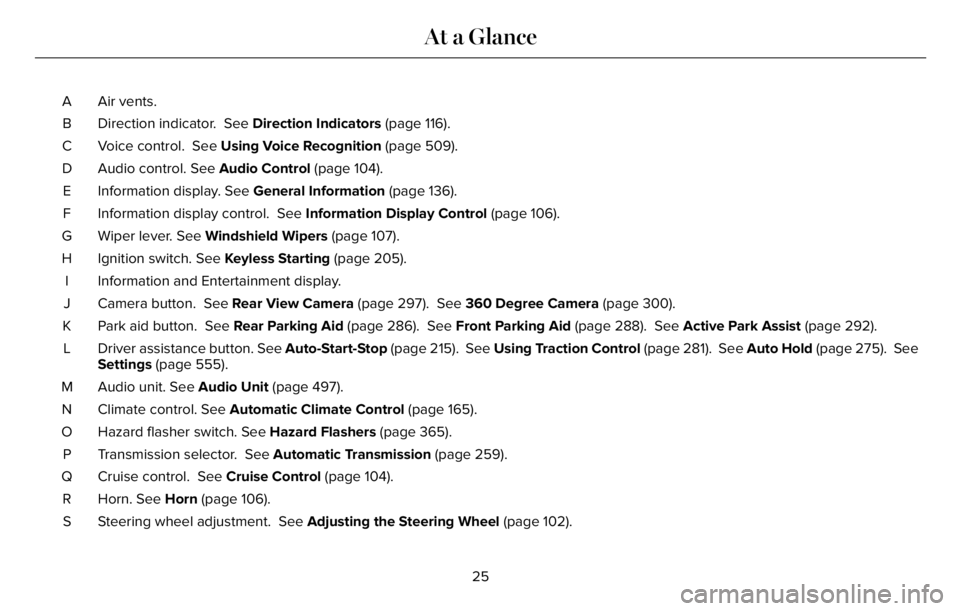

Air vents. A
Direction indicator. See Direction Indicators (page 116). B
Voice control. See Using Voice Recognition (page 509). C
Audio control. See Audio Control (page 104). D
Information display. See General Information (page 136). E
Information display control. See Information Display Control (page 106). F
Wiper lever. See Windshield Wipers (page 107). G
Ignition switch. See Keyless Starting (page 205). H
Information and Entertainment display. I
Camera button. See Rear View Camera (page 297). See 360 Degree Camera (page 300). J
Park aid button. See Rear Parking Aid (page 286). See Front Parking Aid (page 288). See Active Park Assist (page 292). K
Driver assistance button. See Auto-Start-Stop (page 215). See Using Traction Control (page 281). See Auto Hold (page 275). See
Settings (page 555). L
Audio unit. See Audio Unit (page 497). M
Climate control. See Automatic Climate Control (page 165). N
Hazard flasher switch. See Hazard Flashers (page 365). O
Transmission selector. See Automatic Transmission (page 259). P
Cruise control. See Cruise Control (page 104). Q
Horn. See Horn (page 106). R
Steering wheel adjustment. See Adjusting the Steering Wheel (page 102). S
25
At a Glance

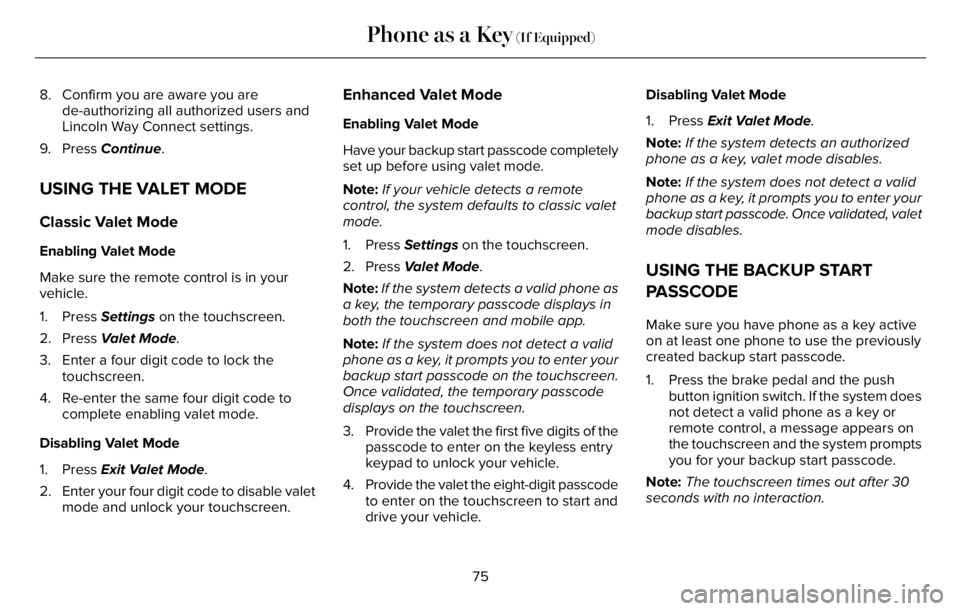

8. Confirm you are aware you are
de-authorizing all authorized users and
Lincoln Way Connect settings.
9. Press Continue.
USING THE VALET MODE
Classic Valet Mode
Enabling Valet Mode
Make sure the remote control is in your
vehicle.
1. Press Settings on the touchscreen.
2. Press Valet Mode.
3. Enter a four digit code to lock the
touchscreen.
4. Re-enter the same four digit code to
complete enabling valet mode.
Disabling Valet Mode
1. Press Exit Valet Mode.
2. Enter your four digit code to disable valet
mode and unlock your touchscreen.
Enhanced Valet Mode
Enabling Valet Mode
Have your backup start passcode completely
set up before using valet mode.
Note:If your vehicle detects a remote
control, the system defaults to classic valet
mode.
1. Press Settings on the touchscreen.
2. Press Valet Mode.
Note:If the system detects a valid phone as
a key, the temporary passcode displays in
both the touchscreen and mobile app.
Note:If the system does not detect a valid
phone as a key, it prompts you to enter your
backup start passcode on the touchscreen.
Once validated, the temporary passcode
displays on the touchscreen.
3. Provide the valet the first five digits of the
passcode to enter on the keyless entry
keypad to unlock your vehicle.
4. Provide the valet the eight-digit passcode
to enter on the touchscreen to start and
drive your vehicle.Disabling Valet Mode
1. Press Exit Valet Mode.
Note:If the system detects an authorized
phone as a key, valet mode disables.
Note:If the system does not detect a valid
phone as a key, it prompts you to enter your
backup start passcode. Once validated, valet
mode disables.
USING THE BACKUP START
PASSCODE
Make sure you have phone as a key active
on at least one phone to use the previously
created backup start passcode.
1. Press the brake pedal and the push
button ignition switch. If the system does
not detect a valid phone as a key or
remote control, a message appears on
the touchscreen and the system prompts
you for your backup start passcode.
Note:The touchscreen times out after 30
seconds with no interaction.
75
Phone as a Key (If Equipped)

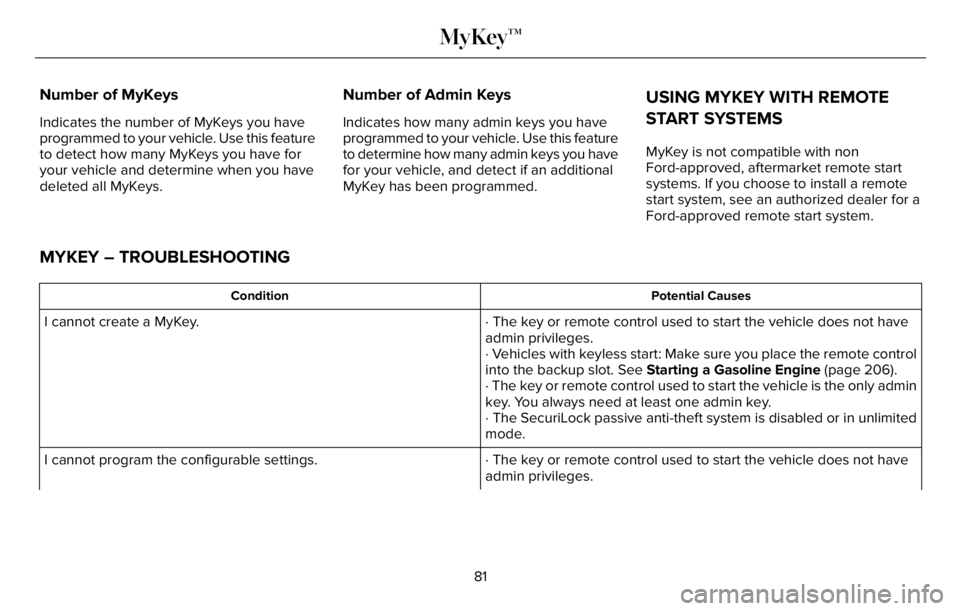

Number of MyKeys
Indicates the number of MyKeys you have
programmed to your vehicle. Use this feature
to detect how many MyKeys you have for
your vehicle and determine when you have
deleted all MyKeys.
Number of Admin Keys
Indicates how many admin keys you have
programmed to your vehicle. Use this feature
to determine how many admin keys you have
for your vehicle, and detect if an additional
MyKey has been programmed.
USING MYKEY WITH REMOTE
START SYSTEMS
MyKey is not compatible with non
Ford-approved, aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Ford-approved remote start system.
MYKEY – TROUBLESHOOTING
Potential Causes Condition
· The key or remote control used to start the vehicle does not have
admin privileges. I cannot create a MyKey.
· Vehicles with keyless start: Make sure you place the remote control
into the backup slot. See Starting a Gasoline Engine (page 206).
· The key or remote control used to start the vehicle is the only admin
key. You always need at least one admin key.
· The SecuriLock passive anti-theft system is disabled or in unlimited
mode.
· The key or remote control used to start the vehicle does not have
admin privileges. I cannot program the configurable settings.
81
MyKey™

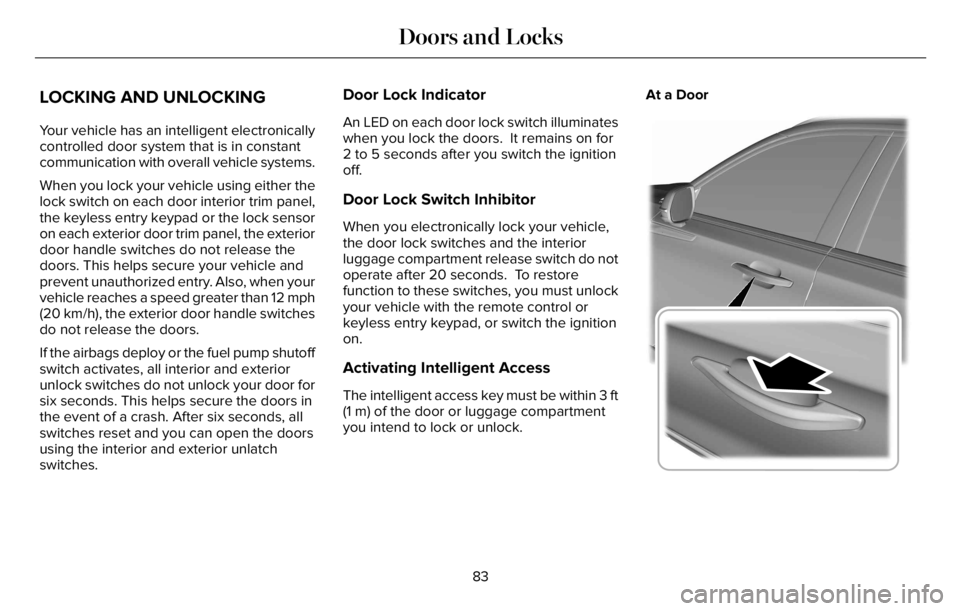

LOCKING AND UNLOCKING
Your vehicle has an intelligent electronically
controlled door system that is in constant
communication with overall vehicle systems.
When you lock your vehicle using either the
lock switch on each door interior trim panel,
the keyless entry keypad or the lock sensor
on each exterior door trim panel, the exterior
door handle switches do not release the
doors. This helps secure your vehicle and
prevent unauthorized entry. Also, when your
vehicle reaches a speed greater than 12 mph
(20 km/h), the exterior door handle switches
do not release the doors.
If the airbags deploy or the fuel pump shutoff
switch activates, all interior and exterior
unlock switches do not unlock your door for
six seconds. This helps secure the doors in
the event of a crash. After six seconds, all
switches reset and you can open the doors
using the interior and exterior unlatch
switches.
Door Lock Indicator
An LED on each door lock switch illuminates
when you lock the doors. It remains on for
2 to 5 seconds after you switch the ignition
off.
Door Lock Switch Inhibitor
When you electronically lock your vehicle,
the door lock switches and the interior
luggage compartment release switch do not
operate after 20 seconds. To restore
function to these switches, you must unlock
your vehicle with the remote control or
keyless entry keypad, or switch the ignition
on.
Activating Intelligent Access
The intelligent access key must be within 3 ft
(1 m) of the door or luggage compartment
you intend to lock or unlock.At a Door
E295769
83
Doors and Locks

Electronic door handles are on each door.
Gently press the switch inside the exterior
door handle to unlock and open the door.
An unlock symbol illuminates on the door
window trim indicating your vehicle is
unlocked.
E295770
Locking sensors are on both front doors.
When the intelligent access key is within 3 ft
(1 m) of your vehicle, you can lock your
vehicle by touching the locking sensor below
the keyless entry keypad. Doing so causes
a lock symbol to illuminate on the door
window trim indicating your vehicle is locked
and you can no longer release the door using
the exterior door handle switches. Touching
the locking sensor when the intelligent
access key is not within 3 ft (1 m) causes the
lock status to display, but does not lock the
doors.
Swipe across the locking sensor to display
the current lock status of your vehicle. The
lock status also displays when you open a
door or when the lock status changes.
Note: You cannot use the locking sensors
to unlock your vehicle.
84
Doors and Locks

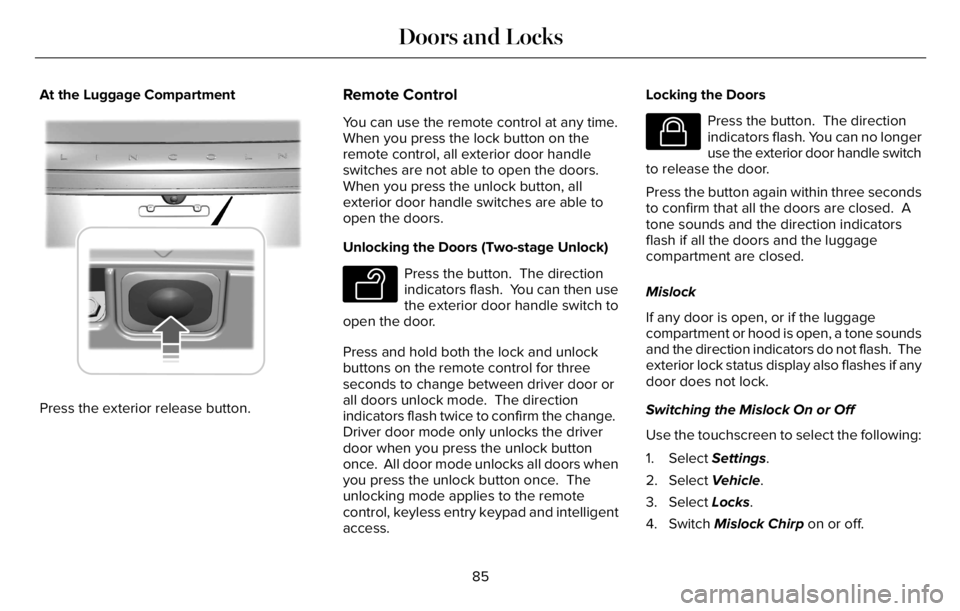

At the Luggage Compartment
E291416E291416
Press the exterior release button.
Remote Control
You can use the remote control at any time.
When you press the lock button on the
remote control, all exterior door handle
switches are not able to open the doors.
When you press the unlock button, all
exterior door handle switches are able to
open the doors.
Unlocking the Doors (Two-stage Unlock)
E138629
Press the button. The direction
indicators flash. You can then use
the exterior door handle switch to
open the door.
Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode. The direction
indicators flash twice to confirm the change.
Driver door mode only unlocks the driver
door when you press the unlock button
once. All door mode unlocks all doors when
you press the unlock button once. The
unlocking mode applies to the remote
control, keyless entry keypad and intelligent
access.Locking the Doors
E138623
Press the button. The direction
indicators flash. You can no longer
use the exterior door handle switch
to release the door.
Press the button again within three seconds
to confirm that all the doors are closed. A
tone sounds and the direction indicators
flash if all the doors and the luggage
compartment are closed.
Mislock
If any door is open, or if the luggage
compartment or hood is open, a tone sounds
and the direction indicators do not flash. The
exterior lock status display also flashes if any
door does not lock.
Switching the Mislock On or Off
Use the touchscreen to select the following:
1. Select Settings.
2. Select Vehicle.
3. Select Locks.
4. Switch Mislock Chirp on or off.
85
Doors and Locks

Smart Unlocks for Intelligent Access
Keys
This prevents you from locking your
intelligent access key inside your vehicle’s
passenger compartment or rear cargo area.
When you electronically lock your vehicle
with any door open, the transmission is in
park (P) and the ignition is off, the system
searches for an intelligent access key inside
your vehicle after you close the last door. If
the system finds a key, all the doors
immediately unlock and the horn sounds
twice, indicating that a key is inside.
You can override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle.
To do this, lock your vehicle after you have
closed all the doors by:
• Using the keyless entry keypad.
• Pressing the lock button on another
intelligent access key.
• Touching the locking sensor on the door
window trim with another intelligent
access key in your hand.When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors lock then unlock if:
• The ignition is on.
• The ignition is off, and the transmission
is not in park (P).
Autolock (If Equipped)
Autolock locks all the doors when:
• All doors are closed.
• The ignition is on.
• You shift into any gear putting your
vehicle in motion.
• Your vehicle reaches a speed greater
than 12 mph (20 km/h).
Autolock repeats when:
• You open then close any door while the
ignition is on and your vehicle speed is
9 mph (15 km/h) or lower.
• Your vehicle reaches a speed greater
than 12 mph (20 km/h).
Autounlock
Autounlock unlocks all the doors when:
• The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than 12 mph
(20 km/h).
• Your vehicle comes to a stop and you
switch the ignition off or to the accessory
position.
• You open the driver door within 10
minutes of switching the ignition off or to
accessory.
Note:The doors do not autounlock if you
electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.
Switching Autounlock On and Off
Use the touchscreen to select the following:
1. Select Settings.
2. Select Vehicle.
3. Select Locks.
4. Switch Autounlock on or off.
88
Doors and Locks

EMERGENCY DOOR RELEASE
E2995773E295773295773
If you are inside your vehicle and unable to
use the electronic door system, you can
open the driver door using the emergency
door release switch in the map pocket.
SOFT CLOSING DOOR
Gently close the door until it fully latches.
The system automatically closes the door,
making sure it is fully secure.
Note:The system does not work if the
vehicle battery charge is low.
Note:The system is limited to 25 cycles
between each ignition cycle. This is to
prevent the vehicle battery from losing
charge.
Note:You can override soft close by fully
closing the door manually.
KEYLESS ENTRY
SECURICODE™ Keyless Entry Keypad
The keypad is near the driver window. It
illuminates when touched.Note: If you enter your entry code too fast
on the keypad, the unlock function may not
work. Enter your entry code again more
slowly.
E138637
You can use the keypad to do the following:
• Lock or unlock the doors.
• Program and erase user codes.
• Arm and disarm the anti-theft alarm.
91
Doors and Locks
