wiper fluid LINCOLN AVIATOR 2023 Owners Manual

Driving Hints
Reduced Engine Performance ..................361
Cold Weather Precautions .........................361
Breaking-In .....................................................361
Driving Economically ...................................361
Driving Through Shallow Water ..............362
Floor Mats .....................................................362
Roadside Emergencies
Roadside Assistance ..................................364
Hazard Flashers ..........................................365
Fuel Shutoff ..................................................365
Jump Starting the Vehicle .........................366
Collision, Damage or Fire Event ..............368
Post-Crash Alert System ............................370
Transporting the Vehicle ...........................370
Crash and Breakdown
Information
Post Impact Braking ....................................372
Customer Assistance
Getting the Services You Need ...............373In California (U.S. Only) ..............................374
The Better Business Bureau (BBB) Auto
Line Program (U.S. Only) .......................375
Utilizing the Mediation/Arbitration Program
(Canada Only) ..........................................376
Getting Assistance Outside the U.S. and
Canada .......................................................377
Ordering Additional Owner's Literature
......................................................................3 7 9
Reporting Safety Defects (U.S. Only) ......380
Reporting Safety Defects (Canada Only)
......................................................................380
Fuses
Fuse Specification Chart ...........................382
Changing a Fuse .........................................395
Maintenance
General Information ....................................398
Opening and Closing the Hood ..............398
Under Hood Overview ..............................400
Engine Oil Dipstick ......................................401
Engine Oil Check .........................................401
Oil Change Indicator Reset ......................402Changing the Engine Air Filter ................402
Engine Coolant Check ...............................404
Automatic Transmission Fluid Check ......408
Brake Fluid Check ......................................409
Power Steering Fluid Check ....................409
Changing the 12V Battery - Gasoline ......410
Changing the 12V Battery - Plug-In Hybrid
Electric Vehicle (PHEV) ...........................413
Adjusting the Headlamps ..........................416
Washer Fluid Check .....................................417
Fuel Filter ........................................................418
Checking the Wiper Blades .......................418
Changing the Front Wiper Blades -
Vehicles Without: Heated Wiper Blades
.......................................................................418
Changing the Front Wiper Blades -
Vehicles With: Heated Wiper Blades
.......................................................................419
Changing the Rear Wiper Blades ............419
Changing a Bulb ..........................................420
Vehicle Care
General Information .....................................421
Cleaning Products .......................................421
7
Table of Contents

Autowipers Settings
This setting defaults to on and remains on
until you switch it off in the touchscreen.
When you switch the feature off, the wipers
do not operate based on the rain sensor.
When you switch on the windshield wipers
to the intermittent wipe position with the
feature off, the wipers use the wipe speed
set by the rotary control.
Low Temperature Wipe Inhibit
The rain sensing feature will not operate
immediately after starting your vehicle when
it is in park (P) and the outside temperature
is below 32°F (0°C). You can switch on the
wipers by adjusting the rain sensor sensitivity
or adjusting the wiper speed.
This prevents damage to the wiper blades
from ice and snow on the windshield.
WINDSHIELD WASHERS
E269412E269412
E270967
Pull the lever toward you to
operate the windshield washers.
When you release the lever, the wipers
operate for a short time. When activated, a
courtesy wipe occurs a short time after the
wipers stop to clear any remaining washer
fluid.
Note:You can switch courtesy wipe on or
off in the touchscreen.
Note: Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.
Front Camera Washer (If Equipped)
Operating the windshield washer also turns
on the front camera washer.
REAR WINDOW WIPER AND
WASHERS
Rear Window Wiper
E2422324
Intermittent wipe. A
Continuous wipe. B
Rear window wiper off. C
109
Wipers and Washers

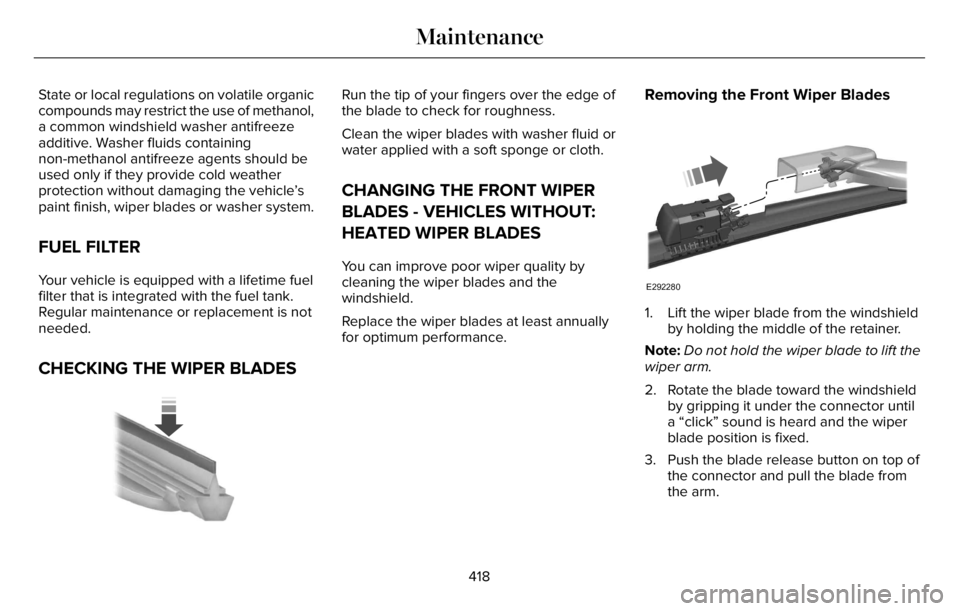

State or local regulations on volatile organic
compounds may restrict the use of methanol,
a common windshield washer antifreeze
additive. Washer fluids containing
non-methanol antifreeze agents should be
used only if they provide cold weather
protection without damaging the vehicle’s
paint finish, wiper blades or washer system.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel
filter that is integrated with the fuel tank.
Regular maintenance or replacement is not
needed.
CHECKING THE WIPER BLADES
E142463
Run the tip of your fingers over the edge of
the blade to check for roughness.
Clean the wiper blades with washer fluid or
water applied with a soft sponge or cloth.
CHANGING THE FRONT WIPER
BLADES - VEHICLES WITHOUT:
HEATED WIPER BLADES
You can improve poor wiper quality by
cleaning the wiper blades and the
windshield.
Replace the wiper blades at least annually
for optimum performance.
Removing the Front Wiper Blades
E292280
1. Lift the wiper blade from the windshield
by holding the middle of the retainer.
Note:Do not hold the wiper blade to lift the
wiper arm.
2. Rotate the blade toward the windshield
by gripping it under the connector until
a “click” sound is heard and the wiper
blade position is fixed.
3. Push the blade release button on top of
the connector and pull the blade from
the arm.
418
Maintenance

• Do not allow wax to come in contact with
any non-body (low-gloss black) colored
trim. The wax will discolor or stain the
parts over time.
• Roof racks.
• Bumpers.
• Grained door handles.
• Side moldings.
• Mirror housings.
• Windshield cowl area.
• Do not apply wax to glass areas.
• After waxing, your car's paint should feel
smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.When washing:
• Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.
• Do not spray a hot engine with cold water
to avoid cracking the engine block or
other engine components.
• Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine Shampoo.
Note:If your vehicle has an engine cover
remove the cover before application of
Motorcraft Engine Shampoo and Degreaser.
Immediately rinse away any over spray.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or the
area in and around these locations.
• Cover the battery, power distribution box,
and air filter assembly to prevent water
damage when cleaning the engine.
CLEANING THE WINDOWS AND
WIPER BLADES
Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.
To clean the windshield and wiper blades:
• Clean the windshield with a non-abrasive
glass cleaner. When cleaning the interior
of the windshield, avoid getting any glass
cleaner on the instrument panel or door
panels. Wipe any glass cleaner off these
surfaces immediately.
• For windshields contaminated with tree
sap, chemicals, wax or bugs, clean the
entire windshield using steel wool (no
greater than 0000 grade) in a circular
motion and rinse with water.
• Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
concentrate.
424
Vehicle Care

Plugging in Your HYBRID
We recommend the following options for
your plug-in vehicle (PHEV) :
• Leave your vehicle plugged in. The 12
volt battery maintains power if left
plugged in. However, this periodically
uses electricity from the household
outlet.
• Connect a battery charger to your 12 volt
battery and leave it on a continuous, slow
charge.
• Disconnect the 12 volt battery. If your 12
volt battery is located in the luggage
compartment, do not fully shut the
luggage compartment after
disconnecting the 12 volt battery. Only
leave the luggage compartment open if
your vehicle is stored in a locked
location.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers and
pins under your vehicle are covered with
grease to prevent rust.
• Move vehicles at least 25 ft (7.5 m) every
15 days to lubricate working parts and
prevent corrosion.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt or
grease film build-up on window surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected during
storage such as mice or squirrel nests.
• Check the exhaust for any foreign
material that may have collected during
storage.• Check tire pressures and set tire inflation
per the Tire Label.
• Check brake pedal operation. Drive your
vehicle 15 ft (4.5 m) back and forth to
remove rust build-up.
• Check fluid levels (including coolant, oil
and gas) to make sure there are no leaks,
and fluids are at recommended levels.
• If you remove the battery, clean the
battery cable ends and check for
damage.
Contact an authorized dealer if you have any
concerns or issues.
BODY STYLING KITS (IF EQUIPPED)
The distance between the underside of your
vehicle and the ground is less than that of
other models. Drive with extreme care to
avoid damage to your vehicle.
429
Vehicle Care

Transferable Coverage
If you sell your vehicle before your Lincoln
Protect extended service plan coverage
expires, you can transfer any remaining
coverage to the new owner. Which should
give you and your potential buyer a little
more peace of mind.
Less Cost to Properly Maintain Your Vehicle
The Lincoln Protect extended service plan
also offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• Clutch disc - if equipped.
• Brake pads and linings.
• Shock absorbers and struts.
• Engine cooling hoses, clamps and
o-rings.• Engine belts.
• Diesel exhaust fluid replenishment - if
equipped.
Interest Free Finance Options
Just a 10% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Lincoln Protect
extended service plan has to offer while
paying over time. You are pre-approved with
no credit check or hassles. To learn more,
call our Lincoln Protect extended service
plan specialists at 800-367-3377.
Complete the following information and mail
to:
Lincoln Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232Lincoln Protect - Canada Only
You can get more protection for your vehicle
by purchasing a Lincoln Protect extended
service plan. Lincoln Protect extended
service plan is the only service contract
backed by Lincoln. Depending on the plan
you purchase, Lincoln Protect extended
service plan provides benefits such as:
• Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after your
New Vehicle Limited Warranty Coverage
expires.
• Roadside Assistance benefits.
577
Lincoln Protect

Multi-Point Inspection
Steering and linkage Exterior lamps operation
Tires (including spare) for wear and proper pressure
2Fluid levels1; fill if necessary
Windshield for cracks, chips or pits For oil and fluid leaks
Washer spray and wiper operation Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer2If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive way
to perform a thorough inspection of your
vehicle. Your checklist gives you immediate
feedback on the overall condition of your
vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you use
your vehicle. By using several important
factors in its calculations, the monitor helps
reduce the cost of owning your vehicle and
reduces environmental waste at the same
time.This means you do not have to remember to
change the oil on a mileage-based schedule.
Your vehicle lets you know when an oil
change is due by displaying a message in
the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of use.
583
Scheduled Maintenance

Automatic Climate Control.........................165
Automatic High Beam Control....................119
Automatic High Beam Control
Indicators......................................................120
Automatic Transmission.............................259
Automatic Transmission Fluid
Check...........................................................408
Auto-Start-Stop - Excluding: Plug-In Hybrid
Electric Vehicle (PHEV).............................215
Autowipers......................................................108
Auxiliary Power Points................................200
AWD
See: All-Wheel Drive..........................................264
B
BatterySee: Changing the 12V Battery - Gasoline....410
See: Changing the 12V Battery - Plug-In Hybrid
Electric Vehicle (PHEV)..................................413
Blind Spot Information System.................326
BLIS
See: Blind Spot Information System..............326
Body Styling Kits...........................................429
Bonnet Lock
See: Opening and Closing the Hood............398
Booster Seats..................................................40
Brake Fluid Check.......................................409Brakes..............................................................271
General Information............................................271
Breaking-In......................................................361
Bulb Specification Chart.............................488
C
Canceling the Set Speed...........................304
Capacities and Specifications...................460
Capacities and Specifications - Excluding:
Plug-In Hybrid Electric Vehicle
(PHEV)..........................................................465
Capacities and Specifications - Plug-In
Hybrid Electric Vehicle (PHEV)...............477
Car Wash
See: Cleaning the Exterior...............................422
Catalytic Converter......................................235
Changing a Bulb...........................................420
Changing a Fuse..........................................395
Changing a Road Wheel.............................451
Changing the 12V Battery - Gasoline.......410
Changing the 12V Battery - Plug-In Hybrid
Electric Vehicle (PHEV)..............................413
Changing the Engine Air Filter.................402
Changing the Front Wiper Blades -
Vehicles With: Heated Wiper
Blades............................................................419Changing the Front Wiper Blades -
Vehicles Without: Heated Wiper
Blades............................................................418
Changing the Rear Wiper Blades..............419
Changing the Vehicle Wi-Fi Hotspot Name
or Password................................................494
Charging a Wireless Device......................202
Charging the High Voltage Battery - Plug-In
Hybrid Electric Vehicle (PHEV)...............238
Checking MyKey System Status.................80
Checking the Interior Air Quality...............173
Checking the Wiper Blades........................418
Child Restraint and Seatbelt
Maintenance.................................................52
Child Restraint Positioning...........................42
Child Safety......................................................27General Information.............................................27
Child Safety Locks..........................................44
Cleaning Leather Seats..............................426
Cleaning Products.........................................421
Cleaning the Engine....................................424
Cleaning the Exterior..................................422
Cleaning the Instrument Panel and
Instrument Cluster Lens...........................425
Cleaning the Interior....................................425
Cleaning the Wheels...................................427
Cleaning the Windows and Wiper
Blades...........................................................424
668
Index

Using All-Wheel Drive.................................264
Using MyKey With Remote Start
Systems...........................................................81
Using Snow Chains......................................445
Using Stability Control................................283
Using Summer Tires....................................444
Using the Backup Start Passcode..............75
Using the Valet Mode....................................75
Using Traction Control.................................281
Using Voice Recognition............................509
Utilizing the Mediation/Arbitration Program
(Canada Only).............................................376
V
Vehicle Care...................................................421General Information............................................421
Vehicle Identification Number..................465
Vehicle Identification...................................489
Vehicle Storage.............................................427
Vehicle Wi-Fi Hotspot..................................494
Ventilated Seats............................................192
Ventilation
See: Climate Control..........................................165
VINSee: Vehicle Identification Number...............465
Voice Control..................................................104
W
Warning Lamps and Indicators...................131
Warranty Information...................................628
Washer Fluid Check......................................417
Washers
See: Cleaning the Exterior...............................422
See: Wipers and Washers.................................107
Waxing.............................................................423
Welcome Lighting..........................................116
What Is 911 Assist............................................66
What Is Adaptive Cruise Control With Lane
Centering.....................................................305
What Is Auto Air Refresh..............................173
What Is Automatic High Beam
Control............................................................119
What Is Cruise Control................................303
What Is Drive Mode Control......................343
What Is Hill Descent Control.....................284
What Is Intelligent Adaptive Cruise
Control..........................................................305
What Is Phone as a Key.................................74
What Is Reverse Braking Assist................277
What Is the Cabin Air Filter.........................173
What is the Rear Occupant Alert
System...........................................................193
What Is the Wireless Accessory
Charger........................................................202Wheel Nuts
See: Changing a Road Wheel..........................451
Wheels and Tires.........................................430General Information...........................................430
Technical Specifications...................................458
Wi FiSee: Changing the Vehicle Wi-Fi Hotspot Name
or Password.....................................................494
See: Creating a Vehicle Wi-Fi Hotspot.........494
See: Vehicle Wi-Fi Hotspot..............................494
Windows and Mirrors....................................121
Windshield Washers.....................................109
Windshield Wipers - Vehicles With: Heated
Wiper Blades...............................................108
Windshield Wipers - Vehicles Without:
Heated Wiper Blades................................107
Wiper Blades
See: Checking the Wiper Blades....................418
Wipers and Washers.....................................107
Wireless Accessory Charger
Precautions.................................................202
Wireless Accessory Charger.....................202
675
Index
