LINCOLN CONTINENTAL 1997 Owners Manual

148
SafetyRestraint sfo rChildren
WARNING
Neve rle ta passenge rhol dachil don
WARNING
Carg oshoul dalway sbe secure dto
WARNING
Carefull yfollo wallof the

149
WARNING
Safetybelt san dseat sca n becom ehot
WARNING
Do no tleav echildren ,unreliabl eadults,
WARNING
Rear-facin gchil dseat sor infan tcarriers

150
WARNING
Whenusin gforward-facin gchil dseats
WARNING
If yo udo no tproperl ysecur eth esafety
WARNING
Carefull yfollo wallof the
WARNING
Alway skee pthebuckl ereleas ebutton

151

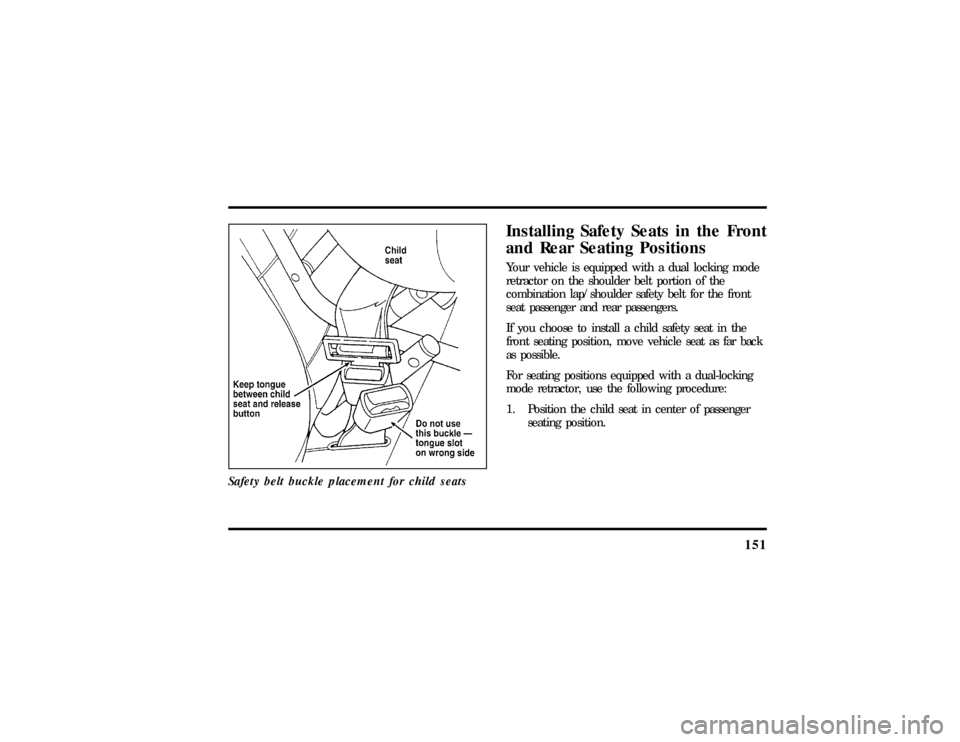

Safety belt buckle placement for child seats
Installing Safety Seats in the Front
and Rear Seating PositionsYour vehicle is equipped with a dual locking mode
retractor on the shoulder belt portion of the
combination lap/shoulder safety belt for the front
seat passenger and rear passengers.
If you choose to install a child safety seat in the
front seating position, move vehicle seat as far back
as possible.
For seating positions equipped with a dual-locking
mode retractor, use the following procedure:
1. Position the child seat in center of passenger
seating position.
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

1522. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See Figure
1.
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

153
3. While holding the shoulder and lap belt
portions together, route the tongue through the
child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
Routing the lap/shoulder belt
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

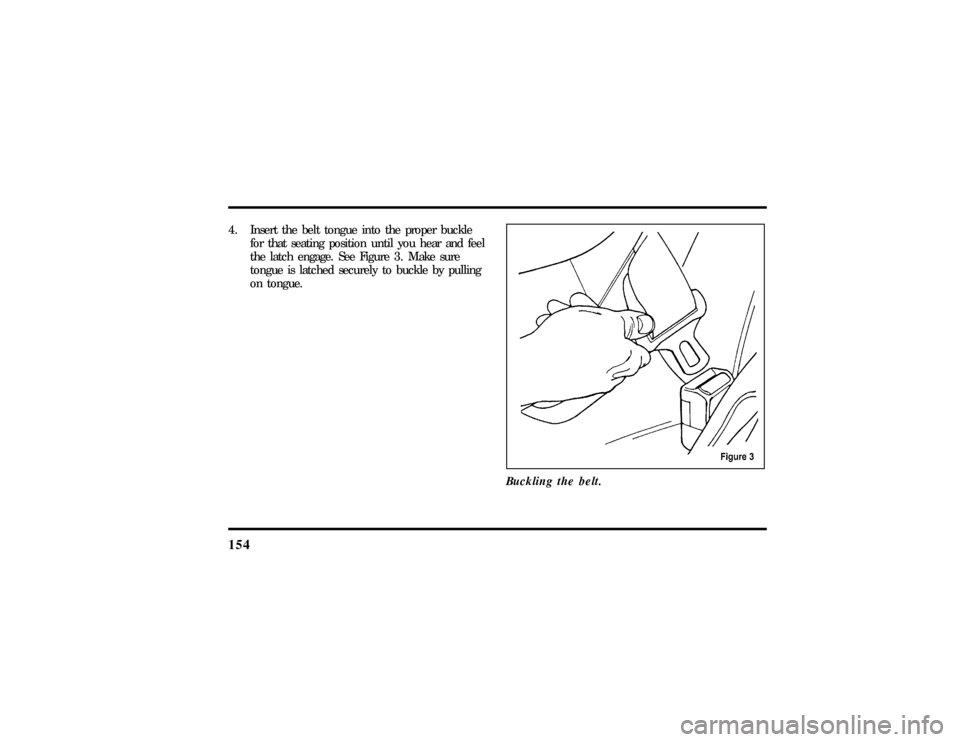

1544. Insert the belt tongue into the proper buckle
for that seating position until you hear and feel
the latch engage. See Figure 3. Make sure
tongue is latched securely to buckle by pulling
on tongue.
Buckling the belt.
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

155

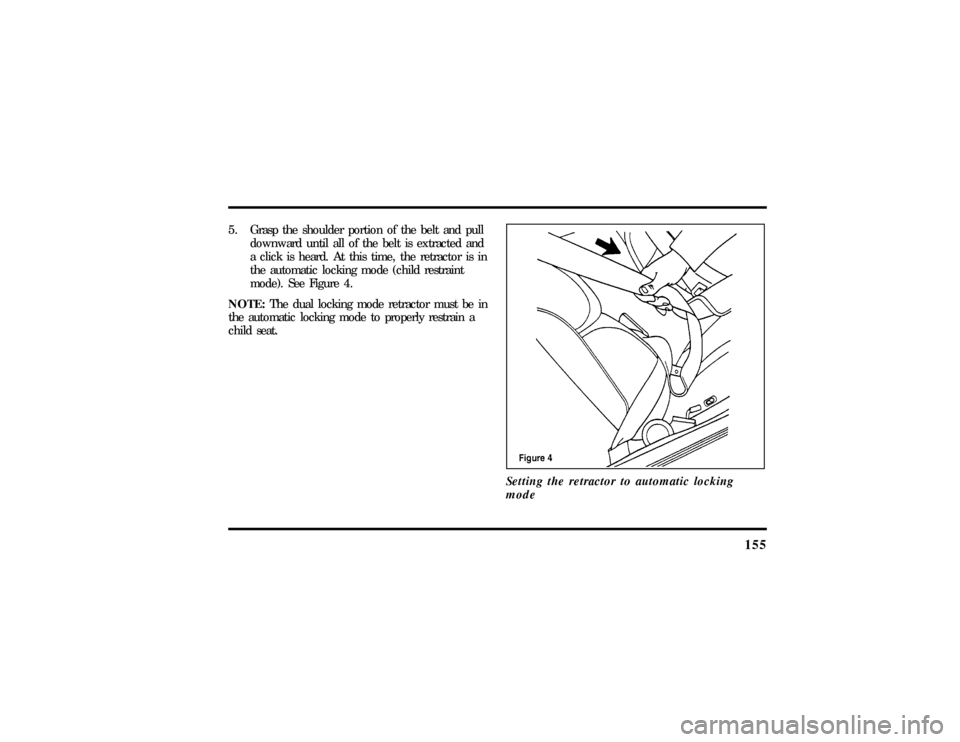

5. Grasp the shoulder portion of the belt and pull
downward until all of the belt is extracted and
a click is heard. At this time, the retractor is in
the automatic locking mode (child restraint
mode). See Figure 4.
NOTE:The dual locking mode retractor must be in
the automatic locking mode to properly restrain a
child seat.
Setting the retractor to automatic locking
mode
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

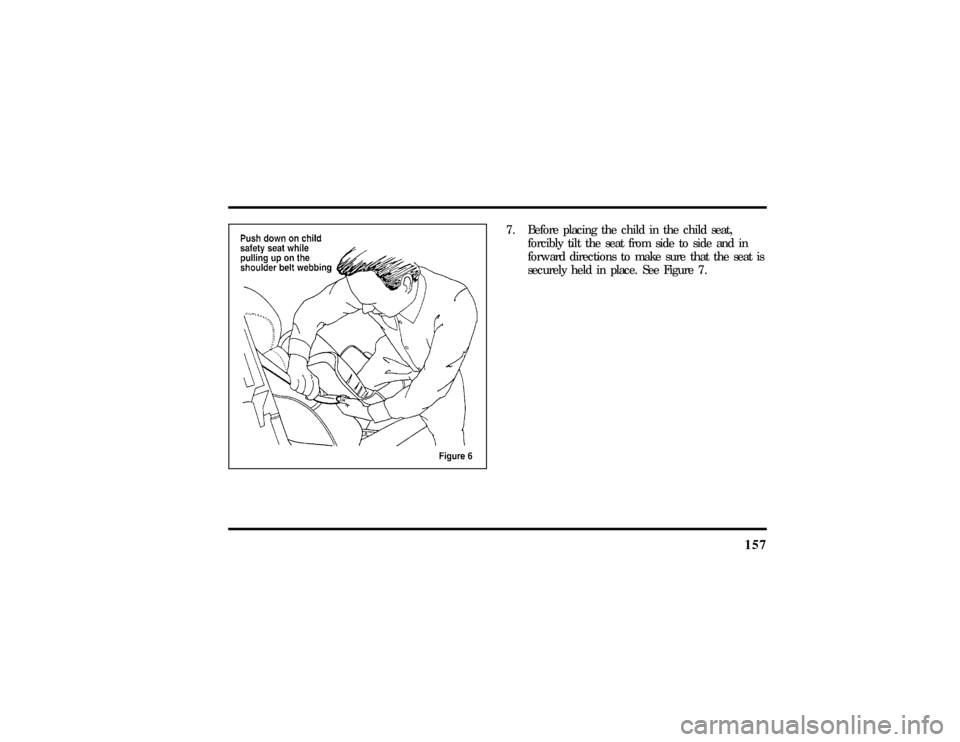

1566. Allow the belt to retract. A clicking sound will
be heard as the belt retracts. This indicates the
retractor is in the automatic locking mode. Pull
on the lap belt portion across the child seat
towards the buckle and continue to pull up on
the shoulder belt portion while pushing down
on the child seat allowing the shoulder belt to
retract to remove any slack in the seat belt. See
Figures 5 and 6.
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996

157
7. Before placing the child in the child seat,
forcibly tilt the seat from side to side and in
forward directions to make sure that the seat is
securely held in place. See Figure 7.
File:06fnssc.ex
Update:Mon Jun 17 14:19:23 1996
