engine oil capacity LINCOLN CORSAIR 2023 Owners Manual

Storing Your Vehicle
Preparing Your Vehicle for Storage........458
Removing Your Vehicle From Storage......................................................................459
Wheel and Tire Information
Locating the Tire label...............................460
Department of Transportation Uniform TireQuality Grades........................................460
Information on the Tire Sidewall..............461
Glossary of Tire Terminology...................466
Tire Replacement Requirements............466
Using Snow Chains....................................469
Tire Care
Checking the Tire Pressures.....................471
Inflating the Tires..........................................471
Inspecting the Tire for Wear......................471
Inspecting the Tire for Damage...............472
Inspecting the Wheel Valve Stems.........473
Tire Rotation..................................................473
Tire Sealant and Inflator Kit - Plug-
In Hybrid Electric Vehicle
(PHEV)
What Is the Tire Sealant and Inflator Kit......................................................................475
Tire Sealant and Inflator Kit Precautions......................................................................475
Locating the Tire Sealant and Inflator Kit......................................................................475
Tire Sealant and Inflator Kit Components......................................................................476
Using the Tire Sealant and Inflator Kit......................................................................476
Tire Pressure Monitoring System
What Is the Tire Pressure MonitoringSystem.......................................................482
Tire Pressure Monitoring System Overview......................................................................482
Tire Pressure Monitoring SystemPrecautions...............................................483
Tire Pressure Monitoring SystemLimitations.................................................484
Viewing the Tire Pressures......................484
Tire Pressure Monitoring System –Troubleshooting......................................484
Changing a Road Wheel
Changing a Flat Tire...................................487
Wheel Nuts...................................................493
Capacities and Specifications
Engine Specifications - 2.0L EcoBoost™......................................................................495
Engine Specifications - 2.5L, Plug-In HybridElectric Vehicle (PHEV)..........................496
Motorcraft Parts - 2.0L EcoBoost™..........497
Motorcraft Parts - 2.5L, Plug-In HybridElectric Vehicle (PHEV)..........................498
Engine Oil Capacity and Specification -2.0L EcoBoost™.......................................499
Engine Oil Capacity and Specification -2.5L, Plug-In Hybrid Electric Vehicle(PHEV).........................................................501
Cooling System Capacity and Specification- 2.0L EcoBoost™.....................................503
Cooling System Capacity and Specification- 2.5L, Plug-In Hybrid Electric Vehicle(PHEV)........................................................504
14
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

Action and descriptionMessage
If the instrument clusterdisplays one of the followingmessages, repeat theprocess.
Not Reset
Reset Cancelled
ENGINE OIL CAPACITY ANDSPECIFICATION
For filling information, please refer to theCapacities and Specifications section of yourowner's manual. See Engine Oil Capacityand Specification (page 434).
ENGINE AIR FILTER
CHANGING THE ENGINE AIR FILTER -2.0L ECOBOOST™
WARNING: To reduce the risk ofvehicle damage and personal burn injuries,do not start your engine with the aircleaner removed and do not remove itwhile the engine is running.
Change the air filter element at the properintervals.
When changing the air filter element, useonly the air filter element listed. SeeMotorcraft Parts (page 497).
Note:Failure to use the correct air filterelement could result in severe enginedamage that the vehicle warranty may notcover.
Note: When servicing the air filter, do notallow foreign material to enter the airinduction system. The engine is susceptibleto damage from even small particles.
434
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMMaintenance

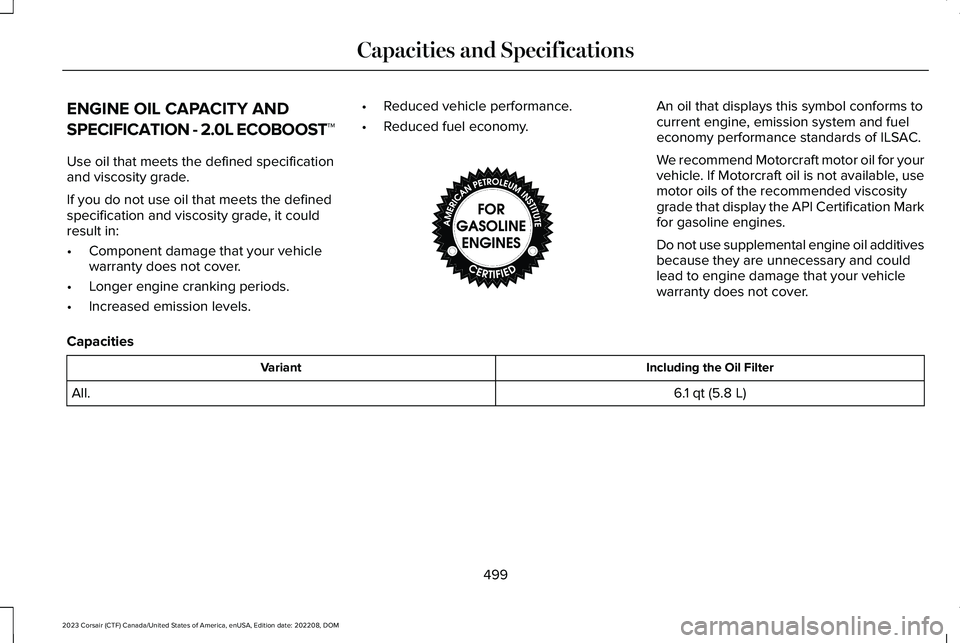

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L ECOBOOST™
Use oil that meets the defined specificationand viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conforms tocurrent engine, emission system and fueleconomy performance standards of ILSAC.
We recommend Motorcraft motor oil for yourvehicle. If Motorcraft oil is not available, usemotor oils of the recommended viscositygrade that display the API Certification Markfor gasoline engines.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that your vehiclewarranty does not cover.
Capacities
Including the Oil FilterVariant
6.1 qt (5.8 L)All.
499
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE142732

Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.5L, PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)
Use oil that meets the defined specificationand viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
501
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE240523

Drive Belt Routing Overview - 2.0LEcoBoost™....................................................442Drive Mode Control.....................................338Drive Modes.........................................................338
Drive Mode Control Videos.......................340Drive Modes..................................................338Conserve..............................................................338Excite.....................................................................339Normal...................................................................339Preserve EV.........................................................339Pure EV.................................................................339Slippery.................................................................339
Driver Alert.....................................................372Driver Alert – Troubleshooting........................373
Driver Alert Limitations................................373Driver Alert Precautions..............................372Driver Alert – Troubleshooting..................373Driver Alert – Information Messages.............373
Driving Economically...................................394Driving Hints..................................................394Driving in Special Conditions..........................395
Driving in Special Conditions....................395Driving In Sand....................................................396Driving on Hilly or Sloping Terrain.................395Driving Through Mud and Water....................395
Driving on Snow and Ice............................394Driving Through Shallow Water...............396
E
Easy Entry and Exit.........................................98Eco Coach.......................................................341Electric Economy...........................................156Electric Parking Brake AudibleWarning........................................................273Electric Parking Brake.................................272Electric Parking Brake –Troubleshooting.............................................273
Electric Parking Brake –Troubleshooting.........................................273Electric Parking Brake – InformationMessages.........................................................274Electric Parking Brake – WarningLamps................................................................273
Electric Power Steering...............................291Electric Power Steering Precautions..............291How Does Electric Power SteeringWork...................................................................291
Electromagnetic Compatibility.................655Emergency Call Limitations..........................77Emergency Call Requirements....................76Emergency Call System Data......................30Emergency Towing - Gasoline....................411Emergency Towing - Plug-In Hybrid ElectricVehicle (PHEV)............................................410Emission Law..................................................651
Enabling Apps on an AndroidDevice..........................................................545Enabling Apps on an iOS Device.............545Enabling or Disabling PersonalProfiles..........................................................548Enabling Remote Start.................................165End User License Agreement....................621Engine Air Filter............................................434Changing the Engine Air Filter........................434
Engine Block Heater...................................207Engine Block Heater Precautions..................207How Does the Engine Block HeaterWork..................................................................208Using the Engine Block Heater......................208
Engine Coolant Temperature Gauge.......140Engine Oil Capacity and Specification -2.0L EcoBoost™..........................................499Engine Oil Capacity and Specification -2.5L, Plug-In Hybrid Electric Vehicle(PHEV)...........................................................501Engine Oil.......................................................432Adding Engine Oil..............................................432Checking the Engine Oil Level.......................432Engine Oil Capacity and Specification..........434Engine Oil Dipstick Overview..........................432Intelligent Oil Life Monitor................................433Resetting the Intelligent Oil LifeMonitor..............................................................433
668
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMIndex
