Page 1 of 320

LINCOLN LS 2005  Owners Manual Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 17
AM/FM stereo with in-dash six CD 17
AM/FM stereo cassette with CD 21
Navigation system 26
Climate

Page 13 of 320

LINCOLN LS 2005  Owners Manual Low fuel (if equipped):
Illuminates when the fuel level in
the fuel tank is at or near empty
(refer toFuel gaugein this
chapter).
Speed control:Illuminates when
the speed control is activated. Turns
o

Page 14 of 320

LINCOLN LS 2005  Owners Manual WARNING CENTER
The instrument cluster is equipped with a warning center that will
provide the following warning messages:
Bulb warning:Displays when one
of the exterior front turn/park lamps
or rear b

Page 98 of 320

LINCOLN LS 2005  Owners Manual HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control
The autolamp system provides ligh

Page 99 of 320

LINCOLN LS 2005  Owners Manual Foglamp control (if equipped)
The foglamps can be turned on
when the headlamp control is pulled
toward you and is in any of the
following positions:
•Parking lamps
•Low beams
•Autolamps (when ac

Page 100 of 320

LINCOLN LS 2005  Owners Manual Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel during parklamp,
headlamp and autolamp operation

Page 101 of 320

LINCOLN LS 2005  Owners Manual •(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot (2.4
meter) horizontal reference line on
the vertical wall or screen 2.1 inches

Page 102 of 320

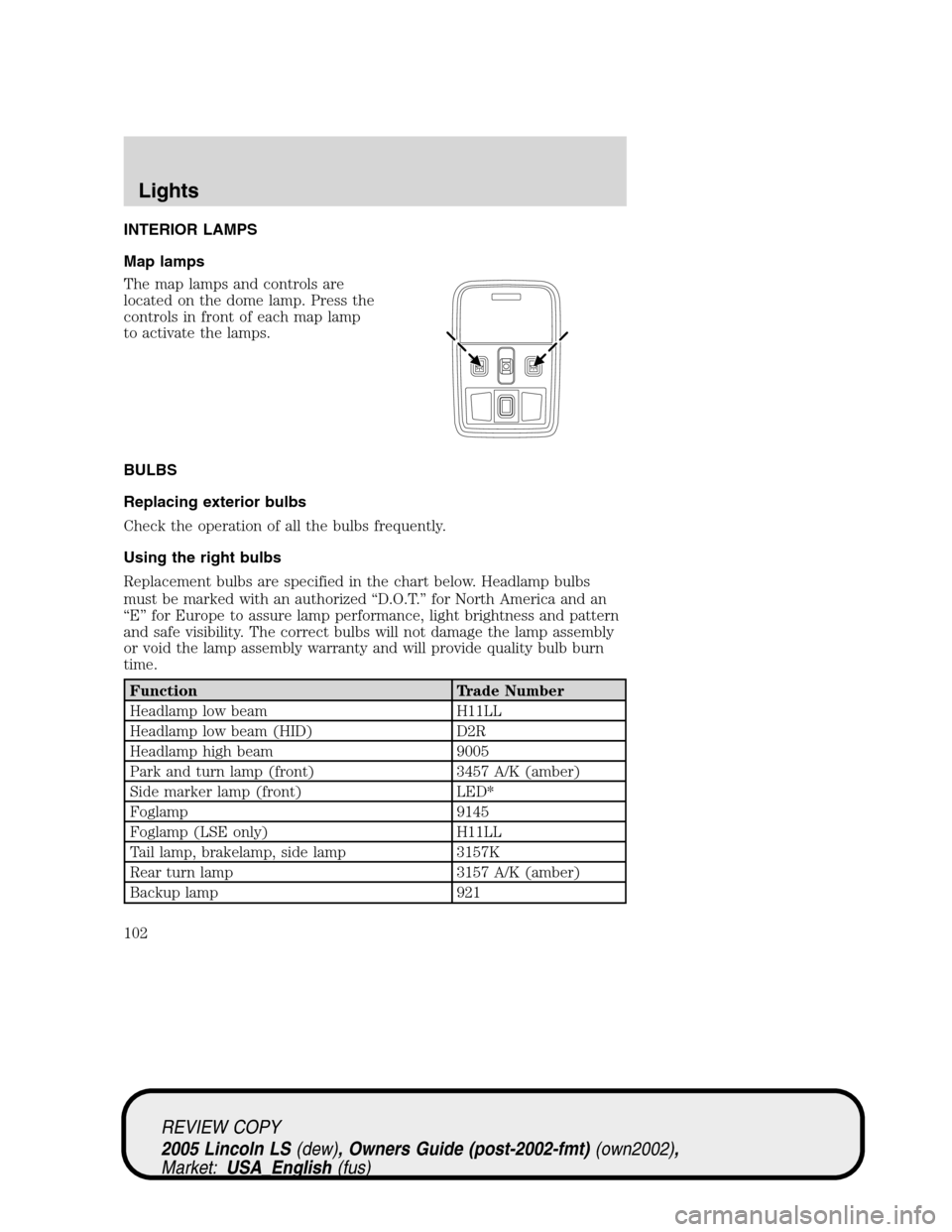

LINCOLN LS 2005  Owners Manual INTERIOR LAMPS
Map lamps
The map lamps and controls are
located on the dome lamp. Press the
controls in front of each map lamp
to activate the lamps.
BULBS
Replacing exterior bulbs
Check the operation

Page 103 of 320

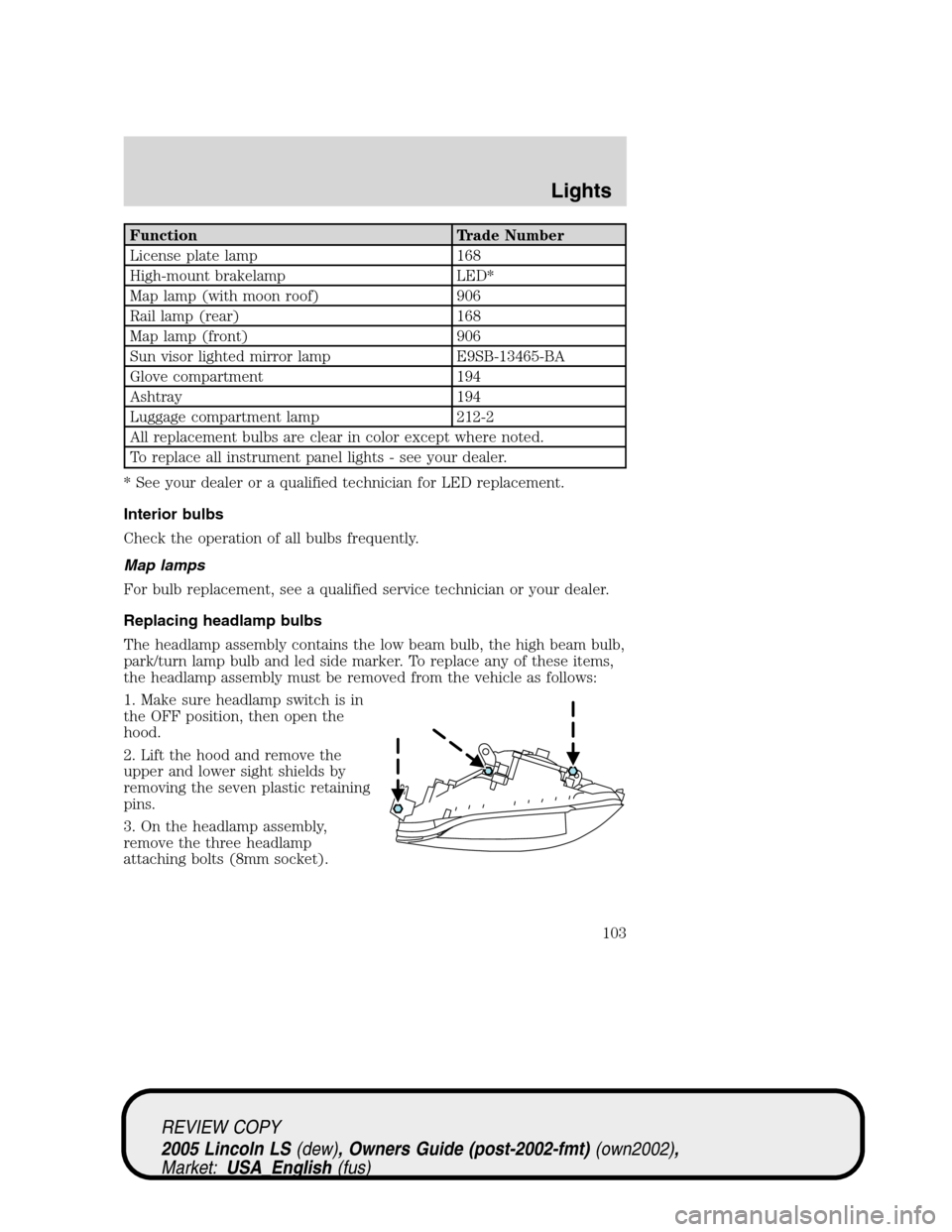

LINCOLN LS 2005  Owners Manual Function Trade Number
License plate lamp 168
High-mount brakelamp LED*
Map lamp (with moon roof) 906
Rail lamp (rear) 168
Map lamp (front) 906
Sun visor lighted mirror lamp E9SB-13465-BA
Glove compart

Page 104 of 320

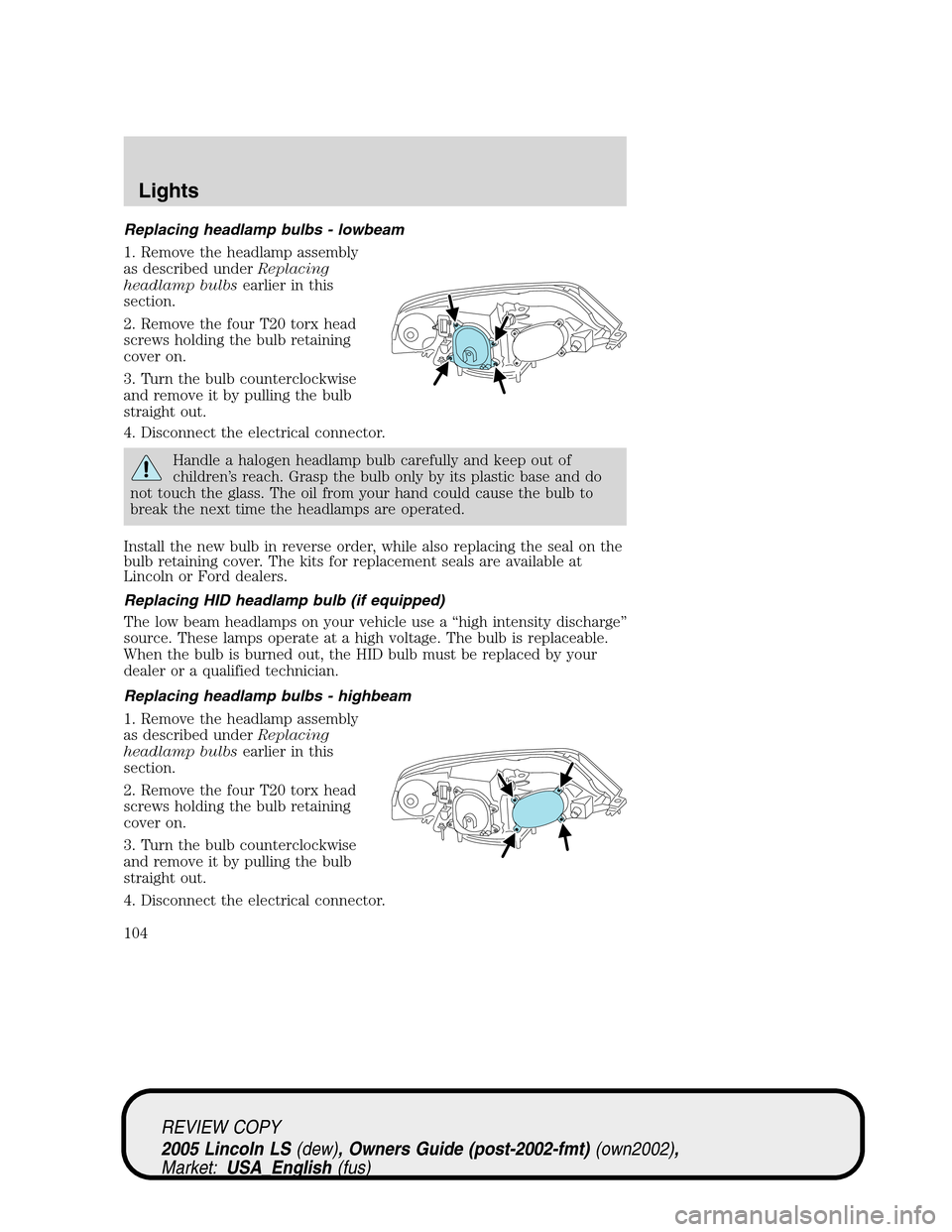

LINCOLN LS 2005  Owners Manual Replacing headlamp bulbs - lowbeam
1. Remove the headlamp assembly
as described underReplacing
headlamp bulbsearlier in this
section.
2. Remove the four T20 torx head
screws holding the bulb retaining
