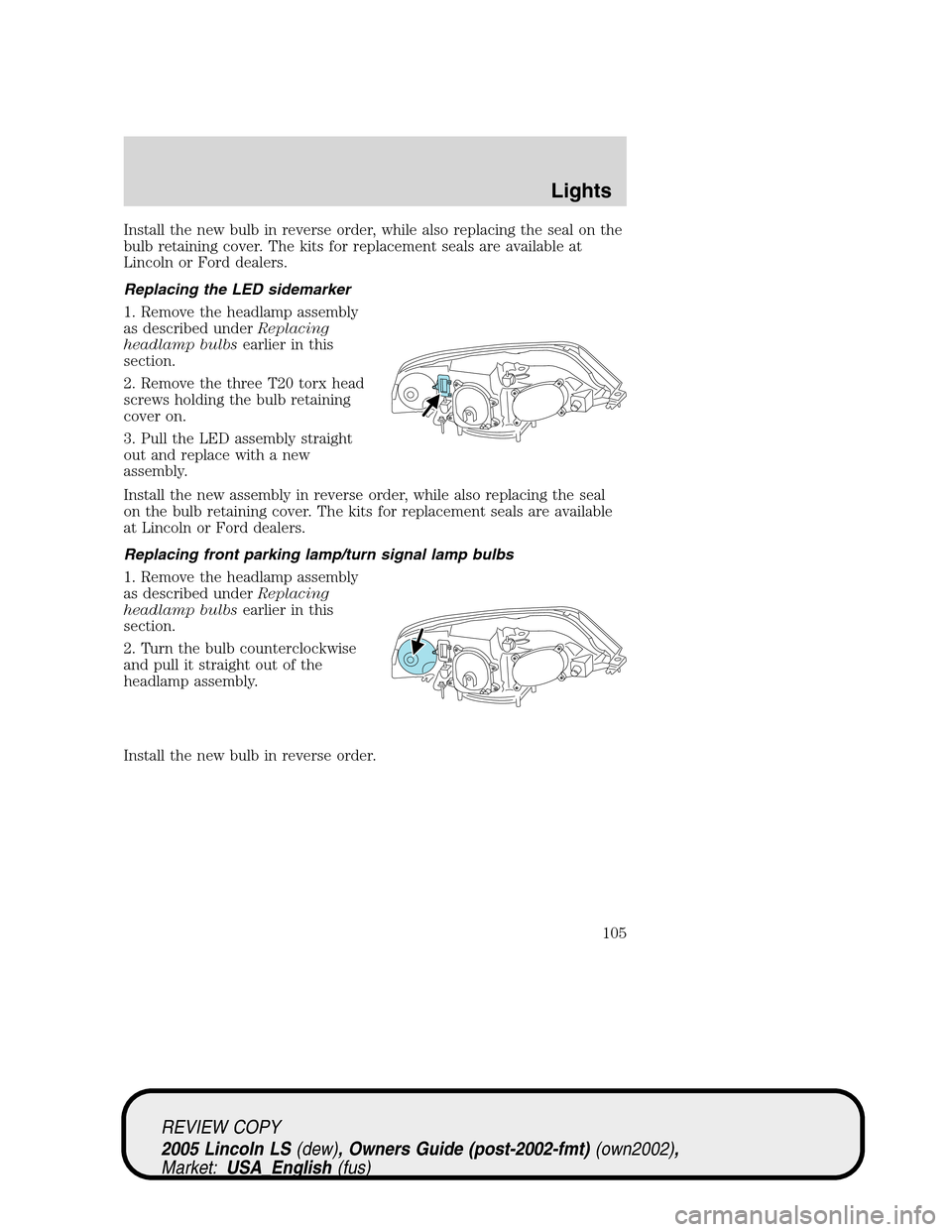

Page 105 of 320
Install the new bulb in reverse order, while also replacing the seal on the
bulb retaining cover. The kits for replacement seals are available at
Lincoln or Ford dealers.
Replacing the LED sidemarker
1. Remove the headlamp assembly
as described underReplacing
headlamp bulbsearlier in this
section.
2. Remove the three T20 torx head
screws holding the bulb retaining
cover on.
3. Pull the LED assembly straight
out and replace with a new
assembly.
Install the new assembly in reverse order, while also replacing the seal
on the bulb retaining cover. The kits for replacement seals are available
at Lincoln or Ford dealers.
Replacing front parking lamp/turn signal lamp bulbs
1. Remove the headlamp assembly
as described underReplacing
headlamp bulbsearlier in this
section.
2. Turn the bulb counterclockwise
and pull it straight out of the
headlamp assembly.
Install the new bulb in reverse order.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
105

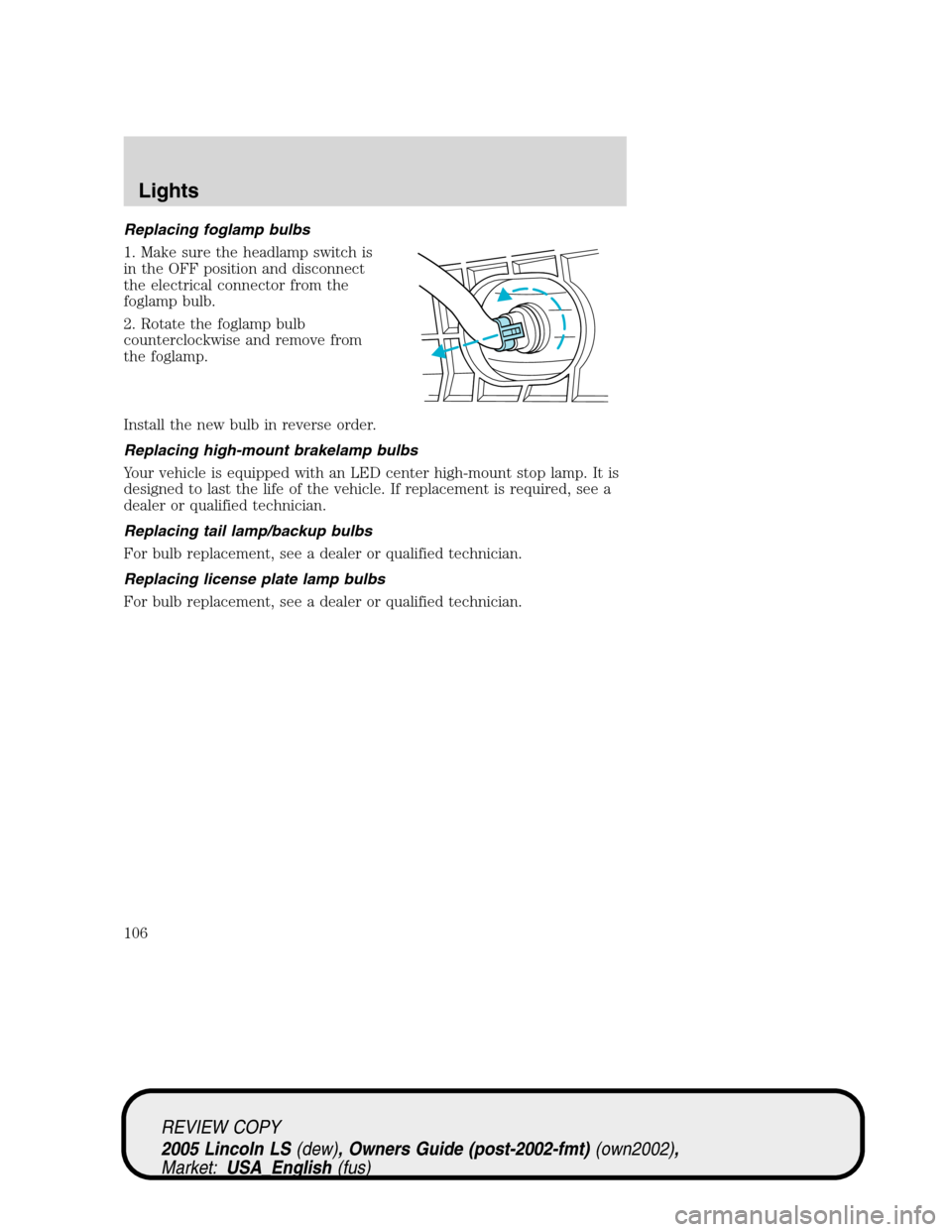

Page 106 of 320
Replacing foglamp bulbs
1. Make sure the headlamp switch is
in the OFF position and disconnect
the electrical connector from the
foglamp bulb.
2. Rotate the foglamp bulb
counterclockwise and remove from
the foglamp.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see a
dealer or qualified technician.
Replacing tail lamp/backup bulbs
For bulb replacement, see a dealer or qualified technician.
Replacing license plate lamp bulbs
For bulb replacement, see a dealer or qualified technician.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
106

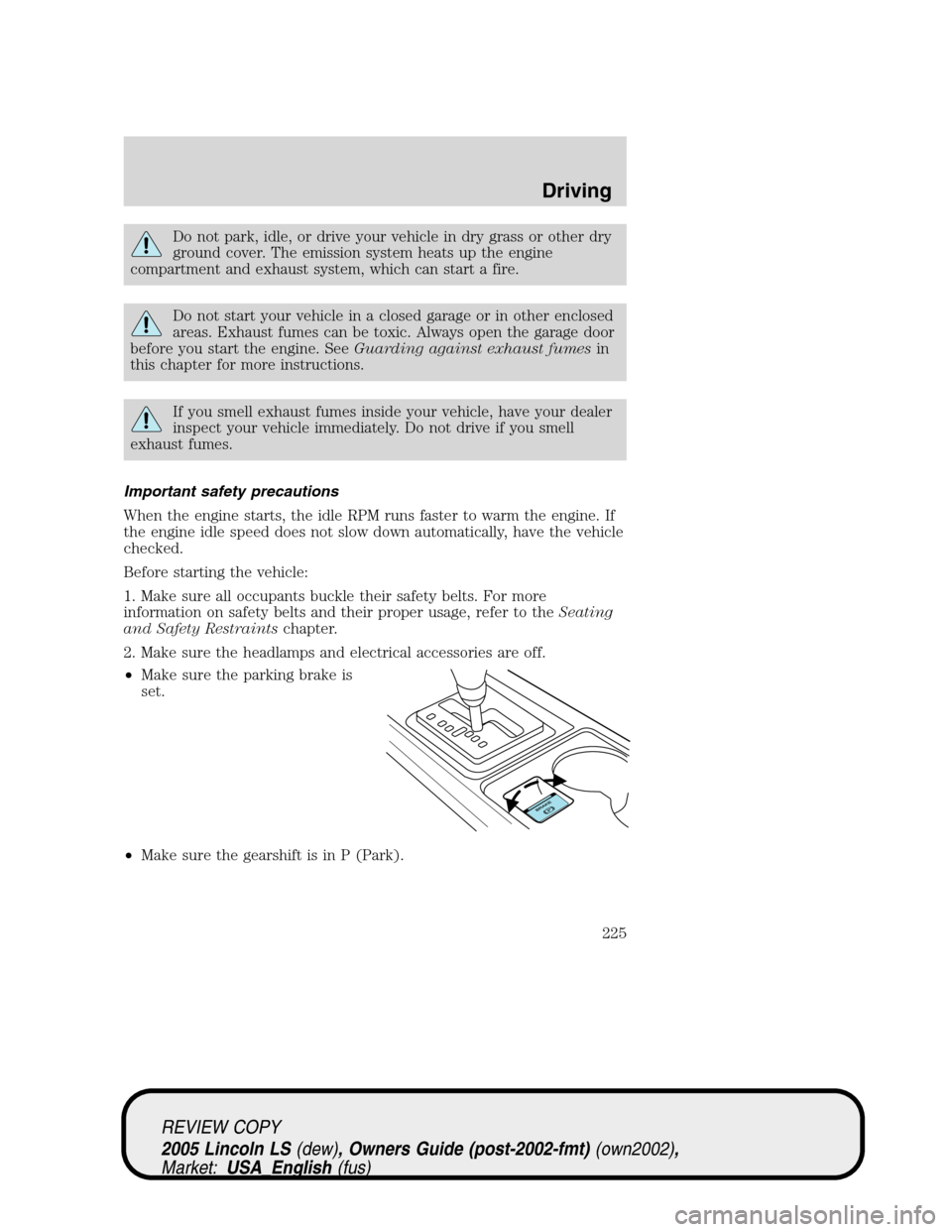

Page 225 of 320
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P (Park).
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
225

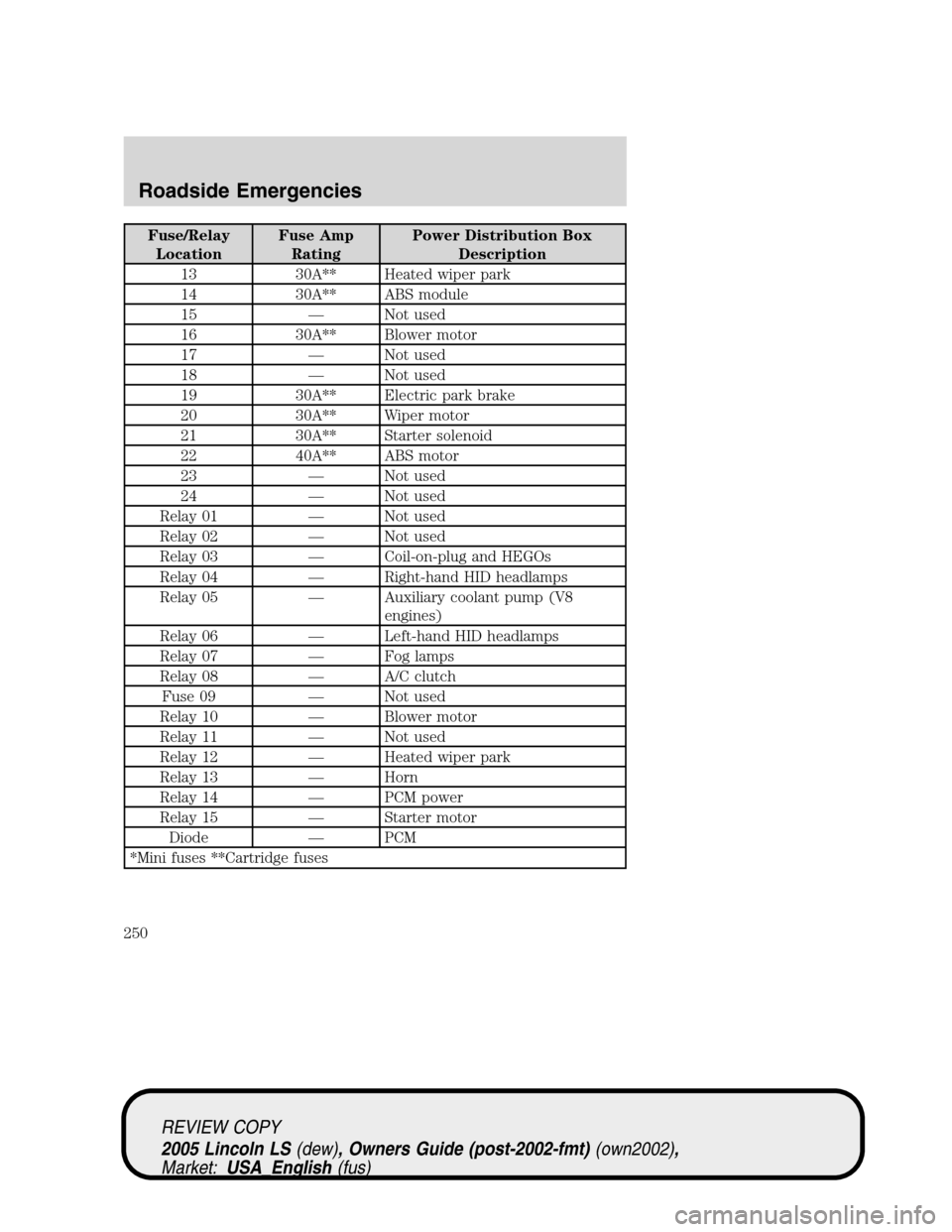

Page 250 of 320
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
13 30A** Heated wiper park
14 30A** ABS module
15—Not used
16 30A** Blower motor
17—Not used
18—Not used
19 30A** Electric park brake
20 30A** Wiper motor
21 30A** Starter solenoid
22 40A** ABS motor
23—Not used
24—Not used
Relay 01—Not used
Relay 02—Not used
Relay 03—Coil-on-plug and HEGOs
Relay 04—Right-hand HID headlamps
Relay 05—Auxiliary coolant pump (V8
engines)
Relay 06—Left-hand HID headlamps
Relay 07—Fog lamps
Relay 08—A/C clutch
Fuse 09—Not used
Relay 10—Blower motor
Relay 11—Not used
Relay 12—Heated wiper park
Relay 13—Horn
Relay 14—PCM power
Relay 15—Starter motor
Diode—PCM
*Mini fuses **Cartridge fuses
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
250

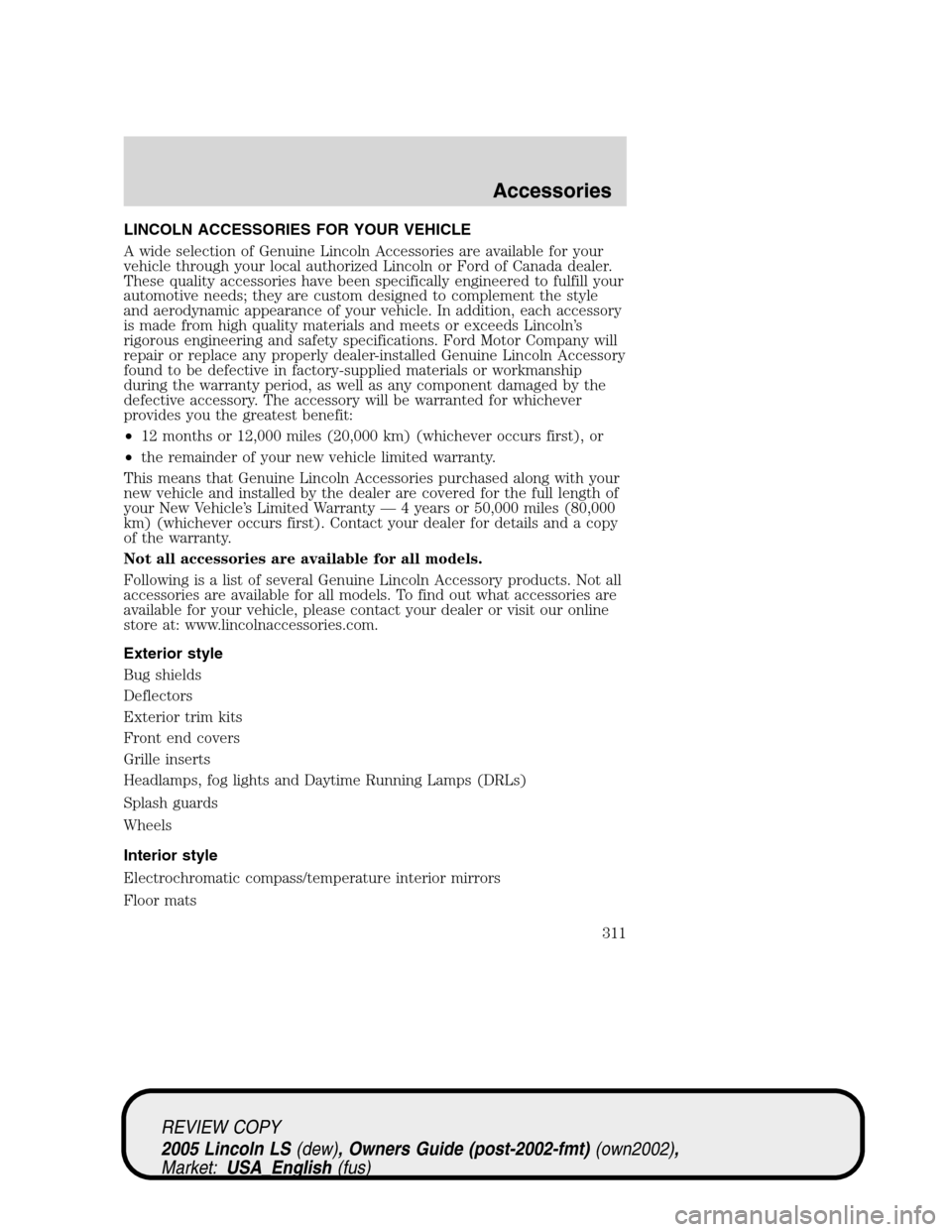

Page 311 of 320
LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local authorized Lincoln or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln Accessory
found to be defective in factory-supplied materials or workmanship
during the warranty period, as well as any component damaged by the
defective accessory. The accessory will be warranted for whichever
provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Lincoln Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—4 years or 50,000 miles (80,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Lincoln Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
Accessories
311

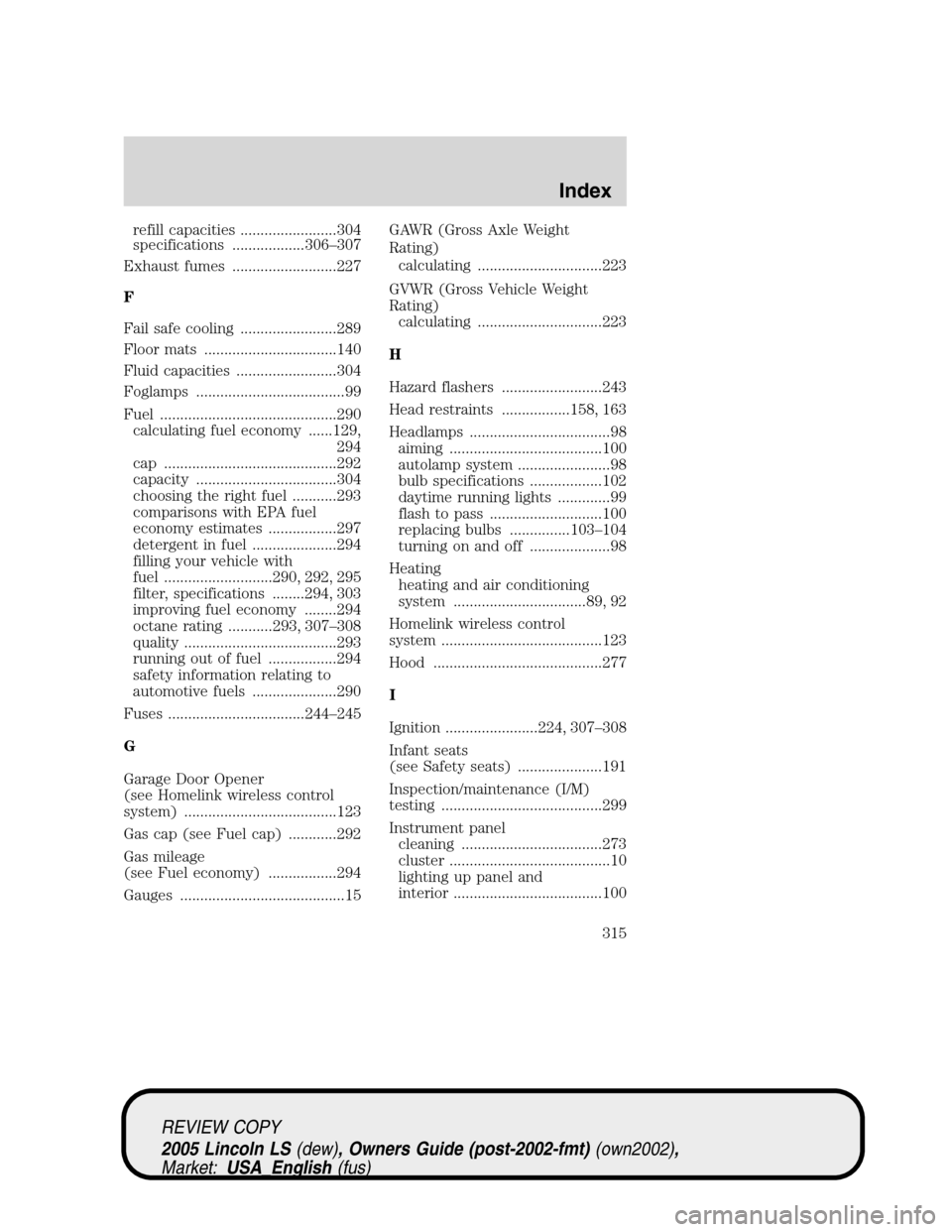

Page 315 of 320
refill capacities ........................304
specifications ..................306–307
Exhaust fumes ..........................227
F
Fail safe cooling ........................289
Floor mats .................................140
Fluid capacities .........................304
Foglamps .....................................99
Fuel ............................................290
calculating fuel economy ......129,
294
cap ...........................................292
capacity ...................................304
choosing the right fuel ...........293
comparisons with EPA fuel
economy estimates .................297
detergent in fuel .....................294
filling your vehicle with
fuel ...........................290, 292, 295
filter, specifications ........294, 303
improving fuel economy ........294
octane rating ...........293, 307–308
quality ......................................293
running out of fuel .................294
safety information relating to
automotive fuels .....................290
Fuses ..................................244–245
G
Garage Door Opener
(see Homelink wireless control
system) ......................................123
Gas cap (see Fuel cap) ............292
Gas mileage
(see Fuel economy) .................294
Gauges .........................................15GAWR (Gross Axle Weight
Rating)
calculating ...............................223
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................223
H
Hazard flashers .........................243
Head restraints .................158, 163
Headlamps ...................................98
aiming ......................................100
autolamp system .......................98
bulb specifications ..................102
daytime running lights .............99
flash to pass ............................100
replacing bulbs ...............103–104
turning on and off ....................98
Heating
heating and air conditioning
system .................................89, 92
Homelink wireless control
system ........................................123
Hood ..........................................277
I
Ignition .......................224, 307–308
Infant seats
(see Safety seats) .....................191
Inspection/maintenance (I/M)
testing ........................................299
Instrument panel
cleaning ...................................273
cluster ........................................10
lighting up panel and
interior .....................................100
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
315
Page 316 of 320
J
Jack ............................................204
positioning ...............................204
storage .....................................204
Jump-starting your vehicle ......254
K
Keyless entry system ...............152
autolock ...................................151
Keys ...........................................142
positions of the ignition .........224
valet key ..................................142
L
Lamps
autolamp system .......................98
bulb replacement
specifications chart ................102
daytime running light ...............99
fog lamps ...................................99
headlamps .................................98
headlamps, flash to pass ........100
instrument panel, dimming ...100
interior lamps .................102–103
replacing bulbs ...............102–106
Lane change indicator
(see Turn signal) ......................101
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........228
Load limits .................................219
Locks
autolock ...................................151
childproof ................................144
doors ........................................142
Lubricant specifications ...306–307
Lug nuts ....................................209
Luggage rack .............................141Lumbar support, seats .............159
M
Message center .................127, 129
select button ...........................127
warning messages ...................132
Mirrors ...............................109, 112
automatic dimming rearview
mirror ......................................112
fold away .................................116
heated ......................................115
programmable memory ..........151
side view mirrors (power) .....115
Moon roof ..................................122
Motorcraft parts ................294, 303
N
Navigation system .......................26
cd functions ..............................44
destination mode ......................68
DVD location .............................88
map mode .................................48
quick start .................................28
radio functions ..........................35
O
Octane rating ............................293
Oil (see Engine oil) ..................279
P
Parking brake ............................229
Parts (see Motorcraft parts) ....303
Pedals (see Power adjustable
foot pedals) ...............................116
Power adjustable foot pedals ...116
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
316
