reset LINCOLN MKC 2015 Quick Reference Guide

32
Basic Commands
What can I say?

List of commands

Main menu

Previous

Next

Go back

Exit

Help

Pair my phone
Climate
Climate control list
of commands
• Climate
• Climate my temperature
• Climate temperature
Phone
Phone list of commands
• Dial
• Call on cell/
at home/at work
• Call voicemail
• Do not disturb
• Listen to text messages
(phone-dependent feature)

Entertainment
Audio list of commands:
You can also get detailed lists
of commands for radio, USB,
Bluetooth® audio, SiriusXM
and SD card*

Radio
•
• FM <87.9-107.9>
• FM preset <#>

CD
• Play track <1-512>
• Shuffle

USB
• Play song
• Play album

SiriusXM
•
• Preset <#>
Navigation*
Navigation list of commands
• Destination street address

• Destination home
• Navigation voice
• Navigation volume

• Repeat instruction
• Show

54
3 Service Engine Soon Light Lights briefly when the ignition is turned
on. If it remains on or is blinking after the engine
is started, the On-Board Diagnostics (OBD-II)
system has detected a malfunction. Drive in a
moderate fashion (avoid heavy acceleration
and deceleration) and contact your authorized
dealer as soon as possible.
4 Right Vehicle Information Display
Displays information about Entertainment,
Climate, Phone and Navigation*. Use the right,
5-way controls located on your steering wheel
to scroll through, highlight and make minor
adjustments within a selected menu. Refer to
the MyLincoln Touch
TM chapter in your Owner’s
Manual for more information.
5 Steering Wheel Controls
Audio
Press VOL +/– to increase/decrease volume
levels. Press SEEK to access the next/previous
radio station preset, CD track or preset satellite
radio channel*

Voice
Press to answer call.
Press
to exit phone mode or end call.
Press
to access voice recognition.
6 Power Tilt/Telescoping Steering Column*
The 4-way rocker control allows you to adjust
the steering wheel to your desired position.

7 Push Button Start
Allows you to start your vehicle by pressing
the ENGINE START STOP button while fully
pressing down on the brake pedal. If your
vehicle has been idling for an extended period
of time, it will automatically shut down. Before
the engine shuts down, a message appears in
the information display, allowing the driver to
override the shutdown feature. Press the button
again to turn the engine off.
Note: Your intelligent access transmitter must
be inside the vehicle for the ignition to start.
Keyless warning alert sounds the horn twice
when you exit the vehicle with the intelligent
access transmitter and the keyless vehicle is
in RUN, indicating the vehicle is still on.
8 Push Button Shift Transmission
Your vehicle is equipped with an electronic
transmission. The shift buttons are located
on the center stack next to the MyLincoln
Touch system.
Putting Your Vehicle in Gear
1. Fully press down the brake pedal.
2. Press and release one of the PRNDS
buttons to select your gear.
3. The gear shift button you select will light
and the information display will show a
telltale of the selected gear.
4. Release the brake pedal and your
transmission will remain in the
selected gear.
Note: When entering an automatic car wash,
always put your vehicle into Stay in Neutral
mode. To put your vehicle in Stay in Neutral
mode, make sure your vehicle is stationary
first and then:
1. Press the neutral (N) button on the shifter
assembly once. The information display
screen will read “Press N to enter Stay in
Neutral mode”.
2. Press N on the shifter assembly again.
The message “Stay in Neutral mode
engaged” will appear in the information
display and the N button will flash
continuously to confirm your selection.
3. To exit Stay in Neutral mode, press
another gear.

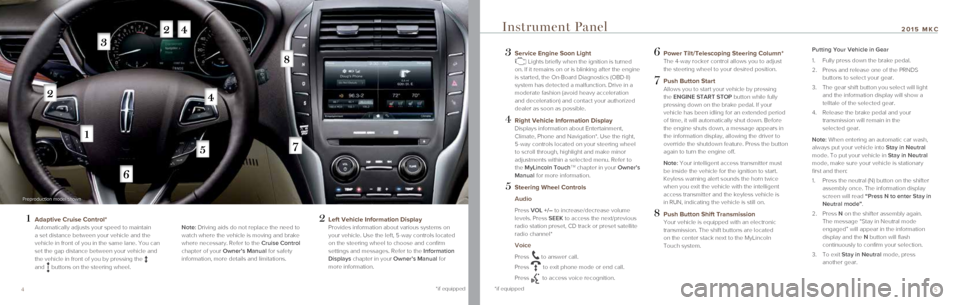

Instrument Panel
1 Adaptive Cruise Control* Automatically adjusts your speed to maintain
a set distance between your vehicle and the
vehicle in front of you in the same lane. You can
set the gap distance between your vehicle and
the vehicle in front of you by pressing the

and
buttons on the steering wheel. Note: Driving aids do not replace the need to
watch where the vehicle is moving and brake
where necessary. Refer to the Cruise Control
chapter of your Owner’s Manual for safety
information, more details and limitations.
2 Left Vehicle Information Display
Provides information about various systems on
your vehicle. Use the left, 5-way controls located
on the steering wheel to choose and confirm
settings and messages. Refer to the Information
Displays chapter in your Owner’s Manual for
more information.
Preproduction model shown
*if equipped
2015 MKC
*if equipped

9*if equipped
8
SYNC® with MyLincoln TouchTM
Using Your Phone with SYNC
Note: Enter your phone book contacts
with both first and last names to
increase the ability of SYNC to select
the correct contact. Remember to say
the contact name exactly as it’s listed
in your phone book.
Making a Phone Call
Use SYNC to make a phone call
to anyone in your phone book by
pressing the voice button. When
prompted, give a voice command.
For example, you could say “Call Jake
Smith at home”. SYNC repeats the
command back to you and dials
the number.
Note: You can also make phone
calls by giving the voice command
“Dial”, then verbally saying the
phone number.
Answering Incoming Calls
Whenever you have an incoming
call, you will be able to see the name
and number of the person calling in
your display. Press ACCEPT on the touchscreen or the
phone button
to answer an incoming call.
Ending the Call
Press and hold the phone button.
Do Not Disturb Mode
This feature blocks incoming calls and
text messages, and saves them for
later. You still have access to outgoing
calls when this feature is active. Say
the voice command “Do not disturb
on” to enable, and “Do not disturb
off” to disable.
Navigation*
Get started with your navigation
system by pressing the upper-right,
green corner. The available, voice
activated navigation system includes:
SiriusXM Traffic
SiriusXM Travel Link
GPS (Global Positioning System)
technology
3-D mapping
Turn-by-turn navigation
Note: Some features may require
activation. Refer to the MyLincoln
Touch chapter of your Owner’s
Manual for more details.
Set a Destination
Set a destination on your touchscreen
by using a street address, city center,
a place on the map or a point of
interest (POI). The easiest way,
however, is by voice.
1. Press the voice button. When
prompted, say “Destination
street address”.
2. The system will ask you to say the
full address and will display an
example on-screen.
3. You can then speak the address
naturally, such as: “One two three
Main Street, Anytown”. You can also use the touchscreen to
enter a destination and narrow your
choices by city or street as you type.
You can choose from up to three
different types of routes:

Fastest: Uses the fastest moving
roads possible.
Shortest: Uses the shortest
distance possible.
Eco (EcoRoute): Uses the most fuel
efficient route.
Tips
Save your favorite locations by
touching “Save to Favorites”.
Change your map views from
Heading-up, North-up or 3D.
Climate

Control the temperature, airflow
direction, fan speed and other climate
features for you and your front
passenger. Say “Climate temperature
72 degrees” and MyLincoln Touch
will make the adjustment.
Set Your Temperature
Touch the lower-right, blue Climate
corner on the touchscreen.
Set your exact, desired
temperature by using the
+ or – buttons.
Entertainment
No matter how you store your
music, SYNC makes it yours
to enjoy when you’re behind the
wheel. Just press the lower-left, red
corner of the touchscreen. From here,
you can easily go between AM/FM,
SiriusXM and other media sources.
Set Your Radio Presets
Touch the Entertainment corner on
the touchscreen.
Touch FM.
Touch Direct Tune.
Enter the desired station and
touch Enter.
Touch Presets and then touch and
hold one of the memory preset
buttons to save it. You’ll hear a
brief mute and the sound will return
once the station is saved.
Using SYNC to Access
Digital Media
SYNC has a media hub with multiple
inputs, allowing you to access
personal media from your digital
devices. Plug in your USB media
devices, such as phones and MP3
players, and use SYNC
to play all of your favorite music.
Note: SYNC indexes your music; the
more information that is stored on your
USB device, the longer it takes SYNC
to index.
Using Voice Commands
to Play Music
1. Plug your media player into your
USB port.
2. Press the voice button
.
When prompted, say “USB”,
then follow up by saying a
voice command.
For more information, refer to the
MyLincoln Touch chapter of your
Owner’s Manual. For support, visit the
website or call the toll-free number.
See the inside front cover of this guide
for details.
2015 MKC

17
2015 MKC
16*if equipped

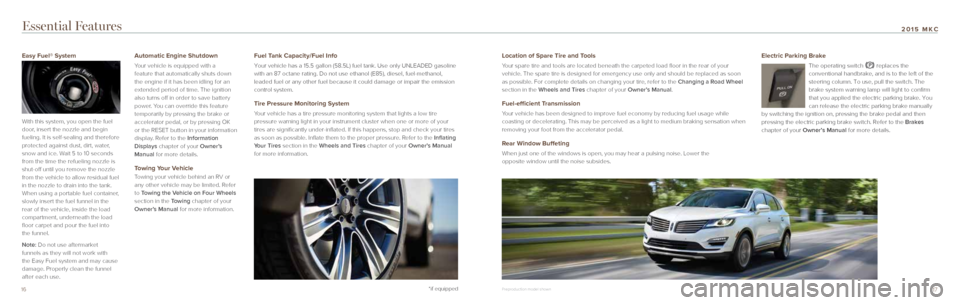

Essential Features
Electric Parking Brake
The operating switch replaces the
conventional handbrake, and is to the left of the
steering column. To use, pull the switch. The
brake system warning lamp will light to confirm
that you applied the electric parking brake. You
can release the electric parking brake manually
by switching the ignition on, pressing the brake pedal and then
pressing the electric parking brake switch. Refer to the Brakes
chapter of your Owner’s Manual for more details.
Easy Fuel® System
With this system, you open the fuel
door, insert the nozzle and begin
fueling. It is self-sealing and therefore
protected against dust, dirt, water,
snow and ice. Wait 5 to 10 seconds
from the time the refueling nozzle is
shut-off until you remove the nozzle
from the vehicle to allow residual fuel
in the nozzle to drain into the tank.
When using a portable fuel container,
slowly insert the fuel funnel in the
rear of the vehicle, inside the load
compartment, underneath the load
floor carpet and pour the fuel into
the funnel.
Note: Do not use aftermarket
funnels as they will not work with
the Easy Fuel system and may cause
damage. Properly clean the funnel
after each use.
Automatic Engine Shutdown
Your vehicle is equipped with a
feature that automatically shuts down
the engine if it has been idling for an
extended period of time. The ignition
also turns off in order to save battery
power. You can override this feature
temporarily by pressing the brake or
accelerator pedal, or by pressing OK
or the RESET button in your information
display. Refer to the Information
Displays chapter of your Owner’s
Manual for more details.
Towing Your Vehicle
Towing your vehicle behind an RV or
any other vehicle may be limited. Refer
to Towing the Vehicle on Four Wheels
section in the Towing chapter of your
Owner’s Manual for more information.
Fuel Tank Capacity/Fuel Info
Your vehicle has a 15.5 gallon (58.5L) fuel tank. Use only UNLEADED ga\
soline
with an 87 octane rating. Do not use ethanol (E85), diesel, fuel-metha\
nol,
leaded fuel or any other fuel because it could damage or impair the emis\
sion
control system.
Tire Pressure Monitoring System
Your vehicle has a tire pressure monitoring system that lights a low tire\

pressure warning light in your instrument cluster when one or more of yo\
ur
tires are significantly under-inflated. If this happens, stop and check your tires
as soon as possible. Inflate them to the proper pressure. Refer to the Inflating
Your Tires section in the Wheels and Tires chapter of your Owner’s Manual
for more information.
Location of Spare Tire and Tools
Your spare tire and tools are located beneath the carpeted load floor in the rear of your
vehicle. The spare tire is designed for emergency use only and should be replac\
ed as soon
as possible. For complete details on changing your tire, refer to the Changing a Road Wheel
section in the Wheels and Tires chapter of your Owner’s Manual.
Fuel-efficient Transmission
Your vehicle has been designed to improve fuel economy by reducing fuel u\
sage while
coasting or decelerating. This may be perceived as a light to medium bra\
king sensation when
removing your foot from the accelerator pedal.
Rear Window Buffeting
When just one of the windows is open, you may hear a pulsing noise. Lower the
opposite window until the noise subsides.
Preproduction model shown
