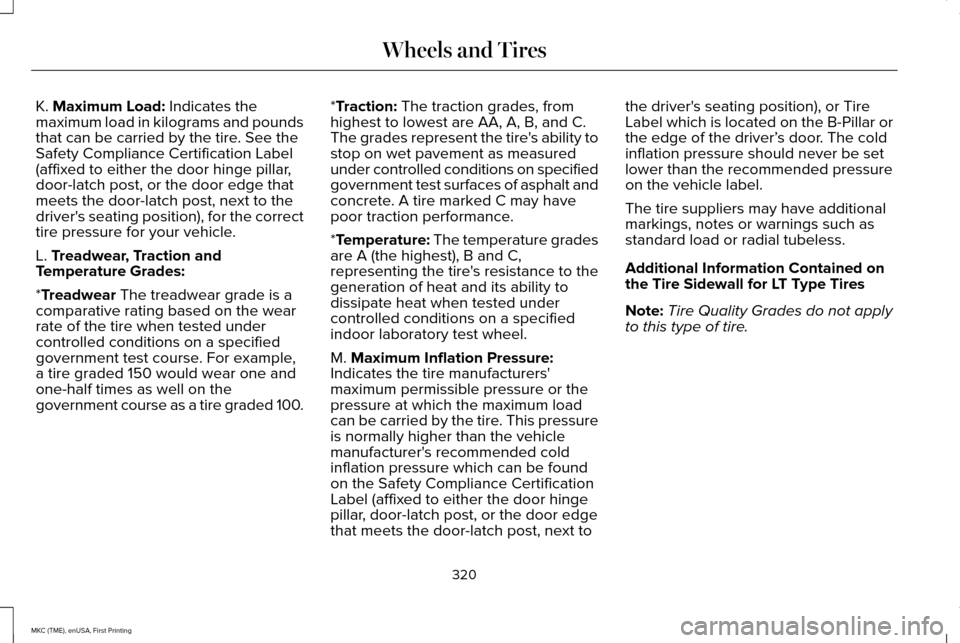

K. Maximum Load: Indicates the
maximum load in kilograms and pounds
that can be carried by the tire. See the
Safety Compliance Certification Label
(affixed to either the door hinge pillar,
door-latch post, or the door edge that
meets the door-latch post, next to the
driver's seating position), for the correct
tire pressure for your vehicle.
L.
Treadwear, Traction and
Temperature Grades:
*
Treadwear The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under
controlled conditions on a specified
government test course. For example,
a tire graded 150 would wear one and
one-half times as well on the
government course as a tire graded 100. *
Traction: The traction grades, from
highest to lowest are AA, A, B, and C.
The grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on specified
government test surfaces of asphalt and
concrete. A tire marked C may have
poor traction performance.
*
Temperature: The temperature grades
are A (the highest), B and C,
representing the tire's resistance to the
generation of heat and its ability to
dissipate heat when tested under
controlled conditions on a specified
indoor laboratory test wheel.
M.
Maximum Inflation Pressure:
Indicates the tire manufacturers'
maximum permissible pressure or the
pressure at which the maximum load
can be carried by the tire. This pressure
is normally higher than the vehicle
manufacturer's recommended cold
inflation pressure which can be found
on the Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door edge
that meets the door-latch post, next to the driver's seating position), or Tire
Label which is located on the B-Pillar or
the edge of the driver’
s door. The cold
inflation pressure should never be set
lower than the recommended pressure
on the vehicle label.
The tire suppliers may have additional
markings, notes or warnings such as
standard load or radial tubeless.
Additional Information Contained on
the Tire Sidewall for LT Type Tires
Note: Tire Quality Grades do not apply
to this type of tire.
320
MKC (TME), enUSA, First Printing Wheels and Tires

Directional tires
USING SNOW CHAINS
WARNING
Snow tires must be the same size, load
index, speed rating as those originally
provided by Ford. Use of any tire or wheel
not recommended by Ford can affect the
safety and performance of your vehicle,
which could result in an increased risk of loss
of vehicle control, vehicle rollover, personal
injury and death. Additionally, the use of
non-recommended tires and wheels could
cause steering, suspension, axle, transfer
case or power transfer unit failure. The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
However, in some climates, you may need
to use snow tires and cables. If you need to
use cables, it is recommended that steel
wheels (of the same size and specifications)
be used, as cables may chip aluminum
wheels.
Follow these guidelines when using snow
tires and traction devices
•
If possible, avoid fully loading your
vehicle
• Purchase chains or cables from a
manufacturer that clearly labels body to
tire dimension restrictions.
• Use 10 mm cables or chains only on front
axle with 235/50R18 tires.
• Not all S-class snow chains or cables
meet these restrictions. Chains of this
size restriction will include a tensioning
device.
• The snow chains or cables must be
mounted in pairs on the front axle.
• Do not use chains or cables on
235/45R19 and 245/45R19 tires. •
Install cables securely, verifying that the
cables do not touch any wiring, brake
lines or fuel lines.
• When driving with tire cables do not
exceed 30 mph (48 km/h) or the
maximum speed recommended by the
chain manufacturer, whichever is less.
• Drive cautiously. If you hear the cables
rub or bang against the vehicle, stop and
retighten them. If this does not work,
remove the cables to prevent vehicle
damage.
• Remove the cables when they are no
longer needed. Do not use cables on dry
roads.
If you have any questions regarding snow
chains or cables, please contact your
authorized dealer.
329
MKC (TME), enUSA, First Printing Wheels and TiresE70415

•
Navigation Features: Any navigation
features included in the system are
intended to provide turn by turn
instructions to get you to a desired
destination. Please make certain all
persons using this system carefully read
and follow instructions and safety
information fully.
• Distraction Hazard:
Any navigation
features may require manual (non-verbal)
setup. Attempting to perform such set-up
or insert data while driving can distract
your attention and could cause an
accident or other serious injury. Stop the
vehicle in a safe and legal manner before
attempting these operations.
• Let Your Judgment Prevail:
Any
navigation features are provided only as
an aid. Make your driving decisions
based on your observations of local
conditions and existing traffic regulations.
Any such feature is not a substitute for
your personal judgment. Any route
suggestions made by this system should
never replace any local traffic regulations
or your personal judgment or knowledge
of safe driving practices. •
Route Safety:
Do not follow the route
suggestions if doing so would result in
an unsafe or illegal maneuver, if you
would be placed in an unsafe situation,
or if you would be directed into an area
that you consider unsafe. The driver is
ultimately responsible for the safe
operation of the vehicle and therefore,
must evaluate whether it is safe to follow
the suggested directions.
• Potential Map Inaccuracy:
Maps used
by this system may be inaccurate
because of changes in roads, traffic
controls or driving conditions. Always use
good judgment and common sense when
following the suggested routes.
• Emergency Services:
Do not rely on any
navigation features included in the
system to route you to emergency
services. Ask local authorities or an
emergency services operator for these
locations. Not all emergency services
such as police, fire stations, hospitals and
clinics are likely to be contained in the
map database for such navigation
features.
404
MKC (TME), enUSA, First Printing Appendices

Information Messages..................................115
Active Park.............................................................115
Adaptive Cruise Control.....................................116
AdvanceTrac ™.........................................................117
Airbag......................................................................117
Alarm........................................................................\
117
All-Wheel Drive.....................................................118
Automatic Engine Shutdown.............................
118
Battery and Charging System...........................119
Blind Spot Information and Cross Traffic Alert System...............................................................120
Collision Warning System.................................120
Doors and Locks...................................................121
Driver Alert.............................................................121
Fuel........................................................................\
.122
Hill Start Assist.....................................................122
Keys and Intelligent Access.............................
122
Lane Keeping System........................................123
Maintenance.........................................................124
MyKey.....................................................................125
Park Aid..................................................................126
Park Brake.............................................................126
Power Steering.....................................................127
Remote Start.........................................................128
Seats.......................................................................128
Starting System ...................................................128
Tire Pressure Monitoring System....................
129
Traction Control...................................................129 Trailer.................................................................130
Transmission.........................................................130
Installing Child Seats......................................18 Child Seats...............................................................18
Using Lap and Shoulder Belts............................18
Using Lower Anchors and Tethers for
CHildren (LATCH)..............................................21
Using Tether Straps..............................................23
Instrument Cluster
........................................102
Instrument Lighting Dimmer........................89
Interior Lamps
..................................................93
Front Interior Lamp ..............................................93
Rear Interior Lamp................................................93
Interior Mirror
...................................................98
Auto-Dimming Mirror...........................................98
Introduction
.........................................................7
J
Jump Starting the Vehicle
..........................254
Connecting the Jumper Cables.....................255
Jump Starting......................................................256
Preparing Your Vehicle.....................................254
Removing the Jumper Cables........................
256 K
Keyless Entry
....................................................73
SECURICODE™ KEYLESS ENTRY
KEYPAD...............................................................73
Keyless Starting
.............................................158
Ignition Modes.....................................................158
Keys and Remote Controls..........................52
L
Lane Keeping System..................................214 Switching the System On and Off...................214
Lighting Control
...............................................87
Headlamp Flasher................................................88
High Beams............................................................88
Lighting
..............................................................87
General Information..............................................87
Lincoln Automotive Financial Services
.......11
Load Carriers See: Roof Racks and Load Carriers................231
Load Carrying
.................................................231
Load Limit.......................................................232
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................239
Vehicle Loading - with and without a Trailer................................................................232
424
MKC (TME), enUSA, First Printing Index

Safety Belt Warning Lamp and Indicator
Chime..............................................................35
Conditions of operation......................................36
Safety Canopy™...............................................48
Safety Precautions........................................163
Scheduled Maintenance Record..............379
Scheduled Maintenance.............................367
Seats.................................................................139
Security..............................................................77
Side Airbags.....................................................47
Sitting in the Correct Position....................139
Snow Chains See: Using Snow Chains..................................329
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
Notice to Owners of Pickup Trucks and Utility Type Vehicles.....................................................13
On-board Diagnostics (OBD-II)...........................13
Special Instructions...............................................13
Using Your Vehicle as an Ambulance...............13
Using Your Vehicle With a Snowplow...............13
Special Operating Conditions Scheduled Maintenance...............................................375
Exceptions............................................................378
Speed Control See: Cruise Control...........................................203
Stability Control
.............................................190
Principle of Operation........................................190 Starting a Gasoline Engine.........................159
Automatic Engine Shutdown...........................160
Failure to Start......................................................160
Fast Restart...........................................................159
Guarding Against Exhaust Fumes...................161
Important Ventilating Information....................161
Stopping the Engine When Your Vehicle is
Moving................................................................161
Stopping the Engine When Your Vehicle is Stationary...........................................................161
Starting and Stopping the Engine.............158 General Information............................................158
Steering..........................................................225 Electric Power Steering....................................225
Steering Wheel
................................................79
Storage Compartments................................157
Sunroof See: Moonroof.......................................................99
Sun Visors
.........................................................99
Illuminated Vanity Mirror.....................................99
Supplementary Restraints System
..............41
Principle of Operation...........................................41
Symbols Glossary
..............................................7 T
Tailgate
See: Manual Liftgate............................................69
See: Power Liftgate..............................................70
Technical Specifications See: Capacities and Specifications...............342
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.........................260
Ticket Holders................................................157
Tire Care..........................................................315
Glossary of Tire Terminology...........................316
Information About Uniform Tire Quality
Grading..............................................................315
Information Contained on the Tire Sidewall.............................................................317
Temperature A B C..............................................316
Traction AA A B C................................................316
Treadwear.............................................................316
Tire Pressure Monitoring System.............330 Changing Tires With a Tire Pressure
Monitoring System..........................................331
Understanding Your Tire Pressure Monitoring System ..............................................................331
Tires See: Wheels and Tires.......................................313
Towing a Trailer.............................................240 Load Placement..................................................240
427
MKC (TME), enUSA, First Printing Index

Towing the Vehicle on Four Wheels........247
Emergency Towing.............................................247
Recreational Towing..........................................248
Towing.............................................................240
Traction Control.............................................188
Principle of Operation........................................188
Trailer Sway Control.....................................241
Transmission Code Designation
..............345
Transmission...................................................172
Transmission See: Transmission................................................172
Transporting the Vehicle.............................247
U
Under Hood Overview - 2.0L EcoBoost™....................................................284
Under Hood Overview - 2.3L EcoBoost™...................................................286
Universal Garage Door Opener................150 HomeLink Wireless Control System...............150 Using Adaptive Cruise Control.................204
Automatic Cancellation....................................208
Blocked Sensor...................................................210
Canceling the Set Speed.................................208
Changing the Set Speed..................................208
Detection Issues.................................................209
Disengaging the System..................................207
Following a Vehicle...........................................205
Hilly Condition Usage.......................................208
Overriding the System......................................207
Resuming the Set Speed.................................208
Setting a Speed..................................................205
Setting the Gap Distance.................................206
Switching the System Off.................................208
Switching the System On.................................204
Switching to Normal Cruise Control................211
System Not Available.........................................210
Using All-Wheel Drive
..................................178
Driving in Special Conditions With All-Wheel
Drive...................................................................178
Using Cruise Control...................................203 Switching Cruise Control Off...........................204
Switching Cruise Control On...........................203
Using MyKey With Remote Start Systems..........................................................62
Using Snow Chains......................................329 Using Stability Control..................................191
AdvanceTrac® with Roll Stability Control™
(RSC®)..................................................................191
Using Traction Control.................................188 Switching the System Off..................................188
System Indicator Lights and Messages.........188
Using a Switch.....................................................188
Using the Information Display Controls........
188
Utilizing the Mediation/Arbitration Program (Canada Only)
..............................................261
V
Vehicle Care
..................................................304
General Information...........................................304
Vehicle Certification Label.........................344
Vehicle Identification Number...................344
Vehicle Storage
...............................................311
Battery....................................................................312
Body........................................................................\
.311
Brakes....................................................................312
Cooling system....................................................312
Engine.....................................................................311
Fuel system............................................................311
General....................................................................311
Miscellaneous......................................................312
Removing Vehicle From Storage.....................312
Tires........................................................................\
312
428
MKC (TME), enUSA, First Printing Index
