fuse LINCOLN MKC 2017 Owner's Manual

Protected components
Fuse amp rating
Fuse
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Continuous control damping suspension.
Lane keeping system module.
Rear heated seats module.
All-wheel drive relay.
20A 1
37
Heated steering wheel.
Not used (spare).
30A
38
1 Micro fuse.
2 Dual micro fuse.

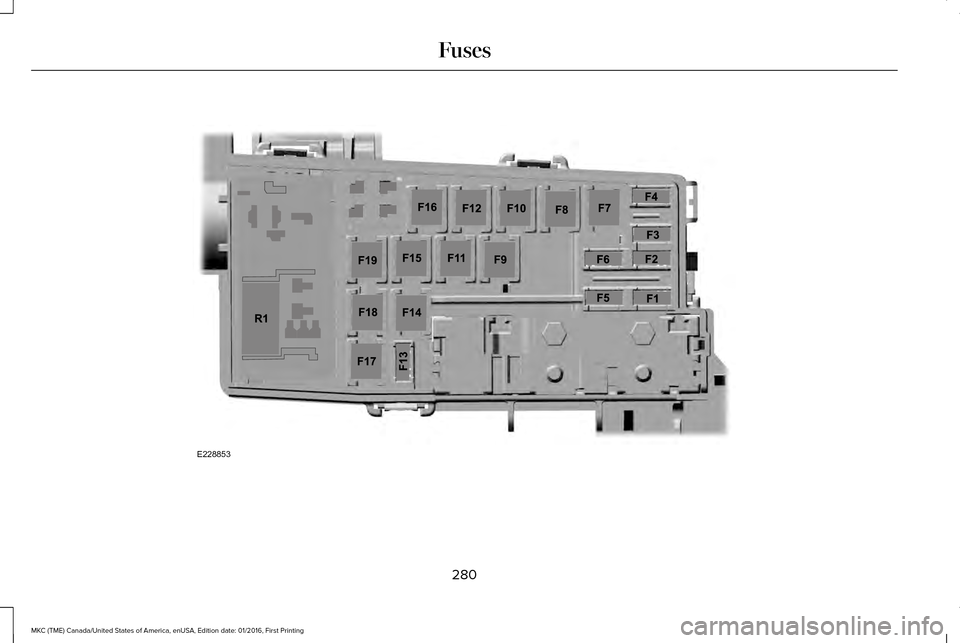

Rear Cargo Fuse Box
The fuse panel is located in the cargo area
on the passenger side. Open the fuse panel
cover to gain access to the fuses.
279
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

280
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing FusesE228853

Protected components
Fuse amp rating
Fuse
Not used.
—
F1
Not used.
—
F2
Hands-free liftgate module.
5A 1
F3
Not used.
—
F4
Not used.
—
F5
Not used.
—
F6
Rear heated seats.
30A 2
F7
Power cinch latch.
30A 2
F8
Power liftgate.
Heated front seats.
20A 2
F9
Trailer tow.
40A 2
F10
Climate control seats.
30A 2
F11
Auxiliary power point - instrument panel.
20A 2
F12
Not used.
—
F13
281
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Power seats.
30A 2
F14
Auxiliary power point - inside of floor console.
20A 2
F15
Auxiliary power point - rear of floor console.
20A 2
F16
Not used.
—
F17
Auxiliary power point - cargo area.
20A 2
F18
Inverter power outlet.
40A 2
F19
1 Mini fuse.
2 J-case fuse. Circuits switched
Relay
Not used.
R1
282
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage rating
can cause severe wire damage and could
start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.
283
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing FusesE217331

Fuse Types
Fuse Type
Callout
Micro 2
A
Micro 3
B
Maxi
C
284
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing FusesE207206

Fuse Type
Callout
Mini
D
M Case
E
J Case
F
J Case Low Profile
G
285
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses
