fuse LINCOLN MKC 2017 User Guide

Protected components
Fuse amp rating
Fuse
Anti-lock brake system module.
50A 2
F7
Anti-lock brake system module.
30A 2
F8
Fuel pump relay.
20A 2
F9
Blower motor relay.
40A 2
F10
Run start relay.
30A 2
F11
Powertrain control module relay.
40A 2
F12
Starter relay.
30A 2
F13
Memory seat.
30A 2
F14
Wipers and washers relay.
30A 2
F15
Cooling fan.
25A 2
F16
Cooling fan 1 (600W).
40A 2
F17
269
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Cooling fan 1 (750W).
50A 2
Cooling fan 2 (600W).
40A 2
F18
Cooling fan 2 (750W).
50A 2
Anti-lock brake system module run/start.
5A 1
F19
Horn relay.
20A 1
F20
Brake pedal switch.
10A 1
F21
Windshield wipers and washer.
25A 1
F22
Run/start relay coil.
5A 1
F23
Transmission range control module.
20A 1
F24
Air conditioning clutch relay.
10A 1
F25
Powertrain control module relay coil.
5A 1
F26
Washer pump relay.
10A 1
F27
270
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Alternator sensor.
10A 1
F28
Rain sensor.
15A 1
F29
Rear wiper.
Washer pump relay coil.
Left-hand headlamp.
20A 1
F30
Right-hand headlamp.
20A 1
F31
Vehicle power 1 (powertrain control module).
15A 1
F32
Vehicle power 2 (canister vent solenoid, universal exhausted
gas oxygen sensor, variable camshaft timing, catalyst monitor
sensor, canister purge solenoid).
15A
1
F33
Vehicle power 3 (A/C clutch control relay coil, variable A/C
compressor, fan control relay coil, engine charge air bypass
valve solenoid, active grill shutters).
15A
1
F34
Vehicle power 4 (ignition coils).
15A 1
F35
Not used.
—
F36
Not used.
—
F37
271
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Voltage quality module run/start (vehicles equipped with
stop/start).
15A 1
F38
Powertrain control ignition start power - run.
5A 1
F39
Electronic power assist steering run/start.
10A 1
F40
Extended power module run/start.
10A 1
F41
Adaptive cruise control.
10A 1
F42
Blind spot information system.
Heads-up display.
Rear video camera.
(vehicles not equipped with stop/start)
Not used.
—
F43
Heated rear window relay coil.
5A 1
F44
Heated wiper park.
Electronic transmission pump run/stop feed (vehicles
equipped with stop/start).
Transmission range control module run/start.
5A 1
F45
Heated rear window relay.
40A 2
F46
Heated wiper park.
272
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Electronic transmission pump B+ feed (vehicles equipped
with stop/start).
30A 1
F47
Not used.
—
F48
1 Mini fuse.
2 J-case fuse. Circuits switched
Relay
Run start.
R1
Horn.
R2
Fuel pump.
R3
Rear window washer pump.
R4
Cooling fan relay 3 (750W).
R5
Windshield wipers.
R6
Cooling fan relay 1 (600W).
R7
Cooling fan relay 5 (750W).
Starter.
R8
Not used.
R9
273
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Circuits switched
Relay
Cooling fan relay 4 (750W).
R10
Air conditioning clutch.
R11
Cooling fan relay 1 (750W).
R12
Cooling fan relay 3 (600W).
Cooling fan relay 2.
R13
Powertrain control module.
R14
Heated rear window.
R15
Heated wiper park.
Blower motor.
R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end of
the glove box.
274
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Lighting (ambient, glove box, vanity, dome, cargo).
10A 1
1
Memory seats.
7.5A 1
2
Driver door unlock.
20A 1
3
275
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
THX amplifier.
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Keypad.
5A 2
10
Power liftgate logic.
Not used (spare).
5A 2
11
Climate control.
7.5A 2
12
Gear shift control.
Push-button ignition.
Cluster.
7.5A 2
13
Datalink module logic.
Steering column module logic.
276
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

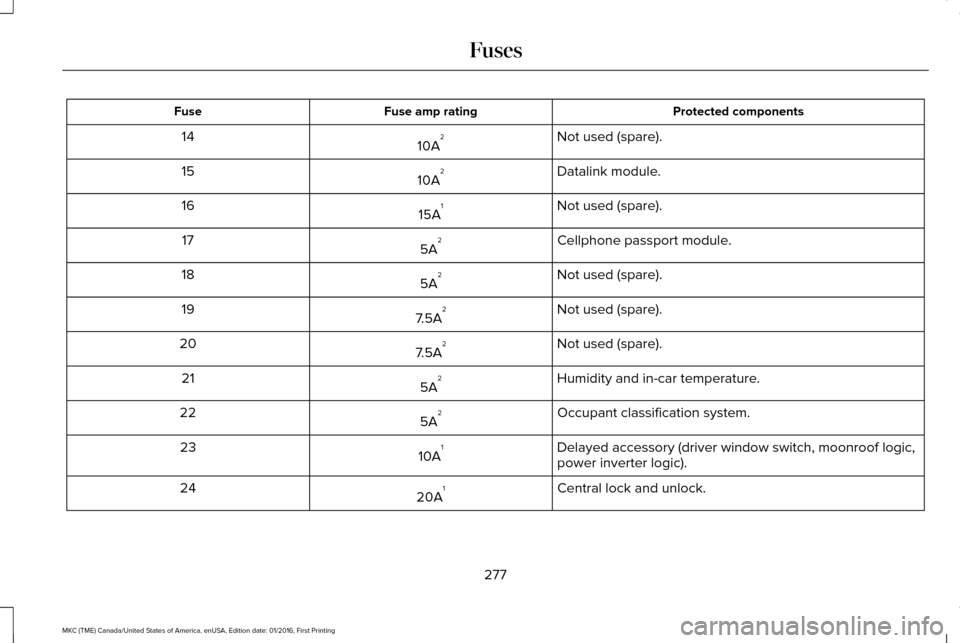

Protected components
Fuse amp rating
Fuse
Not used (spare).
10A 2
14
Datalink module.
10A 2
15
Not used (spare).
15A 1
16
Cellphone passport module.
5A 2
17
Not used (spare).
5A 2
18
Not used (spare).
7.5A 2
19
Not used (spare).
7.5A 2
20
Humidity and in-car temperature.
5A 2
21
Occupant classification system.
5A 2
22
Delayed accessory (driver window switch, moonroof logic,
power inverter logic).
10A 1
23
Central lock and unlock.
20A 1
24
277
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Driver door (window, mirror).
30A 1
25
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
THX amplifier.
20A 1
28
Rear driver side door (window).
30A 1
29
Rear passenger side door (window).
30A 1
30
Not used (spare).
15A 1
31
Display.
10A 1
32
GPS.
Radio frequency receiver.
Voice control.
Radio and active noise control.
20A 1
33
Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
30A 1
34
278
