fuse LINCOLN MKC 2019 User Guide

Protected ComponentsFuse RatingFuse Number
Rain sensor.15A 2F29Rear wiper.Rear washer pump relay coil.
Not used.—F30
Not used.—F31
Vehicle power 1 (powertrain control module).15A 2F32
Vehicle power 2 (canister vent solenoid, universal exhaustedgas oxygen sensor, variable camshaft timing, catalyst monitorsensor, canister purge solenoid).
15A 2F33
Vehicle power 3 (A/C clutch control relay coil, variable A/Ccompressor, fan control relay coil, engine charge air bypassvalve solenoid, active grill shutters).
15A 2F34
Vehicle power 4 (ignition coils).15A 2F35
Not used.—F36
Not used.—F37
Voltage quality module run/start (vehicles equipped withstop/start).15A 2F38
Powertrain control ignition start power - run.5A 2F39
272
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Electronic power assist steering run/start.10A 2F40
Extended power module run/start.10A 2F41
Adaptive cruise control.10A 2F42Blind spot information system.Heads-up display.Rear video camera.(vehicles with stop/start)
Not used (spare).(vehicles without stop/start)
Not used.—F43
Heated rear window relay coil.5A 2F44Heated wiper park.Electronic transmission pump run/stop feed (vehiclesequipped with stop/start).
Transmission range control module run/start.5A 2F45
Heated rear window relay.40A 1F46Heated wiper park.
273
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Electronic transmission pump B+ feed (vehicles equippedwith stop/start).30A 2F47
Not used.—F48
1 J-case fuse.2 Mini fuse.
Circuits switchedRelay
Run start.R1
Horn.R2
Fuel pump.R3
Rear window washer pump.R4
Cooling fan relay 3 (750W).R5
Windshield wipers.R6
Cooling fan relay 1 (600W).R7Cooling fan relay 5 (750W).
Starter.R8
Not used.R9
274
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Circuits switchedRelay
Cooling fan relay 4 (750W).R10
Air conditioning clutch.R11
Cooling fan relay 1 (750W).R12Cooling fan relay 3 (600W).
Cooling fan relay 2.R13
Powertrain control module.R14
Heated rear window.R15Heated wiper park.
Blower motor.R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end ofthe glove box.
275
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Demand lamp battery saver.10A11
Memory seats.7.5A 12
Driver door unlock.20A 13
276
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE145984

Protected ComponentsFuse RatingFuse Number
Not used (spare).5A14
Subwoofer amplifier.20A 15THX amplifier.
Not used (spare).10A 26
Not used (spare).10A 27
Not used (spare).10A 28
Not used (spare).10A 29
Keypad.5A 210Power liftgate logic.
Not used (spare).5A 211
Climate control.7.5A 212Gear shift control.Push-button ignition.
Cluster.7.5A 213Datalink module logic.Steering column module logic.
277
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

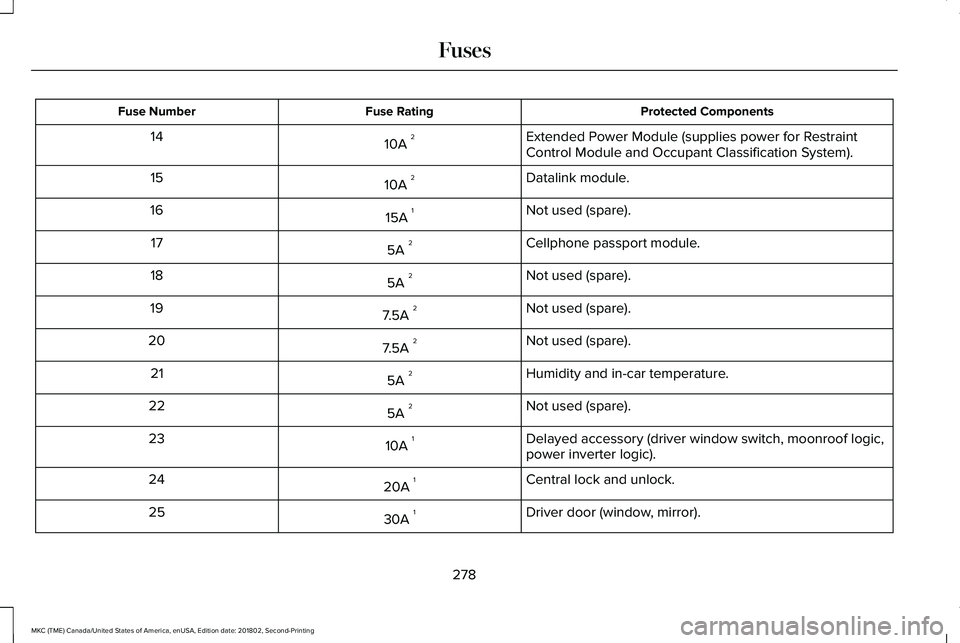

Protected ComponentsFuse RatingFuse Number
Extended Power Module (supplies power for RestraintControl Module and Occupant Classification System).10A 214
Datalink module.10A 215
Not used (spare).15A 116
Cellphone passport module.5A 217
Not used (spare).5A 218
Not used (spare).7.5A 219
Not used (spare).7.5A 220
Humidity and in-car temperature.5A 221
Not used (spare).5A 222
Delayed accessory (driver window switch, moonroof logic,power inverter logic).10A 123
Central lock and unlock.20A 124
Driver door (window, mirror).30A 125
278
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

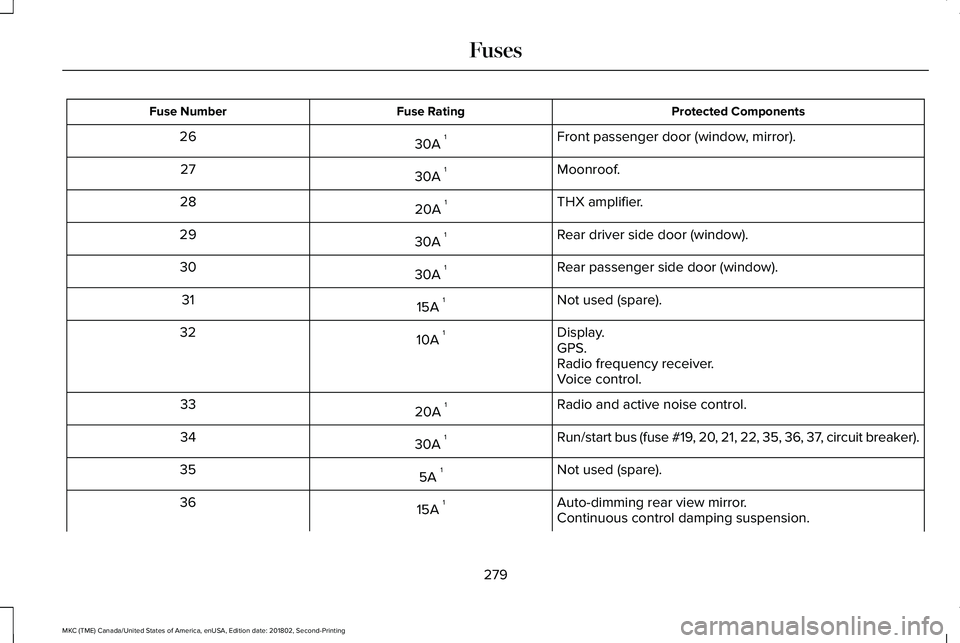

Protected ComponentsFuse RatingFuse Number
Front passenger door (window, mirror).30A 126
Moonroof.30A 127
THX amplifier.20A 128
Rear driver side door (window).30A 129
Rear passenger side door (window).30A 130
Not used (spare).15A 131
Display.10A 132GPS.Radio frequency receiver.Voice control.
Radio and active noise control.20A 133
Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).30A 134
Not used (spare).5A 135
Auto-dimming rear view mirror.15A 136Continuous control damping suspension.
279
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Lane keeping system module.Rear heated seats module.
All-wheel drive relay.20A 137Heated steering wheel.
Not used (spare).30A38
1 Micro fuse.2 Dual micro fuse.

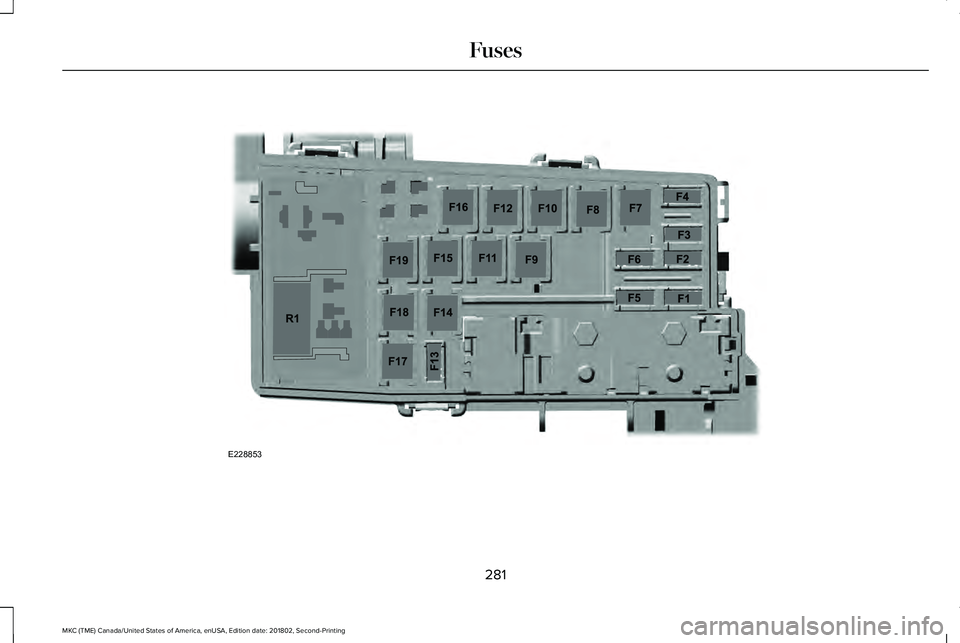

Rear Cargo Fuse Box
The fuse panel is located in the cargo areaon the passenger side. Open the fuse panelcover to gain access to the fuses.
280
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

281
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE228853
