fuse LINCOLN MKC 2019 Owner's Manual

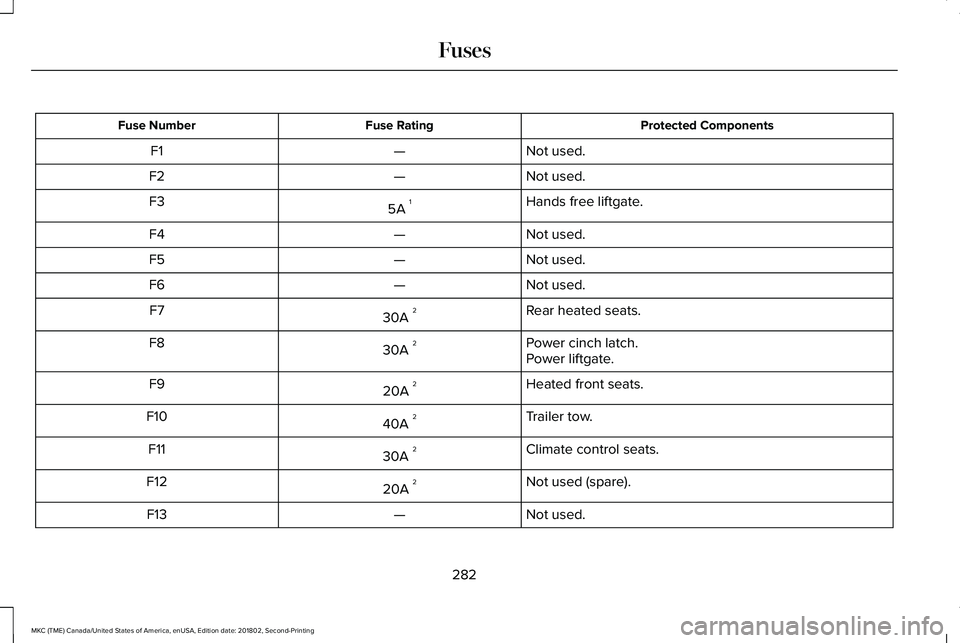

Protected ComponentsFuse RatingFuse Number
Not used.—F1
Not used.—F2
Hands free liftgate.5A 1F3
Not used.—F4
Not used.—F5
Not used.—F6
Rear heated seats.30A 2F7
Power cinch latch.30A 2F8Power liftgate.
Heated front seats.20A 2F9
Trailer tow.40A 2F10
Climate control seats.30A 2F11
Not used (spare).20A 2F12
Not used.—F13
282
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Power seats.30A 2F14
Auxiliary power point - inside of floor console.20A 2F15
Auxiliary power point - rear of floor console.20A 2F16
Not used.—F17
Auxiliary power point - cargo area.20A 2F18
Inverter power outlet.40A 2F19
1 Micro fuse.2 Dual micro fuse.
Circuits switchedRelay
Not used.R1
283
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

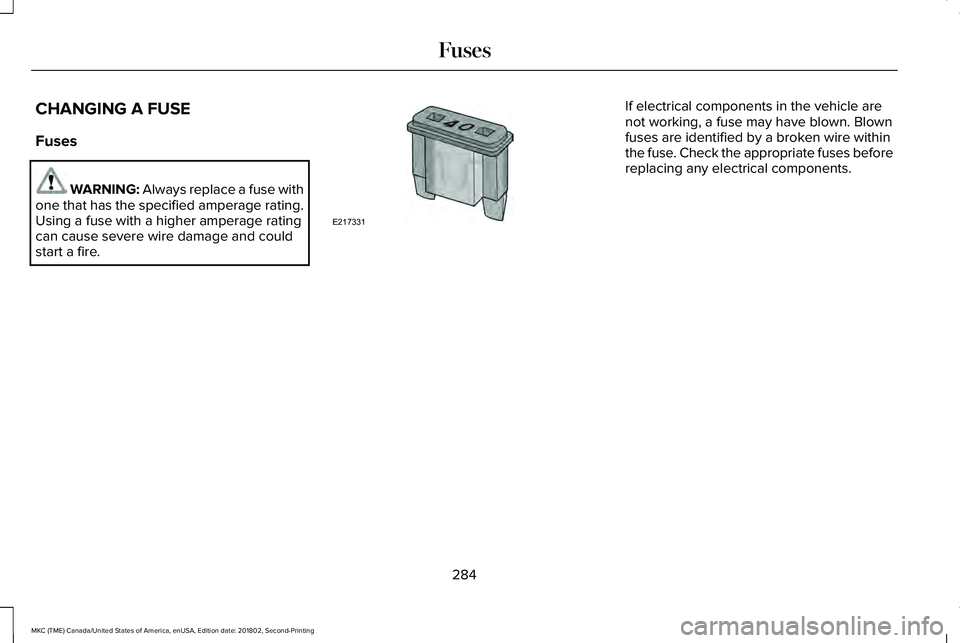

CHANGING A FUSE
Fuses
WARNING: Always replace a fuse withone that has the specified amperage rating.Using a fuse with a higher amperage ratingcan cause severe wire damage and couldstart a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fuses beforereplacing any electrical components.
284
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE217331

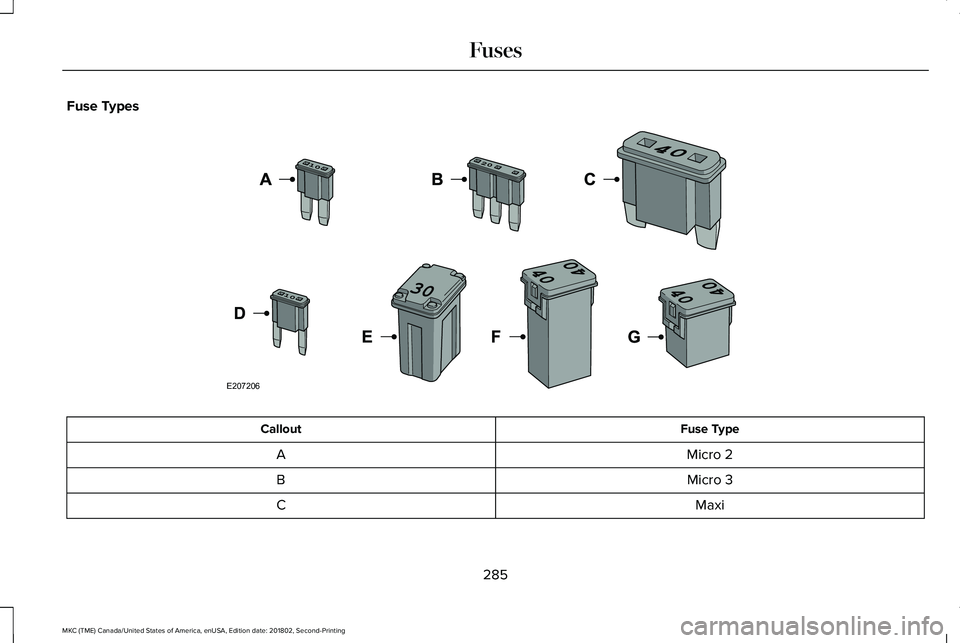

Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
285
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE207206

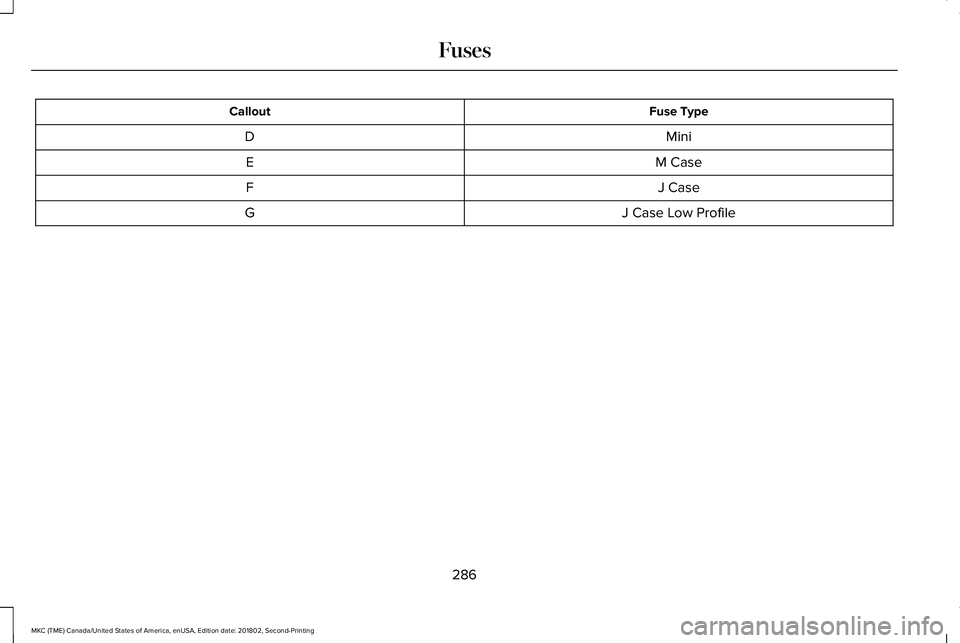

Fuse TypeCallout
MiniD
M CaseE
J CaseF
J Case Low ProfileG
286
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Engine coolant reservoir. SeeEngine Coolant Check (page 292).A
Engine oil dipstick. See Engine OilDipstick (page 290).B
Engine oil filler cap. See EngineOil Check (page 290).C
Brake fluid reservoir. See BrakeFluid Check (page 296).D
Battery. See Changing the 12VBattery (page 297).E
Power distribution box. See Fuses(page 268).F
Air filter assembly. See Changingthe Engine Air Filter (page 302).G
Windshield washer fluid reservoir.See Washer Fluid Check (page296).
H
ENGINE OIL DIPSTICK
MINA
MAXB
ENGINE OIL CHECK
WARNING: Do not work on a hotengine.
To check the engine oil level consistentlyand accurately, do the following:
1.Make sure the parking brake is on. Makesure the transmission is in park (P) orneutral (N).
2. Run the engine until it reaches normaloperating temperature.
3. Make sure that your vehicle is on levelground.
4.Switch the engine off and wait 15 minutesfor the oil to drain into the oil pan. Checking the engine oil level too soonafter you switch the engine off may resultin an inaccurate reading.
5. Open the hood. See Opening andClosing the Hood (page 287).
6. Remove the dipstick and wipe it with aclean, lint-free cloth. See Under HoodOverview (page 288).
7.Replace the dipstick and remove it againto check the oil level. See Engine OilDipstick (page 290).
8. Make sure that the oil level is betweenthe maximum and minimum marks. If theoil level is at the minimum mark, add oilimmediately. See Capacities andSpecifications (page 350).
290
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
MaintenanceE170468
AB

Action and DescriptionMenu ItemItem
You can place a call by selecting an entry from this list.You can also sort the calls by selecting the drop down menu at the top of the screen. Youcan choose:
MissedOutgoingIncomingAll
All of your contacts from your phone display in alphabetical order.ContactsB
Selecting this button allows you to choose aspecific letter to view.A-Z Jump
Displays the name of your phone and takes you to the phone settings options.Phone SettingsCFrom this menu, you can pair subsequent devices, set ring tones and alerts.
Gives you access to the list of paired or connected Bluetooth devices allowing you to changeor select a device.Change DeviceD
Displays all recent text messages.Text MessagesE
Use this keypad to dial in a phone number.Phone KeypadFUse the backspace button to delete numbers.
Press this button to begin a call.Call
Touch this button to reject all incoming calls automatically. Text message notifications donot display on the screen. All ringtones and alerts are set to silent.Do Not DisturbG
426
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
SYNC™ 3

Entire Agreement. These terms andconditions constitute the entire agreementbetween Telenav (and its licensors, includingtheir licensors and suppliers) and youpertaining to the subject matter hereof, andsupersedes in their entirety any and allwritten or oral agreements previouslyexisting between us with respect to suchsubject matter.
Governing Law. The above terms andconditions shall be governed by the laws ofthe State of Illinois [insert “Netherlands”where European HERE Data is used], withoutgiving effect to (i) its conflict of lawsprovisions, or (ii) the United NationsConvention for Contracts for the InternationalSale of Goods, which is explicitly excluded.You agree to submit to the jurisdiction of theState of Illinois [insert “The Netherlands”where European HERE Data is used] for anyand all disputes, claims and actions arisingfrom or in connection with the Data providedto you hereunder.
Government End Users. If the Data is beingacquired by or on behalf of the United Statesgovernment or any other entity seeking orapplying rights similar to those customarilyclaimed by the United States government,this Data is a “commercial item” as that termis defined at 48 C.F.R. (“FAR”) 2.101, islicensed in accordance with these End-UserTerms, and each copy of Data delivered orotherwise furnished shall be marked andembedded as appropriate with the following“Notice of Use,” and shall be treated inaccordance with such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: HERE
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: c/o Nokia, 425 WestRandolph Street, Chicago, Illinois 60606
This Data is a commercial item as definedin FAR 2.101 and is subject to these End-User Terms under which this Data wasprovided.
© 1987 – 2014 HERE – All rights reserved.
If the Contracting Officer, federal governmentagency, or any federal official refuses to usethe legend provided herein, the ContractingOfficer, federal government agency, or anyfederal official must notify HERE prior toseeking additional or alternative rights in theData.
I. US/Canada Territory
A. United States Data. The End-UserTerms for any Application containing Datafor the United States shall contain thefollowing notices:
“HERE holds a non-exclusive licensefrom the United States Postal Service®to publish and sell ZIP+4® information.”
“©United States Postal Service® 20XX.Prices are not established, controlled orapproved by the United States PostalService®. The following trademarks andregistrations are owned by the USPS:United States Postal Service, USPS, andZIP+4.”
541
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Appendices

Power......................................................................134Recirculated Air....................................................133Right-hand Temperature Control.....................133
Automatic High Beam Control.....................91Automatic High Beam Indicator........................92Switching the System On and Off....................92
Automatic Transmission...............................177Automatic Transmission AdaptiveLearning............................................................182Brake-Shift Interlock Override..........................181If Your Vehicle Gets Stuck In Mud orSnow..................................................................182Push Button Shift Transmission........................177SelectShift Automatic™ Transmission.............179
Automatic Transmission FluidCheck...........................................................296Auto-Start-Stop..............................................163Disabling Auto-Start-Stop..................................164Enabling Auto-Start-Stop...................................163
Autowipers.......................................................85Autowipers Settings.............................................85
Auxiliary Power Points.................................154110 Volt AC Power Point.....................................15412 Volt DC Power Point......................................154USB Port and Power Point Locations.............154
AWDSee: All-Wheel Drive...........................................183
B
BatterySee: Changing the 12V Battery.......................297
Blind Spot Information System.................226Switching the System Off and On..................228System Errors......................................................228Using the Blind Spot InformationSystem..............................................................227
BLISSee: Blind Spot Information System..............226
Body Styling Kits............................................314Bonnet LockSee: Opening and Closing the Hood............287
Booster Seats..................................................28Types of Booster Seats.......................................29
Brake Fluid Check.......................................296Brakes..............................................................188General Information............................................188
Breaking-In......................................................251Bulb Specification Chart.............................363
C
Cabin Air Filter...............................................136Capacities and Specifications - 2.0L.......350Alternative Engine Oil for Extremely ColdClimates...........................................................355
Specifications.......................................................351
Capacities and Specifications - 2.3L.......356Alternative Engine Oil for Extremely ColdClimates...........................................................362Specifications......................................................358
Capacities and Specifications...................344Car WashSee: Cleaning the Exterior...............................306
Catalytic Converter.......................................174On-Board Diagnostics (OBD-II)........................175Readiness for Inspection and Maintenance(I/M) Testing......................................................176
Center Console.............................................156Changing a Bulb............................................301Front Direction Indicator..................................302High Intensity Discharge Headlamp.............302LED Lamps...........................................................302License Plate Lamp...........................................302
Changing a Fuse..........................................284Fuses.....................................................................284
Changing a Road Wheel.............................336Dissimilar Spare Wheel and Tire AssemblyInformation.......................................................337Tire Change Procedure....................................338
Changing the 12V Battery..........................297Changing the Engine Air Filter.................302Changing the Wiper Blades......................299Front Wiper Blades............................................299
566
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Index

Apps.......................................................................420Bluetooth Stereo or USB...................................418CD (If equipped)...................................................417HD Radio™ Information (If Available)...............413SiriusXM® Satellite Radio (If Activated).........409Sources.................................................................408Supported Media Players, Formats andMetadata Information...................................420USB Ports.............................................................420
Environment......................................................17EPBSee: Electric Parking Brake..............................189
Essential Towing Checks............................248Before Towing a Trailer.....................................249Hitches..................................................................248Launching or Retrieving a Boat or PersonalWatercraft (PWC)............................................249Safety Chains......................................................248Trailer Brakes.......................................................248Trailer Lamps.......................................................248When Towing a Trailer.......................................249
Event Data RecordingSee: Data Recording.............................................10
Export Unique Options...................................16Exterior Mirrors................................................96Auto-Dimming Feature........................................98Auto-Folding Mirrors............................................97Blind Spot Monitor................................................99
Fold-Away Exterior Mirrors.................................97Heated Exterior Mirrors.......................................98Integrated Blind Spot Mirrors............................98Lincoln Welcome Mat..........................................98Memory Mirrors.....................................................98Power Exterior Mirrors.........................................96Signal Indicator Mirrors.......................................98
F
Fastening the Seatbelts................................35How to Extract Seatbelts in the RearOutermost Positions........................................38Seatbelt Locking Modes.....................................36Using a Sliding Clip..............................................36Using Seatbelts During Pregnancy..................36
Flat TireSee: Changing a Road Wheel.........................336
Floor Mats......................................................252Front Parking Aid..........................................199Front Passenger Sensing System...............47Fuel and Refueling........................................166Fuel Consumption.........................................172Advertised Capacity...........................................172Fuel Economy.......................................................172
Fuel Filler Funnel Location..........................167Fuel Filter........................................................297
Fuel Quality.....................................................166Choosing the Right Fuel....................................166
Fuel Shutoff...................................................255Fuses...............................................................268Fuse Specification Chart............................268Passenger Compartment Fuse Box...............275Power Distribution Box.....................................268Pre-Fuse Box.......................................................268Rear Cargo Fuse Box........................................280
G
Garage Door OpenerSee: Universal Garage Door Opener.............149
Gauges............................................................102Engine Coolant Temperature Gauge.............103Fuel Gauge...........................................................103Information Display.............................................103
GearboxSee: Transmission................................................177
General Information on RadioFrequencies..................................................55Intelligent Access.................................................55
General Maintenance Information...........487Multi-Point Inspection.......................................490Owner Checks and Services...........................488Protecting Your Investment..............................487Why Maintain Your Vehicle?.............................487
569
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Index
