LINCOLN MKC 2019 Owners Manual

FUSE SPECIFICATION CHART
Pre-Fuse Box
The pre-fuse box is in the enginecompartment attached to the positive batterypost. This box contains several high currentfuses. If you need to replace one of thesehigh current fuses, see an authorized dealer.
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk of electricalshock, always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.

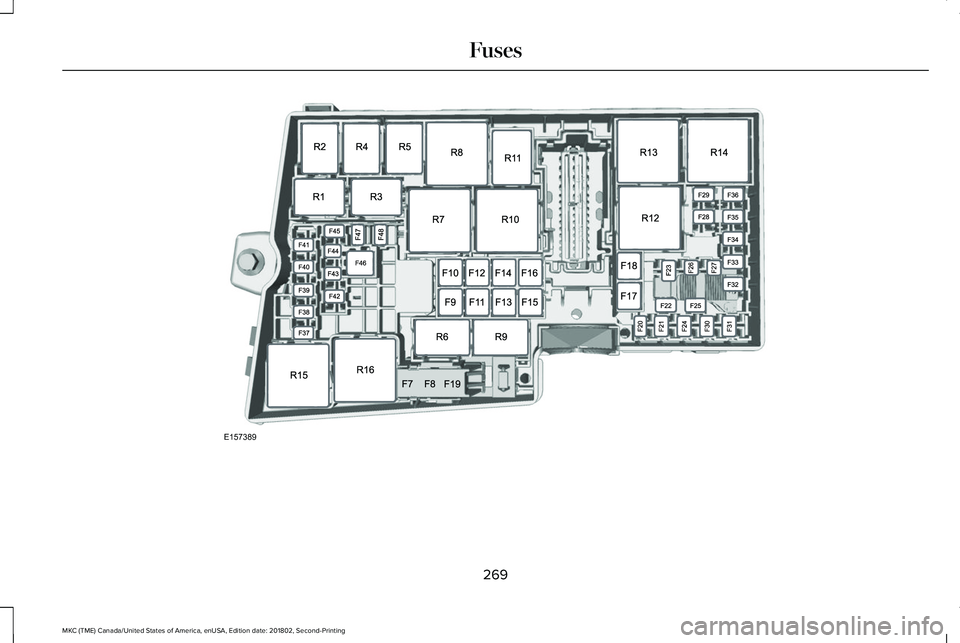

The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle's main electrical systemsfrom overloads.
You will need to reset some features if youdisconnect and reconnect the battery. SeeChanging the 12V Battery (page 297).
Lift the release lever at the rear of the coverto remove it.
268
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

269
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE157389

Protected ComponentsFuse RatingFuse Number
Anti-lock brake system module.50A1F7
Anti-lock brake system module.30A 1F8
Fuel pump relay.20A 1F9
Blower motor relay.40A 1F10
Run start relay.30A 1F11
Powertrain control module relay.40A 1F12
Starter relay.30A 1F13
Memory seat.30A 1F14
Wipers and washers relay.30A 1F15
Cooling fan.25A 1F16
Cooling fan 1 (600W).40A 1F17
Cooling fan 1 (750W).50A 1
270
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Cooling fan 2 (600W).40A 1F18
Cooling fan 2 (750W).50A 1
Anti-lock brake system module run/start.5A 2F19
Horn relay.20A 2F20
Brake pedal switch.10A 2F21
Windshield wipers and washer.25A 2F22
Run/start relay coil.5A 2F23
Transmission range control module.20A 2F24
Air conditioning clutch.10A 2F25
Powertrain control module relay coil.5A 2F26
Washer pump relay.10A 2F27
Alternator sensor.10A 2F28
271
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Rain sensor.15A 2F29Rear wiper.Rear washer pump relay coil.
Not used.—F30
Not used.—F31
Vehicle power 1 (powertrain control module).15A 2F32
Vehicle power 2 (canister vent solenoid, universal exhaustedgas oxygen sensor, variable camshaft timing, catalyst monitorsensor, canister purge solenoid).
15A 2F33
Vehicle power 3 (A/C clutch control relay coil, variable A/Ccompressor, fan control relay coil, engine charge air bypassvalve solenoid, active grill shutters).
15A 2F34
Vehicle power 4 (ignition coils).15A 2F35
Not used.—F36
Not used.—F37
Voltage quality module run/start (vehicles equipped withstop/start).15A 2F38
Powertrain control ignition start power - run.5A 2F39
272
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Electronic power assist steering run/start.10A 2F40
Extended power module run/start.10A 2F41
Adaptive cruise control.10A 2F42Blind spot information system.Heads-up display.Rear video camera.(vehicles with stop/start)
Not used (spare).(vehicles without stop/start)
Not used.—F43
Heated rear window relay coil.5A 2F44Heated wiper park.Electronic transmission pump run/stop feed (vehiclesequipped with stop/start).
Transmission range control module run/start.5A 2F45
Heated rear window relay.40A 1F46Heated wiper park.
273
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Electronic transmission pump B+ feed (vehicles equippedwith stop/start).30A 2F47
Not used.—F48
1 J-case fuse.2 Mini fuse.
Circuits switchedRelay
Run start.R1
Horn.R2
Fuel pump.R3
Rear window washer pump.R4
Cooling fan relay 3 (750W).R5
Windshield wipers.R6
Cooling fan relay 1 (600W).R7Cooling fan relay 5 (750W).
Starter.R8
Not used.R9
274
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Circuits switchedRelay
Cooling fan relay 4 (750W).R10
Air conditioning clutch.R11
Cooling fan relay 1 (750W).R12Cooling fan relay 3 (600W).
Cooling fan relay 2.R13
Powertrain control module.R14
Heated rear window.R15Heated wiper park.
Blower motor.R16

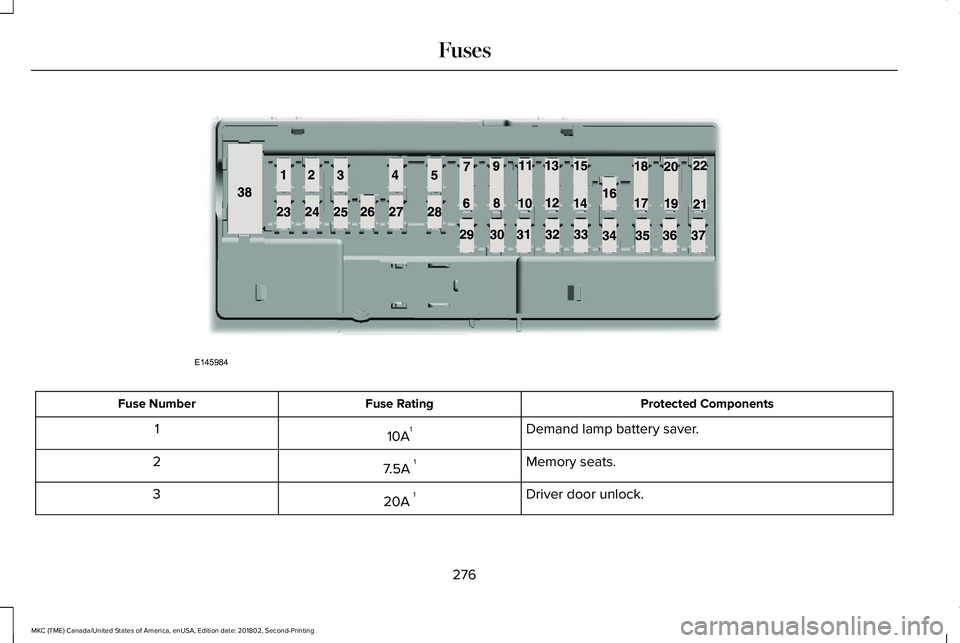

Passenger Compartment Fuse Box
The fuse panel is behind the lower end ofthe glove box.
275
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Protected ComponentsFuse RatingFuse Number
Demand lamp battery saver.10A11
Memory seats.7.5A 12
Driver door unlock.20A 13
276
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
FusesE145984

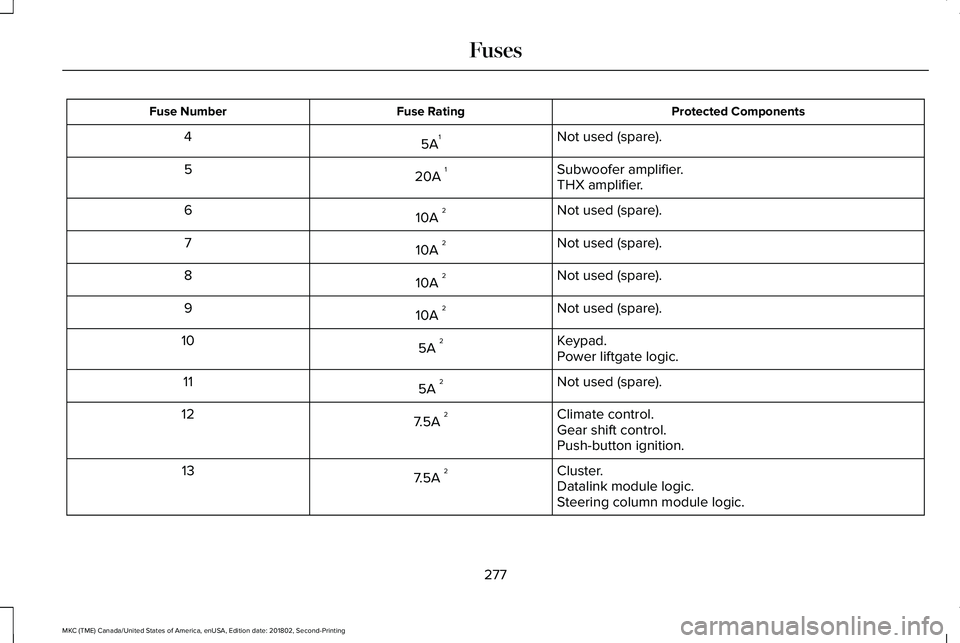

Protected ComponentsFuse RatingFuse Number
Not used (spare).5A14
Subwoofer amplifier.20A 15THX amplifier.
Not used (spare).10A 26
Not used (spare).10A 27
Not used (spare).10A 28
Not used (spare).10A 29
Keypad.5A 210Power liftgate logic.
Not used (spare).5A 211
Climate control.7.5A 212Gear shift control.Push-button ignition.
Cluster.7.5A 213Datalink module logic.Steering column module logic.
277
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses
