Locks 68
Locking and unlocking..................................68
SecuriCode™ keyless entry keypad.........................72
Trunk release.........................................74
Interior luggage compartment release.......................75
Security 77
SecuriLock® passive anti-theft system.......................77
Anti-theft alarm.......................................79
Steering Wheel 80
Adjusting the steering wheel..............................80
Steering wheel controls.................................81
Pedals 84
Adjustable pedals......................................84
Wipers and Washers 85
Windshield wipers.....................................85
Rain-sensing wipers....................................85
Windshield washers....................................86
Lighting 87
Lighting control.......................................87
Autolamps...........................................88
Instrument lighting dimmer...............................88
Headlamp exit delay....................................88
Automatic high beam control.............................89
Front fog lamps.......................................91
Adaptive headlamps....................................92
Turn signal control.....................................93
Interior lamps........................................93
2Table of Contents
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Fuses 253
Changing a fuse......................................253
Fuse specification chart................................254
Maintenance 262
General information...................................262
Opening and closing the hood............................263
Under hood overview..................................264
Engine oil dipstick....................................266
Engine oil check......................................266
Engine coolant check..................................267
Automatic transmission fluid check........................272
Brake fluid check.....................................277
Fuel filter...........................................277
Washer fluid check....................................278
Battery ............................................278
Checking the wiper blades..............................279
Air filter(s).........................................280
Adjusting the headlamps................................282
Changing a bulb......................................283
Bulb specification chart.................................286
Vehicle Care 287
Cleaning products.....................................287
Cleaning the exterior..................................287
Waxing.............................................289
Repairing minor paint damage............................289
Cleaning the engine...................................289
Cleaning the windows and wiper blades.....................290
Cleaning the interior...................................291
Cleaning the instrument panel and instrument cluster lens.......291
Cleaning leather seats..................................292
Cleaning the alloy wheels...............................293
Vehicle storage.......................................293
6Table of Contents
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Enabling or Disabling
Note:You can enable or disable the autolock and autounlock features
independently of each other.
You can enable or disable these features:
•through an authorized dealer
•using the information display.
Illuminated Entry
The interior lamps and select exterior lamps illuminate when you use the
intelligent access key or the keyless entry keypad to unlock your vehicle.
The system will turn off the lights if:
•you switch the ignition on
•you press the lock button on the remote control
•you lock your vehicle using the keyless entry keypad
•they have been on for 25 seconds.
The lights will not turn off if:
•you have turned them on with the dimmer control
•any door is open.
Illuminated Exit
The interior lamps and select exterior lamps illuminate when all doors
are closed and the ignition is turned off.
The lights turn off if all the doors remain closed and:
•25 seconds elapse
•you press theSTART/STOPbutton.
Battery Saver
If you leave the courtesy lamps, dome lamps or headlamps on, the
battery saver shuts them off 10 minutes after you switch the ignition off.
Accessory Mode Battery Saver for Intelligent Access Keys
If you leave your vehicle in the run ignition state, it will shut off once it
detects a certain amount of battery drain or after 45 minutes.
Locks71
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

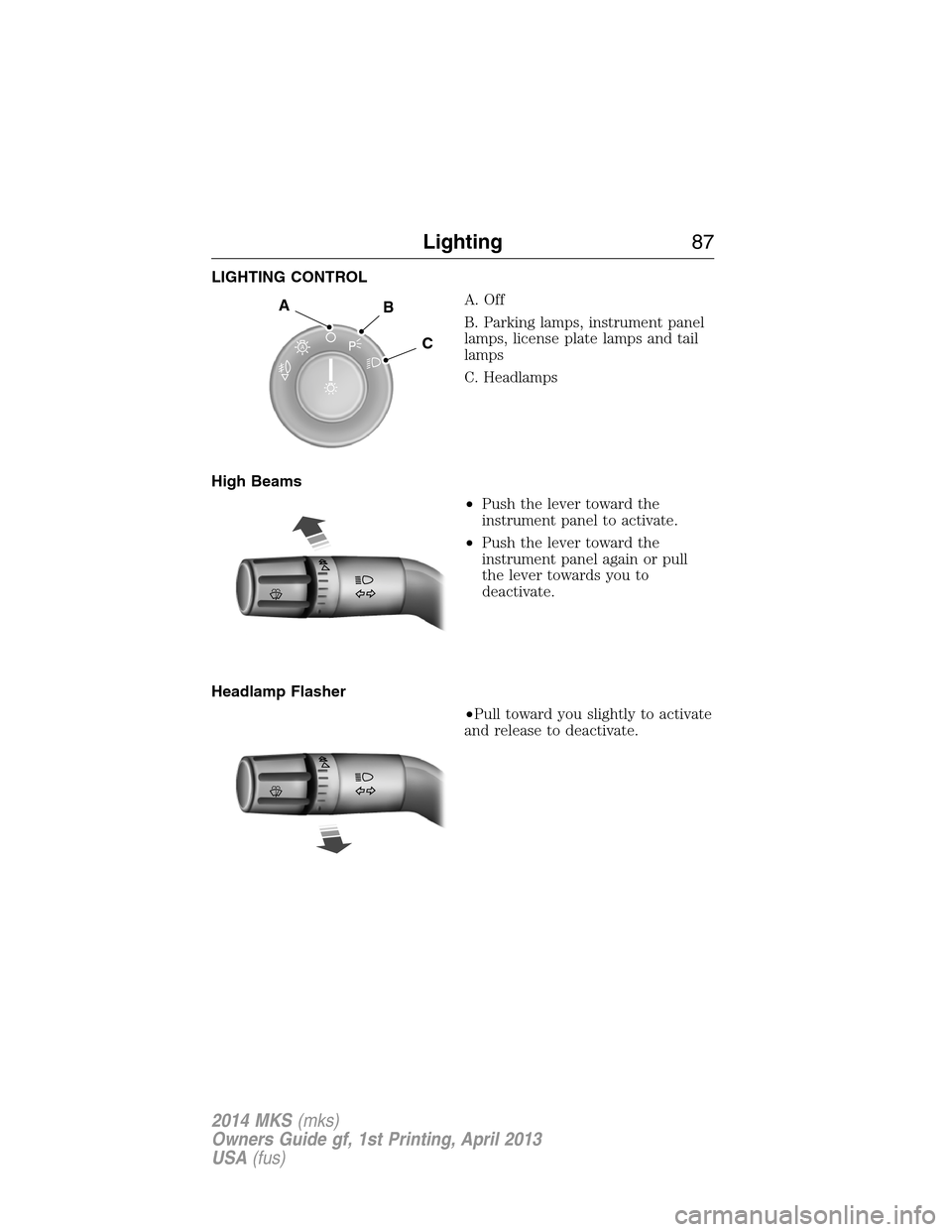

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
•Push the lever toward the
instrument panel to activate.
•Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Headlamp Flasher
•Pull toward you slightly to activate
and release to deactivate.
A
AB
C
Lighting87
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

AUTOLAMPS
WARNING:In severe weather conditions, it may be necessary to
switch your headlamps on manually.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the message center in
the instrument cluster. See
Information displays.
INSTRUMENT LIGHTING DIMMER
•Press repeatedly or press and
hold at the first position until the
desired level is reached.
•Fully press and hold the top of
the control to activate the “dome
on” feature. This will turn on the
interior courtesy lights. Fully
press and hold the bottom of the
control to turn off the interior
courtesy lights.
HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6
must be done within 10 seconds):
1. Turn the ignition off.
2. Turn the lighting control to the autolamp position.
A
88Lighting
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

3. Turn the lighting control to the off position.
4. Turn the ignition on.
5. Turn the ignition off.
6. Turn the lighting control to the autolamp position. The headlamps and
parking lamps will turn on.
7. Turn the lighting control to the off position when the desired delay
time has been reached. The headlamps and parking lamps will turn off.
You can set the headlamp exit delay to one of the following settings:
•Off
•10 seconds
•20 seconds
•120 seconds
Note:You can also adjust the time delay using the display controls in
the instrument cluster. See theInformation Displayschapter.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
The system will turn the front fog lamps on in low light situations.
The following conditions must be met to activate this feature:
•Switch the ignition on.
•Switch the lighting control to the off, autolamp or parking lamp
position.
•The transmission must be in a gear other than P (Park).
AUTOMATIC HIGH BEAM CONTROL (IF EQUIPPED)
The system will automatically turn on your high beams if it is dark
enough and no other traffic is present. When it detects an approaching
vehicle’s headlights, a preceding vehicle’s tail lamps or street lighting, the
system will turn off the high beams (low beams remain on) before they
distract other drivers.
Lighting89
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Activating the system
Switch the system on within the information display. SeeInformation
displays.
Turn the lighting control to the
autolamps position.
Manually overriding the system
When the automatic control has
activated high beams, pushing or
pulling the stalk will provide a
temporary override to low beam.
To permanently deactivate the system use the information display menu
or turn the lighting control switch from autolamps to headlamps.
FRONT FOG LAMPS
The fog lamps can be turned on
when the lighting control is pulled
toward you and in the headlamps,
parking lamps or autolamps
positions.
The fog lamps will not operate
when the high beams are active.
A
A
Lighting91
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

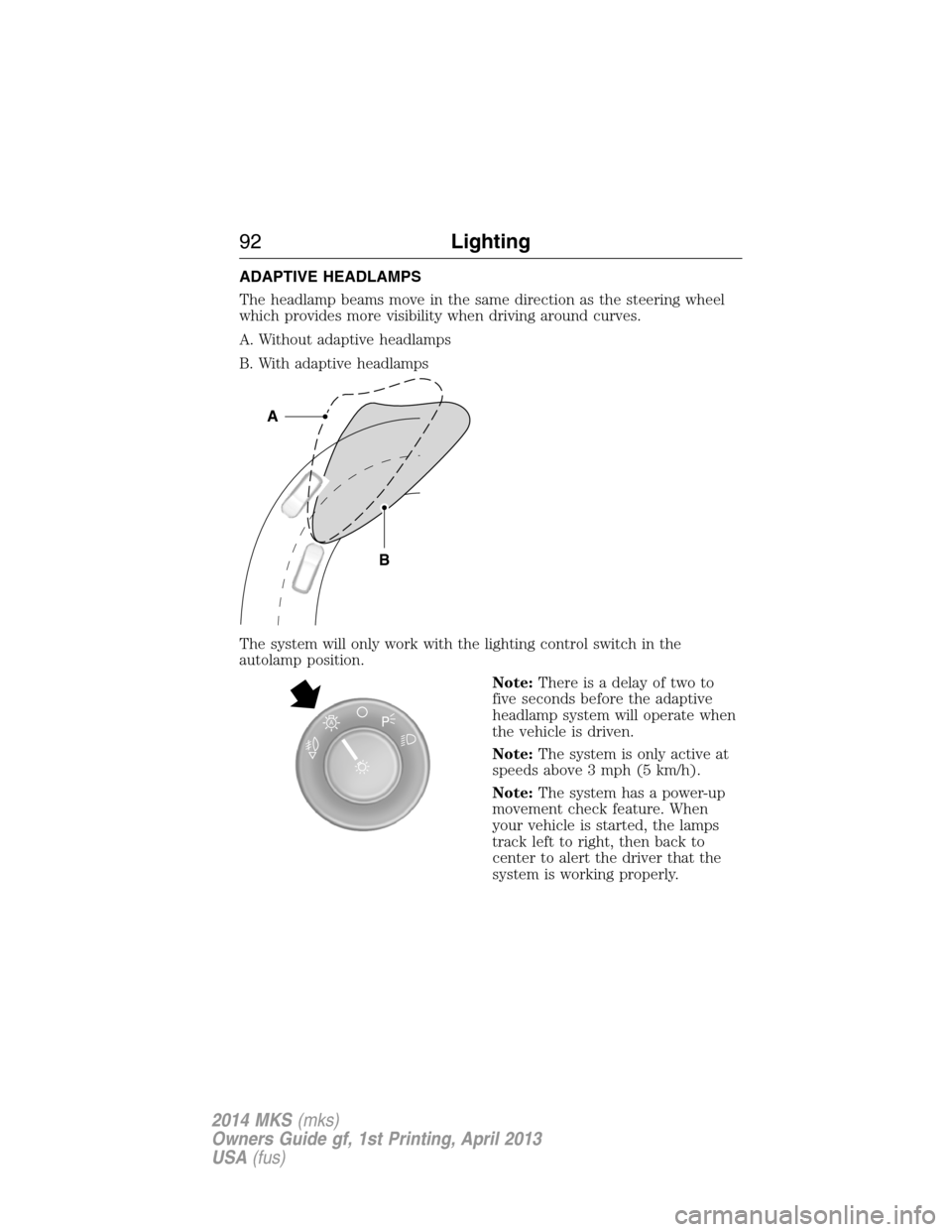

ADAPTIVE HEADLAMPS
The headlamp beams move in the same direction as the steering wheel
which provides more visibility when driving around curves.
A. Without adaptive headlamps
B. With adaptive headlamps
The system will only work with the lighting control switch in the
autolamp position.
Note:There is a delay of two to
five seconds before the adaptive
headlamp system will operate when
the vehicle is driven.
Note:The system is only active at
speeds above 3 mph (5 km/h).
Note:The system has a power-up
movement check feature. When
your vehicle is started, the lamps
track left to right, then back to
center to alert the driver that the
system is working properly.
B
A
A
92Lighting
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Grade assist (if equipped) (RTT)
Illuminates when grade assist is turned on.
Heads up display (if equipped)
A red beam of lights will illuminate on the windshield in certain
instances when using adaptive cruise control and/or the
collision warning system. It will also illuminate momentarily
when you start your vehicle to make sure the display works.
High beams
Illuminates when the high-beam headlamps are on.
Low fuel (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Low tire pressure warning
Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the ignition is first turned to on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
Park lamps
Illuminates when the park lamps are on.
Powertrain malfunction/reduced power (RTT)
Illuminates when a powertrain or an AWD fault has been
detected. Contact your authorized dealer as soon as possible.
Instrument Cluster105
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

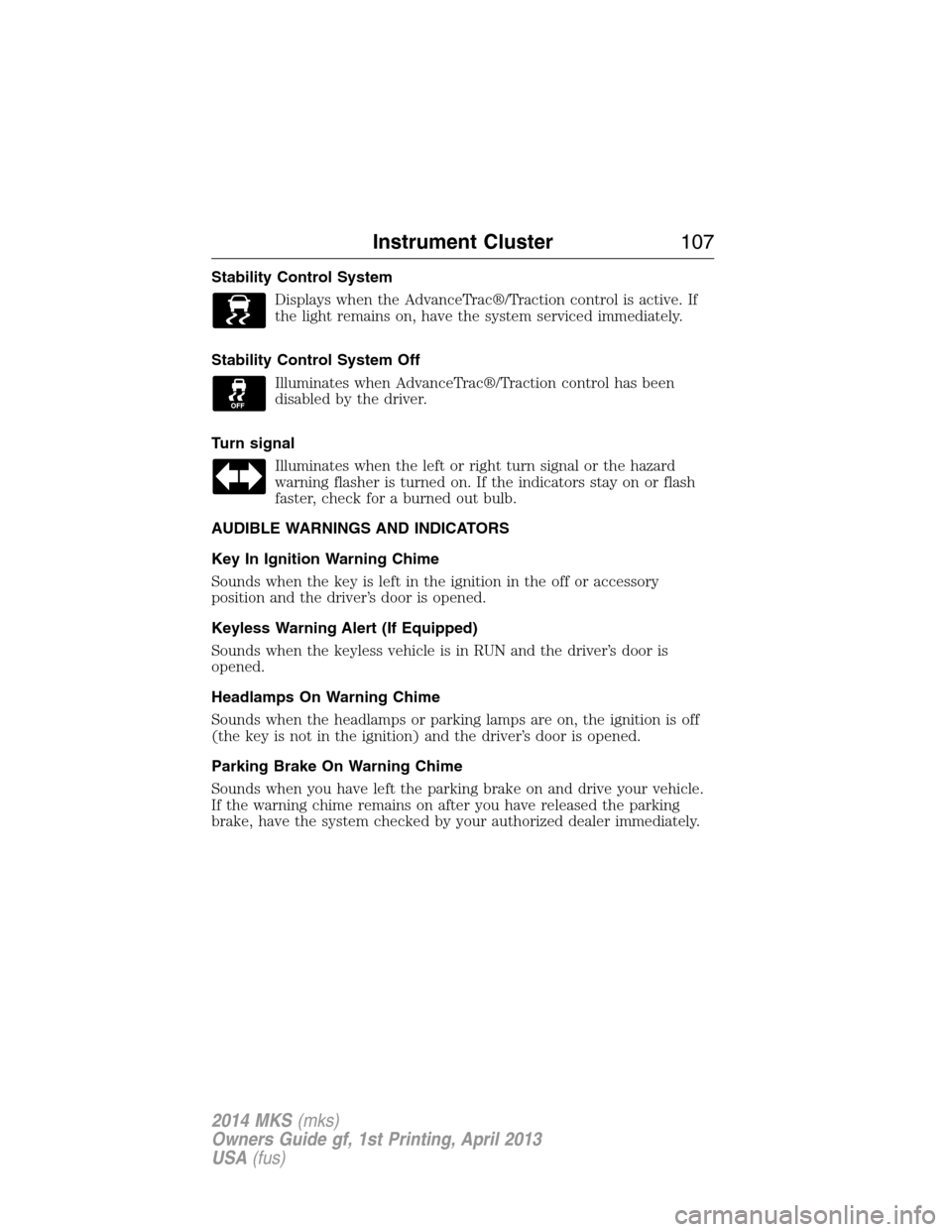

Stability Control System
Displays when the AdvanceTrac®/Traction control is active. If
the light remains on, have the system serviced immediately.
Stability Control System Off
Illuminates when AdvanceTrac®/Traction control has been
disabled by the driver.
Turn signal
Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators stay on or flash
faster, check for a burned out bulb.
AUDIBLE WARNINGS AND INDICATORS
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Keyless Warning Alert (If Equipped)
Sounds when the keyless vehicle is in RUN and the driver’s door is
opened.
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and drive your vehicle.
If the warning chime remains on after you have released the parking
brake, have the system checked by your authorized dealer immediately.
Instrument Cluster107
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
