LINCOLN MKS 2015 Owners Manual

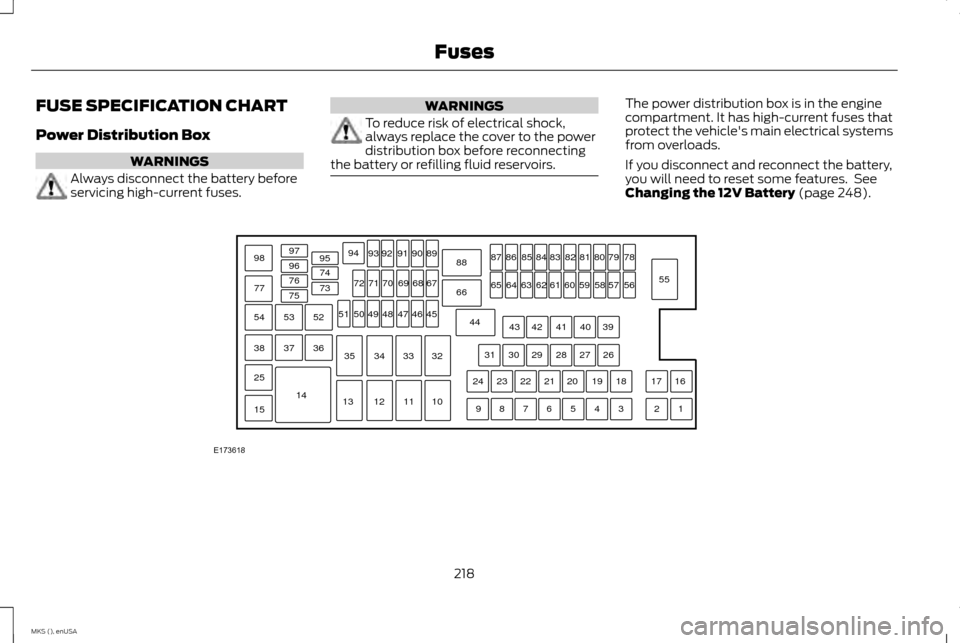

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses. WARNINGS
To reduce risk of electrical shock,
always replace the cover to the power
distribution box before reconnecting
the battery or refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses that
protect the vehicle's main electrical systems
from overloads.
If you disconnect and reconnect the battery,
you will need to reset some features. See
Changing the 12V Battery (page 248).
218
MKS (), enUSA FusesE173618
97
98
77 96
95
94
9392 919089
88
66
44 78
56
39 26 18 16
17
3 1
2
4
5
6
7
8
9 19
20
21
22
23
24 27
28
29
30
31 40
41
42
43 55
57
58
59
60
61
62
63
64
65 79
80
81
82
83
84
85
86
87
67
45
32
10
11
12
13 33
34
35 46
47
48
49
50
51 68
69
70
71
72
74
73
76
75
53
37 36
54
38
25
15
1452

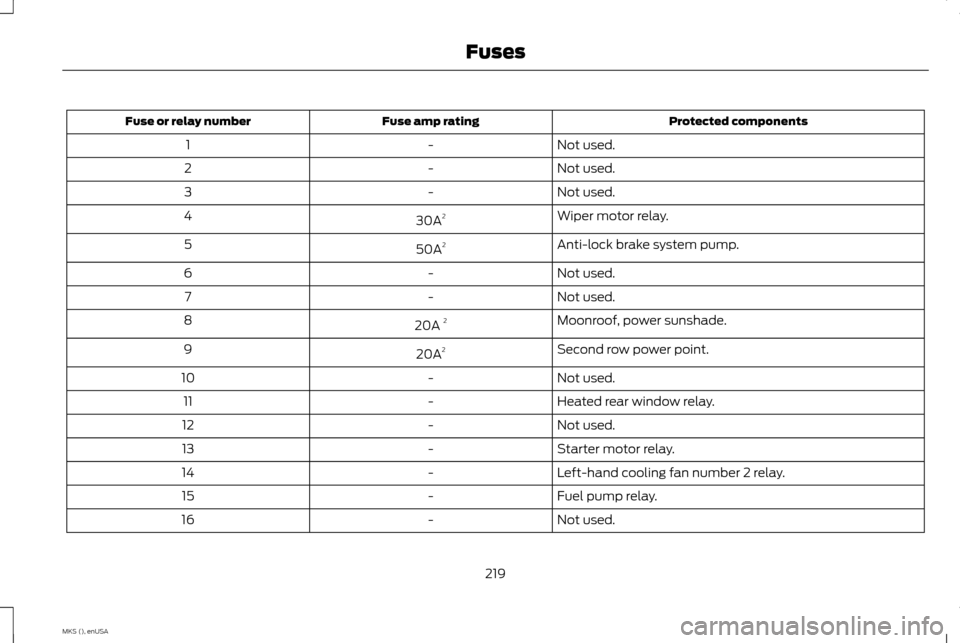

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
1
Not used.
-
2
Not used.
-
3
Wiper motor relay.
30A 2
4
Anti-lock brake system pump.
50A 2
5
Not used.
-
6
Not used.
-
7
Moonroof, power sunshade.
20A 2
8
Second row power point.
20A 2
9
Not used.
-
10
Heated rear window relay.
-
11
Not used.
-
12
Starter motor relay.
-
13
Left-hand cooling fan number 2 relay.
-
14
Fuel pump relay.
-
15
Not used.
-
16
219

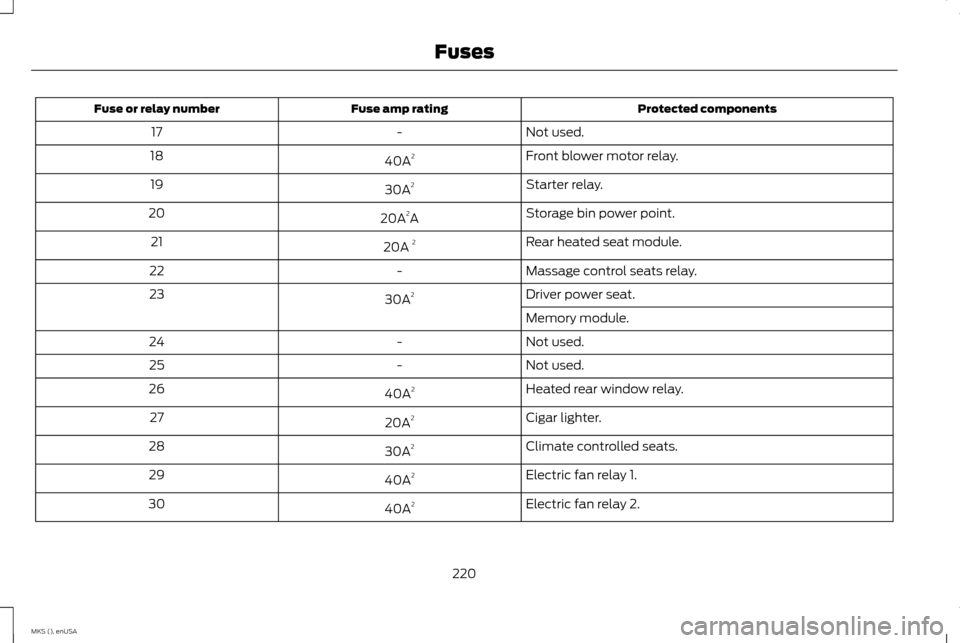

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
17
Front blower motor relay.
40A 2
18
Starter relay.
30A 2
19
Storage bin power point.
20A 2
A
20
Rear heated seat module.
20A 2
21
Massage control seats relay.
-
22
Driver power seat.
30A 2
23
Memory module.
Not used.
-
24
Not used.
-
25
Heated rear window relay.
40A 2
26
Cigar lighter.
20A 2
27
Climate controlled seats.
30A 2
28
Electric fan relay 1.
40A 2
29
Electric fan relay 2.
40A 2
30
220

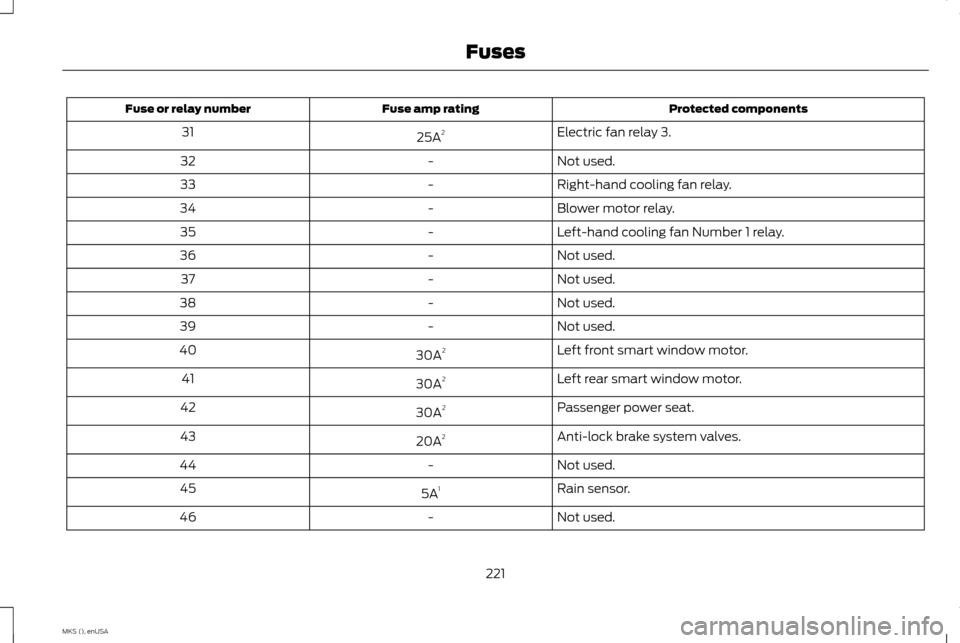

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Electric fan relay 3.
25A 2
31
Not used.
-
32
Right-hand cooling fan relay.
-
33
Blower motor relay.
-
34
Left-hand cooling fan Number 1 relay.
-
35
Not used.
-
36
Not used.
-
37
Not used.
-
38
Not used.
-
39
Left front smart window motor.
30A 2
40
Left rear smart window motor.
30A 2
41
Passenger power seat.
30A 2
42
Anti-lock brake system valves.
20A 2
43
Not used.
-
44
Rain sensor.
5A 1
45
Not used.
-
46
221
MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
47
Not used.
-
48
Not used.
-
49
Heated Mirrors.
15A 1
50
Not used.
-
51
Not used.
-
52
Not used.
-
53
Not used.
-
54
Wiper relay.
-
55
Not used.
-
56
Left-hand high intensity discharge headlamp.
20A 1
57
Alternator A-line.
10A 1
58
Brake on/off switch.
10A 1
59
Not used.
-
60
Not used.
-
61
A/C clutch relay.
-
62
222

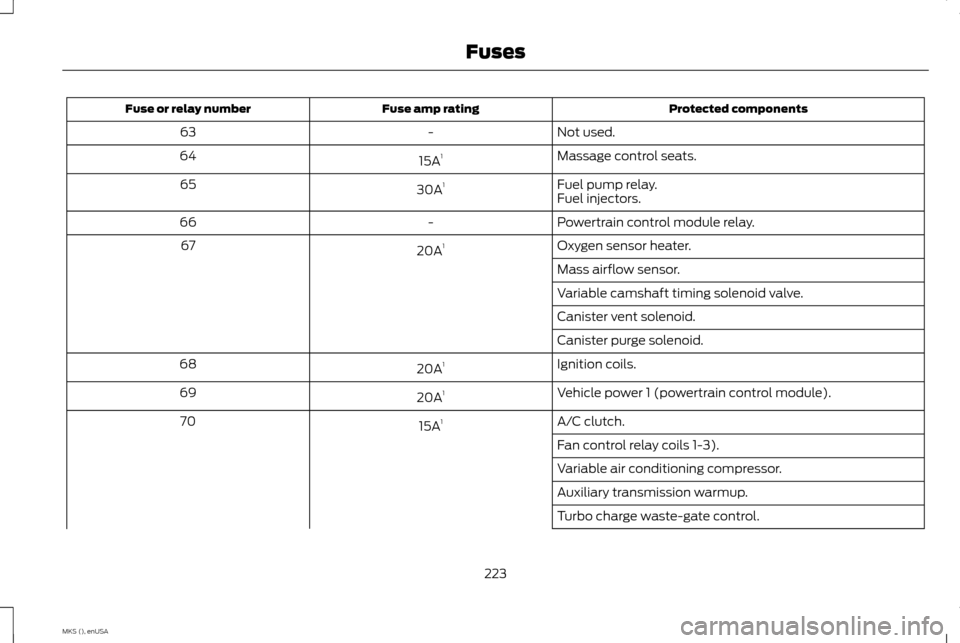

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
63
Massage control seats.
15A 1
64
Fuel pump relay.
30A 1
65
Fuel injectors.
Powertrain control module relay.
-
66
Oxygen sensor heater.
20A 1
67
Mass airflow sensor.
Variable camshaft timing solenoid valve.
Canister vent solenoid.
Canister purge solenoid.
Ignition coils.
20A 1
68
Vehicle power 1 (powertrain control module).
20A 1
69
A/C clutch.
15A 1
70
Fan control relay coils 1-3).
Variable air conditioning compressor.
Auxiliary transmission warmup.
Turbo charge waste-gate control.
223

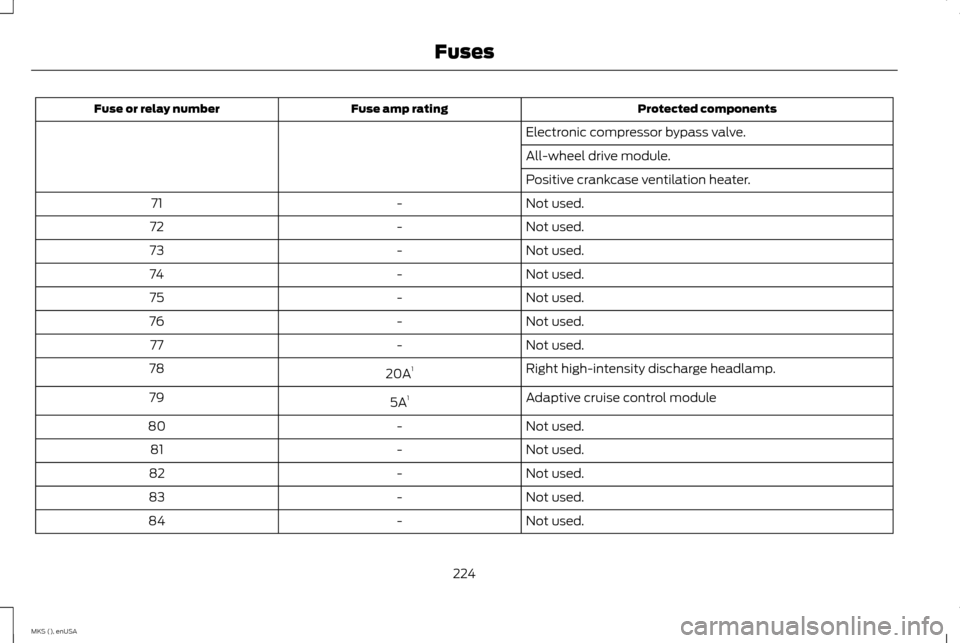

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Electronic compressor bypass valve.
All-wheel drive module.
Positive crankcase ventilation heater.
Not used.
-
71
Not used.
-
72
Not used.
-
73
Not used.
-
74
Not used.
-
75
Not used.
-
76
Not used.
-
77
Right high-intensity discharge headlamp.
20A 1
78
Adaptive cruise control module
5A 1
79
Not used.
-
80
Not used.
-
81
Not used.
-
82
Not used.
-
83
Not used.
-
84
224

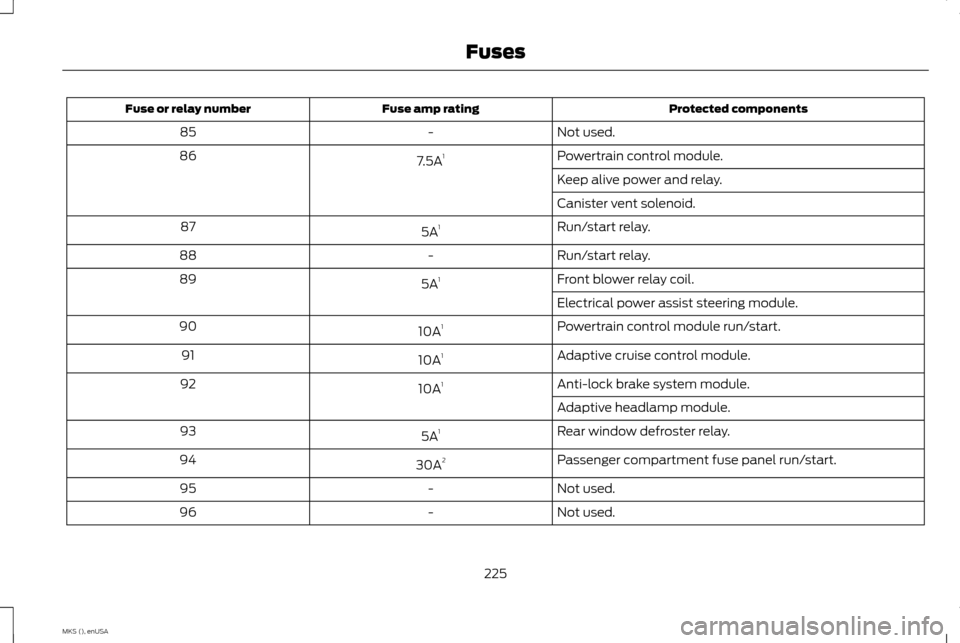

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
85
Powertrain control module.
7.5A 1
86
Keep alive power and relay.
Canister vent solenoid.
Run/start relay.
5A 1
87
Run/start relay.
-
88
Front blower relay coil.
5A 1
89
Electrical power assist steering module.
Powertrain control module run/start.
10A 1
90
Adaptive cruise control module.
10A 1
91
Anti-lock brake system module.
10A 1
92
Adaptive headlamp module.
Rear window defroster relay.
5A 1
93
Passenger compartment fuse panel run/start.
30A 2
94
Not used.
-
95
Not used.
-
96
225

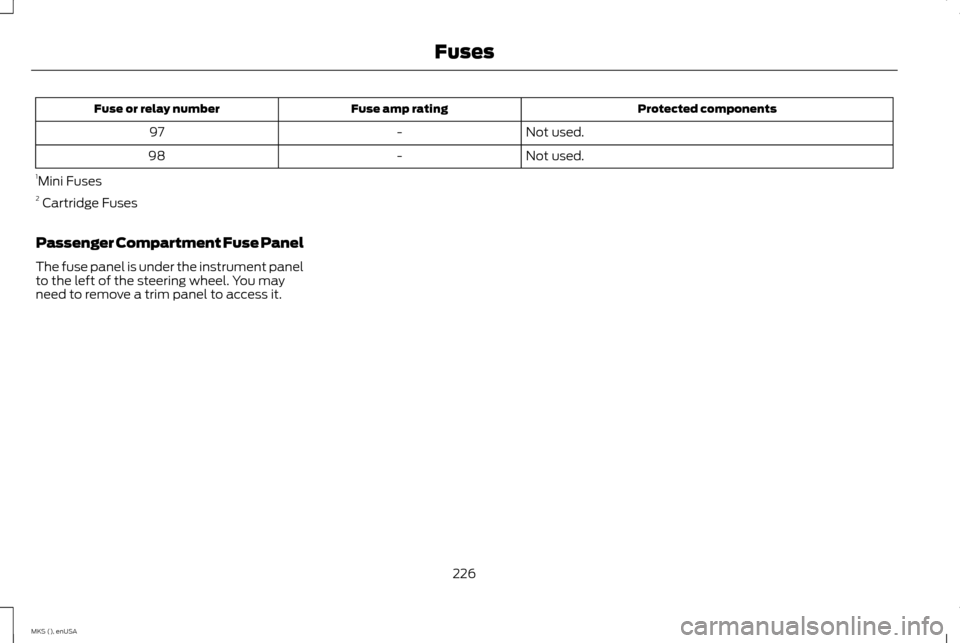

MKS (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
97
Not used.
-
98
1 Mini Fuses
2 Cartridge Fuses

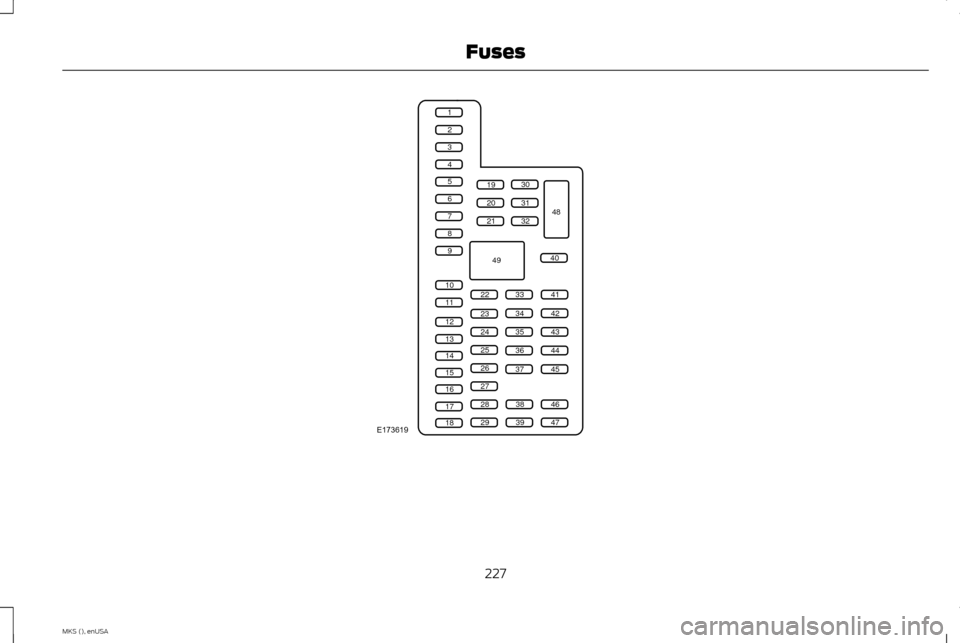

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering wheel. You may
need to remove a trim panel to access it.
226
MKS (), enUSA Fuses

227
MKS (), enUSA FusesE173619
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
223341
42
43
44
45
34
35
36
37
23
24
25
26
27
283846
394729
32
40
31
30
48
49
