ECO mode LINCOLN MKS 2016 Owners Manual

ABOUT THIS MANUAL
Thank you for choosing Lincoln. We
recommend that you take some time to get
to know your vehicle by reading this manual.
The more that you know about it, the greater
the safety and pleasure you will get from
driving it.
WARNING
Driving while distracted can result in
loss of vehicle control, crash and injury.
We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any handheld device while driving and
encourage the use of voice-operated systems
when possible. Make sure you are aware of
all applicable local laws that may affect the
use of electronic devices while driving. Note:
This manual describes product features
and options available throughout the range of
available models, sometimes even before they
are generally available. It may describe options
not fitted to your vehicle. Note:
Some of the illustrations in this manual
may show features as used in different models,
so may appear different to you on your vehicle.
Note: Always use and operate your vehicle in
line with all applicable laws and regulations.
Note: Pass on this manual when selling your
vehicle. It is an integral part of the vehicle.
This manual may qualify the location of a
component as left-hand side or right-hand
side. The side is determined when facing
forward in the seat. Right-hand side
A
Left-hand side
B Protecting the Environment
You must play your part in protecting the
environment. Correct vehicle usage and the
authorized disposal of waste, cleaning and
lubrication materials are significant steps
toward this aim.
SYMBOLS GLOSSARY
These are some of the symbols you may see
on your vehicle.
Safety alert
See Owner's Manual
Air conditioning system
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
7
MKS (CLE) Canada/United States of America, enUSA, First Printing IntroductionE154903 E162384

PRINCIPLE OF OPERATION
WARNINGS
Always drive and ride with your
seatback upright and the lap belt snug
and low across the hips.
To reduce the risk of injury, make sure
children sit where they can be properly
restrained.
Never let a passenger hold a child on
his or her lap while your vehicle is
moving. The passenger cannot protect
the child from injury in a crash. All occupants of your vehicle, including
the driver, should always properly wear
their seatbelts, even when an airbag
supplemental restraint system is provided.
Failure to properly wear your seatbelt could
seriously increase the risk of injury or death. It is extremely dangerous to ride in a
cargo area, inside or outside of a
vehicle. In a crash, people riding in these
areas are more likely to be seriously injured
or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with
seats and seatbelts. Be sure everyone in your
vehicle is in a seat and using a seatbelt
properly. WARNINGS
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seatbelt.
Each seating position in your vehicle
has a specific seatbelt assembly which
is made up of one buckle and one
tongue that are designed to be used as a pair.
1) Use the shoulder belt on the outside
shoulder only. Never wear the shoulder belt
under the arm. 2) Never swing the seatbelt
around your neck over the inside shoulder. 3)
Never use a single belt for more than one
person. When possible, all children 12 years old
and under should be properly restrained
in a rear seating position. Failure to
follow this could seriously increase the risk
of injury or death. Seatbelts and seats can become hot
in a vehicle that has been closed up in
sunny weather; they could burn a small
child. Check seat covers and buckles before
you place a child anywhere near them. Front and rear seat occupants,
including pregnant women, should
wear seatbelts for optimum protection
in an accident. All seating positions in your vehicle have lap
and shoulder seatbelts. All occupants of the
vehicle should always properly wear their
seatbelts, even when an airbag supplemental
restraint system is provided.
The seatbelt system consists of:
•
Lap and shoulder seatbelts.
• Shoulder seatbelt with automatic locking
mode, (except driver seatbelt).
• Height adjuster at the front outboard
seating positions.
• Seatbelt pretensioner at the front
outboard seating positions.
• Belt tension sensor at the front outboard
passenger seating position. · Seatbelt warning light and chime.
· Crash sensors and monitoring
system with readiness indicator.
28
MKS (CLE) Canada/United States of America, enUSA, First Printing Seatbelts

Deactivating and Activating the
Belt-Minder Feature
WARNING
While the system allows you to
deactivate it, this system is designed
to improve your chances of being safely
belted and surviving an accident. We
recommend you leave the system activated
for yourself and others who may use the
vehicle. Note:
The driver and front passenger warnings
switch on and off independently. When you
perform this procedure for one seating
position, do not buckle the other position as
this will terminate the process.
Read Steps 1 - 4 thoroughly before
proceeding with the programming procedure.
Before following the procedure, make sure
that:
• The parking brake is set.
• The transmission is in park (P) or neutral
(N).
• The ignition is off.
• The driver and front passenger safety
belts are unbuckled. 1. Switch the ignition on. Do not start the
vehicle.
2. Wait until the safety belt warning light turns off (about one minute). After Step
2, wait an additional 5 seconds before
proceeding with Step 3. Once you start
Step 3, you must complete the procedure
within 30 seconds.
3. For the seating position you are switching
off, buckle then unbuckle the safety belt
three times at a moderate speed, ending
in the unbuckled state. After Step 3, the
safety belt warning light turns on.
4. While the safety belt warning light is on, buckle and then unbuckle the safety belt.
After Step 4, the safety belt warning light
flashes for confirmation.
• This will switch the feature off for that
seating position if it is currently on.
• This will switch the feature on for that
seating position if it is currently off. CHILD RESTRAINT AND
SEATBELT MAINTENANCE
Inspect the vehicle safety belts and child
safety seat systems periodically to make sure
they work properly and are not damaged.
Inspect the vehicle and child seat safety belts
to make sure there are no nicks, tears or cuts.
Replace if necessary. All vehicle safety belt
assemblies, including retractors, buckles,
front safety belt buckle assemblies, buckle
support assemblies (slide bar-if equipped),
shoulder belt height adjusters (if equipped),
shoulder belt guide on seat back (if
equipped), rear inflatable safety belts (if
equipped), child safety seat LATCH and
tether anchors, and attaching hardware,
should be inspected after a crash. Read the
child restraint manufacturer's instructions
for additional inspection and maintenance
information specific to the child restraint.
We recommend that all safety belt
assemblies in use in vehicles involved in a
crash be replaced. However, if the crash was
minor and an authorized dealer finds that the
belts do not show damage and continue to
operate properly, they do not need to be
replaced. Safety belt assemblies not in use
during a crash should also be inspected and
replaced if either damage or improper
operation is noted.
34
MKS (CLE) Canada/United States of America, enUSA, First Printing Seatbelts

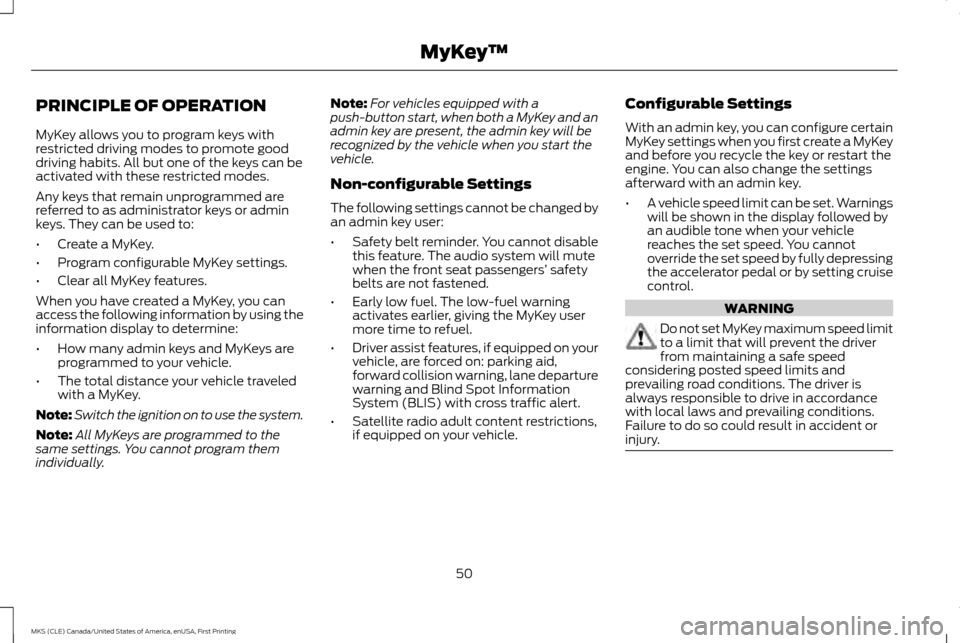

PRINCIPLE OF OPERATION
MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. All but one of the keys can be
activated with these restricted modes.
Any keys that remain unprogrammed are
referred to as administrator keys or admin
keys. They can be used to:
•
Create a MyKey.
• Program configurable MyKey settings.
• Clear all MyKey features.
When you have created a MyKey, you can
access the following information by using the
information display to determine:
• How many admin keys and MyKeys are
programmed to your vehicle.
• The total distance your vehicle traveled
with a MyKey.
Note: Switch the ignition on to use the system.
Note: All MyKeys are programmed to the
same settings. You cannot program them
individually. Note:
For vehicles equipped with a
push-button start, when both a MyKey and an
admin key are present, the admin key will be
recognized by the vehicle when you start the
vehicle.
Non-configurable Settings
The following settings cannot be changed by
an admin key user:
• Safety belt reminder. You cannot disable
this feature. The audio system will mute
when the front seat passengers’ safety
belts are not fastened.
• Early low fuel. The low-fuel warning
activates earlier, giving the MyKey user
more time to refuel.
• Driver assist features, if equipped on your
vehicle, are forced on: parking aid,
forward collision warning, lane departure
warning and Blind Spot Information
System (BLIS) with cross traffic alert.
• Satellite radio adult content restrictions,
if equipped on your vehicle. Configurable Settings
With an admin key, you can configure certain
MyKey settings when you first create a MyKey
and before you recycle the key or restart the
engine. You can also change the settings
afterward with an admin key.
•
A vehicle speed limit can be set. Warnings
will be shown in the display followed by
an audible tone when your vehicle
reaches the set speed. You cannot
override the set speed by fully depressing
the accelerator pedal or by setting cruise
control. WARNING
Do not set MyKey maximum speed limit
to a limit that will prevent the driver
from maintaining a safe speed
considering posted speed limits and
prevailing road conditions. The driver is
always responsible to drive in accordance
with local laws and prevailing conditions.
Failure to do so could result in accident or
injury. 50
MKS (CLE) Canada/United States of America, enUSA, First Printing MyKey
™

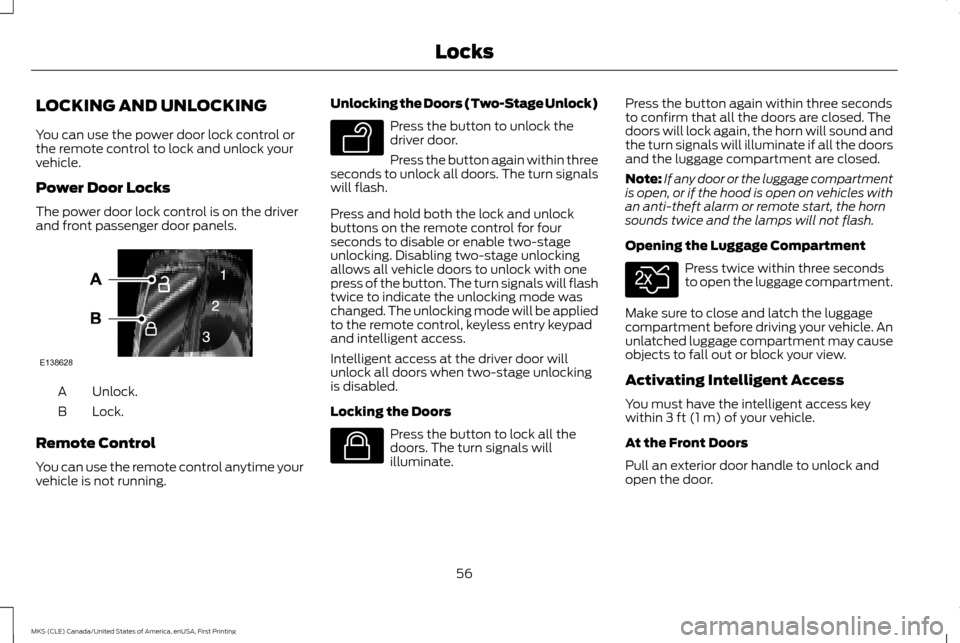

LOCKING AND UNLOCKING
You can use the power door lock control or
the remote control to lock and unlock your
vehicle.
Power Door Locks
The power door lock control is on the driver
and front passenger door panels.
Unlock.
A
Lock.
B
Remote Control
You can use the remote control anytime your
vehicle is not running. Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the
driver door.
Press the button again within three
seconds to unlock all doors. The turn signals
will flash.
Press and hold both the lock and unlock
buttons on the remote control for four
seconds to disable or enable two-stage
unlocking. Disabling two-stage unlocking
allows all vehicle doors to unlock with one
press of the button. The turn signals will flash
twice to indicate the unlocking mode was
changed. The unlocking mode will be applied
to the remote control, keyless entry keypad
and intelligent access.
Intelligent access at the driver door will
unlock all doors when two-stage unlocking
is disabled.
Locking the Doors Press the button to lock all the
doors. The turn signals will
illuminate.Press the button again within three seconds
to confirm that all the doors are closed. The
doors will lock again, the horn will sound and
the turn signals will illuminate if all the doors
and the luggage compartment are closed.
Note:
If any door or the luggage compartment
is open, or if the hood is open on vehicles with
an anti-theft alarm or remote start, the horn
sounds twice and the lamps will not flash.
Opening the Luggage Compartment Press twice within three seconds
to open the luggage compartment.
Make sure to close and latch the luggage
compartment before driving your vehicle. An
unlatched luggage compartment may cause
objects to fall out or block your view.
Activating Intelligent Access
You must have the intelligent access key
within 3 ft (1 m) of your vehicle.
At the Front Doors
Pull an exterior door handle to unlock and
open the door.
56
MKS (CLE) Canada/United States of America, enUSA, First Printing LocksE138628 E138629 E138623 E138630

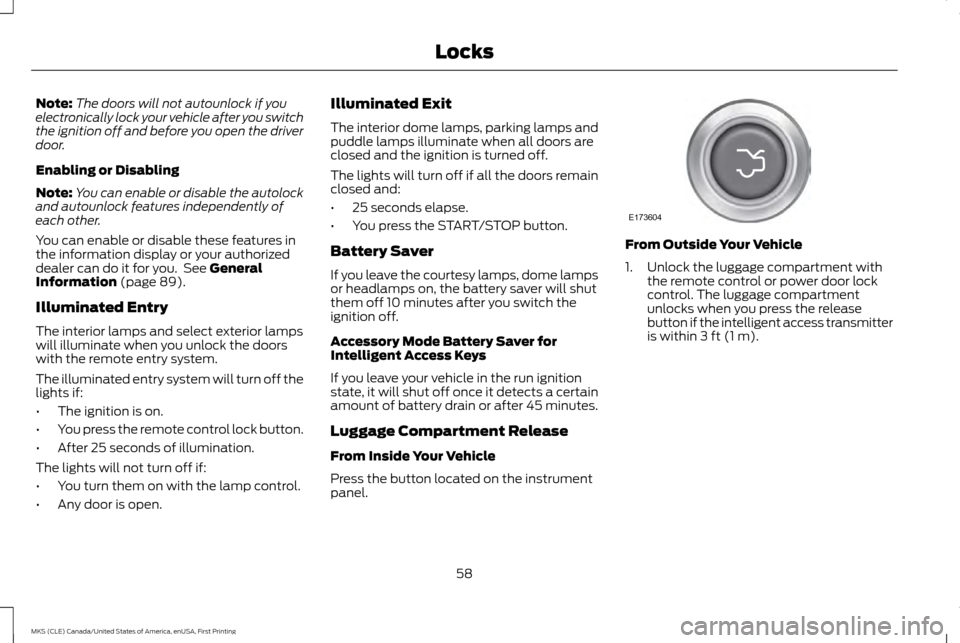

Note:
The doors will not autounlock if you
electronically lock your vehicle after you switch
the ignition off and before you open the driver
door.
Enabling or Disabling
Note: You can enable or disable the autolock
and autounlock features independently of
each other.
You can enable or disable these features in
the information display or your authorized
dealer can do it for you. See General
Information (page 89).
Illuminated Entry
The interior lamps and select exterior lamps
will illuminate when you unlock the doors
with the remote entry system.
The illuminated entry system will turn off the
lights if:
• The ignition is on.
• You press the remote control lock button.
• After 25 seconds of illumination.
The lights will not turn off if:
• You turn them on with the lamp control.
• Any door is open. Illuminated Exit
The interior dome lamps, parking lamps and
puddle lamps illuminate when all doors are
closed and the ignition is turned off.
The lights will turn off if all the doors remain
closed and:
•
25 seconds elapse.
• You press the START/STOP button.
Battery Saver
If you leave the courtesy lamps, dome lamps
or headlamps on, the battery saver will shut
them off 10 minutes after you switch the
ignition off.
Accessory Mode Battery Saver for
Intelligent Access Keys
If you leave your vehicle in the run ignition
state, it will shut off once it detects a certain
amount of battery drain or after 45 minutes.
Luggage Compartment Release
From Inside Your Vehicle
Press the button located on the instrument
panel. From Outside Your Vehicle
1. Unlock the luggage compartment with
the remote control or power door lock
control. The luggage compartment
unlocks when you press the release
button if the intelligent access transmitter
is within
3 ft (1 m).
58
MKS (CLE) Canada/United States of America, enUSA, First Printing LocksE173604

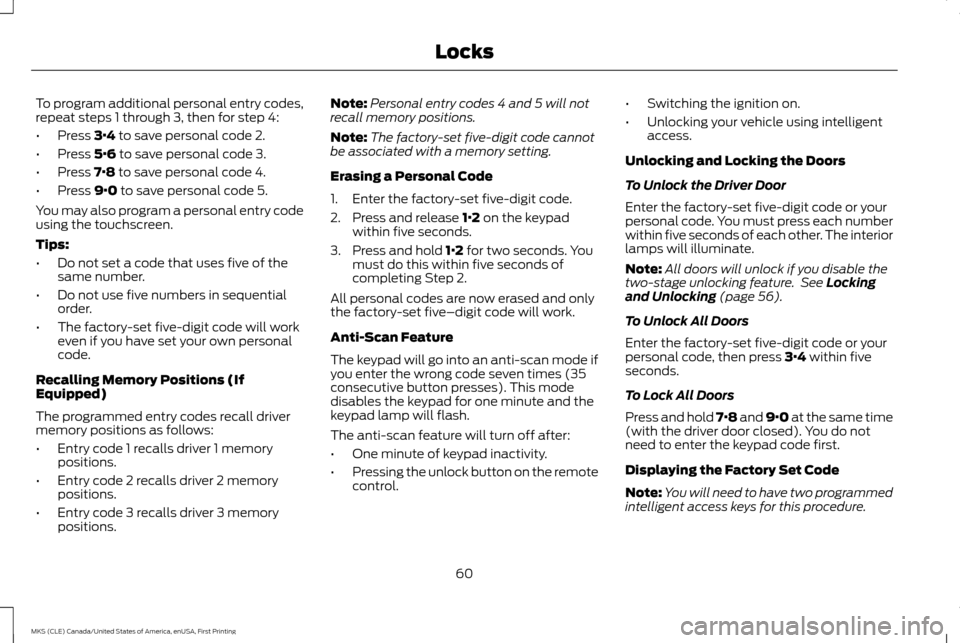

To program additional personal entry codes,
repeat steps 1 through 3, then for step 4:
•
Press 3·4 to save personal code 2.
• Press
5·6 to save personal code 3.
• Press
7·8 to save personal code 4.
• Press
9·0 to save personal code 5.
You may also program a personal entry code
using the touchscreen.
Tips:
• Do not set a code that uses five of the
same number.
• Do not use five numbers in sequential
order.
• The factory-set five-digit code will work
even if you have set your own personal
code.
Recalling Memory Positions (If
Equipped)
The programmed entry codes recall driver
memory positions as follows:
• Entry code 1 recalls driver 1 memory
positions.
• Entry code 2 recalls driver 2 memory
positions.
• Entry code 3 recalls driver 3 memory
positions. Note:
Personal entry codes 4 and 5 will not
recall memory positions.
Note: The factory-set five-digit code cannot
be associated with a memory setting.
Erasing a Personal Code
1. Enter the factory-set five-digit code.
2. Press and release
1·2 on the keypad
within five seconds.
3. Press and hold
1·2 for two seconds. You
must do this within five seconds of
completing Step 2.
All personal codes are now erased and only
the factory-set five–digit code will work.
Anti-Scan Feature
The keypad will go into an anti-scan mode if
you enter the wrong code seven times (35
consecutive button presses). This mode
disables the keypad for one minute and the
keypad lamp will flash.
The anti-scan feature will turn off after:
• One minute of keypad inactivity.
• Pressing the unlock button on the remote
control. •
Switching the ignition on.
• Unlocking your vehicle using intelligent
access.
Unlocking and Locking the Doors
To Unlock the Driver Door
Enter the factory-set five-digit code or your
personal code. You must press each number
within five seconds of each other. The interior
lamps will illuminate.
Note: All doors will unlock if you disable the
two-stage unlocking feature. See
Locking
and Unlocking (page 56).
To Unlock All Doors
Enter the factory-set five-digit code or your
personal code, then press
3·4 within five
seconds.
To Lock All Doors
Press and hold 7·8 and 9·0 at the same time
(with the driver door closed). You do not
need to enter the keypad code first.
Displaying the Factory Set Code
Note: You will need to have two programmed
intelligent access keys for this procedure.
60
MKS (CLE) Canada/United States of America, enUSA, First Printing Locks

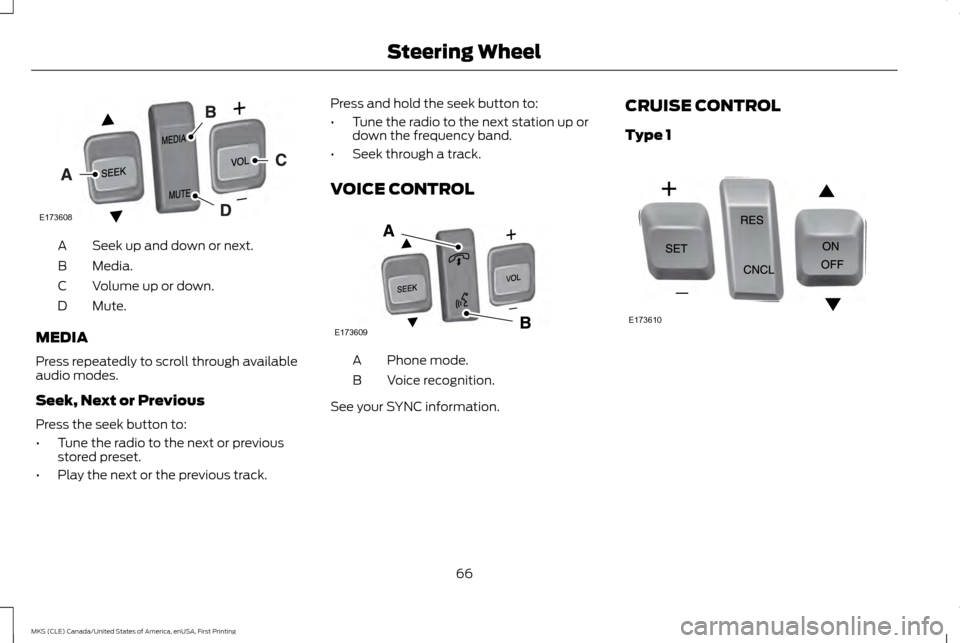

Seek up and down or next.
A
Media.
B
Volume up or down.
C
Mute.
D
MEDIA
Press repeatedly to scroll through available
audio modes.
Seek, Next or Previous
Press the seek button to:
• Tune the radio to the next or previous
stored preset.
• Play the next or the previous track. Press and hold the seek button to:
•
Tune the radio to the next station up or
down the frequency band.
• Seek through a track.
VOICE CONTROL Phone mode.
A
Voice recognition.
B
See your SYNC information. CRUISE CONTROL
Type 1
66
MKS (CLE) Canada/United States of America, enUSA, First Printing Steering WheelE173608 E173609
V E173610

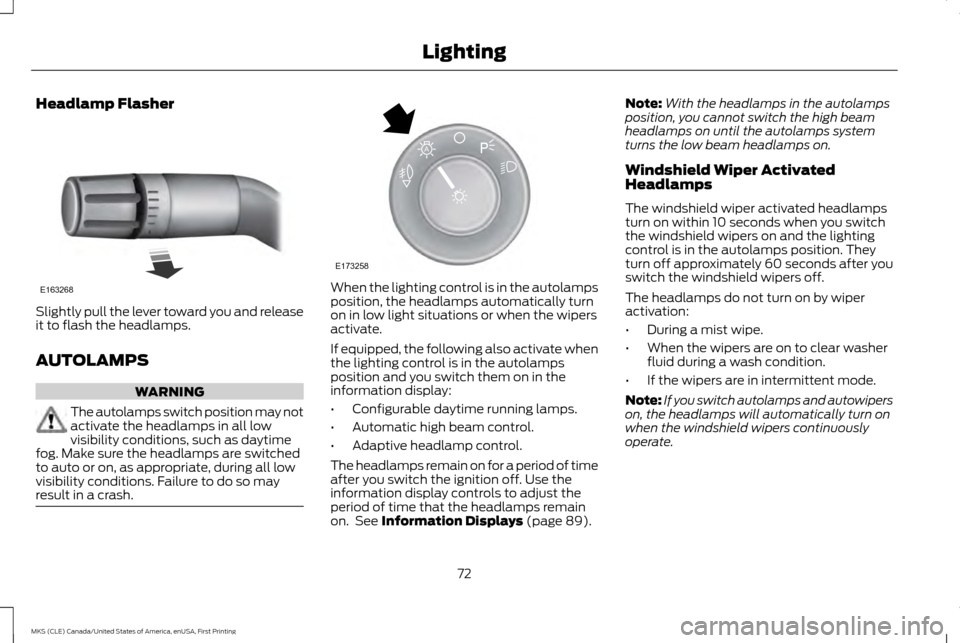

Headlamp Flasher
Slightly pull the lever toward you and release
it to flash the headlamps.
AUTOLAMPS
WARNING
The autolamps switch position may not
activate the headlamps in all low
visibility conditions, such as daytime
fog. Make sure the headlamps are switched
to auto or on, as appropriate, during all low
visibility conditions. Failure to do so may
result in a crash. When the lighting control is in the autolamps
position, the headlamps automatically turn
on in low light situations or when the wipers
activate.
If equipped, the following also activate when
the lighting control is in the autolamps
position and you switch them on in the
information display:
•
Configurable daytime running lamps.
• Automatic high beam control.
• Adaptive headlamp control.
The headlamps remain on for a period of time
after you switch the ignition off. Use the
information display controls to adjust the
period of time that the headlamps remain
on. See Information Displays (page 89). Note:
With the headlamps in the autolamps
position, you cannot switch the high beam
headlamps on until the autolamps system
turns the low beam headlamps on.
Windshield Wiper Activated
Headlamps
The windshield wiper activated headlamps
turn on within 10 seconds when you switch
the windshield wipers on and the lighting
control is in the autolamps position. They
turn off approximately 60 seconds after you
switch the windshield wipers off.
The headlamps do not turn on by wiper
activation:
• During a mist wipe.
• When the wipers are on to clear washer
fluid during a wash condition.
• If the wipers are in intermittent mode.
Note: If you switch autolamps and autowipers
on, the headlamps will automatically turn on
when the windshield wipers continuously
operate.
72
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE163268 E173258
A

WARNING LAMPS AND
INDICATORS
The following warning lamps and indicators
will alert you to a vehicle condition that may
become serious. Some lamps will illuminate
when you start your vehicle to make sure they
work. If any lamps remain on after starting
your vehicle, refer to the respective system
warning lamp for further information.
Note:
Some warning indicators appear in the
information display and function the same as
a warning lamp, but do not display when you
start your vehicle.
Adaptive Cruise Control (If Equipped) The speed control system indicator
light changes color to indicate
what mode the system is in:
See
Using Adaptive Cruise Control (page 167).
On (white light): Illuminates when the
adaptive cruise control system is turned on.
Turns off when the speed control system is
turned off.
Engaged (green light): Illuminates when the
adaptive cruise control system is engaged.
Turns off when the speed control system is
disengaged. Anti-Lock Braking System If it illuminates when you are
driving, this indicates a
malfunction. You will continue to
have the normal braking system (without
ABS) unless the brake system warning lamp
is also illuminated. Have the system checked
by your authorized dealer.
Battery If it illuminates while driving, it
indicates a malfunction. Switch off
all unnecessary electrical
equipment and have the system checked by
your authorized dealer immediately.
Brake System It will illuminate when you engage
the parking brake with the ignition
on.
If it illuminates when you are driving, check
that the parking brake is not engaged. If the
parking brake is not engaged, this indicates
low brake fluid level or a brake system
malfunction. Have the system checked
immediately by your authorized dealer. WARNING
Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance may
occur. It will take you longer to stop your
vehicle. Have your vehicle checked by your
authorized dealer immediately. Driving
extended distances with the parking brake
engaged can cause brake failure and the risk
of personal injury. Cruise Control
(If Equipped)
It will illuminate when you switch
this feature on.
Direction Indicator Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on. If the
indicators stay on or flash faster, check for a
burned out bulb. See
Changing a Bulb
(page 259).
Door Ajar Displays when the ignition is on and
any door is not completely closed.
85
MKS (CLE) Canada/United States of America, enUSA, First Printing Instrument ClusterE144524 E144522 E71340
