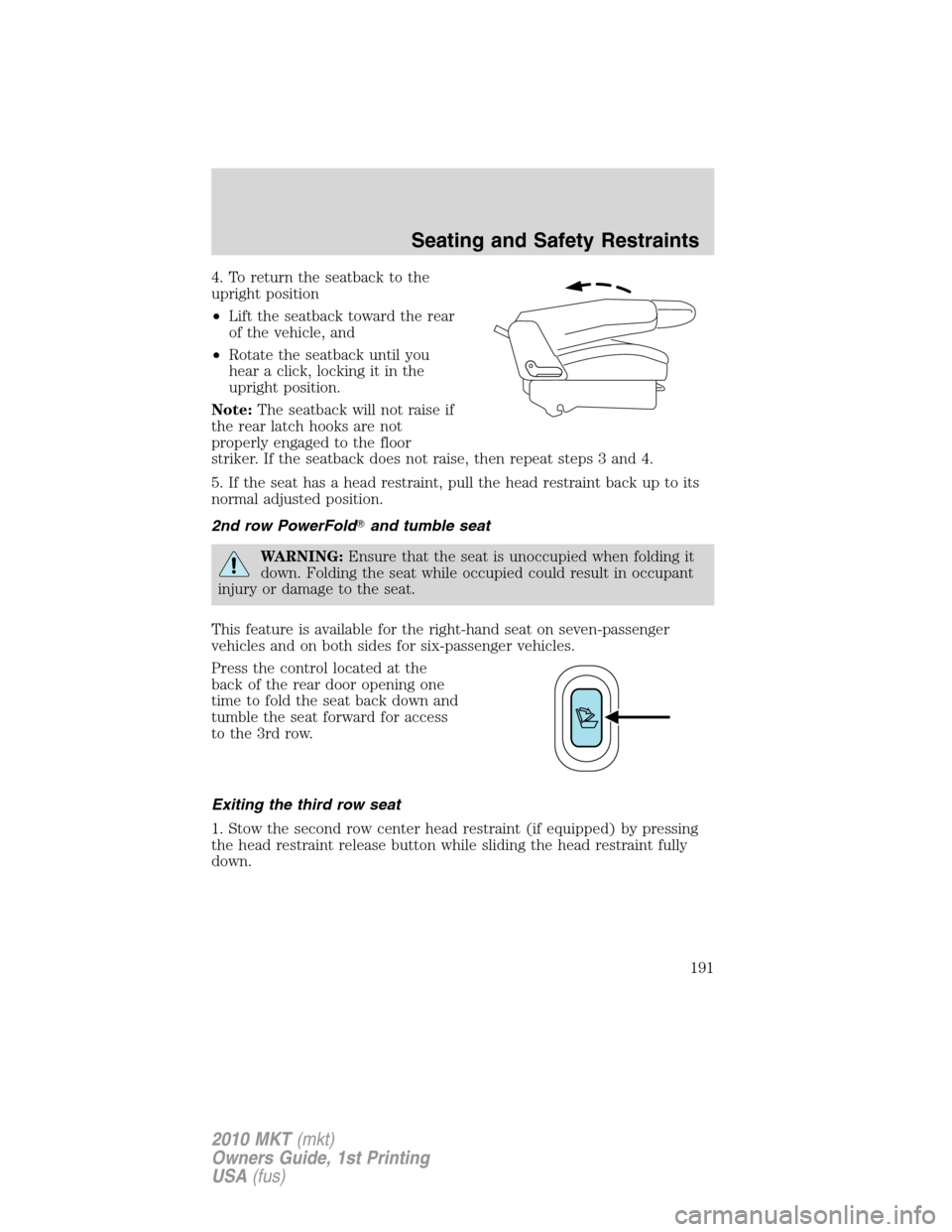

4. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if
the rear latch hooks are not
properly engaged to the floor
striker. If the seatback does not raise, then repeat steps 3 and 4.
5. If the seat has a head restraint, pull the head restraint back up to its
normal adjusted position.
2nd row PowerFoldand tumble seat
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in occupant
injury or damage to the seat.
This feature is available for the right-hand seat on seven-passenger
vehicles and on both sides for six-passenger vehicles.
Press the control located at the
back of the rear door opening one
time to fold the seat back down and
tumble the seat forward for access
to the 3rd row.
Exiting the third row seat
1. Stow the second row center head restraint (if equipped) by pressing
the head restraint release button while sliding the head restraint fully
down.
Seating and Safety Restraints
191
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

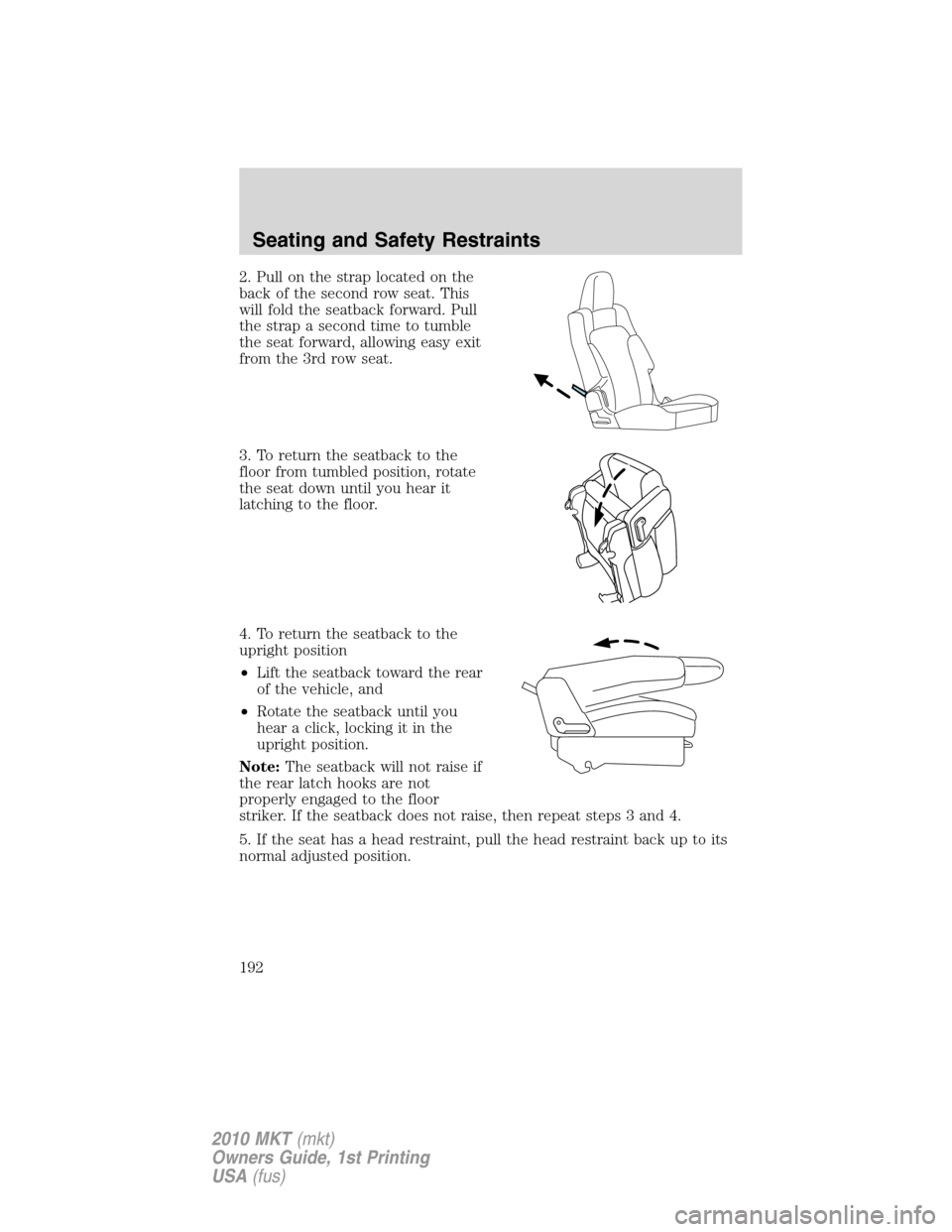

2. Pull on the strap located on the
back of the second row seat. This
will fold the seatback forward. Pull
the strap a second time to tumble
the seat forward, allowing easy exit
from the 3rd row seat.
3. To return the seatback to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
4. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if
the rear latch hooks are not
properly engaged to the floor
striker. If the seatback does not raise, then repeat steps 3 and 4.
5. If the seat has a head restraint, pull the head restraint back up to its
normal adjusted position.
Seating and Safety Restraints
192
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

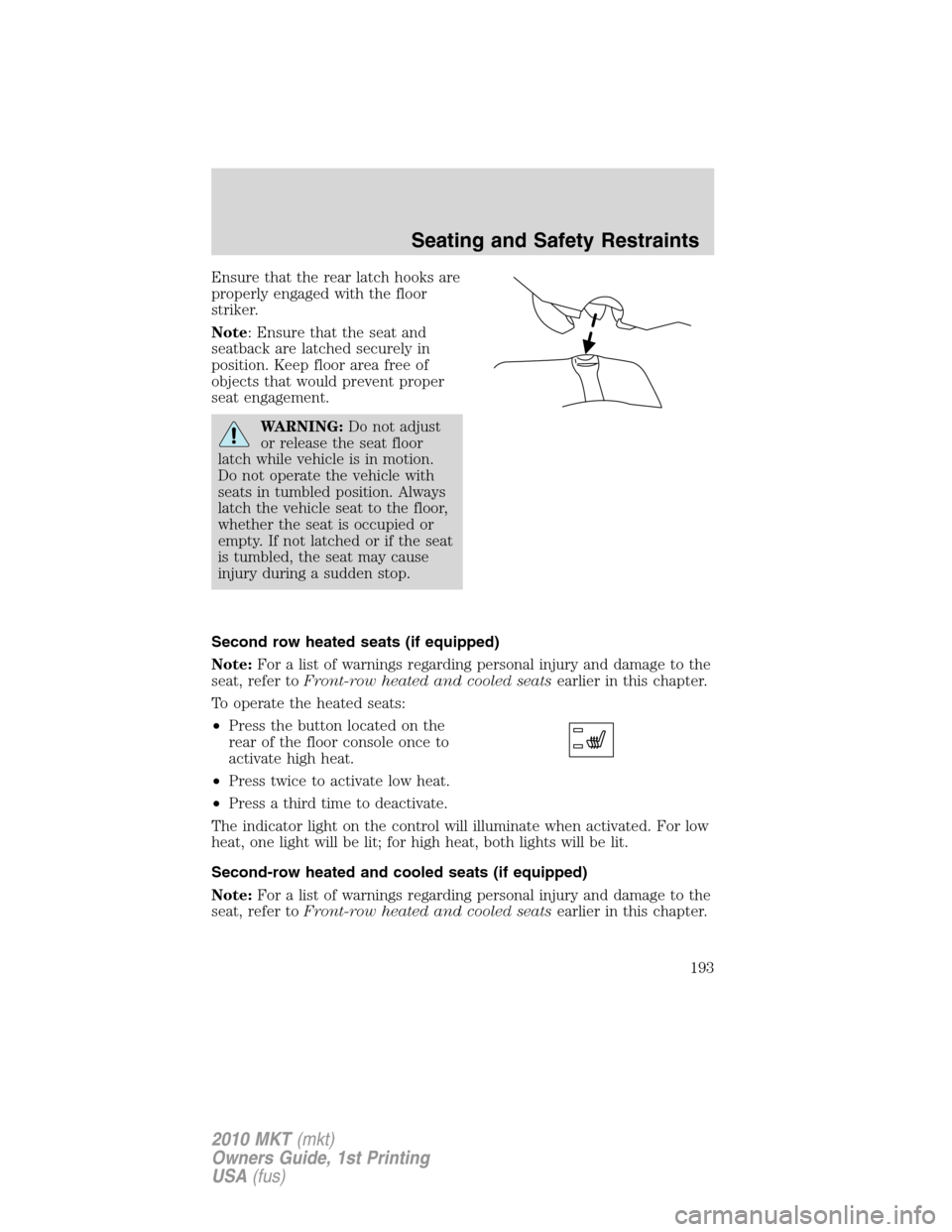

Ensure that the rear latch hooks are
properly engaged with the floor
striker.
Note: Ensure that the seat and
seatback are latched securely in
position. Keep floor area free of
objects that would prevent proper
seat engagement.
WARNING:Do not adjust
or release the seat floor
latch while vehicle is in motion.
Do not operate the vehicle with
seats in tumbled position. Always
latch the vehicle seat to the floor,
whether the seat is occupied or
empty. If not latched or if the seat
is tumbled, the seat may cause
injury during a sudden stop.
Second row heated seats (if equipped)
Note:For a list of warnings regarding personal injury and damage to the
seat, refer toFront-row heated and cooled seatsearlier in this chapter.
To operate the heated seats:
•Press the button located on the
rear of the floor console once to
activate high heat.
•Press twice to activate low heat.
•Press a third time to deactivate.
The indicator light on the control will illuminate when activated. For low
heat, one light will be lit; for high heat, both lights will be lit.
Second-row heated and cooled seats (if equipped)
Note:For a list of warnings regarding personal injury and damage to the
seat, refer toFront-row heated and cooled seatsearlier in this chapter.
Seating and Safety Restraints
193
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

The second-row heated and cooled seat controls are located on the rear
of the floor console. They function the same as the front-row heated and
cooled seats. For instructions on how to use refer toFront-row heated
and cooled seatsearlier in this chapter.
Second-row climate controlled seats air filter replacement
The climate controlled seat system includes air filters that must be
replaced periodically. Refer to thescheduled maintenance information
for more information.
There is an air filter located under the rear of each second-row seat. You
can tumble the seat forward to access the filter.
For instructions on how to remove and install the air filter, seeClimate
controlled seats air filter replacementearlier in this chapter.
Stowing the third row seat
1. Remove all objects from the seat and stowage tub.
2. From the rear of the vehicle, stow
the head restraints by pulling the
strap located on the middle of the
seatback just below the head
restraint, then fold seatback by
pulling and holding the number 1
strap while pushing the seatback
forward. Release strap once
seatback starts rotating forward.
3. Release the cushion latches by
pulling the number 2 strap while
pulling on the strap located at the
top of the seatback to tumble the
seat all the way into the tub in the
floor.
Note:Do not use the seat anchors as cargo tie downs.
Seating and Safety Restraints
194
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

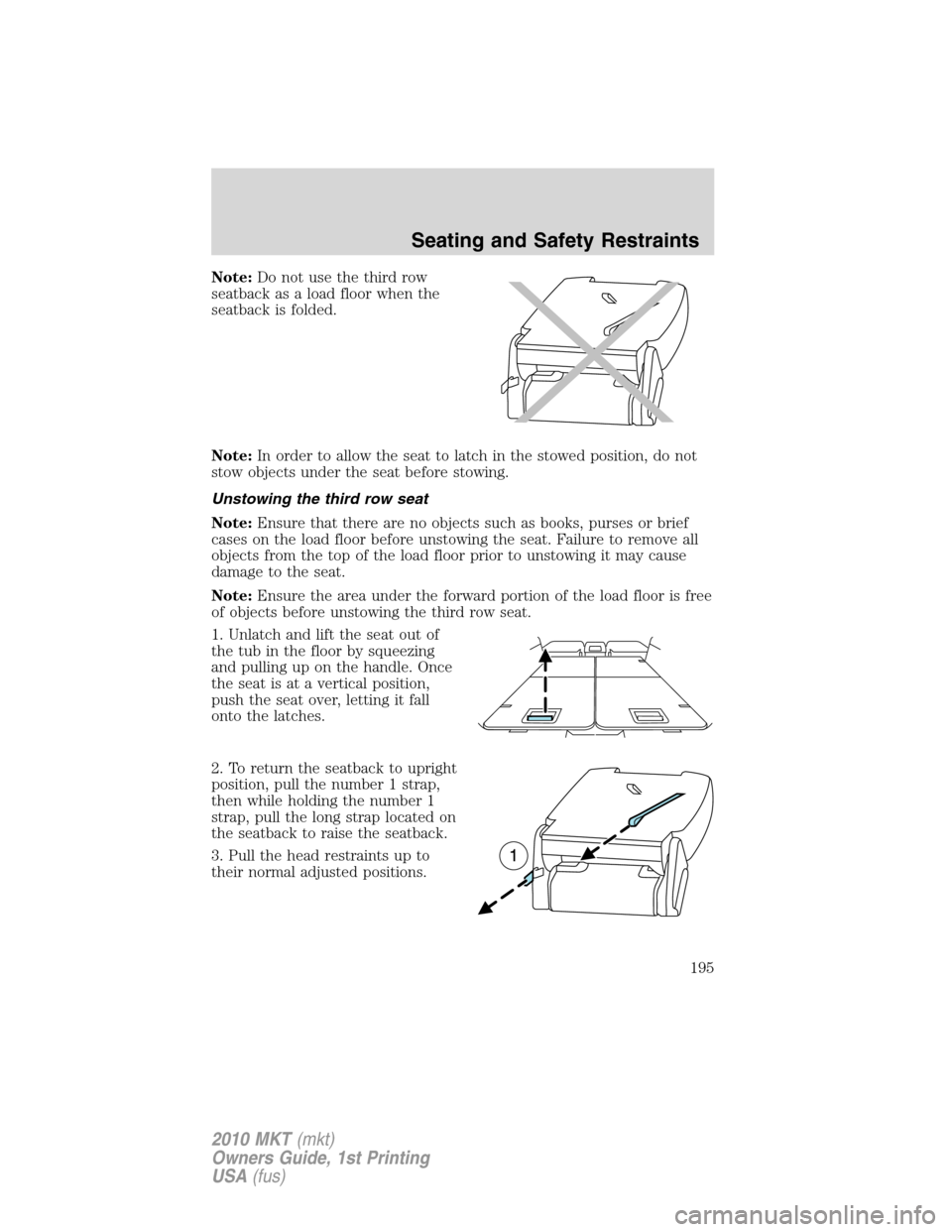

Note:Do not use the third row
seatback as a load floor when the
seatback is folded.
Note:In order to allow the seat to latch in the stowed position, do not
stow objects under the seat before stowing.
Unstowing the third row seat
Note:Ensure that there are no objects such as books, purses or brief
cases on the load floor before unstowing the seat. Failure to remove all
objects from the top of the load floor prior to unstowing it may cause
damage to the seat.
Note:Ensure the area under the forward portion of the load floor is free
of objects before unstowing the third row seat.
1. Unlatch and lift the seat out of
the tub in the floor by squeezing
and pulling up on the handle. Once
the seat is at a vertical position,
push the seat over, letting it fall
onto the latches.
2. To return the seatback to upright
position, pull the number 1 strap,
then while holding the number 1
strap, pull the long strap located on
the seatback to raise the seatback.
3. Pull the head restraints up to
their normal adjusted positions.
Seating and Safety Restraints
195
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

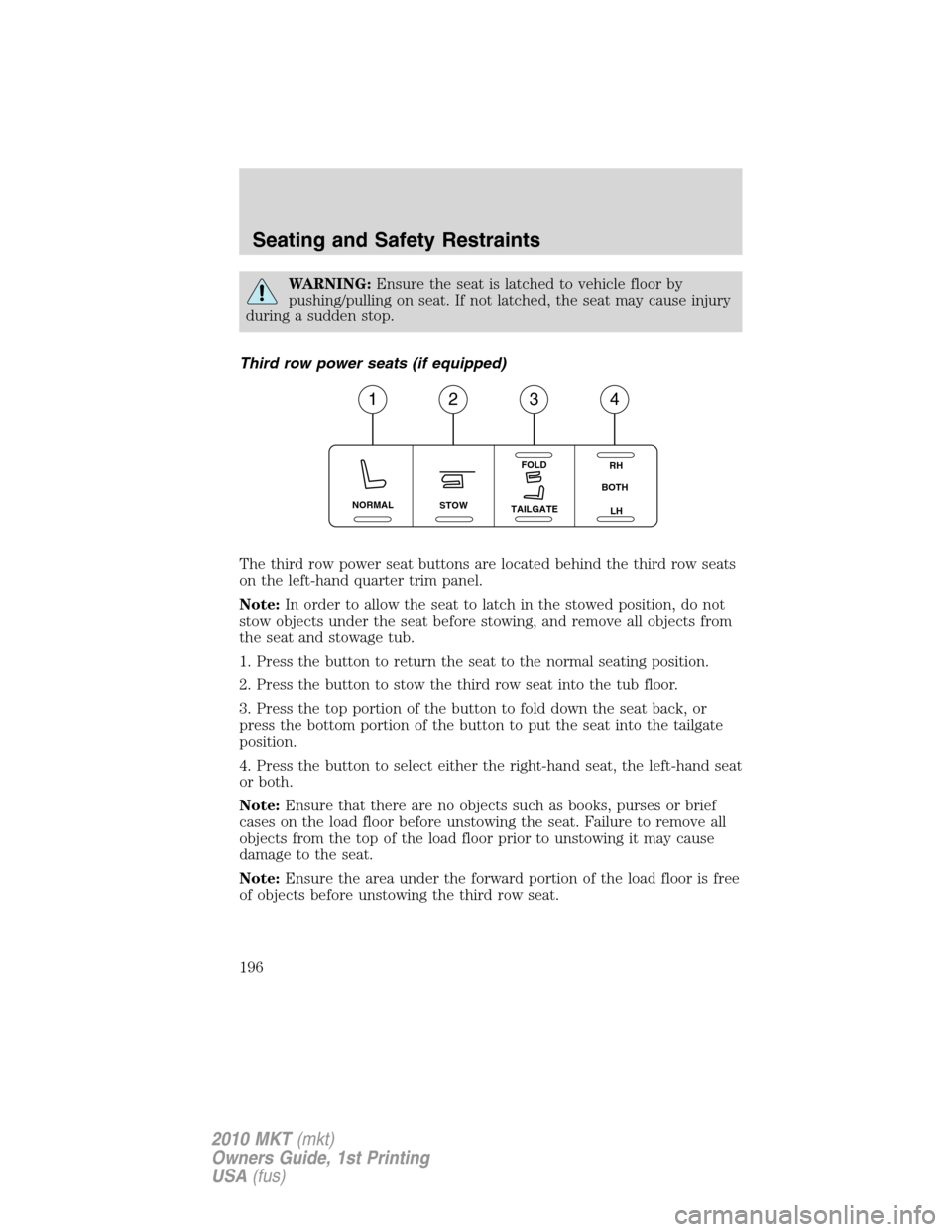

WARNING:Ensure the seat is latched to vehicle floor by
pushing/pulling on seat. If not latched, the seat may cause injury
during a sudden stop.
Third row power seats (if equipped)
The third row power seat buttons are located behind the third row seats
on the left-hand quarter trim panel.
Note:In order to allow the seat to latch in the stowed position, do not
stow objects under the seat before stowing, and remove all objects from
the seat and stowage tub.
1. Press the button to return the seat to the normal seating position.
2. Press the button to stow the third row seat into the tub floor.
3. Press the top portion of the button to fold down the seat back, or
press the bottom portion of the button to put the seat into the tailgate
position.
4. Press the button to select either the right-hand seat, the left-hand seat
or both.
Note:Ensure that there are no objects such as books, purses or brief
cases on the load floor before unstowing the seat. Failure to remove all
objects from the top of the load floor prior to unstowing it may cause
damage to the seat.
Note:Ensure the area under the forward portion of the load floor is free
of objects before unstowing the third row seat.
1234
NORMAL
STOWRH
BOTH
LH
FOLD
TAILGATE
Seating and Safety Restraints
196
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

WARNING:Do not drive
the vehicle when the third
row seat is rotated backwards.
During a sudden stop, the safety
belts are not functional in this
position, and during a sudden
stop, the third row seat can
rapidly tip back to the forward
position, all of which may result in
serious injury.
Closing the liftgate
WARNING:To avoid injury to third row occupants when closing
the liftgate, ensure that the head of any occupant is not in the
path of the closing liftgate.
SAFETY RESTRAINTS
Personal Safety System™
The Personal Safety System™ provides an improved overall level of
frontal crash protection to front seat occupants and is designed to help
further reduce the risk of airbag-related injuries. The system is able to
analyze different occupant conditions and crash severity before activating
the appropriate safety devices to help better protect a range of
occupants in a variety of frontal crash situations.
Your vehicle’s Personal Safety System™ consists of:
•Driver and passenger dual-stage airbag supplemental restraints.
•Front outboard safety belts with pretensioners, energy management
retractors (first row only), and safety belt usage sensors.
•Driver’s seat position sensor.
•Front passenger sensing system
•“Passenger airbag off” or “pass airbag off” indicator lamp
•Front crash severity sensor.
•Restraints Control Module (RCM) with impact and safing sensors.
•Restraint system warning light and back-up tone.
Seating and Safety Restraints
197
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

•The electrical wiring for the airbags, crash sensor(s), safety belt
pretensioners, front safety belt usage sensors, driver seat position
sensor, front passenger sensing system, and indicator lights.
How does the Personal Safety System™ work?
The Personal Safety System™ can adapt the deployment strategy of your
vehicle’s safety devices according to crash severity and occupant
conditions. A collection of crash and occupant sensors provides
information to the Restraints Control Module (RCM). During a crash, the
RCM activates the safety belt pretensioners and/or either one or both
stages of the dual-stage airbag supplemental restraints based on crash
severity and occupant conditions.
The fact that the pretensioners or airbags did not activate for both front
seat occupants in a collision does not mean that something is wrong with
the system. Rather, it means the Personal Safety System™ determined
the accident conditions (crash severity, belt usage, etc.) were not
appropriate to activate these safety devices. Front airbags are designed
to activate only in frontal and near-frontal collisions (not rollovers, side
impacts or rear impacts) unless the collision causes sufficient
longitudinal deceleration. The pretensioners are designed to activate in
frontal and near-frontal collisions, and in side collisions and rollovers.
Driver and passenger dual-stage airbag supplemental restraints
The dual-stage airbags offer the capability to tailor the level of airbag
inflation energy. A lower, less forceful energy level is provided for more
common, moderate-severity impacts. A higher energy level is used for
the most severe impacts. Refer toAirbag supplemental restraints
(SRS)section in this chapter.
Front crash severity sensor
The front crash severity sensor enhances the ability to detect the
severity of an impact. Positioned up front, it provides valuable
information early in the crash event on the severity of the impact. This
allows your Personal Safety System™ to distinguish between different
levels of crash severity and modify the deployment strategy of the
dual-stage airbags and safety belt pretensioners.
Driver’s seat position sensor
The driver’s seat position sensor allows your Personal Safety System™ to
tailor the deployment level of the driver dual-stage airbag based on seat
position. The system is designed to help protect smaller drivers sitting
close to the driver airbag by providing a lower airbag output level.
Seating and Safety Restraints
198
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Front passenger sensing system
For airbags to do their job they must inflate with great force, and this
force can pose a potentially deadly risk to occupants that are very close
to the airbag when it begins to inflate. For some occupants, this occurs
because they are initially sitting very close to the airbag. For other
occupants, this occurs when the occupant is not properly restrained by
safety belts or child safety seats and they move forward during pre-crash
braking. The most effective way to reduce the risk of unnecessary
injuries is to make sure all occupants are properly restrained. Accident
statistics suggest that children are much safer when properly restrained
in the rear seating positions than in the front.
The front passenger sensing system can automatically turn off the
passenger front airbag. The system is designed to help protect small
(child size) occupants from airbag deployments when they are
improperly seated or restrained in the front passenger seat contrary to
proper child-seating or restraint usage recommendations. Even with this
technology, parents areSTRONGLYencouraged to always properly
restrain children in the rear seat. The sensor also turns off the passenger
front airbag and seat-mounted side airbag when the passenger seat is
empty to prevent unnecessary replacement of airbag(s) after a collision.
For warnings about properly restraining children, refer toImportant SRS
precautionslater in this chapter.
Front safety belt usage sensors
The front safety belt usage sensors detect whether or not the driver and
front outboard passenger safety belts are fastened. This information
allows your Personal Safety System™ to tailor the airbag deployment
and safety belt pretensioner activation depending upon safety belt usage.
Front safety belt pretensioners
The safety belt pretensioners at the front outboard seating positions are
designed to tighten the safety belts firmly against the occupant’s body
during frontal collisions, and in side collisions and rollovers. This helps
increase the effectiveness of the safety belts. In frontal collisions, the
safety belt pretensioners can be activated alone or, if the collision is of
sufficient severity, together with the front airbags.
Seating and Safety Restraints
199
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Front safety belt energy management retractors
The front outboard safety belt energy management retractors allow
webbing to be pulled out of the retractor in a gradual and controlled
manner in response to the occupant’s forward momentum. This helps
reduce the risk of force-related injuries to the occupant’s chest by
limiting the load on the occupant. Refer toEnergy management
feature- front outboardsection in this chapter.
Determining if the Personal Safety System™ is operational
The Personal Safety System
uses a warning light in the instrument
cluster or a back-up tone to indicate the condition of the system. Refer
to theWarning lights and chimessection in theInstrument Cluster
chapter. Routine maintenance of the Personal Safety System™ is not
required.
The Restraints Control Module (RCM) monitors its own internal circuits
and the circuits for the airbag supplemental restraints, crash sensor(s),
safety belt pretensioners, front safety belt buckle sensors, driver seat
position sensor, and front passenger sensing system. In addition, the
RCM also monitors the restraints warning light in the instrument cluster.
A difficulty with the system is indicated by one or more of the following.
•The warning light will either flash or stay lit.
•The warning light will not illuminate immediately after ignition is
turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and warning light are repaired.
If any of these things happen, even intermittently, have the Personal
Safety System™ serviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a
collision.
Safety belt precautions
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:To reduce the risk of injury, make sure children sit
where they can be properly restrained.
Seating and Safety Restraints
200
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
