LINCOLN MKT 2010 Owner's Guide

SERVICE ADVANCETRAC— Displayed when the AdvanceTrac

system has detected a condition that requires service.
TO STOP ALARM START VEHICLE— Displayed when the perimeter
alarm system is armed and the vehicle is entered using the key on the
driver’s side door. In order to prevent the perimeter alarm system from
triggering, the ignition must be turned to start or on before the
12 second chime expires. SeePerimeter alarm systemin theLocks and
Securitychapter.
POWER REDUCED TO LOWER TEMP— Displayed when vehicle
performance is reduced due to high engine fluid temperatures. See
Engine fluid temperature managementandWhat you should know
about fail-safe coolingin theMaintenance and Specificationschapter.
SERVICE TIRE MOBILITY KIT (if equipped)— Displayed when the
tire mobility kit requires service. See your authorized dealer for more
information.
Instrument Cluster
31
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

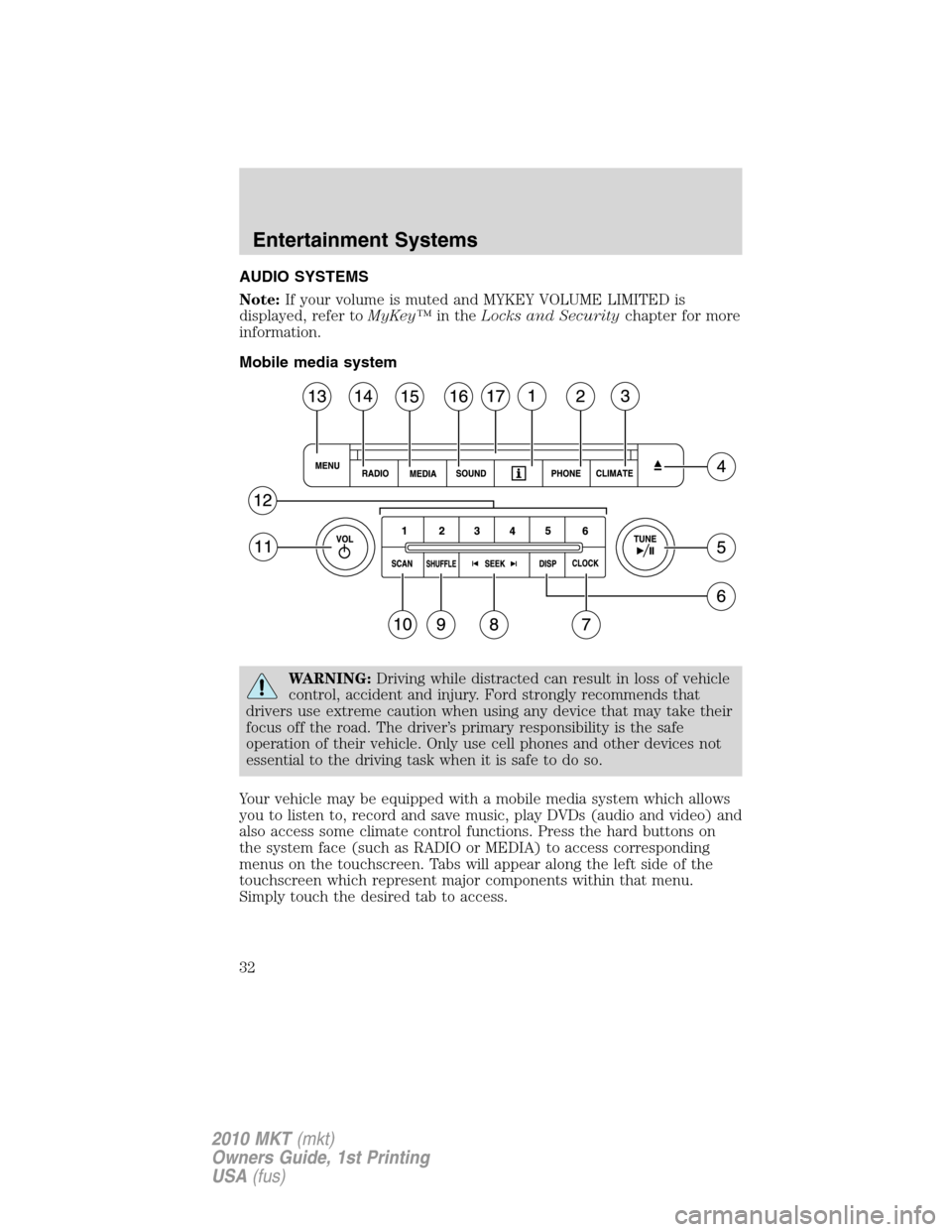

AUDIO SYSTEMS
Note:If your volume is muted and MYKEY VOLUME LIMITED is
displayed, refer toMyKey™in theLocks and Securitychapter for more
information.
Mobile media system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Your vehicle may be equipped with a mobile media system which allows
you to listen to, record and save music, play DVDs (audio and video) and
also access some climate control functions. Press the hard buttons on
the system face (such as RADIO or MEDIA) to access corresponding
menus on the touchscreen. Tabs will appear along the left side of the
touchscreen which represent major components within that menu.
Simply touch the desired tab to access.
Entertainment Systems
32
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

1.I (Information):Press to access
the information menu. Press while
the information menu is active to
step through the information tabs of: the Calendar, System Info (System
Information) and Help.
2.PHONE:Press PHONE to access
SYNC
phone features. Refer to
yourSYNC
supplementfor more
information.
3.CLIMATE:Press CLIMATE to
access the climate menu. Press the
button while the climate menu is
active to step through the climate menu tabs of Front Zone and Rear
Zone.
4.
(Eject):Press(Eject) to
eject the disc in the slot.
5.TUNE:In radio or satellite
radio mode (if activated), turn to
advance in individual increments
up/down the frequency/channel
listing.
In MP3 mode,turn to advance to the next/previous folder.
/: Press to play or pause a CD, Jukebox, User Device or DVD
when playing in the mobile media system.
6.DISP:Press the DISP button
repeatedly to step through the
following display modes: On, Status
Bar Only, and Off.
7.CLOCK:Press to access the
clock screen and set the time.
8.SEEK:In radio and satellite
radio mode (if activated),
press
/to seek to the
previous/next available station or channel within the currently selected
Category/Genre.
Entertainment Systems
33
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

In CD/DVD, Jukebox or User device mode,press/to access
the previous/next track or chapter.
9.SHUFFLE:Press to shuffle the
songs on the current CD, Jukebox
or User Device.
10.SCAN:Press for a brief
sampling of radio stations, satellite
radio channels, CD, Jukebox or User
Device tracks.
11.VOL (On/off/volume):Press to turn the system on/off. Turn to
adjust the volume.
12.Memory presets: In radio and
satellite radio mode (if
activated):Press 1-6 to access
your previously saved preset
stations/channels.
To save to a preset:Tune to the desired station/channel. Press and
hold the desired preset button in which you would like to store the
station/channel. The sound will momentarily mute and then return when
the preset is saved.
13.MENU:Press MENU to access
the system menu. Press while the
system menu is active to step
through the system menu tabs of
Display, Feedback Settings, System Settings and Valet Mode.
14.RADIO:Press RADIO to access
the radio menu. Press while the
radio menu is active to step through
the available radio sources of AM, FM1, FM2, SAT1, SAT2, and SAT3
(satellite radio, if activated).
15.MEDIA:Press MEDIA to access
the media menu. Press while the
media menu is active to step
through the available media sources of CD/DVD, Jukebox, User Device,
Rear DVD (if equipped) and Rear AUX (if equipped).
16.SOUND:Press SOUND to access the sound menu. Press while the
sound menu is active to step through the sound menu tabs of
Bass/Treble, Balance/Fade, SCV (Speed compensated volume), DSP
(Digital Signal Processing), Visualizer and THX Demo (if equipped).
Entertainment Systems
34
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

17.CD/DVD slot:Insert a CD or DVD, label side up.
After the system initializes, the screen will be divided in two sections:
•Status bars:This is the top and bottom portion of screen that
displays the clock or date and useful information, depending on the
current mode.
•Display area:The interactive screen that is activated by finger touch
and changes depending on current system operation. Graphical
buttons are displayed in this area depending on the current screen for
you to make choices.
Driving restrictions
In order to prevent the system from distracting you while driving, access
to certain functions are restricted when the vehicle is traveling above
5 mph (8 km/h). Restricted functions include:
•Scrolling of long lists
•Jukebox restrictions such as creating/editing playlists, sorting playlists,
editing track, artist and album names
•Uploading photographs
•Similar SYNC
features
Home screen
Your system has a home screen where you can save/view favorite
pictures, view your current audio and climate control settings as well as
display the audio visualizer. You can split the screen in to two or three
different sections, or you can choose to have one main view.
To access your home screen, press the house icon (
)atthebottom
left hand corner of any screen.
The left side of the screen will
display an uploaded photo. The
right side can also display the
uploaded photo. The upper right
panel will only display the current
audio settings. The lower right panel
displays the vehicle’s climate
settings (if equipped), the visualizer
or the hybrid fuel economy (if
equipped). Press
on the bottom
of the display to access the settings
screen for the right side.
Entertainment Systems
35
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

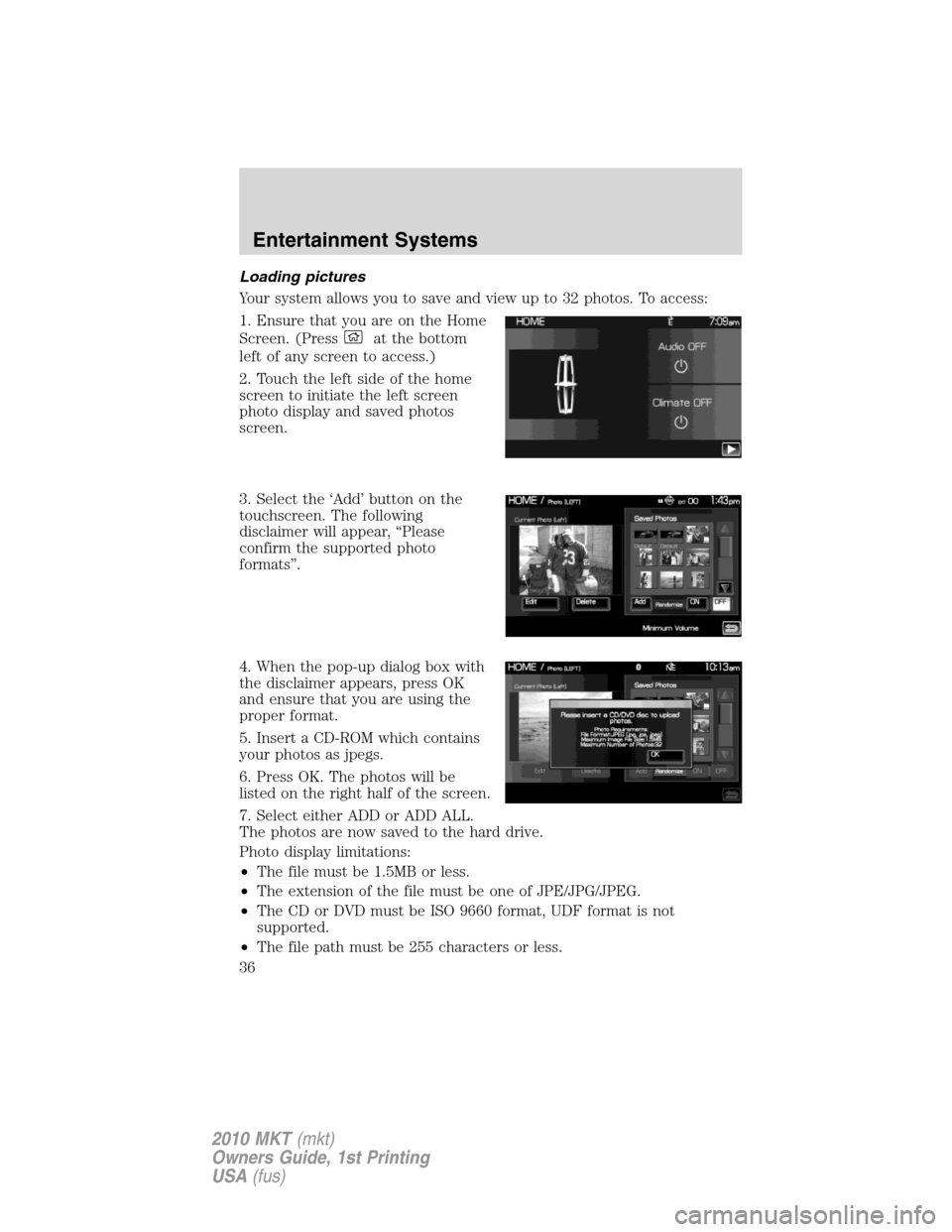

Loading pictures
Your system allows you to save and view up to 32 photos. To access:
1. Ensure that you are on the Home
Screen. (Press
at the bottom
left of any screen to access.)
2. Touch the left side of the home
screen to initiate the left screen
photo display and saved photos
screen.
3. Select the ‘Add’ button on the
touchscreen. The following
disclaimer will appear, “Please
confirm the supported photo
formats”.
4. When the pop-up dialog box with
the disclaimer appears, press OK
and ensure that you are using the
proper format.
5. Insert a CD-ROM which contains
your photos as jpegs.
6. Press OK. The photos will be
listed on the right half of the screen.
7. Select either ADD or ADD ALL.
The photos are now saved to the hard drive.
Photo display limitations:
•The file must be 1.5MB or less.
•The extension of the file must be one of JPE/JPG/JPEG.
•The CD or DVD must be ISO 9660 format, UDF format is not
supported.
•The file path must be 255 characters or less.
Entertainment Systems
36
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

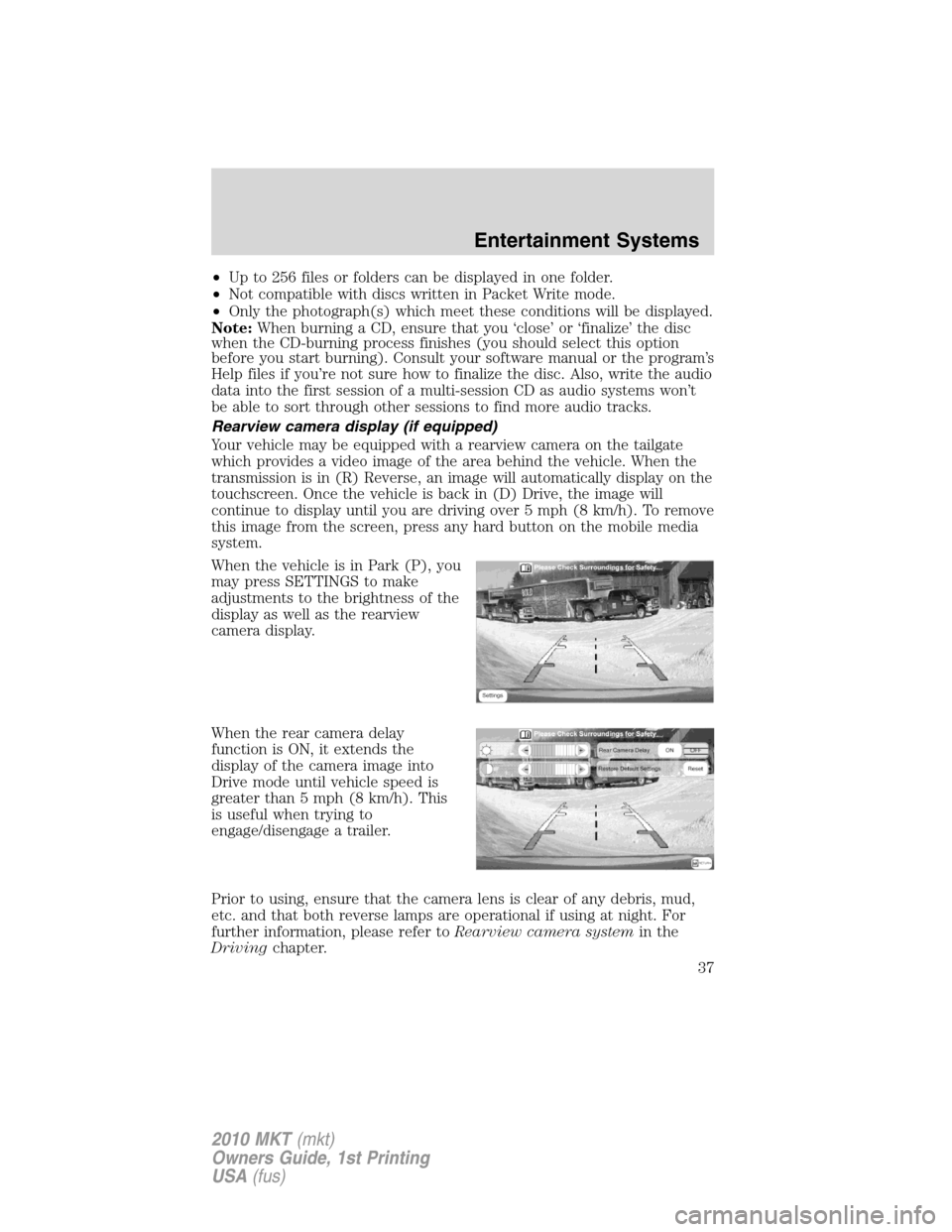

•Up to 256 files or folders can be displayed in one folder.
•Not compatible with discs written in Packet Write mode.
•Only the photograph(s) which meet these conditions will be displayed.
Note:When burning a CD, ensure that you ‘close’ or ‘finalize’ the disc
when the CD-burning process finishes (you should select this option
before you start burning). Consult your software manual or the program’s
Help files if you’re not sure how to finalize the disc. Also, write the audio
data into the first session of a multi-session CD as audio systems won’t
be able to sort through other sessions to find more audio tracks.
Rearview camera display (if equipped)
Your vehicle may be equipped with a rearview camera on the tailgate
which provides a video image of the area behind the vehicle. When the
transmission is in (R) Reverse, an image will automatically display on the
touchscreen. Once the vehicle is back in (D) Drive, the image will
continue to display until you are driving over 5 mph (8 km/h). To remove
this image from the screen, press any hard button on the mobile media
system.
When the vehicle is in Park (P), you
may press SETTINGS to make
adjustments to the brightness of the
display as well as the rearview
camera display.
When the rear camera delay
function is ON, it extends the
display of the camera image into
Drive mode until vehicle speed is
greater than 5 mph (8 km/h). This
is useful when trying to
engage/disengage a trailer.
Prior to using, ensure that the camera lens is clear of any debris, mud,
etc. and that both reverse lamps are operational if using at night. For
further information, please refer toRearview camera systemin the
Drivingchapter.
Entertainment Systems
37
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

System menu features
Your system has many menu features such as allowing you to adjust the
touchscreen brightness, adjusting the time and languages, adjusting the
feedback and system settings. To access, press the MENU hard button.
Display options
1. Press the MENU hard button.
2. Select the ‘Display’ tab on the
touchscreen. Select from the
following display options:
Brightness:Select AUTO DIM to
manually adjust the brightness by
pressing + or —.
Contrast:Press + to increase and
— to decrease the level of contrast
on the screen.
Day/Night Mode:Select ‘Day’ to always display day mode or ‘Night’ to
always display night mode. Select ‘Auto’ for the screen to automatically
change between day and night mode.
Color Palette:Select between four different background colors: 1.
Black, 2. Blue, 3. Green, 4. Red.
Note:When the headlamps are on under high ambient light conditions,
the system will remain in day mode, even if night is selected.
Feedback settings
1. Press the MENU hard button.
2. Select the ‘Feedback Settings’ tab
on the touchscreen. Select from the
following display options:
•Touch screen button beep:Select to have the system sound a tone
when a selection is made on the touch screen.
•Voice volume:Press to increase (+) or decrease (-) the system’s
voice volume.
Entertainment Systems
38
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

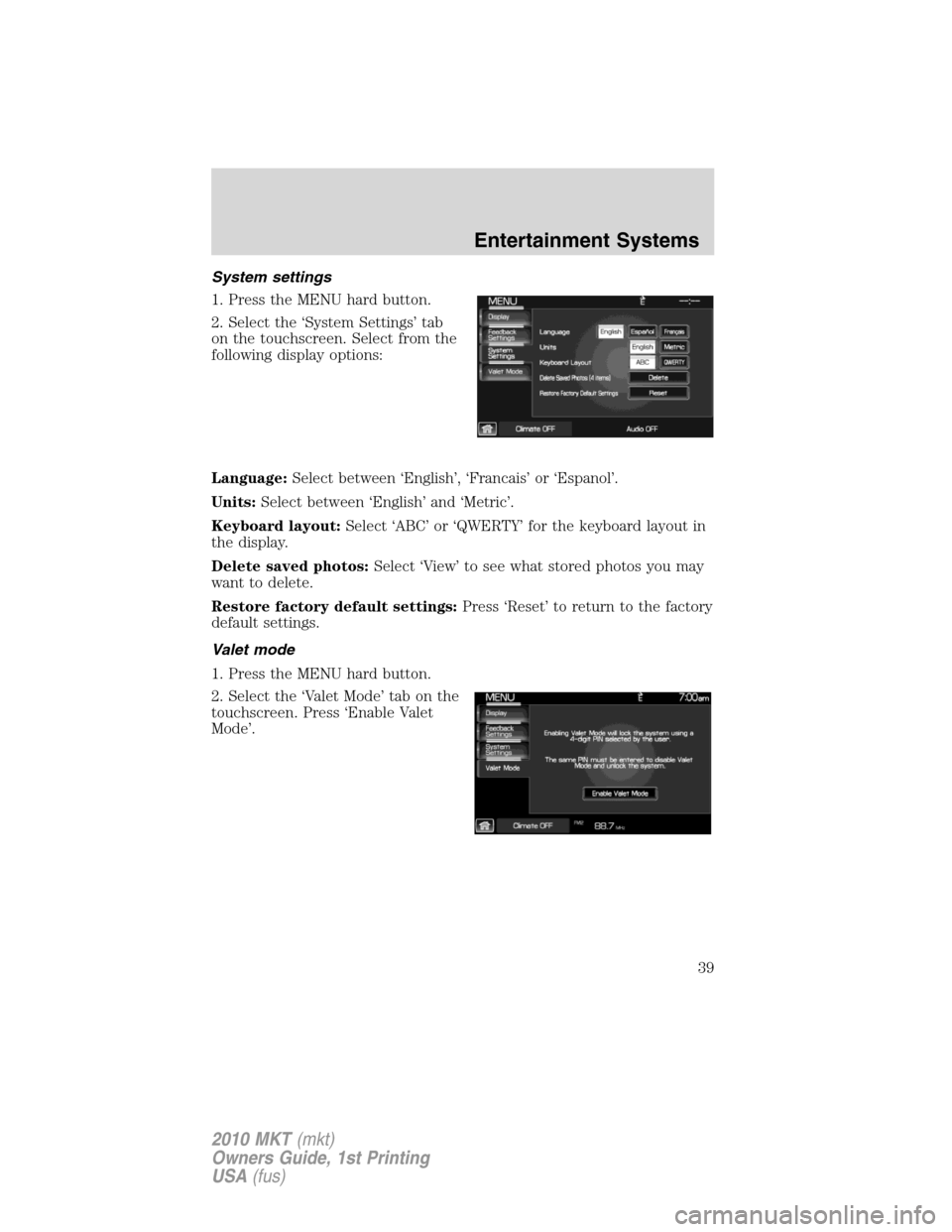

System settings
1. Press the MENU hard button.
2. Select the ‘System Settings’ tab
on the touchscreen. Select from the
following display options:
Language:Select between ‘English’, ‘Francais’ or ‘Espanol’.
Units:Select between ‘English’ and ‘Metric’.
Keyboard layout:Select ‘ABC’ or ‘QWERTY’ for the keyboard layout in
the display.
Delete saved photos:Select ‘View’ to see what stored photos you may
want to delete.
Restore factory default settings:Press ‘Reset’ to return to the factory
default settings.
Valet mode
1. Press the MENU hard button.
2. Select the ‘Valet Mode’ tab on the
touchscreen. Press ‘Enable Valet
Mode’.
Entertainment Systems
39
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

3. Enter a four digit Personal
Identification Number (PIN) and
press ‘Enter’. The system will ask
you to re-enter the PIN. Once
entered, select ‘Enable’ to activate
Valet mode. The system is then
locked until the correct four digit
PIN is entered.
Note:The PIN can be reset by simultaneously pressing and holding
presets 1 and 5 while on the PIN entry screen. After approximately five
seconds, the system will transition to the Valet mode screen indicating
that the PIN is reset. Once you have reset the PIN, the system will then
allow you to set a new PIN.
Setting the clock
1. Press the CLOCK hard button.
2. Select from the following display
options:
Time set buttons:To set the time, press +, — to increase/decrease the
time and select AM or PM.
Display clock:Press to turn the clock display on/off.
Format:Press to select between 12 hour and 24 hour format.
Time Zone:Press to select your time zone.
Note:The system does not implement daylight savings time.
Restore defaults:Select ‘Reset’ to reset to the default settings.
Entertainment Systems
40
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
