jump start LINCOLN MKT 2010 Owners Manual

Locks and Security 150
Locks 151
Anti-theft system 165
Seating and Safety Restraints 176
Seating 176
Safety restraints 197
Airbags 211
Child restraints 226
Tires, Wheels and Loading 244
Tire information 246
Tire inflation 248
Tire Pressure Monitoring System (TPMS) 261
Vehicle loading 267
Trailer towing 273
Recreational towing 278
Driving 279
Starting 279
Brakes 285
AdvanceTrac
287
Transmission operation 295
Reverse sensing system 299
Rear-view camera system 301
All wheel drive 318
Roadside Emergencies 325
Getting roadside assistance 325
Hazard flasher control 326
Fuel pump shut-off 327
Fuses and relays 327
Changing tires 336
Temporary mobility kit 343
Wheel lug nut torque 352
Jump starting 353
Wrecker towing 359
Table of Contents
2
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

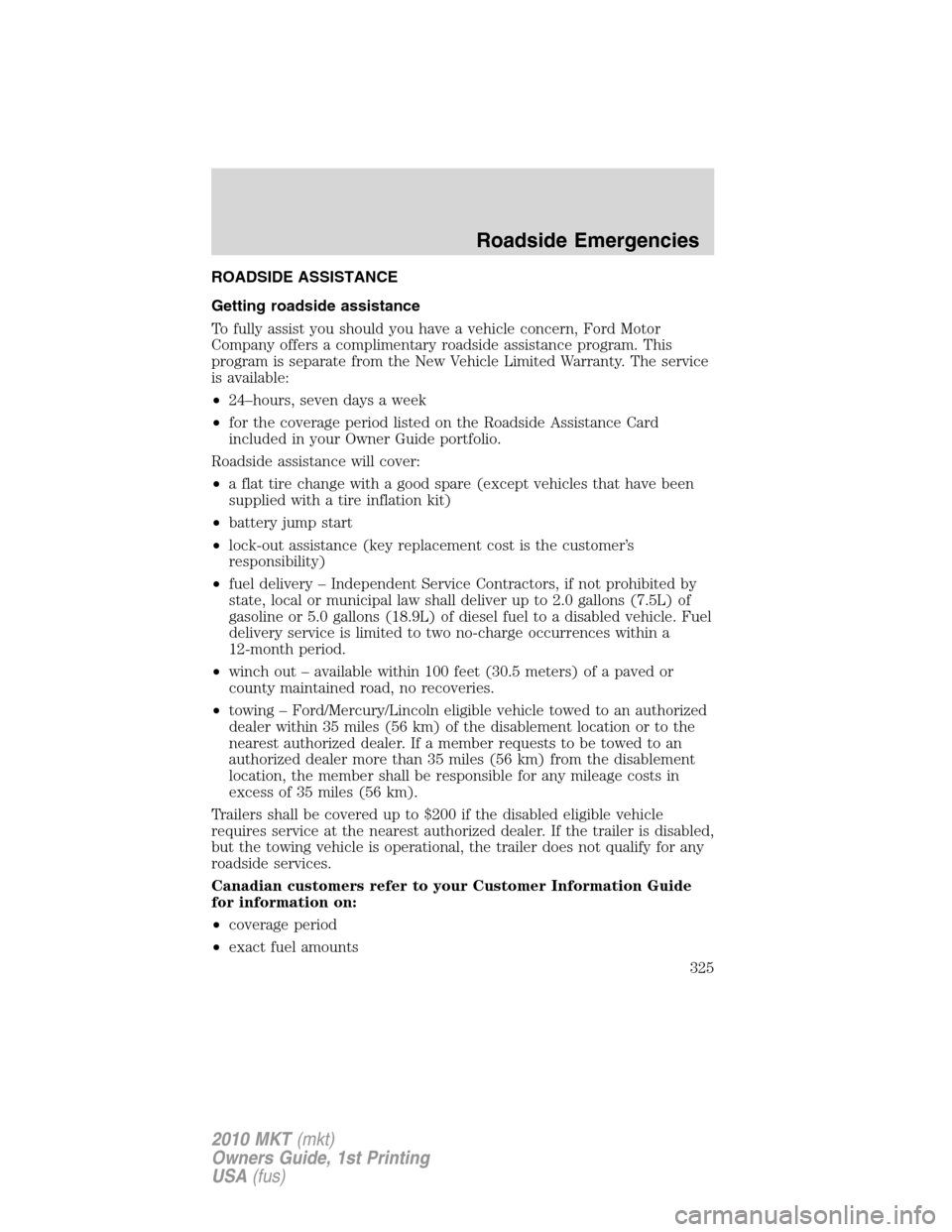

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
Roadside Emergencies
325
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

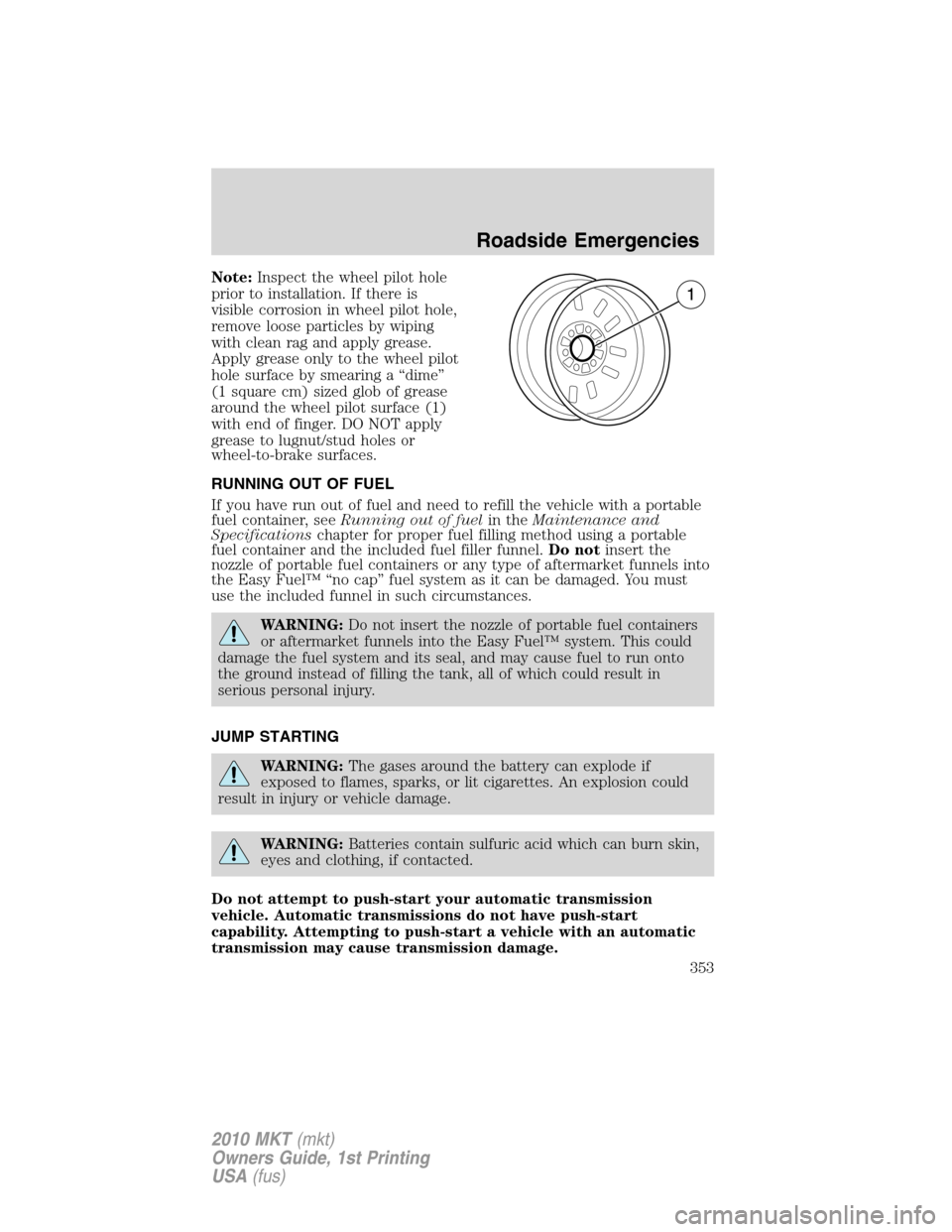

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
RUNNING OUT OF FUEL
If you have run out of fuel and need to refill the vehicle with a portable
fuel container, seeRunning out of fuelin theMaintenance and
Specificationschapter for proper fuel filling method using a portable
fuel container and the included fuel filler funnel.Do notinsert the
nozzle of portable fuel containers or any type of aftermarket funnels into
the Easy Fuel™ “no cap” fuel system as it can be damaged. You must
use the included funnel in such circumstances.
WARNING:Do not insert the nozzle of portable fuel containers
or aftermarket funnels into the Easy Fuel™ system. This could
damage the fuel system and its seal, and may cause fuel to run onto
the ground instead of filling the tank, all of which could result in
serious personal injury.
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Roadside Emergencies
353
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
Roadside Emergencies
354
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

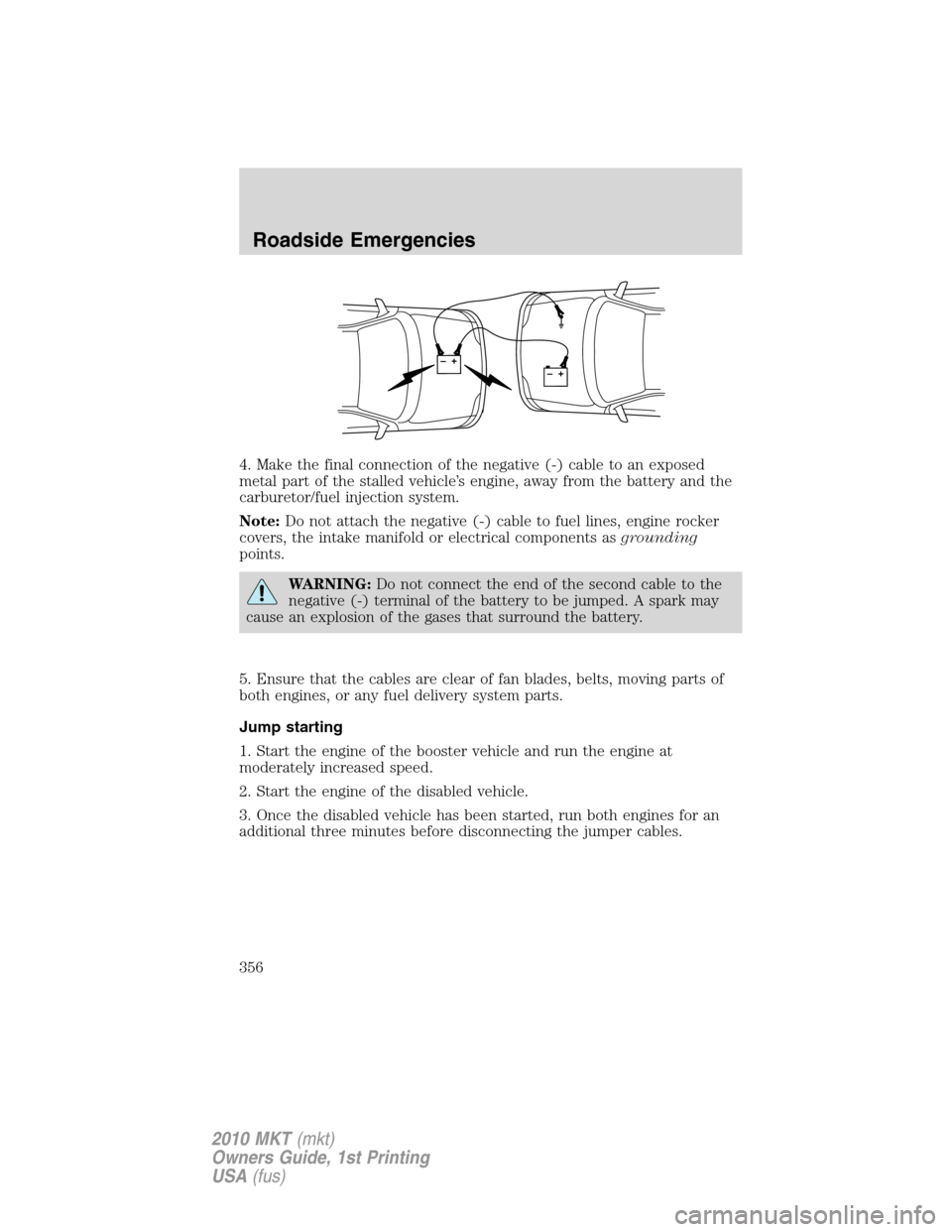

4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.
Note:Do not attach the negative (-) cable to fuel lines, engine rocker
covers, the intake manifold or electrical components asgrounding
points.
WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
Roadside Emergencies
356
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

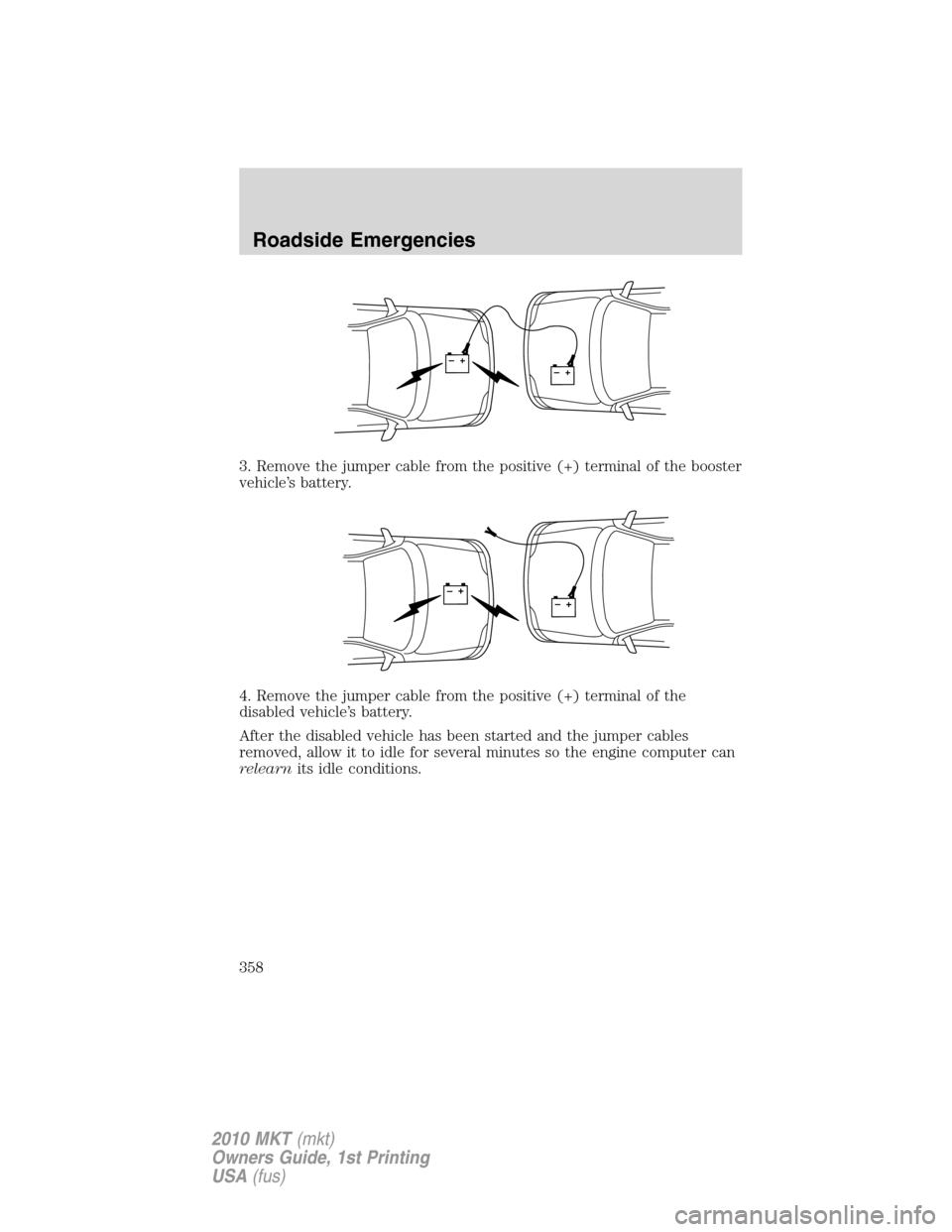

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
Roadside Emergencies
358
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

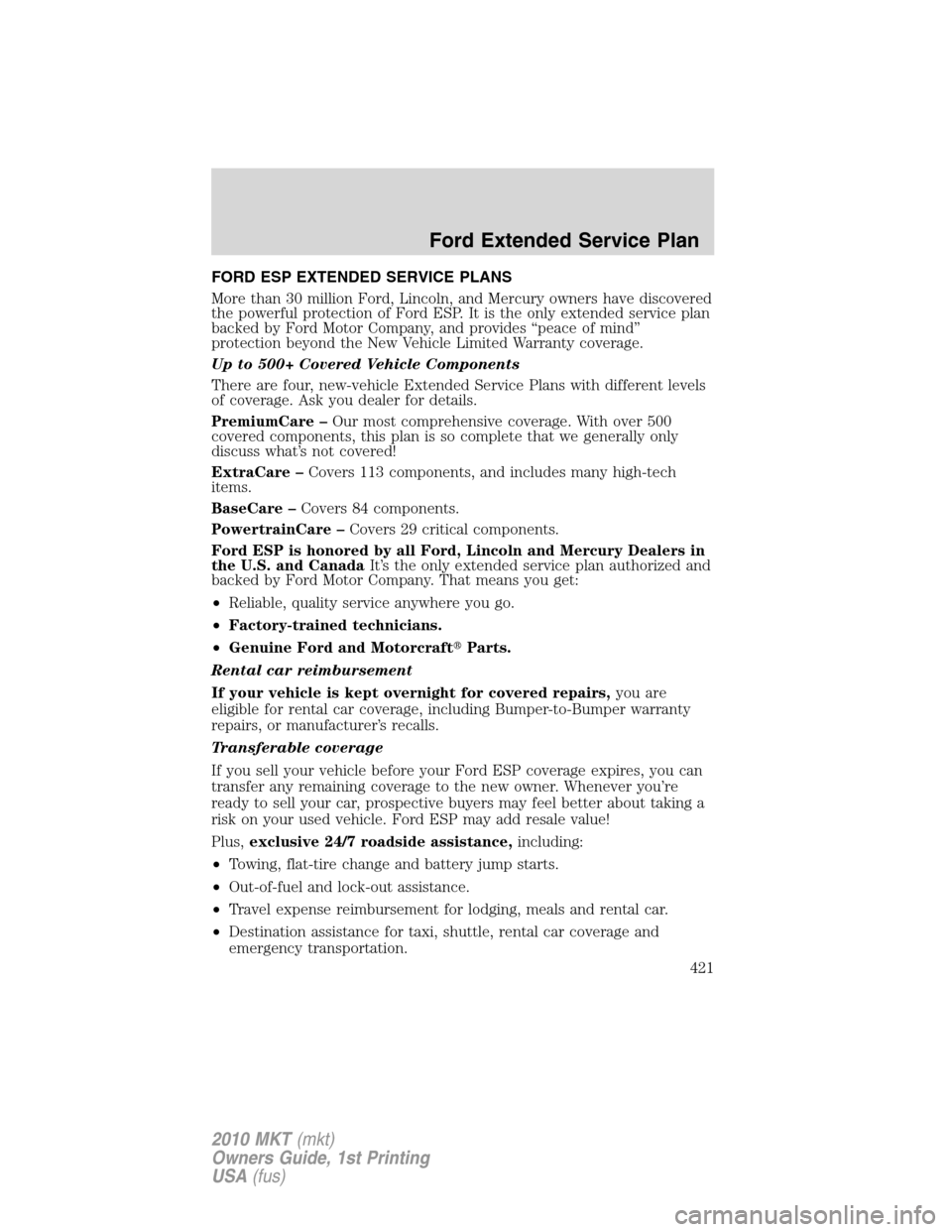

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
421
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................353
running out of fuel .........353, 399
Emission control system ..........404
Engine ........................................415
cleaning ...................................370
coolant .....................................388
fail-safe cooling .......................393
idle speed control ...................385
lubrication specifications .......412
refill capacities ........................412
service points ..................378–379
Engine block heater .................284
Engine oil ..................................382
change oil soon warning,
message center .......................382
checking and adding ..............382
dipstick ....................................382
filter, specifications ........384, 411
recommendations ...................384
refill capacities ........................412
specifications ..........................412
Event data recording ....................7
Exhaust fumes ..........................283
F
Fail safe cooling ........................393
Family entertainment system ....67
Fleet MyKey programming ......167
Fluid capacities .........................412
Fog lamps ....................................98
Four-Wheel Drive vehicles
driving off road .......................319
Freezer ......................................113Fuel ............................................394
calculating fuel
economy ............................20, 400
cap ...........................................396
capacity ...................................412
choosing the right fuel ...........397
comparisons with EPA fuel
economy estimates .................403
detergent in fuel .....................399
filler funnel .............................399
filling your vehicle with
fuel ...........................394, 396, 401
filter, specifications ........394, 411
fuel pump shut-off ..................327
improving fuel economy ........400
octane rating ...................398, 415
quality ......................................398
running out of fuel .........353, 399
safety information relating
to automotive fuels ................394
Fuses ..........................................327
G
Garage door opener ..................134
Gas cap (see Fuel cap) ............396
Gas mileage
(see Fuel economy) .................400
Gauges .........................................17
H
Hazard flashers .........................326
Headlamps ...................................96
aiming ......................................102
autolamp system .......................97
bulb specifications ..................106
daytime running lights ...........101
flash to pass ............................101
high beam .................................98
replacing bulbs .......................107
Index
426
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

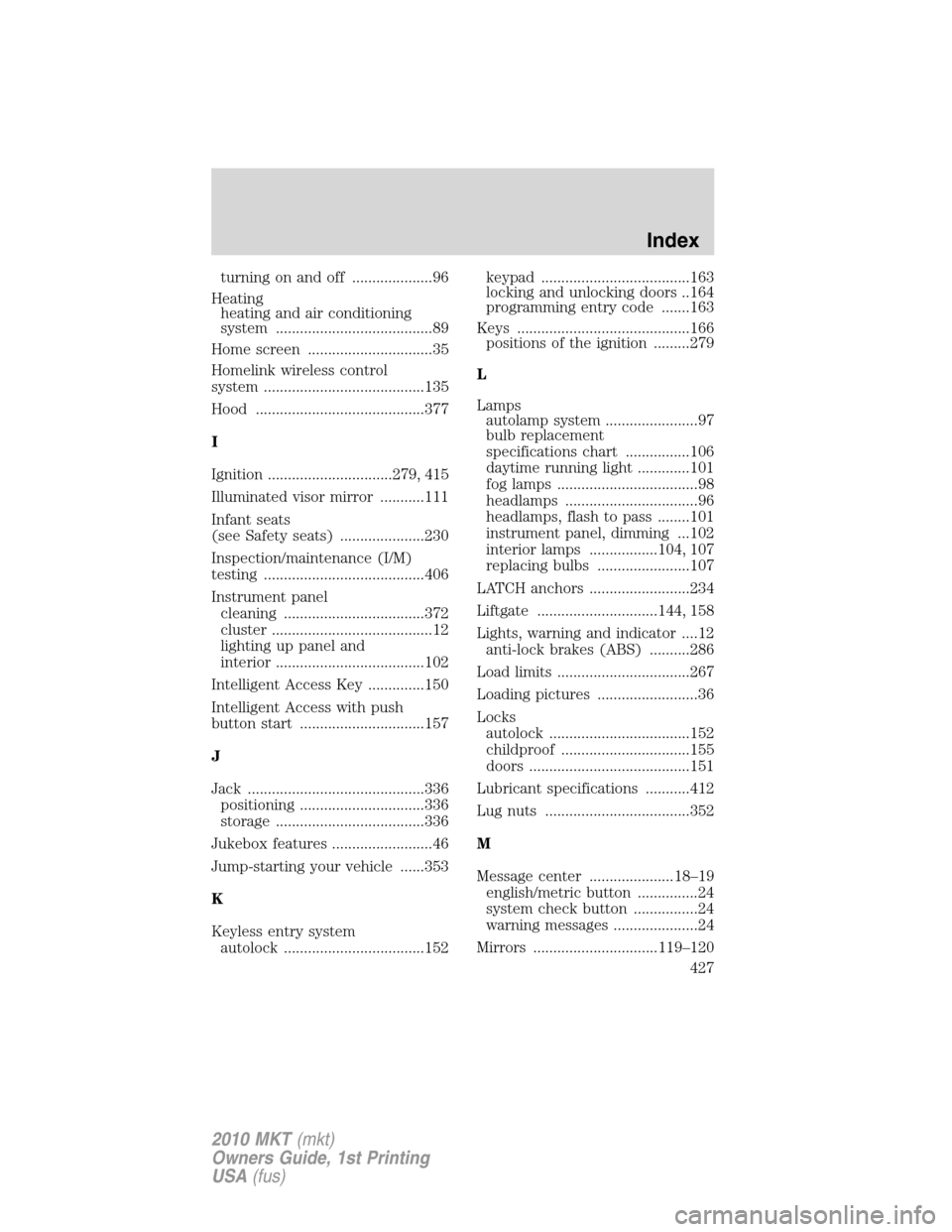

turning on and off ....................96
Heating
heating and air conditioning
system .......................................89
Home screen ...............................35
Homelink wireless control
system ........................................135
Hood ..........................................377
I
Ignition ...............................279, 415
Illuminated visor mirror ...........111
Infant seats
(see Safety seats) .....................230
Inspection/maintenance (I/M)
testing ........................................406
Instrument panel
cleaning ...................................372
cluster ........................................12
lighting up panel and
interior .....................................102
Intelligent Access Key ..............150
Intelligent Access with push
button start ...............................157
J
Jack ............................................336
positioning ...............................336
storage .....................................336
Jukebox features .........................46
Jump-starting your vehicle ......353
K
Keyless entry system
autolock ...................................152keypad .....................................163
locking and unlocking doors ..164
programming entry code .......163
Keys ...........................................166
positions of the ignition .........279
L
Lamps
autolamp system .......................97
bulb replacement
specifications chart ................106
daytime running light .............101
fog lamps ...................................98
headlamps .................................96
headlamps, flash to pass ........101
instrument panel, dimming ...102
interior lamps .................104, 107
replacing bulbs .......................107
LATCH anchors .........................234
Liftgate ..............................144, 158
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........286
Load limits .................................267
Loading pictures .........................36
Locks
autolock ...................................152
childproof ................................155
doors ........................................151
Lubricant specifications ...........412
Lug nuts ....................................352
M
Message center .....................18–19
english/metric button ...............24
system check button ................24
warning messages .....................24
Mirrors ...............................119–120
Index
427
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Roadside assistance ..................325
S
Safety belts (see Safety
restraints) ..........197, 200, 202–205
Safety Canopy ...................220, 222
Safety defects, reporting ..........367
Safety
restraints ...........197, 200, 202–205
Belt-Minder
...........................207
extension assembly ................206
for adults .........................202–205
for children .............................226
Occupant Classification
Sensor ......................................199
warning light and chime ........206
Safety restraints - LATCH
anchors ......................................234
Safety seats for children ..........230
Safety Compliance
Certification Label ....................416
Satellite Radio (if equipped) .....64
Seats ..........................................176
child safety seats ....................230
climate control ..........89, 182, 194
easy access/easyout feature ..184
front seats .......................181, 193
heated ......................................193
memory seat ...................159, 183
second row seats ............188, 191
third row seats ........191, 194–195
Second-row power fold seat ....191
SecuriCode keyless entry
system ........................................163
SecuriLock passive anti-theft
system ........................................165
Servicing your vehicle ..............376Setting the clock .........................40
SOS Post Crash Alert ...............225
Sound features ............................53
Spare tire
(see Changing the Tire) ...........338
Spark plugs,
specifications .....................411, 415
Specification chart,
lubricants ...................................412
Speed control ............................122
Starting your vehicle ........279–281
jump starting ..........................353
push button start system .......281
Steering wheel
controls ....................................132
tilting .......................................111
SYNC
..........................................88
System limitations ......................57
T
Temporary mobility kit .............343
Third-row power fold seat .......196
Tilt steering wheel ....................111
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....261
Tires ...........................246–247, 336
alignment ................................254
care ..........................................250
changing ..................336, 338–339
checking the pressure ............250
inflating ...................................248
label .........................................260
replacing ..................................252
rotating ....................................254
safety practices .......................253
Index
429
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
