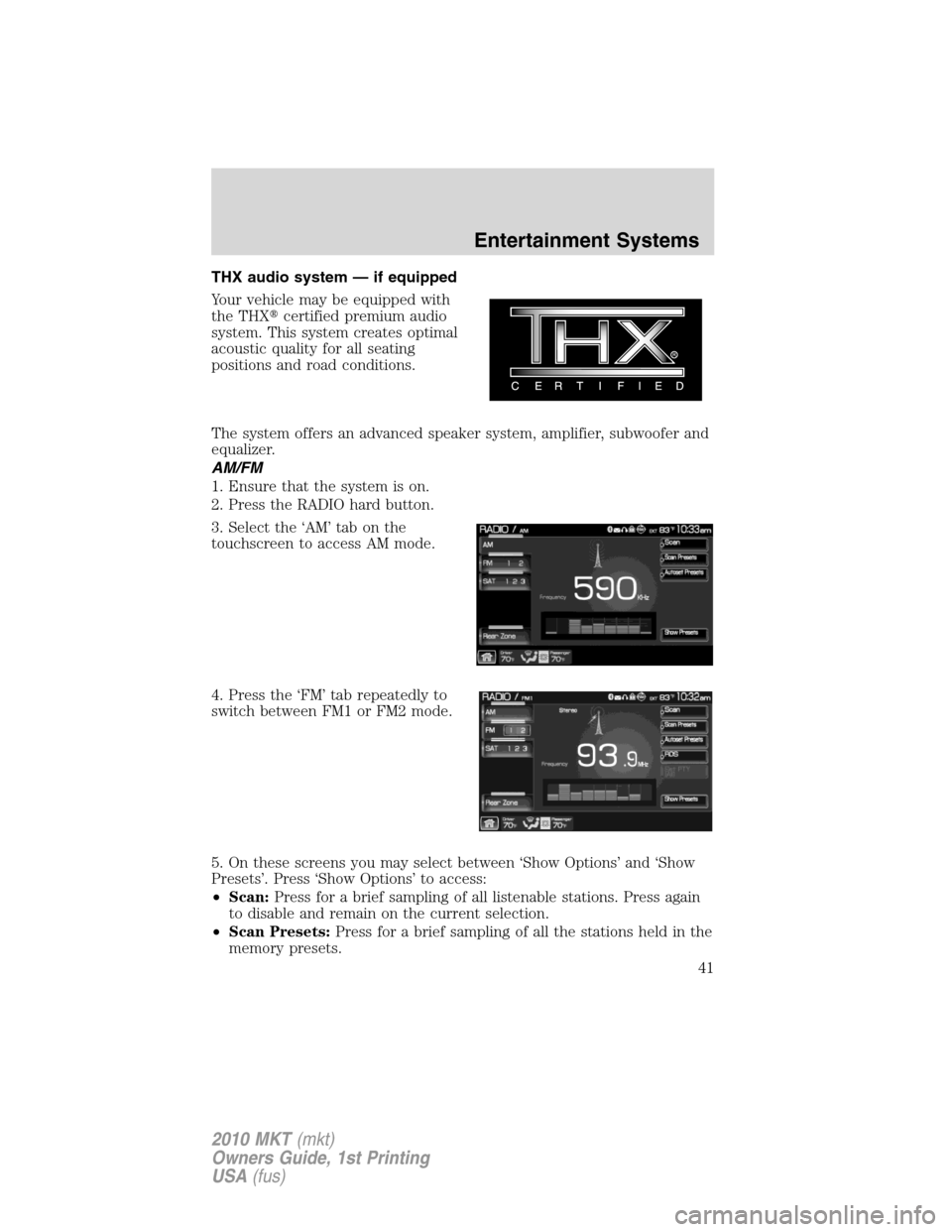

THX audio system — if equipped
Your vehicle may be equipped with
the THX
certified premium audio
system. This system creates optimal
acoustic quality for all seating
positions and road conditions.
The system offers an advanced speaker system, amplifier, subwoofer and
equalizer.
AM/FM
1. Ensure that the system is on.
2. Press the RADIO hard button.
3. Select the ‘AM’ tab on the
touchscreen to access AM mode.
4. Press the ‘FM’ tab repeatedly to
switch between FM1 or FM2 mode.
5. On these screens you may select between ‘Show Options’ and ‘Show
Presets’. Press ‘Show Options’ to access:
•Scan:Press for a brief sampling of all listenable stations. Press again
to disable and remain on the current selection.
•Scan Presets:Press for a brief sampling of all the stations held in the
memory presets.
Entertainment Systems
41
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Dual Play:Dual play is when the rear seat passengers choose to listen
to a different playing media than the front seat passengers. With the
DVD and rear seat controls turned on, the rear seat passengers may
choose to listen to: Monitor A, Monitor B, AM, FM1, FM2 SR1, SR2, SR3
(satellite radio, if equipped), Disc, Jukebox (if equipped), or SYNC
(if
equipped). While the front speakers play the chosen selection for the
front audio system, the rear seat passengers can listen to another over
the headphones. The headphone icon will appear in the display
indicating that the headphones are active.
You can access dual play mode in any of the following ways:
•If your vehicle is equipped with a touchscreen system:
a.Ensure that the vehicle ignition is turned on. Inserting a DVD into
the system will automatically activate dual play mode.
b.Press the RADIO or MEDIA hard button. Select the ‘Rear Zone’ tab
on the touchscreen and select ‘On’ for the headphones and ‘Enabled’
for the rear controls. To return to single zone, select ‘Off’ for the
headphones.
•If your vehicle is equipped with a non-touchscreen system:
a.Press the headphone/speaker (
/) button on the remote
control or DVD system. Press again on both headrest systems to
return to single play mode.
b.Press the 2 and 4 memory presets on the radio at the same time.
Press again to return to single play mode.
Note:If the front seat passengers are listening to the radio, the rear seat
passengers can also listen to the radio; however, they will be limited to
listening to the same radio channel.
•Once you have entered Dual play mode, the Channel A or Channel B
controls on the headphones are now active. Both Channel A and
Channel B can be listened to on the wired headphones (not included)
or on the infrared (IR) wireless headphones.
•On the wireless headphones, select the Channel A or Channel B
buttons on each pair of wireless headphones.
•Press MEDIA to change the audio source for the Channel A or
Channel B headphones. (This information will display on the DVD
system screen).
Note:Channel B headphones can only listen to either the DVD media,
Monitor A or the DVD system auxiliary inputs. Channel A headphones
have access to all available media sources.
Entertainment Systems
79
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

4. Press/to chose from Sharpness, Brightness, contrast, color
(gamma), hue, saturation and luma-delay.
General setup — screen exit
To exit the setup screen:
1. Press
/to ’highlight’ the
“X” icon. (A disc will appear
beneath the icon signifying it is the
current selection.)
2. Press ENTER on the remote
control.
Parental control for the DVD system
Your Family Entertainment System (FES) allows you to have control
over the rear seat controls in a few different ways. The DVD system is
automatically activated when the vehicle ignition is on, which allows the
rear seat passengers to use the DVD system.
There are two levels of control of the FES buttons. The states are FULL
(enabled), or LOCKED (disabled). To change the level of control, press
the memory preset controls 3 and 5 simultaneously on the front audio
controls. The control level will cycle each time the buttons are pressed
simultaneously. The three states are described as:
FULL(enabled): The FES has control over the primary (speaker) and
secondary (headphone) audio sources.
LOCKED(disabled): The FES buttons are locked and all FES button
presses are ignored by the radio and the FES except for load and eject.
When the DVD system is ON, you can then press the memory preset
controls 2 and 4 simultaneously to toggle between Single Play and Dual
Play. In Single Play mode, all speakers listen to the same media. In Dual
Play mode, rear seat passengers can use the infrared wireless, or wired
(not included) headphones to listen to a different playing media than the
front seat passengers.
Entertainment Systems
84
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Automatic dimming interior rear view mirror
Your vehicle is equipped with an interior rear view mirror which has an
auto-dimming function. The electronic day/night mirror will change from
the normal (high reflective) state to the non-glare (darkened) state
when bright lights (glare) reach the mirror. When the mirror detects
bright light from behind the vehicle, it will automatically adjust (darken)
to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory mirrors (if equipped)
The power side view mirror positions are saved when doing a memory
set and can be recalled using the memory feature. Refer toSeatsin the
Seating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Driver Controls
120
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

WARNING:Never adjust the accelerator and brake pedal with
feet on the pedals while the vehicle is moving.
Memory feature (if equipped)
The accelerator and brake pedal positions are saved when doing a
memory set function and can be recalled along with the vehicle
personality features when a memory position is selected through the
remote entry transmitter, keyless entry keypad or memory switch on the
driver’s door (if equipped with memory feature). Refer toSeatsin the
Seating and Safety Restraintschapter.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Using speed control
The speed controls are located on the steering wheel. The following
buttons work with speed control:
RESUME:Press to resume a set
speed.
SET +:Press to increase the set
speed.
SET–:Press to decrease the set
speed.
OFF/ON:Press to turn speed
control off or on.
Setting speed control
To set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
3. Press and release SET + or SET -.
4. Take your foot off the accelerator pedal.
Driver Controls
122
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

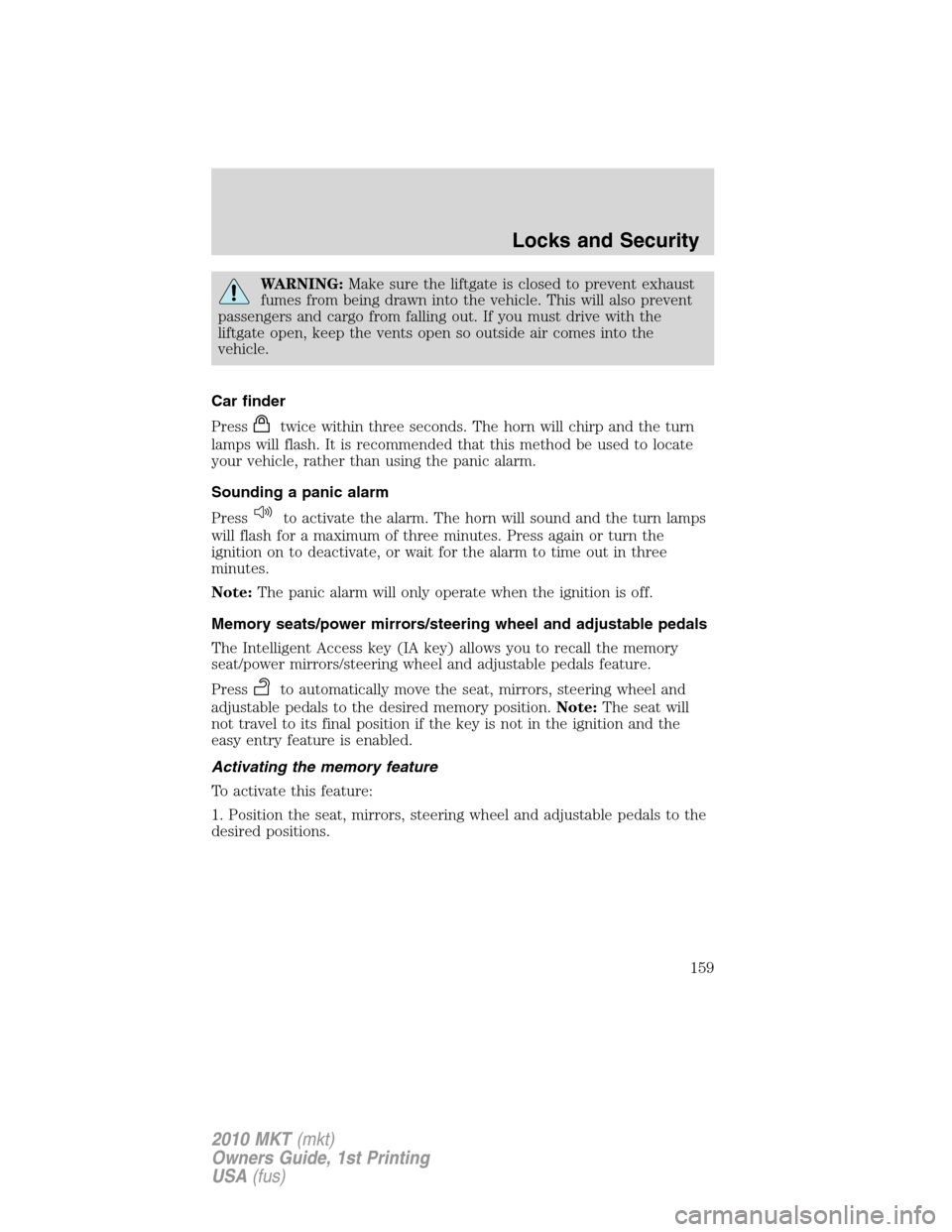

WARNING:Make sure the liftgate is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents open so outside air comes into the
vehicle.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition on to deactivate, or wait for the alarm to time out in three
minutes.
Note:The panic alarm will only operate when the ignition is off.
Memory seats/power mirrors/steering wheel and adjustable pedals
The Intelligent Access key (IA key) allows you to recall the memory
seat/power mirrors/steering wheel and adjustable pedals feature.
Press
to automatically move the seat, mirrors, steering wheel and
adjustable pedals to the desired memory position.Note:The seat will
not travel to its final position if the key is not in the ignition and the
easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat, mirrors, steering wheel and adjustable pedals to the
desired positions.
Locks and Security
159
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

SECURICODE™ KEYLESS ENTRY SYSTEM
The keypad, located near the driver’s window, is invisible until touched
and then it lights up so you can see and touch the appropriate buttons.
Note:If you enter your entry code too fast on the keypad, the unlock
function may not work. Re-enter your entry code more slowly.
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat/power mirrors
and adjustable pedals (if
equipped).
•enable or disable the autolock
and autounlock features
•activate Intelligent Access at the
driver door, refer toIntelligent
Accessin this chapter.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
Note:Your keypad will still function normally if you enter your personal
entry code or factory set code. However, if your transmitter is within
range of the driver’s door, an Intelligent Access unlock will also occur
each time you press any number on the keypad. Note that this additional
unlock will not impact keypad functionality, and you can still enter your
code and perform all keypad functions (unlock, lock, liftgate release).
Programming a personal entry code and keypad association to
memory seats, mirrors, and adjustable pedals
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds touch the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Locks and Security
163
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

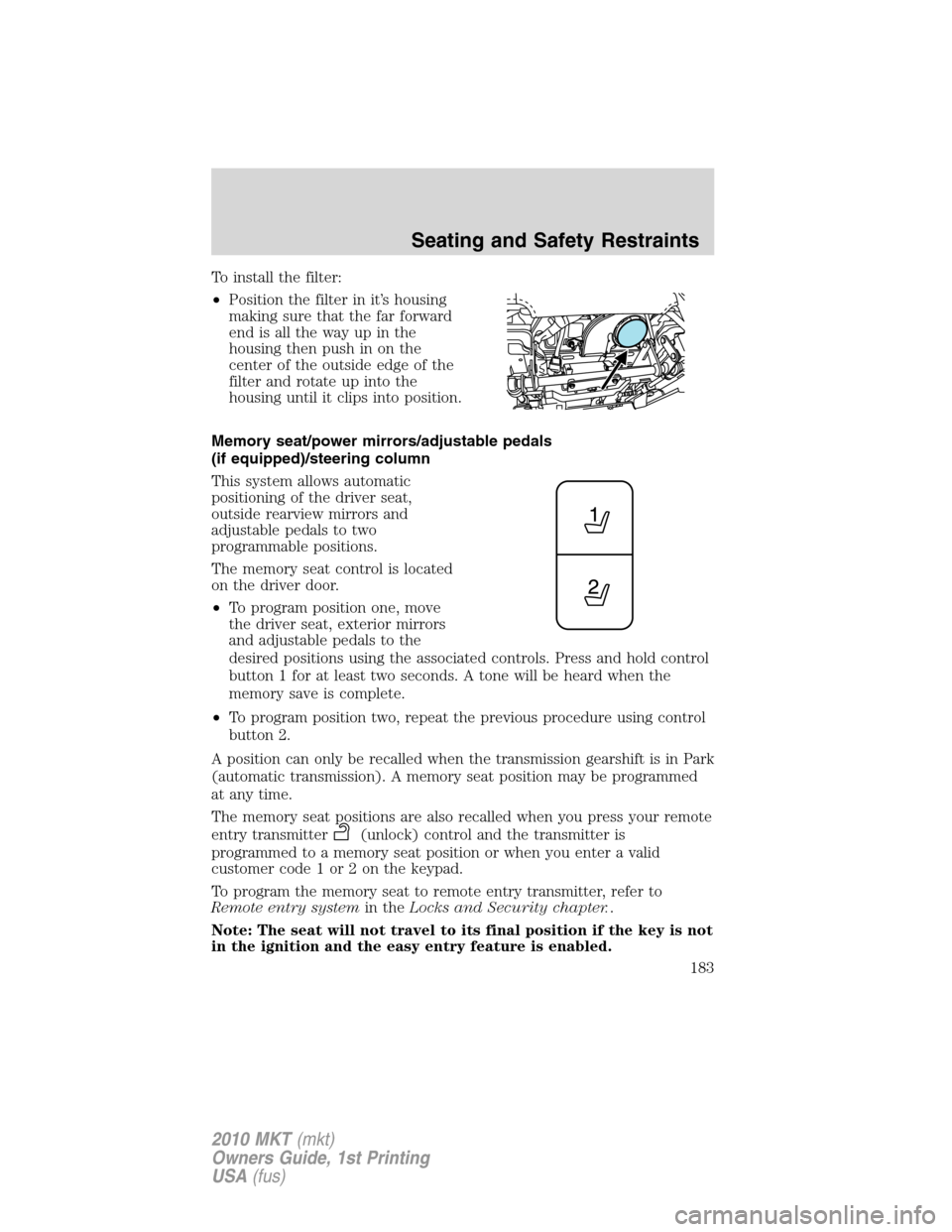

To install the filter:
•Position the filter in it’s housing
making sure that the far forward
end is all the way up in the
housing then push in on the
center of the outside edge of the
filter and rotate up into the
housing until it clips into position.
Memory seat/power mirrors/adjustable pedals
(if equipped)/steering column
This system allows automatic
positioning of the driver seat,
outside rearview mirrors and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move
the driver seat, exterior mirrors
and adjustable pedals to the
desired positions using the associated controls. Press and hold control
button 1 for at least two seconds. A tone will be heard when the
memory save is complete.
•To program position two, repeat the previous procedure using control
button 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter
(unlock) control and the transmitter is
programmed to a memory seat position or when you enter a valid
customer code 1 or 2 on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note: The seat will not travel to its final position if the key is not
in the ignition and the easy entry feature is enabled.
Seating and Safety Restraints
183
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive (AWD)
12 7.5A Intelligent access (IA)
13 5A Memory switches, IA receiver,
Exterior mirror switch, Steering
column position switch, Driver
seat module, Driver door module,
Keypad
14 10A Power liftgate module, SYNC
;
Rear entertainment
15 10A Climate control, Electronic finish
panel
16 15A Navigation display, ALM, Auxiliary
climate control
17 20A All power lock motor feeds,
Liftgate release
18 20A Amplifier
19 25A Amplifier
20 15A Data link connector, 2nd row
power fold seat motors
21 15A Fog lamps
22 15A Park lamps, License plate lamps,
Illuminated liftgate applique
23 15A High beam headlamps, Auto high
beam relay, Fog lamp deactivation
relay
24 20A Horn
Roadside Emergencies
330
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

automatic dimming rearview
mirror ......................................120
fold away .................................121
heated ................................89, 121
programmable memory ..........159
side view mirrors (power) .....120
Mobile media system ..................32
Moon roof ..................................133
Motorcraft
parts ..............374, 411
MyKey ........................................167
N
Navigation system .......................88
O
Octane rating ............................398
Oil (see Engine oil) ..................382
Overdrive ...................................295
P
Parental MyKey
programming .............................167
Park Assist ................................305
Parking brake ............................286
Parts
(see Motorcraft
parts) ...........411
Passenger Occupant
Classification Sensor .................199
Pedals (see Power adjustable
foot pedals) ...............................121
Playing a DVD in the system .....45
Power adjustable foot
pedals .................................121–122Power distribution box
(see Fuses) ...............................332
Power door locks ......................151
Power liftgate ............................144
Power mirrors ...........................120
Power point ...............................114
Power steering ..........................293
fluid, checking and adding ....407
fluid, refill capacity ................412
fluid, specifications .................412
Power Windows .........................117
Push button start system .........281
R
Radio ............................................32
Rear heated seats .....................193
Rear heated/cooled seats .........193
Rear seat entertainment
system ..........................................67
Rear view camera display ..........37
Rear-view camera system .........301
Recommendations for
attaching safety restraints for
children ......................................228
Refrigerator ...............................113
Relays ........................................327
Remote entry system .......156–157
illuminated entry ............161–162
locking/unlocking doors .........158
opening the trunk ...................158
panic alarm .............................159
replacement/additional
transmitters .............................161
replacing the batteries ...........160
Reverse sensing system ...........299
Index
428
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
