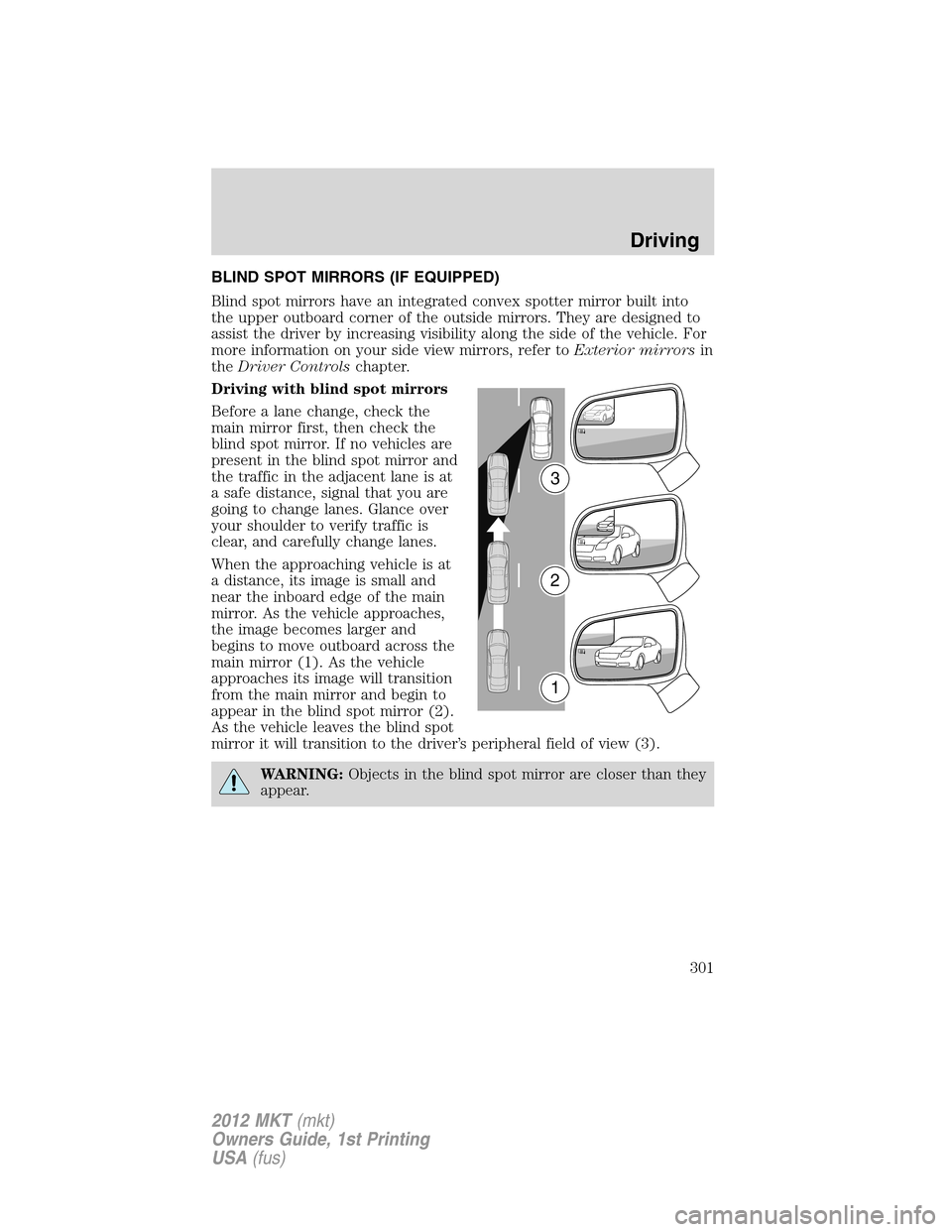

BLIND SPOT MIRRORS (IF EQUIPPED)
Blind spot mirrors have an integrated convex spotter mirror built into
the upper outboard corner of the outside mirrors. They are designed to
assist the driver by increasing visibility along the side of the vehicle. For
more information on your side view mirrors, refer toExterior mirrorsin
theDriver Controlschapter.
Driving with blind spot mirrors
Before a lane change, check the
main mirror first, then check the
blind spot mirror. If no vehicles are
present in the blind spot mirror and
the traffic in the adjacent lane is at
a safe distance, signal that you are
going to change lanes. Glance over
your shoulder to verify traffic is
clear, and carefully change lanes.
When the approaching vehicle is at
a distance, its image is small and
near the inboard edge of the main
mirror. As the vehicle approaches,
the image becomes larger and
begins to move outboard across the
main mirror (1). As the vehicle
approaches its image will transition
from the main mirror and begin to
appear in the blind spot mirror (2).
As the vehicle leaves the blind spot
mirror it will transition to the driver’s peripheral field of view (3).
WARNING:Objects in the blind spot mirror are closer than they
appear.
3
2
1
Driving
301
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

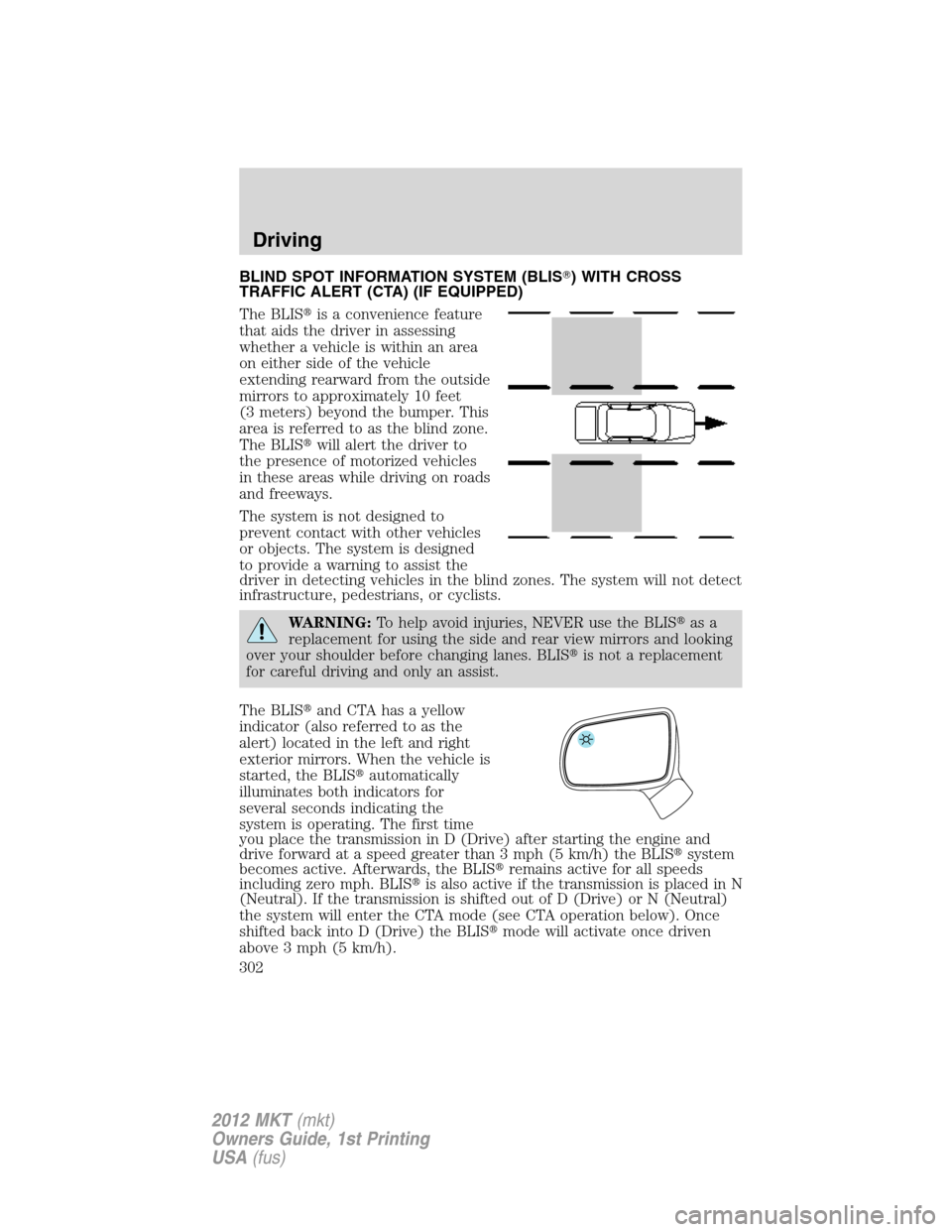

BLIND SPOT INFORMATION SYSTEM (BLIS) WITH CROSS
TRAFFIC ALERT (CTA) (IF EQUIPPED)
The BLISis a convenience feature
that aids the driver in assessing
whether a vehicle is within an area
on either side of the vehicle
extending rearward from the outside
mirrors to approximately 10 feet
(3 meters) beyond the bumper. This
area is referred to as the blind zone.
The BLISwill alert the driver to
the presence of motorized vehicles
in these areas while driving on roads
and freeways.
The system is not designed to
prevent contact with other vehicles
or objects. The system is designed
to provide a warning to assist the
driver in detecting vehicles in the blind zones. The system will not detect
infrastructure, pedestrians, or cyclists.
WARNING:To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking
over your shoulder before changing lanes. BLISis not a replacement
for careful driving and only an assist.
The BLISand CTA has a yellow
indicator (also referred to as the
alert) located in the left and right
exterior mirrors. When the vehicle is
started, the BLISautomatically
illuminates both indicators for
several seconds indicating the
system is operating. The first time
you place the transmission in D (Drive) after starting the engine and
drive forward at a speed greater than 3 mph (5 km/h) the BLISsystem
becomes active. Afterwards, the BLISremains active for all speeds
including zero mph. BLISis also active if the transmission is placed in N
(Neutral). If the transmission is shifted out of D (Drive) or N (Neutral)
the system will enter the CTA mode (see CTA operation below). Once
shifted back into D (Drive) the BLISmode will activate once driven
above 3 mph (5 km/h).
Driving
302
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

The BLISwill trigger the alert for vehicles that enter your blind zone
from the rear or merge into the blind zone from the side. Vehicles that
you pass, or a vehicle that enters the blind zone from the front, will
trigger the alert only after the vehicle is present in the blind zone for
three seconds.Note:For vehicles that pass through the blind zone
quickly, typically less than two seconds, the BLISwill not illuminate the
alert.
The BLISconsists of two radar
sensors each located rearward of
the rear wheels hidden behind the
bumper fascia. Do not place any
type of bumper sticker in this area.
Note:The BLIStypically will not
detect parked vehicles, humans,
animals, or infrastructure (fences,
guard rails, trees, etc.). The BLIS
does not function when the transmission is in R (Reverse) or P (Park).
The BLISdoes not provide any additional warning when your turn
signal is activated.
BLISdetection limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non-detection:
•Debris build-up on the rear quarter panel fascias
•Certain maneuvering of vehicles entering and exiting the blind zone
•Vehicles passing through the blind zone at very fast rates
•Severe weather conditions
•When several vehicles forming a convoy pass through the blind zone.
BLISFalse Alerts
Due to the nature of radar technology, there may be certain instances
when the BLISwill alert with no object present in the blind zone. This
is known as a false alert. Some level of false alerts are normal.
Circumstances that may cause a false alert are; guardrails, freeway
concrete walls, cyclone fencing, sharp turns around a pole or building, or
coming to a stop with a vehicle directly behind but very close. False
alerts are temporary and self correct.
Driving
303
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Cross traffic alert (CTA) system operation
The CTA system warns the driver of approaching vehicles when R
(Reverse) is selected and the vehicle is backing out of a front-in parking
spot. It sounds a series of tones and flashes the BLISindicator found on
the exterior mirror on the side of the approaching vehicle. Additionally,
the message center will display either, VEHICLE COMING FROM RIGHT
or VEHICLE COMING FROM LEFT to warn the driver from which
direction vehicles are approaching.
The system is not designed to prevent contact with other vehicles or
objects. The system is designed to provide a warning to assist the driver
in detecting vehicles in the blind zones. The system will not detect
infrastructure, pedestrians, or bicyclists.
WARNING:To help avoid personal injury, NEVER use the CTA
system as a replacement for using the side and rear view mirrors
and looking over your shoulder before backing out of a parking space.
CTA is not a replacement for careful driving and only an assist.
The CTA system detects vehicles approaching up to 45 feet (14 meters)
away. Coverage decreases when vehicles and objects in close proximity
block the CTA sensors (refer to figure for approximate zone coverage
areas[sensor obstructed for vehicle on left]). Backing slowly from
the parking spot in these situations helps to increase the sensor coverage
and effectiveness.
Driving
304
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

CTA coverage also decreases when parking at shallow angles (refer to
figure for approximate zone coverage areas[sensor obstructed for
vehicle on left]).
CTA detection limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non-detection:
•Debris build-up on the rear quarter panel fascias
•The rear quarter panel radar beams are obstructed or partially
obstructed by an adjacently parked vehicle or object.
•Approaching vehicles passing at speeds greater than 15 mph
(24 km/h)
•Severe weather conditions
•Driving in reverse faster than 3 mph (5 km/h)
•Backing out of an angled parking spot
CTA false alerts
Due to the nature of radar technology, there may be certain instances
when the BLISwill alert with no object present when backing up. This
is known as a false alert. Some level of false alerts are normal.
Circumstances that may cause a false alert when backing up are backing
out of a garage, backing into a parking space, and objects very close to
the sensor. False alerts are temporary and self correct.
Driving
305
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

CTA and reverse sensing system (RSS) interaction
CTA works along with the reverse sensing system (RSS) (if equipped).
Become familiar with the warning tones of both systems.
BLISand/or CTA on/off and disable operation
The BLISand/or the CTA can be turned off via the message center. If
either the BLISand/or the CTA is turned off, the systems will
automatically turn back on at the next ignition key cycle. When either
the BLISand/or the CTA is turned off, the message center displays
BLIND SPOT SYS OFF and/or CTA SYSTEM OFF. When the BLIS
and/or the CTA system is off, the driver will not receive alerts. Refer to
Message centerin theInstrument Clusterchapter.
Note:If the system cannot be turned off, refer toMyKeyin theLocks
and Securitychapter for more information.
The BLISand/or the CTA can be disabled permanently even after an
ignition key cycle. This must be done by your authorized dealer.Note:
Once either of the systems are disabled, enabling must also be performed
at the dealership. When disabled, the message center will display BLIND
SPOT DISABLED and/or CTA DISABLED.
BLISand/or CTA fault operation
If the BLISand/or CTA senses a fault on either the left or right sensor,
the BLISalert indicator will go on and remain on and the message center
will display BLIND SPOT SYSTEM FAULT or CROSS TRAFFIC SYSTEM
FAULT. For faults that may cause the associated left or right alert indicator
not to illuminate, only the message center faults will occur.
Blocked sensor
An extreme build-up of materials on
the quarter panel fascias such as
mud or snow can cause degraded
performance of the BLIS. Also,
heavy rain can cause the same
effect. The BLIScan detect this
degraded performance and issue a
blocked warning to the driver via
the message center. If a condition is determined by the system, the
message center displays BLIND SPOT NOT AVAILABLE or CROSS
TRAFFIC NOT AVAILABLE warning and the appropriate left and/or right
exterior mirror alert indicator will illuminate. The message center
warning may be cleared by the driver but the exterior mirror alert
indicator will remain illuminated.
Driving
306
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once the blockage is removed, the system will require some driving time
and detection of at least two vehicle objects prior to resetting or the
driver can cycle the ignition key. If, however, blockage is still present
after the key cycle, the system will sense again that it is blocked after
driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the radar is dirty or
obstructed in some wayClean the fascia area in front of
the radar, either side, or remove
obstruction.
The surface of the radar is not
dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to
detect that it is no longer blocked.
Note:The vehicle must be in D
(Drive) and a few vehicles must
pass so that the BLIScan clear a
blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically reset
to an unblocked state once the
rainfall/snowfall rate decreases or
stops. Do not use BLISand/or
CTA in heavy rainfall or heavy
snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self clear or clear after a
key cycle.
Driving
307
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Trailer tow false alerts
When towing a trailer, the sensors may detect the trailer thus causing a
false alert. It may be desirable to turn the BLISoff if the false alerts
become annoying.
Day and night brightness
The BLISand/or CTA alert will automatically dim when the headlamp
switch is in PARK, ON, or AUTO ON and night time darkness has been
detected by the sun sensor.
ALL-WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a full-time all-wheel drive (AWD)
system. The AWD system is an active system, meaning it not only
responds to wheel slip between the front and rear axles but also has the
ability to anticipate wheel slip and transfer torque to the rear wheels
before slip occurs. The AWD system is active all the time and requires no
input from the operator.
All components of the AWD system are sealed for life and require no
maintenance.
Note:When an AWD system fault is present, the warningCHECK AWD
will display in the message center. The AWD system is not functioning
correctly and defaulted to front-wheel drive. When this warning is
displayed, have your vehicle serviced at an authorized dealer.
If your vehicle is equipped with AWD, a spare tire of a different size
other than the tire provided should never be used. If the spare tire is
installed, the AWD system may disable automatically and enter
front-wheel drive only mode to protect driveline components. This
condition may be indicated by anAWD OFFmessage in the message
center (seeMessage centersection in theInstrument Clusterchapter
for more information). If there is anAWD OFFmessage in the message
center from using the spare tire, this indicator should turn off after
reinstalling the repaired or replaced normal road tire and driving a short
distance. It is recommended to reinstall the repaired or replaced road
tire as soon as possible. Major dissimilar tire sizes between the front and
rear axles could cause the AWD system to stop functioning and default
to front-wheel drive or damage the AWD system.
Note:TheAWD OFFmessage may also be displayed in the message
center if the AWD system has overheated and defaulted to front-wheel
drive. This condition may occur if the vehicle was operated in extreme
conditions with excessive wheel slip, such as deep sand. To resume
normal AWD function as soon as possible, stop the vehicle in a safe
Driving
308
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

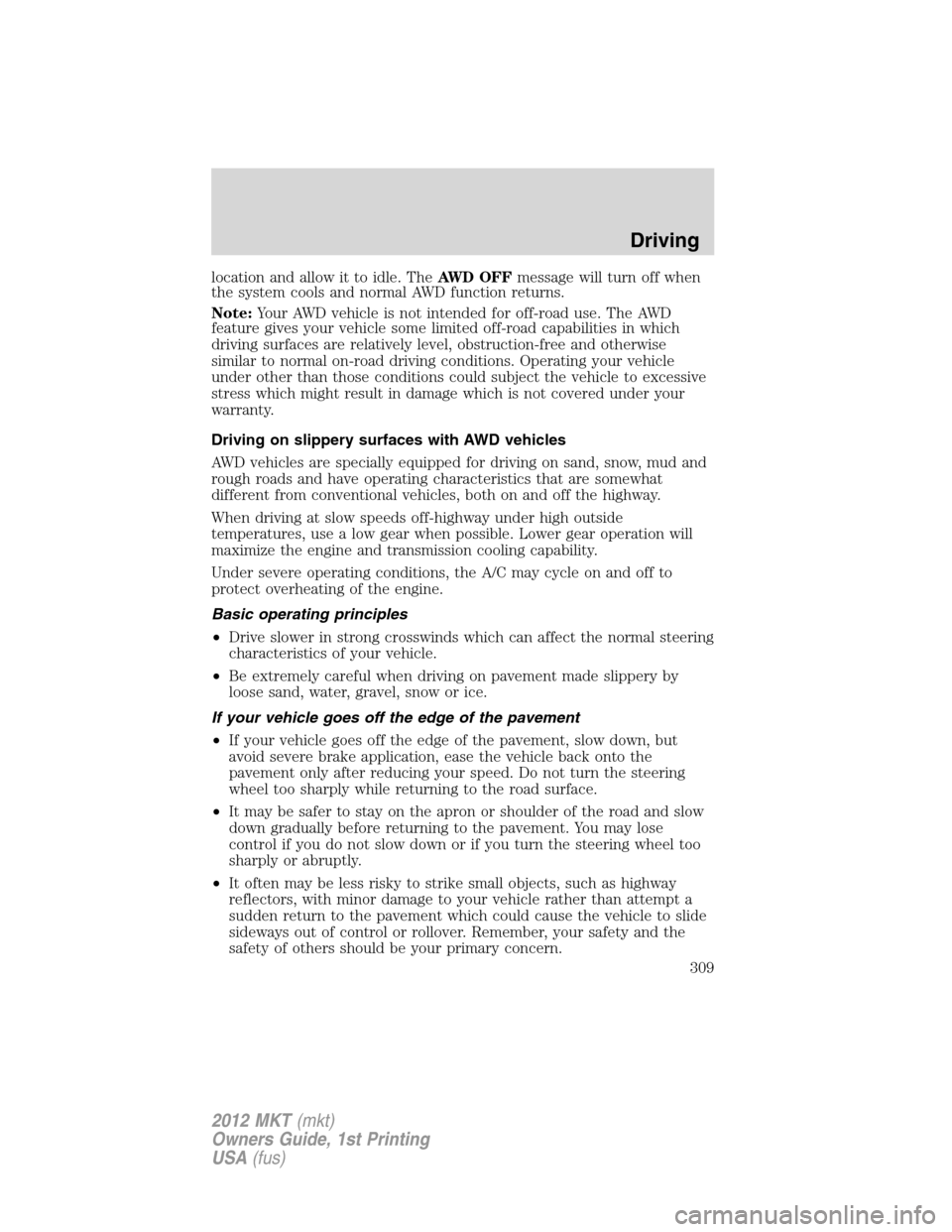

location and allow it to idle. TheAWD OFFmessage will turn off when
the system cools and normal AWD function returns.
Note:Your AWD vehicle is not intended for off-road use. The AWD
feature gives your vehicle some limited off-road capabilities in which
driving surfaces are relatively level, obstruction-free and otherwise
similar to normal on-road driving conditions. Operating your vehicle
under other than those conditions could subject the vehicle to excessive
stress which might result in damage which is not covered under your
warranty.
Driving on slippery surfaces with AWD vehicles
AWD vehicles are specially equipped for driving on sand, snow, mud and
rough roads and have operating characteristics that are somewhat
different from conventional vehicles, both on and off the highway.
When driving at slow speeds off-highway under high outside
temperatures, use a low gear when possible. Lower gear operation will
maximize the engine and transmission cooling capability.
Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
Basic operating principles
•Drive slower in strong crosswinds which can affect the normal steering
characteristics of your vehicle.
•Be extremely careful when driving on pavement made slippery by
loose sand, water, gravel, snow or ice.
If your vehicle goes off the edge of the pavement
•If your vehicle goes off the edge of the pavement, slow down, but
avoid severe brake application, ease the vehicle back onto the
pavement only after reducing your speed. Do not turn the steering
wheel too sharply while returning to the road surface.
•It may be safer to stay on the apron or shoulder of the road and slow
down gradually before returning to the pavement. You may lose
control if you do not slow down or if you turn the steering wheel too
sharply or abruptly.
•It often may be less risky to strike small objects, such as highway
reflectors, with minor damage to your vehicle rather than attempt a
sudden return to the pavement which could cause the vehicle to slide
sideways out of control or rollover. Remember, your safety and the
safety of others should be your primary concern.
Driving
309
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

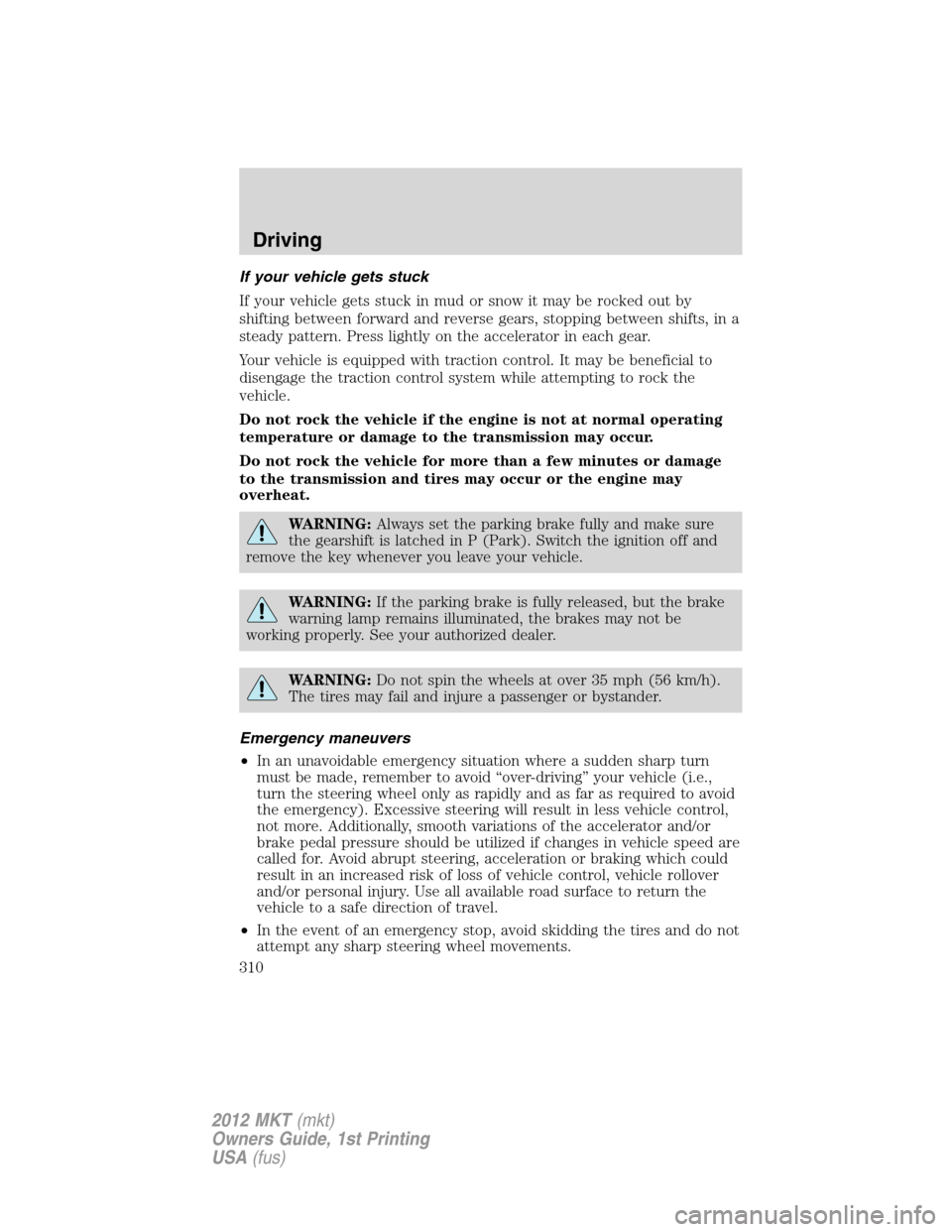

If your vehicle gets stuck
If your vehicle gets stuck in mud or snow it may be rocked out by
shifting between forward and reverse gears, stopping between shifts, in a
steady pattern. Press lightly on the accelerator in each gear.
Your vehicle is equipped with traction control. It may be beneficial to
disengage the traction control system while attempting to rock the
vehicle.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a few minutes or damage
to the transmission and tires may occur or the engine may
overheat.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Switch the ignition off and
remove the key whenever you leave your vehicle.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
WARNING:Do not spin the wheels at over 35 mph (56 km/h).
The tires may fail and injure a passenger or bystander.
Emergency maneuvers
•In an unavoidable emergency situation where a sudden sharp turn
must be made, remember to avoid “over-driving” your vehicle (i.e.,
turn the steering wheel only as rapidly and as far as required to avoid
the emergency). Excessive steering will result in less vehicle control,
not more. Additionally, smooth variations of the accelerator and/or
brake pedal pressure should be utilized if changes in vehicle speed are
called for. Avoid abrupt steering, acceleration or braking which could
result in an increased risk of loss of vehicle control, vehicle rollover
and/or personal injury. Use all available road surface to return the
vehicle to a safe direction of travel.
•In the event of an emergency stop, avoid skidding the tires and do not
attempt any sharp steering wheel movements.
Driving
310
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
