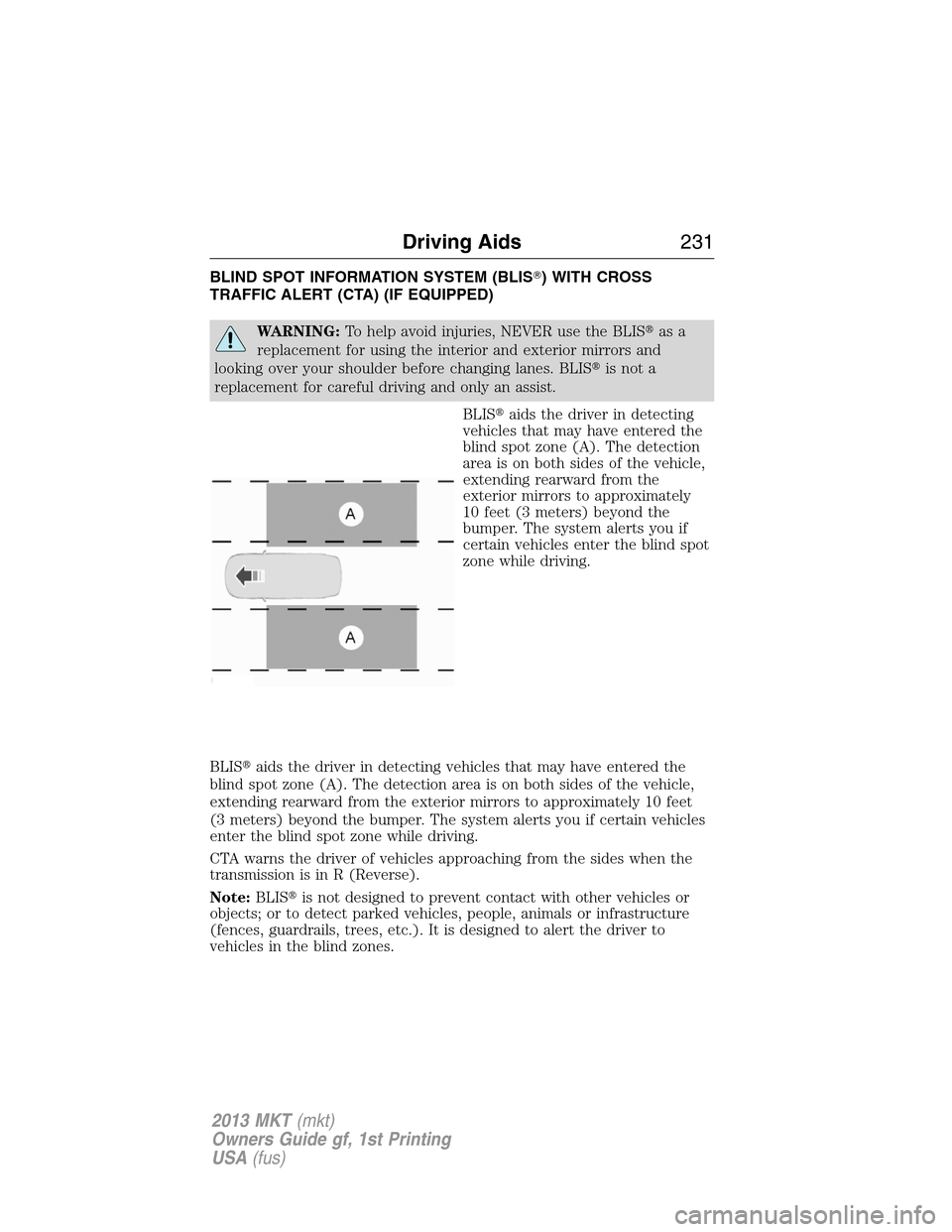

BLIND SPOT INFORMATION SYSTEM (BLIS) WITH CROSS
TRAFFIC ALERT (CTA) (IF EQUIPPED)
WARNING:To help avoid injuries, NEVER use the BLISas a
replacement for using the interior and exterior mirrors and
looking over your shoulder before changing lanes. BLISis not a
replacement for careful driving and only an assist.
BLISaids the driver in detecting
vehicles that may have entered the
blind spot zone (A). The detection
area is on both sides of the vehicle,
extending rearward from the
exterior mirrors to approximately
10 feet (3 meters) beyond the
bumper. The system alerts you if
certain vehicles enter the blind spot
zone while driving.
BLISaids the driver in detecting vehicles that may have entered the
blind spot zone (A). The detection area is on both sides of the vehicle,
extending rearward from the exterior mirrors to approximately 10 feet
(3 meters) beyond the bumper. The system alerts you if certain vehicles
enter the blind spot zone while driving.
CTA warns the driver of vehicles approaching from the sides when the
transmission is in R (Reverse).
Note:BLISis not designed to prevent contact with other vehicles or
objects; or to detect parked vehicles, people, animals or infrastructure
(fences, guardrails, trees, etc.). It is designed to alert the driver to
vehicles in the blind zones.
Driving Aids231
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

Note:When a vehicle passes quickly through the blind zone (typically
fewer than two seconds), the system does not trigger.
Using the Systems
BLISturns on when the engine is started and the vehicle is driven
forward above 3 mph (5 km/h); it remains on while the transmission is in
D (Drive) and N (Neutral). If shifted out of D (Drive) or N (Neutral), the
system enters CTA mode. Once shifted back into D (Drive), BLISturns
back on when the vehicle is driven above 3 mph (5 km/h).
Note:BLISdoes not function in R (Reverse) or P (Park) or provide
any additional warning when a turn signal is on.
CTA detects approaching vehicles from up to 45 feet (14 meters) away
though coverage decreases when the sensors are blocked. Reversing
slowly helps increase the coverage area and effectiveness.
WARNING:To help avoid personal injury, NEVER use the CTA
system as a replacement for using the interior and exterior
mirrors and looking over your shoulder before backing out of a parking
space. CTA is not a replacement for careful driving and only an assist.
In this first example, the left sensor is only partially obstructed; zone
coverage is nearly maximized.
232Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

Zone coverage also decreases when parking at shallow angles. Here, the
left sensor is mostly obstructed; zone coverage on that side is severely
limited.
System Lights and Messages
The BLISand CTA systems
illuminate a yellow alert indicator in
the outside mirror on the side of the
vehicle the approaching vehicle is
coming from.
Note:The alert indicator dims when the headlamp switch is not in the
off position and nighttime darkness is detected.
CTA also sounds a series of tones and a message appears in the
information display indicating a vehicle is coming from the right or left.
CTA works with the reverse sensing system which sounds its own series
of tones; see theParking Aidschapter.
Driving Aids233
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

System Sensors
WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Note:It is possible to get a blockage warning with no blockage present;
this is rare and known as a false blockage warning. A false blocked
condition either self-corrects or clears after a key cycle.
The system uses radar sensors
which are located behind the
bumper fascia on each side of the
vehicle. Do not allow these areas to
become obstructed by mud, snow or
bumper stickers, as this can cause
degraded system performance.
If the system detects a degraded
performance condition,BLIND
SPOT NOT AVAILABLE,or
CROSS TRAFFIC NOT
AVAILABLEappear in the information display and the alert indicator
illuminates in the appropriate mirror(s). The information display warning
can be cleared but the alert indicator remains illuminated.
When the blockage is removed, the system can be reset in two ways: 1)
when at least two objects are detected while driving, or 2) turn the ignition
key from on to off, then back on. If the blockage is still present after the
key cycle, the system senses again that it is blocked after driving in traffic.
Reasons for messages being displayed
The radar surface is
dirty or obstructedClean the fascia area in front of the radar or
remove the obstruction.
The radar surface is
not dirty or obstructedDrive normally in traffic for a few minutes to
allow the radar to detect passing vehicles so it
can clear the blocked state.
Heavy rainfall/snowfall
interferes with the
radar signalsNo action required. The system automatically
resets to an unblocked state once the
rainfall/snowfall rate decreases or stops. Do
not use BLISand/or CTA in these conditions.
234Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

System Limitations
The BLISand CTA systems do have their limitations; situations such as
severe weather conditions or debris build-up on the sensor area may
limit vehicle detection.
The following are other situations that may limit the BLIS:
•Certain maneuvering of vehicles entering and exiting the blind zone.
•Vehicles passing through the blind zone at very fast rates.
•When several vehicles forming a convoy pass through the blind zone.
The following are other situations that may limit the CTA system:
•Adjacently parked vehicles or objects obstructing the sensors.
•Approaching vehicles passing at speeds greater than 15 mph
(24 km/h).
•Driving in reverse faster than 3 mph (5 km/h).
•Backing out of an angled parking spot.
False Alerts
Note:When towing a trailer, the sensors detect may detect the trailer,
causing a false alert. You may want to turn the BLISoff if the false
alerts become annoying.
There may be certain instances when either the BLISor CTA systems
illuminate the alert indicator with no vehicle in the coverage zone; this is
known as a false alert. Some amount of false alerts are normal; they are
temporary and self-correct.
System Errors
If either system senses a problem with the left or right sensor, the BLIS
indicator illuminates and remains on andBLIND SPOT SYSTEM
FAULTorCROSS TRAFFIC SYSTEM FAULTappears in the
information display. When problems that may cause the left or right
indicator not to illuminate, only the information display faults appear.
Switching the Systems Off and On
One or both systems can be switched off temporarily by using the
information display control; refer to theInformation Displaychapter.
When the BLISis switched off, the driver does not receive alerts and
the information display shows BLIND SPOT SYS OFF and/or CTA
SYSTEM OFF. The system switches back on whenever the ignition is
switched on.
Driving Aids235
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

One or both systems can also be switched off permanently at your
authorized dealer. Once switched off, switching it back on must also be
done at the dealership. When switched off, the information display shows
BLIND SPOT DISABLED and/or CTA DISABLED.

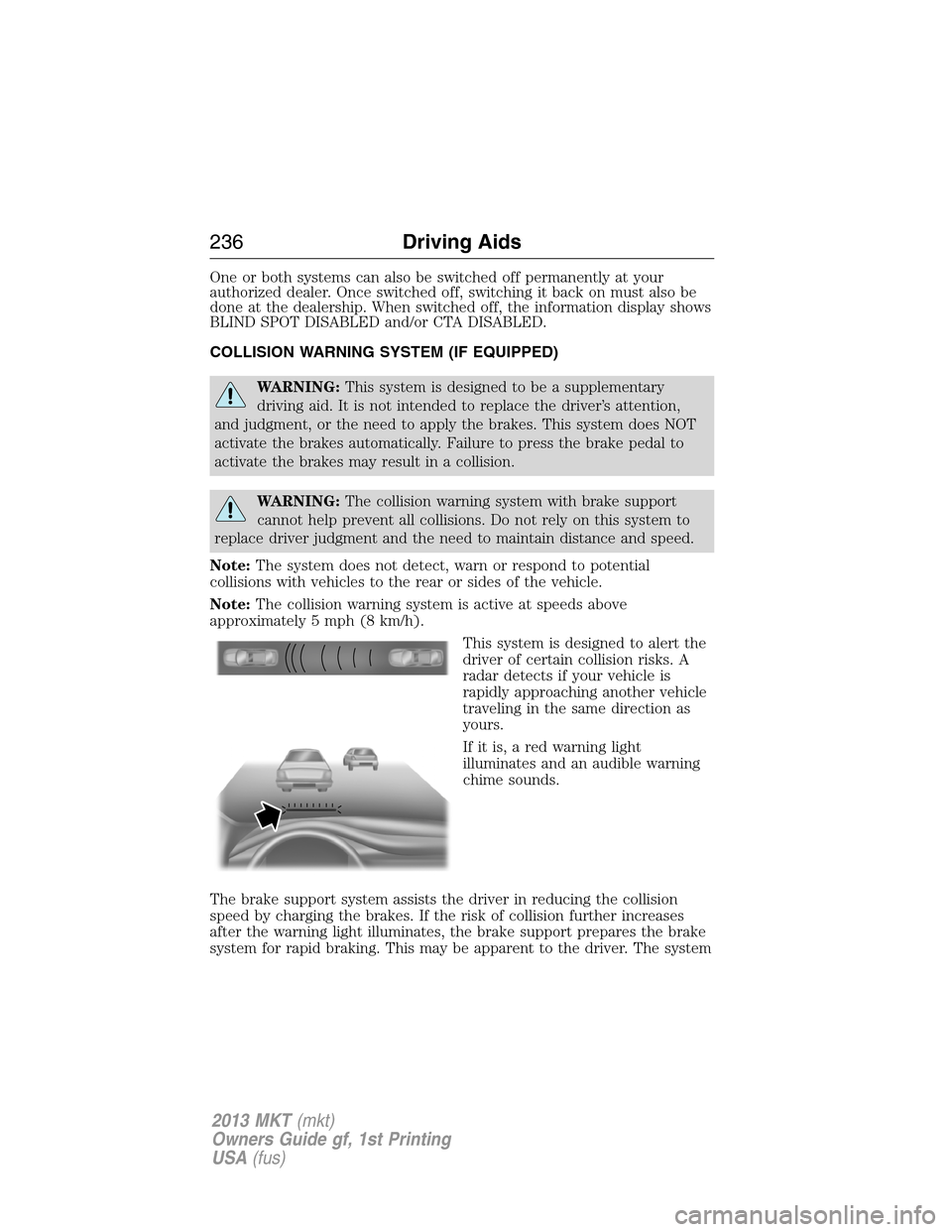

COLLISION WARNING SYSTEM (IF EQUIPPED)
WARNING:This system is designed to be a supplementary
driving aid. It is not intended to replace the driver’s attention,
and judgment, or the need to apply the brakes. This system does NOT
activate the brakes automatically. Failure to press the brake pedal to
activate the brakes may result in a collision.
WARNING:The collision warning system with brake support
cannot help prevent all collisions. Do not rely on this system to
replace driver judgment and the need to maintain distance and speed.
Note:The system does not detect, warn or respond to potential
collisions with vehicles to the rear or sides of the vehicle.
Note:The collision warning system is active at speeds above
approximately 5 mph (8 km/h).
This system is designed to alert the
driver of certain collision risks. A
radar detects if your vehicle is
rapidly approaching another vehicle
traveling in the same direction as
yours.
If it is, a red warning light
illuminates and an audible warning
chime sounds.
The brake support system assists the driver in reducing the collision
speed by charging the brakes. If the risk of collision further increases
after the warning light illuminates, the brake support prepares the brake
system for rapid braking. This may be apparent to the driver. The system
236Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

does not automatically activate the brakes but, if the brake pedal is
pressed, full force braking is applied even if the brake pedal is lightly
pressed.
Using the Collision Warning System
WARNING:The collision warning system’s brake support can
only help reduce the speed at which a collision occurs if the
driver applies the vehicle’s brakes. The brake pedal must be pressed
just like any typical braking situation.
The warning system and chime can be turned on and off separately; the
warning system sensitivity can be adjusted to one of three possible
settings by using the information display control. Refer to the
Information Displayschapter.
Note:If the system cannot be turned off in a vehicle equipped with
MyKey, refer to theMyKeychapter.
Note:If collision warnings are perceived as being too frequent or
disturbing then the warning sensitivity can be reduced, though the
manufacturer recommends using the highest sensitivity setting where
possible. Setting lower sensitivity would lead to fewer and later system
warnings. Refer to theInformation Displayschapter for instructions on
reducing the sensitivity.
Blocked Sensors
If a message regarding a blocked
sensor appears in the information
display, the radar signals from the
sensor have been obstructed. The
sensors are located behind a fascia
cover near the driver side of the
lower grille. When the sensors are
obstructed, a vehicle ahead cannot
be detected and the collision warning system does not function. The
following table lists possible causes and actions for this message being
displayed.
Driving Aids237
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

Cause Action
The surface of the radar in the
grille is dirty or obstructed in
some wayClean the grille surface in front of
the radar or remove the object
causing the obstruction
The surface of the radar in the
grille is clean but the message
remains in the displayWait a short time. It may take
several minutes for the radar to
detect that it is no longer
obstructed
Heavy rain, spray, snow, or fog is
interfering with the radar signalsThe collision warning system is
temporarily disabled. Collision
warning should automatically
reactivate a short time after the
weather conditions improve.
Swirling water, or snow or ice on
the surface of the road may
interfere with the radar signalsThe collision warning system is
temporarily disabled. Collision
warning should automatically
reactivate a short time after the
weather conditions improve.
System Limitations
WARNING:The collision warning system’s brake support can
only help reduce the speed at which a collision occurs if the
driver applies the vehicle’s brakes. The brake pedal must be pressed
just like any typical braking situation.
Due to the nature of radar technology, there may be certain instances
where vehicles do not provide a collision warning. These include:
•Stationary vehicles or vehicles moving below 6 mph (10 km/h).
•Pedestrians or objects in the roadway.
•Oncoming vehicles in the same lane.
•Severe weather conditions (see blocked sensor section).
•Debris build-up on the grille near the headlamps (see blocked sensor
section).
•Small distance to vehicle ahead.
•Steering wheel and pedal movements are large (very active driving
style).
238Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

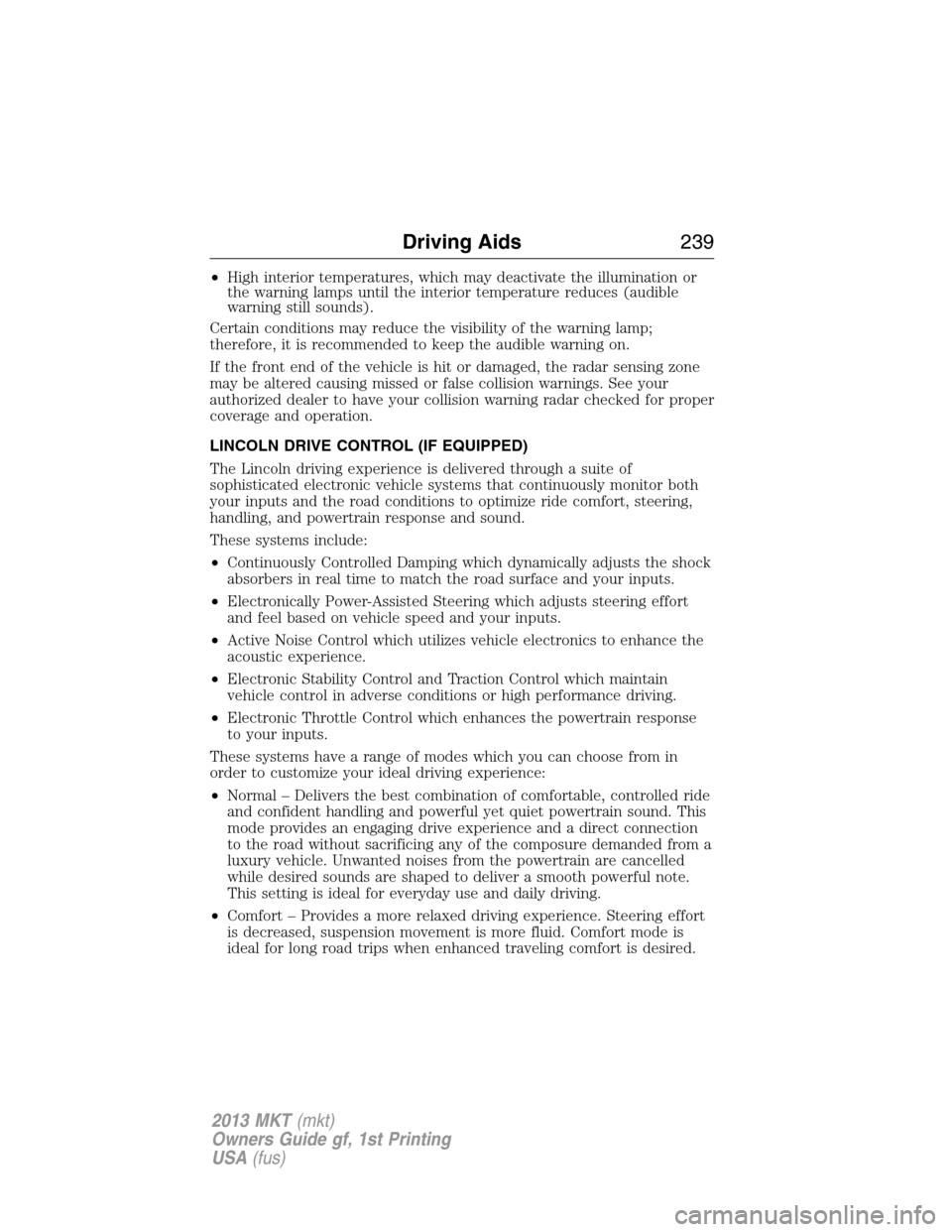

•High interior temperatures, which may deactivate the illumination or
the warning lamps until the interior temperature reduces (audible
warning still sounds).
Certain conditions may reduce the visibility of the warning lamp;
therefore, it is recommended to keep the audible warning on.
If the front end of the vehicle is hit or damaged, the radar sensing zone
may be altered causing missed or false collision warnings. See your
authorized dealer to have your collision warning radar checked for proper
coverage and operation.
LINCOLN DRIVE CONTROL (IF EQUIPPED)
The Lincoln driving experience is delivered through a suite of
sophisticated electronic vehicle systems that continuously monitor both
your inputs and the road conditions to optimize ride comfort, steering,
handling, and powertrain response and sound.
These systems include:
•Continuously Controlled Damping which dynamically adjusts the shock
absorbers in real time to match the road surface and your inputs.
•Electronically Power-Assisted Steering which adjusts steering effort
and feel based on vehicle speed and your inputs.
•Active Noise Control which utilizes vehicle electronics to enhance the
acoustic experience.
•Electronic Stability Control and Traction Control which maintain
vehicle control in adverse conditions or high performance driving.
•Electronic Throttle Control which enhances the powertrain response
to your inputs.
These systems have a range of modes which you can choose from in
order to customize your ideal driving experience:
•Normal – Delivers the best combination of comfortable, controlled ride
and confident handling and powerful yet quiet powertrain sound. This
mode provides an engaging drive experience and a direct connection
to the road without sacrificing any of the composure demanded from a
luxury vehicle. Unwanted noises from the powertrain are cancelled
while desired sounds are shaped to deliver a smooth powerful note.
This setting is ideal for everyday use and daily driving.
•Comfort – Provides a more relaxed driving experience. Steering effort
is decreased, suspension movement is more fluid. Comfort mode is
ideal for long road trips when enhanced traveling comfort is desired.
Driving Aids239
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

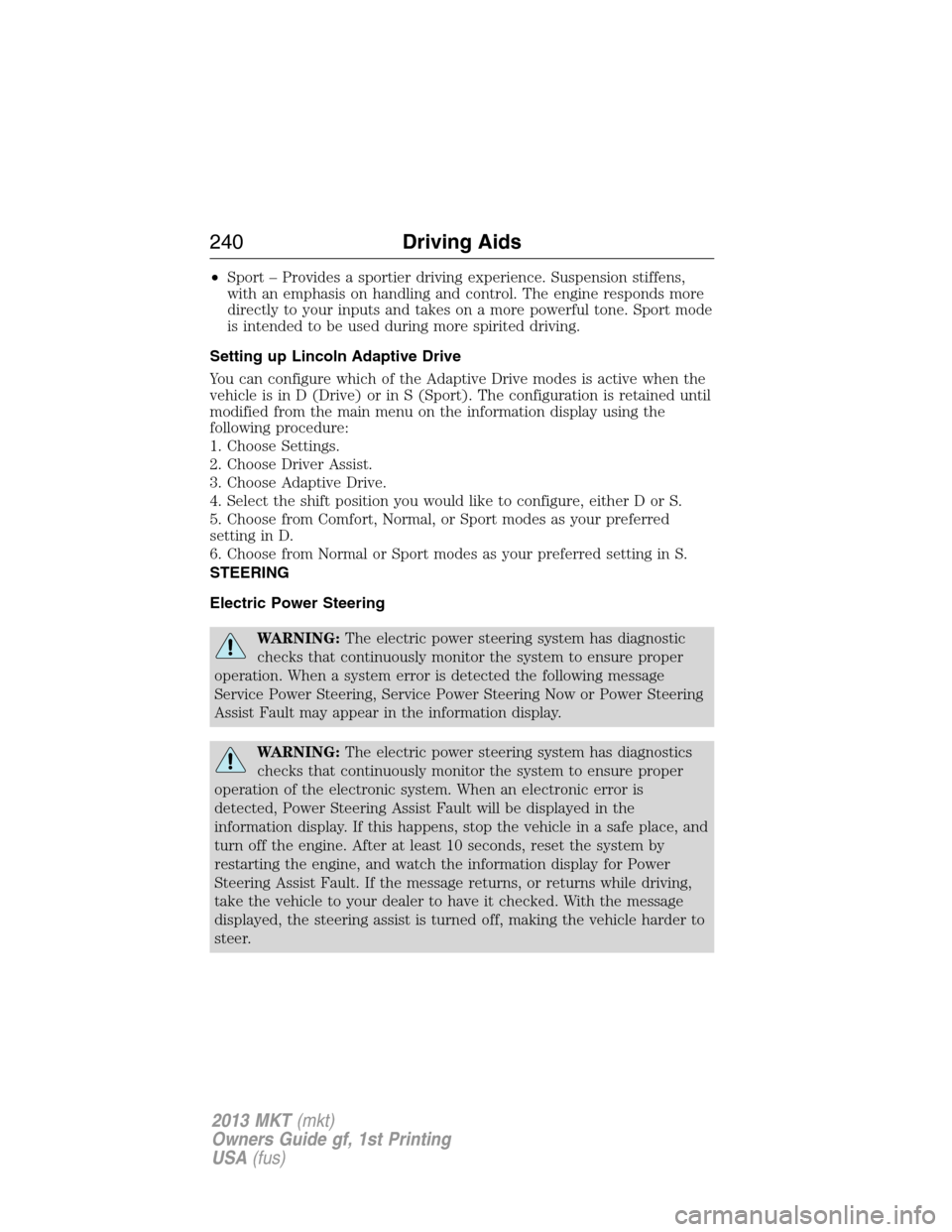

•Sport – Provides a sportier driving experience. Suspension stiffens,
with an emphasis on handling and control. The engine responds more
directly to your inputs and takes on a more powerful tone. Sport mode
is intended to be used during more spirited driving.
Setting up Lincoln Adaptive Drive
You can configure which of the Adaptive Drive modes is active when the
vehicle is in D (Drive) or in S (Sport). The configuration is retained until
modified from the main menu on the information display using the
following procedure:
1. Choose Settings.
2. Choose Driver Assist.
3. Choose Adaptive Drive.
4. Select the shift position you would like to configure, either D or S.
5. Choose from Comfort, Normal, or Sport modes as your preferred
setting in D.
6. Choose from Normal or Sport modes as your preferred setting in S.
STEERING
Electric Power Steering
WARNING:The electric power steering system has diagnostic
checks that continuously monitor the system to ensure proper
operation. When a system error is detected the following message
Service Power Steering, Service Power Steering Now or Power Steering
Assist Fault may appear in the information display.
WARNING:The electric power steering system has diagnostics
checks that continuously monitor the system to ensure proper
operation of the electronic system. When an electronic error is
detected, Power Steering Assist Fault will be displayed in the
information display. If this happens, stop the vehicle in a safe place, and
turn off the engine. After at least 10 seconds, reset the system by
restarting the engine, and watch the information display for Power
Steering Assist Fault. If the message returns, or returns while driving,
take the vehicle to your dealer to have it checked. With the message
displayed, the steering assist is turned off, making the vehicle harder to
steer.
240Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
