LINCOLN MKT 2013 Owners Manual

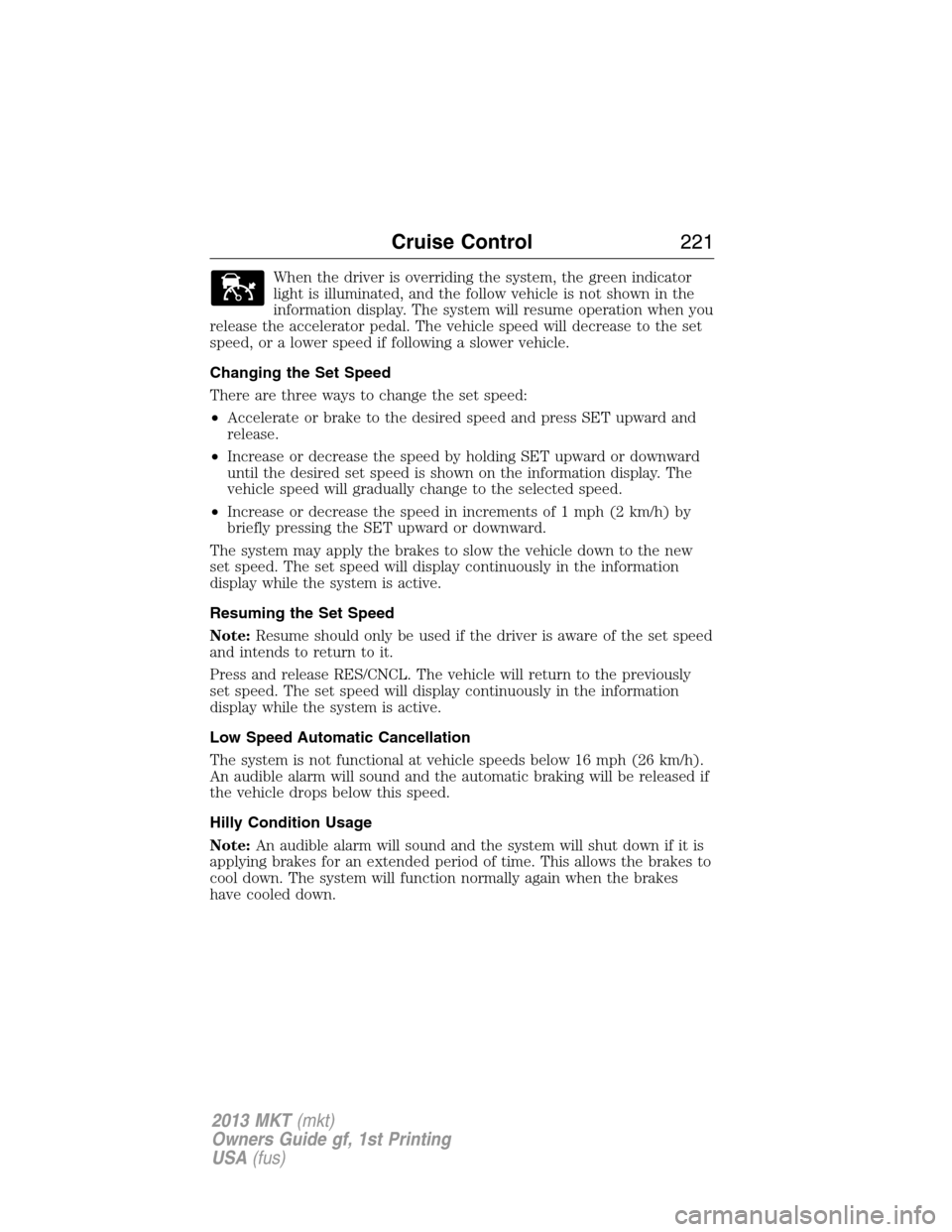

When the driver is overriding the system, the green indicator
light is illuminated, and the follow vehicle is not shown in the
information display. The system will resume operation when you
release the accelerator pedal. The vehicle speed will decrease to the set
speed, or a lower speed if following a slower vehicle.
Changing the Set Speed
There are three ways to change the set speed:
•Accelerate or brake to the desired speed and press SET upward and
release.
•Increase or decrease the speed by holding SET upward or downward
until the desired set speed is shown on the information display. The
vehicle speed will gradually change to the selected speed.
•Increase or decrease the speed in increments of 1 mph (2 km/h) by
briefly pressing the SET upward or downward.
The system may apply the brakes to slow the vehicle down to the new
set speed. The set speed will display continuously in the information
display while the system is active.
Resuming the Set Speed
Note:Resume should only be used if the driver is aware of the set speed
and intends to return to it.
Press and release RES/CNCL. The vehicle will return to the previously
set speed. The set speed will display continuously in the information
display while the system is active.
Low Speed Automatic Cancellation
The system is not functional at vehicle speeds below 16 mph (26 km/h).
An audible alarm will sound and the automatic braking will be released if
the vehicle drops below this speed.
Hilly Condition Usage
Note:An audible alarm will sound and the system will shut down if it is
applying brakes for an extended period of time. This allows the brakes to
cool down. The system will function normally again when the brakes
have cooled down.
Cruise Control221
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

You should select a lower gear position when the system is active in
situations such as prolonged downhill driving on steep grades (i.e.,
driving in mountainous areas). Additional engine braking is needed in
these situations to reduce the load on the vehicle’s regular brake system
to prevent them from overheating.
Switching Off Adaptive Cruise Control
Note:The set speed memory is erased when you turn off the system.
Press and release OFF or turn off the ignition.
Detection Issues
The radar sensor has a limited field of vision. It may not detect vehicles
at all or detect a vehicle later than expected in some situations. The lead
vehicle graphic will not illuminate if a vehicle is not detected in front of
you.
Detection issues can occur:
A. When driving on a different line
than the vehicle in front.
B. With vehicles that edge into your
lane. These vehicles can only be
detected once they have moved fully
into your lane.
C. There may be issues with the
detection of vehicles in front when
driving into and coming out of a
bend or curve in the road.
In these cases the system may brake late or unexpectedly. The driver
should stay alert and intervene when necessary.
222Cruise Control
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

If the front end of the vehicle is hit or damaged, the radar sensing zone
may be altered causing missed or false vehicle detections. See your
authorized dealer to have the radar checked for proper coverage and
operation.
Adaptive Cruise Control Not Available
Several conditions exist which can cause the system to deactivate or
prevent the system from activating when requested. These conditions
include:
•a blocked sensor
•high brake temperature
•a failure in the system or a related system.
Blocked Sensor
WARNING:Do not use ACC when towing a trailer with brake
controls. Aftermarket trailer brakes will not function properly
when ACC is activated because the brakes are electronically controlled.
Failing to do so may result in loss of vehicle control, which could result
in serious injury.
WARNING:Do not use tires sizes other than those
recommended because this can affect the normal operation of
ACC. Failing to do so may result in a loss of vehicle control, which
could result in serious injury.
A message regarding a blocked
sensor is displayed if the radar
signals from the sensor have been
obstructed. The sensor is located
behind a fascia cover near the driver
side of the lower grille. A vehicle
ahead cannot be detected and the
system will not function when the
radar signals are obstructed. The following table lists possible causes and
actions for this message being displayed.
Cruise Control223
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

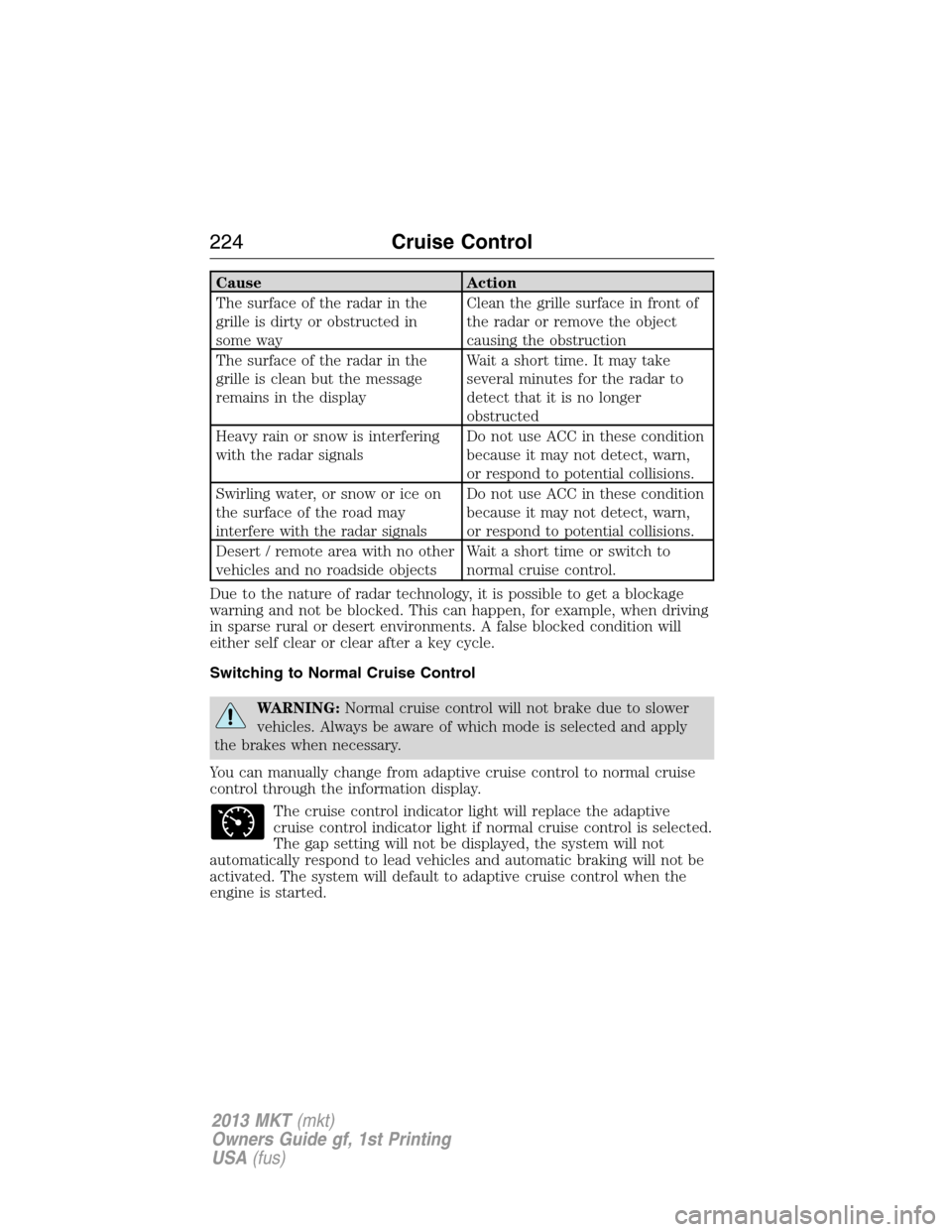

Cause Action
The surface of the radar in the
grille is dirty or obstructed in
some wayClean the grille surface in front of
the radar or remove the object
causing the obstruction
The surface of the radar in the
grille is clean but the message
remains in the displayWait a short time. It may take
several minutes for the radar to
detect that it is no longer
obstructed
Heavy rain or snow is interfering
with the radar signalsDo not use ACC in these condition
because it may not detect, warn,
or respond to potential collisions.
Swirling water, or snow or ice on
the surface of the road may
interfere with the radar signalsDo not use ACC in these condition
because it may not detect, warn,
or respond to potential collisions.
Desert / remote area with no other
vehicles and no roadside objectsWait a short time or switch to
normal cruise control.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This can happen, for example, when driving
in sparse rural or desert environments. A false blocked condition will
either self clear or clear after a key cycle.
Switching to Normal Cruise Control
WARNING:Normal cruise control will not brake due to slower
vehicles. Always be aware of which mode is selected and apply
the brakes when necessary.
You can manually change from adaptive cruise control to normal cruise
control through the information display.
The cruise control indicator light will replace the adaptive
cruise control indicator light if normal cruise control is selected.
The gap setting will not be displayed, the system will not
automatically respond to lead vehicles and automatic braking will not be
activated. The system will default to adaptive cruise control when the
engine is started.
224Cruise Control
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

DRIVER ALERT (IF EQUIPPED)
WARNING:The driver alert system is designed to aid you. It is
not intended to replace your attention and judgment. You are still
responsible to drive with due care and attention.
Note:The system will store the on/off setting in the information display
menu through ignition cycles.
Note:If enabled in the menu, the system will be active above the
40 mph (64 km/h).
Note:The system works as long as one lane marking can be detected by
the camera.
Note:If the camera is blocked or if the windshield is damaged, the
system may not function.
Note:The system may not be available in poor weather or other low
visibility conditions.
The system automatically monitors your driving behavior using various
inputs including the front camera sensor.
If the system detects that your driving alertness is reduced below a
certain threshold, the system will alert you using a chime and a message
in the cluster display
Switching the System On and Off
By default, the system is enabled. You may disable or re-enable the
system by selecting Setting then Driver Assist then Driver Alert in the
menu. When activated, the system will monitor your alertness level based
upon your driving behavior in relation to the lane markings, and other
factors.
System Warnings
Note:The system will not issue warnings below approximately 40 mph
(65 km/h).
The warning system is in two stages. At first the system issues a
temporary warning that you need to take a rest. This message will only
appear for a short time. If the system detects further reduction in driving
alertness, another warning may be issued which will remain in the
information display for a longer time. Press OK on the steering wheel
control to clear the warning.
Driving Aids225
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

System Display
When active the system will run automatically in the background and
only issue warning if required. You can view the status at any time using
the information display.
Select Information then Driver Alert to show the status screen in the
information display.
The alertness level is shown by six steps in a colored bar.
The current assessment of your
alertness is within a typical range.
The current assessment of your
alertness indicates that you should
rest as soon as safely possible.
The status bar will travel from left to right as the calculated alertness
level decreases. As the rest icon is approached the color turns from
green to yellow to red. The yellow position represents the first warning is
active and the red position represents the second warning is active.
Note:If you have recently received a warning; you should consider
resting, even if the current assessment is with the typical range.
Note:The alertness level will be show in grey if the camera sensor
cannot track the road lane markings or if the vehicle speed drops below
approximately 40 mph (65 km/h).
Resetting the System
You can reset the system by either:
•Switching the ignition off and on.
•Stopping the vehicle and then opening and closing the driver’s door.
226Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

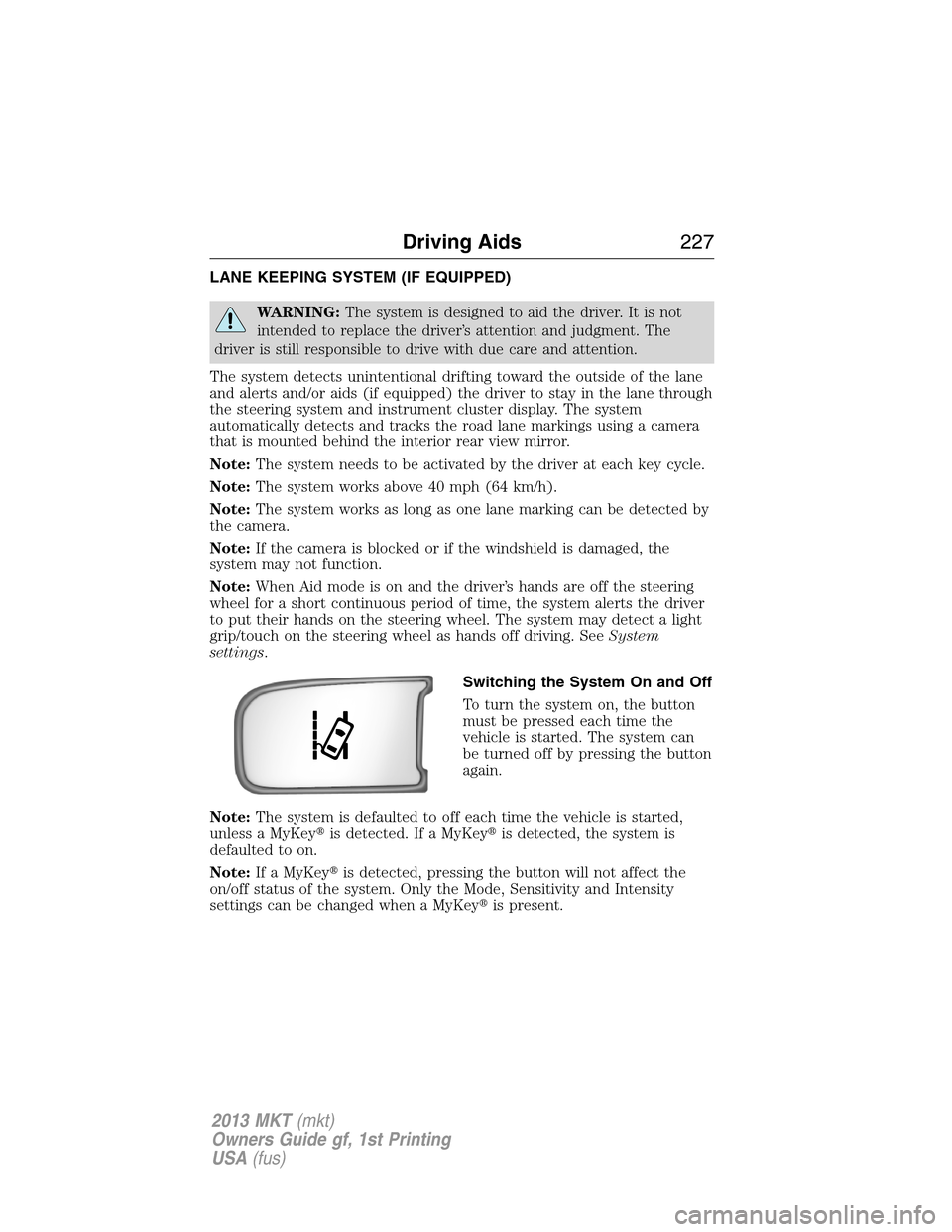

LANE KEEPING SYSTEM (IF EQUIPPED)
WARNING:The system is designed to aid the driver. It is not
intended to replace the driver’s attention and judgment. The
driver is still responsible to drive with due care and attention.
The system detects unintentional drifting toward the outside of the lane
and alerts and/or aids (if equipped) the driver to stay in the lane through
the steering system and instrument cluster display. The system
automatically detects and tracks the road lane markings using a camera
that is mounted behind the interior rear view mirror.
Note:The system needs to be activated by the driver at each key cycle.
Note:The system works above 40 mph (64 km/h).
Note:The system works as long as one lane marking can be detected by
the camera.
Note:If the camera is blocked or if the windshield is damaged, the
system may not function.
Note:When Aid mode is on and the driver’s hands are off the steering
wheel for a short continuous period of time, the system alerts the driver
to put their hands on the steering wheel. The system may detect a light
grip/touch on the steering wheel as hands off driving. SeeSystem
settings.
Switching the System On and Off
To turn the system on, the button
must be pressed each time the
vehicle is started. The system can
be turned off by pressing the button
again.
Note:The system is defaulted to off each time the vehicle is started,
unless a MyKeyis detected. If a MyKeyis detected, the system is
defaulted to on.
Note:If a MyKeyis detected, pressing the button will not affect the
on/off status of the system. Only the Mode, Sensitivity and Intensity
settings can be changed when a MyKeyis present.
Driving Aids227
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

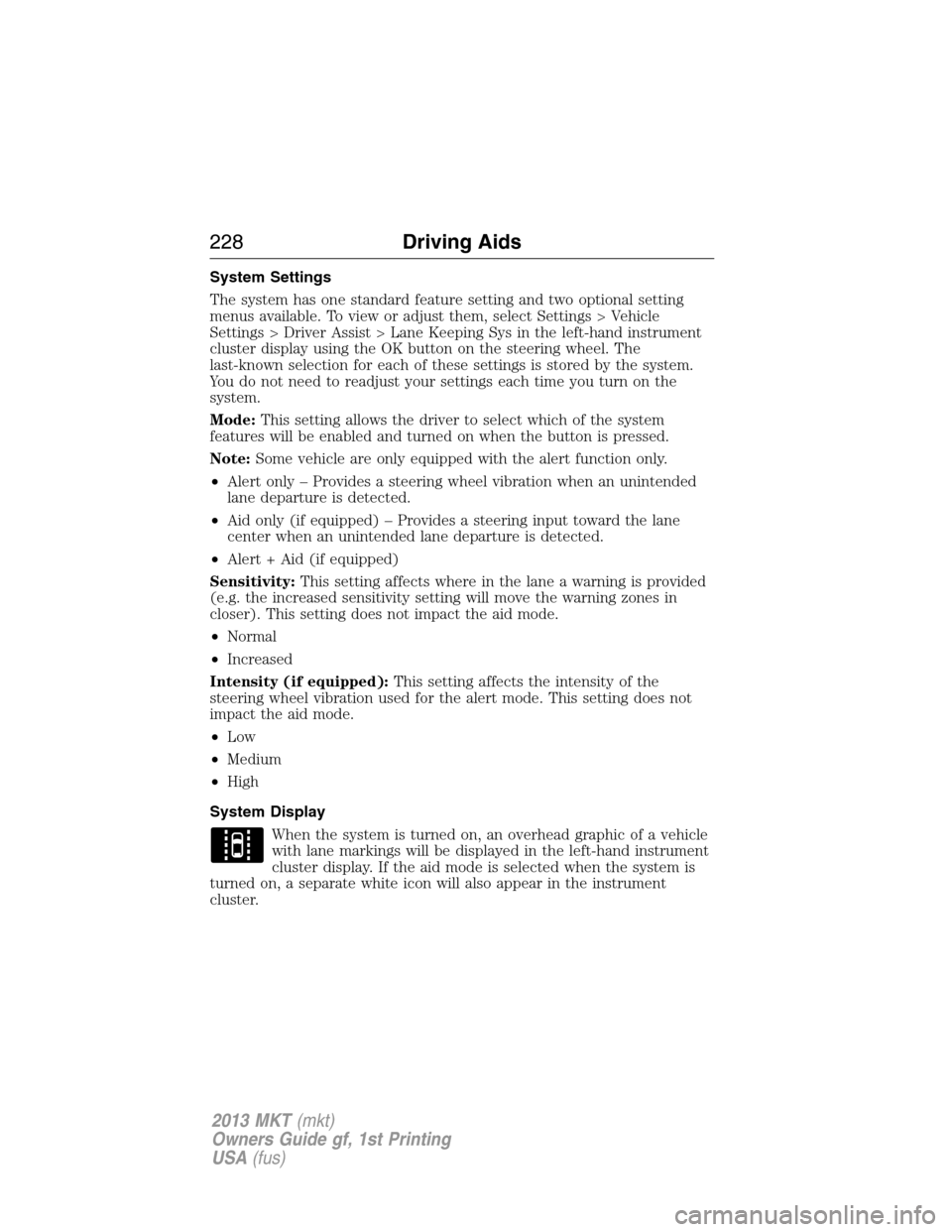

System Settings
The system has one standard feature setting and two optional setting
menus available. To view or adjust them, select Settings > Vehicle
Settings > Driver Assist > Lane Keeping Sys in the left-hand instrument
cluster display using the OK button on the steering wheel. The
last-known selection for each of these settings is stored by the system.
You do not need to readjust your settings each time you turn on the
system.
Mode:This setting allows the driver to select which of the system
features will be enabled and turned on when the button is pressed.
Note:Some vehicle are only equipped with the alert function only.
•Alert only – Provides a steering wheel vibration when an unintended
lane departure is detected.
•Aid only (if equipped) – Provides a steering input toward the lane
center when an unintended lane departure is detected.
•Alert + Aid (if equipped)
Sensitivity:This setting affects where in the lane a warning is provided
(e.g. the increased sensitivity setting will move the warning zones in
closer). This setting does not impact the aid mode.
•Normal
•Increased
Intensity (if equipped):This setting affects the intensity of the
steering wheel vibration used for the alert mode. This setting does not
impact the aid mode.
•Low
•Medium
•High
System Display
When the system is turned on, an overhead graphic of a vehicle
with lane markings will be displayed in the left-hand instrument
cluster display. If the aid mode is selected when the system is
turned on, a separate white icon will also appear in the instrument
cluster.
228Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

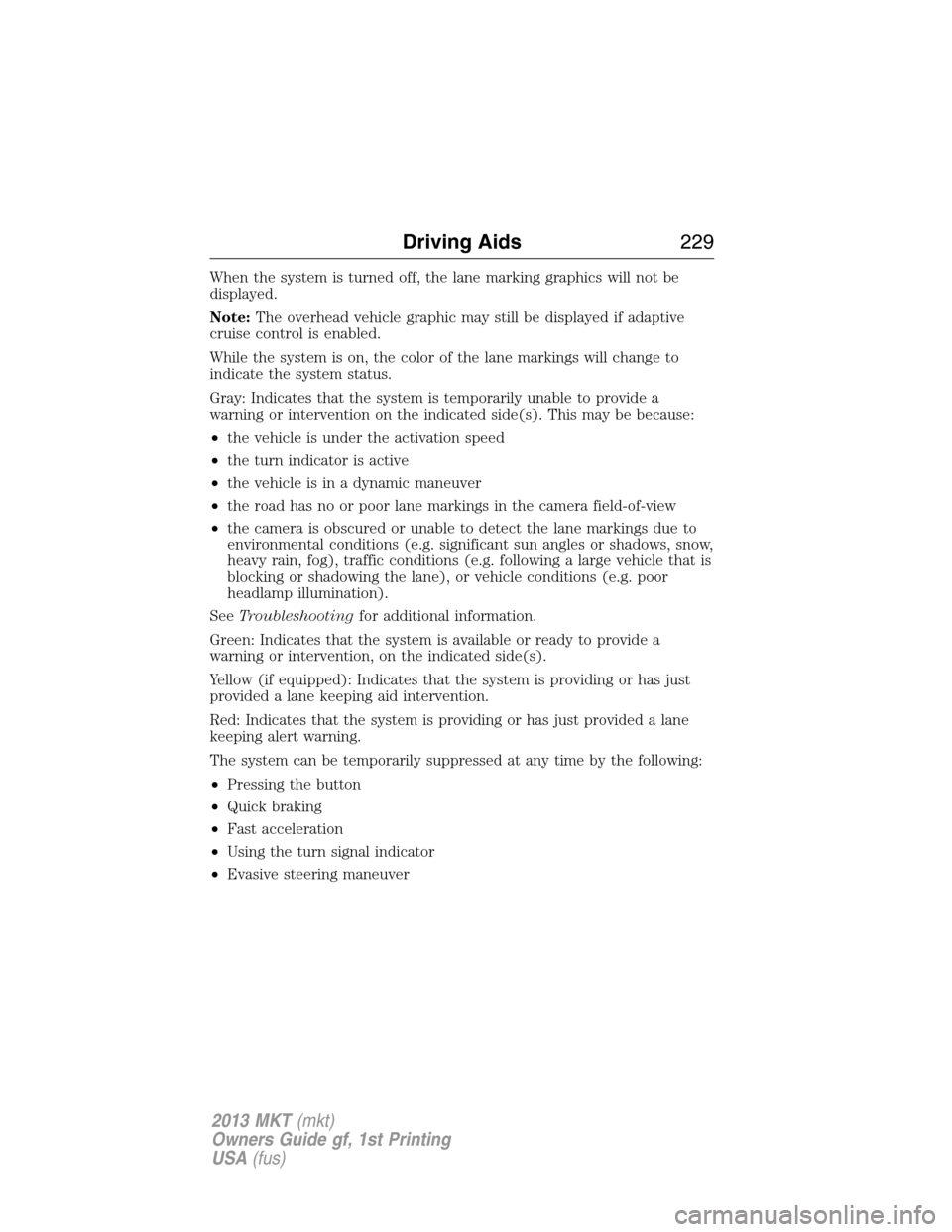

When the system is turned off, the lane marking graphics will not be
displayed.
Note:The overhead vehicle graphic may still be displayed if adaptive
cruise control is enabled.
While the system is on, the color of the lane markings will change to
indicate the system status.
Gray: Indicates that the system is temporarily unable to provide a
warning or intervention on the indicated side(s). This may be because:
•the vehicle is under the activation speed
•the turn indicator is active
•the vehicle is in a dynamic maneuver
•the road has no or poor lane markings in the camera field-of-view
•the camera is obscured or unable to detect the lane markings due to
environmental conditions (e.g. significant sun angles or shadows, snow,
heavy rain, fog), traffic conditions (e.g. following a large vehicle that is
blocking or shadowing the lane), or vehicle conditions (e.g. poor
headlamp illumination).
SeeTroubleshootingfor additional information.
Green: Indicates that the system is available or ready to provide a
warning or intervention, on the indicated side(s).
Yellow (if equipped): Indicates that the system is providing or has just
provided a lane keeping aid intervention.
Red: Indicates that the system is providing or has just provided a lane
keeping alert warning.
The system can be temporarily suppressed at any time by the following:
•Pressing the button
•Quick braking
•Fast acceleration
•Using the turn signal indicator
•Evasive steering maneuver
Driving Aids229
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)

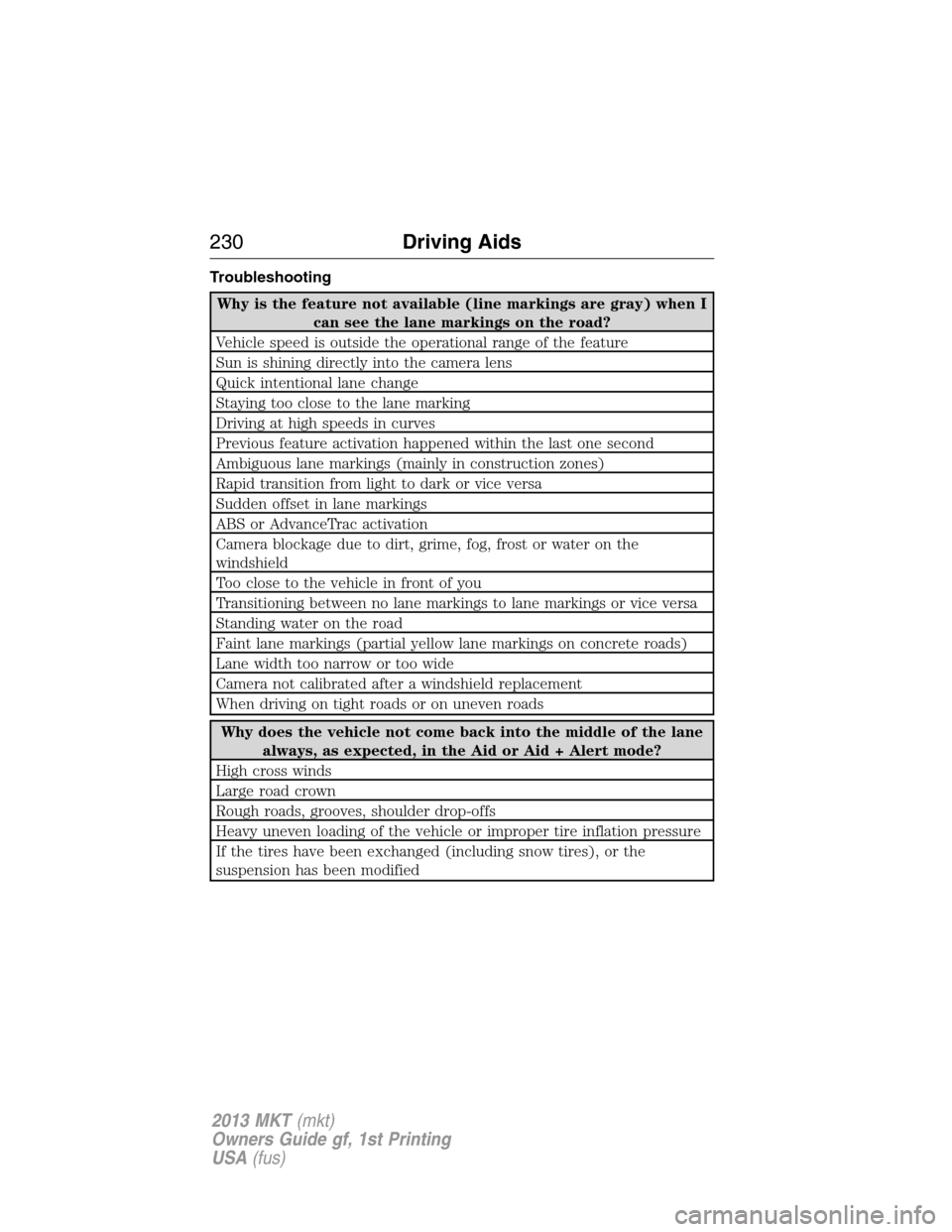

Troubleshooting
Why is the feature not available (line markings are gray) when I
can see the lane markings on the road?
Vehicle speed is outside the operational range of the feature
Sun is shining directly into the camera lens
Quick intentional lane change
Staying too close to the lane marking
Driving at high speeds in curves
Previous feature activation happened within the last one second
Ambiguous lane markings (mainly in construction zones)
Rapid transition from light to dark or vice versa
Sudden offset in lane markings
ABS or AdvanceTrac activation
Camera blockage due to dirt, grime, fog, frost or water on the
windshield
Too close to the vehicle in front of you
Transitioning between no lane markings to lane markings or vice versa
Standing water on the road
Faint lane markings (partial yellow lane markings on concrete roads)
Lane width too narrow or too wide
Camera not calibrated after a windshield replacement
When driving on tight roads or on uneven roads
Why does the vehicle not come back into the middle of the lane
always, as expected, in the Aid or Aid + Alert mode?
High cross winds
Large road crown
Rough roads, grooves, shoulder drop-offs
Heavy uneven loading of the vehicle or improper tire inflation pressure
If the tires have been exchanged (including snow tires), or the
suspension has been modified
230Driving Aids
2013 MKT(mkt)
Owners Guide gf, 1st Printing
USA(fus)
