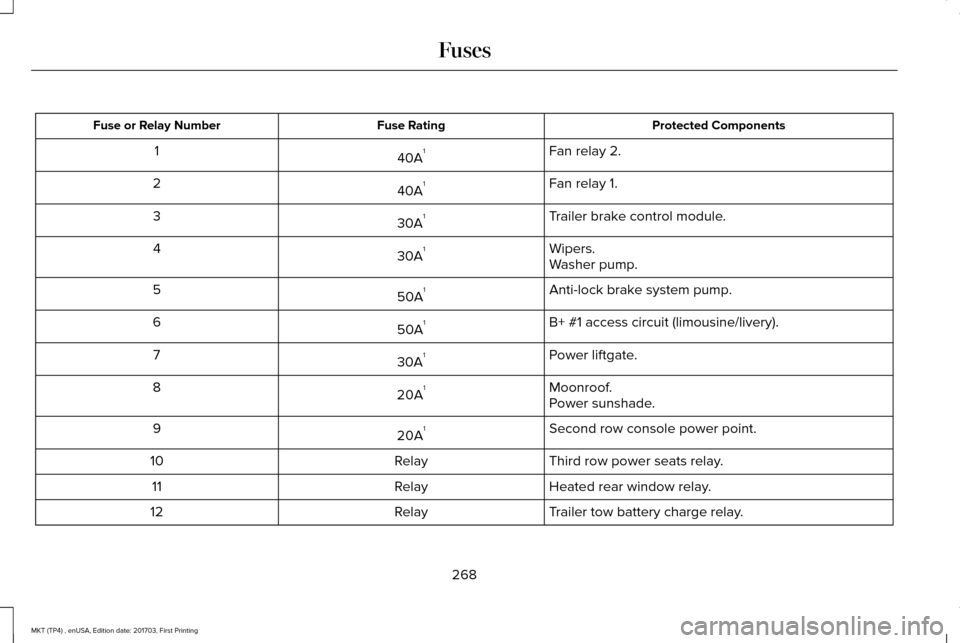

Protected Components
Fuse Rating
Fuse or Relay Number
Fan relay 2.
40A 1
1
Fan relay 1.
40A 1
2
Trailer brake control module.
30A 1
3
Wipers.
30A 1
4
Washer pump.
Anti-lock brake system pump.
50A 1
5
B+ #1 access circuit (limousine/livery).
50A 1
6
Power liftgate.
30A 1
7
Moonroof.
20A 1
8
Power sunshade.
Second row console power point.
20A 1
9
Third row power seats relay.
Relay
10
Heated rear window relay.
Relay
11
Trailer tow battery charge relay.
Relay
12
268
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

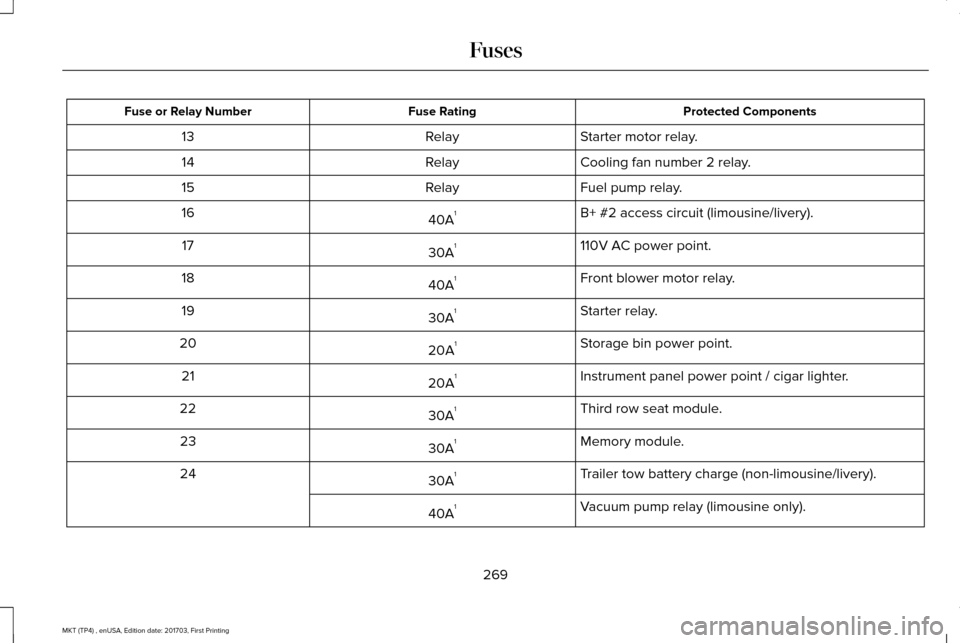

Protected Components
Fuse Rating
Fuse or Relay Number
Starter motor relay.
Relay
13
Cooling fan number 2 relay.
Relay
14
Fuel pump relay.
Relay
15
B+ #2 access circuit (limousine/livery).
40A 1
16
110V AC power point.
30A 1
17
Front blower motor relay.
40A 1
18
Starter relay.
30A 1
19
Storage bin power point.
20A 1
20
Instrument panel power point / cigar lighter.
20A 1
21
Third row seat module.
30A 1
22
Memory module.
30A 1
23
Trailer tow battery charge (non-limousine/livery).
30A 1
24
Vacuum pump relay (limousine only).
40A 1
269
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

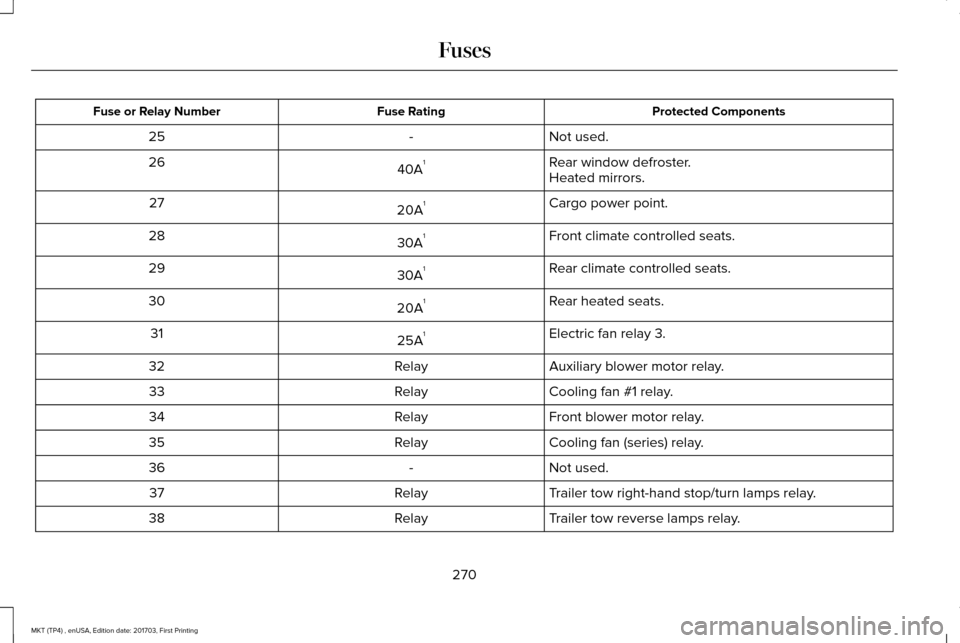

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
-
25
Rear window defroster.
40A 1
26
Heated mirrors.
Cargo power point.
20A 1
27
Front climate controlled seats.
30A 1
28
Rear climate controlled seats.
30A 1
29
Rear heated seats.
20A 1
30
Electric fan relay 3.
25A 1
31
Auxiliary blower motor relay.
Relay
32
Cooling fan #1 relay.
Relay
33
Front blower motor relay.
Relay
34
Cooling fan (series) relay.
Relay
35
Not used.
-
36
Trailer tow right-hand stop/turn lamps relay.
Relay
37
Trailer tow reverse lamps relay.
Relay
38
270
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Auxiliary blower motor.
30A 1
39
Left front smart window motor.
30A 1
40
Left rear smart window motor.
30A 1
41
Passenger power seat.
30A 1
42
Anti-lock brake system valves.
20A 1
43
Windshield washer relay.
Relay
44
Rain sensor.
5A 2
45
Canister vent solenoid (EcoBoost engines).
5A 2
46
Washer pump.
15A 2
47
Front park lamps.
10A 2
48
Not used.
-
49
Heated mirrors.
10A 2
50
271
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Powertrain control module — Injector power monitor
(non-EcoBoost engines).
5A 2
51
Not used.
-
52
Trailer tow left-hand stop/turn lamps relay.
Relay
53
Not used.
-
54
Wiper relay.
Relay
55
Fuel injectors.
30A 2
56
Fuel pump relay.
Left-hand high intensity discharge headlamp.
20A 2
57
Alternator sensor.
10A 2
58
Brake on/off switch.
10A 2
59
Trailer tow back-up lamps.
10A 2
60
B+ #6 access circuit (limousine/livery).
20A 2
61
A/C clutch relay.
10A 2
62
Trailer tow stop/turn lamps.
15A 2
63
272
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Rear wipers.
15A 2
64
B+ #7 access circuit (limousine/livery).
20A 2
65
Powertrain control module – vehicle power relay.
Relay
66
Vehicle power #2 – oxygen sensor heater.
20A 2
67
Mass airflow sensor.
Variable camshaft timing solenoid valve.
Canister vent solenoid.
Canister purge solenoid.
Vehicle power #4 (ignition coils).
20A 2
68
Vehicle power 1 (powertrain control module).
20A 2
69
Vehicle power #3 (coil) – A/C clutch relay.
15A 2
70
Fan control relay coils 1-3.
Variable air conditioning compressor.
Auxiliary transmission warmup.
Turbo charge waste-gate control.
Electronic compressor bypass valve.
All-wheel drive module.
Positive crankcase ventilation heater.
Not used.
-
71
273
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Limousine/livery run/accessory.
5A 2
72
Limousine/livery battery saver.
5A 2
73
Not used.
-
74
Not used.
-
75
Not used.
-
76
Trailer tow park lamps relay.
Relay
77
Right high-intensity discharge headlamp.
20A 2
78
Adaptive cruise control module.
10A 2
79
B+ #3 access circuit (limousine/livery).
30A 2
80
B+ #4 access circuit (limousine/livery).
15A 2
81
Rear washer.
15A 2
82
Not used.
-
83
Trailer tow park lamps.
20A 2
84
274
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
B+ #5 access circuit (limousine/livery).
15A 2
85
Powertrain control module.
5A 2
86
Keep alive power and relay.
Powertrain control module relay.
Canister vent solenoid (non-EcoBoost engines).
Run start relay.
5A 2
87
Run start relay.
Relay
88
Anti–lock brake system module.
10A 2
89
Adaptive headlamps module.
Powertrain control module run/start.
10A 2
90
Adaptive cruise control module.
10A 2
91
Front blower relay coil.
5A 2
92
Power steering module.
Auxiliary blower motor.
5A 2
93
Rear window defroster relay.
Battery charge / vacuum pump relays.
Body control module run/start.
30A 2
94
275
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
-
95
Not used.
-
96
Not used.
-
97
A/C clutch relay.
Relay
98

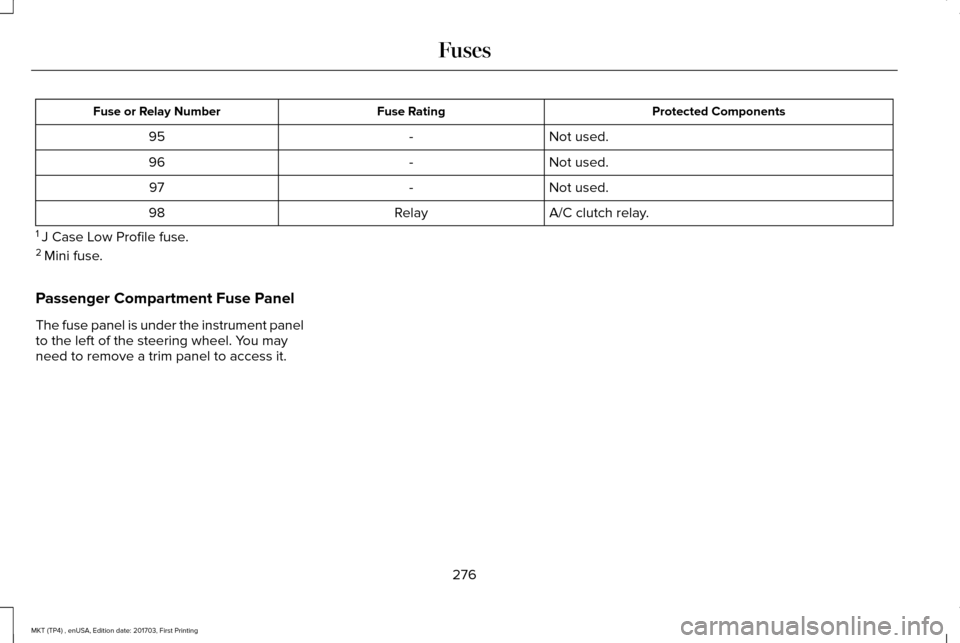

1 J Case Low Profile fuse.
2 Mini fuse.

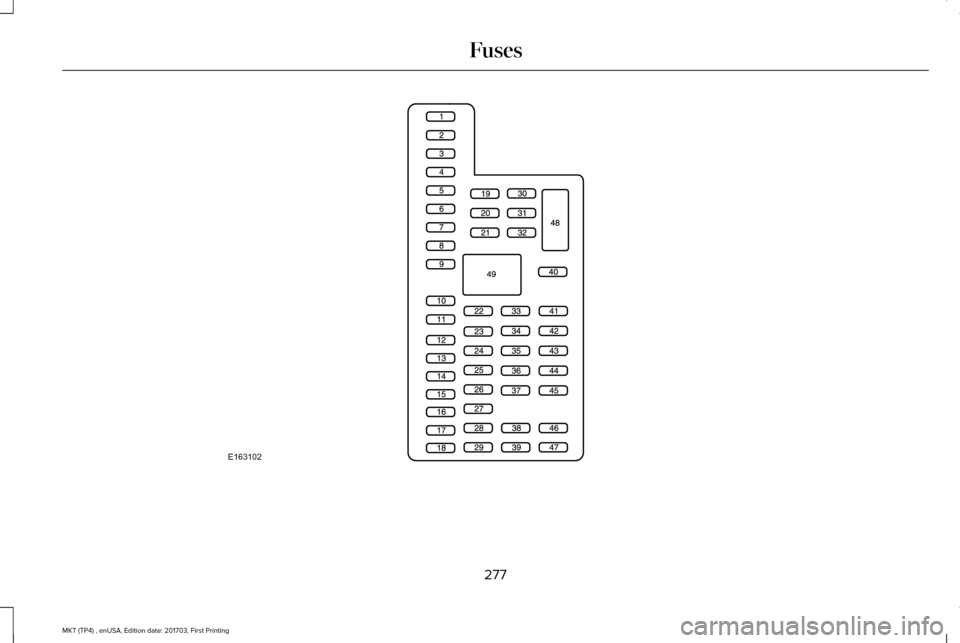

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering wheel. You may
need to remove a trim panel to access it.
276
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

277
