LINCOLN MKT 2019 Owners Manual

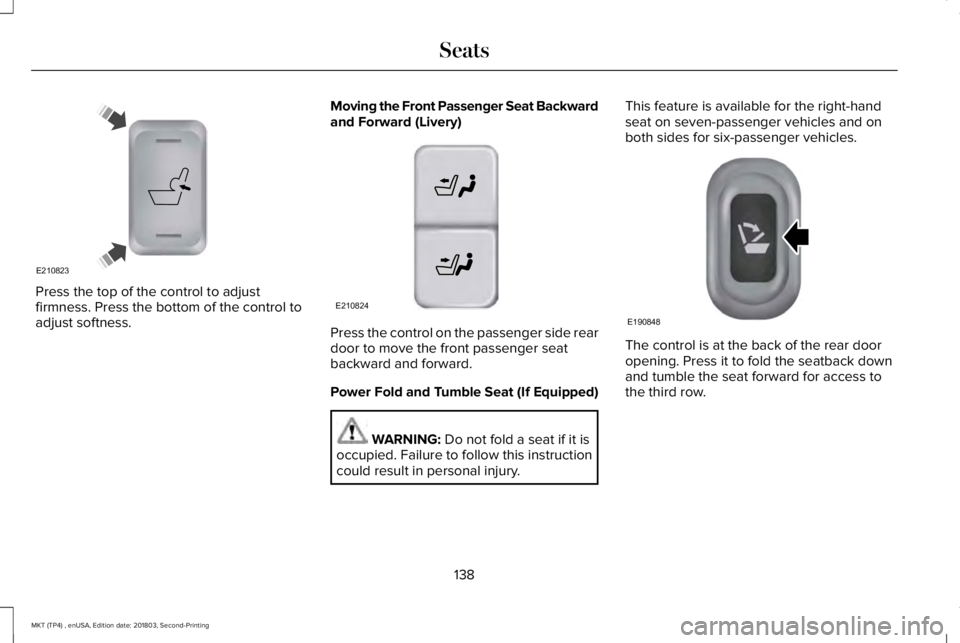

Press the top of the control to adjustfirmness. Press the bottom of the control toadjust softness.
Moving the Front Passenger Seat Backwardand Forward (Livery)
Press the control on the passenger side reardoor to move the front passenger seatbackward and forward.
Power Fold and Tumble Seat (If Equipped)
WARNING: Do not fold a seat if it isoccupied. Failure to follow this instructioncould result in personal injury.
This feature is available for the right-handseat on seven-passenger vehicles and onboth sides for six-passenger vehicles.
The control is at the back of the rear dooropening. Press it to fold the seatback downand tumble the seat forward for access tothe third row.
138
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE210823 E210824 E190848

Note:When you switch the ignition off, thepower fold feature works until the batterysaver turns it off after 10 minutes. You canreactivate the power seats by pressing theunlock button on the remote entry key fobor by using the unlock procedure on thekeyless entry keypad. See Doors and Locks(page 68). Keep the key in the accessory orrun position to prevent the feature fromtiming out.
Rear Seat Armrest (Livery)
WARNING: Use only soft cups in thecup holders. Hard objects can injure youin a crash.
To access the cupholders, rotate the armrestinto the use position. To open the storagecompartment, pull the cupholder latchforward.
Third Row Seats (Accessing the Seat)
WARNING: Check under the seatcushion to make sure no cargo or objectsare under the seat cushion beforereturning the seat cushion to its originalposition, and that the seat cushion locksinto place. Failure to do so may preventthe seat from operating properly in theevent of a crash, which could increase therisk of serious injury.
WARNING: Do not adjust a seat orrelease a seat floor latch when the vehicleis moving. Failure to follow this instructioncould result in personal injury or death ina sudden stop or crash.
WARNING: Do not drive your vehiclewith a seat that is unlatched or in thefolded position. Failure to follow thisinstruction could result in personal injuryor death in the event of a sudden stop orcrash.
139
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE210825

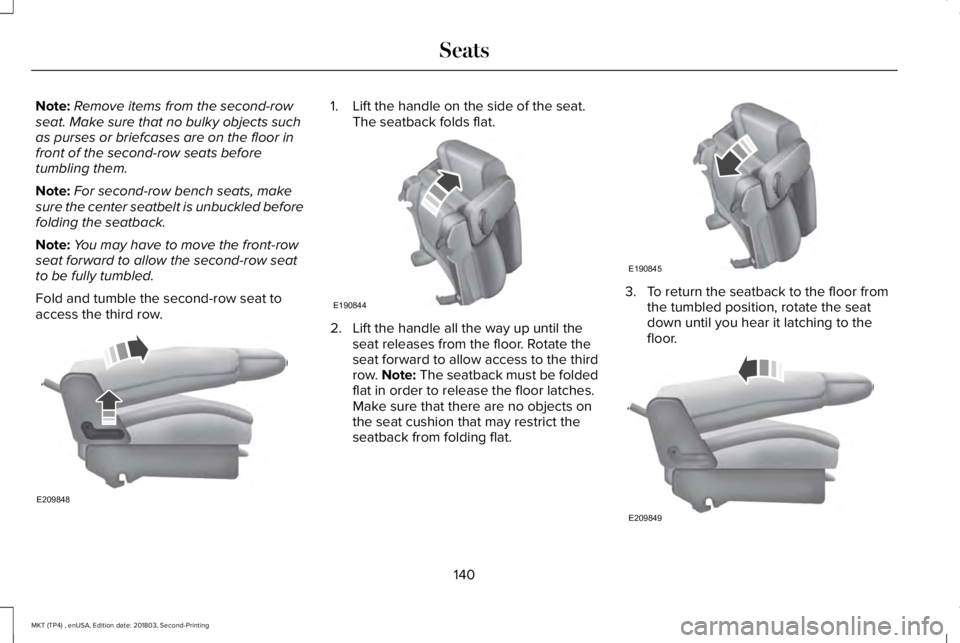

Note:Remove items from the second-rowseat. Make sure that no bulky objects suchas purses or briefcases are on the floor infront of the second-row seats beforetumbling them.
Note:For second-row bench seats, makesure the center seatbelt is unbuckled beforefolding the seatback.
Note:You may have to move the front-rowseat forward to allow the second-row seatto be fully tumbled.
Fold and tumble the second-row seat toaccess the third row.
1. Lift the handle on the side of the seat.The seatback folds flat.
2. Lift the handle all the way up until theseat releases from the floor. Rotate theseat forward to allow access to the thirdrow. Note: The seatback must be foldedflat in order to release the floor latches.Make sure that there are no objects onthe seat cushion that may restrict theseatback from folding flat.
3. To return the seatback to the floor fromthe tumbled position, rotate the seatdown until you hear it latching to thefloor.
140
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE209848 E190844 E190845 E209849

4. Lift the seatback toward the rear of thevehicle, and rotate the seatback until youhear a click, locking it in the uprightposition.
Note:The seatback will not raise if the rearlatch hooks are not properly engaged to thefloor striker. If the seatback does not raise,then repeat Step 4.
Third Row Seat Exit
1. Pull on the strap on the back of thesecond row seat. This folds the seatbackforward. Pull the strap a second time totumble the seat forward, allowing easyexit from the third row seat. Note: Youmust fold the seatback flat in order torelease the floor latches. Make sure thatthere are no objects on the seat cushionthat may restrict the seatback fromfolding flat.
2. To return the seatback to the floor fromthe tumbled position, rotate the seatdown until you hear it latching to thefloor.
3. Lift the seatback toward the rear of thevehicle, and rotate the seatback until youhear a click, locking it in the uprightposition. Note: The seatback will notraise if the rear latch hooks are notproperly engaged to the floor striker. Ifthe seatback does not raise, then repeatsteps 3 and 4.
141
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE209850 E190850 E209849

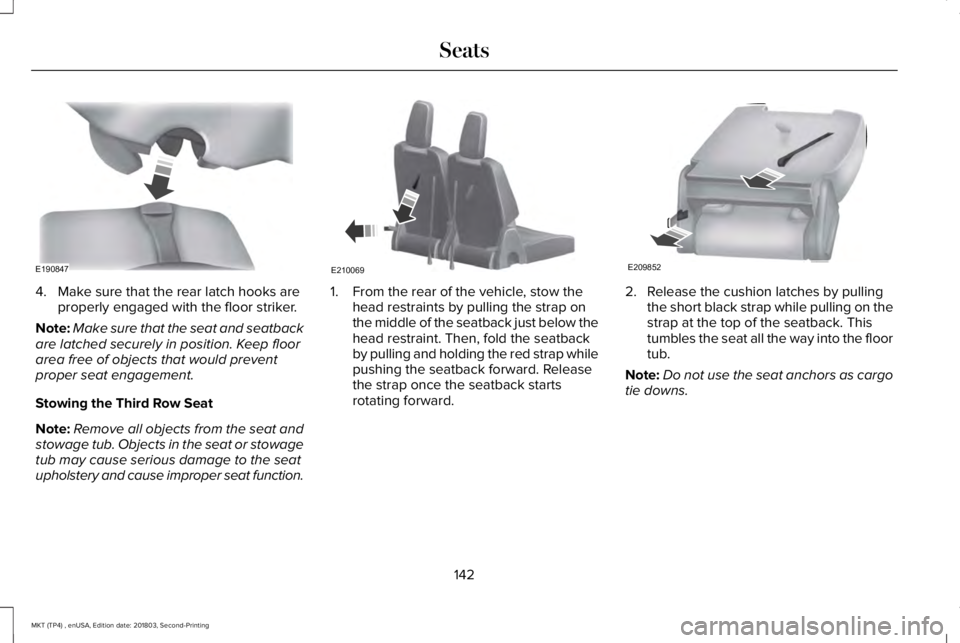

4. Make sure that the rear latch hooks areproperly engaged with the floor striker.
Note:Make sure that the seat and seatbackare latched securely in position. Keep floorarea free of objects that would preventproper seat engagement.
Stowing the Third Row Seat
Note:Remove all objects from the seat andstowage tub. Objects in the seat or stowagetub may cause serious damage to the seatupholstery and cause improper seat function.
1. From the rear of the vehicle, stow thehead restraints by pulling the strap onthe middle of the seatback just below thehead restraint. Then, fold the seatbackby pulling and holding the red strap whilepushing the seatback forward. Releasethe strap once the seatback startsrotating forward.
2. Release the cushion latches by pullingthe short black strap while pulling on thestrap at the top of the seatback. Thistumbles the seat all the way into the floortub.
Note:Do not use the seat anchors as cargotie downs.
142
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE190847 E210069 E209852

Note:Do not use the third row seatback asa load floor when the seatback is folded.Sharp objects may result in damage to seatupholstery.
Note:Make sure that the area under theseat is free of objects before stowing it.
Unstowing the Third Row Seat
WARNING: Make sure the seat fullylocks into place by rocking it backward andforward. Not securing the seat into thelocked position can be dangerous in acrash and could cause serious personalinjury or death.
Note:Make sure that there are no objectssuch as books, purses or brief cases on theload floor before unstowing the seat. Failureto remove all objects from the top of the loadfloor prior to unstowing it may causedamage to the seat.
Note:Make sure the area under the forwardportion of the load floor is free of objectsbefore unstowing the third row seat.
1. Unlatch and lift the seat out of the floortub by squeezing and pulling up on thehandle. Once the seat is at a verticalposition, push the seat over, letting it fallonto the latches.
143
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE209853 E209854

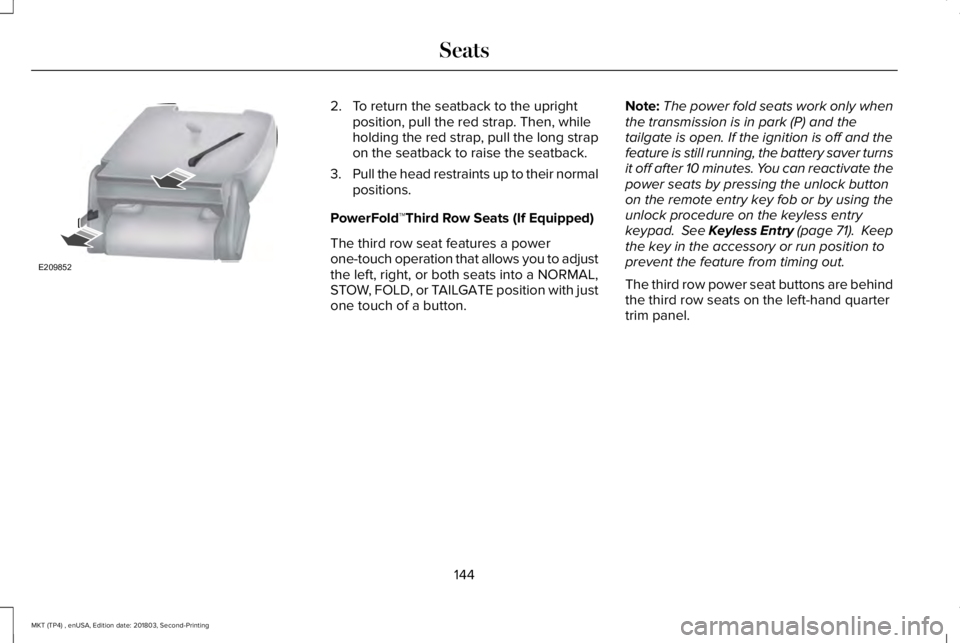

2. To return the seatback to the uprightposition, pull the red strap. Then, whileholding the red strap, pull the long strapon the seatback to raise the seatback.
3.Pull the head restraints up to their normalpositions.
PowerFold™Third Row Seats (If Equipped)
The third row seat features a powerone-touch operation that allows you to adjustthe left, right, or both seats into a NORMAL,STOW, FOLD, or TAILGATE position with justone touch of a button.
Note:The power fold seats work only whenthe transmission is in park (P) and thetailgate is open. If the ignition is off and thefeature is still running, the battery saver turnsit off after 10 minutes. You can reactivate thepower seats by pressing the unlock buttonon the remote entry key fob or by using theunlock procedure on the keyless entrykeypad. See Keyless Entry (page 71). Keepthe key in the accessory or run position toprevent the feature from timing out.
The third row power seat buttons are behindthe third row seats on the left-hand quartertrim panel.
144
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE209852

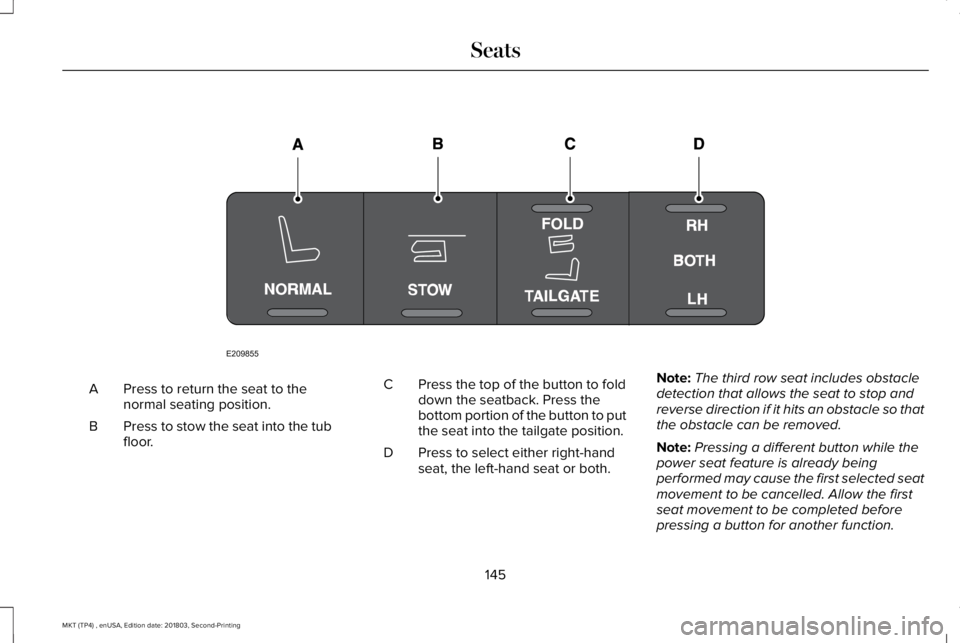

Press to return the seat to thenormal seating position.A
Press to stow the seat into the tubfloor.B
Press the top of the button to folddown the seatback. Press thebottom portion of the button to putthe seat into the tailgate position.
C
Press to select either right-handseat, the left-hand seat or both.D
Note:The third row seat includes obstacledetection that allows the seat to stop andreverse direction if it hits an obstacle so thatthe obstacle can be removed.
Note:Pressing a different button while thepower seat feature is already beingperformed may cause the first selected seatmovement to be cancelled. Allow the firstseat movement to be completed beforepressing a button for another function.
145
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE209855

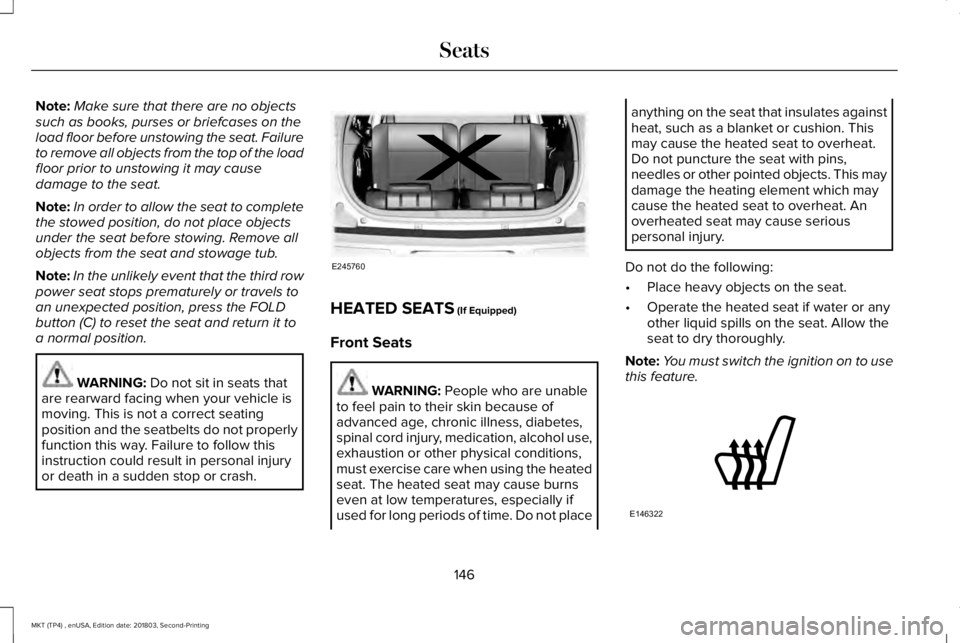

Note:Make sure that there are no objectssuch as books, purses or briefcases on theload floor before unstowing the seat. Failureto remove all objects from the top of the loadfloor prior to unstowing it may causedamage to the seat.
Note:In order to allow the seat to completethe stowed position, do not place objectsunder the seat before stowing. Remove allobjects from the seat and stowage tub.
Note:In the unlikely event that the third rowpower seat stops prematurely or travels toan unexpected position, press the FOLDbutton (C) to reset the seat and return it toa normal position.
WARNING: Do not sit in seats thatare rearward facing when your vehicle ismoving. This is not a correct seatingposition and the seatbelts do not properlyfunction this way. Failure to follow thisinstruction could result in personal injuryor death in a sudden stop or crash.
HEATED SEATS (If Equipped)
Front Seats
WARNING: People who are unableto feel pain to their skin because ofadvanced age, chronic illness, diabetes,spinal cord injury, medication, alcohol use,exhaustion or other physical conditions,must exercise care when using the heatedseat. The heated seat may cause burnseven at low temperatures, especially ifused for long periods of time. Do not place
anything on the seat that insulates againstheat, such as a blanket or cushion. Thismay cause the heated seat to overheat.Do not puncture the seat with pins,needles or other pointed objects. This maydamage the heating element which maycause the heated seat to overheat. Anoverheated seat may cause seriouspersonal injury.
Do not do the following:
•Place heavy objects on the seat.
•Operate the heated seat if water or anyother liquid spills on the seat. Allow theseat to dry thoroughly.
Note:You must switch the ignition on to usethis feature.
146
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE245760 E146322

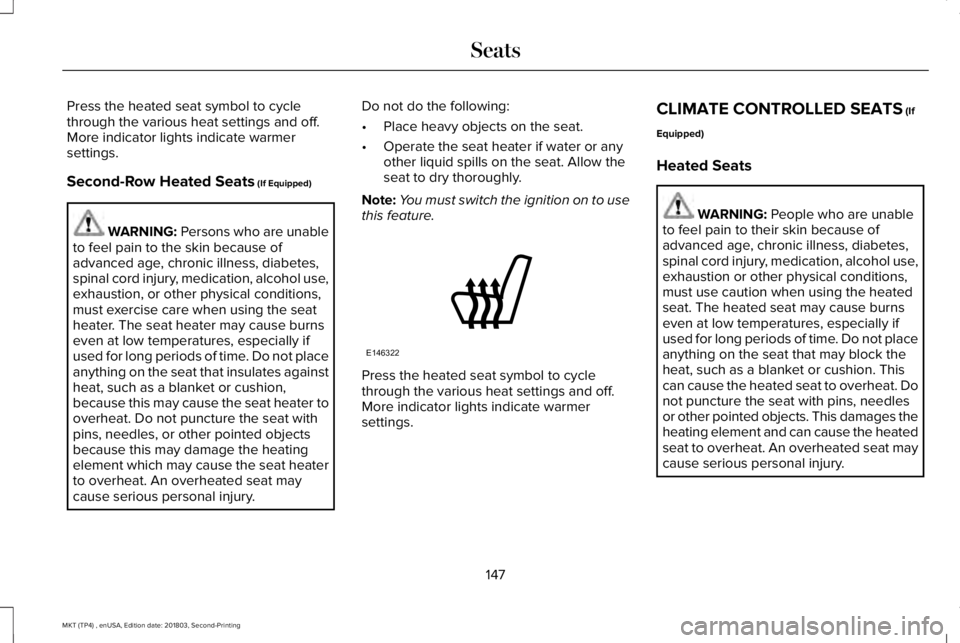

Press the heated seat symbol to cyclethrough the various heat settings and off.More indicator lights indicate warmersettings.
Second-Row Heated Seats (If Equipped)
WARNING: Persons who are unableto feel pain to the skin because ofadvanced age, chronic illness, diabetes,spinal cord injury, medication, alcohol use,exhaustion, or other physical conditions,must exercise care when using the seatheater. The seat heater may cause burnseven at low temperatures, especially ifused for long periods of time. Do not placeanything on the seat that insulates againstheat, such as a blanket or cushion,because this may cause the seat heater tooverheat. Do not puncture the seat withpins, needles, or other pointed objectsbecause this may damage the heatingelement which may cause the seat heaterto overheat. An overheated seat maycause serious personal injury.
Do not do the following:
•Place heavy objects on the seat.
•Operate the seat heater if water or anyother liquid spills on the seat. Allow theseat to dry thoroughly.
Note:You must switch the ignition on to usethis feature.
Press the heated seat symbol to cyclethrough the various heat settings and off.More indicator lights indicate warmersettings.
CLIMATE CONTROLLED SEATS (If
Equipped)
Heated Seats
WARNING: People who are unableto feel pain to their skin because ofadvanced age, chronic illness, diabetes,spinal cord injury, medication, alcohol use,exhaustion or other physical conditions,must use caution when using the heatedseat. The heated seat may cause burnseven at low temperatures, especially ifused for long periods of time. Do not placeanything on the seat that may block theheat, such as a blanket or cushion. Thiscan cause the heated seat to overheat. Donot puncture the seat with pins, needlesor other pointed objects. This damages theheating element and can cause the heatedseat to overheat. An overheated seat maycause serious personal injury.
147
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
SeatsE146322
