LINCOLN MKT 2019 Owners Manual

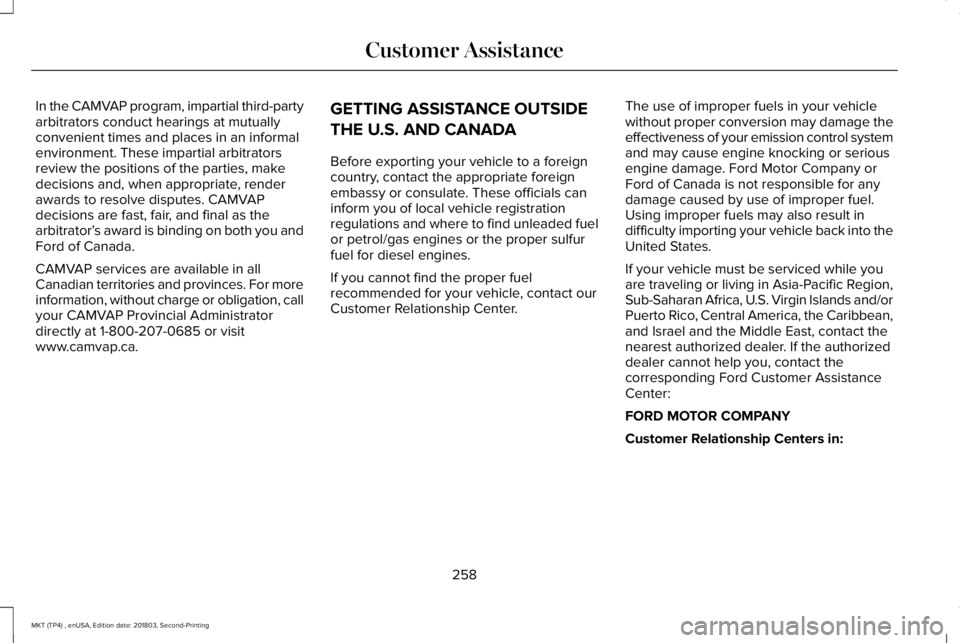

In the CAMVAP program, impartial third-partyarbitrators conduct hearings at mutuallyconvenient times and places in an informalenvironment. These impartial arbitratorsreview the positions of the parties, makedecisions and, when appropriate, renderawards to resolve disputes. CAMVAPdecisions are fast, fair, and final as thearbitrator’s award is binding on both you andFord of Canada.
CAMVAP services are available in allCanadian territories and provinces. For moreinformation, without charge or obligation, callyour CAMVAP Provincial Administratordirectly at 1-800-207-0685 or visitwww.camvap.ca.
GETTING ASSISTANCE OUTSIDE
THE U.S. AND CANADA
Before exporting your vehicle to a foreigncountry, contact the appropriate foreignembassy or consulate. These officials caninform you of local vehicle registrationregulations and where to find unleaded fuelor petrol/gas engines or the proper sulfurfuel for diesel engines.
If you cannot find the proper fuelrecommended for your vehicle, contact ourCustomer Relationship Center.
The use of improper fuels in your vehiclewithout proper conversion may damage theeffectiveness of your emission control systemand may cause engine knocking or seriousengine damage. Ford Motor Company orFord of Canada is not responsible for anydamage caused by use of improper fuel.Using improper fuels may also result indifficulty importing your vehicle back into theUnited States.
If your vehicle must be serviced while youare traveling or living in Asia-Pacific Region,Sub-Saharan Africa, U.S. Virgin Islands and/orPuerto Rico, Central America, the Caribbean,and Israel and the Middle East, contact thenearest authorized dealer. If the authorizeddealer cannot help you, contact thecorresponding Ford Customer AssistanceCenter:
FORD MOTOR COMPANY
Customer Relationship Centers in:
258
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Customer Assistance

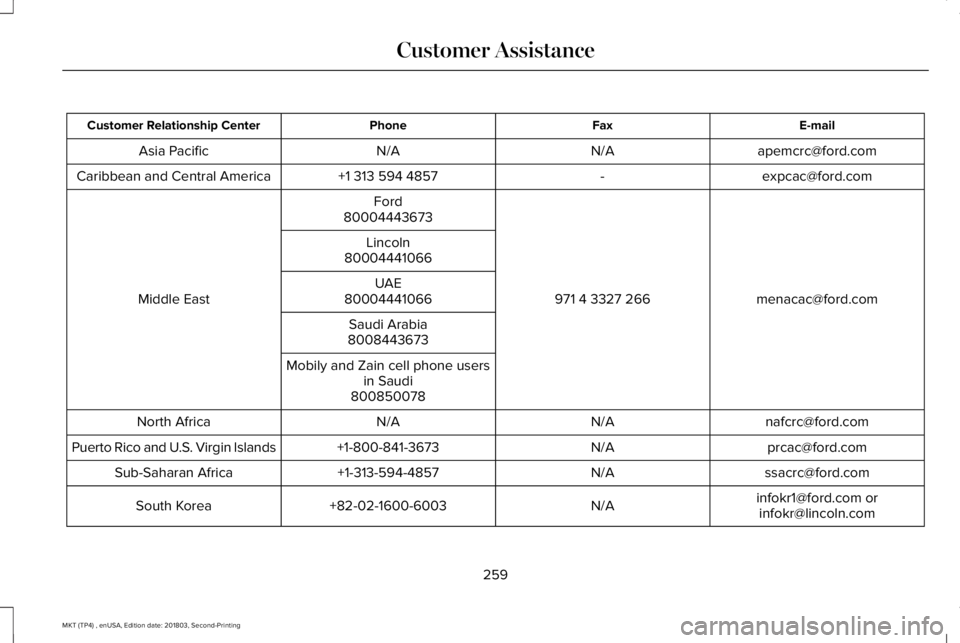

E-mailFaxPhoneCustomer Relationship Center
[email protected]/AN/AAsia Pacific
[email protected]+1 313 594 4857Caribbean and Central America
[email protected] 4 3327 266
Ford
Middle East
80004443673
Lincoln80004441066
UAE80004441066
Saudi Arabia8008443673
Mobily and Zain cell phone usersin Saudi800850078
[email protected]/AN/ANorth Africa
[email protected]/A+1-800-841-3673Puerto Rico and U.S. Virgin Islands
[email protected]/A+1-313-594-4857Sub-Saharan Africa
[email protected] [email protected]/A+82-02-1600-6003South Korea
259
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Customer Assistance

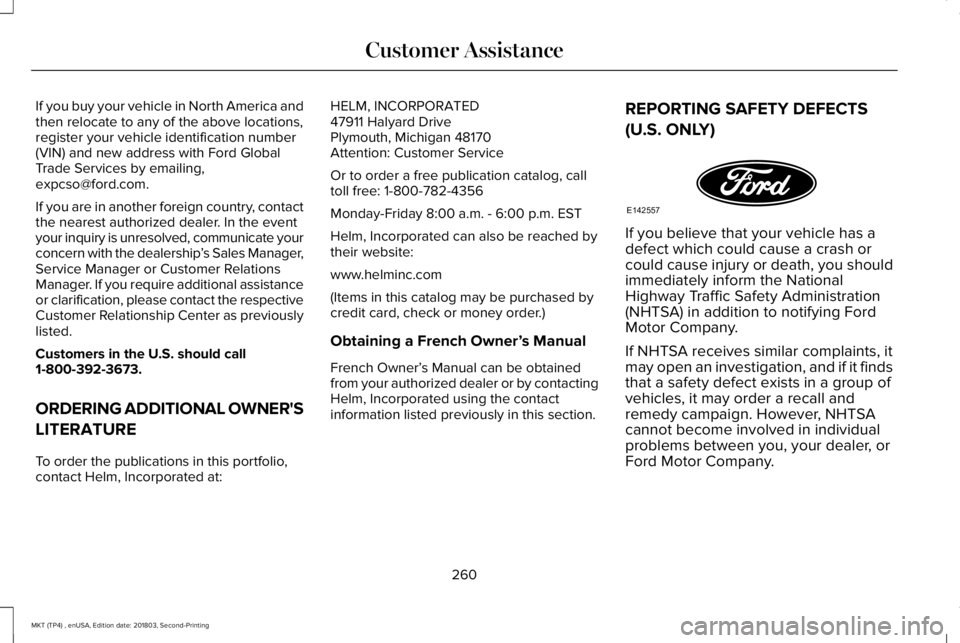

If you buy your vehicle in North America andthen relocate to any of the above locations,register your vehicle identification number(VIN) and new address with Ford GlobalTrade Services by emailing,[email protected].
If you are in another foreign country, contactthe nearest authorized dealer. In the eventyour inquiry is unresolved, communicate yourconcern with the dealership’s Sales Manager,Service Manager or Customer RelationsManager. If you require additional assistanceor clarification, please contact the respectiveCustomer Relationship Center as previouslylisted.
Customers in the U.S. should call1-800-392-3673.
ORDERING ADDITIONAL OWNER'S
LITERATURE
To order the publications in this portfolio,contact Helm, Incorporated at:
HELM, INCORPORATED47911 Halyard DrivePlymouth, Michigan 48170Attention: Customer Service
Or to order a free publication catalog, calltoll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, Incorporated can also be reached bytheir website:
www.helminc.com
(Items in this catalog may be purchased bycredit card, check or money order.)
Obtaining a French Owner’s Manual
French Owner’s Manual can be obtainedfrom your authorized dealer or by contactingHelm, Incorporated using the contactinformation listed previously in this section.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle has adefect which could cause a crash orcould cause injury or death, you shouldimmediately inform the NationalHighway Traffic Safety Administration(NHTSA) in addition to notifying FordMotor Company.
If NHTSA receives similar complaints, itmay open an investigation, and if it findsthat a safety defect exists in a group ofvehicles, it may order a recall and
remedy campaign. However, NHTSAcannot become involved in individualproblems between you, your dealer, orFord Motor Company.
260
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Customer AssistanceE142557

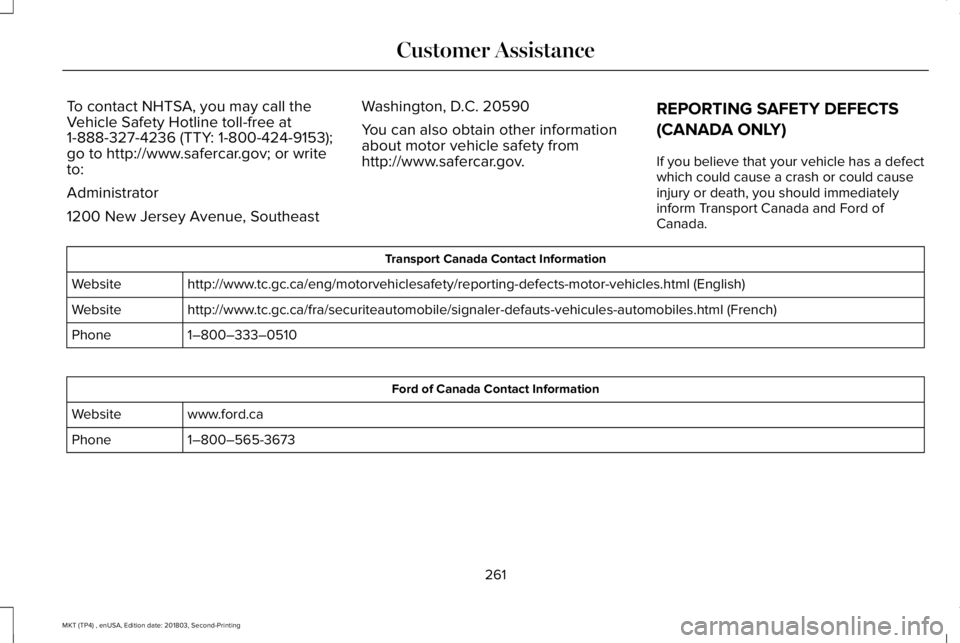

To contact NHTSA, you may call theVehicle Safety Hotline toll-free at1-888-327-4236 (TTY: 1-800-424-9153);go to http://www.safercar.gov; or writeto:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other informationabout motor vehicle safety fromhttp://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)Website
1–800–333–0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1–800–565-3673Phone
261
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Customer Assistance

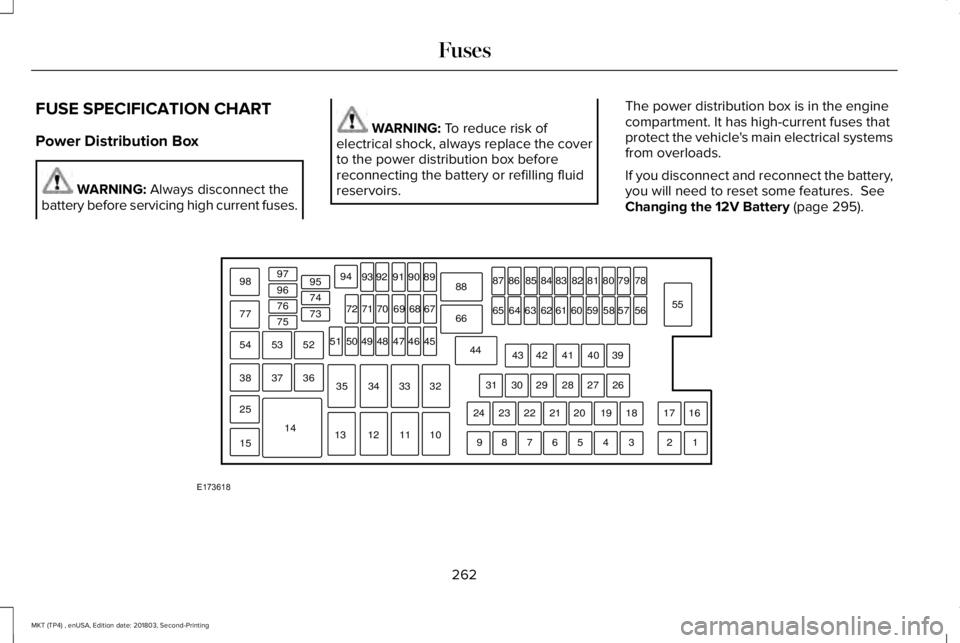

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk ofelectrical shock, always replace the coverto the power distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect the vehicle's main electrical systemsfrom overloads.
If you disconnect and reconnect the battery,you will need to reset some features. SeeChanging the 12V Battery (page 295).
262
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
FusesE173618
97
98
77 96
95
94
93 92 91 90 89
88
66
44 78
56
39 26 18 1617
3 12
456789
192021222324
2728293031 40414243 55
575859606162636465 798081828384858687
67
45
32
10111213
333435
464748495051
6869707172
74
73
76
75
53
37 36
54
38
25
15
1452

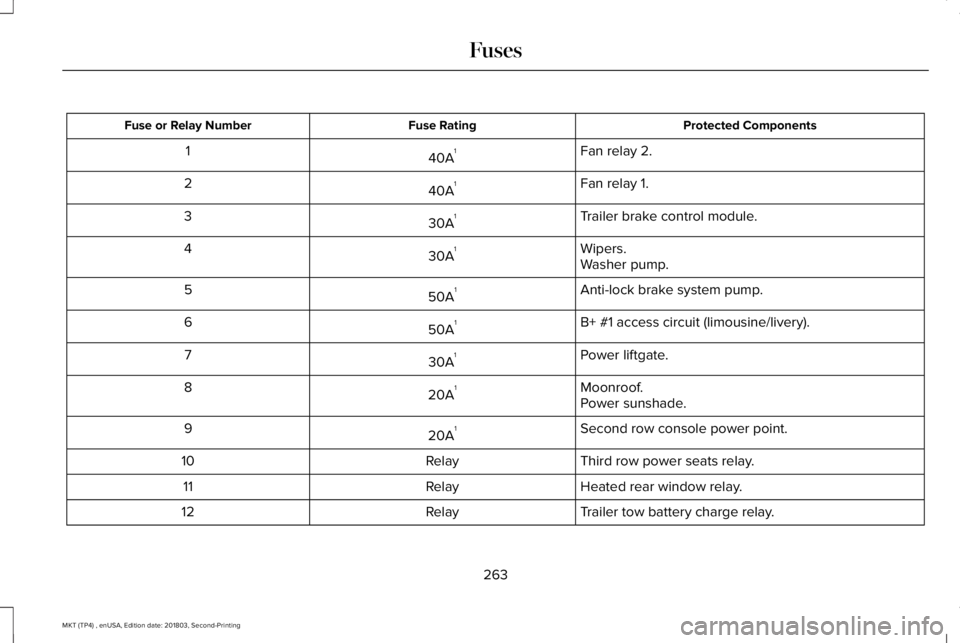

Protected ComponentsFuse RatingFuse or Relay Number
Fan relay 2.40A11
Fan relay 1.40A12
Trailer brake control module.30A13
Wipers.30A14Washer pump.
Anti-lock brake system pump.50A15
B+ #1 access circuit (limousine/livery).50A16
Power liftgate.30A17
Moonroof.20A18Power sunshade.
Second row console power point.20A19
Third row power seats relay.Relay10
Heated rear window relay.Relay11
Trailer tow battery charge relay.Relay12
263
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Fuses

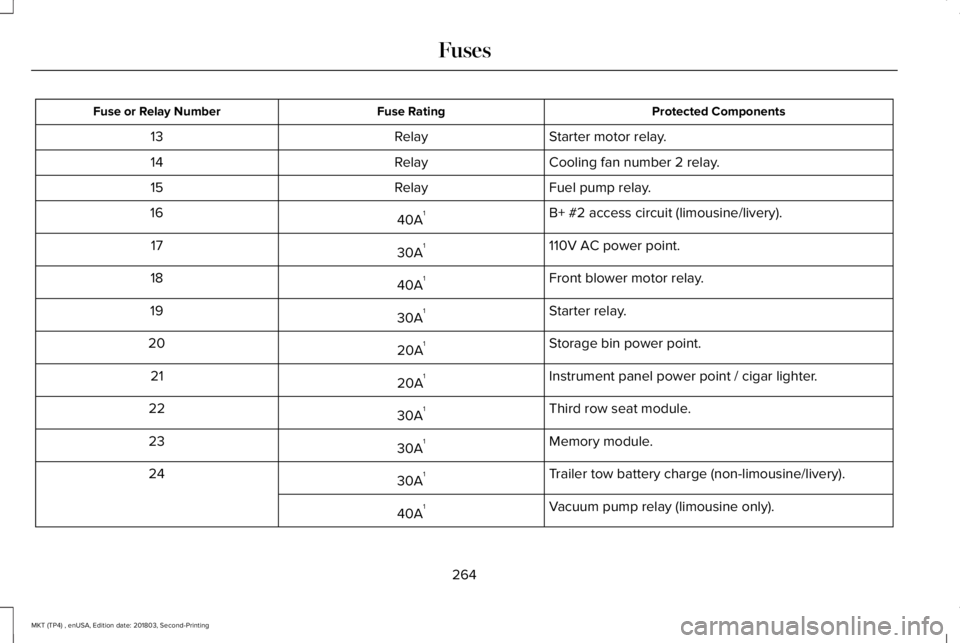

Protected ComponentsFuse RatingFuse or Relay Number
Starter motor relay.Relay13
Cooling fan number 2 relay.Relay14
Fuel pump relay.Relay15
B+ #2 access circuit (limousine/livery).40A116
110V AC power point.30A117
Front blower motor relay.40A118
Starter relay.30A119
Storage bin power point.20A120
Instrument panel power point / cigar lighter.20A121
Third row seat module.30A122
Memory module.30A123
Trailer tow battery charge (non-limousine/livery).30A124
Vacuum pump relay (limousine only).40A1
264
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Fuses

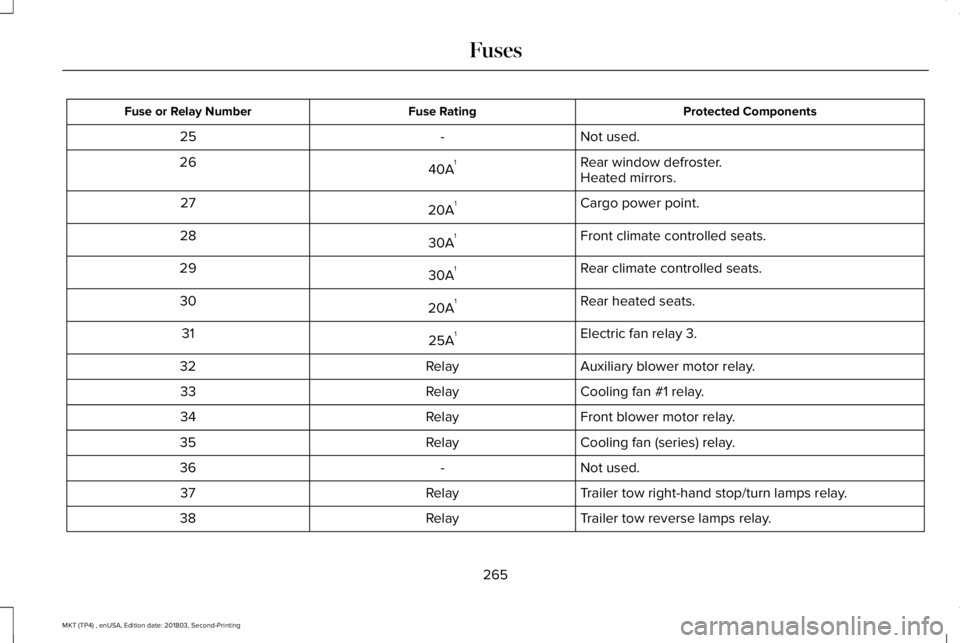

Protected ComponentsFuse RatingFuse or Relay Number
Not used.-25
Rear window defroster.40A126Heated mirrors.
Cargo power point.20A127
Front climate controlled seats.30A128
Rear climate controlled seats.30A129
Rear heated seats.20A130
Electric fan relay 3.25A131
Auxiliary blower motor relay.Relay32
Cooling fan #1 relay.Relay33
Front blower motor relay.Relay34
Cooling fan (series) relay.Relay35
Not used.-36
Trailer tow right-hand stop/turn lamps relay.Relay37
Trailer tow reverse lamps relay.Relay38
265
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Fuses

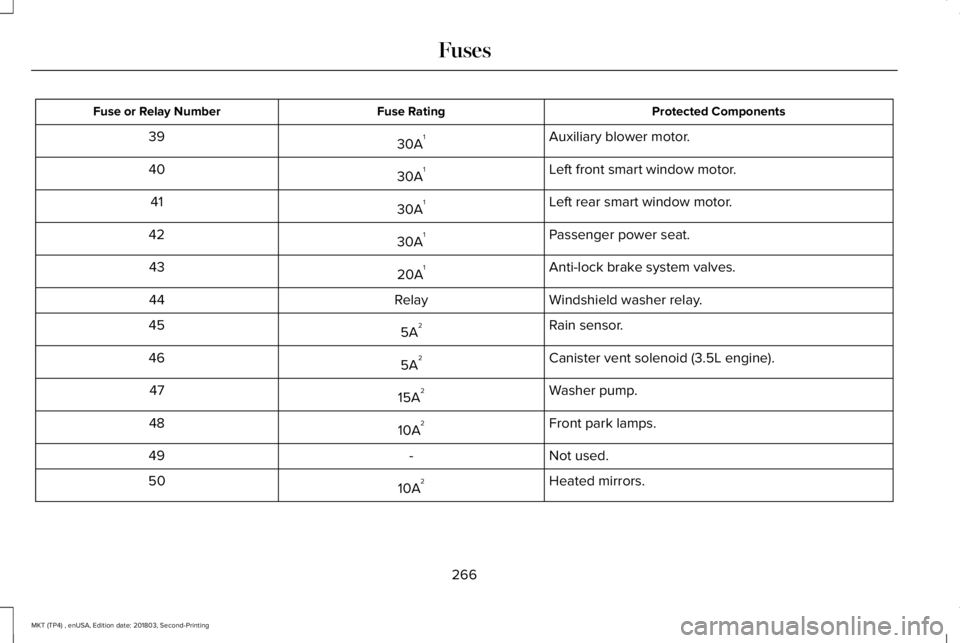

Protected ComponentsFuse RatingFuse or Relay Number
Auxiliary blower motor.30A139
Left front smart window motor.30A140
Left rear smart window motor.30A141
Passenger power seat.30A142
Anti-lock brake system valves.20A143
Windshield washer relay.Relay44
Rain sensor.5A245
Canister vent solenoid (3.5L engine).5A246
Washer pump.15A247
Front park lamps.10A248
Not used.-49
Heated mirrors.10A250
266
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Fuses

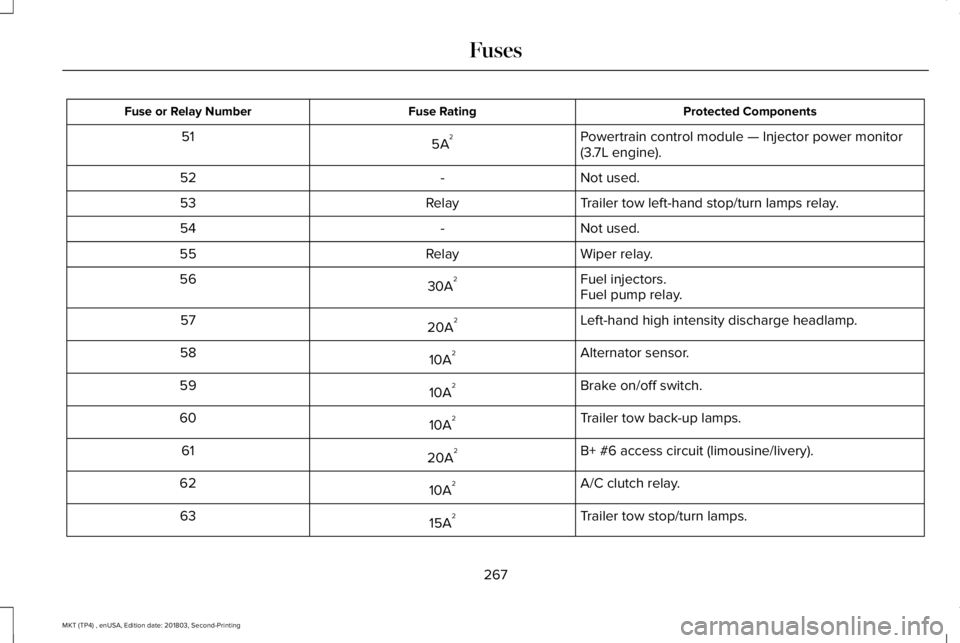

Protected ComponentsFuse RatingFuse or Relay Number
Powertrain control module — Injector power monitor(3.7L engine).5A251
Not used.-52
Trailer tow left-hand stop/turn lamps relay.Relay53
Not used.-54
Wiper relay.Relay55
Fuel injectors.30A256Fuel pump relay.
Left-hand high intensity discharge headlamp.20A257
Alternator sensor.10A258
Brake on/off switch.10A259
Trailer tow back-up lamps.10A260
B+ #6 access circuit (limousine/livery).20A261
A/C clutch relay.10A262
Trailer tow stop/turn lamps.15A263
267
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Fuses
