LINCOLN MKT 2019 Owners Manual

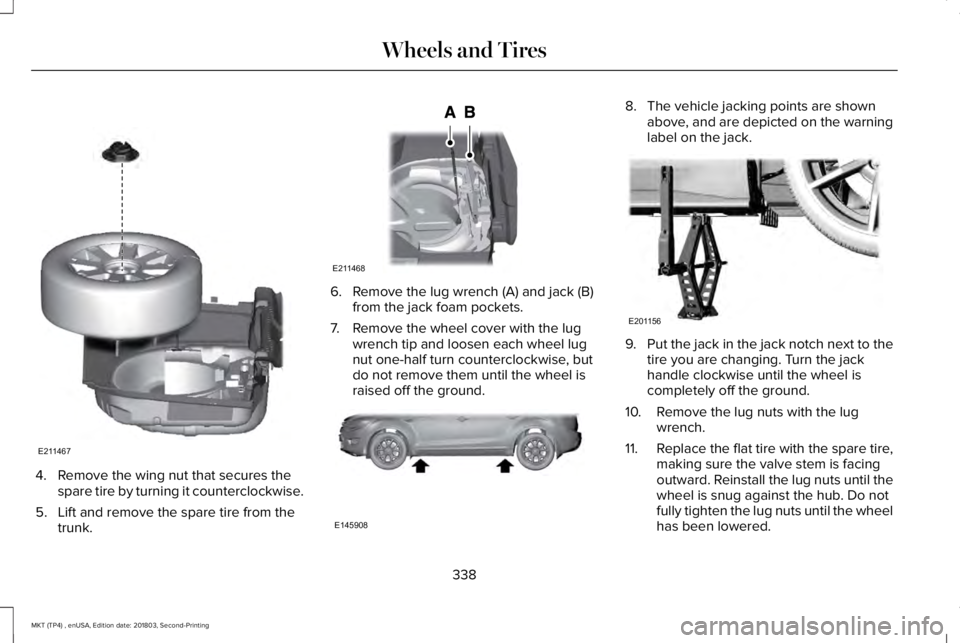

4. Remove the wing nut that secures thespare tire by turning it counterclockwise.
5. Lift and remove the spare tire from thetrunk.
6. Remove the lug wrench (A) and jack (B)from the jack foam pockets.
7. Remove the wheel cover with the lugwrench tip and loosen each wheel lugnut one-half turn counterclockwise, butdo not remove them until the wheel israised off the ground.
8. The vehicle jacking points are shownabove, and are depicted on the warninglabel on the jack.
9.Put the jack in the jack notch next to thetire you are changing. Turn the jackhandle clockwise until the wheel iscompletely off the ground.
10. Remove the lug nuts with the lugwrench.
11.Replace the flat tire with the spare tire,making sure the valve stem is facingoutward. Reinstall the lug nuts until thewheel is snug against the hub. Do notfully tighten the lug nuts until the wheelhas been lowered.
338
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Wheels and TiresE211467 E211468 E145908 E201156

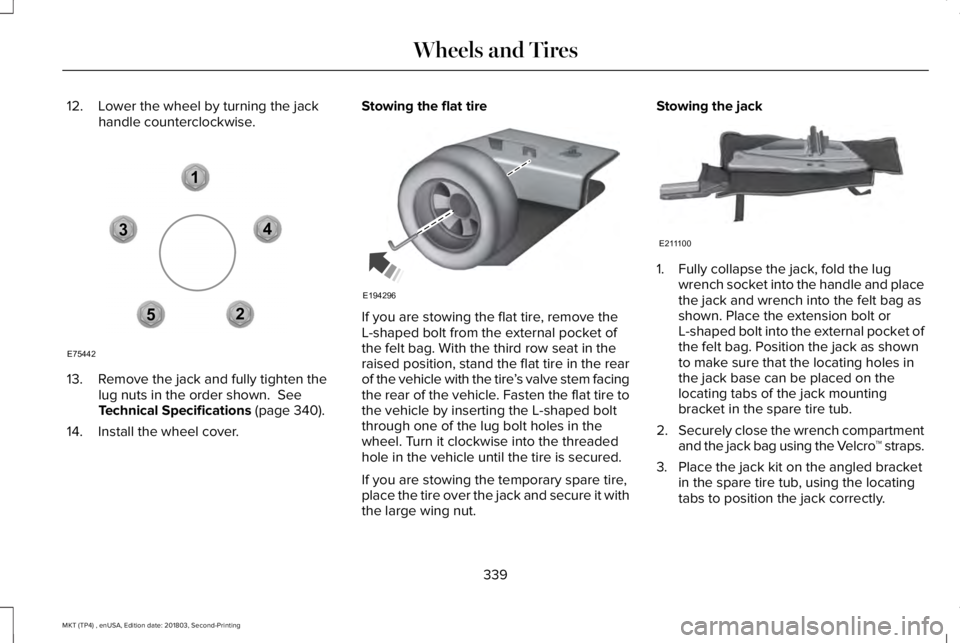

12. Lower the wheel by turning the jackhandle counterclockwise.
13. Remove the jack and fully tighten thelug nuts in the order shown. SeeTechnical Specifications (page 340).
14. Install the wheel cover.
Stowing the flat tire
If you are stowing the flat tire, remove theL-shaped bolt from the external pocket ofthe felt bag. With the third row seat in theraised position, stand the flat tire in the rearof the vehicle with the tire’s valve stem facingthe rear of the vehicle. Fasten the flat tire tothe vehicle by inserting the L-shaped boltthrough one of the lug bolt holes in thewheel. Turn it clockwise into the threadedhole in the vehicle until the tire is secured.
If you are stowing the temporary spare tire,place the tire over the jack and secure it withthe large wing nut.
Stowing the jack
1. Fully collapse the jack, fold the lugwrench socket into the handle and placethe jack and wrench into the felt bag asshown. Place the extension bolt orL-shaped bolt into the external pocket ofthe felt bag. Position the jack as shownto make sure that the locating holes inthe jack base can be placed on thelocating tabs of the jack mountingbracket in the spare tire tub.
2.Securely close the wrench compartmentand the jack bag using the Velcro™ straps.
3. Place the jack kit on the angled bracketin the spare tire tub, using the locatingtabs to position the jack correctly.
339
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Wheels and Tires12
3
4
5
E75442 E194296 E211100

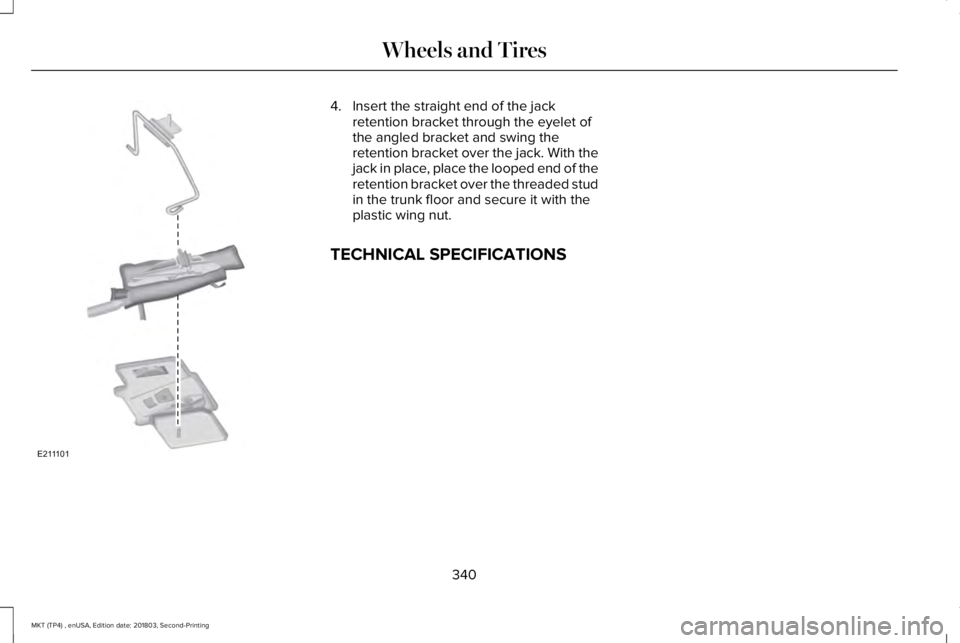

4. Insert the straight end of the jackretention bracket through the eyelet ofthe angled bracket and swing theretention bracket over the jack. With thejack in place, place the looped end of theretention bracket over the threaded studin the trunk floor and secure it with theplastic wing nut.
TECHNICAL SPECIFICATIONS
340
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Wheels and TiresE211101

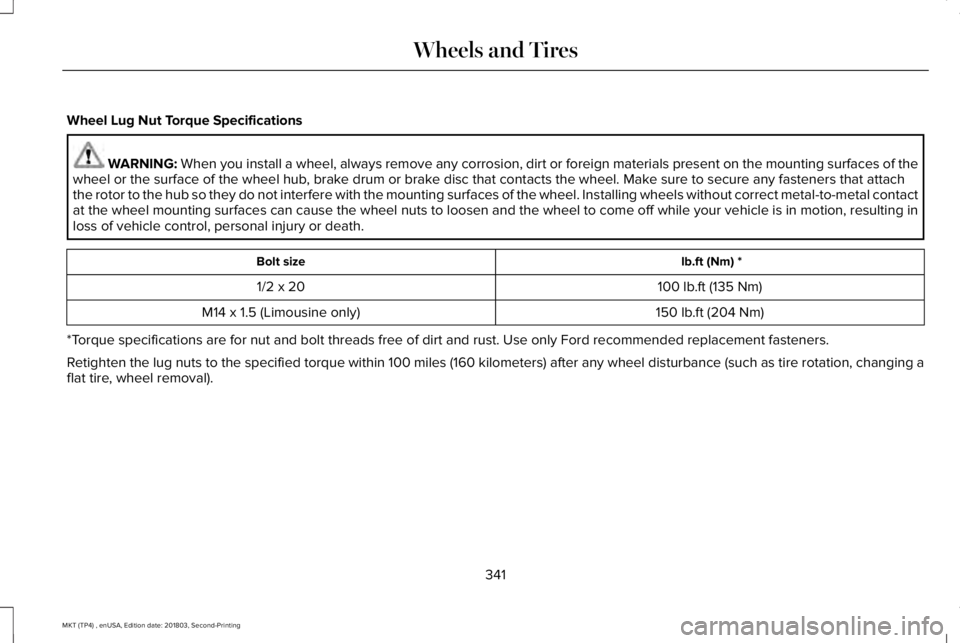

Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of thewheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attachthe rotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contactat the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting inloss of vehicle control, personal injury or death.
lb.ft (Nm) *Bolt size
100 lb.ft (135 Nm)1/2 x 20
150 lb.ft (204 Nm)M14 x 1.5 (Limousine only)
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing aflat tire, wheel removal).
341
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Wheels and Tires

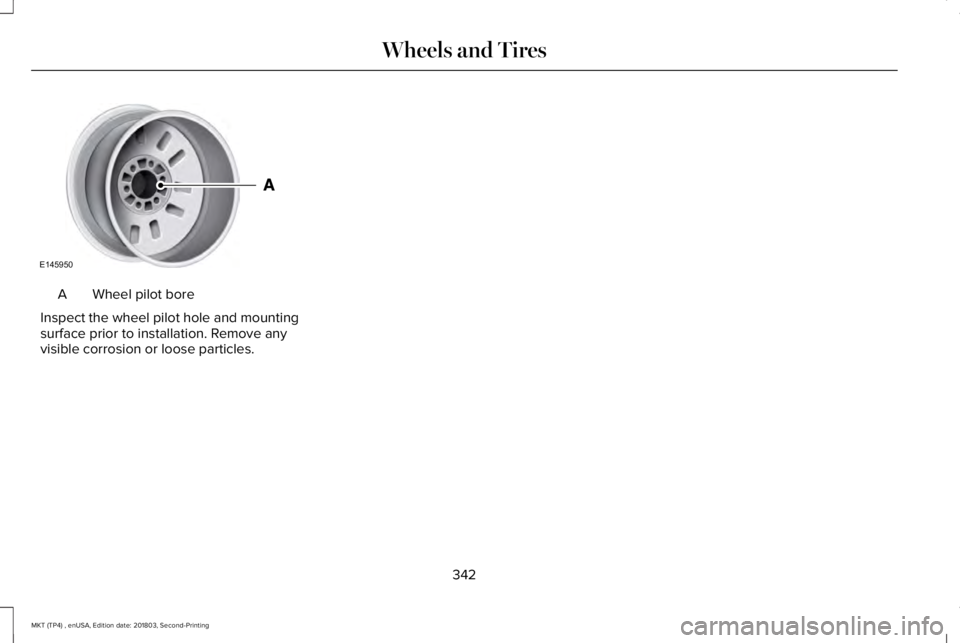

Wheel pilot boreA
Inspect the wheel pilot hole and mountingsurface prior to installation. Remove anyvisible corrosion or loose particles.
342
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Wheels and TiresE145950

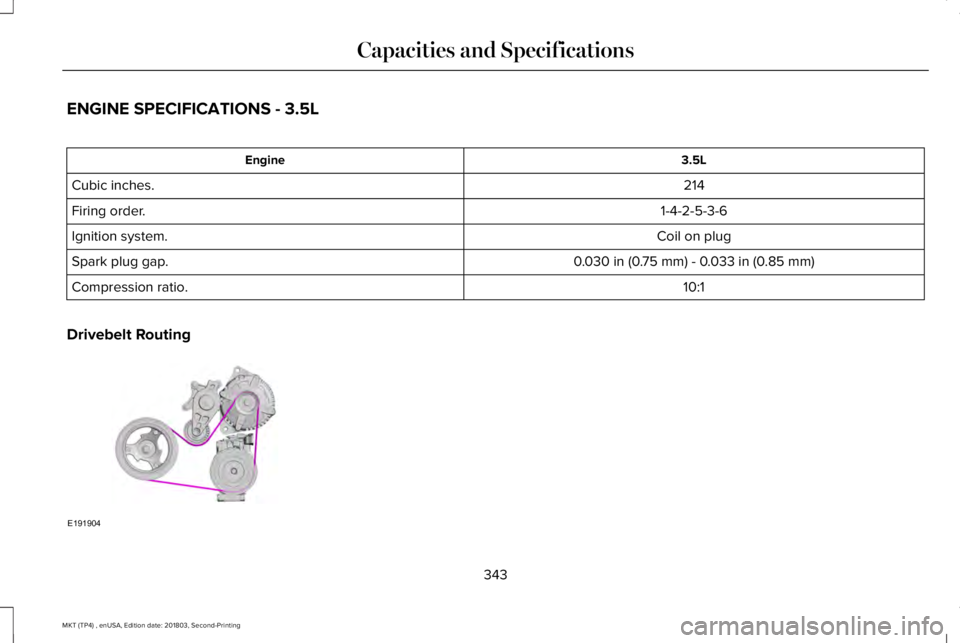

ENGINE SPECIFICATIONS - 3.5L
3.5LEngine
214Cubic inches.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.030 in (0.75 mm) - 0.033 in (0.85 mm)Spark plug gap.
10:1Compression ratio.
Drivebelt Routing
343
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Capacities and SpecificationsE191904

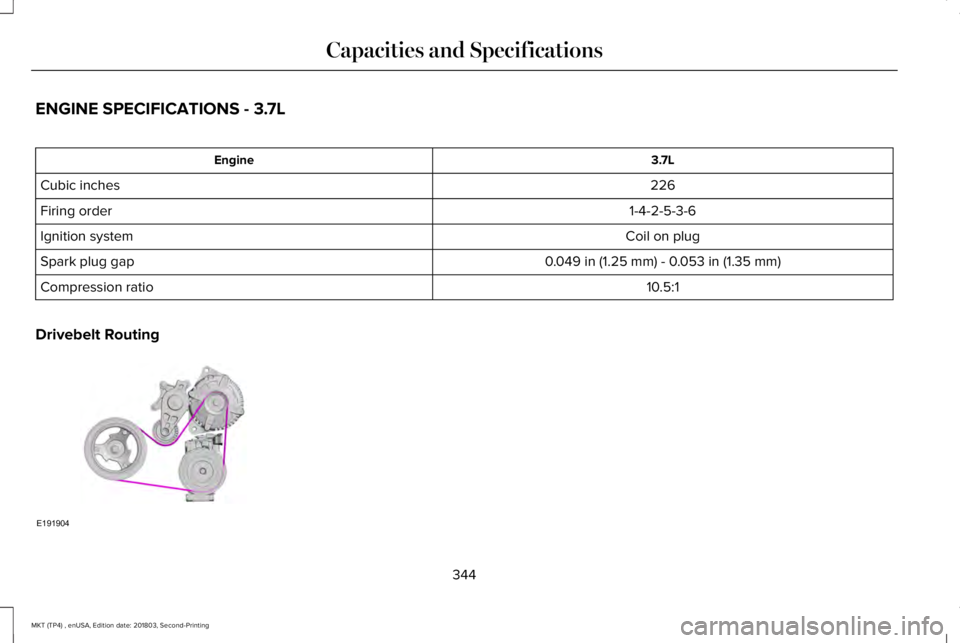

ENGINE SPECIFICATIONS - 3.7L
3.7LEngine
226Cubic inches
1-4-2-5-3-6Firing order
Coil on plugIgnition system
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap
10.5:1Compression ratio
Drivebelt Routing
344
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Capacities and SpecificationsE191904

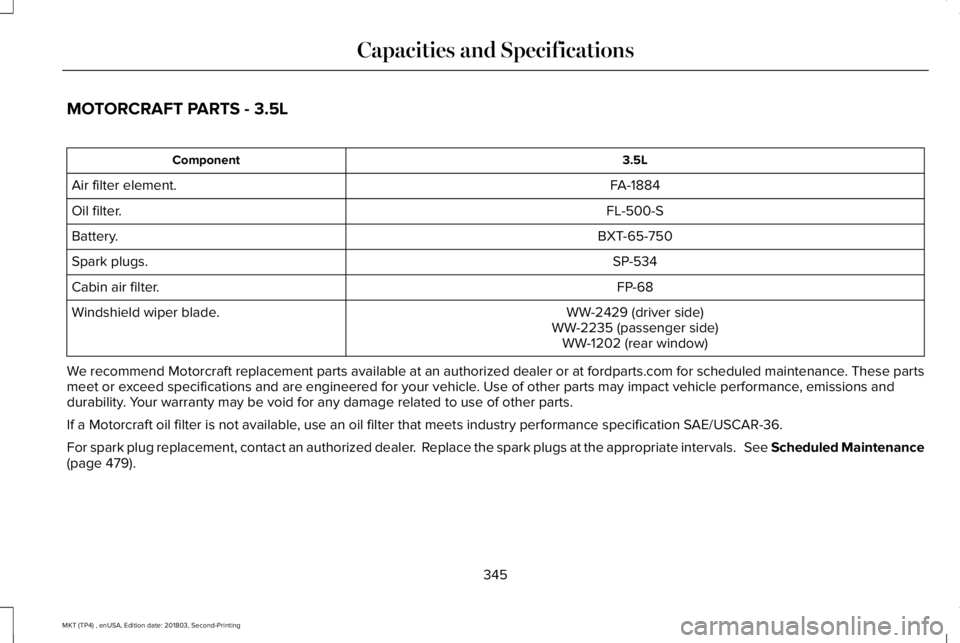

MOTORCRAFT PARTS - 3.5L
3.5LComponent
FA-1884Air filter element.
FL-500-SOil filter.
BXT-65-750Battery.
SP-534Spark plugs.
FP-68Cabin air filter.
WW-2429 (driver side)Windshield wiper blade.WW-2235 (passenger side)WW-1202 (rear window)
We recommend Motorcraft replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These partsmeet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions anddurability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 479).
345
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Capacities and Specifications

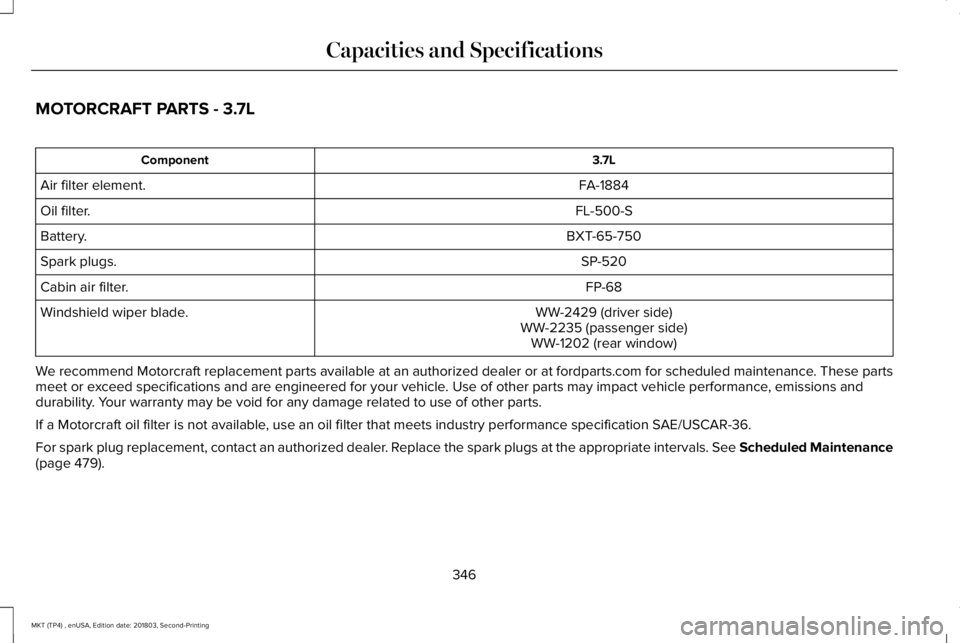

MOTORCRAFT PARTS - 3.7L
3.7LComponent
FA-1884Air filter element.
FL-500-SOil filter.
BXT-65-750Battery.
SP-520Spark plugs.
FP-68Cabin air filter.
WW-2429 (driver side)Windshield wiper blade.WW-2235 (passenger side)WW-1202 (rear window)
We recommend Motorcraft replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These partsmeet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions anddurability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 479).
346
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Capacities and Specifications

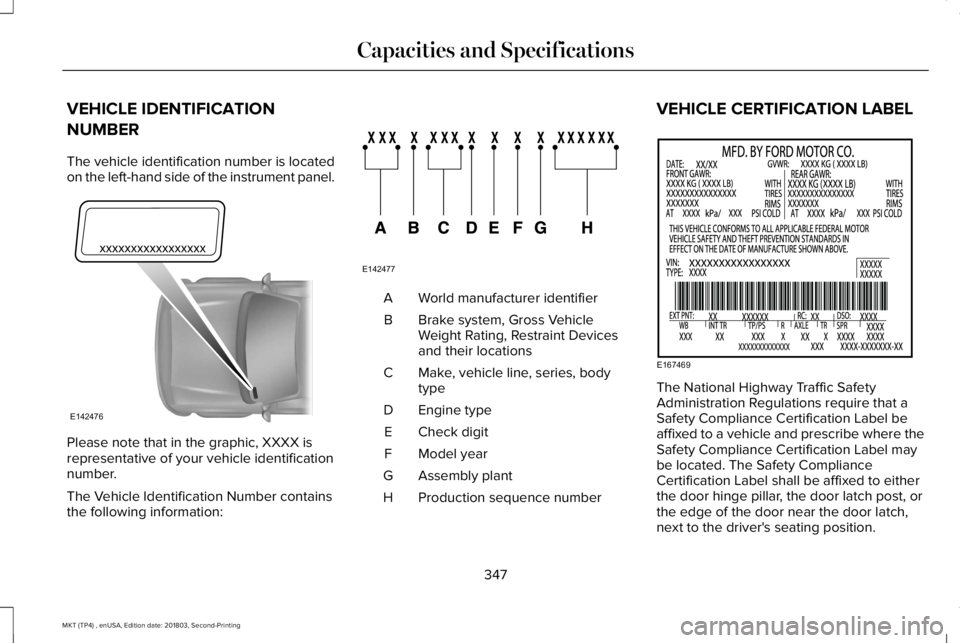

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is locatedon the left-hand side of the instrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
VEHICLE CERTIFICATION LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe where theSafety Compliance Certification Label maybe located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post, orthe edge of the door near the door latch,next to the driver's seating position.
347
MKT (TP4) , enUSA, Edition date: 201803, Second-Printing
Capacities and SpecificationsE142476 E142477 E167469
