headlamp LINCOLN MKX 2008 User Guide

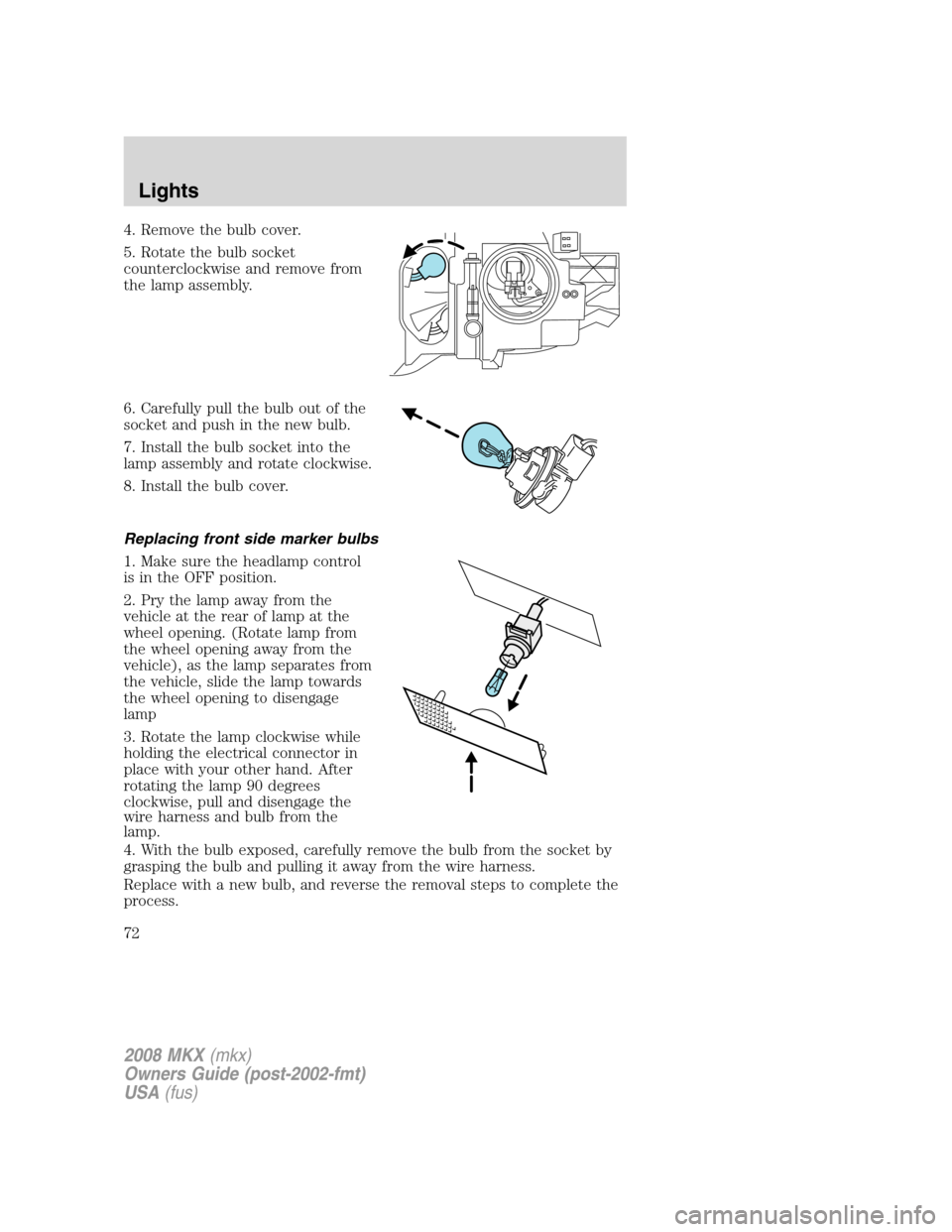

4. Remove the bulb cover.
5. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
6. Carefully pull the bulb out of the
socket and push in the new bulb.
7. Install the bulb socket into the
lamp assembly and rotate clockwise.
8. Install the bulb cover.
Replacing front side marker bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Pry the lamp away from the
vehicle at the rear of lamp at the
wheel opening. (Rotate lamp from
the wheel opening away from the
vehicle), as the lamp separates from
the vehicle, slide the lamp towards
the wheel opening to disengage
lamp
3. Rotate the lamp clockwise while
holding the electrical connector in
place with your other hand. After
rotating the lamp 90 degrees
clockwise, pull and disengage the
wire harness and bulb from the
lamp.
4. With the bulb exposed, carefully remove the bulb from the socket by
grasping the bulb and pulling it away from the wire harness.
Replace with a new bulb, and reverse the removal steps to complete the
process.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
72

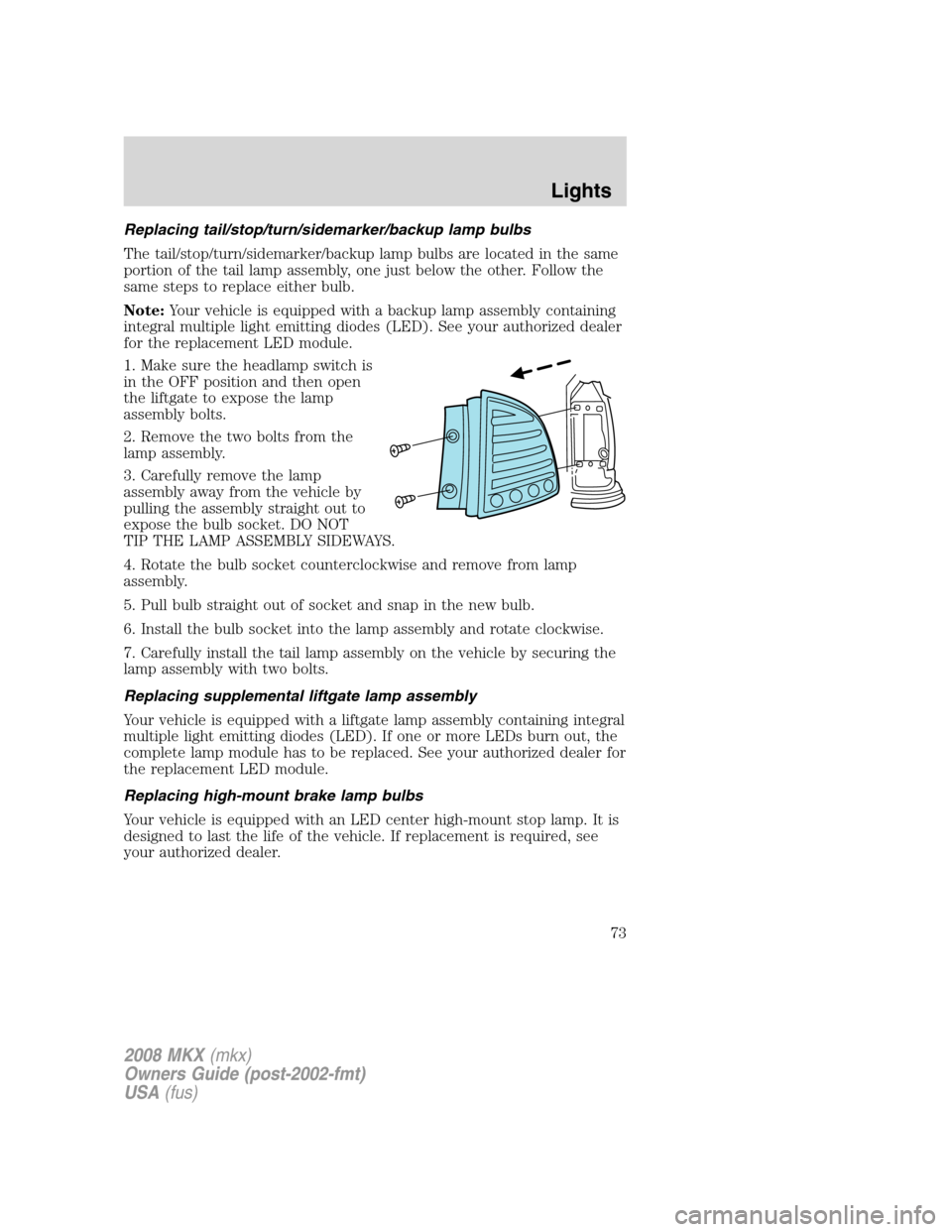

Replacing tail/stop/turn/sidemarker/backup lamp bulbs
The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb.
Note:Your vehicle is equipped with a backup lamp assembly containing
integral multiple light emitting diodes (LED). See your authorized dealer
for the replacement LED module.
1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the lamp
assembly bolts.
2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket. DO NOT
TIP THE LAMP ASSEMBLY SIDEWAYS.
4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
73

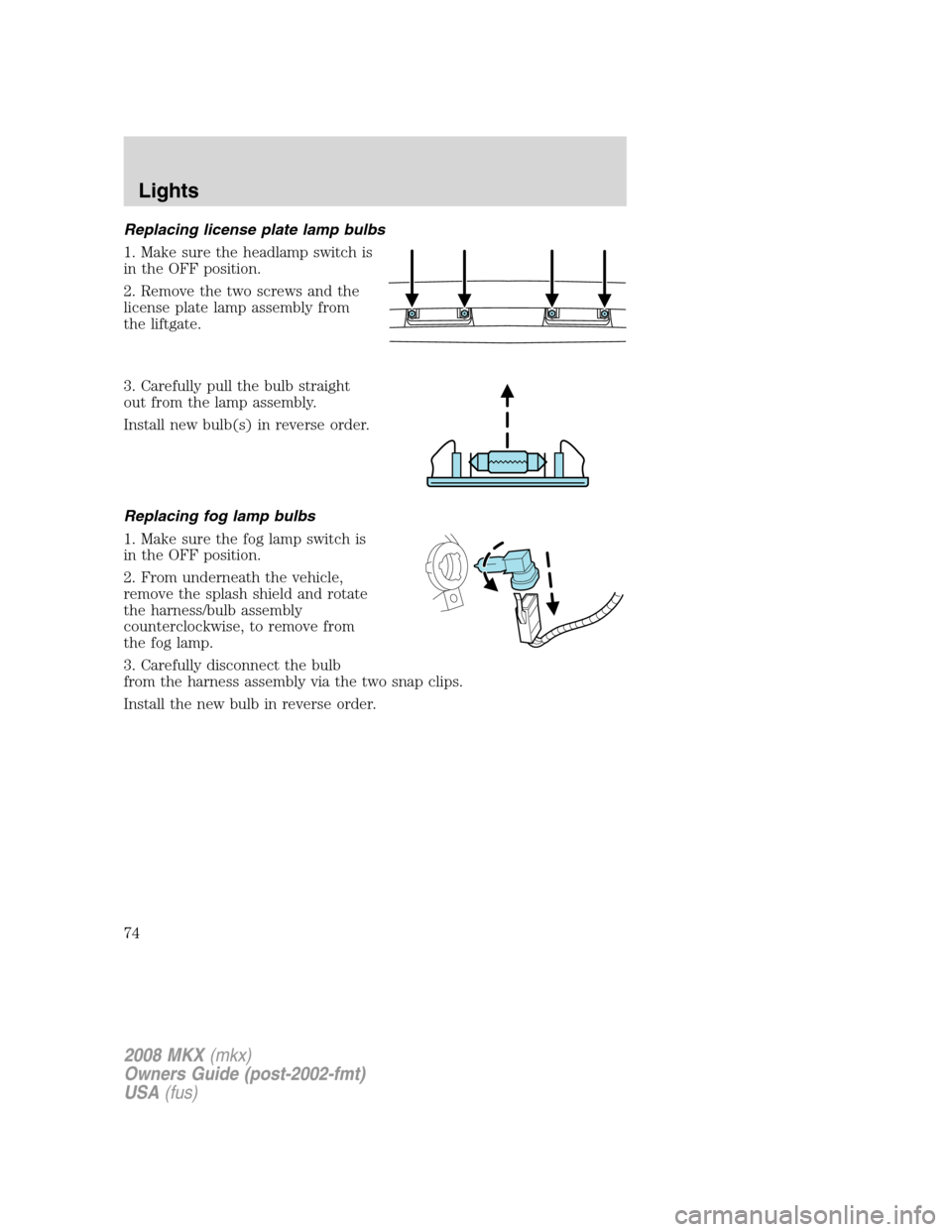

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws and the
license plate lamp assembly from
the liftgate.
3. Carefully pull the bulb straight
out from the lamp assembly.
Install new bulb(s) in reverse order.
Replacing fog lamp bulbs
1. Make sure the fog lamp switch is
in the OFF position.
2. From underneath the vehicle,
remove the splash shield and rotate
the harness/bulb assembly
counterclockwise, to remove from
the fog lamp.
3. Carefully disconnect the bulb
from the harness assembly via the two snap clips.
Install the new bulb in reverse order.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
74

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:When
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will happen a few seconds
after washing the front window to clear any water that is dripping down
from the top of the windshield caused by the washing.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper features (if equipped with Autolamp feature)
The exterior lamps will turn on with the ignition on, headlamp control in
the Autolamp position and the windshield wipers are turned on (for a
fixed period of time).
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
75

1. Place the key in the ignition and
turn the ignition to the 3 (RUN)
position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the 3
(RUN) position to the 1 (LOCK)
position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the 3 (RUN) position. The horn will chirp
one time to confirm programming mode has been entered and is active.
6. Press the power door unlock control twice within 5 seconds.Note:
The horn will chirp once to indicate the perimeter lighting feature has
been deactivated. The horn will chirp once and honk once (one short
and one long) to indicate the perimeter lighting feature has been
activated.
7. Turn the ignition to the 1 (LOCK) position to exit the procedure.
Note:The horn will chirp once to confirm the procedure is complete.
Illuminated exit
•When all vehicle doors are closed and the key is removed from the
ignition, the interior dome lamps (and the exterior mirror puddle
lamps, if equipped) will illuminate.
The lights will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery saver
The battery saver will shut off the interior lamps 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned to the 1 (LOCK) position.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk was opened, the battery saver will shut off them off 10
minutes after the ignition has been turned to the 1 (LOCK) position.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
122

Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
218

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 30A Passenger front smart window
2 15A Not used (Spare)
3 15A Family entertainment system
(FES)/Rear seat control, SYNC
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row
seat, Tire Pressure Monitoring
System (TPMS), Brake Shift
Interlock (BSI)
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – Keep alive power (KA)
13 5A Not used
14 10A Power liftgate module
15 10A Climate control
16 15A Not used (Spare)
17 20A All power lock motor feeds,
Liftgate release, Moon roof
18 20A THX system
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245

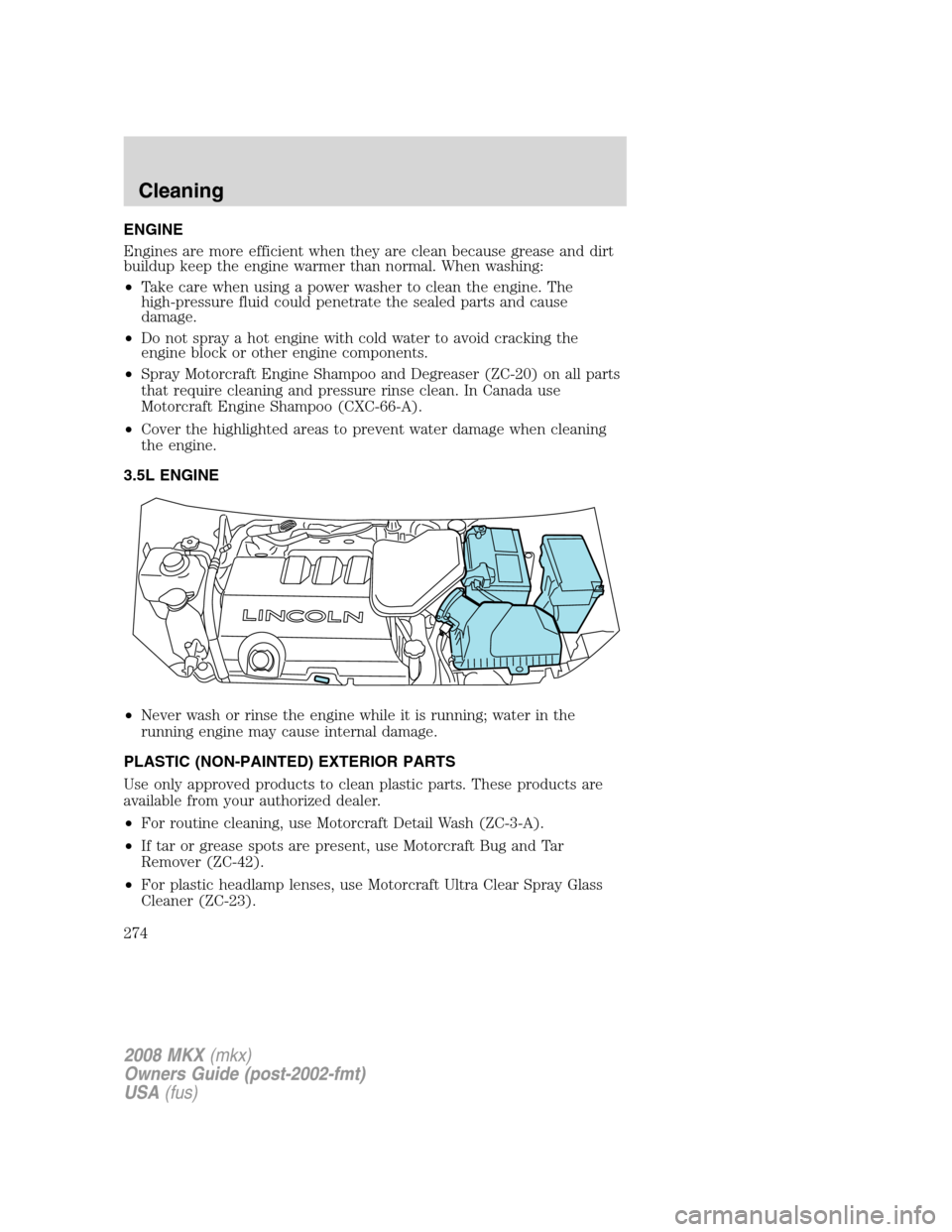

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean. In Canada use
Motorcraft Engine Shampoo (CXC-66-A).
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
3.5L ENGINE
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
274

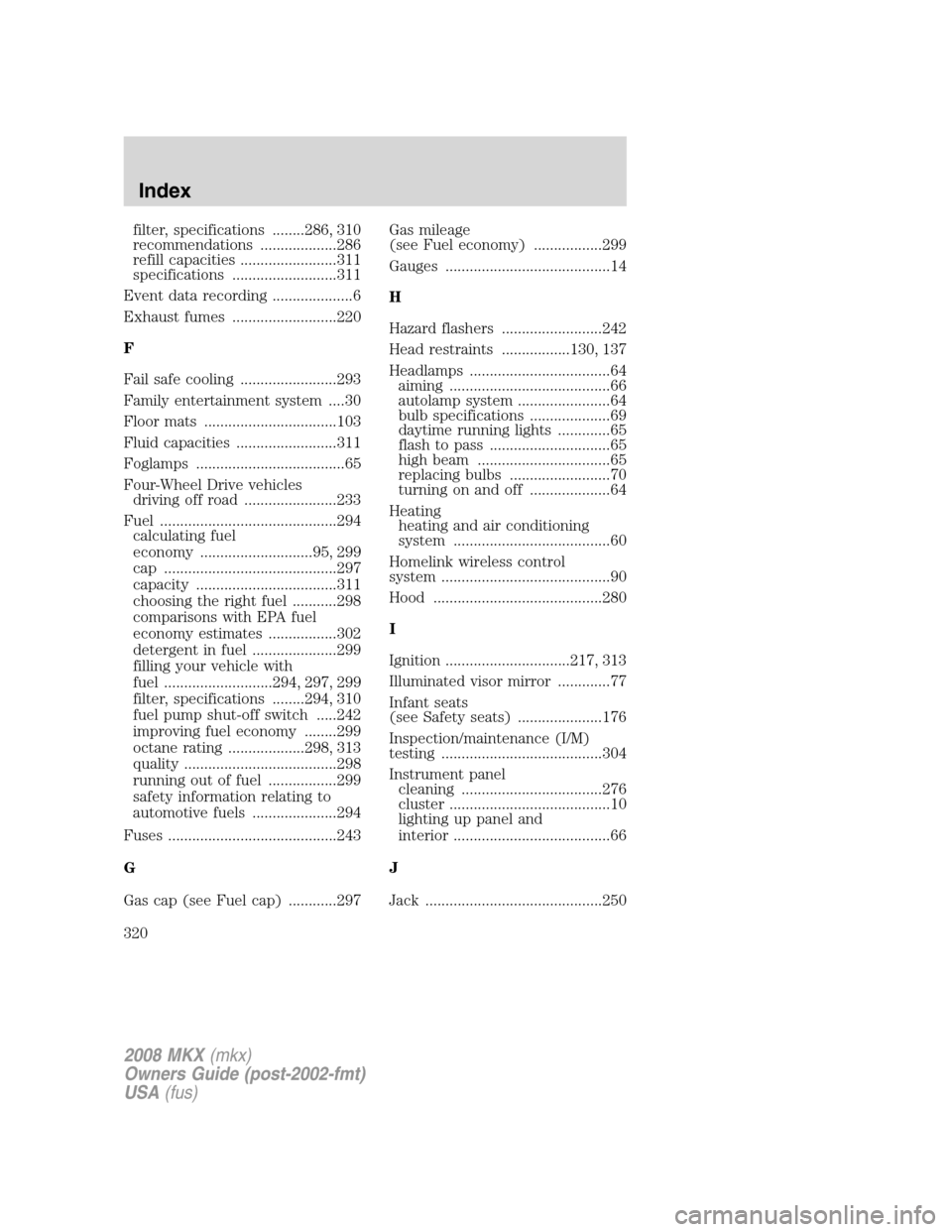

filter, specifications ........286, 310
recommendations ...................286
refill capacities ........................311
specifications ..........................311
Event data recording ....................6
Exhaust fumes ..........................220
F
Fail safe cooling ........................293
Family entertainment system ....30
Floor mats .................................103
Fluid capacities .........................311
Foglamps .....................................65
Four-Wheel Drive vehicles
driving off road .......................233
Fuel ............................................294
calculating fuel
economy ............................95, 299
cap ...........................................297
capacity ...................................311
choosing the right fuel ...........298
comparisons with EPA fuel
economy estimates .................302
detergent in fuel .....................299
filling your vehicle with
fuel ...........................294, 297, 299
filter, specifications ........294, 310
fuel pump shut-off switch .....242
improving fuel economy ........299
octane rating ...................298, 313
quality ......................................298
running out of fuel .................299
safety information relating to
automotive fuels .....................294
Fuses ..........................................243
G
Gas cap (see Fuel cap) ............297Gas mileage
(see Fuel economy) .................299
Gauges .........................................14
H
Hazard flashers .........................242
Head restraints .................130, 137
Headlamps ...................................64
aiming ........................................66
autolamp system .......................64
bulb specifications ....................69
daytime running lights .............65
flash to pass ..............................65
high beam .................................65
replacing bulbs .........................70
turning on and off ....................64
Heating
heating and air conditioning
system .......................................60
Homelink wireless control
system ..........................................90
Hood ..........................................280
I
Ignition ...............................217, 313
Illuminated visor mirror .............77
Infant seats
(see Safety seats) .....................176
Inspection/maintenance (I/M)
testing ........................................304
Instrument panel
cleaning ...................................276
cluster ........................................10
lighting up panel and
interior .......................................66
J
Jack ............................................250
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320

positioning ...............................250
storage .....................................250
Jump-starting your vehicle ......257
K
Keyless entry system ...............123
autolock ...................................111
keypad .....................................123
locking and unlocking doors ..124
programming entry code .......123
Keys ...................................109, 126
positions of the ignition .........217
L
Lamps
autolamp system .......................64
bulb replacement
specifications chart ..................69
daytime running light ...............65
fog lamps ...................................65
headlamps .................................64
headlamps, flash to pass ..........65
instrument panel, dimming .....66
interior lamps .....................68, 70
replacing bulbs .........................70
Liftgate ......................103–104, 118
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........223
Load limits .................................205
Locks
autolock ...................................111
childproof ................................115
doors ........................................111
Lubricant specifications ...........311
Lug nuts ....................................256
Lumbar support, seats .............133
M
Message center .....................93–94english/metric button ...............98
system check button ................98
warning messages ...................100
Mirrors ...................................81–82
automatic dimming rearview
mirror ........................................82
fold away ...................................83
heated ........................................83
programmable memory ..........119
side view mirrors (power) .......82
Moon roof ............................88, 117
Motorcraft parts ........278, 294, 310
N
Navigation system .......................59
O
Octane rating ............................298
Oil (see Engine oil) ..................283
Overdrive ...................................229
P
Parking brake ............................223
Parts (see Motorcraft parts) ....310
Passenger Occupant
Classification Sensor .................143
Power distribution box
(see Fuses) ...............................247
Power door locks ......................111
Power liftgate ............................104
Power mirrors .............................82
Power point .................................78
Power steering ..........................227
fluid, checking and adding ....305
fluid, refill capacity ................311
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
321
