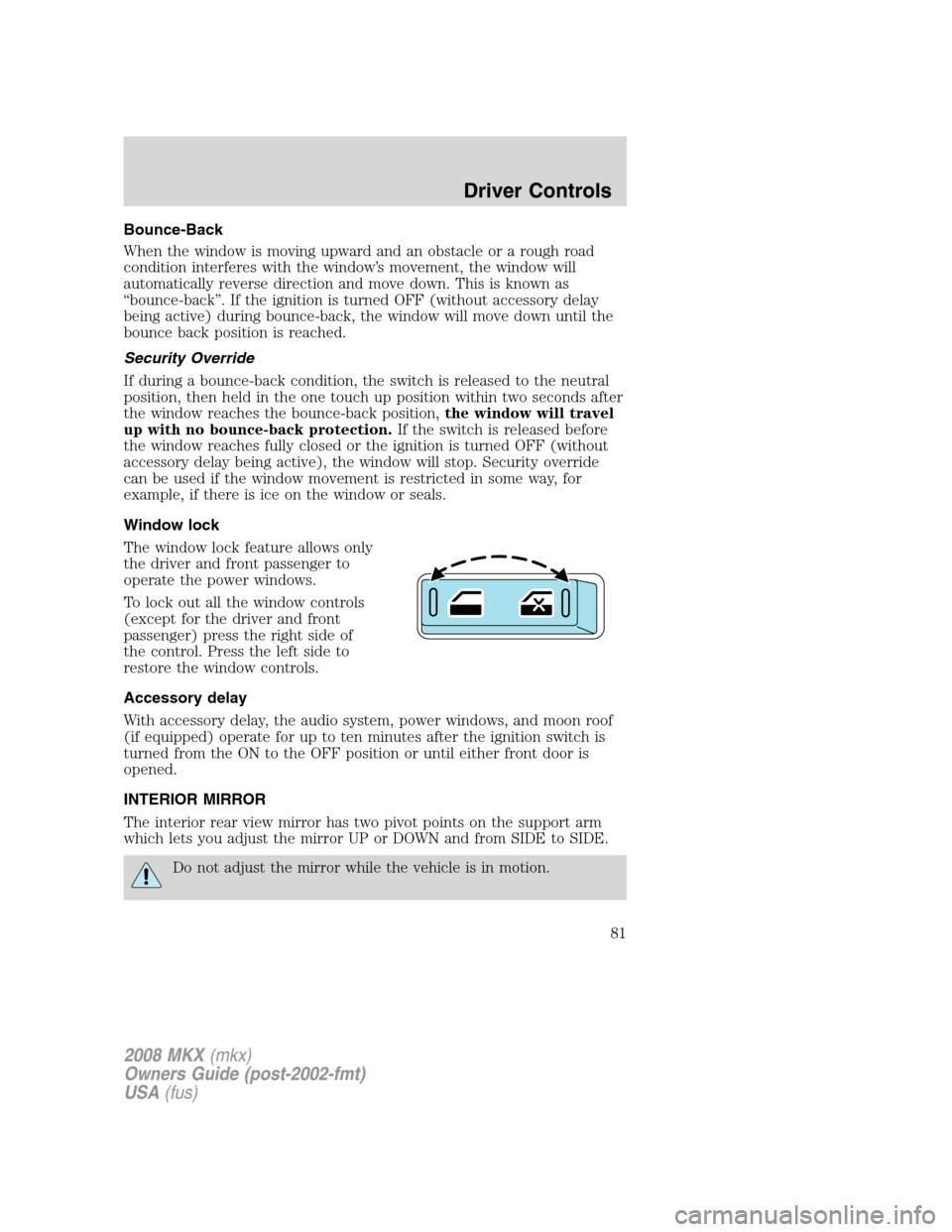

Bounce-Back
When the window is moving upward and an obstacle or a rough road
condition interferes with the window’s movement, the window will
automatically reverse direction and move down. This is known as
“bounce-back”. If the ignition is turned OFF (without accessory delay
being active) during bounce-back, the window will move down until the
bounce back position is reached.
Security Override
If during a bounce-back condition, the switch is released to the neutral
position, then held in the one touch up position within two seconds after
the window reaches the bounce-back position,the window will travel
up with no bounce-back protection.If the switch is released before
the window reaches fully closed or the ignition is turned OFF (without
accessory delay being active), the window will stop. Security override
can be used if the window movement is restricted in some way, for
example, if there is ice on the window or seals.
Window lock
The window lock feature allows only
the driver and front passenger to
operate the power windows.
To lock out all the window controls
(except for the driver and front
passenger) press the right side of
the control. Press the left side to
restore the window controls.
Accessory delay
With accessory delay, the audio system, power windows, and moon roof
(if equipped) operate for up to ten minutes after the ignition switch is
turned from the ON to the OFF position or until either front door is
opened.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
Do not adjust the mirror while the vehicle is in motion.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
81

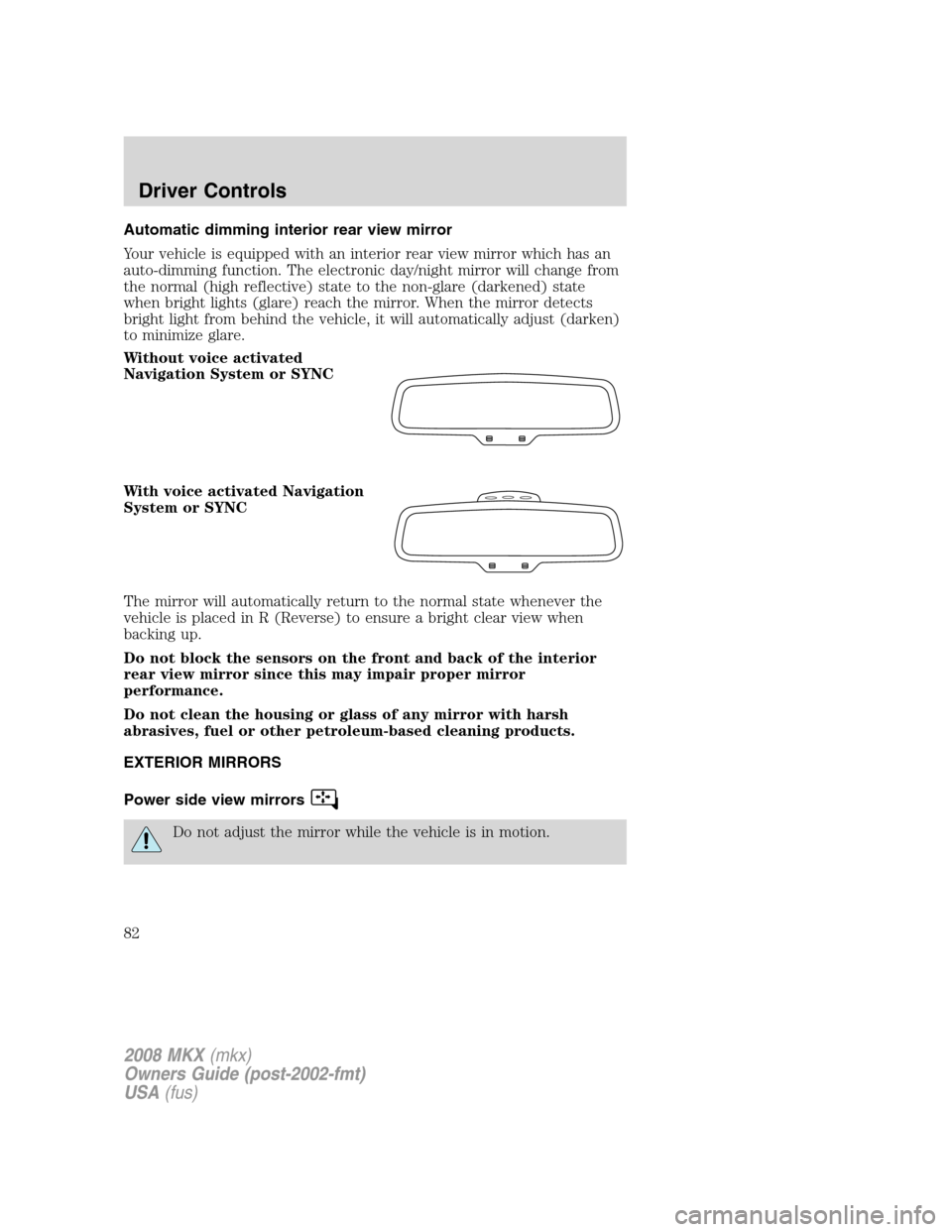

Automatic dimming interior rear view mirror
Your vehicle is equipped with an interior rear view mirror which has an
auto-dimming function. The electronic day/night mirror will change from
the normal (high reflective) state to the non-glare (darkened) state
when bright lights (glare) reach the mirror. When the mirror detects
bright light from behind the vehicle, it will automatically adjust (darken)
to minimize glare.
Without voice activated
Navigation System or SYNC
With voice activated Navigation
System or SYNC
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
Do not adjust the mirror while the vehicle is in motion.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
82

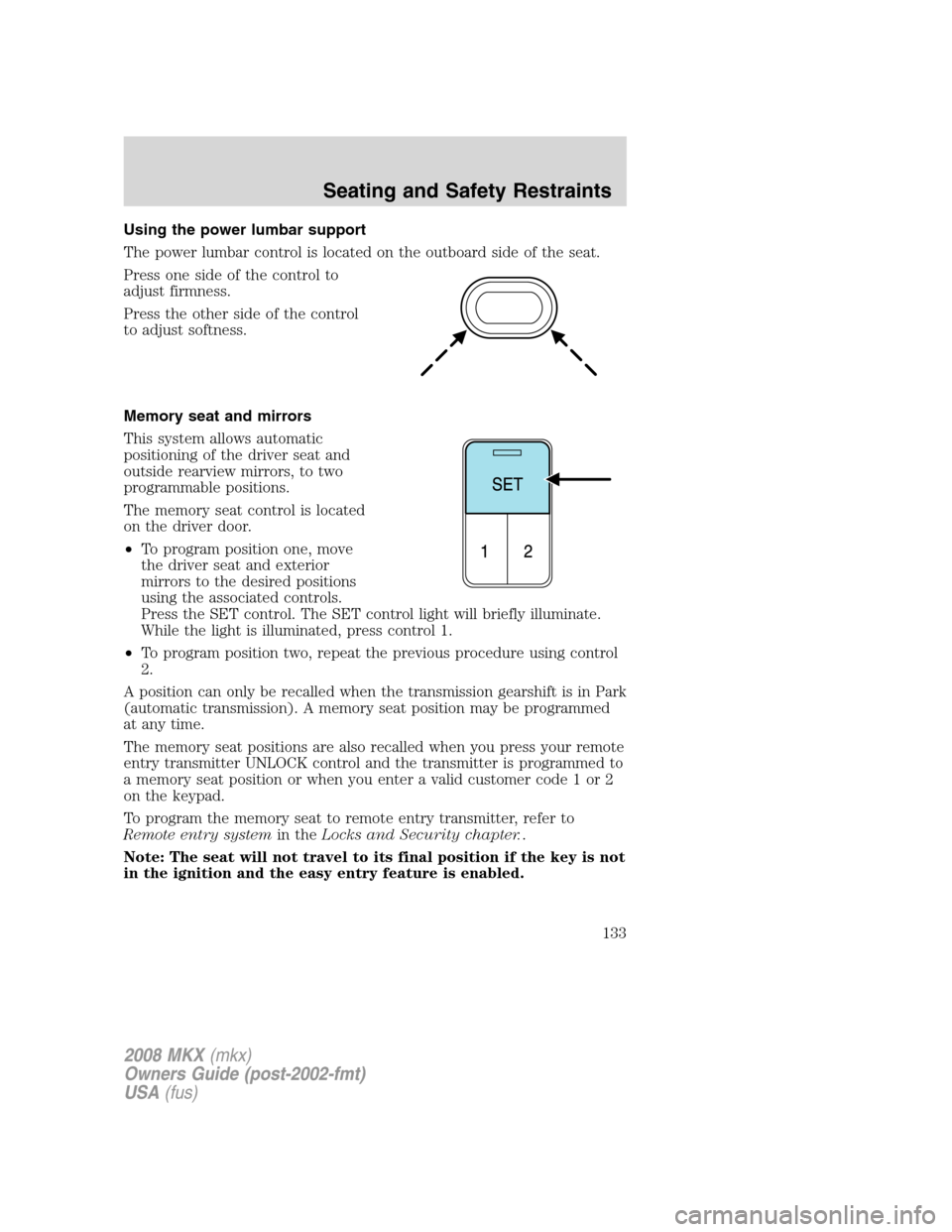

Using the power lumbar support
The power lumbar control is located on the outboard side of the seat.
Press one side of the control to
adjust firmness.
Press the other side of the control
to adjust softness.
Memory seat and mirrors
This system allows automatic
positioning of the driver seat and
outside rearview mirrors, to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move
the driver seat and exterior
mirrors to the desired positions
using the associated controls.
Press the SET control. The SET control light will briefly illuminate.
While the light is illuminated, press control 1.
•To program position two, repeat the previous procedure using control
2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter UNLOCK control and the transmitter is programmed to
a memory seat position or when you enter a valid customer code 1 or 2
on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note: The seat will not travel to its final position if the key is not
in the ignition and the easy entry feature is enabled.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
133

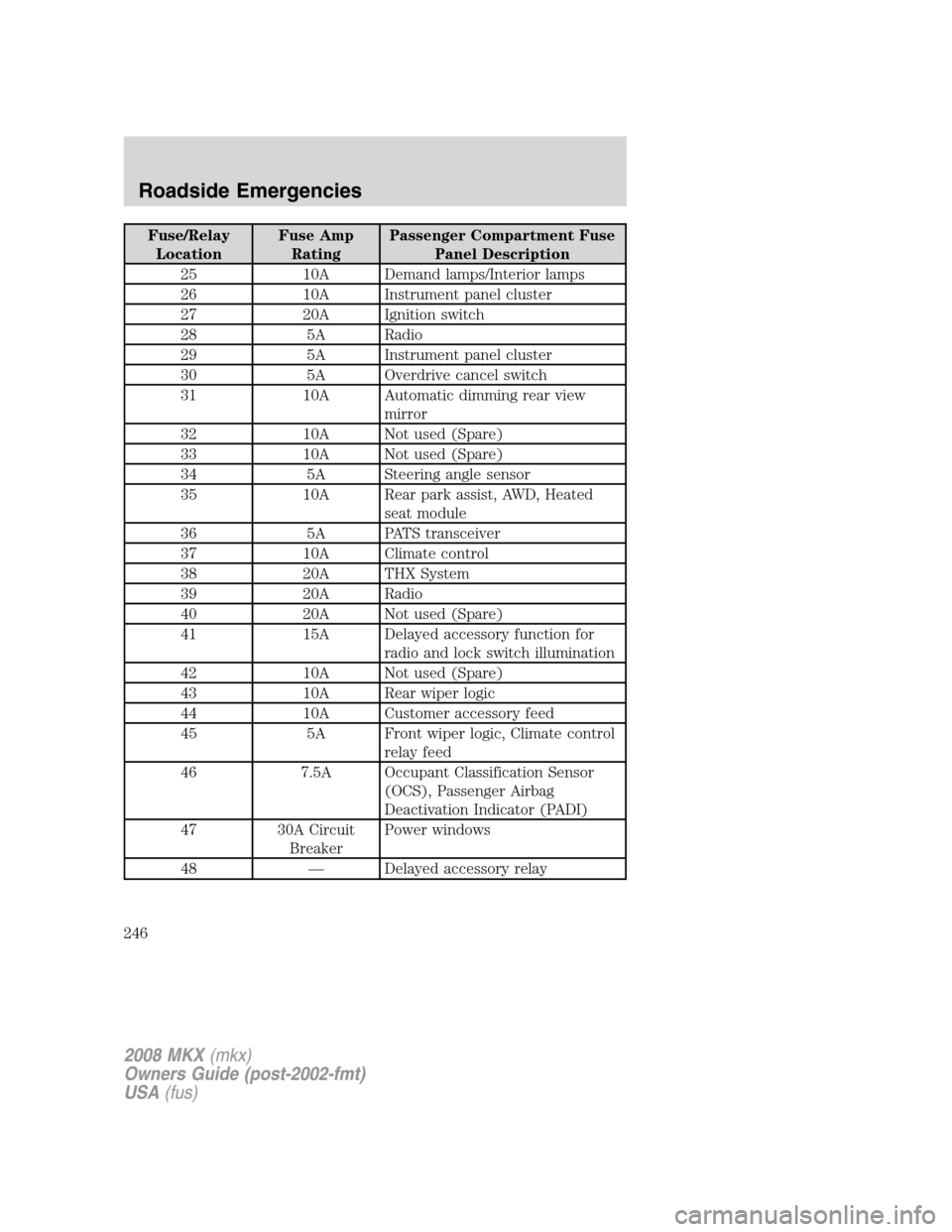

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
25 10A Demand lamps/Interior lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Overdrive cancel switch
31 10A Automatic dimming rear view
mirror
32 10A Not used (Spare)
33 10A Not used (Spare)
34 5A Steering angle sensor
35 10A Rear park assist, AWD, Heated
seat module
36 5A PATS transceiver
37 10A Climate control
38 20A THX System
39 20A Radio
40 20A Not used (Spare)
41 15A Delayed accessory function for
radio and lock switch illumination
42 10A Not used (Spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic, Climate control
relay feed
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
246

positioning ...............................250
storage .....................................250
Jump-starting your vehicle ......257
K
Keyless entry system ...............123
autolock ...................................111
keypad .....................................123
locking and unlocking doors ..124
programming entry code .......123
Keys ...................................109, 126
positions of the ignition .........217
L
Lamps
autolamp system .......................64
bulb replacement
specifications chart ..................69
daytime running light ...............65
fog lamps ...................................65
headlamps .................................64
headlamps, flash to pass ..........65
instrument panel, dimming .....66
interior lamps .....................68, 70
replacing bulbs .........................70
Liftgate ......................103–104, 118
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........223
Load limits .................................205
Locks
autolock ...................................111
childproof ................................115
doors ........................................111
Lubricant specifications ...........311
Lug nuts ....................................256
Lumbar support, seats .............133
M
Message center .....................93–94english/metric button ...............98
system check button ................98
warning messages ...................100
Mirrors ...................................81–82
automatic dimming rearview
mirror ........................................82
fold away ...................................83
heated ........................................83
programmable memory ..........119
side view mirrors (power) .......82
Moon roof ............................88, 117
Motorcraft parts ........278, 294, 310
N
Navigation system .......................59
O
Octane rating ............................298
Oil (see Engine oil) ..................283
Overdrive ...................................229
P
Parking brake ............................223
Parts (see Motorcraft parts) ....310
Passenger Occupant
Classification Sensor .................143
Power distribution box
(see Fuses) ...............................247
Power door locks ......................111
Power liftgate ............................104
Power mirrors .............................82
Power point .................................78
Power steering ..........................227
fluid, checking and adding ....305
fluid, refill capacity ................311
