key LINCOLN MKX 2011 My Lincoln Touch Manual

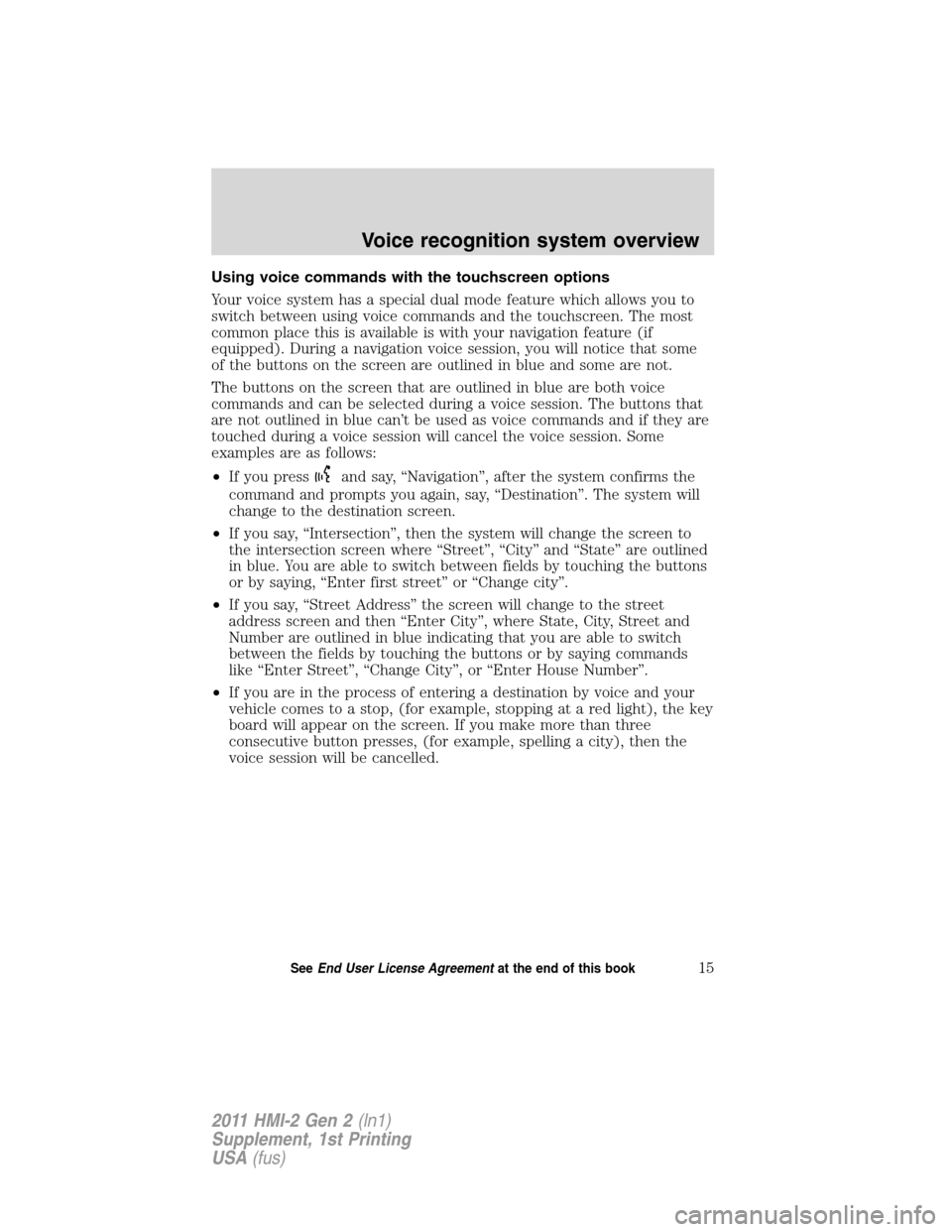

Using voice commands with the touchscreen options
Your voice system has a special dual mode feature which allows you to
switch between using voice commands and the touchscreen. The most
common place this is available is with your navigation feature (if
equipped). During a navigation voice session, you will notice that some
of the buttons on the screen are outlined in blue and some are not.
The buttons on the screen that are outlined in blue are both voice
commands and can be selected during a voice session. The buttons that
are not outlined in blue can’t be used as voice commands and if they are
touched during a voice session will cancel the voice session. Some
examples are as follows:
•If you press
and say, “Navigation”, after the system confirms the
command and prompts you again, say, “Destination”. The system will
change to the destination screen.
•If you say, “Intersection”, then the system will change the screen to
the intersection screen where “Street”, “City” and “State” are outlined
in blue. You are able to switch between fields by touching the buttons
or by saying, “Enter first street” or “Change city”.
•If you say, “Street Address” the screen will change to the street
address screen and then “Enter City”, where State, City, Street and
Number are outlined in blue indicating that you are able to switch
between the fields by touching the buttons or by saying commands
like “Enter Street”, “Change City”, or “Enter House Number”.
•If you are in the process of entering a destination by voice and your
vehicle comes to a stop, (for example, stopping at a red light), the key
board will appear on the screen. If you make more than three
consecutive button presses, (for example, spelling a city), then the
voice session will be cancelled.
Voice recognition system overview
15SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

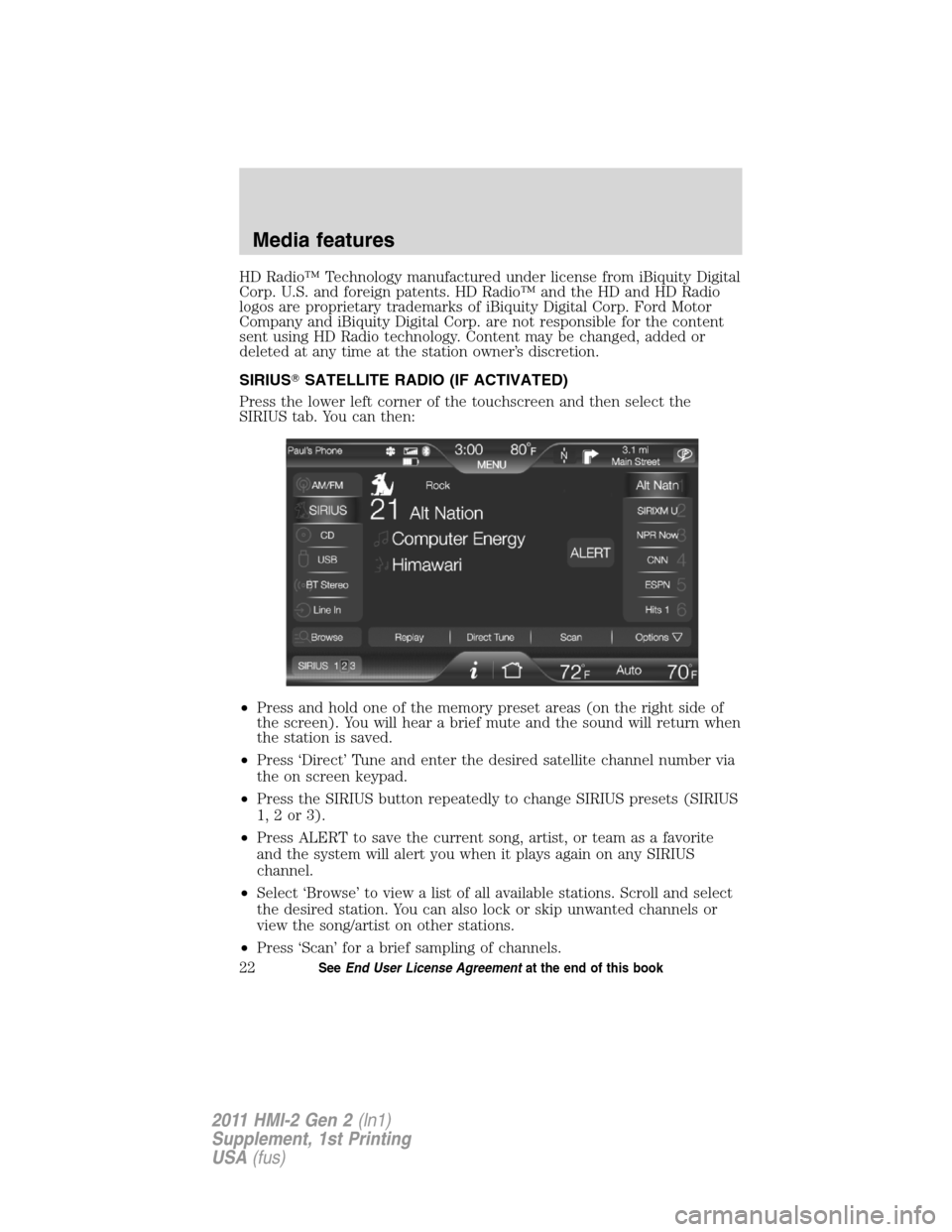

HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor
Company and iBiquity Digital Corp. are not responsible for the content
sent using HD Radio technology. Content may be changed, added or
deleted at any time at the station owner’s discretion.
SIRIUSSATELLITE RADIO (IF ACTIVATED)
Press the lower left corner of the touchscreen and then select the
SIRIUS tab. You can then:
•Press and hold one of the memory preset areas (on the right side of
the screen). You will hear a brief mute and the sound will return when
the station is saved.
•Press ‘Direct’ Tune and enter the desired satellite channel number via
the on screen keypad.
•Press the SIRIUS button repeatedly to change SIRIUS presets (SIRIUS
1,2or3).
•Press ALERT to save the current song, artist, or team as a favorite
and the system will alert you when it plays again on any SIRIUS
channel.
•Select ‘Browse’ to view a list of all available stations. Scroll and select
the desired station. You can also lock or skip unwanted channels or
view the song/artist on other stations.
•Press ‘Scan’ for a brief sampling of channels.
Media features
22SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

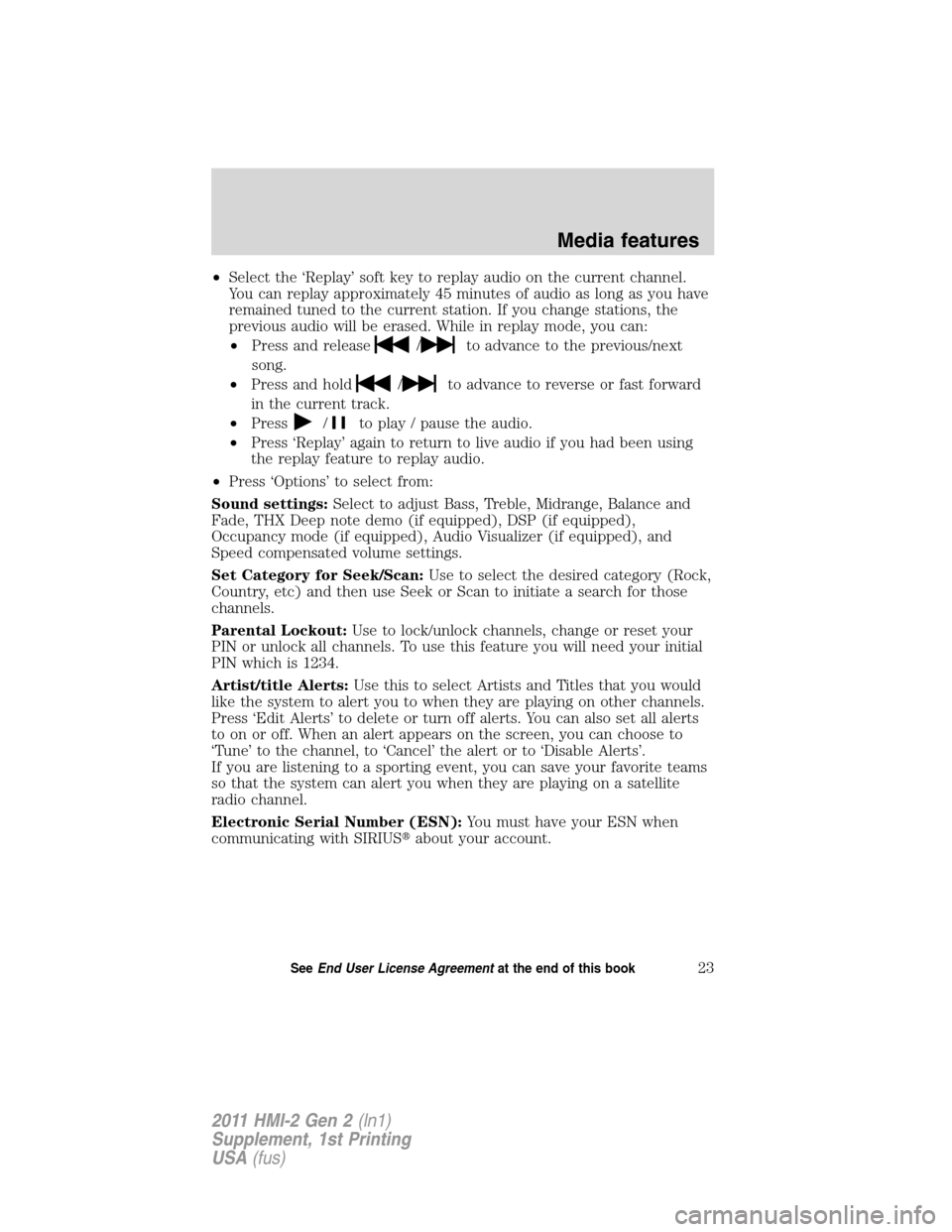

•Select the ‘Replay’ soft key to replay audio on the current channel.
You can replay approximately 45 minutes of audio as long as you have
remained tuned to the current station. If you change stations, the
previous audio will be erased. While in replay mode, you can:
•Press and release
/to advance to the previous/next
song.
•Press and hold
/to advance to reverse or fast forward
in the current track.
•Press
/to play / pause the audio.
•Press ‘Replay’ again to return to live audio if you had been using
the replay feature to replay audio.
•Press ‘Options’ to select from:
Sound settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped), and
Speed compensated volume settings.
Set Category for Seek/Scan:Use to select the desired category (Rock,
Country, etc) and then use Seek or Scan to initiate a search for those
channels.
Parental Lockout:Use to lock/unlock channels, change or reset your
PIN or unlock all channels. To use this feature you will need your initial
PIN which is 1234.
Artist/title Alerts:Use this to select Artists and Titles that you would
like the system to alert you to when they are playing on other channels.
Press ‘Edit Alerts’ to delete or turn off alerts. You can also set all alerts
to on or off. When an alert appears on the screen, you can choose to
‘Tune’ to the channel, to ‘Cancel’ the alert or to ‘Disable Alerts’.
If you are listening to a sporting event, you can save your favorite teams
so that the system can alert you when they are playing on a satellite
radio channel.
Electronic Serial Number (ESN):You must have your ESN when
communicating with SIRIUSabout your account.
Media features
23SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

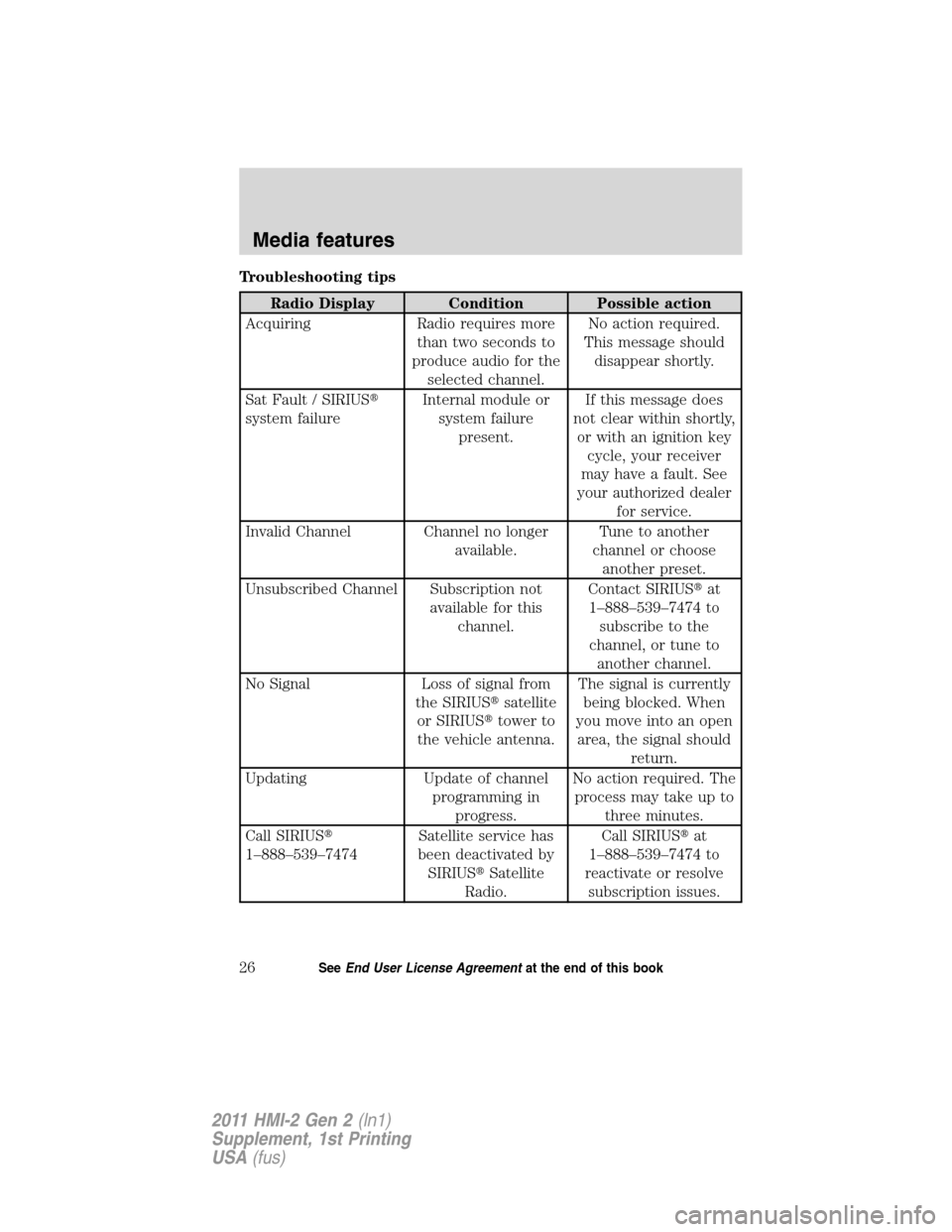

Troubleshooting tips
Radio Display Condition Possible action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault / SIRIUS
system failureInternal module or
system failure
present.If this message does
not clear within shortly,
or with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
Media features
26SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

5. When prompted by your phone, enter the six digit pass key provided
by SYNCon the screen.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
6. CONNECTED will appear in the display when the pairing is successful.
7. The system will ask you if you want to download your phone book.
MAKING A CALL
Once your phone is paired, you can make hands-free calls using SYNC.
1. Press
.
2. When prompted, say, “Call or say “Dial” and the desired
number.
To end the call or exit phone mode,press and hold
.
RECEIVING A CALL
An incoming call interacts with SYNCin much the same way it interacts
with yourBluetooth-enabled cellular phone.
•During an incoming call, an audible tone will sound. If available, call
information will appear in the display.
•Accept the callby pressing ’Accept’ on the touchscreen or by
pressing
on your steering wheel controls.
•Reject the callby pressing ’Reject’ on the touchscreen or by pressing
and holding
on your steering wheel controls.
•Ignore the callby doing nothing. SYNC. will log the call as a missed
call.
PHONE FEATURES
Hands-free calling is one of the main features of SYNC. As many
features are phone dependent, check your device’s user guide and refer
to www.SyncMyRide.com or www.syncmaroute.ca to ensure that your
phone is compatible.
Phone features
38SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Messaging:Select to send text messages via your touchscreen system.
Refer toText messaginglater in this section.
Settings:Select to access various phone settings such asBluetooth
on/off, Manage your Phone Book and more. Refer toPhone Settings
later in this section.
PAIRING SUBSEQUENT PHONES
1. Press Menu > Settings > Phone > Bluetooth Devices > Add Device.
2. Ensure that Bluetooth is set to ON and that your cellular phone is in
the proper mode. (Refer to your cellular phone’s user guide for more
information).
3. When prompted by your phone, enter the six digit pass key provided
by SYNC on the screen.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
4. CONNECTED will appear in the display when the pairing is successful.
5. The system will ask you if you want to download your phone book.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, refer
to your phone’s user guide and visit www.SyncMyRide.com
TEXT MESSAGING
SYNCnot only enables you to send and receive text messages via
Bluetooth, but SYNCwill read them to you aloud and also translate text
messaging acronyms such as “lol”. To access your text messaging menu:
Note:Downloading and sending text messages viaBluetoothare phone
dependent features.
Note:Certain features in text messaging are speed dependent and
cannot be completed when the vehicle is traveling at speeds over 5 mph
(8 km/h).
1. Touch the top left corner of the display to access the phone menu.
2. Select ‘Messaging’.
Phone features
40SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

3. Select from the following options:
•Listen•Dial
•Send Text•View
•Delete•Delete all
•Download new
Note:SYNCdoes not download read text messages from your phone.
Composing a text message
Note:This is a speed dependent feature and cannot be completed when
the vehicle is traveling at speeds over 5 mph (8 km/h).
1. Touch the top left corner of the display to access the phone menu.
2. Press Messaging > Send Text.
3. Select from the following options:
•I’ll call you back in a few
minutes•I just left, I’ll be there soon.
•Can you give me a call?•I’m on my way.
•I’m running a few minutes late.•I’m ahead of schedule, so I’ll be
there early.
•I’m outside.•I’ll call you when I get there.
•Ok•Ye s
•No•Thanks
•Stuck in traffic•Call me later
•LOL
You can also select to ‘Edit text’ and
use the system keyboard to create
your text message.
Note:Downloading and sending text messages viaBluetoothare a
phone dependent feature.
Phone features
41SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

SYSTEM SETTINGS
1. Press Menu > Settings > System.
2. Select from the following:
•Language•Distance Units
•Temperature Units•System Prompt Volume
•Touchscreen beeps•Keyboard layout
Display settings
Your touchscreen system allows you to make adjustments to the
touchscreen display. To access:
1. Press Menu > Display.
2. Choose to adjust any of the following:
•Brightness•Mode: Auto, Day or Night
•Auto Dim on/off•Edit Wallpaper
To access this screen using voice commands,press
on your
steering wheel controls and when prompted, say, “Display settings”.
Notifications
This screen will display any system messages such as an SD card fault,
etc. You can select the message and then choose to:
•Viewthe complete message
•Deletethe message
•Delete Allmessages
Note:The system will alert you that you have messages by turning
the
icon yellow (instead of white). When the messages are read or
deleted, the icon will return to white.
VEHICLE SETTINGS
Vehicle settings allow to you access and make adjustments to many
features (if available) such as:
•Ambient lighting
•Vehicle Health Report (if equipped, U.S. only): Refer toVehicle
Health Reportin theSYNCServices and Appschapter in this
supplement.
•Rear View Camera
Settings
54SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

•Enable Valet Mode
•Edit Door Keypad code
Ambient lighting (if equipped)
When activated, ambient lighting will illuminate footwells and cupholders
with a choice of colors. To access:
1. Press Menu > Vehicle > Ambient lighting.
2. Touch the desired color.
3. Use the scroll bar to increase/decrease the intensity.
To turn the feature on/off, simply press the power button (
).
Rearview camera (if equipped)
The rear-view camera provides a video image of the area behind the
vehicle.
1. Press Menu > Vehicle > Reverse camera.
2. Select from the following settings:
•Rear camera delay•Visual park aid alert
•Guideline
Valet mode
Valet mode allows you to lock the system so that none of your
information on the system can be accessed until it is unlocked with the
correct PIN.
1. Press Menu > Vehicle > Valet mode.
2. Select ‘Enable valet mode’.
3. When prompted, enter a four digit PIN.
Note:After you press to ‘Continue’ the system will be locked until the
correct PIN is entered again.
Note:If you are locked out and need to reset the PIN, you can enter
3681 and the system will unlock.
Changing your door keypad code
To change the keypad code for your keyless entry keypad system:
1. Press Menu > Vehicle > Edit door keypad code.
2. Enter your current keypad code and, when prompted, enter the new
code you would like.
Settings
55SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

911 Assist™ ................................44
A
Accessing and using your USB
port ..............................................30
Ambient mood/lighting ...............55
AM/FM .........................................16
A/V inputs ....................................35
C
Cleaning the touchscreen ..........10
Customizing your home screen ...4
D
Display settings ...........................54
E
End user license agreement ......69
H
HD Radio™ .................................18
Help ................................................9
I
Infotainment display .....................7
K
Keyless entry system
programming entry code .........55
M
Map icons ....................................63
Map mode ....................................61N
Navigation features .....................56
Notifications ................................54
P
Pairing other phones ..................40
Pairing your phone for the first
time ..............................................37
Phone dependent features .........37
Privacy information ....................11
Q
Quick touch buttons ...................64
R
Rear view camera display ..........55
S
Safety information ......................10
Satellite Radio .............................25
SD card ..................................28, 56
Setting a destination ..................56
Setting the clock ...........................6
SIRIUSsatellite radio ...............22
SIRIUS Travel Link .....................66
Supported media file types ........33
SYNCServices ...........................48
System settings ...........................54
T
Text messaging ...........................40
Index
86
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
