LINCOLN MKX 2012 My Lincoln Touch Manual

Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the system
will automatically attempt to connect to that device at every
ignition cycle.
Index Bluetooth Audio Devices on/off:Turn this feature on to
have the system automatically index aBluetoothaudio device, if
able.
Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
Gracenote Media Management on/off:When turned on, this
feature will pull in metadata information from the Gracenote
Database for your music files. This will override information from
your device. This feature defaults to off.
Gracenote Cover Art on/off:When turned on, this feature will
pull in cover art from the Gracenote Database for your music files.
This will override any art from your device. This feature defaults to
off.
Navigation settings
To access navigation system settings:
1. Press Menu > Settings > Navigation.
2. Select from the following:
•Map Preferences•Route Preferences
•Navigation Preferences•Traffic Preferences
•Avoid Areas
Phone settings
To access phone settings:
1. Press Phone > Settings. (You can also press Menu > Settings >
Phone).
2. Select from the following settings:
•Bluetooth Devices:Select to connect, disconnect, add or delete
a device, as well as save it as a favorite.
Menu features
61
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

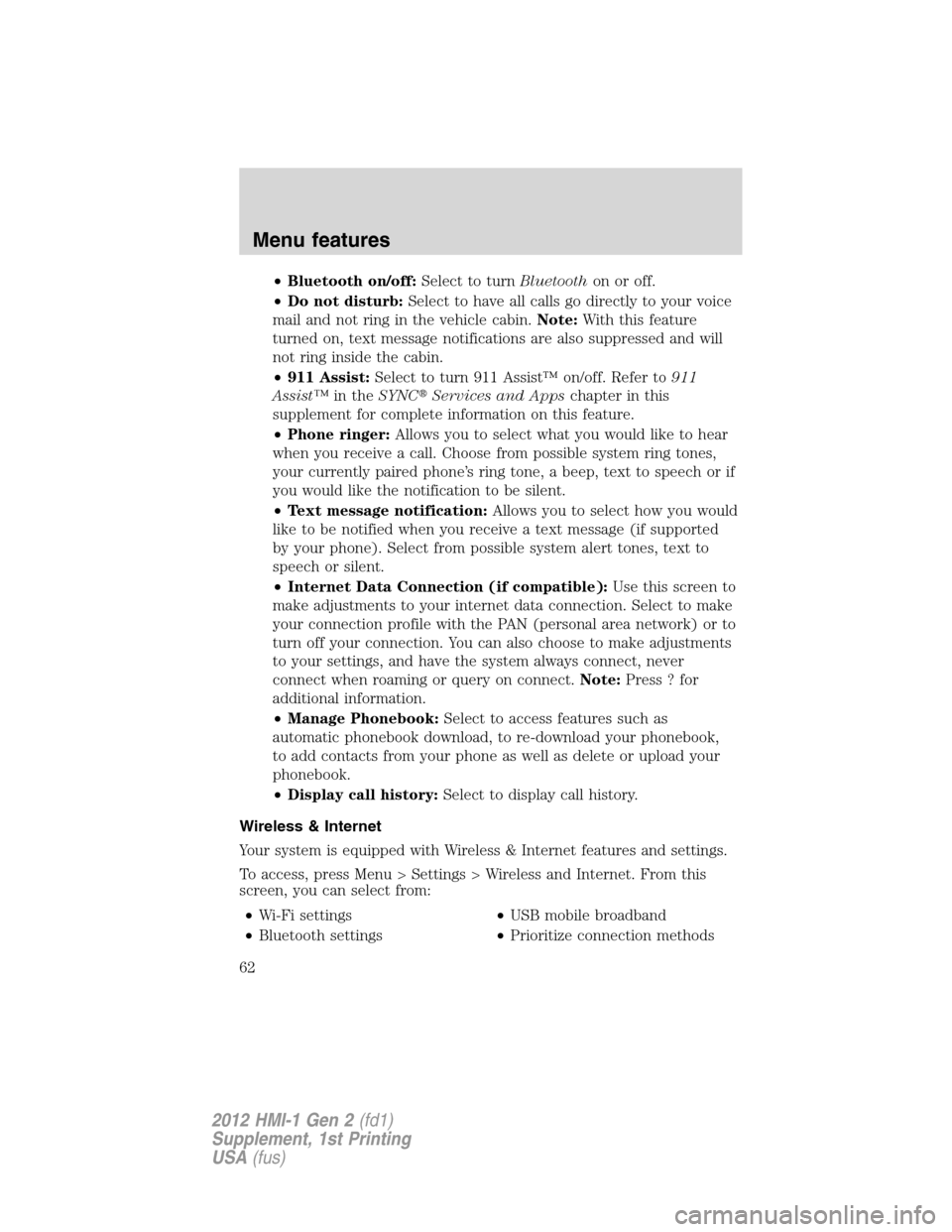

•Bluetooth on/off:Select to turnBluetoothon or off.
•Do not disturb:Select to have all calls go directly to your voice
mail and not ring in the vehicle cabin.Note:With this feature
turned on, text message notifications are also suppressed and will
not ring inside the cabin.
•911 Assist:Select to turn 911 Assist™ on/off. Refer to911
Assist™in theSYNCServices and Appschapter in this
supplement for complete information on this feature.
•Phone ringer:Allows you to select what you would like to hear
when you receive a call. Choose from possible system ring tones,
your currently paired phone’s ring tone, a beep, text to speech or if
you would like the notification to be silent.
•Text message notification:Allows you to select how you would
like to be notified when you receive a text message (if supported
by your phone). Select from possible system alert tones, text to
speech or silent.
•Internet Data Connection (if compatible):Use this screen to
make adjustments to your internet data connection. Select to make
your connection profile with the PAN (personal area network) or to
turn off your connection. You can also choose to make adjustments
to your settings, and have the system always connect, never
connect when roaming or query on connect.Note:Press ? for
additional information.
•Manage Phonebook:Select to access features such as
automatic phonebook download, to re-download your phonebook,
to add contacts from your phone as well as delete or upload your
phonebook.
•Display call history:Select to display call history.
Wireless & Internet
Your system is equipped with Wireless & Internet features and settings.
To access, press Menu > Settings > Wireless and Internet. From this
screen, you can select from:
•Wi-Fi settings•USB mobile broadband
•Bluetooth settings•Prioritize connection methods
Menu features
62
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

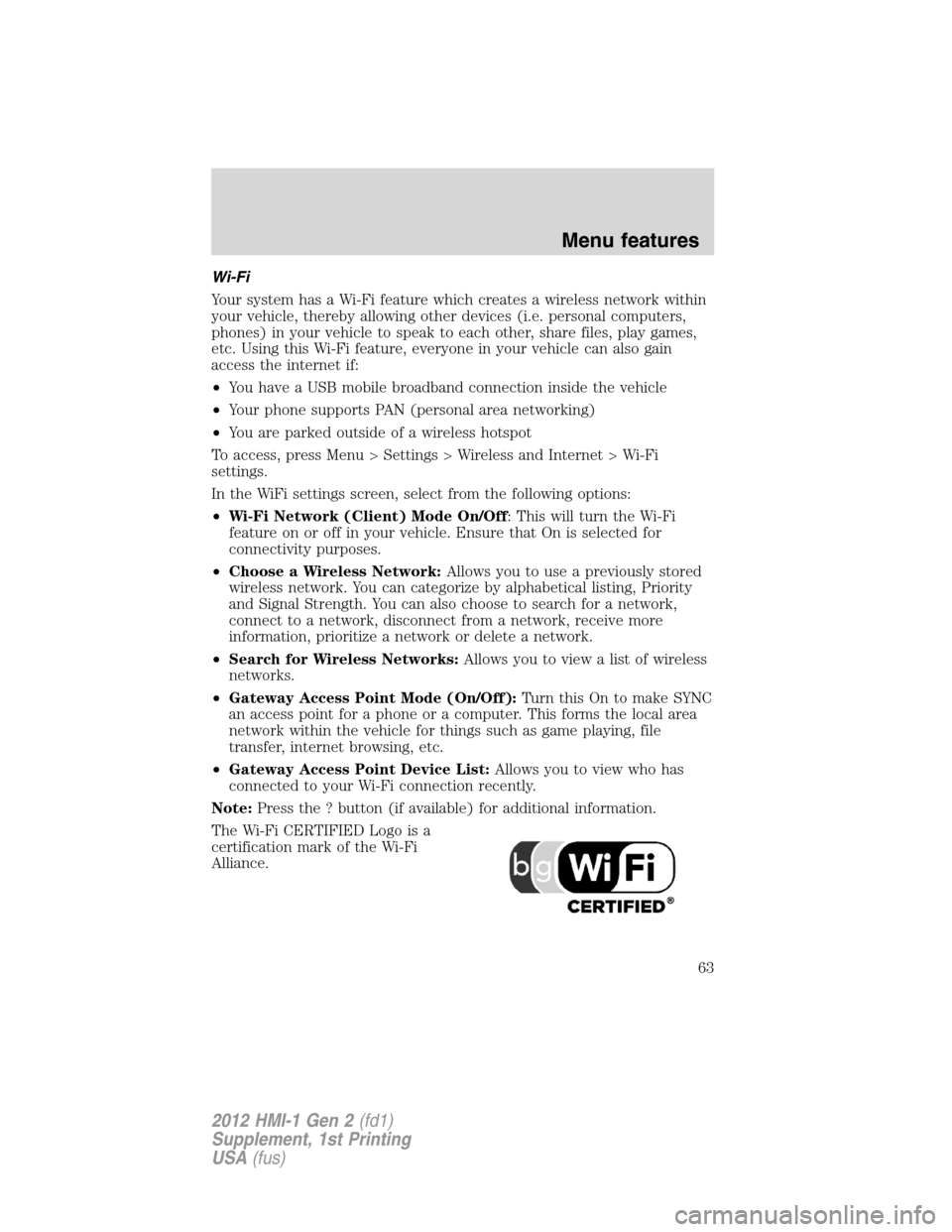

Wi-Fi
Your system has a Wi-Fi feature which creates a wireless network within
your vehicle, thereby allowing other devices (i.e. personal computers,
phones) in your vehicle to speak to each other, share files, play games,
etc. Using this Wi-Fi feature, everyone in your vehicle can also gain
access the internet if:
•You have a USB mobile broadband connection inside the vehicle
•Your phone supports PAN (personal area networking)
•You are parked outside of a wireless hotspot
To access, press Menu > Settings > Wireless and Internet > Wi-Fi
settings.
In the WiFi settings screen, select from the following options:
•Wi-Fi Network (Client) Mode On/Off: This will turn the Wi-Fi
feature on or off in your vehicle. Ensure that On is selected for
connectivity purposes.
•Choose a Wireless Network:Allows you to use a previously stored
wireless network. You can categorize by alphabetical listing, Priority
and Signal Strength. You can also choose to search for a network,
connect to a network, disconnect from a network, receive more
information, prioritize a network or delete a network.
•Search for Wireless Networks:Allows you to view a list of wireless
networks.
•Gateway Access Point Mode (On/Off):Turn this On to make SYNC
an access point for a phone or a computer. This forms the local area
network within the vehicle for things such as game playing, file
transfer, internet browsing, etc.
•Gateway Access Point Device List:Allows you to view who has
connected to your Wi-Fi connection recently.
Note:Press the ? button (if available) for additional information.
The Wi-Fi CERTIFIED Logo is a
certification mark of the Wi-Fi
Alliance.
Menu features
63
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

USB mobile broadband
Instead of using Wi-Fi, your system can also use a USB mobile broadband
connection to access the internet. This screen allows you to set up what
will be your typical area for your USB mobile broadband connection. You
can select the following:
•Country
•Carrier
•Phone number
•User name
•Password
Note:You must activate your mobile broadband device on your PC prior
to connecting it to the system.
Note:USB mobile broadband settings may not be displayed if the device
is already activated.
Prioritize connection methods
This screen allows you to choose your connection methods and change
them as needed. You can select to Change Order and have the system
either always attempt to connecting using a USB mobile broadband or
using Wi-Fi.
Bluetoothsettings
This screen will show you what device is currently paired with the
system as well as giving you your typicalBluetoothoptions to connect,
disconnect, set as favorite, delete and add device.
Bluetoothis a registered trademark of the Bluetooth SIG.
HELP!
Your touchscreen system has a help feature which you can access at any
time.
To access:
1. Press Menu > Help.
2. From this screen you can access:
•Where am I?:Select to view the vehicle’s current location. If your
vehicle is equipped with navigation, you will see your location on a
map. If your vehicle is not equipped with navigation, or if your SD
card is not inserted, you will receive your vehicle’s latitude and
longitude.
Menu features
64
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

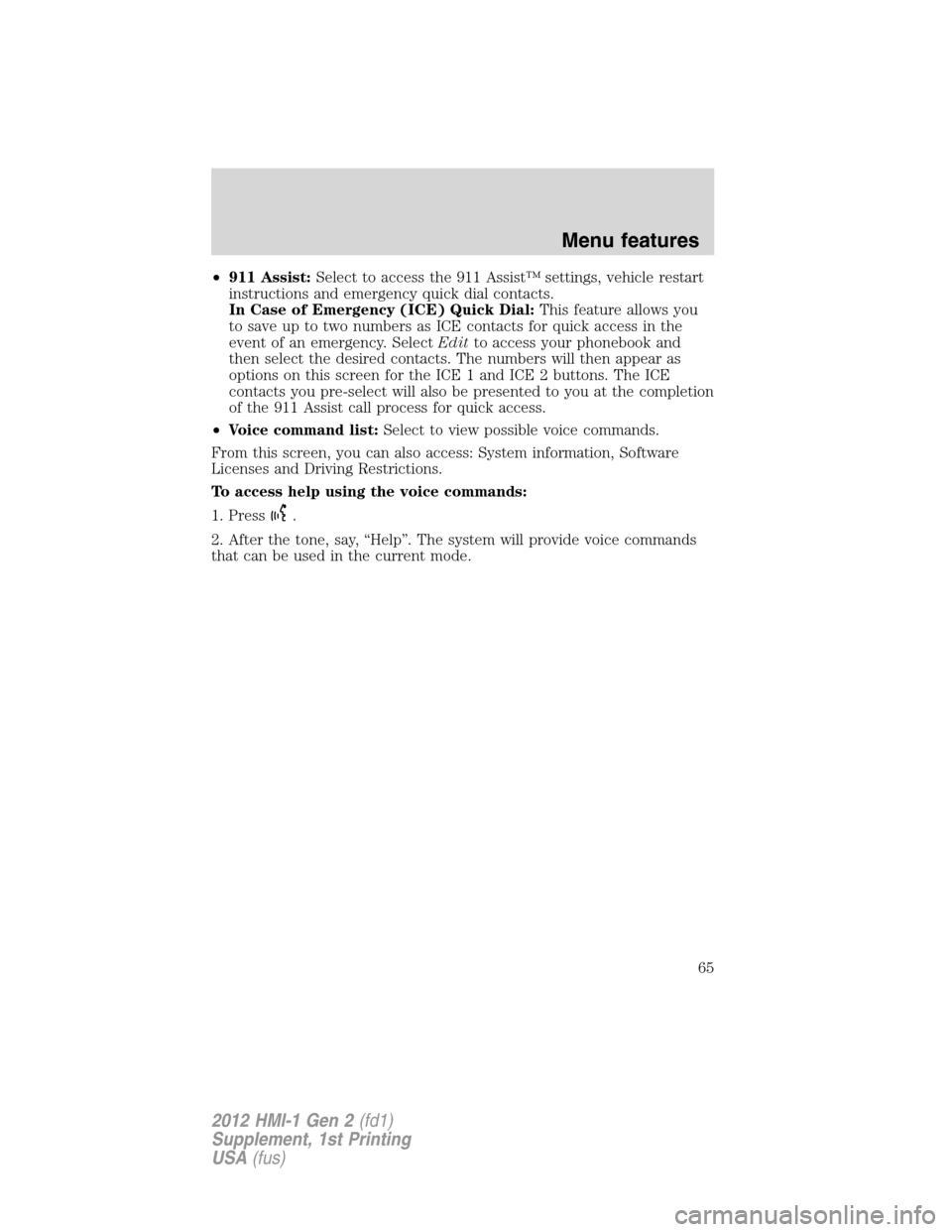

•911 Assist:Select to access the 911 Assist™ settings, vehicle restart
instructions and emergency quick dial contacts.
In Case of Emergency (ICE) Quick Dial:This feature allows you
to save up to two numbers as ICE contacts for quick access in the
event of an emergency. SelectEditto access your phonebook and
then select the desired contacts. The numbers will then appear as
options on this screen for the ICE 1 and ICE 2 buttons. The ICE
contacts you pre-select will also be presented to you at the completion
of the 911 Assist call process for quick access.
•Voice command list:Select to view possible voice commands.
From this screen, you can also access: System information, Software
Licenses and Driving Restrictions.
To access help using the voice commands:
1. Press
.
2. After the tone, say, “Help”. The system will provide voice commands
that can be used in the current mode.
Menu features
65
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

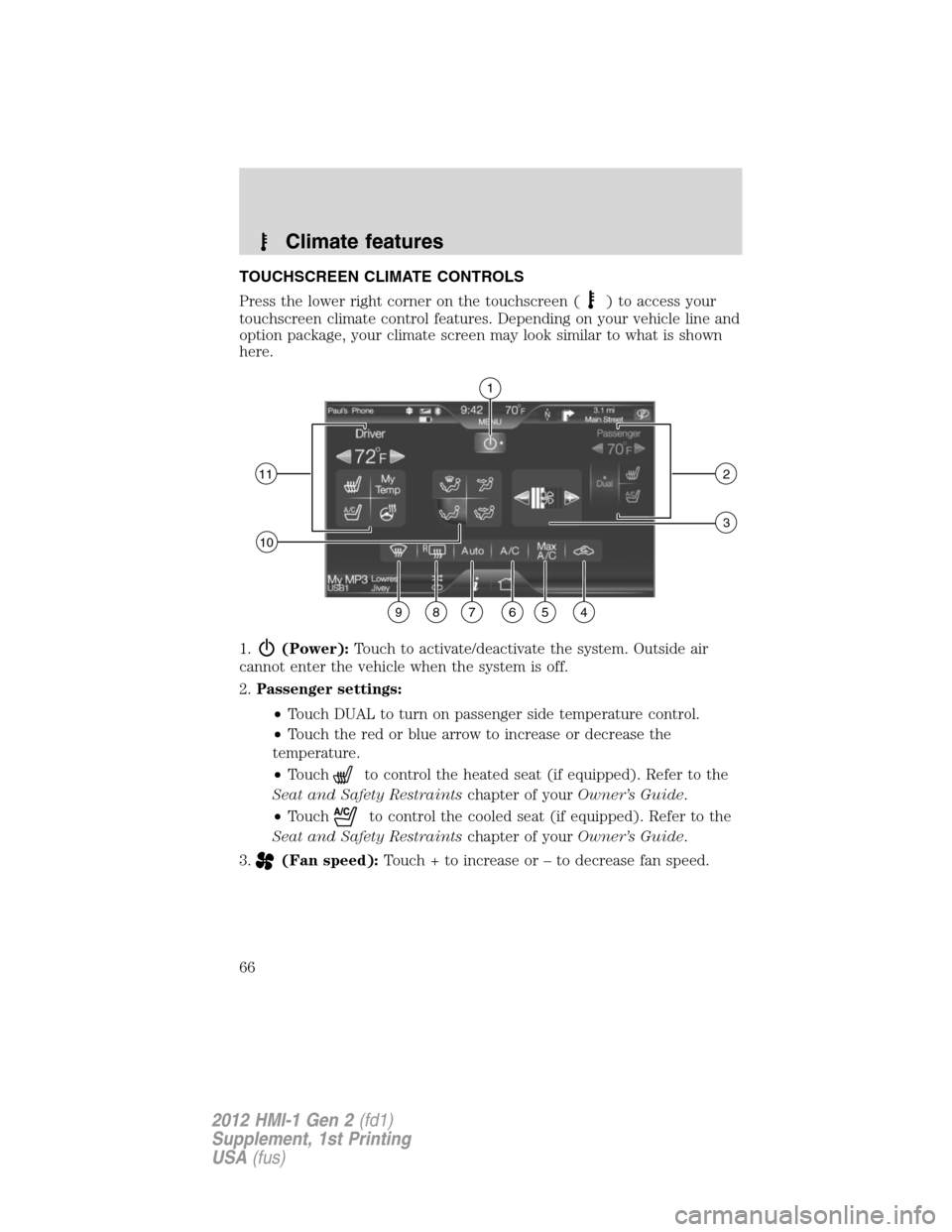

TOUCHSCREEN CLIMATE CONTROLS
Press the lower right corner on the touchscreen (
) to access your
touchscreen climate control features. Depending on your vehicle line and
option package, your climate screen may look similar to what is shown
here.
1.
(Power):Touch to activate/deactivate the system. Outside air
cannot enter the vehicle when the system is off.
2.Passenger settings:
•Touch DUAL to turn on passenger side temperature control.
•Touch the red or blue arrow to increase or decrease the
temperature.
•Touch
to control the heated seat (if equipped). Refer to the
Seat and Safety Restraintschapter of yourOwner’s Guide.
•Touch
to control the cooled seat (if equipped). Refer to the
Seat and Safety Restraintschapter of yourOwner’s Guide.
3.
(Fan speed):Touch + to increase or – to decrease fan speed.
1
112
10
3
987654
Climate features
66
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

4.(Recirculated air):Touch to activate/deactivate recirculated air.
Recirculated air:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C is selected.
•May be engaged manually in any airflow mode
except
(defrost).
•May turn off in all airflow modes except MAX A/C to reduce fog
potential.
5.MAX A/C:Touch to cool the vehicle with recirculated air. Touch again
for normal A/C operation. When activated, MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
6.A/C:Touch to activate/deactivate air conditioning.
•Use with recirculated air to improve cooling performance and
efficiency.
•Engages automatically in MAX A/C,
(defrost)
and
(floor/defrost).
7.AUTO:Touch to engage automatic operation, then set the
temperature using the temperature control. The system will determine
the following:
•Fan speed
•Airflow distribution
•A/Conoroff
•Outside or recirculated air
8.
R(Rear defroster):Touch to activate/deactivate the rear window
defroster and heated mirror (if equipped). Refer to theClimate Controls
chapter of theOwner’s Guide.
9.
(Defrost):Touch to clear the windshield of fog and thin ice.
Touch again to return to the previous airflow selection. When activated,
defrost:
•Provides outside air to reduce window fogging.
Climate features
67
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

•Distributes air through the windshield defroster vents and
demister vents.
10.Manual controls:Select any of the following airflow distribution
modes:
•
:Distributes air through the windshield defroster vents,
demister vents, floor vents and rear seat floor vents, and provide
outside air to reduce window fogging.
•
:Distributes air through the instrument panel vents.
•
:Distributes air through the instrument panel vents,
demister vents, floor vents and rear seat floor vents.
•
:Distributes air through the demister vents, floor vents and
rear seat floor vents.
11.Driver settings:Depending on your vehicle and option package, you
may have the following features:
•Touch the red or blue arrow to increase or decrease the
temperature.
•Touch
to control the heated seat (if equipped). Refer to the
Seat and Safety Restraintschapter of theOwner’s Guide
•Touch
to control the cooled seat (if equipped). Refer to the
Seat and Safety Restraintschapter of theOwner’s Guide
•Touch and hold MyTemp to select a temperature you would like
the vehicle to remember and maintain for you.
•Touch
to activate your heated steering wheel (if equipped).
Note:The steering wheel is not heated between the 10 o’clock and
2 o’clock positions.
REAR CONTROLS (IF EQUIPPED)
If ‘Rear’ appears in the lower right corner when your climate screen is
active, you have rear climate controls. When the arrow icon is down
(
), you have access to the rear controls and they will display along
on the bottom of the screen under the Rear Climate heading.
•Press
to turn on/off the Rear Climate controls.
Climate features
68
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

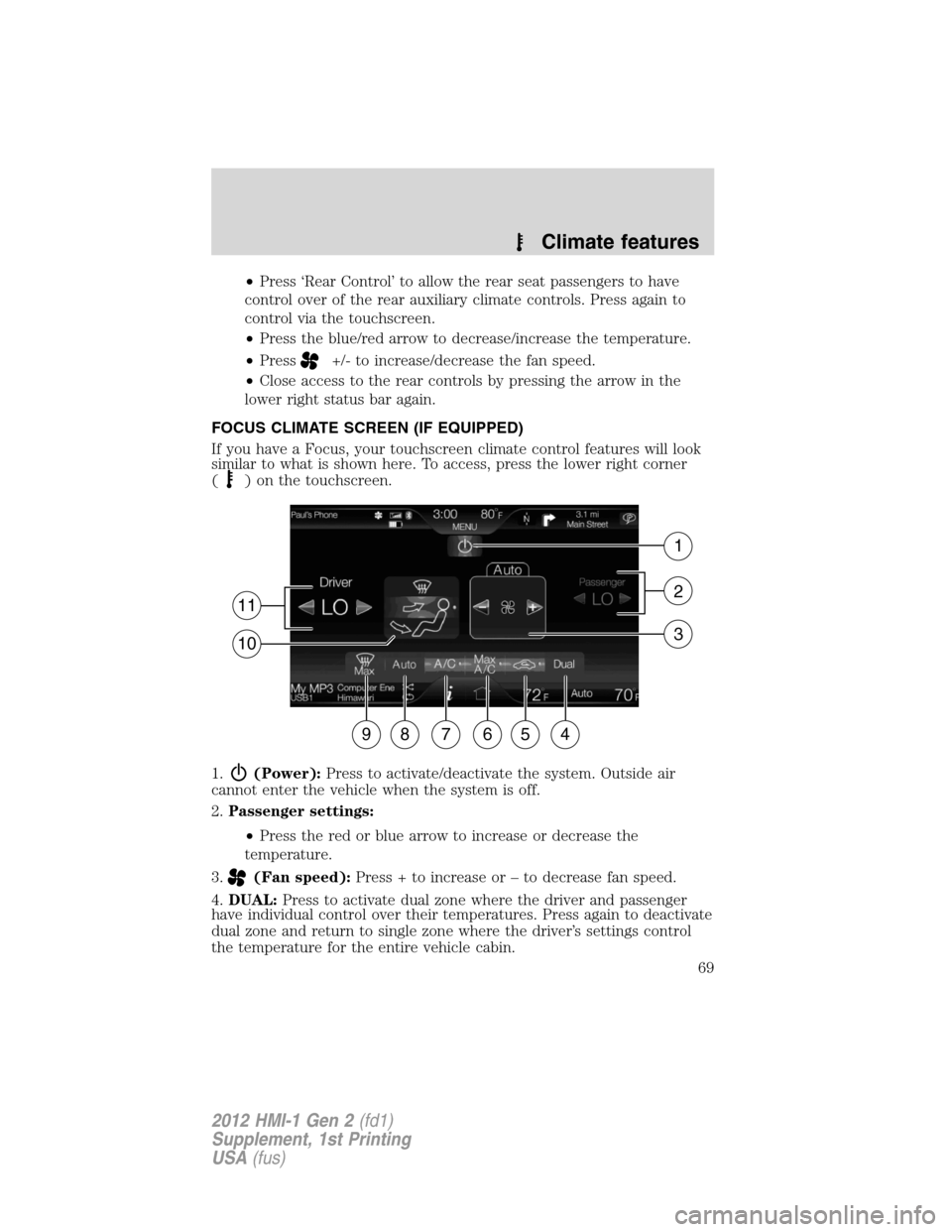

•Press ‘Rear Control’ to allow the rear seat passengers to have
control over of the rear auxiliary climate controls. Press again to
control via the touchscreen.
•Press the blue/red arrow to decrease/increase the temperature.
•Press
+/- to increase/decrease the fan speed.
•Close access to the rear controls by pressing the arrow in the
lower right status bar again.
FOCUS CLIMATE SCREEN (IF EQUIPPED)
If you have a Focus, your touchscreen climate control features will look
similar to what is shown here. To access, press the lower right corner
(
) on the touchscreen.
1.
(Power):Press to activate/deactivate the system. Outside air
cannot enter the vehicle when the system is off.
2.Passenger settings:
•Press the red or blue arrow to increase or decrease the
temperature.
3.
(Fan speed):Press + to increase or – to decrease fan speed.
4.DUAL:Press to activate dual zone where the driver and passenger
have individual control over their temperatures. Press again to deactivate
dual zone and return to single zone where the driver’s settings control
the temperature for the entire vehicle cabin.
987654
3 2
1
10
11
Climate features
69
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

5.(Recirculated air):Select to activate/deactivate recirculated air.
Recirculated air:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C is selected.
•May be engaged manually in any airflow mode
except
(defrost).
•May turn off in all airflow modes except MAX A/C to reduce fog
potential.
6.MAX A/C:Select to cool the vehicle with recirculated air. Touch again
for normal A/C operation. When activated, MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
7.A/C:Touch to activate/deactivate air conditioning.
•Use with recirculated air to improve cooling performance and
efficiency.
•Engages automatically in MAX A/C,
(defrost)
and
(floor/defrost).
8.AUTO:Select to engage automatic operation, then set the
temperature using the temperature control. The system will determine
the following:
•Fan speed
•Airflow distribution
•A/Conoroff
•Outside or recirculated air
9.
(Defrost):Touch to clear the windshield of fog and thin ice.
Touch again to return to the previous airflow selection. When activated,
defrost:
•Provides outside air to reduce window fogging.
•Distributes air through the windshield defroster vents and
demister vents.
Climate features
70
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
