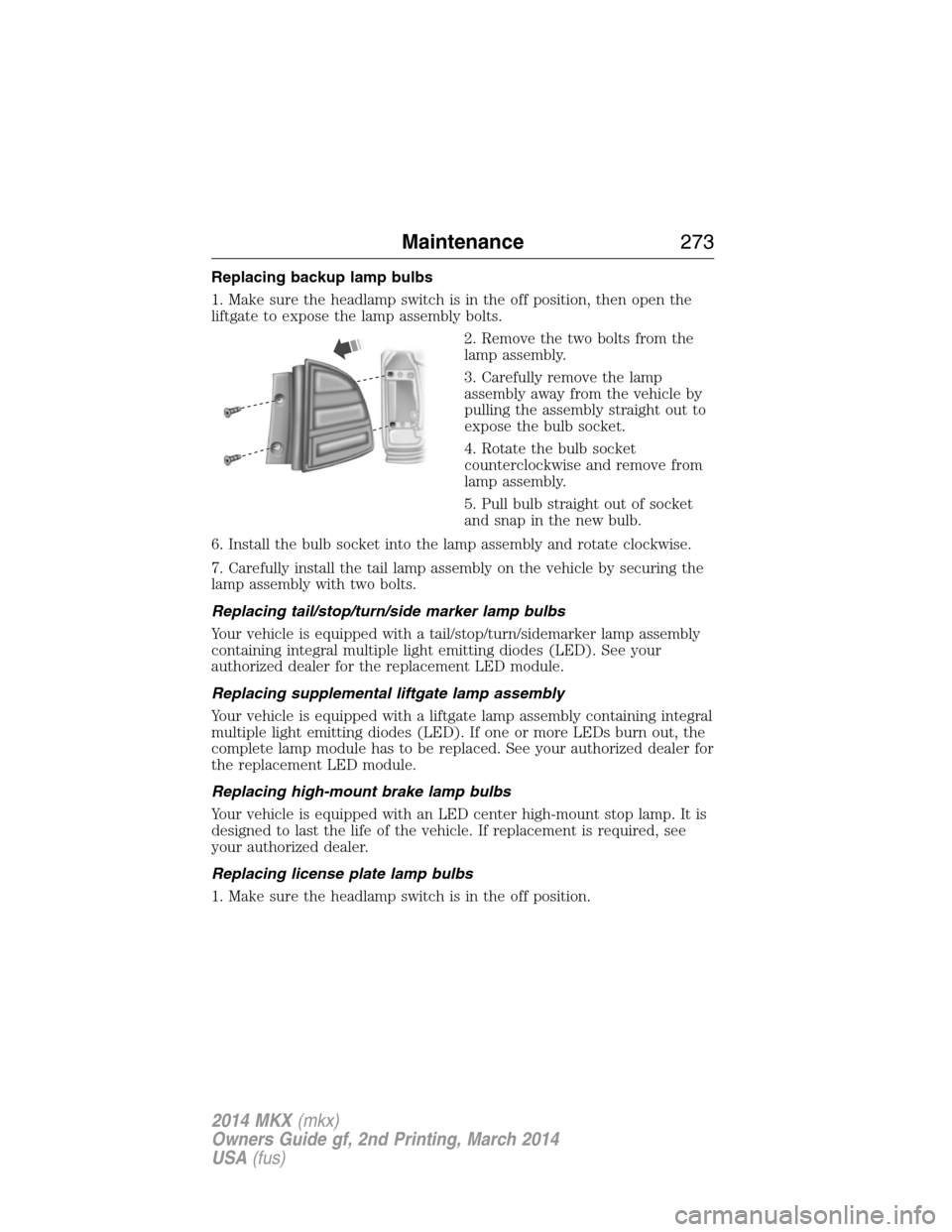

Replacing backup lamp bulbs
1. Make sure the headlamp switch is in the off position, then open the
liftgate to expose the lamp assembly bolts.
2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket.
4. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
5. Pull bulb straight out of socket
and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Replacing tail/stop/turn/side marker lamp bulbs
Your vehicle is equipped with a tail/stop/turn/sidemarker lamp assembly
containing integral multiple light emitting diodes (LED). See your
authorized dealer for the replacement LED module.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off position.
Maintenance273
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

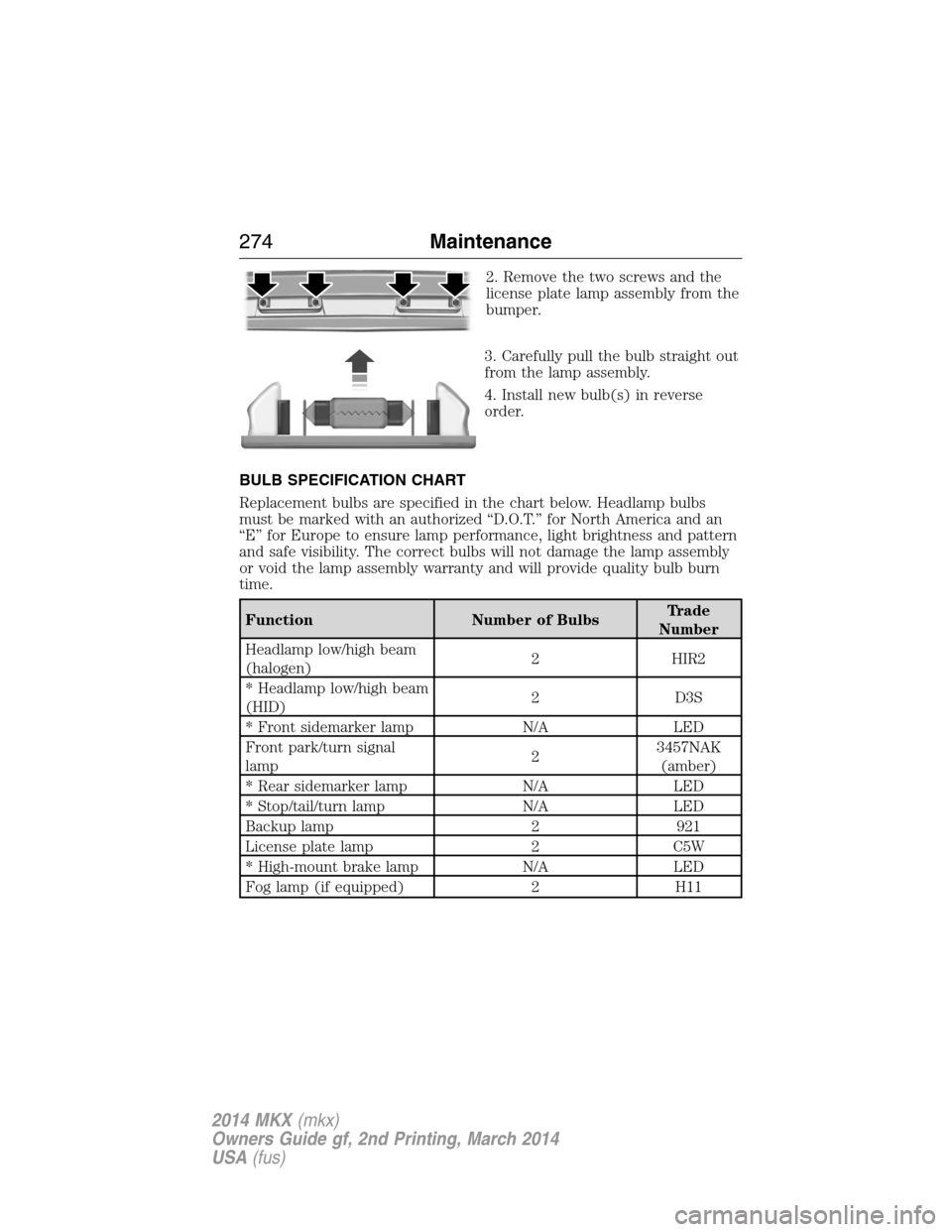

2. Remove the two screws and the
license plate lamp assembly from the
bumper.
3. Carefully pull the bulb straight out
from the lamp assembly.
4. Install new bulb(s) in reverse
order.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of BulbsTrade
Number
Headlamp low/high beam
(halogen)2 HIR2
* Headlamp low/high beam
(HID)2 D3S
* Front sidemarker lamp N/A LED
Front park/turn signal
lamp23457NAK
(amber)
* Rear sidemarker lamp N/A LED
* Stop/tail/turn lamp N/A LED
Backup lamp 2 921
License plate lamp 2 C5W
* High-mount brake lamp N/A LED
Fog lamp (if equipped) 2 H11
274Maintenance
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)
