FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
WARNINGS
To reduce risk of electrical shock,always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.
The power distribution box is located in theengine compartment. It has high-currentfuses that protect your vehicle's mainelectrical systems from overloads.
If you disconnect or reconnect the battery,some features need to be reset. SeeChanging the 12V Battery (page 324).
288
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

289
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing

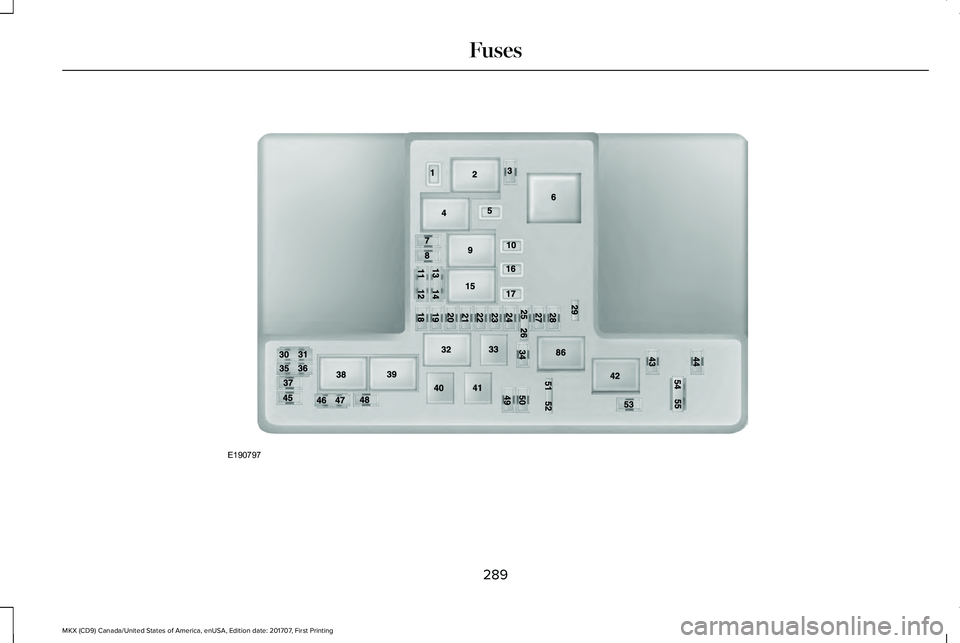

FusesE190797

Protected ComponentsFuse RatingFuse or Relay Number
Power fold 2nd row seats.30A 11
Starter relay.—2
Rear wiper.15A 13Rain sensor
Blower motor relay.—4
Power point 3 - back of console.20A 25
Not used.—6
Powertrain control module - vehicle power 1.20A 17
Powertrain control module - vehicle power 2.20A 18
Powertrain control module relay.—9
Power point 5-main bin.20A 210
Powertrain control module - vehicle power 4.15A 311
Powertrain control module - vehicle power 3.15A 312
Not used.—13
290
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Not used.—14
Run-start relay.—15
Power point 2 - console bin.20A 216
Power point 4 - luggage compartment.20A 217
RH HID headlamp.20A 118
Run-start electronic power assist steering.10A 119
Run/start lighting.10A 120
Transmission oil pump logic power (start/stop).15A 121
Air conditioner clutch solenoid.10A 122
Front split view camera.15A 123Rear view camera.Front split view camera module.Gear shift actuator.
Not used (spare).10A 124
291
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Run-start anti-lock brake system.10A 325
Run-start powertrain control module.10A 326
Not used.—27
Rear washer pump.10A 128
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Glove box release.15A 134
Not used.—35
Not used.—36
Power transfer unit fan.10A 137
Electronic fan 2 relay.—38
292
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Electric fan 3 relay.—39
Horn relay.—40
Not used.—41
Fuel pump relay.—42
2nd row easy fold seat release.10A 143
LH HID headlamp.20A 144
Not used.—45
Not used.—46
Not used.—47
Not used.—48
Not used.—49
Horn.20A 150
Not used.—51
Not used.—52
Not used (spare).10A 153
293
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Brake on off switch.10A 354
ALT sensor.10A 355
Not used.—86
1 Micro 2 fuse.2 M case fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of thefuse box. To access the bottom of the fusebox, do the following:
294
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

1.Release the two latches, located on bothsides of the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the center ofthe engine compartment.
4. Pivot the outboard side of the fuse boxto access the bottom side.
295
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
FusesE145983

296
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing

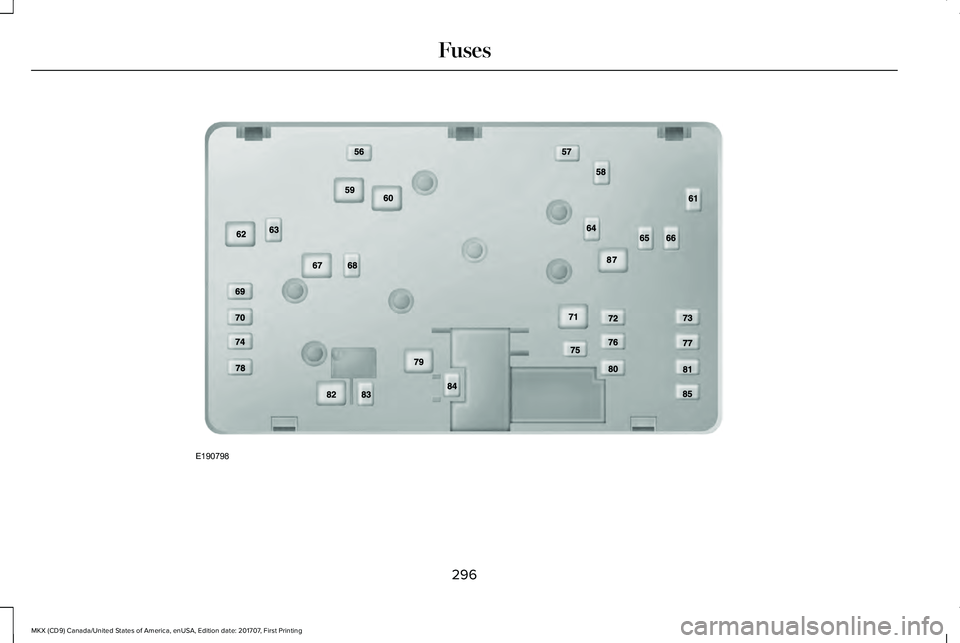

FusesE190798

Protected ComponentsFuse RatingFuse or Relay Number
Not used.—56
Power Point 1 - Driver Front.20A257
Fuel pump feed.30A 158
Electronic fan 3.40A 259
Electronic fan 1.40A 260
Not used.—61
Body control module 1.50A 262
Electronic fan 2.25A 163
Headlamp washer.20A 164
Front heated seat.20A 165
Heated wiper park.15A 166
Body control module 2.50A 267
297
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses
