LINCOLN MKX 2018 Owners Manual

Protected ComponentsFuse RatingFuse or Relay Number
Heated rear window.40A 168
Anti-lock brake system valves.30A 169
Passenger seat.30A 170
Active front steering.50A 171
Transmission oil pump (start/stop).20A 172
Rear heated seats.20A 173
Driver seat module.30A 174
Wiper motor 1.25A 175
Power liftgate module.30A 176
Climate control seat module.30A 177
Trailer lighting module.40A 178
Blower motor.40A 279
298
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Wiper motor 2.25A 180
110 volt inverter.40A 181
Not used.–82
TRCM (iShifter).20A 183
Starter solenoid.30A 184
Not used (spare).30A 185
Anti-lock brake system pump.60A 287
1 M case fuse.2 J case fuse.
Passenger Compartment Fuse Panel
The fuse panel is located under theinstrument panel to the left of the steeringcolumn.
Note:It may be easier to access the fusepanel if you remove the finish trim piece.
299
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Not used.–1
Memory seats.7.5A 12Lumbar.Driver seat module logic power.
Driver door unlock.20A 13
300
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
FusesE145984

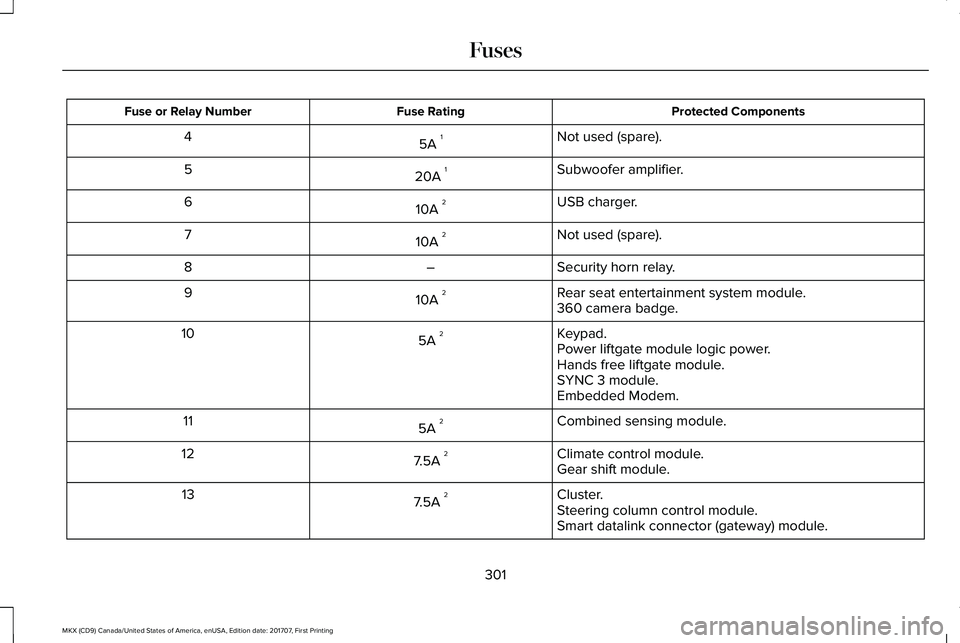

Protected ComponentsFuse RatingFuse or Relay Number
Not used (spare).5A 14
Subwoofer amplifier.20A 15
USB charger.10A 26
Not used (spare).10A 27
Security horn relay.–8
Rear seat entertainment system module.10A 29360 camera badge.
Keypad.5A 210Power liftgate module logic power.Hands free liftgate module.SYNC 3 module.Embedded Modem.
Combined sensing module.5A 211
Climate control module.7.5A 212Gear shift module.
Cluster.7.5A 213Steering column control module.Smart datalink connector (gateway) module.
301
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

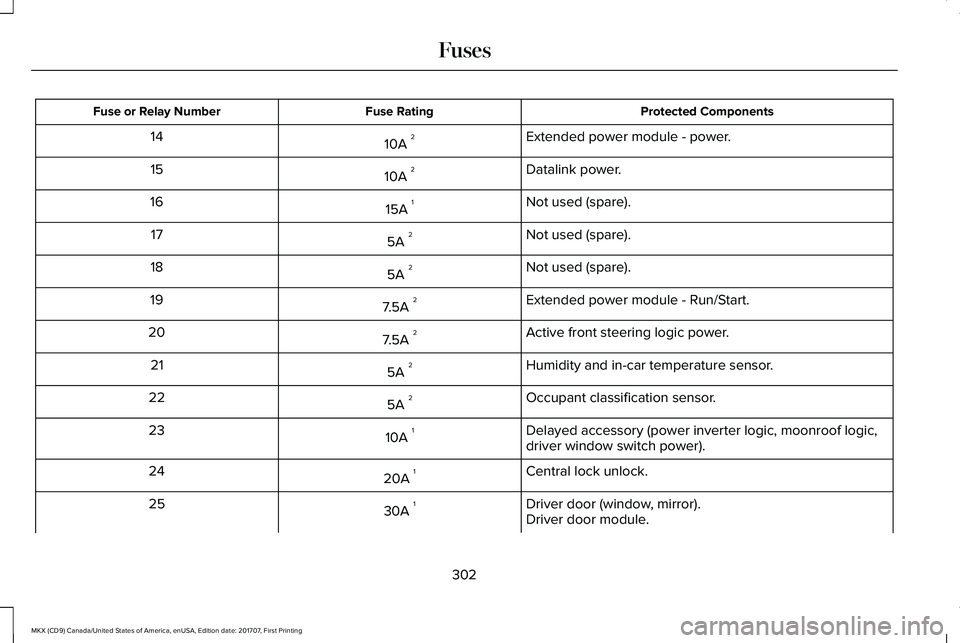

Protected ComponentsFuse RatingFuse or Relay Number
Extended power module - power.10A 214
Datalink power.10A 215
Not used (spare).15A 116
Not used (spare).5A 217
Not used (spare).5A 218
Extended power module - Run/Start.7.5A 219
Active front steering logic power.7.5A 220
Humidity and in-car temperature sensor.5A 221
Occupant classification sensor.5A 222
Delayed accessory (power inverter logic, moonroof logic,driver window switch power).10A 123
Central lock unlock.20A 124
Driver door (window, mirror).30A 125Driver door module.
302
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

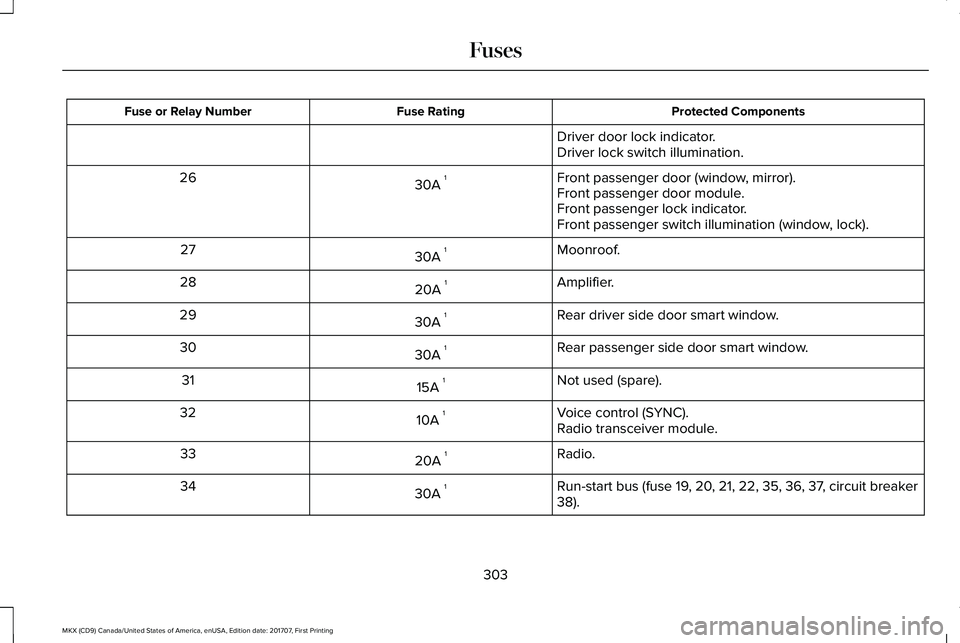

Protected ComponentsFuse RatingFuse or Relay Number
Driver door lock indicator.Driver lock switch illumination.
Front passenger door (window, mirror).30A 126Front passenger door module.Front passenger lock indicator.Front passenger switch illumination (window, lock).
Moonroof.30A 127
Amplifier.20A 128
Rear driver side door smart window.30A 129
Rear passenger side door smart window.30A 130
Not used (spare).15A 131
Voice control (SYNC).10A 132Radio transceiver module.
Radio.20A 133
Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker38).30A 134
303
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

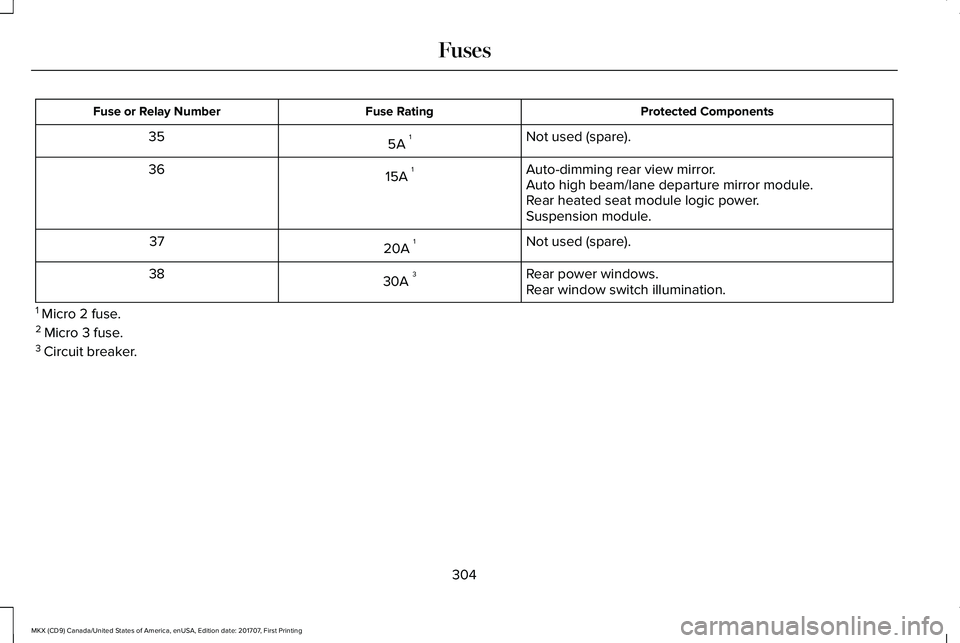

Protected ComponentsFuse RatingFuse or Relay Number
Not used (spare).5A 135
Auto-dimming rear view mirror.15A 136Auto high beam/lane departure mirror module.Rear heated seat module logic power.Suspension module.
Not used (spare).20A 137
Rear power windows.30A 338Rear window switch illumination.
1 Micro 2 fuse.2 Micro 3 fuse.3 Circuit breaker.
304
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

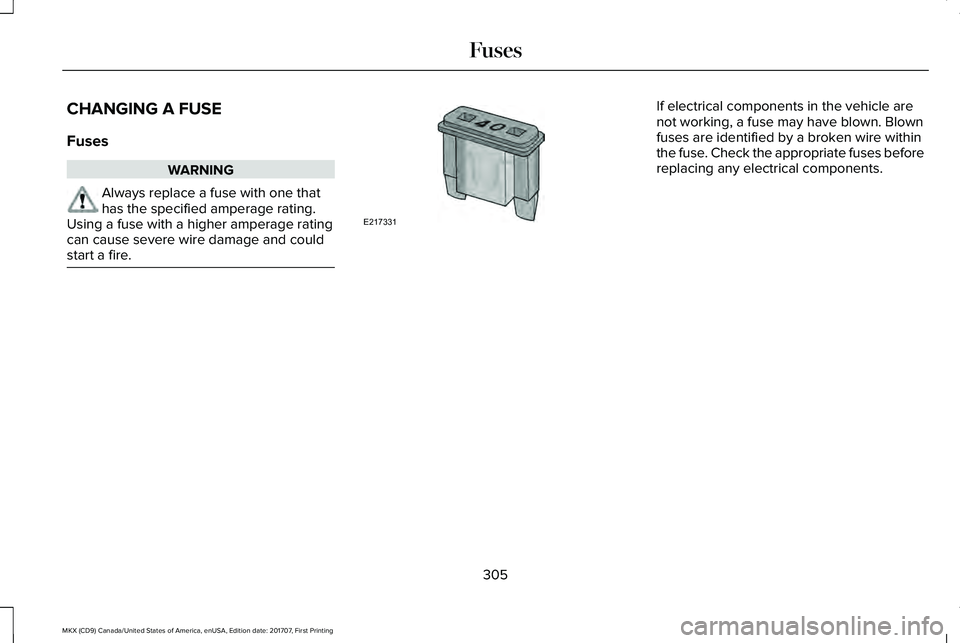

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperage ratingcan cause severe wire damage and couldstart a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fuses beforereplacing any electrical components.
305
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
FusesE217331

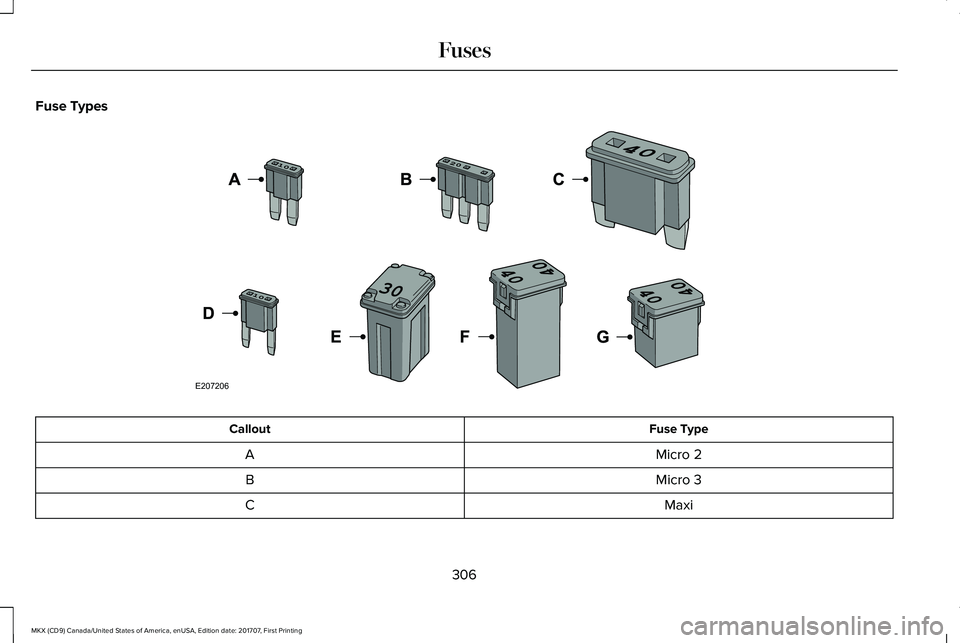

Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
306
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
FusesE207206

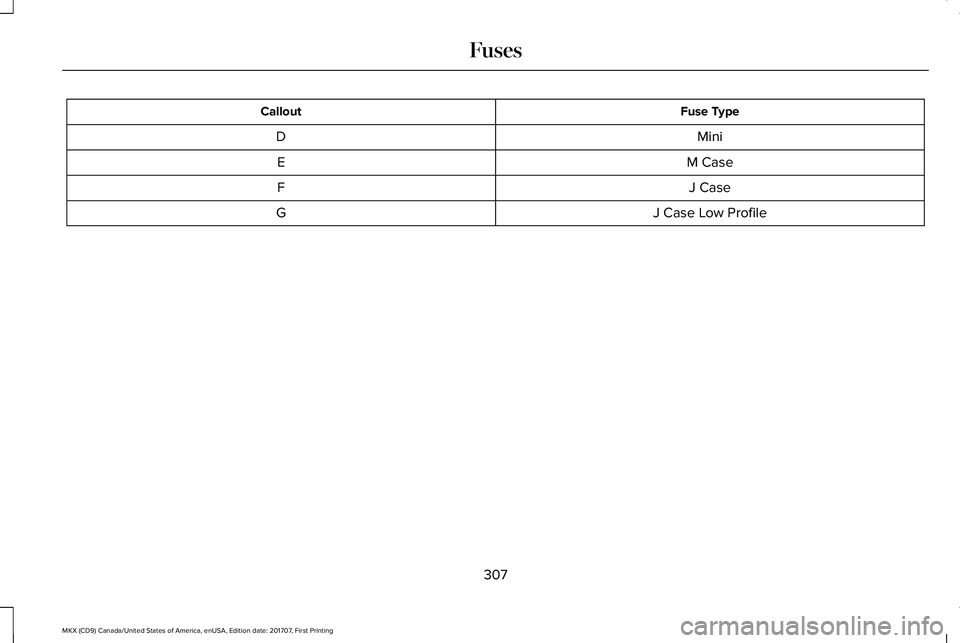

Fuse TypeCallout
MiniD
M CaseE
J CaseF
J Case Low ProfileG
307
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses
