relay LINCOLN MKZ 2008 Owners Manual

Seating and Safety Restraints 102
Seating 102
Safety restraints 111
Airbags 125
Child restraints 140
Tires, Wheels and Loading 152
Tire information 152
Tire inflation 154
Tire Pressure Monitoring System (TPMS) 167
Vehicle loading 172
Trailer towing 177
Recreational towing 177
Driving 179
Starting 179
Brakes 184
Traction Control™/AdvanceTrac
186
Transmission operation 188
Roadside Emergencies 199
Getting roadside assistance 199
Hazard flasher switch 200
Fuel pump shut-off switch 201
Fuses and relays 201
Changing tires 208
Lug nut torque 213
Jump starting 214
Wrecker towing 219
Customer Assistance 220
Reporting safety defects (U.S. only) 226
Reporting safety defects (Canada only) 227
Cleaning 228
Table of Contents
2
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)

CLOCK
Press the right (+) control to move
the time display forwards.
Press the left (-) control to move
the time display backwards.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located in the center console utility
compartment.
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running (in a safe manner) to avoid unintentional discharge of the
battery. To prevent the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
55

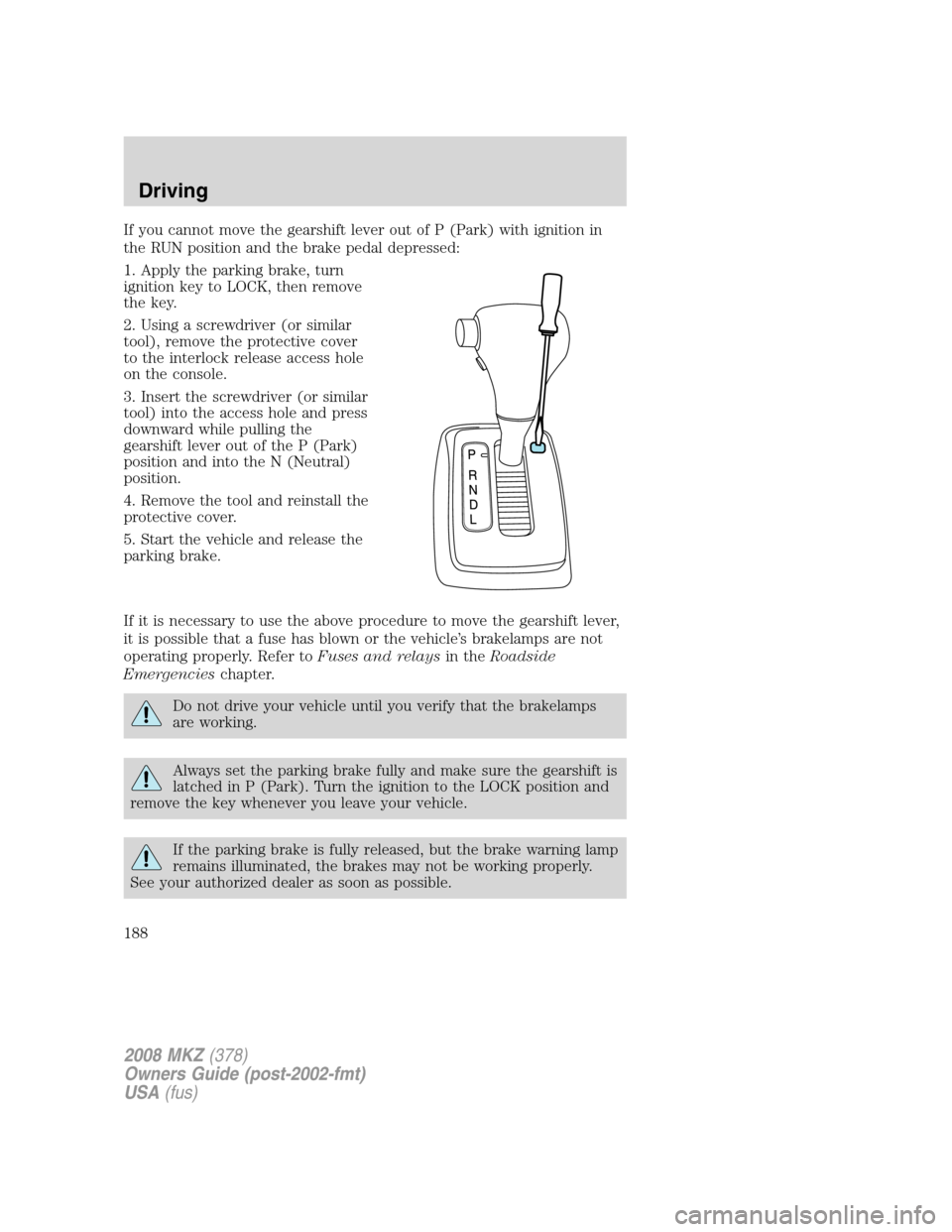

If you cannot move the gearshift lever out of P (Park) with ignition in
the RUN position and the brake pedal depressed:
1. Apply the parking brake, turn
ignition key to LOCK, then remove
the key.
2. Using a screwdriver (or similar
tool), remove the protective cover
to the interlock release access hole
on the console.
3. Insert the screwdriver (or similar
tool) into the access hole and press
downward while pulling the
gearshift lever out of the P (Park)
position and into the N (Neutral)
position.
4. Remove the tool and reinstall the
protective cover.
5. Start the vehicle and release the
parking brake.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer as soon as possible.
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
188

to turn them off. Use it when your vehicle is disabled and is creating a
safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
The fuel pump shut-off switch is
located in the front passenger
footwell area in the right upper
corner.
To reset the switch:
1. Turn the ignition to 1 (LOCK).
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition to 3 (RUN).
5. Wait a few seconds and return
the key to 1 (LOCK).
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
15
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
201

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 10A Backup lamps, Electrochromatic
mirror
2 20A Horns
3 15A Battery saver: Interior lamps, Puddle
lamps, Trunk lamp, Glove box lamp,
Rear power windows
4 15A Parklamps, License plate lamps
5 — Not used
6 — Not used
7 — Not used
8 30A Rear window defroster
9 10A Heated mirrors
10 30A Starter coil, PCM
11 15A High beams
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
203

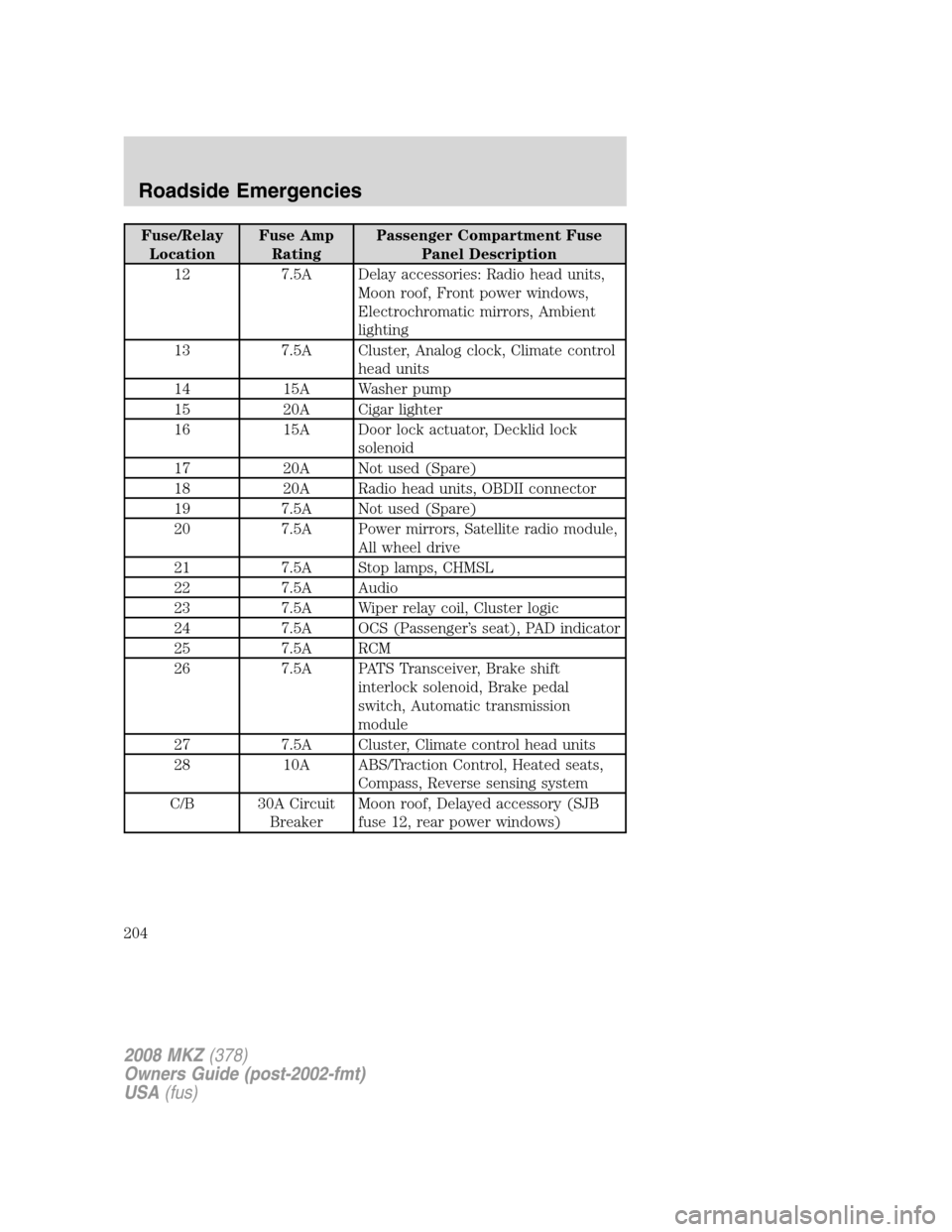

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
12 7.5A Delay accessories: Radio head units,
Moon roof, Front power windows,
Electrochromatic mirrors, Ambient
lighting
13 7.5A Cluster, Analog clock, Climate control
head units
14 15A Washer pump
15 20A Cigar lighter
16 15A Door lock actuator, Decklid lock
solenoid
17 20A Not used (Spare)
18 20A Radio head units, OBDII connector
19 7.5A Not used (Spare)
20 7.5A Power mirrors, Satellite radio module,
All wheel drive
21 7.5A Stop lamps, CHMSL
22 7.5A Audio
23 7.5A Wiper relay coil, Cluster logic
24 7.5A OCS (Passenger’s seat), PAD indicator
25 7.5A RCM
26 7.5A PATS Transceiver, Brake shift
interlock solenoid, Brake pedal
switch, Automatic transmission
module
27 7.5A Cluster, Climate control head units
28 10A ABS/Traction Control, Heated seats,
Compass, Reverse sensing system
C/B 30A Circuit
BreakerMoon roof, Delayed accessory (SJB
fuse 12, rear power windows)
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
204

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 60A*** SJB power feed (fuses 12, 13, 14,
15, 16, 17, 18, C/B)
2 60A*** SJB power feed (fuses 1, 2, 4, 10,
11)
45 46 47
48 4950 51
52
53
55
5654
57
58
41 42 43 44
23 24 25 26 27
28
29 30 31 32 33 34 35
13 12
89
10 11 12
18 19 20 21 22345 6 7
1415
16
17
36
37
38
39
40
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
205

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
3 40A** Powertrain power, PCM relay coil
4 40A** Blower motor
5 — Not used
6 40A** Rear window defroster, Heated
mirrors
7 — Not used
8 40A** ABS pump
9 20A** Wipers
10 30A** ABS Valves
11 30A** Heated seats, Passenger
heated/cooled seat
12 30A** Driver heated/cooled seat
13 10A* SYNC
14 15A* Ignition switch
15 10A* Memory module logic
16 15A* Transmission
17 10A* Alternator sense
18 — Not used
19 40A** Logic feed to SJB (solid state
devices)
20 20A** THXII Amplifier #1
21 20A** THXII Amplifier #2
22 20A** Console power point
23 10A* PCM KAM and canister vent
solenoid
24 15A* Fog lamps
25 10A* A/C Compressor clutch
26 15A* LH HID Low beam
27 15A* RH HID Low beam
28 80A*** Engine cooling fan
29 — Not used
30 30A** Fuel pump/injectors relay
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
206

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
31 30A** Passenger power seat
32 30A** Driver power seat
33 20A** Moon roof
34 30A** Driver Smart power window
35 30A** Passenger Smart power window
36 1A* PCM diode
37 1A* One Touch Integrated Start
(OTIS) diode
38 — Not used
39 — Not used
40 — Not used
41 Relay Fog lamp relay
42 Relay Wiper park relay
43 Relay A/C clutch relay
44 — Not used
45 — Not used
46 15A* Injectors
47 15A* PCM class B
48 15A* Coil on plug
49 15A* PCM class C
50 Full ISO Relay LH HID low beam relay
51 Full ISO Relay RH HID low beam relay
52 Full ISO Relay Blower relay
53 — Not used
54 Full ISO Relay Fuel pump/injectors relay
55 Full ISO Relay Wiper RUN relay
56 — Not used
57 Full ISO Relay PCM relay
58 — Not used
*Mini fuses **A1 fuses ***A3 fuses
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
207

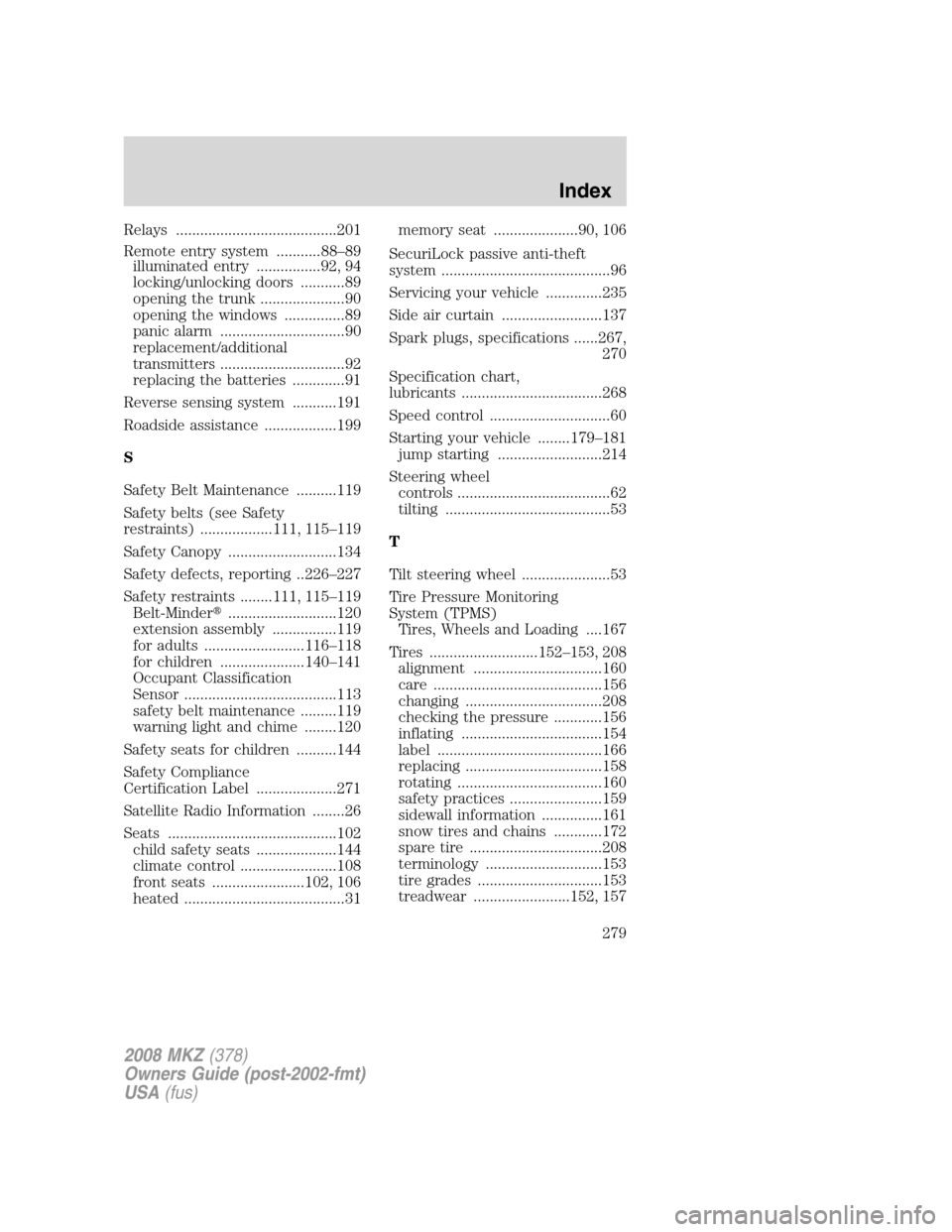

Relays ........................................201
Remote entry system ...........88–89
illuminated entry ................92, 94
locking/unlocking doors ...........89
opening the trunk .....................90
opening the windows ...............89
panic alarm ...............................90
replacement/additional
transmitters ...............................92
replacing the batteries .............91
Reverse sensing system ...........191
Roadside assistance ..................199
S
Safety Belt Maintenance ..........119
Safety belts (see Safety
restraints) ..................111, 115–119
Safety Canopy ...........................134
Safety defects, reporting ..226–227
Safety restraints ........111, 115–119
Belt-Minder
...........................120
extension assembly ................119
for adults .........................116–118
for children .....................140–141
Occupant Classification
Sensor ......................................113
safety belt maintenance .........119
warning light and chime ........120
Safety seats for children ..........144
Safety Compliance
Certification Label ....................271
Satellite Radio Information ........26
Seats ..........................................102
child safety seats ....................144
climate control ........................108
front seats .......................102, 106
heated ........................................31memory seat .....................90, 106
SecuriLock passive anti-theft
system ..........................................96
Servicing your vehicle ..............235
Side air curtain .........................137
Spark plugs, specifications ......267,
270
Specification chart,
lubricants ...................................268
Speed control ..............................60
Starting your vehicle ........179–181
jump starting ..........................214
Steering wheel
controls ......................................62
tilting .........................................53
T
Tilt steering wheel ......................53
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....167
Tires ...........................152–153, 208
alignment ................................160
care ..........................................156
changing ..................................208
checking the pressure ............156
inflating ...................................154
label .........................................166
replacing ..................................158
rotating ....................................160
safety practices .......................159
sidewall information ...............161
snow tires and chains ............172
spare tire .................................208
terminology .............................153
tire grades ...............................153
treadwear ........................152, 157
2008 MKZ(378)
Owners Guide (post-2002-fmt)
USA(fus)
Index
279
