OBD port LINCOLN MKZ 2013 Owners Manual

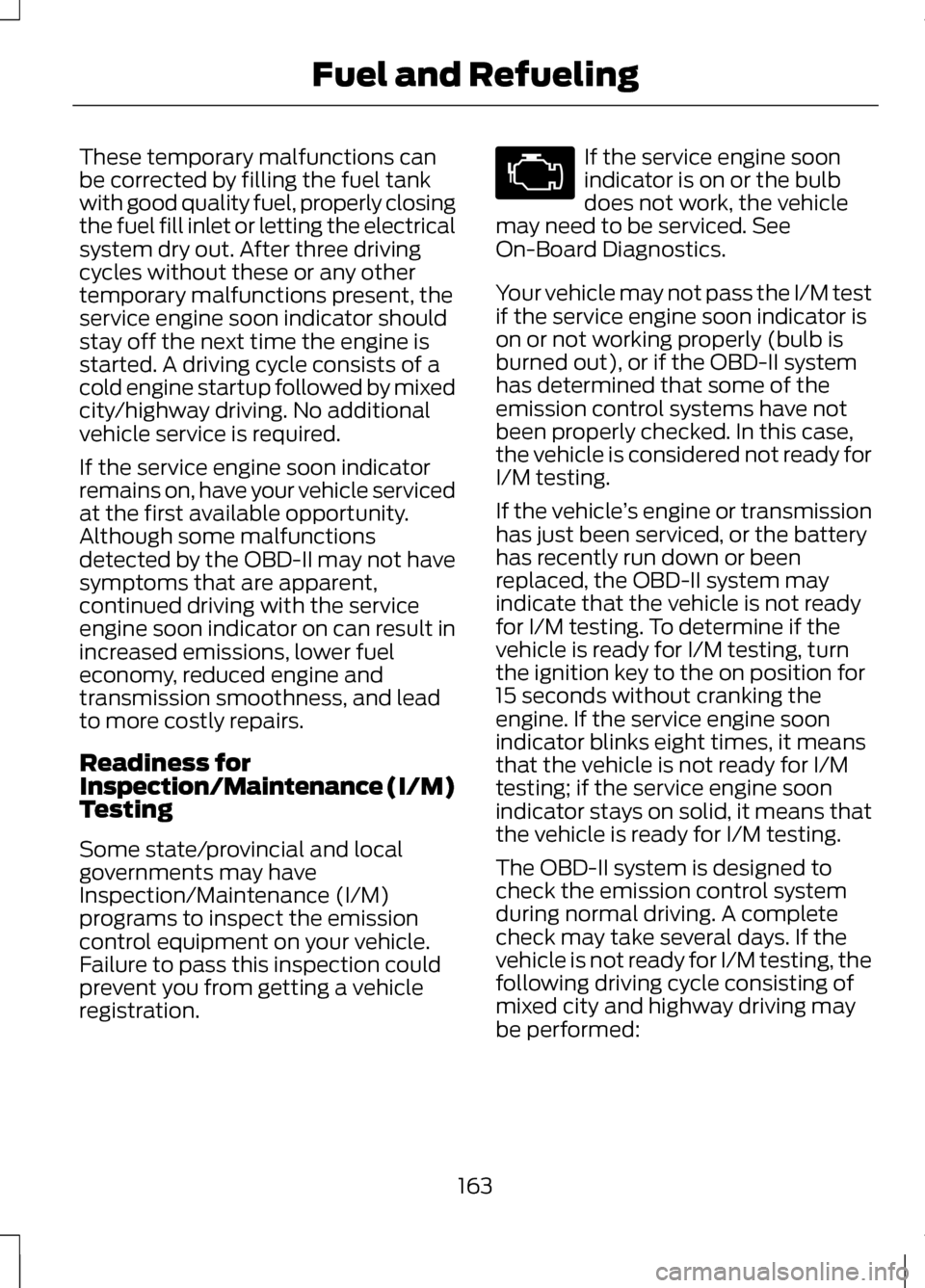

These temporary malfunctions can
be corrected by filling the fuel tank
with good quality fuel, properly closing
the fuel fill inlet or letting the electrical
system dry out. After three driving
cycles without these or any other
temporary malfunctions present, the
service engine soon indicator should
stay off the next time the engine is
started. A driving cycle consists of a
cold engine startup followed by mixed
city/highway driving. No additional
vehicle service is required.
If the service engine soon indicator
remains on, have your vehicle serviced
at the first available opportunity.
Although some malfunctions
detected by the OBD-II may not have
symptoms that are apparent,
continued driving with the service
engine soon indicator on can result in
increased emissions, lower fuel
economy, reduced engine and
transmission smoothness, and lead
to more costly repairs.
Readiness for
Inspection/Maintenance (I/M)
Testing
Some state/provincial and local
governments may have
Inspection/Maintenance (I/M)
programs to inspect the emission
control equipment on your vehicle.
Failure to pass this inspection could
prevent you from getting a vehicle
registration. If the service engine soon
indicator is on or the bulb
does not work, the vehicle
may need to be serviced. See
On-Board Diagnostics.
Your vehicle may not pass the I/M test
if the service engine soon indicator is
on or not working properly (bulb is
burned out), or if the OBD-II system
has determined that some of the
emission control systems have not
been properly checked. In this case,
the vehicle is considered not ready for
I/M testing.
If the vehicle ’s engine or transmission
has just been serviced, or the battery
has recently run down or been
replaced, the OBD-II system may
indicate that the vehicle is not ready
for I/M testing. To determine if the
vehicle is ready for I/M testing, turn
the ignition key to the on position for
15 seconds without cranking the
engine. If the service engine soon
indicator blinks eight times, it means
that the vehicle is not ready for I/M
testing; if the service engine soon
indicator stays on solid, it means that
the vehicle is ready for I/M testing.
The OBD-II system is designed to
check the emission control system
during normal driving. A complete
check may take several days. If the
vehicle is not ready for I/M testing, the
following driving cycle consisting of
mixed city and highway driving may
be performed:
163
Fuel and Refueling

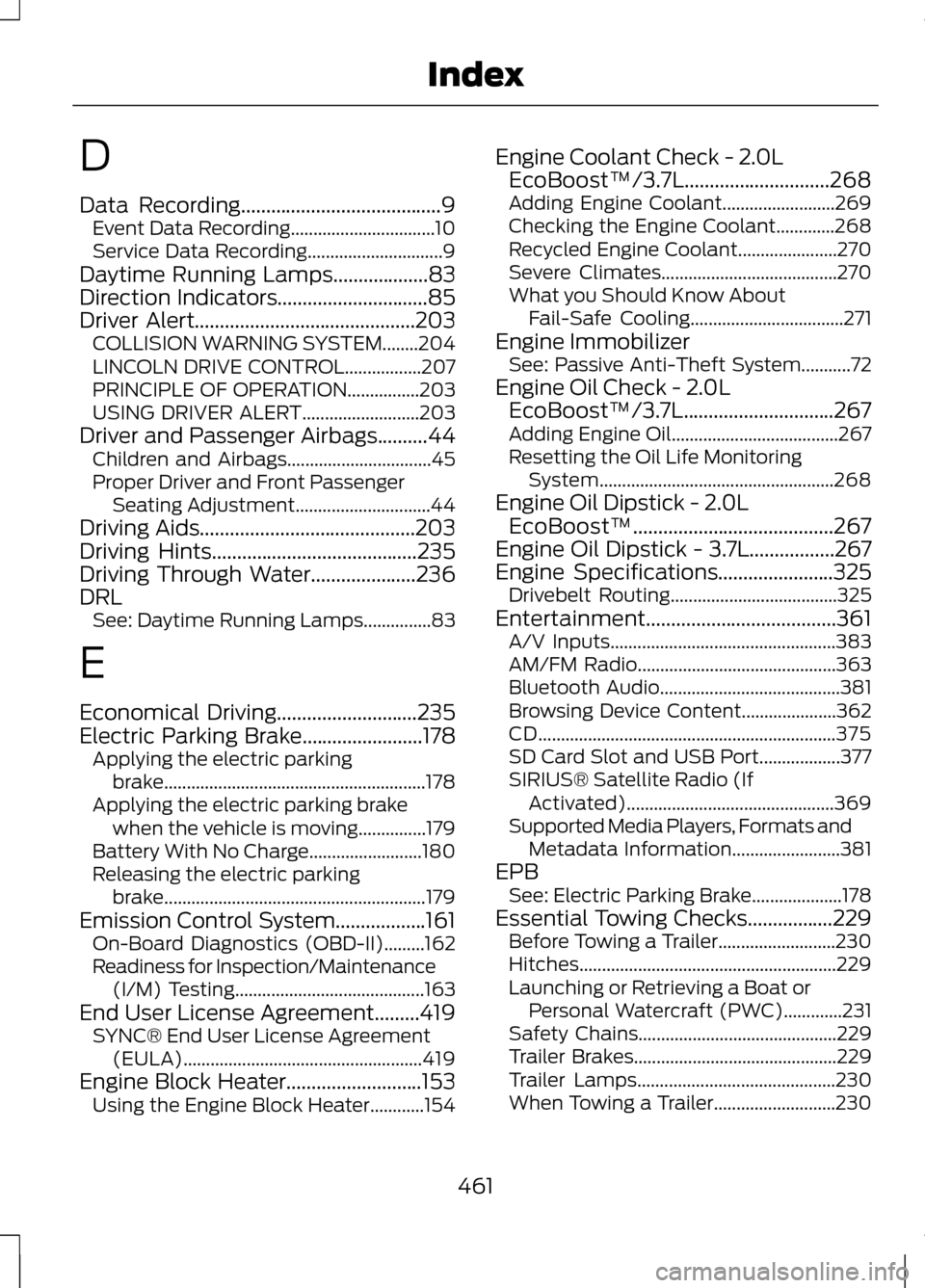

D
Data Recording........................................9
Event Data Recording................................10
Service Data Recording..............................9
Daytime Running Lamps...................83
Direction Indicators..............................85
Driver Alert............................................203 COLLISION WARNING SYSTEM........204
LINCOLN DRIVE CONTROL.................207
PRINCIPLE OF OPERATION................203
USING DRIVER ALERT..........................203
Driver and Passenger Airbags..........44 Children and Airbags................................45
Proper Driver and Front Passenger
Seating Adjustment..............................44
Driving Aids
...........................................203
Driving Hints.........................................235
Driving Through Water.....................236
DRL See: Daytime Running Lamps...............83
E
Economical Driving
............................235
Electric Parking Brake........................178 Applying the electric parking
brake.......................................................... 178
Applying the electric parking brake when the vehicle is moving...............179
Battery With No Charge.........................180
Releasing the electric parking brake.......................................................... 179
Emission Control System..................161 On-Board Diagnostics (OBD-II).........162
Readiness for Inspection/Maintenance
(I/M) Testing.......................................... 163
End User License Agreement
.........419
SYNC® End User License Agreement
(EULA)..................................................... 419
Engine Block Heater
...........................153
Using the Engine Block Heater............154 Engine Coolant Check - 2.0L
EcoBoost™/3.7L.............................268
Adding Engine Coolant.........................269
Checking the Engine Coolant.............268
Recycled Engine Coolant......................270
Severe Climates.......................................270
What you Should Know About Fail-Safe Cooling..................................271
Engine Immobilizer See: Passive Anti-Theft System...........72
Engine Oil Check - 2.0L EcoBoost™/3.7L..............................267
Adding Engine Oil.....................................267
Resetting the Oil Life Monitoring System.................................................... 268
Engine Oil Dipstick - 2.0L EcoBoost™........................................267
Engine Oil Dipstick - 3.7L
.................267
Engine Specifications.......................325
Drivebelt Routing.....................................325
Entertainment......................................361 A/V Inputs.................................................. 383
AM/FM Radio............................................ 363
Bluetooth Audio........................................381
Browsing Device Content.....................362
CD.................................................................. 375
SD Card Slot and USB Port..................377
SIRIUS® Satellite Radio (If Activated).............................................. 369
Supported Media Players, Formats and Metadata Information........................381
EPB See: Electric Parking Brake....................178
Essential Towing Checks.................229 Before Towing a Trailer..........................230
Hitches......................................................... 229
Launching or Retrieving a Boat or Personal Watercraft (PWC).............231
Safety Chains............................................ 229
Trailer Brakes............................................. 229
Trailer Lamps............................................ 230
When Towing a Trailer...........................230
461
Index
