display LINCOLN MKZ 2013 Owners Manual

Security
Passive Anti-Theft System................72
Anti-Theft Alarm
...................................73
Steering Wheel
Adjusting the Steering Wheel...........75
Audio Control
.........................................76
Voice Control
...........................................77
Cruise Control
.........................................77
Information Display Control..............77
Heated Steering Wheel......................78
Wipers and Washers
Windshield Wipers
...............................79
Autowipers..............................................79
Windshield Washers
...........................80
Lighting
Lighting Control
.....................................82
Autolamps...............................................82
Instrument Lighting Dimmer............83
Headlamp Exit Delay...........................83
Daytime Running Lamps...................83
Automatic High Beam Control
........84
Direction Indicators
..............................85
Interior Lamps
........................................85
Windows and Mirrors
Power Windows
....................................87
Global Opening and Closing............88
Exterior Mirrors......................................88
Interior Mirror
.........................................90
Sun Visors
...............................................90
Sun Shades
..............................................91 Moonroof..................................................91
Instrument Cluster
Gauges......................................................94
Warning Lamps and Indicators.......95
Audible Warnings and
Indicators.............................................99
Information Displays
General Information
..........................100
Information Messages
......................105
Audio System
General Information
...........................122
Audio unit - Vehicles With: Premium AM/FM/CD
........................................123
Media Hub
..............................................125
Climate Control
Automatic Climate Control.............126
Hints on Controlling the Interior Climate................................................127
Heated Windows and Mirrors.........128
Cabin Air Filter
......................................129
Remote Start
........................................129
Seats
Sitting in the Correct Position
..........131
Head Restraints
....................................131
Power Seats
..........................................133
Memory Function................................135
Rear Seats..............................................137
Heated Seats
.........................................137
Ventilated Seats
..................................139
Rear Seat Armrest
..............................140
2
Table of Contents

REMOTE CONTROL
Intelligent Access Key
Your vehicle is equipped with two
intelligent access keys which operate
the power locks and the remote start
system. The key must be in the vehicle
to activate the push button start
system.
Removable Key Blade
The intelligent access key also
contains a removable mechanical key
blade that can be used to unlock the
driver door.
Slide the release on the back of the
remote control and pivot the cover off
to access the key blade. Note:
Your vehicle ’s backup keys were
issued with a security tag that provides
important vehicle key cut information.
Keep the tag in a safe place for future
reference.
Replacing the Battery
Note: Refer to local regulations when
disposing of transmitter batteries.
Note: Do not wipe off any grease on
the battery terminals or on the back
surface of the circuit board.
Note: Replacing the battery will not
delete the transmitter from the vehicle.
The transmitter should operate
normally.
A message will appear in the
information display when the remote
control battery is low. See
Information Messages (page 105).
Intelligent Access Transmitter
The remote control uses two
coin-type three-volt lithium batteries
CR2025 or equivalent.
54
Keys and Remote ControlsE144506 E151796 E151795

The horn will chirp if the system fails
to start, unless quiet start is on. Quiet
start will run the blower fan at a
slower speed to reduce noise. It can
be switched on or off in the
information display. See General
Information (page 100).
Note: If the vehicle has been remote
started and is equipped with an
integrated keyhead transmitter, you
must turn the ignition on before driving
the vehicle. If equipped with an
intelligent access transmitter, you must
press the
START/STOP button on the
instrument panel once while applying
the brake pedal before driving the
vehicle.
The power windows will be inhibited
during the remote start and the radio
will not turn on automatically.
The parking lamps will remain on and
the engine will run for 5, 10, or 15
minutes, depending on the setting.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle
still running to extend the run time for
another remote start duration. If you
programmed the duration to last 10
minutes, the second 10 minutes will
begin after what is left of the first
activation time. For example, if the
vehicle had been running from the first
remote start for five minutes, the
vehicle will continue to run now for a
total of 15 minutes. You can only
extend the remote start once. Wait at least five seconds before
remote starting after a vehicle
shutdown. Only two remote starts are
allowed.
The ignition must be turned on and
then back off or allow one hour to
pass before using remote start again
if additional remote starts are desired.
Turning the Vehicle Off After
Remote Starting
Press the button once. The
parking lamps will turn off.
You may have to be closer to
the vehicle than when starting due to
ground reflection and the added noise
of the running vehicle.
You can disable or enable the remote
start system through the information
display. See
General Information
(page 100).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement or additional keys or
remote controls can be purchased
from your authorized dealer. Your
dealer can program the transmitters
to your vehicle or you may be able to
program them yourself. See Passive
Anti-Theft System
(page 72).
57
Keys and Remote ControlsE138625

PRINCIPLE OF OPERATION
MyKey allows you to program keys
with restricted driving modes to
promote good driving habits. All but
one of the keys programmed to the
vehicle can be activated with these
restricted modes. Any keys that have
not been programmed are referred to
as an "administrator key" or "admin
key" which can be used to:
•
create a restricted key
• program optional MyKey settings
• clear all MyKey features
altogether.
Once a key has been programmed you
can access the following information
using the information display control:
• How many admin keys and MyKeys
are programmed to the vehicle.
• The total distance the vehicle has
been driven with a MyKey.
For vehicles equipped with intelligent
access key (push button start), when
both a MyKey and an admin intelligent
access key (fob) are present, the
admin fob will be recognized by the
vehicle to start the engine. Standard Settings
These settings cannot be changed.
•
Belt-Minder®. This cannot be
disabled and the five-minute timer
does not expire. The audio system
is muted when MyKey
Belt-Minder® is activated.
• Early low fuel. Warnings are
displayed in the information
display control followed by an
audible tone when the fuel tank is
at one-eighth tank or less.
• Driver assist features, if equipped
on your vehicle, are forced on: Rear
parking aid, Blind spot information
system (BLIS®) with cross traffic
alert, Lane departure warning,
Forward collision warning system
and Satellite radio adult content
restriction.
Optional Settings
These settings can be configured right
after a MyKey is first created or
changed afterward with an admin key.
• Vehicle speed limit of 65, 70, 75
and 80 mph (105, 113, 121 and 130
km/h). Visual warnings are
displayed followed by an audible
tone when vehicle speed has
reached the selected top speed.
• Vehicle speed minder of 45, 55 or
65 mph (75, 90, or 105 km/h).
Visual warnings are displayed
followed by an audible tone when
the preselected vehicle speed is
exceeded.
58
MyKey®

•
Audio system maximum volume
of 45%. A message in the audio
system is displayed when
attempting to exceed the limited
volume. Also, speed sensitive
compensated volume feature will
be disabled.
• Always on setting. When this is
selected you will not be able to
disable AdvanceTrac®, 911 Assist®
or the Do not disturb feature (if
your vehicle is equipped with these
features).
CREATING A MYKEY
Use the information display control to
create a MyKey:
1. Insert the key you want to program
into the ignition or, if the vehicle is
equipped with push button start,
put the intelligent access key in the
backup slot. Backup slot
information is located in a different
chapter. See Starting and
Stopping the Engine (page 150).
2. Turn the ignition on.
3. Access the main menu on the information display controls and
select
Settings, then MyKey by
pressing OK or the > button.
4. Press OK to select
Create.
5. When prompted, hold the OK button until you see a message
informing you to label this key as
a MyKey. The key will be restricted
at the next start. The key is successfully programmed.
Make sure you label it so you can
distinguish it from the admin keys.
You can program optional settings for
the key(s). Refer to
Programming/Changing optional
settings
.
Programming/Changing
Optional Settings
All programmed keys can be cleared
within the same key cycle in which a
key was programmed, otherwise an
admin key is required to clear the keys.
See
Clearing All MyKeys (page 59).
You can access the optional settings
through the information display
control.
1. Turn the ignition on using an admin
key.
2. Access the main menu and select Settings
, then MyKey.
3. Use the arrow buttons to get to an
optional feature.
4. Press OK or > to scroll through settings.
5. Press OK or > to make a selection.
CLEARING ALL MYKEYS
All programmed MyKeys can be
cleared within the same key cycle in
which a MyKey was created,
otherwise an admin key is required to
clear the keys.
59
MyKey®

To clear all MyKeys (which removes
all restrictions and returns them to
admin key status), use the
information display to do the
following:
1. Access the main menu and select
Settings, then MyKey.
2. Scroll to
Clear All and press the
OK button.
3. Hold the
OK button until ALL
MYKEYS CLEARED is displayed. CHECKING MYKEY SYSTEM
STATUS
The information display control
displays information about keys
programmed to the vehicle:
•
MYKEY MILES:
Tracks mileage
when a restricted key is used. If
mileage does not accumulate as
expected, then the key is not being
used by the intended user. The
only way to reset this to zero is by
clearing MyKeys. If the mileage is
lower than the last time you
checked, then the key system has
been recently reset.
• #MYKEY(S): Indicates how many
restricted keys are programmed to
the vehicle. Can also be used to
detect deletion of a restricted key.
• #ADMIN KEY(S):
Indicates how
many admin keys are programmed
to the vehicle. Can also be used to
detect if an additional key has
been programmed to the vehicle.
USING MYKEY WITH
REMOTE START SYSTEMS
MyKey is NOT compatible with
non-Ford-approved aftermarket
remote start systems. If you choose
to install a remote start system please
see your Ford authorized dealer for a
Ford-approved remote start system.
60
MyKey®

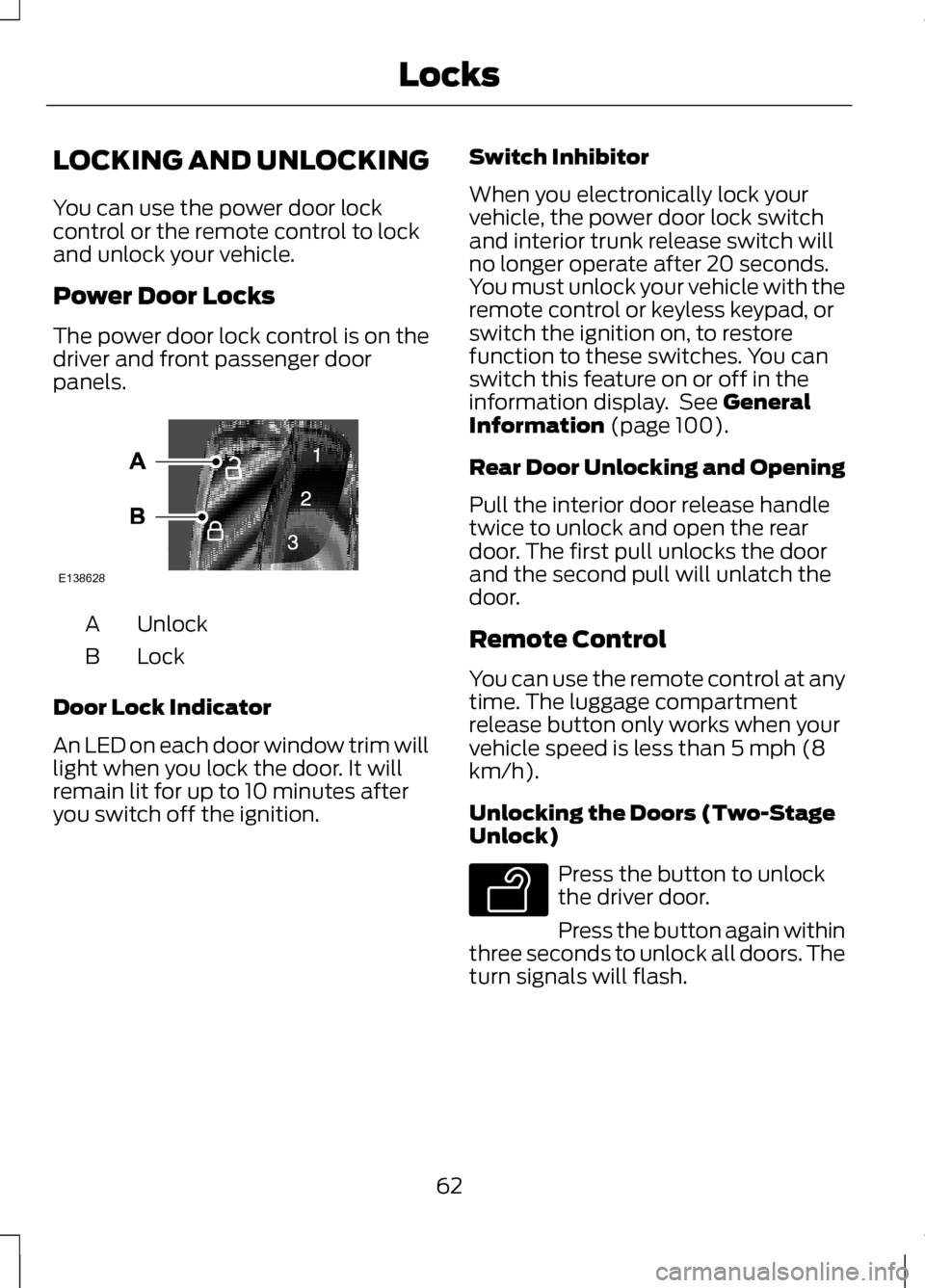

LOCKING AND UNLOCKING
You can use the power door lock
control or the remote control to lock
and unlock your vehicle.
Power Door Locks
The power door lock control is on the
driver and front passenger door
panels.
Unlock
A
LockB
Door Lock Indicator
An LED on each door window trim will
light when you lock the door. It will
remain lit for up to 10 minutes after
you switch off the ignition. Switch Inhibitor
When you electronically lock your
vehicle, the power door lock switch
and interior trunk release switch will
no longer operate after 20 seconds.
You must unlock your vehicle with the
remote control or keyless keypad, or
switch the ignition on, to restore
function to these switches. You can
switch this feature on or off in the
information display. See General
Information (page 100).
Rear Door Unlocking and Opening
Pull the interior door release handle
twice to unlock and open the rear
door. The first pull unlocks the door
and the second pull will unlatch the
door.
Remote Control
You can use the remote control at any
time. The luggage compartment
release button only works when your
vehicle speed is less than 5 mph (8
km/h).
Unlocking the Doors (Two-Stage
Unlock) Press the button to unlock
the driver door.
Press the button again within
three seconds to unlock all doors. The
turn signals will flash.
62
LocksE138628 E138629

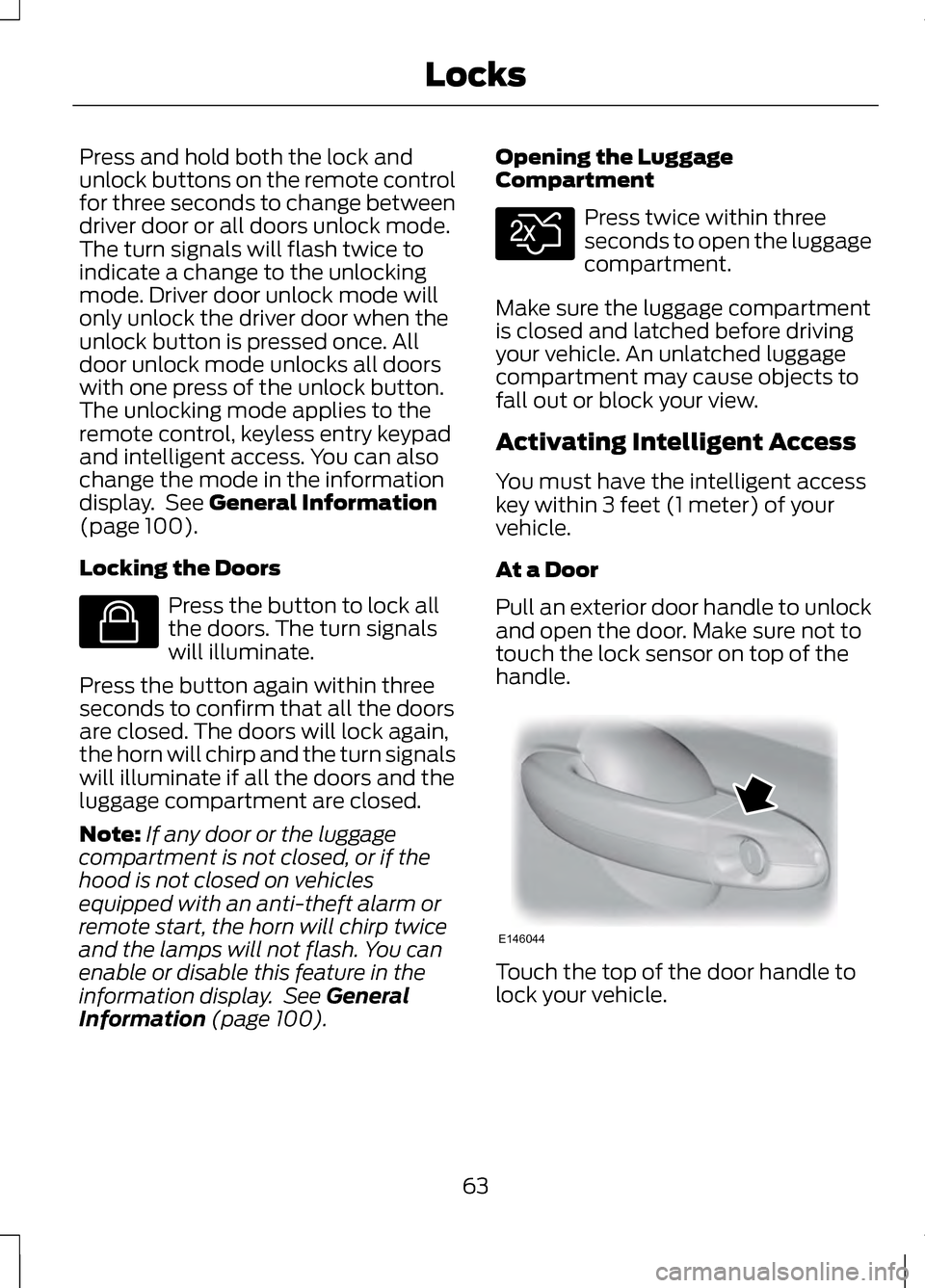

Press and hold both the lock and
unlock buttons on the remote control
for three seconds to change between
driver door or all doors unlock mode.
The turn signals will flash twice to
indicate a change to the unlocking
mode. Driver door unlock mode will
only unlock the driver door when the
unlock button is pressed once. All
door unlock mode unlocks all doors
with one press of the unlock button.
The unlocking mode applies to the
remote control, keyless entry keypad
and intelligent access. You can also
change the mode in the information
display. See General Information
(page 100).
Locking the Doors Press the button to lock all
the doors. The turn signals
will illuminate.
Press the button again within three
seconds to confirm that all the doors
are closed. The doors will lock again,
the horn will chirp and the turn signals
will illuminate if all the doors and the
luggage compartment are closed.
Note: If any door or the luggage
compartment is not closed, or if the
hood is not closed on vehicles
equipped with an anti-theft alarm or
remote start, the horn will chirp twice
and the lamps will not flash. You can
enable or disable this feature in the
information display. See
General
Information (page 100). Opening the Luggage
Compartment Press twice within three
seconds to open the luggage
compartment.
Make sure the luggage compartment
is closed and latched before driving
your vehicle. An unlatched luggage
compartment may cause objects to
fall out or block your view.
Activating Intelligent Access
You must have the intelligent access
key within 3 feet (1 meter) of your
vehicle.
At a Door
Pull an exterior door handle to unlock
and open the door. Make sure not to
touch the lock sensor on top of the
handle. Touch the top of the door handle to
lock your vehicle.
63
LocksE138623 E138630 E146044

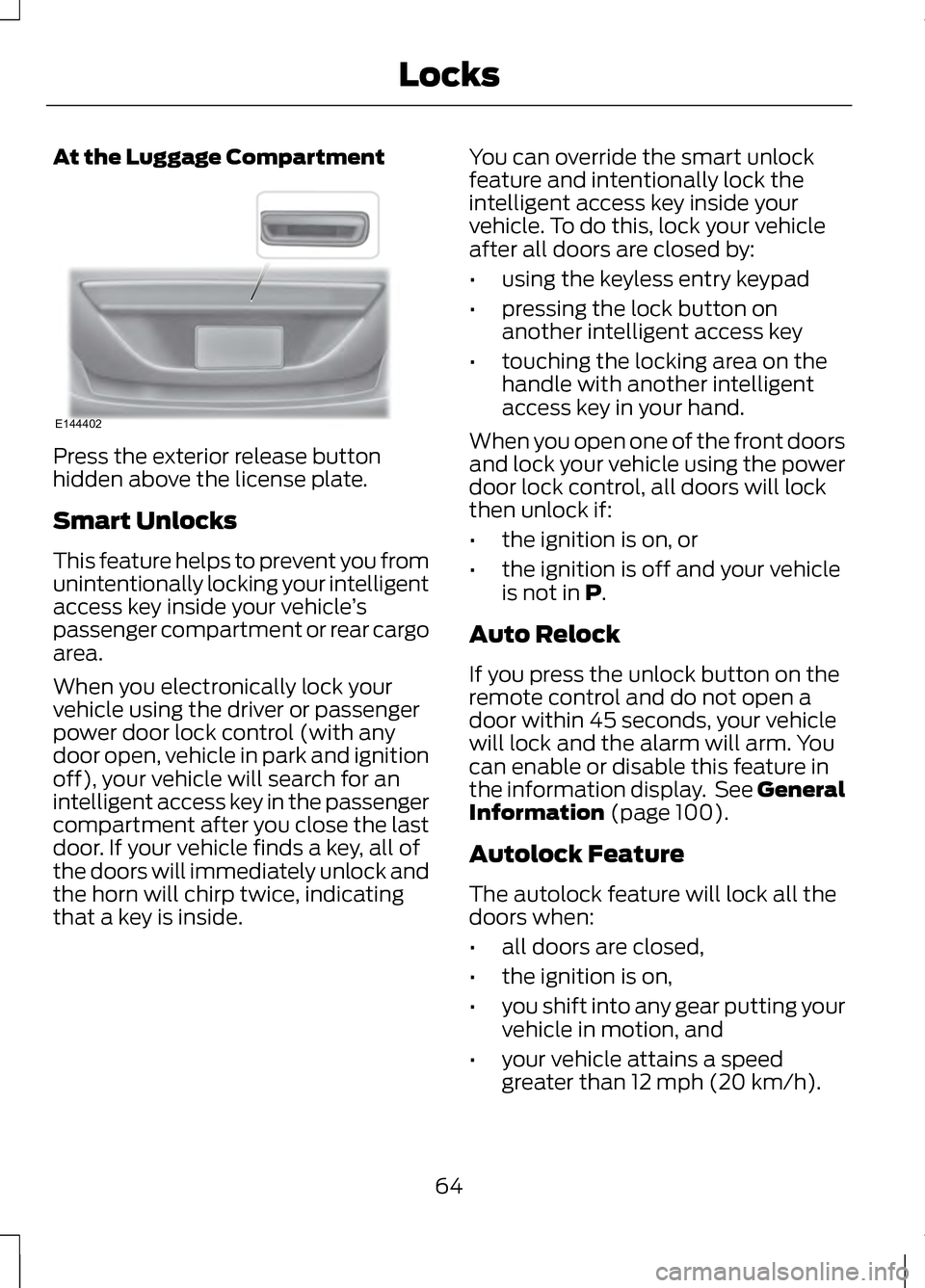

At the Luggage Compartment
Press the exterior release button
hidden above the license plate.
Smart Unlocks
This feature helps to prevent you from
unintentionally locking your intelligent
access key inside your vehicle
’s
passenger compartment or rear cargo
area.
When you electronically lock your
vehicle using the driver or passenger
power door lock control (with any
door open, vehicle in park and ignition
off), your vehicle will search for an
intelligent access key in the passenger
compartment after you close the last
door. If your vehicle finds a key, all of
the doors will immediately unlock and
the horn will chirp twice, indicating
that a key is inside. You can override the smart unlock
feature and intentionally lock the
intelligent access key inside your
vehicle. To do this, lock your vehicle
after all doors are closed by:
•
using the keyless entry keypad
• pressing the lock button on
another intelligent access key
• touching the locking area on the
handle with another intelligent
access key in your hand.
When you open one of the front doors
and lock your vehicle using the power
door lock control, all doors will lock
then unlock if:
• the ignition is on, or
• the ignition is off and your vehicle
is not in P.
Auto Relock
If you press the unlock button on the
remote control and do not open a
door within 45 seconds, your vehicle
will lock and the alarm will arm. You
can enable or disable this feature in
the information display. See General
Information
(page 100).
Autolock Feature
The autolock feature will lock all the
doors when:
• all doors are closed,
• the ignition is on,
• you shift into any gear putting your
vehicle in motion, and
• your vehicle attains a speed
greater than 12 mph (20 km/h).
64
LocksE144402

The autolock feature repeats when:
•
you open then close any door while
the ignition is on and your vehicle
speed is 9 mph (15 km/h) or lower,
and
• your vehicle then attains a speed
greater than 12 mph (20 km/h).
Autounlock Feature
The autounlock feature will unlock all
the doors when:
• the ignition is on, all the doors are
closed, and your vehicle has been
in motion at a speed greater than
12 mph (20 km/h);
• your vehicle comes to a stop and
you switch the ignition off or to
accessory; and
• you open the driver door within 10
minutes of switching the ignition
off or to accessory.
Note: The doors will not autounlock if
you electronically lock your vehicle
after you switch the ignition off and
before you open the driver door.
Enabling or Disabling
Note: You can enable or disable the
autolock and autounlock features
independently of each other.
You can enable or disable these
features in the information display or
your authorized dealer can do it for
you. See General Information (page
100). Illuminated Entry
The interior lamps and select exterior
lamps will illuminate when you unlock
the doors with the remote entry
system.
The illuminated entry system will turn
off the lights if:
•
the ignition is on,
• you press the remote control lock
button, or
• after 25 seconds of illumination.
The lights will not turn off if:
• you turn them on with the dimmer
control, or
• any door is open.
Illuminated Exit
The interior lamps and select exterior
lamps will illuminate when all doors
are closed and you switch the ignition
off.
The lamps will turn off if all the doors
remain closed and:
• 25 seconds elapse
• you press the
START/STOP
button.
Battery Saver
If you leave the courtesy lamps, dome
lamps or headlamps on, the battery
saver will shut them off 10 minutes
after you switch the ignition off.
65
Locks
