ignition LINCOLN MKZ 2014 Owners Manual

E146191

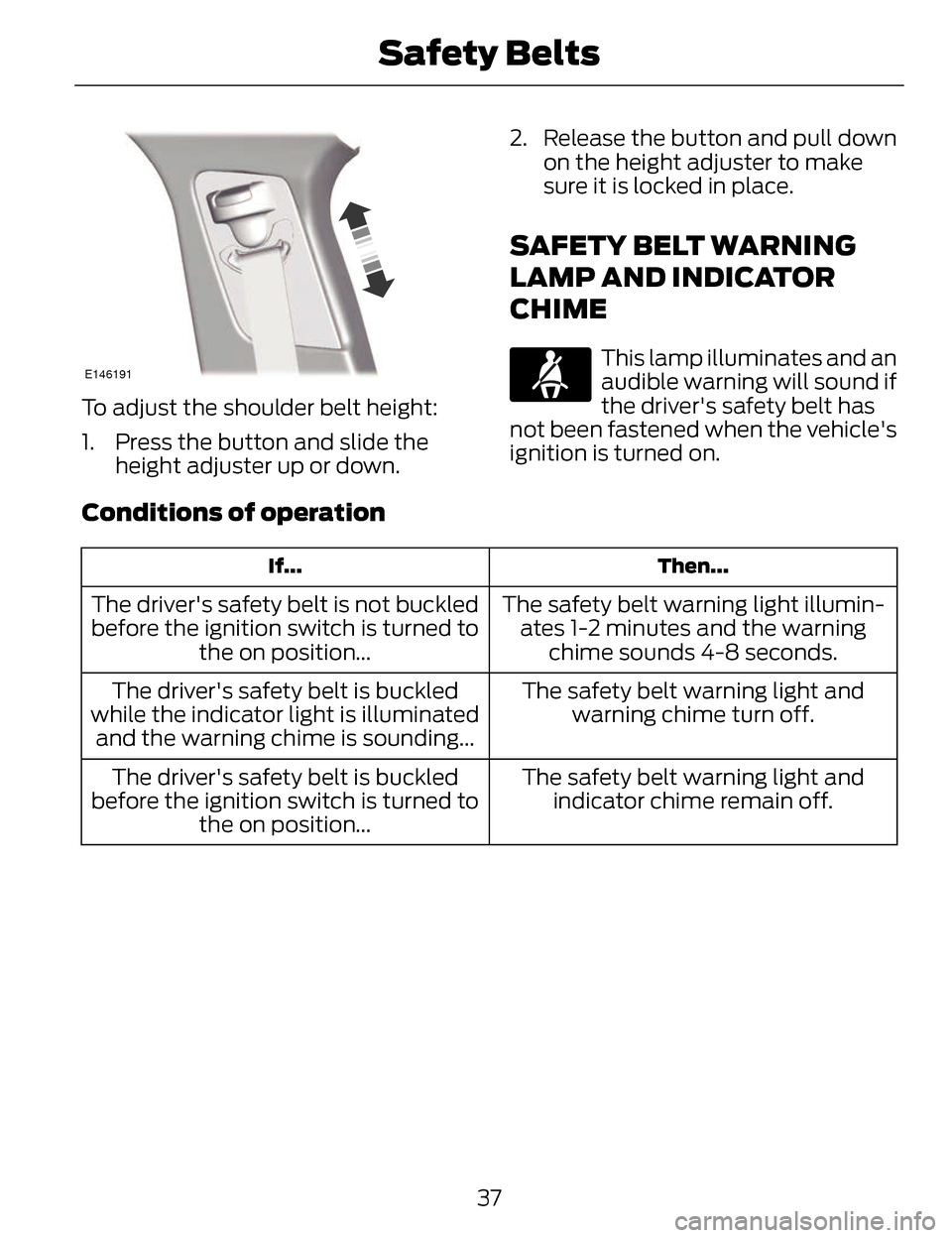

To adjust the shoulder belt height:
1. Press the button and slide theheight adjuster up or down. 2. Release the button and pull down
on the height adjuster to make
sure it is locked in place.
SAFETY BELT WARNING
LAMP AND INDICATOR
CHIME
This lamp illuminates and an
audible warning will sound if
the driver's safety belt has
not been fastened when the vehicle's
ignition is turned on.
Conditions of operation
Then...
If...
The safety belt warning light illumin-
ates 1-2 minutes and the warning chime sounds 4-8 seconds.
The driver's safety belt is not buckled
before the ignition switch is turned to the on position...
The safety belt warning light andwarning chime turn off.
The driver's safety belt is buckled
while the indicator light is illuminated and the warning chime is sounding...
The safety belt warning light andindicator chime remain off.
The driver's safety belt is buckled
before the ignition switch is turned to the on position...
37
Safety Belts

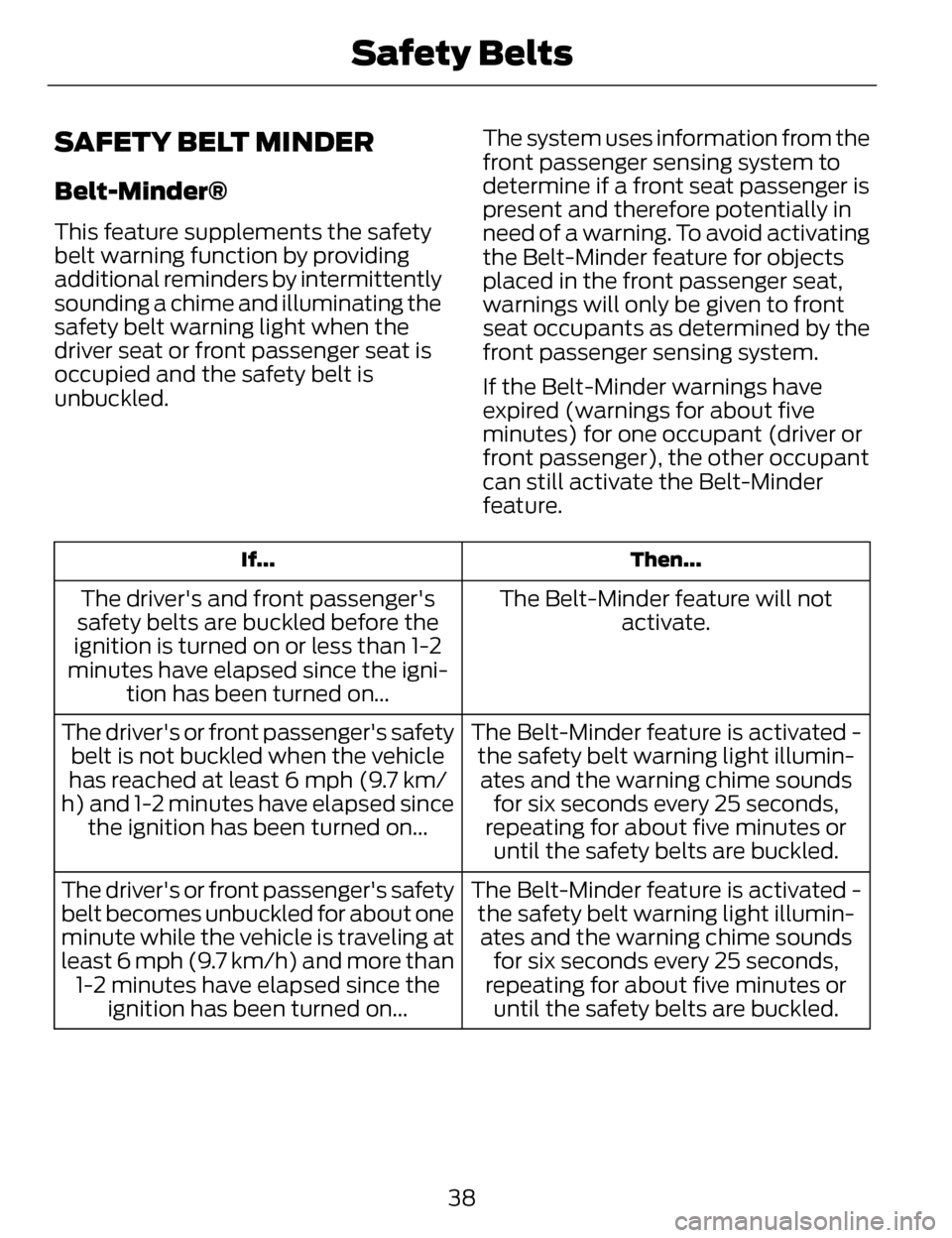

SAFETY BELT MINDER
Belt-Minder®
This feature supplements the safety
belt warning function by providing
additional reminders by intermittently
sounding a chime and illuminating the
safety belt warning light when the
driver seat or front passenger seat is
occupied and the safety belt is
unbuckled.The system uses information from the
front passenger sensing system to
determine if a front seat passenger is
present and therefore potentially in
need of a warning. To avoid activating
the Belt-Minder feature for objects
placed in the front passenger seat,
warnings will only be given to front
seat occupants as determined by the
front passenger sensing system.
If the Belt-Minder warnings have
expired (warnings for about five
minutes) for one occupant (driver or
front passenger), the other occupant
can still activate the Belt-Minder
feature.
Then...
If...
The Belt-Minder feature will not
activate.
The driver's and front passenger's
safety belts are buckled before the
ignition is turned on or less than 1-2
minutes have elapsed since the igni- tion has been turned on...
The Belt-Minder feature is activated -the safety belt warning light illumin-ates and the warning chime sounds for six seconds every 25 seconds,
repeating for about five minutes or until the safety belts are buckled.
The driver's or front passenger's safety
belt is not buckled when the vehicle
has reached at least 6 mph (9.7 km/
h) and 1-2 minutes have elapsed since the ignition has been turned on...
The Belt-Minder feature is activated -the safety belt warning light illumin-ates and the warning chime sounds for six seconds every 25 seconds,
repeating for about five minutes or until the safety belts are buckled.
The driver's or front passenger's safety
belt becomes unbuckled for about one
minute while the vehicle is traveling at
least 6 mph (9.7 km/h) and more than
1-2 minutes have elapsed since the ignition has been turned on...
38
Safety Belts

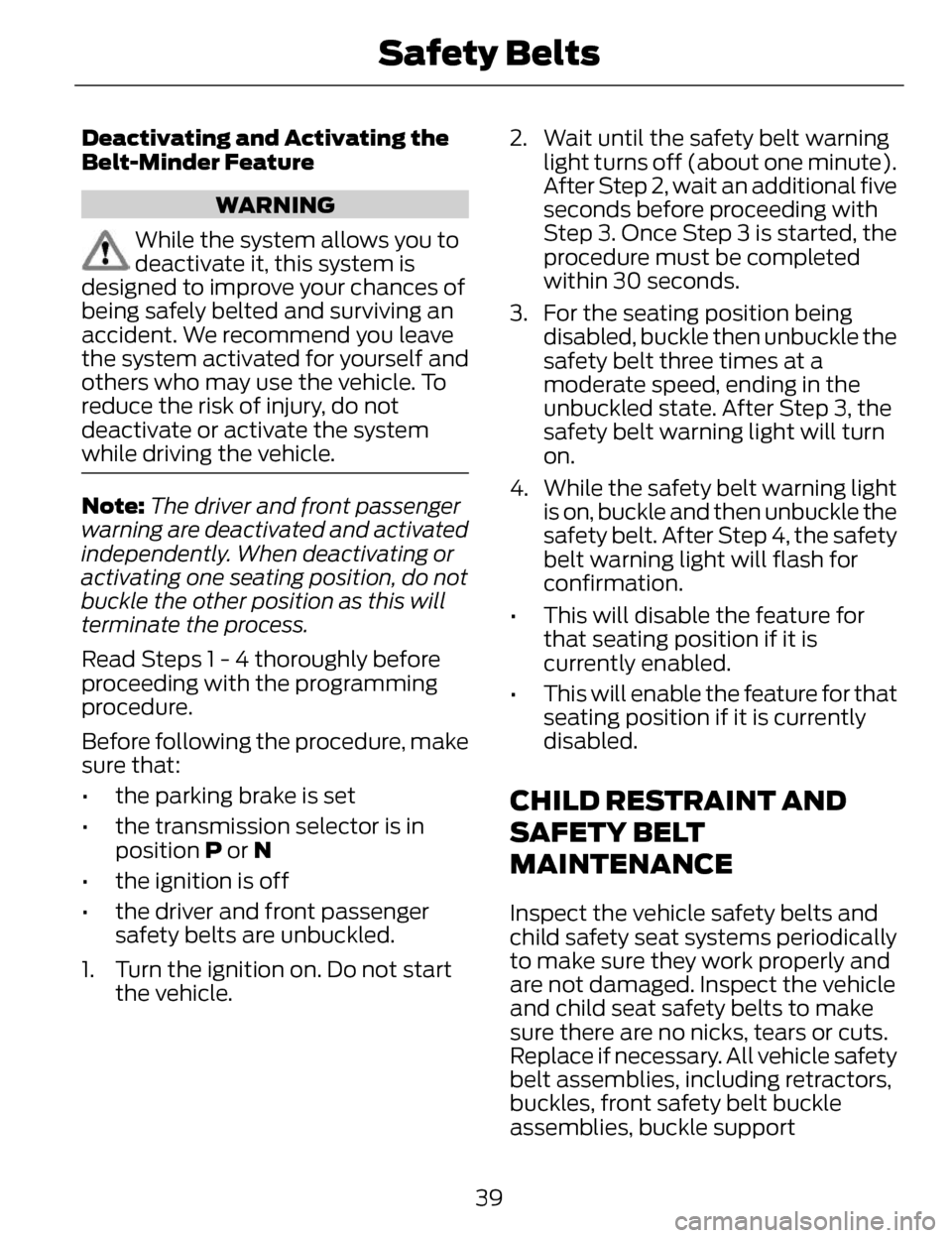

Deactivating and Activating the
Belt-Minder Feature
WARNING
While the system allows you to
deactivate it, this system is
designed to improve your chances of
being safely belted and surviving an
accident. We recommend you leave
the system activated for yourself and
others who may use the vehicle. To
reduce the risk of injury, do not
deactivate or activate the system
while driving the vehicle.
Note: The driver and front passenger
warning are deactivated and activated
independently. When deactivating or
activating one seating position, do not
buckle the other position as this will
terminate the process.
Read Steps 1 - 4 thoroughly before
proceeding with the programming
procedure.
Before following the procedure, make
sure that:
• the parking brake is set
• the transmission selector is in position P or N
• the ignition is off
• the driver and front passenger safety belts are unbuckled.
1. Turn the ignition on. Do not start the vehicle. 2. Wait until the safety belt warning
light turns off (about one minute).
After Step 2, wait an additional five
seconds before proceeding with
Step 3. Once Step 3 is started, the
procedure must be completed
within 30 seconds.
3. For the seating position being disabled, buckle then unbuckle the
safety belt three times at a
moderate speed, ending in the
unbuckled state. After Step 3, the
safety belt warning light will turn
on.
4. While the safety belt warning light is on, buckle and then unbuckle the
safety belt. After Step 4, the safety
belt warning light will flash for
confirmation.
• This will disable the feature for that seating position if it is
currently enabled.
• This will enable the feature for that seating position if it is currently
disabled.
CHILD RESTRAINT AND
SAFETY BELT
MAINTENANCE
Inspect the vehicle safety belts and
child safety seat systems periodically
to make sure they work properly and
are not damaged. Inspect the vehicle
and child seat safety belts to make
sure there are no nicks, tears or cuts.
Replace if necessary. All vehicle safety
belt assemblies, including retractors,
buckles, front safety belt buckle
assemblies, buckle support
39
Safety Belts

certain crash and occupant
conditions, the driver’s and
passenger’s knee airbag may deploy
(individually or both) but the
corresponding front airbag may not
activate. As with front and side
airbags, it is important to be properly
seated and restrained to reduce the
risk of death or serious injury.
Make sure the knee airbags
are operating properly. See
Crash Sensors and Airbag
Indicator (page 50).
FRONT PASSENGER
SENSING SYSTEM
WARNINGS
Even with Advanced Restraints
Systems, children 12 and under
should be properly restrained in a rear
seating position. Failure to follow this
could seriously increase the risk of
injury or death.
Sitting improperly out of position
or with the seat back reclined too
far can take off weight from the seat
cushion and affect the decision of the
front passenger sensing system,
resulting in serious injury or death in a
crash. Always sit upright against your
seat back, with your feet on the floor.
Any alteration or modification to
the front passenger seat may
affect the performance of the front
passenger sensing system which
could seriously increase the risk of
injury or death.
This system works with sensors that
are part of the front passenger’s seat
and safety belt to detect the presence
of a properly-seated occupant and
determine if the front passenger’s
frontal airbag should be enabled (may
inflate) or not.
E151849
The front passenger sensing system
uses a passenger airbag status
indicator that will illuminate indicating
that the front passenger frontal airbag
is either ON (enabled) or OFF
(disabled).
The indicator lamp is located in the
center stack of the instrument panel.
Note: The passenger airbag status
indicator OFF and ON indicator lamps
will illuminate for a short period of time
when the ignition is first turned on to
confirm it is functional.
The front passenger sensing system
is designed to disable (will not inflate)
the front passenger's frontal airbag
when the front passenger seat is
unoccupied, or a rear facing infant
seat, a forward-facing child restraint,
or a booster seat is detected. Even
with this technology, parents are
45
Supplementary Restraints System

The design and development of the
side curtain airbags included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment of
side curtain airbags.
CRASH SENSORS AND
AIRBAG INDICATOR
WARNING
Modifying or adding equipment
to the front end of the vehicle
(including frame, bumper, front end
body structure and tow hooks) may
affect the performance of the airbag
system, increasing the risk of injury.
Do not modify the front end of the
vehicle.
The vehicle has a collection of crash
and occupant sensors which provide
information to the restraints control
module which deploys (activates) the
front safety belt pretensioners, driver
airbag, passenger airbag, knee
airbag(s), seat mounted side airbags,
side curtain airbags and optional rear
inflatable safety belts. Based on the
type of crash (frontal impact or side
impact), the restraints control module
will deploy the appropriate safety
devices. The restraints control module also
monitors the readiness of the above
safety devices plus the crash and
occupant sensors. The readiness of
the safety system is indicated by a
warning indicator light in the
instrument cluster or by a backup tone
if the warning light is not working.
Routine maintenance of the airbag is
not required.
A difficulty with the system is
indicated by one or more of the
following:
The readiness light will not
illuminate immediately after
the ignition is turned on.
• The readiness light will either flash or stay lit.
• A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem, the
light or both are repaired.
If any of these things happen, even
intermittently, have the supplemental
restraint system serviced at an
authorized dealer immediately. Unless
serviced, the system may not function
properly in the event of a crash.
The safety belt pretensioners and the
front airbag supplemental restraint
system are designed to activate when
the vehicle sustains frontal
deceleration sufficient to cause the
restraints control module to deploy a
safety device.
50
Supplementary Restraints System

E151796

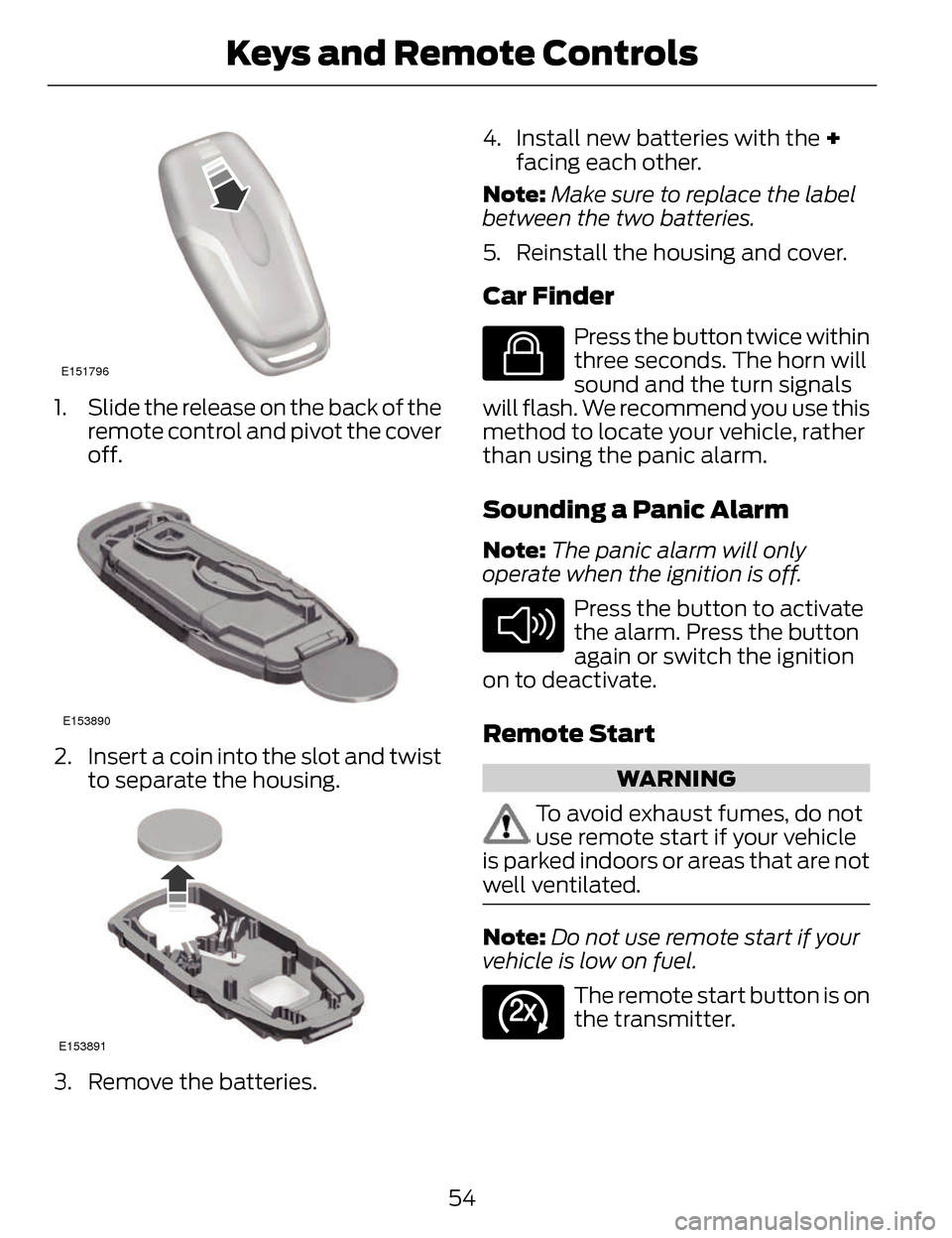

1. Slide the release on the back of theremote control and pivot the cover
off.
E153890
2. Insert a coin into the slot and twistto separate the housing.
E153891
3. Remove the batteries. 4. Install new batteries with the +
facing each other.
Note: Make sure to replace the label
between the two batteries.
5. Reinstall the housing and cover.
Car Finder
E138623
Press the button twice within
three seconds. The horn will
sound and the turn signals
will flash. We recommend you use this
method to locate your vehicle, rather
than using the panic alarm.
Sounding a Panic Alarm
Note: The panic alarm will only
operate when the ignition is off.
E138624
Press the button to activate
the alarm. Press the button
again or switch the ignition
on to deactivate.
Remote Start
WARNING
To avoid exhaust fumes, do not
use remote start if your vehicle
is parked indoors or areas that are not
well ventilated.
Note: Do not use remote start if your
vehicle is low on fuel.
E138625
The remote start button is on
the transmitter.
54
Keys and Remote Controls

This feature allows you to start your
vehicle from outside the vehicle. The
transmitter has an extended operating
range.
Vehicles with automatic climate
control can be configured to operate
when the vehicle is remote started.
See Climate Control (page 128). A
manual climate control system will
run at the setting it was set to when
you switched the vehicle off.
Many states and provinces have
restrictions for the use of remote start.
Check your local and state or
provincial laws for specific
requirements regarding remote start
systems.
The remote start system will not work
if:
• the ignition is on
• the alarm system is triggered
• you disable the feature
• the hood is open
• the transmission is not in P
• the vehicle battery voltage is too low
• the service engine soon light is on.
Remote Control Feedback
An LED on the remote control
provides status feedback of remote
start or stop commands.
Status
LED
Remote start or
extension
successful
Solid green
Remote stopsuccessful;engine off
Solid red
Remote start orstop failed
Blinking red
Waiting for
status update
Blinking green
Remote Starting the Vehicle
Note: You must press each button
within three seconds of each other.
Your vehicle will not remote start if you
do not follow this sequence.
E138626
The tag with your transmitter details
the starting procedure.
To remote start your vehicle:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
55
Keys and Remote Controls

The horn will sound if the system fails
to start, unless quiet start is on. Quiet
start will run the blower fan at a
slower speed to reduce noise. It can
be switched on or off in the
information display. See General
Information (page 101).
Note: If the vehicle has been remote
started with an integrated keyhead
transmitter, you must switch the
ignition on before driving your vehicle.
With an intelligent access transmitter,
you must press the START/STOP
button on the instrument panel once
while applying the brake pedal before
driving your vehicle.
The power windows will not work
during the remote start and the radio
will not turn on automatically.
The parking lamps will remain on and
the vehicle will run for 5, 10, or 15
minutes, depending on the setting.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle
still running to extend the run time for
another remote start duration. If you
programmed the duration to last 10
minutes, the second 10 minutes will
begin after what is left of the first
activation time. For example, if the
vehicle had been running from the first
remote start for five minutes, the
vehicle will continue to run now for a
total of 15 minutes. You can extend
the remote start up to a maximum of
35 minutes.
Wait at least five seconds before
remote starting after a vehicle
shutdown. Turning the Vehicle Off After
Remote Starting
E138625
Press the button once. The
parking lamps will turn off.
You may have to be closer to
the vehicle than when starting due to
ground reflection and the added noise
of the running vehicle.
You can disable or enable the remote
start system through the information
display. See General Information
(page 101).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls
can be purchased from an authorized
dealer. Authorized dealers can
program remote controls for your
vehicle. See Passive Anti-Theft
System (page 72).
To re-program the passive anti-theft
system see an authorized dealer.
56
Keys and Remote Controls

PRINCIPLE OF OPERATION
MyKey allows you to program keys
with restricted driving modes to
promote good driving habits. All but
one of the keys programmed to the
vehicle can be activated with these
restricted modes.
Any keys that have not been
programmed are referred to as
administrator keys or admin keys.
These can be used to:
• create a MyKey
• program configurable MyKeysettings
• clear all MyKey features.
When you have programmed a MyKey,
you can access the following
information using the information
display:
• How many admin keys and MyKeys are programmed to your vehicle.
• The total distance your vehicle has traveled using a MyKey.
Note: All MyKeys are programmed to
the same settings. You cannot program
them individually.
Note: For vehicles with intelligent
access with push-button start, when
both a MyKey and an admin intelligent
access key fob are present, the admin
fob will be recognized by the vehicle
while switching the ignition on to start
the vehicle.
Non-configurabl e Settings
The following settings cannot be
changed by an admin key user: • Belt-Minder. You cannot disable
this feature. The audio system will
mute when the front seat
occupants’ safety belts are not
fastened.
• Early low fuel. The low-fuel warning activates earlier, giving the
MyKey user more time to refuel.
• Driver assist features, if equipped on your vehicle, are forced on:
parking aid, blind spot information
system (BLIS) with cross traffic
alert, lane departure warning and
forward collision warning system.
Configurabl e Settings
With an admin key, you can configure
certain MyKey settings when you first
create a MyKey and before you recycle
the key or restart the vehicle. You can
also change the settings afterward
with an admin key.
• A vehicle speed limit can be set.
Warnings will be shown in the
display followed by an audible
tone when your vehicle reaches the
set speed. You cannot override the
set speed by fully depressing the
accelerator pedal or by setting
cruise control.
• Vehicle speed minders of 45, 55 or 65 mph (75, 90 or 105 km/h).
Once you select a speed, it will be
shown in the display, followed by
an audible tone when the
preselected vehicle speed is
exceeded.
57
MyKey™

• Audio system maximum volumeof 45%. A message will be shown
in the display when you attempt
to exceed the limited volume. Also,
the speed-sensitive or
compensated automatic volume
control will be disabled.
• Always on setting. When this is selected, you will not be able to
turn off Advance Trac (if your
vehicle is equipped with this
feature).
CREATING A MYKEY
Use the information display to create
a MyKey:
1. Insert the key you want to program
into the ignition. If your vehicle is
equipped with a push-button start,
place the intelligent access key fob
into the backup slot. The location of
your backup slot is in another chapter.
See Starting and Stopping the
Engine (page 151).
2. Switch the ignition on.
3. Access the main menu on the
information display controls, and
select Settings then MyKey by
pressing OK or the > button.
4. Press OK or the > button to select
Create MyKey .
5. When prompted, hold the OK
button until you see a message
informing you to label this key as a
MyKey. The key will be restricted at
the next start. MyKey is successfully created. Make
sure you label it so you can distinguish
it from the admin keys.
You can also program configurable
settings for the key(s). See
Programming/Changing
Configurable Settings.
Programming/Changing
Configurabl
e Settings
Use the information display to access
your configurable MyKey settings.
1. Switch the ignition on using an
admin key or fob.
2. Access the main menu on the information display controls, and
select Settings, then MyKey by
pressing OK or > button.
3. Use the arrow buttons to get to a feature.
4. Press OK or > to make a selection.
Note: You can clear or change your
MyKey settings at any time during the
same key cycle as you created the
MyKey. Once you have switched the
vehicle off, however, you will need an
admin key to change or clear your
MyKey settings.
CLEARING ALL MYKEYS
You can clear all MyKeys within the
same key cycle as you created the
MyKey. If you switch your ignition off,
however, you will need to use an
admin key to clear your MyKeys.
58
MyKey™
