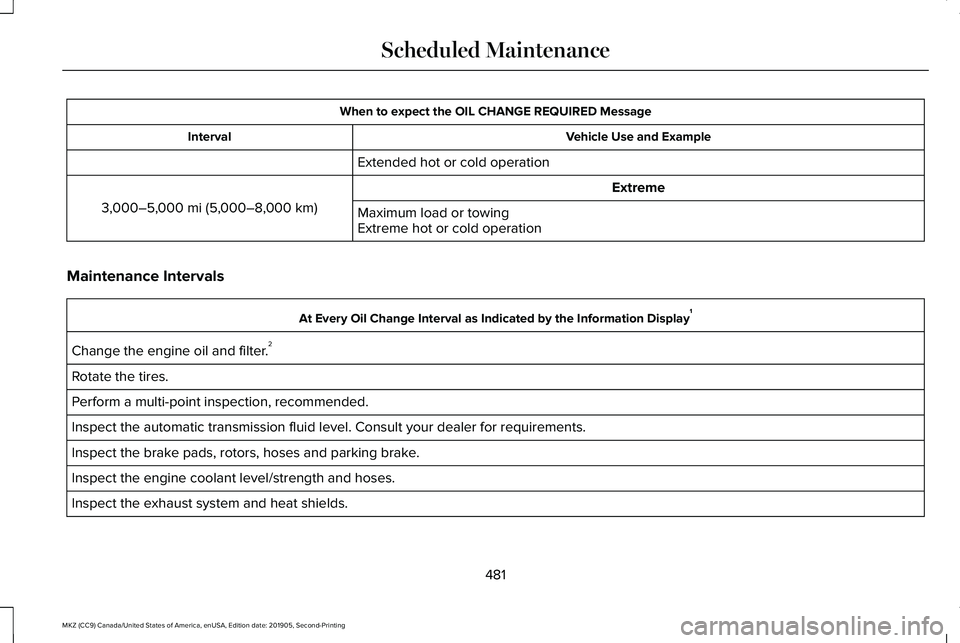

When to expect the OIL CHANGE REQUIRED Message
Vehicle Use and Example
Interval
Extended hot or cold operation Extreme
3,000–5,000 mi (5,000–8,000 km) Maximum load or towing
Extreme hot or cold operation
Maintenance Intervals At Every Oil Change Interval as Indicated by the Information Display
1
Change the engine oil and filter. 2
Rotate the tires.
Perform a multi-point inspection, recommended.
Inspect the automatic transmission fluid level. Consult your dealer for \
requirements.
Inspect the brake pads, rotors, hoses and parking brake.
Inspect the engine coolant level/strength and hoses.
Inspect the exhaust system and heat shields.
481
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

At Every Oil Change Interval as Indicated by the Information Display
1
Inspect the rear axle and U-joints (all-wheel drive only).
Inspect the half-shaft boots.
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
1 Do not exceed one year or 10,000 mi (16,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter change\
s.
See Oil Change Indicator Reset (page 308). Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for the interval.
2 Brake fluid servicing requires special equipment available at your authorize\
d dealer.
482
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

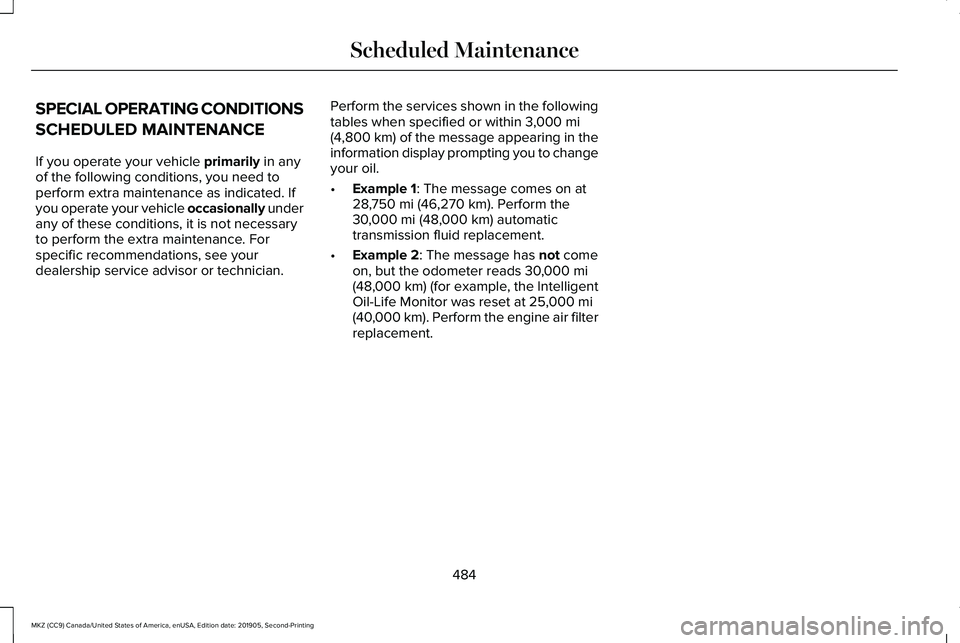

SPECIAL OPERATING CONDITIONS
SCHEDULED MAINTENANCE
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated. If
you operate your vehicle occasionally under
any of these conditions, it is not necessary
to perform the extra maintenance. For
specific recommendations, see your
dealership service advisor or technician. Perform the services shown in the following
tables when specified or within
3,000 mi
(4,800 km) of the message appearing in the
information display prompting you to change
your oil.
• Example 1
: The message comes on at
28,750 mi (46,270 km). Perform the
30,000 mi (48,000 km) automatic
transmission fluid replacement.
• Example 2
: The message has not come
on, but the odometer reads 30,000 mi
(48,000 km) (for example, the Intelligent
Oil-Life Monitor was reset at 25,000 mi
(40,000 km). Perform the engine air filter
replacement.
484
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

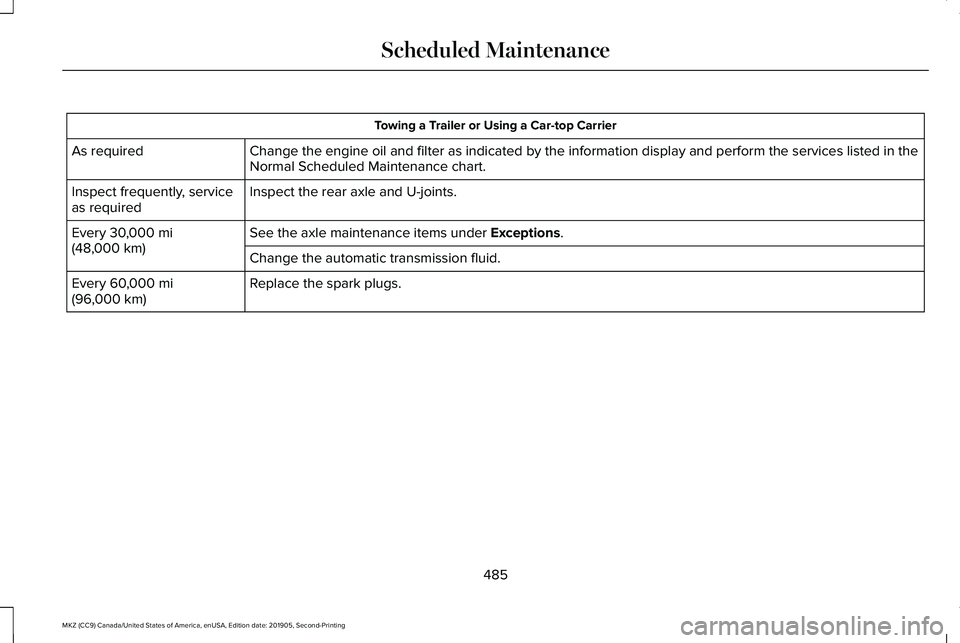

Towing a Trailer or Using a Car-top Carrier
Change the engine oil and filter as indicated by the information display\
and perform the services listed in the
Normal Scheduled Maintenance chart.
As required
Inspect the rear axle and U-joints.
Inspect frequently, service
as required
See the axle maintenance items under Exceptions.
Every 30,000 mi
(48,000 km) Change the automatic transmission fluid.
Replace the spark plugs.
Every
60,000 mi
(96,000 km)
485
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

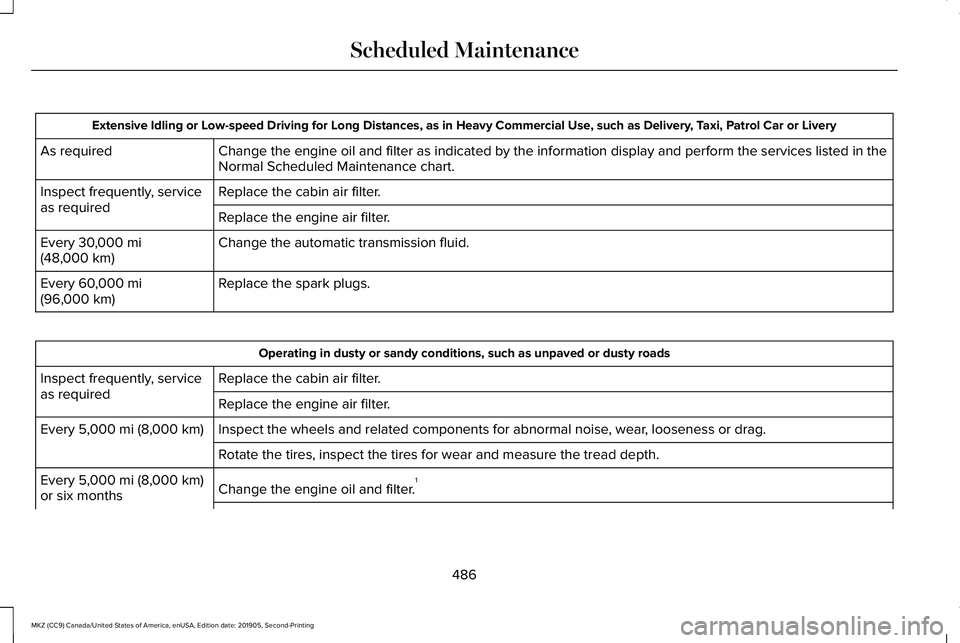

Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use, such as Delivery, Taxi, Patrol Car or Livery
Change the engine oil and filter as indicated by the information display\
and perform the services listed in the
Normal Scheduled Maintenance chart.
As required
Replace the cabin air filter.
Inspect frequently, service
as required
Replace the engine air filter.
Change the automatic transmission fluid.
Every 30,000 mi
(48,000 km)
Replace the spark plugs.
Every
60,000 mi
(96,000 km) Operating in dusty or sandy conditions, such as unpaved or dusty roads
Replace the cabin air filter.
Inspect frequently, service
as required
Replace the engine air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
Every
5,000 mi (8,000 km)
Rotate the tires, inspect the tires for wear and measure the tread depth.\
Change the engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
486
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

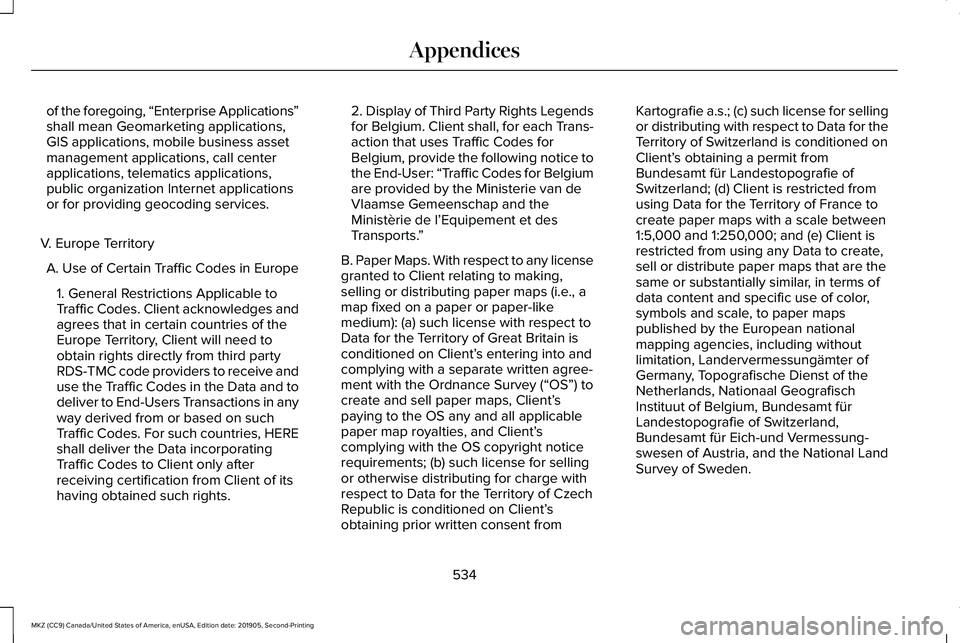

of the foregoing, “Enterprise Applications
”
shall mean Geomarketing applications,
GIS applications, mobile business asset
management applications, call center
applications, telematics applications,
public organization Internet applications
or for providing geocoding services.
V. Europe Territory A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges and
agrees that in certain countries of the
Europe Territory, Client will need to
obtain rights directly from third party
RDS-TMC code providers to receive and
use the Traffic Codes in the Data and to
deliver to End-Users Transactions in any
way derived from or based on such
Traffic Codes. For such countries, HERE
shall deliver the Data incorporating
Traffic Codes to Client only after
receiving certification from Client of its
having obtained such rights. 2. Display of Third Party Rights Legends
for Belgium. Client shall, for each Trans-
action that uses Traffic Codes for
Belgium, provide the following notice to
the End-User: “Traffic Codes for Belgium
are provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l’Equipement et des
Transports.
”
B. Paper Maps. With respect to any license
granted to Client relating to making,
selling or distributing paper maps (i.e., a
map fixed on a paper or paper-like
medium): (a) such license with respect to
Data for the Territory of Great Britain is
conditioned on Client’ s entering into and
complying with a separate written agree-
ment with the Ordnance Survey (“ OS”) to
create and sell paper maps, Client’ s
paying to the OS any and all applicable
paper map royalties, and Client’ s
complying with the OS copyright notice
requirements; (b) such license for selling
or otherwise distributing for charge with
respect to Data for the Territory of Czech
Republic is conditioned on Client’ s
obtaining prior written consent from Kartografie a.s.; (c) such license for selling
or distributing with respect to Data for the
Territory of Switzerland is conditioned on
Client’
s obtaining a permit from
Bundesamt für Landestopografie of
Switzerland; (d) Client is restricted from
using Data for the Territory of France to
create paper maps with a scale between
1:5,000 and 1:250,000; and (e) Client is
restricted from using any Data to create,
sell or distribute paper maps that are the
same or substantially similar, in terms of
data content and specific use of color,
symbols and scale, to paper maps
published by the European national
mapping agencies, including without
limitation, Landervermessungämter of
Germany, Topografische Dienst of the
Netherlands, Nationaal Geografisch
Instituut of Belgium, Bundesamt für
Landestopografie of Switzerland,
Bundesamt für Eich-und Vermessung-
swesen of Austria, and the National Land
Survey of Sweden.
534
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Appendices

Sources.................................................................423
Supported Media Players, Formats and
Metadata Information....................................435
USB Ports.............................................................435
Environment......................................................18
EPB See: Electric Parking Brake..............................194
Essential Towing Checks...........................258
Before Towing a Trailer.....................................259
Hitches..................................................................258
Launching or Retrieving a Boat or Personal
Watercraft (PWC)............................................259
Safety Chains......................................................258
Trailer Brakes......................................................258
Trailer Lamps.......................................................258
When Towing a Trailer......................................259
Event Data Recording See: Data Recording.............................................10
Export Unique Options...................................17
Exterior Mirrors
................................................96
Auto-dimming Feature........................................98
Auto-Folding Mirrors............................................97
Blind Spot Information System..........................98
Fold-Away Exterior Mirrors.................................97
Heated Exterior Mirrors ......................................98
Lincoln Welcome Mat..........................................98
Memory Mirrors ....................................................98
Power Exterior Mirrors.........................................96 Signal Indicator Mirrors ......................................98
F
Fastening the Seatbelts................................37 Seatbelt Locking Modes.....................................38
Using Seatbelts During Pregnancy..................37
Flat Tire See: Changing a Road Wheel.........................
355
Floor Mats
......................................................264
Front Parking Aid.........................................205
Object Distance Indicator................................207
Front Passenger Sensing System..............48
Fuel and Refueling
........................................167
Fuel Consumption.........................................173
Advertised Capacity............................................173
Fuel Economy.......................................................173
Fuel Filler Funnel Location.........................168
Fuel Filter.........................................................318 2.0L Engines and 3.0L Engines with
FWD....................................................................318
3.0L Engines with AWD.....................................318
Fuel Quality.....................................................168 Choosing the Right Fuel....................................168
Fuel Shutoff
...................................................266
Fuses................................................................281
Fuse Specification Chart.............................281 Passenger Compartment Fuse Panel...........293 Power Distribution Box......................................281
G
Garage Door Opener
....................................151
Garage Door Opener See: Universal Garage Door Opener..............151
Gauges............................................................102 Engine Coolant Temperature Gauge.............103
Fuel Gauge...........................................................103
Information Display.............................................103
Gearbox See: Transmission................................................178
General Information on Radio Frequencies...................................................57
Intelligent Access..................................................57
General Maintenance Information
...........475
Multi-Point Inspection........................................478
Owner Checks and Services...........................477
Protecting Your Investment..............................
475
Why Maintain Your Vehicle?.............................475
Why Maintain Your Vehicle at Your Dealership?......................................................475
Getting Assistance Outside the U.S. and Canada
.........................................................276
Getting the Services You Need................272 Away From Home...............................................272
550
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Global Opening and Closing.......................96
Closing the Windows...........................................96
Opening the Windows.........................................96
H
Hazard Flashers...........................................266
Headlamp Adjusting See: Adjusting the Headlamps........................321
Headlamp Exit Delay.....................................89
Headrest See: Head Restraints...........................................141
Head Restraints..............................................141
Adjusting the Head Restraint...........................142
Tilting Head Restraints ......................................142
Heated Exterior Mirrors...............................138
Heated Rear Window...................................138
Heated Seats
..................................................148
Front Seats............................................................148
Rear Seats.............................................................149
Heated Steering Wheel.................................83
Heating See: Climate Control..........................................135
Hints on Controlling the Interior Climate...........................................................137
Defogging the Side Windows in Cold Weather.............................................................138
General Hints........................................................137 Quickly Cooling the Interior..............................138
Quickly Heating the Interior.............................138
Recommended Settings for Cooling..............138
Recommended Settings for Heating..............138
Hints on Driving With Anti-Lock Brakes............................................................194
Hood Lock See: Opening and Closing the Hood.............301
Horn....................................................................83
I
In California (U.S. Only)...............................273
Information Display Control
.........................83
Information Displays.....................................109 General Information............................................109
Information Messages
..................................115
Active Park.............................................................115
Adaptive Cruise Control.....................................116
Adaptive Headlamps...........................................117
AdvanceTrac ™.........................................................117
Airbag......................................................................117
Alarm.......................................................................118
Automatic Engine Shutdown.............................
118
AWD........................................................................\
.119
Battery and Charging System..........................120
Blind Spot Information and Cross Traffic Alert System................................................................121 Doors and Locks...................................................121
Driver Alert............................................................122
Fuel........................................................................\
.122
Hill Start Assist.....................................................123
Keys and Intelligent Access..............................123
Lane Keeping System........................................124
Maintenance.........................................................125
MyKey.....................................................................126
Park Aid..................................................................127
Park Brake.............................................................127
Power Steering....................................................128
Pre-Collision Assist.............................................129
Remote Start.........................................................129
Seats.......................................................................130
Starting System ...................................................130
Tire Pressure Monitoring System.....................131
Traction Control....................................................131
Transmission.........................................................132
Installing Child Restraints.............................23 Child Seats..............................................................23
Using Lap and Shoulder Belts...........................23
Using Lower Anchors and Tethers for
CHildren (LATCH).............................................26
Using Tether Straps..............................................28
Instrument Cluster
........................................102
Instrument Lighting Dimmer........................89
Instrument Panel..............................................19
551
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

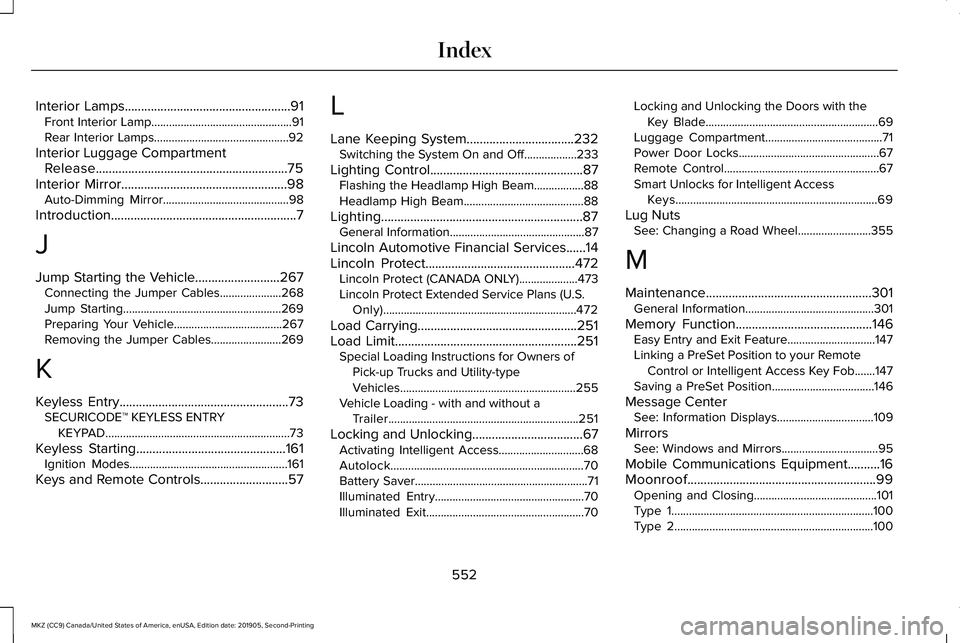

Interior Lamps...................................................91
Front Interior Lamp................................................91
Rear Interior Lamps..............................................92
Interior Luggage Compartment Release
...........................................................75
Interior Mirror...................................................98
Auto-Dimming Mirror...........................................98
Introduction
.........................................................7
J
Jump Starting the Vehicle..........................267 Connecting the Jumper Cables.....................268
Jump Starting......................................................269
Preparing Your Vehicle.....................................267
Removing the Jumper Cables........................269
K
Keyless Entry
....................................................73
SECURICODE™ KEYLESS ENTRY
KEYPAD...............................................................73
Keyless Starting
..............................................161
Ignition Modes......................................................161
Keys and Remote Controls
...........................57 L
Lane Keeping System
.................................232
Switching the System On and Off..................233
Lighting Control
...............................................87
Flashing the Headlamp High Beam.................88
Headlamp High Beam.........................................88
Lighting
..............................................................87
General Information..............................................87
Lincoln Automotive Financial Services......14
Lincoln Protect
..............................................472
Lincoln Protect (CANADA ONLY)....................473
Lincoln Protect Extended Service Plans (U.S.
Only)..................................................................472
Load Carrying
.................................................251
Load Limit........................................................251 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................255
Vehicle Loading - with and without a Trailer
.................................................................251
Locking and Unlocking..................................67 Activating Intelligent Access.............................68
Autolock..................................................................70
Battery Saver...........................................................71
Illuminated Entry...................................................70
Illuminated Exit......................................................70 Locking and Unlocking the Doors with the
Key Blade...........................................................69
Luggage Compartment........................................71
Power Door Locks................................................67
Remote Control.....................................................67
Smart Unlocks for Intelligent Access Keys.....................................................................69
Lug Nuts See: Changing a Road Wheel.........................
355
M
Maintenance...................................................301 General Information............................................301
Memory Function..........................................146 Easy Entry and Exit Feature..............................
147
Linking a PreSet Position to your Remote Control or Intelligent Access Key Fob.......147
Saving a PreSet Position...................................146
Message Center See: Information Displays.................................109
Mirrors See: Windows and Mirrors.................................95
Mobile Communications Equipment..........16
Moonroof..........................................................99 Opening and Closing..........................................101
Type 1.....................................................................100
Type 2....................................................................100
552
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

R
Rear Parking Aid...........................................203
Object Distance Indicator................................205
Rear Seat Armrest
.........................................159
Rear Seats.......................................................147
Rear View Camera........................................217
Using the Rear View Camera System............218
Rear View Camera See: Rear View Camera.....................................217
Recommended Towing Weights
...............257
Reduced Engine Performance..................262
Refueling..........................................................170 System Warnings.................................................172
Remote Control
...............................................57
Car Finder...............................................................60
Intelligent Access Key..........................................57
Remote Start..........................................................60
Replacing the Battery..........................................58
Sounding the Panic Alarm..................................60
Remote Start
...................................................139
Automatic Settings..............................................139
Heated and Cooled Features..........................139
Last Settings.........................................................139
Repairing Minor Paint Damage
..................331
Replacement Parts Recommendation........15 Collision Repairs....................................................15 Scheduled Maintenance and Mechanical
Repairs.................................................................15
Warranty on Replacement Parts........................15
Replacing a Lost Key or Remote Control.............................................................61
Reporting Safety Defects (Canada Only)..............................................................279
Reporting Safety Defects (U.S. Only).......279
Resuming the Set Speed...........................222
Roadside Assistance
...................................265
Vehicles Sold in Canada: Getting Roadside
Assistance.......................................................266
Vehicles sold in the United States: Getting Roadside Assistance....................................265
Vehicles Sold in the United States: Using Roadside Assistance....................................265
Roadside Emergencies...............................265
Running-In See: Breaking-In.................................................262
Running Out of Fuel
.....................................169
Adding Fuel From a Portable Fuel
Container..........................................................169
Filling a Portable Fuel Container.....................
169
S
Safety Canopy™................................................51
Safety Precautions........................................167 Satellite Radio
...............................................405
Satellite Radio Electronic Serial Number
(ESN)..................................................................406
Satellite Radio Reception Factors..................405
SiriusXM Satellite Radio Service....................406
Troubleshooting..................................................407
Scheduled Maintenance Record..............488
Scheduled Maintenance.............................475
Seatbelt Extensions
........................................43
Seatbelt Height Adjustment.........................39
Seatbelt Reminder
...........................................41
Belt-Minder™............................................................41
Seatbelts...........................................................36 Principle of Operation..........................................36
Seatbelt Warning Lamp and Indicator Chime..............................................................40
Conditions of operation......................................40
Seats
.................................................................140
Security..............................................................77
Settings............................................................451 911 Assist................................................................451
Ambient Lighting................................................452
Audio......................................................................451
Automatic Updates.............................................451
Bluetooth...............................................................451
Charge Settings...................................................451
Clock.......................................................................451
Display....................................................................451
554
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
