FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current fuses. WARNING:
To reduce risk of
electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.
If you disconnect and reconnect the battery,
you need to reset some features.
See
Changing the 12V Battery (page 318).
281
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

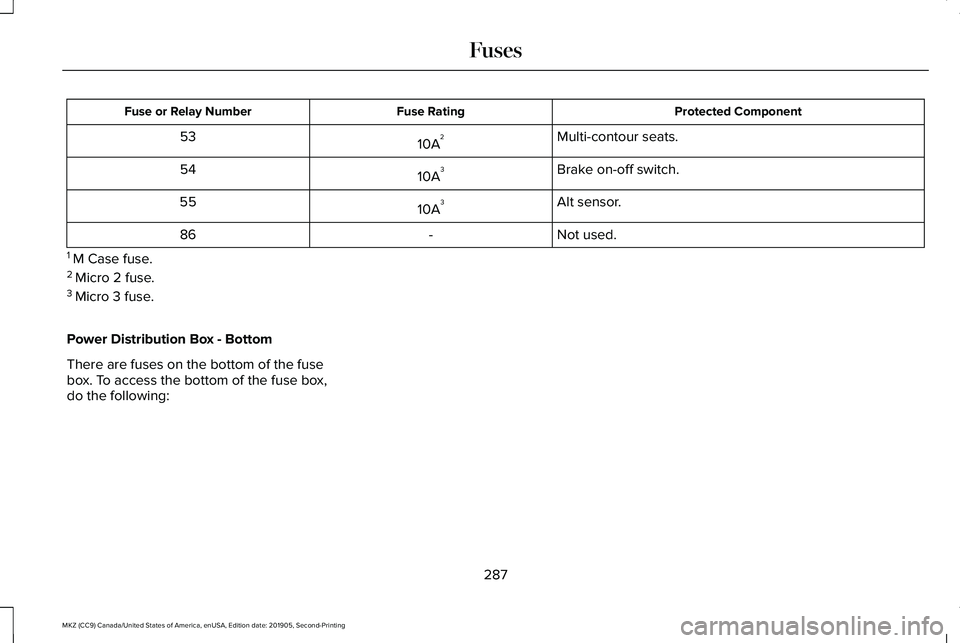

Protected Component
Fuse Rating
Fuse or Relay Number
Multi-contour seats.
10A 2
53
Brake on-off switch.
10A 3
54
Alt sensor.
10A 3
55
Not used.
-
86
1 M Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
287
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

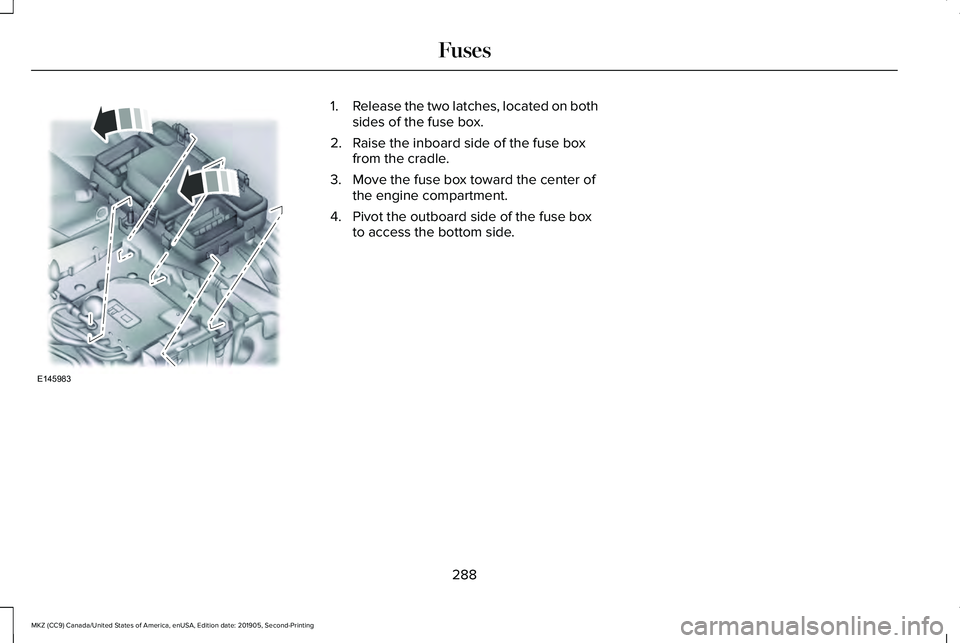

1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
288
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983

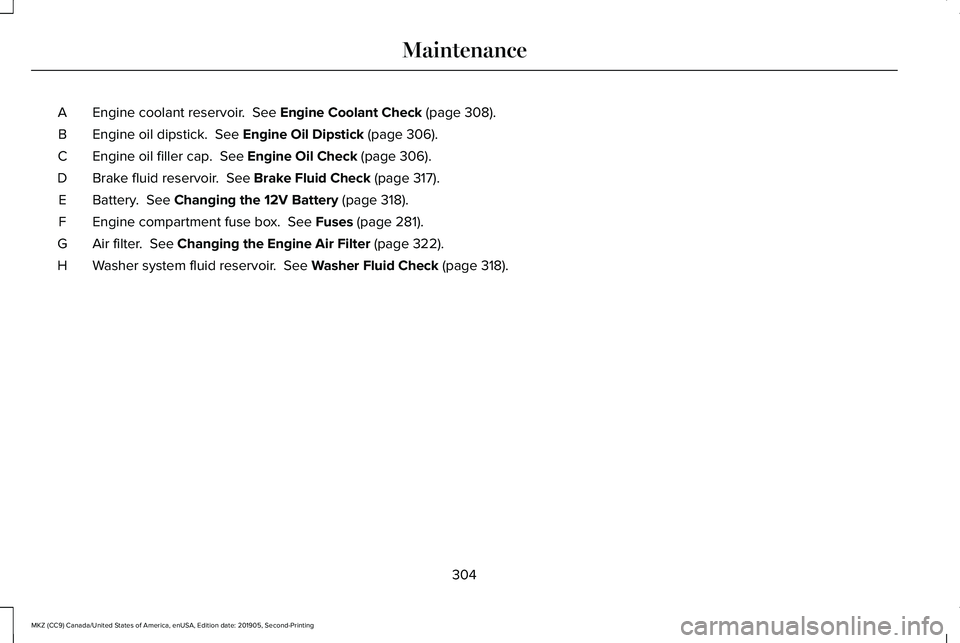

Engine coolant reservoir. See Engine Coolant Check (page 308).
A
Engine oil dipstick.
See Engine Oil Dipstick (page 306).
B
Engine oil filler cap.
See Engine Oil Check (page 306).
C
Brake fluid reservoir.
See Brake Fluid Check (page 317).
D
Battery.
See Changing the 12V Battery (page 318).
E
Engine compartment fuse box.
See Fuses (page 281).
F
Air filter.
See Changing the Engine Air Filter (page 322).
G
Washer system fluid reservoir.
See Washer Fluid Check (page 318).
H
304
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Maintenance

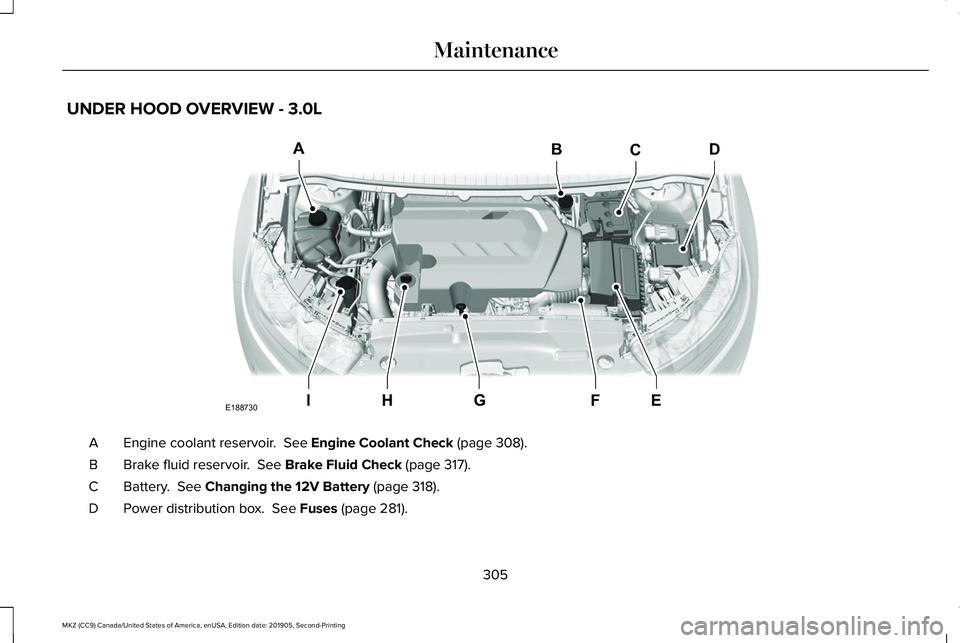

UNDER HOOD OVERVIEW - 3.0L
Engine coolant reservoir. See Engine Coolant Check (page 308).
A
Brake fluid reservoir.
See Brake Fluid Check (page 317).
B
Battery.
See Changing the 12V Battery (page 318).
C
Power distribution box.
See Fuses (page 281).
D
305
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing MaintenanceA
IEFGH
BCD
E188730
