LINCOLN MKZ HYBRID 2013 Owners Manual

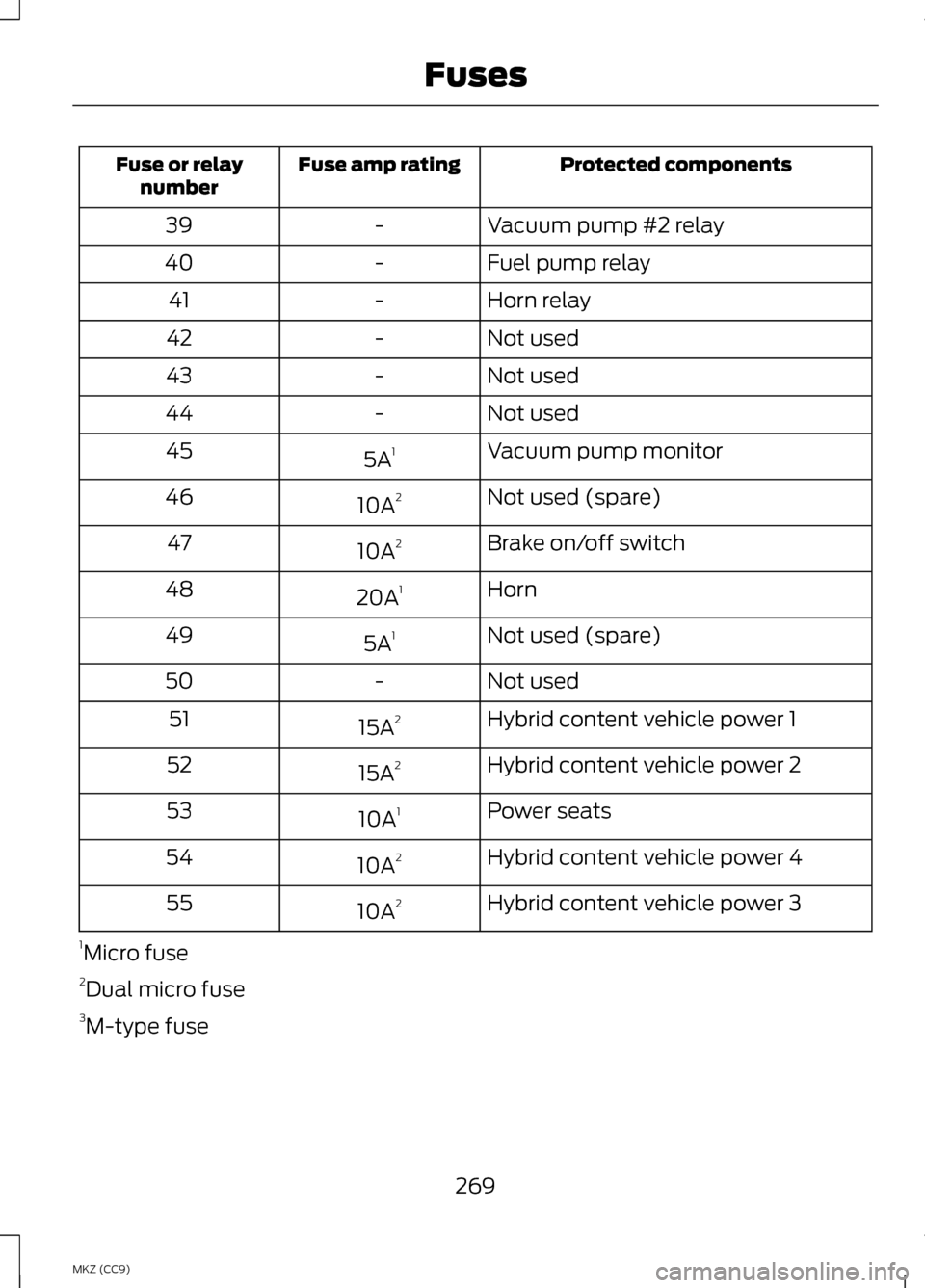

Protected components
Fuse amp rating
Fuse or relay
number
Vacuum pump #2 relay
-
39
Fuel pump relay
-
40
Horn relay
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Vacuum pump monitor
5A 1
45
Not used (spare)
10A 2
46
Brake on/off switch
10A 2
47
Horn
20A 1
48
Not used (spare)
5A 1
49
Not used
-
50
Hybrid content vehicle power 1
15A 2
51
Hybrid content vehicle power 2
15A 2
52
Power seats
10A 1
53
Hybrid content vehicle power 4
10A 2
54
Hybrid content vehicle power 3
10A 2
55
1 Micro fuse
2 Dual micro fuse
3 M-type fuse
269
MKZ (CC9) Fuses

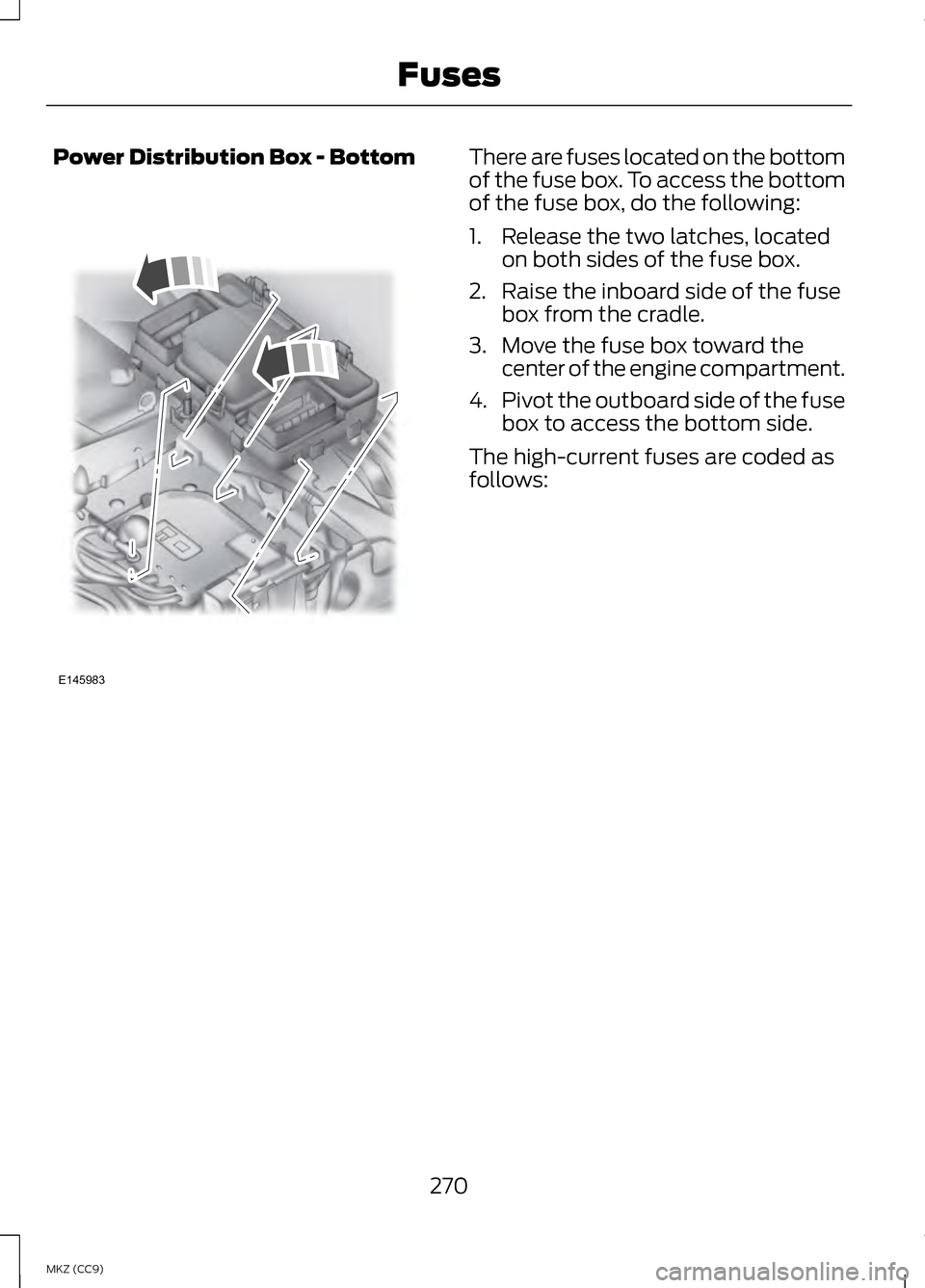

Power Distribution Box - Bottom There are fuses located on the bottom
of the fuse box. To access the bottom
of the fuse box, do the following:
1. Release the two latches, located
on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse
box to access the bottom side.
The high-current fuses are coded as
follows:
270
MKZ (CC9) FusesE145983

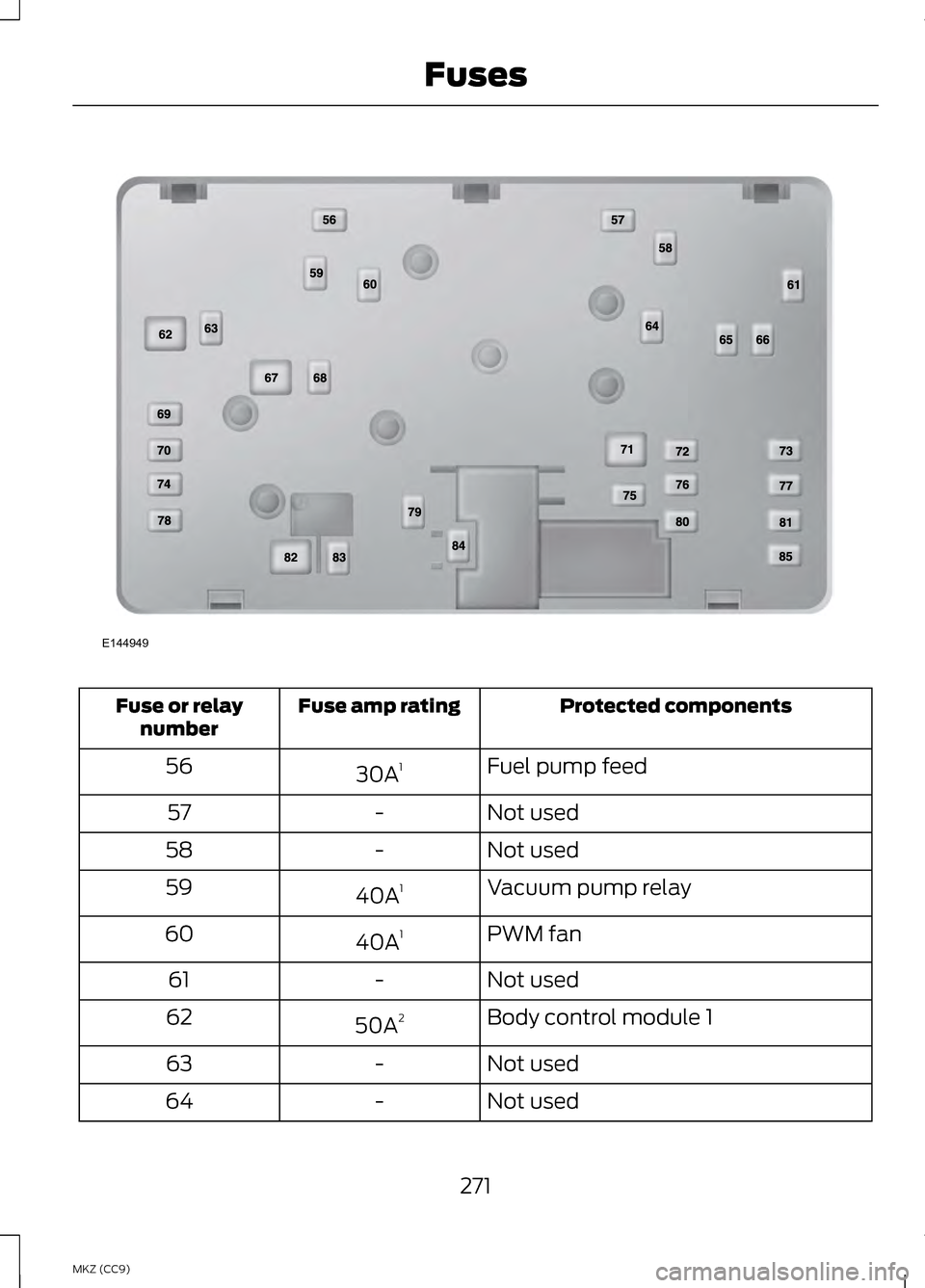

Protected components
Fuse amp rating
Fuse or relay
number
Fuel pump feed
30A 1
56
Not used
-
57
Not used
-
58
Vacuum pump relay
40A 1
59
PWM fan
40A 1
60
Not used
-
61
Body control module 1
50A 2
62
Not used
-
63
Not used
-
64
271
MKZ (CC9) FusesE144949

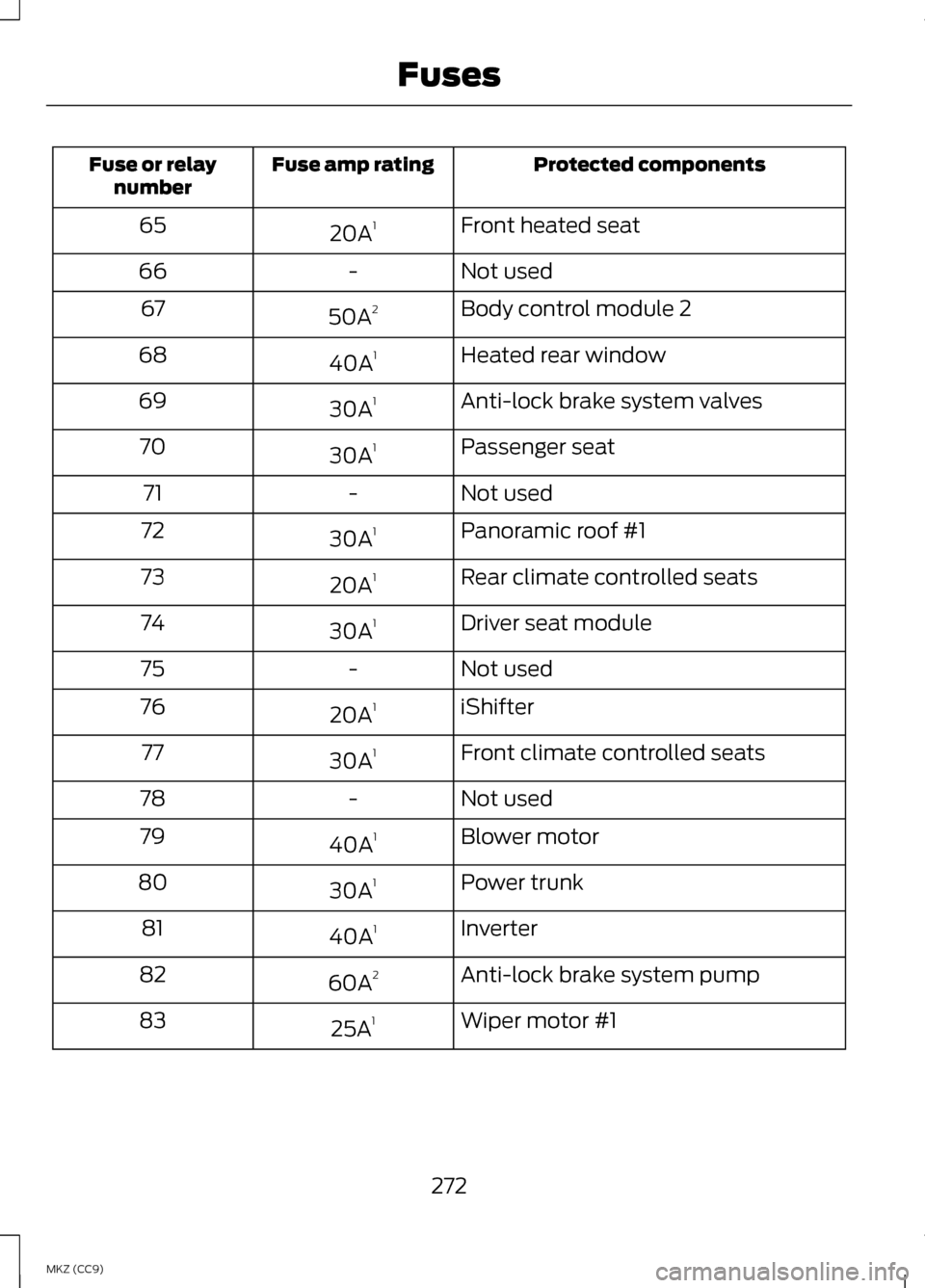

Protected components
Fuse amp rating
Fuse or relay
number
Front heated seat
20A 1
65
Not used
-
66
Body control module 2
50A 2
67
Heated rear window
40A 1
68
Anti-lock brake system valves
30A 1
69
Passenger seat
30A 1
70
Not used
-
71
Panoramic roof #1
30A 1
72
Rear climate controlled seats
20A 1
73
Driver seat module
30A 1
74
Not used
-
75
iShifter
20A 1
76
Front climate controlled seats
30A 1
77
Not used
-
78
Blower motor
40A 1
79
Power trunk
30A 1
80
Inverter
40A 1
81
Anti-lock brake system pump
60A 2
82
Wiper motor #1
25A 1
83
272
MKZ (CC9) Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Not used
-
84
Panoramic roof #2
30A 1
85
1 M-type fuse
2 J-type fuse

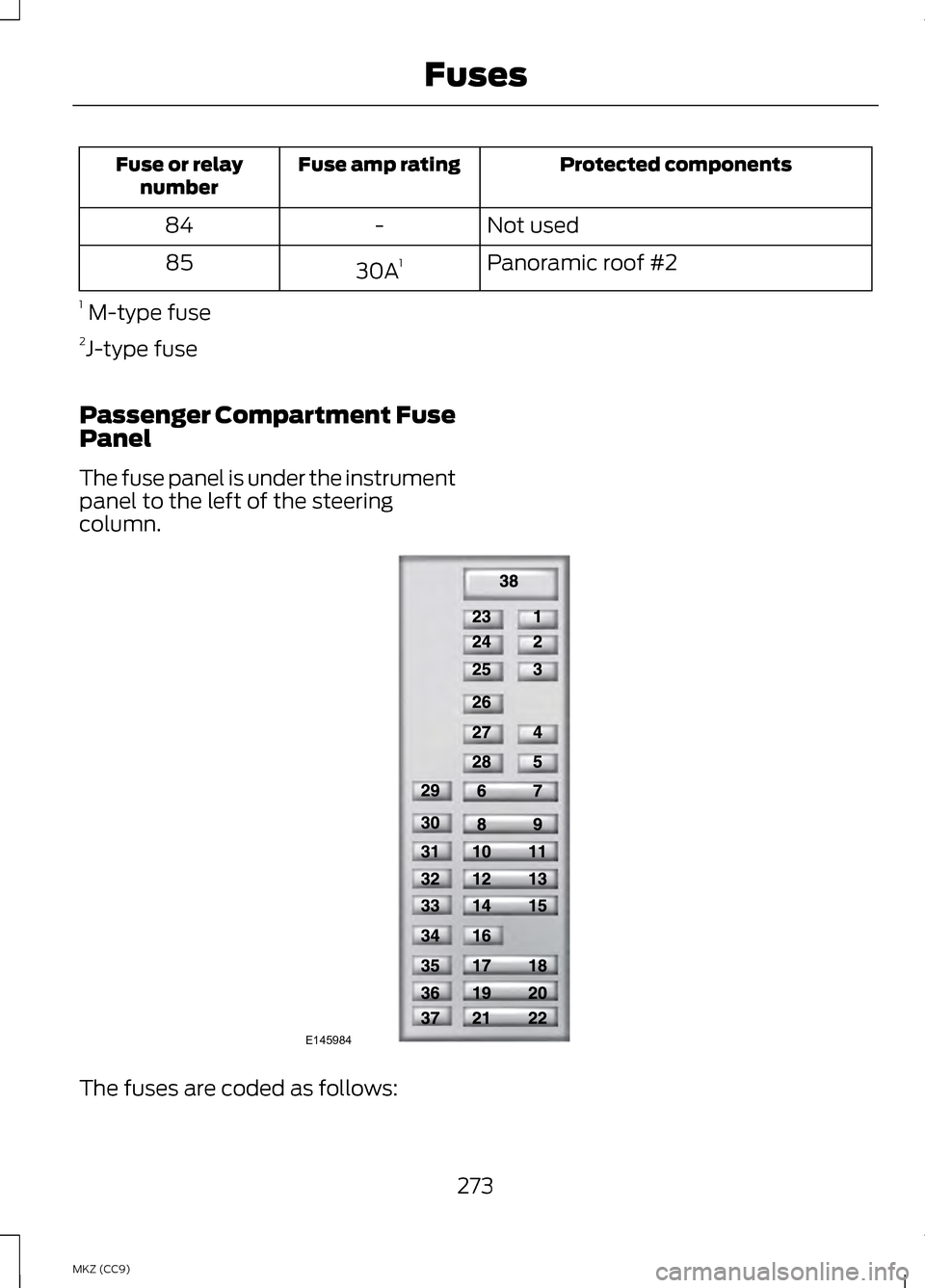

Passenger Compartment Fuse
Panel
The fuse panel is under the instrument
panel to the left of the steering
column. The fuses are coded as follows:
273
MKZ (CC9) FusesE145984

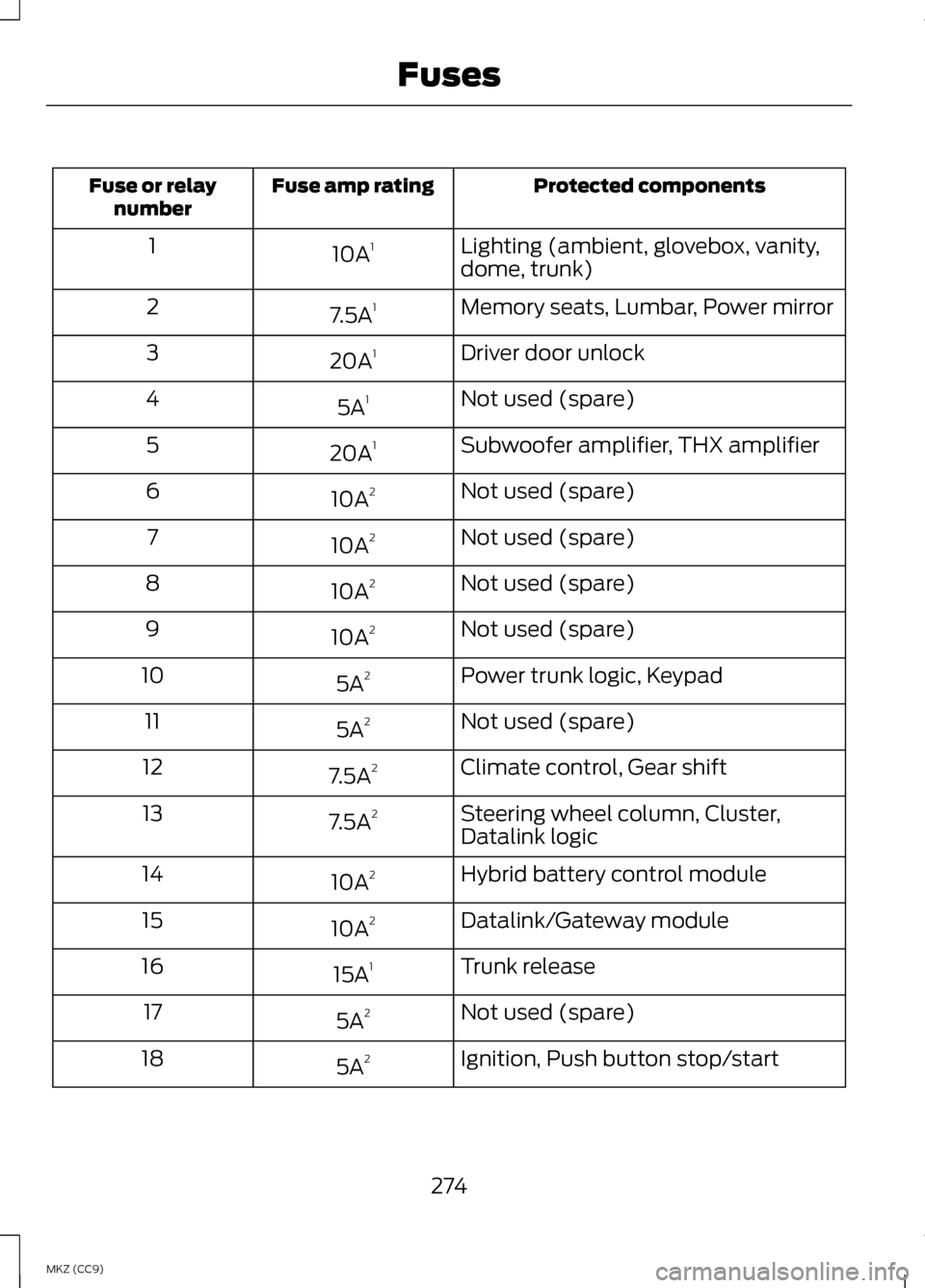

Protected components
Fuse amp rating
Fuse or relay
number
Lighting (ambient, glovebox, vanity,
dome, trunk)
10A
1
1
Memory seats, Lumbar, Power mirror
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier, THX amplifier
20A 1
5
Not used (spare)
10A 2
6
Not used (spare)
10A 2
7
Not used (spare)
10A 2
8
Not used (spare)
10A 2
9
Power trunk logic, Keypad
5A 2
10
Not used (spare)
5A 2
11
Climate control, Gear shift
7.5A 2
12
Steering wheel column, Cluster,
Datalink logic
7.5A
2
13
Hybrid battery control module
10A 2
14
Datalink/Gateway module
10A 2
15
Trunk release
15A 1
16
Not used (spare)
5A 2
17
Ignition, Push button stop/start
5A 2
18
274
MKZ (CC9) Fuses

Protected components
Fuse amp rating
Fuse or relay
number
Passenger airbag disabled indicator,
Transmission range
5A
2
19
Adaptive headlamps
5A 2
20
Humidity and in-car temperature, Rear
climate seats
5A
2
21
Occupant classification sensor
5A 2
22
Delayed accessory (power inverter
logic, moonroof logic)
10A
1
23
Central lock/unlock
30A 1
24
Driver door (window, mirror)
30A 1
25
Front passenger door (window, mirror)
30A 1
26
Moonroof
30A 1
27
THX amplifier
20A 1
28
Rear driver side door (window)
30A 1
29
Rear passenger side door (window)
30A 1
30
Not used (spare)
15A 1
31
GPS, Voice control, Display, Adaptive
cruise control, Radio frequency
receiver
10A
1
32
Radio, Active noise control
20A 1
33
Run/start (fuse #19, 20, 21, 22, 35, 36,
37, circuit breaker)
30A
1
34
Restraints control module
5A 1
35
275
MKZ (CC9) Fuses

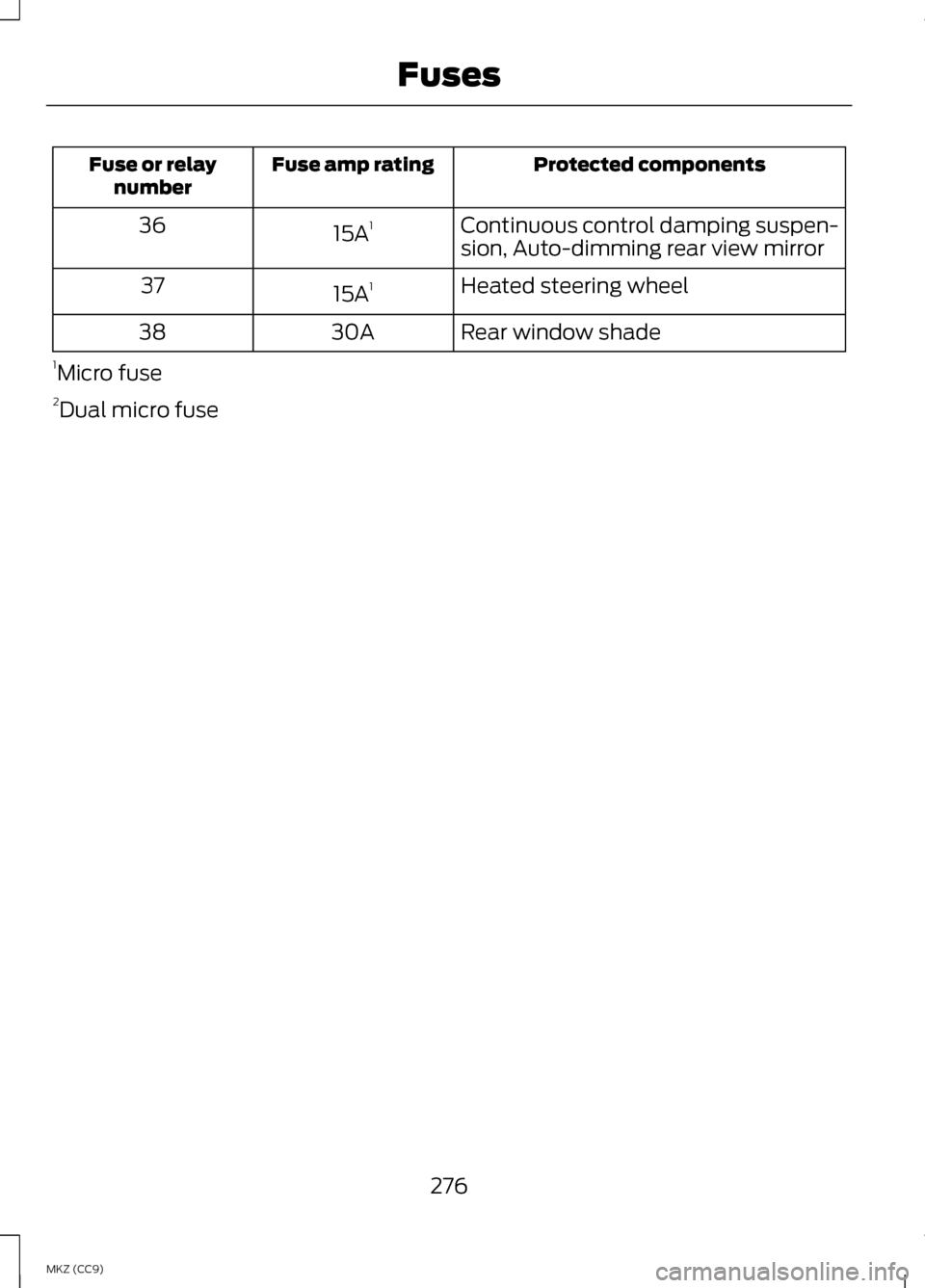

Protected components
Fuse amp rating
Fuse or relay
number
Continuous control damping suspen-
sion, Auto-dimming rear view mirror
15A
1
36
Heated steering wheel
15A 1
37
Rear window shade
30A
38
1 Micro fuse
2 Dual micro fuse
276
MKZ (CC9) Fuses

GENERAL INFORMATION
Have your vehicle serviced regularly
to help maintain its roadworthiness
and resale value. There is a large
network of Ford authorized dealers
that are there to help you with their
professional servicing expertise. We
believe that their specially trained
technicians are best qualified to
service your vehicle properly and
expertly. They are supported by a wide
range of highly specialized tools
developed specifically for servicing
your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking
routine service easy. See Scheduled
Maintenance (page 444).
If your vehicle requires professional
service, your authorized dealer can
provide the necessary parts and
service. Check your warranty
information to find out which parts
and services are covered.
Use only recommended fuels,
lubricants, fluids and service parts
conforming to specifications.
Motorcraft® parts are designed and
built to provide the best performance
in your vehicle.
Precautions
• Do not work on a hot engine.
• Make sure that nothing gets
caught in moving parts. •
Do not work on a vehicle with the
engine running in an enclosed
space, unless you are sure you
have enough ventilation.
• Keep all open flames and other
burning material (such as
cigarettes) away from the battery
and all fuel related parts.
Working with the Engine Off
1. Set the parking brake and shift to P
(Park).
2. Turn off the engine and remove the
key (if equipped).
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle
damage and/or personal burn
injuries, do not start your engine with
the air cleaner removed and do not
remove it while the engine is running. 1. Set the parking brake and shift to
P
(Park).
2. Block the wheels
277
MKZ (CC9) Maintenance

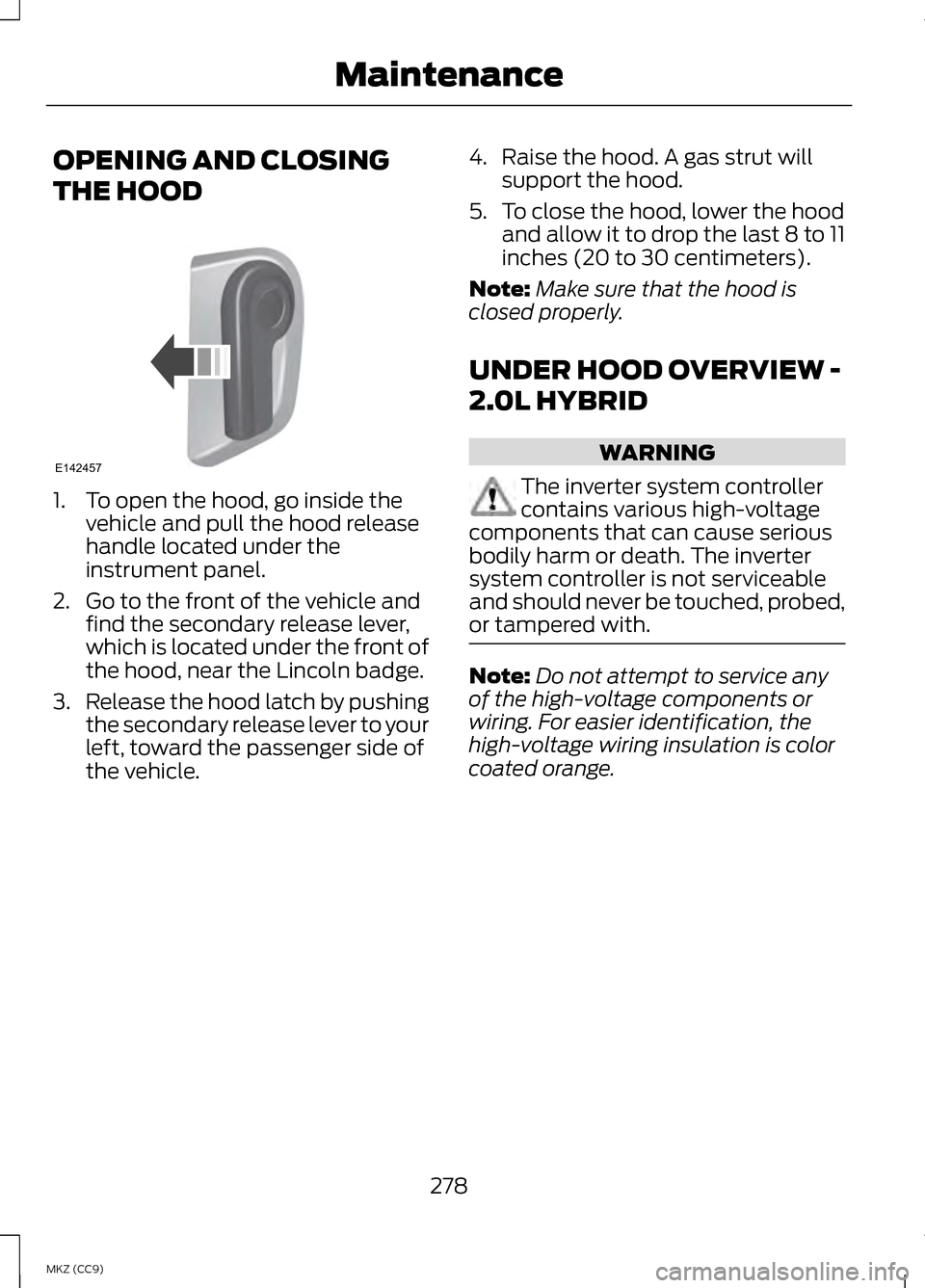

OPENING AND CLOSING
THE HOOD
1. To open the hood, go inside the
vehicle and pull the hood release
handle located under the
instrument panel.
2. Go to the front of the vehicle and find the secondary release lever,
which is located under the front of
the hood, near the Lincoln badge.
3. Release the hood latch by pushing
the secondary release lever to your
left, toward the passenger side of
the vehicle. 4. Raise the hood. A gas strut will
support the hood.
5. To close the hood, lower the hood and allow it to drop the last 8 to 11
inches (20 to 30 centimeters).
Note: Make sure that the hood is
closed properly.
UNDER HOOD OVERVIEW -
2.0L HYBRID WARNING
The inverter system controller
contains various high-voltage
components that can cause serious
bodily harm or death. The inverter
system controller is not serviceable
and should never be touched, probed,
or tampered with. Note:
Do not attempt to service any
of the high-voltage components or
wiring. For easier identification, the
high-voltage wiring insulation is color
coated orange.
278
MKZ (CC9) MaintenanceE142457
