TECHNICAL SPECIFICATIONS

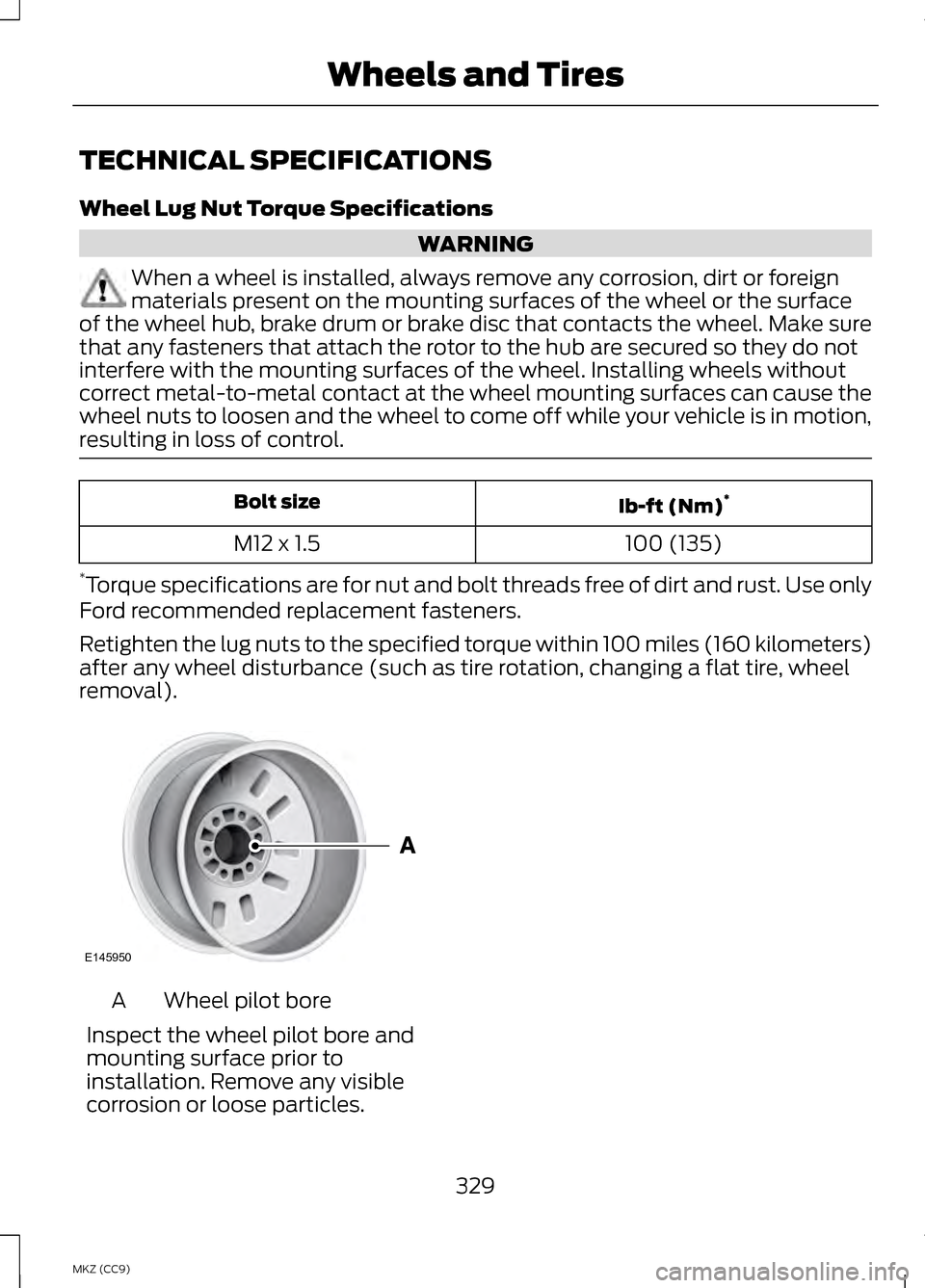

Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface
of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure
that any fasteners that attach the rotor to the hub are secured so they do not
interfere with the mounting surfaces of the wheel. Installing wheels without
correct metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in motion,
resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only
Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers)
after any wheel disturbance (such as tire rotation, changing a flat tire, wheel
removal). Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
329
MKZ (CC9) Wheels and TiresE145950

ENGINE SPECIFICATIONS
2.0L ATK iVCT Engine
Engine
122
Cubic inches
Minimum 87 octane
Required fuel
1-3-4-2
Firing order
Coil on plug (COP)
Ignition system
12.3:1
Compression
ratio
0.051 in. ± 0.002 in. (1.3 mm ± 0.05 mm)
Spark plug gap
330
MKZ (CC9) Capacities and Specifications

MOTORCRAFT PARTS
2.0L ATK iVCT Engine
Component
FA-1911
Air filter element 1
FL-910-S
Oil filter 2
BXT-96R-500
Battery
BXT-96R-590
SP-531
Spark plugs 3
FP-71
Cabin air filter
FS-104
Seat filter
WW-2200 (driver side)
Windshield wiper blade
WW-1900 (passenger side)
1 Failure to use the correct air filter element may result in severe engine damage.
The customer warranty may be void for any damage to the engine if the correct
air filter element is not used.
2 Only use the specified replacement oil filter. The use of a non-specified oil
filter can result in engine damage.
3 For spark plug replacement, see your authorized dealer. Replace the spark
plugs at the appropriate intervals. See Scheduled Maintenance (page 444).
Note: Replace the spark plugs with ones that meet Ford material and design
specifications for your vehicle, such as Motorcraft or equivalent replacement
parts. The customer warranty may be void for any damage to the engine if such
spark plugs are not used.
331
MKZ (CC9) Capacities and Specifications

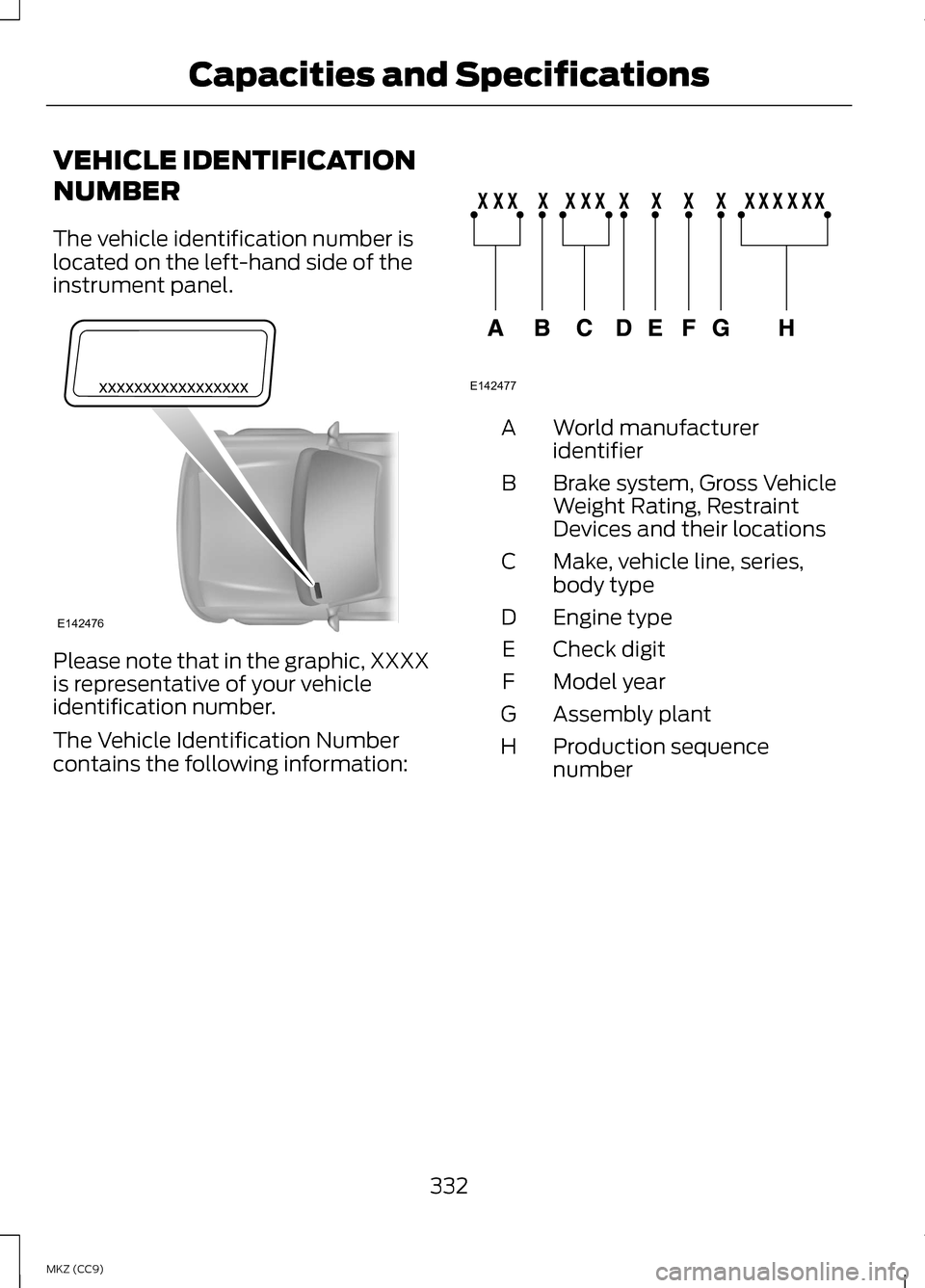

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX
is representative of your vehicle
identification number.
The Vehicle Identification Number
contains the following information: World manufacturer
identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint
Devices and their locations
B
Make, vehicle line, series,
body type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence
number
H
332
MKZ (CC9) Capacities and SpecificationsE142476 E142477

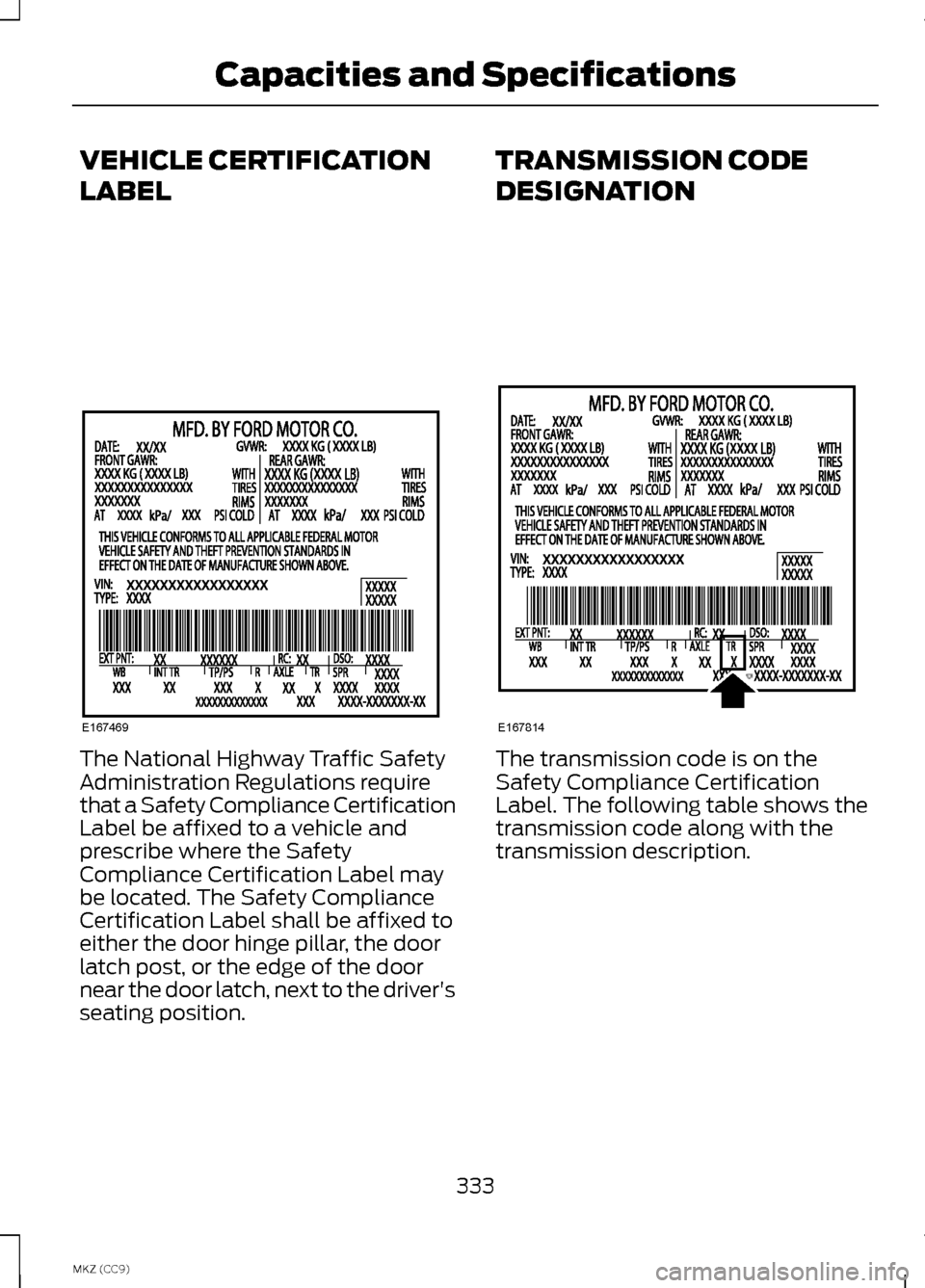

VEHICLE CERTIFICATION
LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the driver's
seating position. TRANSMISSION CODE
DESIGNATION
The transmission code is on the
Safety Compliance Certification
Label. The following table shows the
transmission code along with the
transmission description.
333

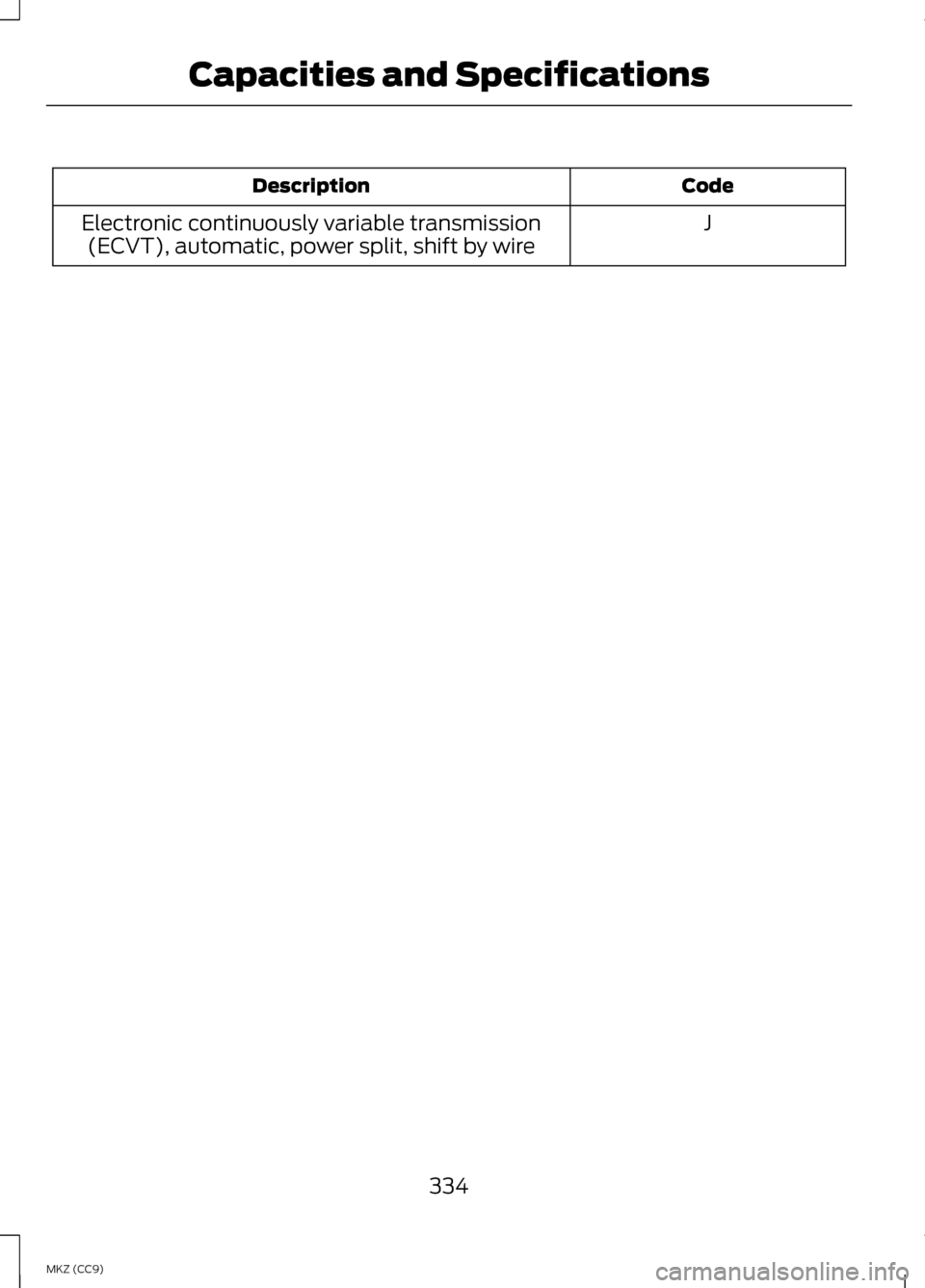

MKZ (CC9) Capacities and SpecificationsE167469 E167814

Code
Description
J
Electronic continuously variable transmission
(ECVT), automatic, power split, shift by wire
334
MKZ (CC9) Capacities and Specifications

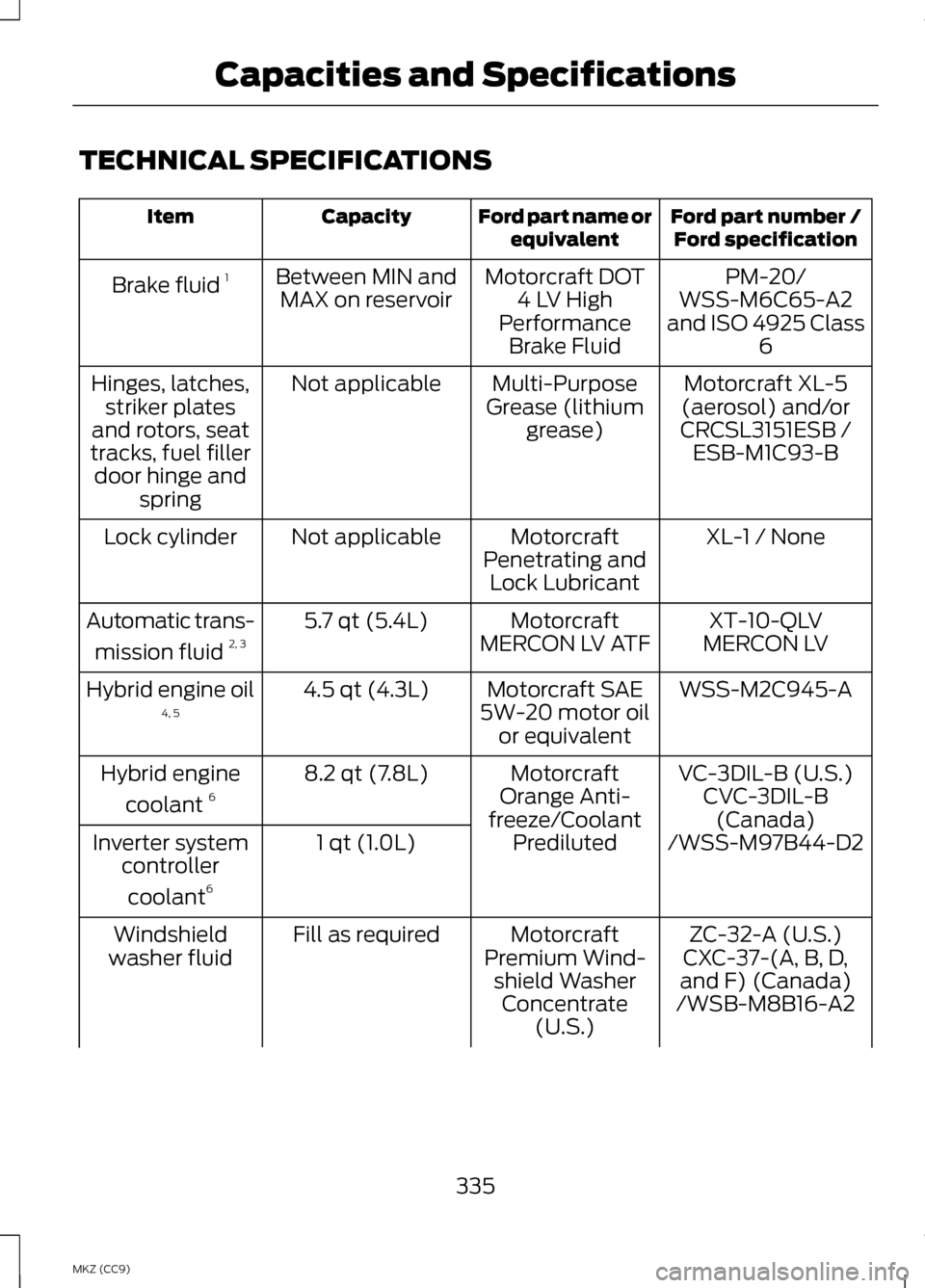

TECHNICAL SPECIFICATIONS
Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
PM-20/
Motorcraft DOT
4 LV High
Performance Brake Fluid
Between MIN and
MAX on reservoir
Brake fluid
1
WSS-M6C65-A2
and ISO 4925 Class 6
Motorcraft XL-5
(aerosol) and/or
CRCSL3151ESB /
Multi-Purpose
Grease (lithium grease)
Not applicable
Hinges, latches,
striker plates
and rotors, seat
tracks, fuel filler door hinge and spring ESB-M1C93-B
XL-1 / None
Motorcraft
Penetrating and Lock Lubricant
Not applicable
Lock cylinder
XT-10-QLV
MERCON LV
Motorcraft
MERCON LV ATF
5.7 qt (5.4L)
Automatic trans-
mission fluid 2, 3
WSS-M2C945-A
Motorcraft SAE
5W-20 motor oil or equivalent
4.5 qt (4.3L)
Hybrid engine oil
4, 5
VC-3DIL-B (U.S.)
Motorcraft
Orange Anti-
freeze/Coolant Prediluted
8.2 qt (7.8L)
Hybrid engine
coolant 6
CVC-3DIL-B
(Canada)
/WSS-M97B44-D2
1 qt (1.0L)
Inverter system
controller
coolant 6
ZC-32-A (U.S.)
Motorcraft
Premium Wind- shield WasherConcentrate (U.S.)
Fill as required
Windshield
washer fluid CXC-37-(A, B, D,
and F) (Canada)
/WSB-M8B16-A2
335
MKZ (CC9) Capacities and Specifications

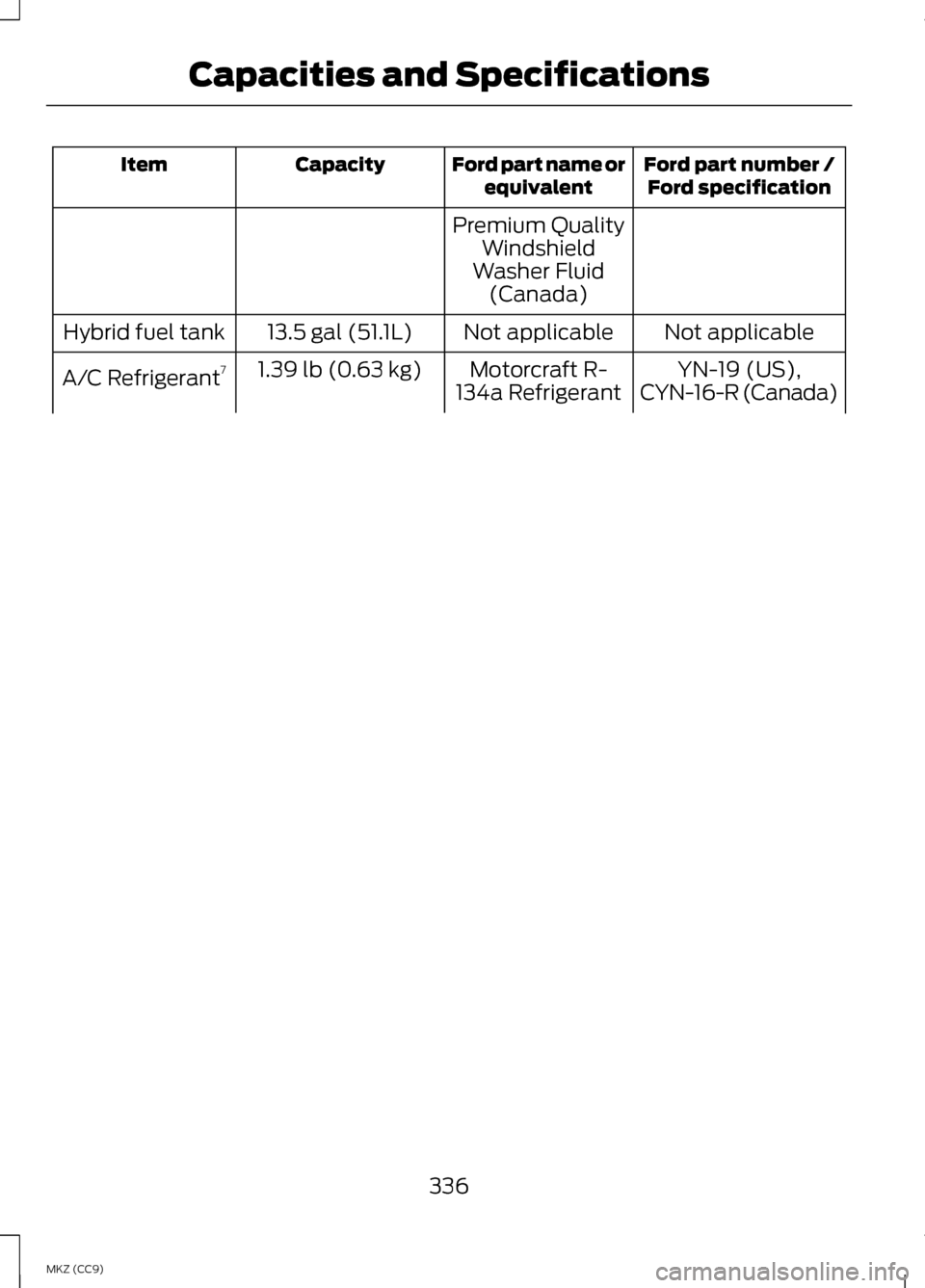

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
Premium QualityWindshield
Washer Fluid (Canada)
Not applicable
Not applicable
13.5 gal (51.1L)
Hybrid fuel tank
YN-19 (US),
Motorcraft R-
134a Refrigerant
1.39 lb (0.63 kg)
A/C Refrigerant 7
CYN-16-R (Canada)
336
MKZ (CC9) Capacities and Specifications

Ford part number /
Ford specification
Ford part name or
equivalent
Capacity
Item
/WSH-M17B19-AYN-32/WSS-M2C31-B2
Motorcraft PAG
Refrigerant
Compressor Oil
5.2 oz (153 ml)
A/C Refrigerant
Compressor Oil 7
Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent
meeting WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than
the recommended fluid may cause brake system damage. 1
2 Approximate dry fill capacity. Actual amount may vary during fluid changes.
3 Automatic transmissions that require Motorcraft MERCON LV transmission
fluid should only use Motorcraft MERCON LV transmission fluid.
Use of any fluid other than the recommended fluid may cause transmission
damage.
Change the automatic transmission fluid and filter at the correct service interval.
See Scheduled Maintenance (page 444).
4 Your engine has been designed to use engine oil that meets Ford specification.
It is also acceptable to use an engine oil of recommended viscosity grade that
displays the API Certification Mark for gasoline engines.
Do not use API S category oils labeled as SN, SM, SL or lower category unless
the label also display the API certification mark. These oils do not meet
requirements of your vehicle''s engine and emissions system.
5 Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that is not
covered by Ford warranty.
6 Add the coolant type originally equipped in your vehicle.
7 WARNING
The A/C refrigerant system contains refrigerant R-134a under high pressure.
Opening the A/C refrigerant system can cause personal injury. A/C
refrigerant system is to be serviced only by qualified personnel. 337
